Design

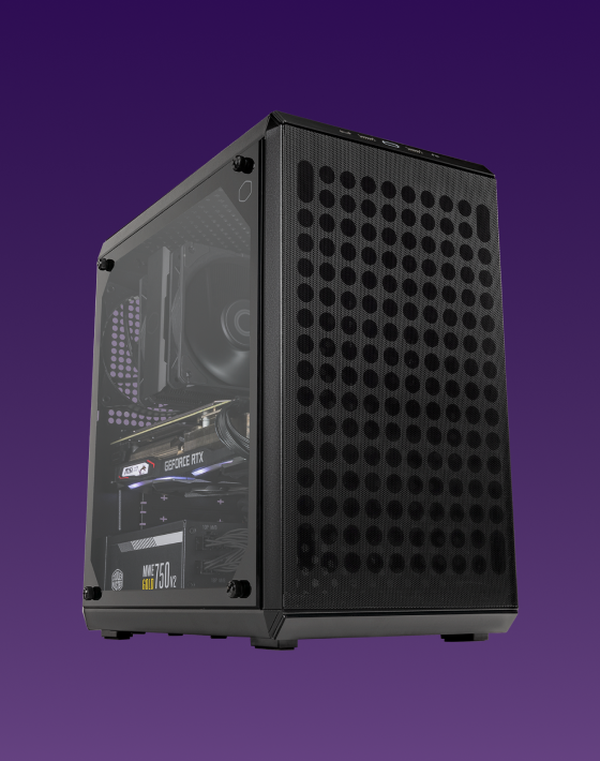

Edge To Edge Tempered Glass Side Panel
Show off your build through the 4mm-thick tempered glass side panel, easily installed with thumbscrews.
New Design
Magnetic Dust Filter
The redesigned dust filter keeps your PC breathing easy
with a refreshed patterned design.
Ports & Slots
USB 3.2 GEN2 2x2 Supported
USB 3.2 Gen 2x2 Type C port built into the I/O panel with data transfer speeds up to 20Gbps.
Design

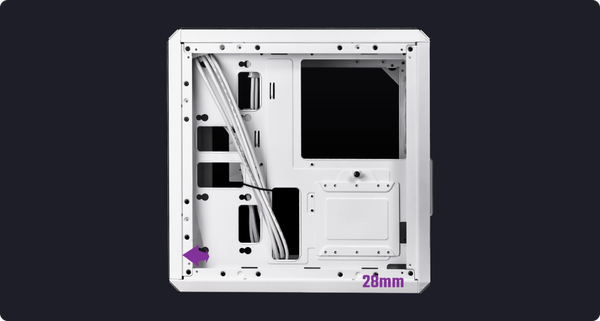

Clean Routing Space

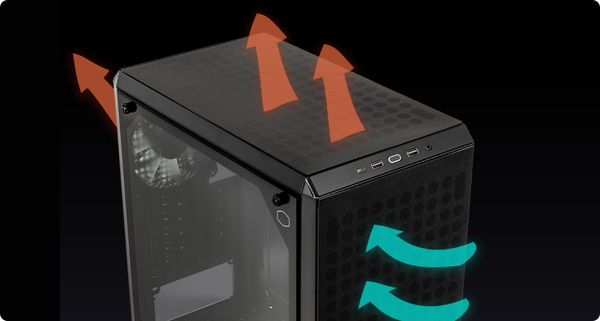

Air Flow
Excellent Thermal Performance
| Model Number | Black: Q300LV2-KGNN-S00, White: Q300LV2-WGNN-S00 |
| Exterior Color | Black, White |
| Materials - Exterior | Steel, Plastic |
| Materials - Left Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 387 x 230 x 383mm (incl. Protrusions), 370 x 210 x 370mm (excl. Protrusions) |
| Volume | 29L (excl. Protrusions) |
| Motherboard Support | Mini-ITX, Micro-ATX |
| Expansion Slots | 4 |
| 5.25" Drive Bays | 0 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 2 |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C |
| I/O Panel - Audio In / Out | 1x Audio Jack |
| Pre-installed Fans - Top | N/A |
| Pre-installed Fans - Front | N/A |
| Pre-installed Fans - Rear | Black: 1x 120mm, White: 1x 120mm (none LED, white) |
| Fan Support - Top | 2x 120mm |
| Fan Support - Front | 2x 120/140mm |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Bottom | 1x 120mm |
| Radiator Support - Front | 120 / 240mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 159mm |
| Clearance - PSU | 160mm |
| Clearance - GFX | 360mm |
| Cable Routing - Behind Motherboard Tray | 28mm |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| Warranty | 2 years |
| Size | Mini Tower |
| Series | QUBE Series |
