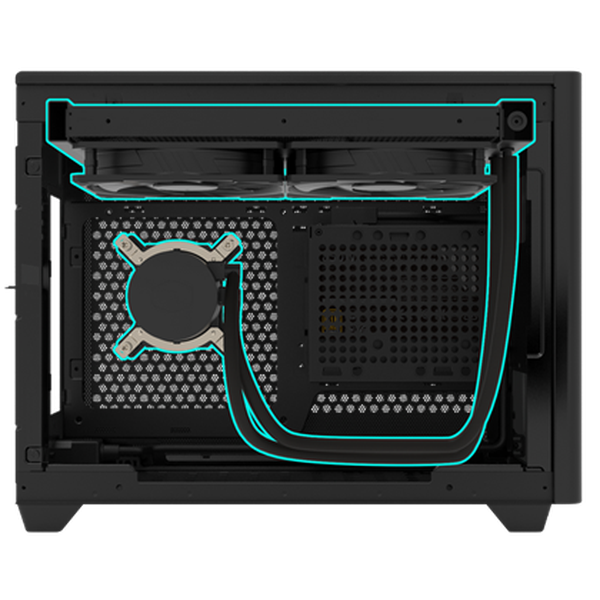

The pre-installed, pre-routed power supply and CPU-cooler
allows for ease of building and optimal cable & tubing management.
Install a motherboard, HDDs and finish off with a GPU:
No hassle, no routing. Stow away excess cables and you’re good to go.

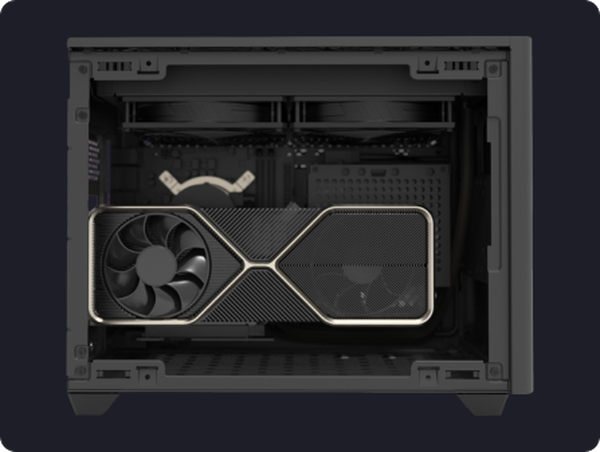

This exclusive, removable GPU panel design simplifies the process
of mounting large GPUs in SFF chassis, enabling greater hardware
support and hands-free installation.
The motherboard tray is designed for unrestricted access to any m.2 drives installed behind the motherboard. The ventilated paneling ensures that m.2 storage drives installed in this location runs cool and reliably.

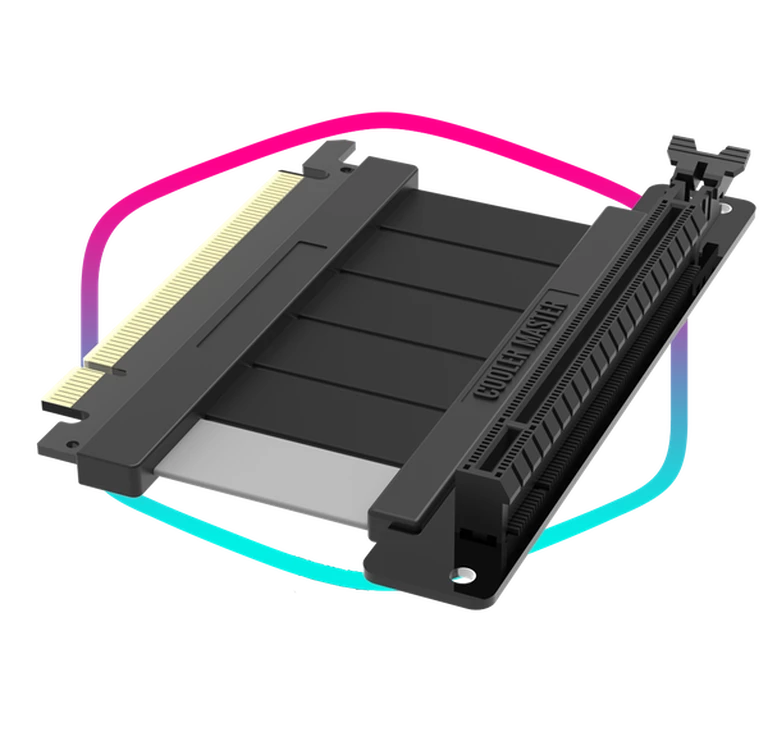

NR200P MAX comes equipped with a premium shielded PCIe Gen4 Riser Cable to ensure both maximum compatibility and performance with all graphics cards.

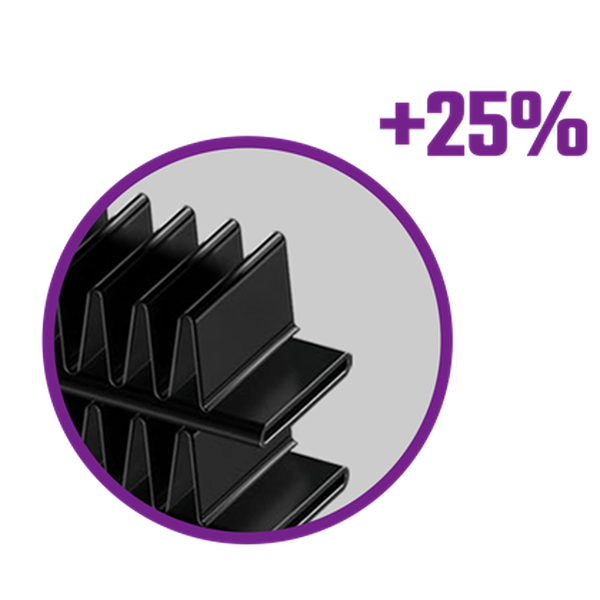

NR200P MAX’s built-in 280mm radiator boasts unmatched cooling efficiency owing to a 25% increase in aluminum fin surface area.

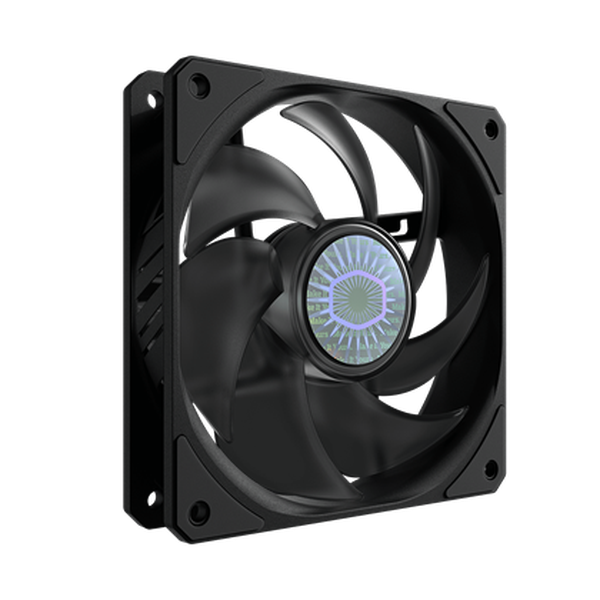

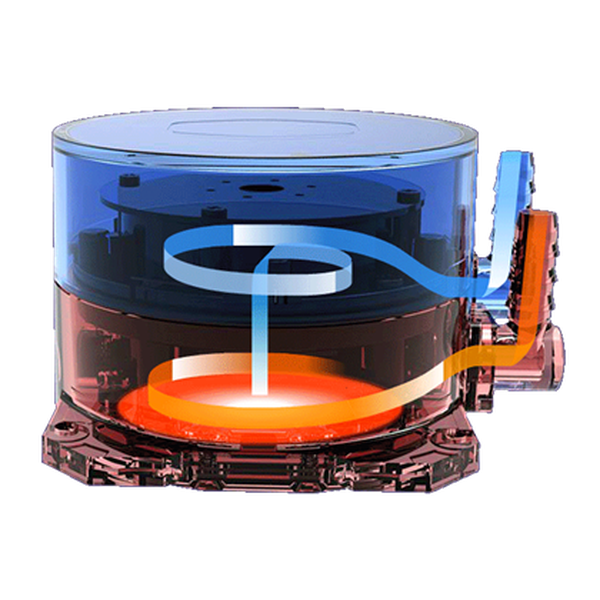

Compatible with a wide variety of Intel and AMD sockets (all brackets included), the AIO’s upgraded Gen3 dual-chamber pump is bound to keep any CPU running at optimum performance. Included Sickleflow 140 Non-LED fans utilize a two-tier sealing mechanism to prevent dust accumulation, resulting in longer serviceable life span and silent performance.

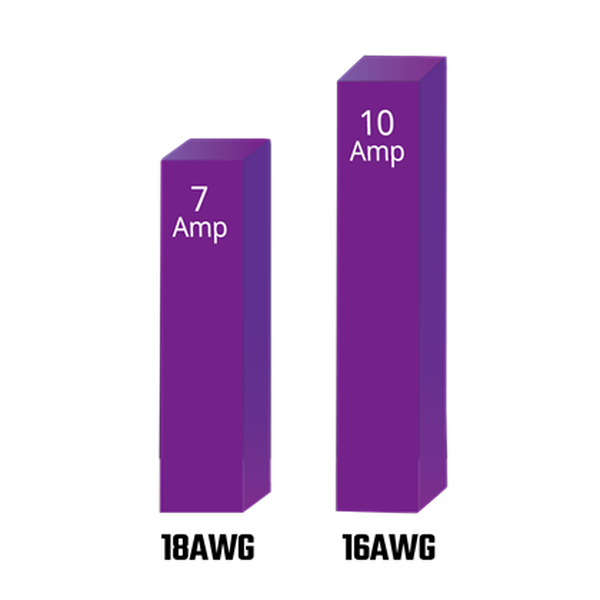

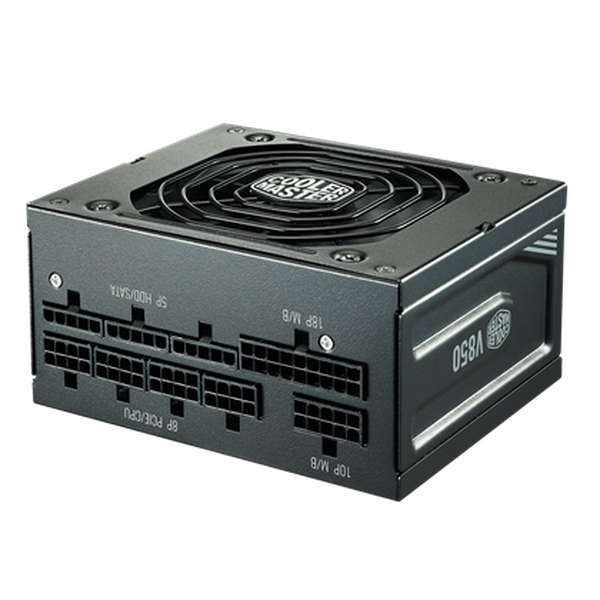

The pre-installed, 80 Plus Gold efficiency PSU features 16AWG PCIe full-modular, high efficiency cables tailor-made to allow ease of installation without the hassle of cable management. Tailor-made to a small form factor, this PSU allows clearance for the largest, widest graphics cards while making the most of NR200P MAX’s 18 liter chassis.
Got any feedback or future product requests? Or maybe you just want to chat with our product team. Join us our community on Discord and Reddit to talk directly to the designers of the products, or participate in feedback surveys, giveaways and more! We want to hear from you!
| Product Number | NR200P-MCNN85-SL0 |
| Exterior Color | Black / Grey |
| Materials - Exterior | SGCC Steel |
| Materials - Left Side Panel | Tempered Glass x1 |
| Dimensions (L x W x H) | 377 x 185 x 292mm (incl. Protrusions) |
| Volume | 18.30L |
| Motherboard Support | Mini-ITX |
| Expansion Slots | 3 |
| Drive Bays - 5.25" ODD | 0 |
| Drive Bays - 3.5" / 2.5" Combo | 1 |
| Drive Bays - 2.5" SSD | 2 (Max. 3) |
| I/O Panel | 2x USB 3.2 Gen 1 (USB 3.0) |
| Included Accessories | 1x MasterAccessory Riser Cable PCIe 4.0 x16 - 35mm |
| Included CPU Cooling Solution | 280mm radiator |
| Included Power Supply Unit | V850 SFX Gold |
| Fan Support - Top | 2 x 120mm / 2 x 140mm |
| Fan Support - Bottom | 1 x 120mm (max 15mm, with 3.5" HDD at the bottom) |
| Radiator Support - Top | 240mm / 280mm |
| Clearances - CPU Cooler | 67mm |
| Clearances - Power Supply | 130mm |
| Clearances - Graphics Card | L: 336mm (incl. power connector) |
| Dust Filters | Bottom |
| Power Supply Support | SFX |
| Warranty | 2 years (Case) |
| Warranty | 2 years (Thermal Solution) |
| Power Supply Support | SFX-L |
| Dust Filters | Left |
| Clearances - Graphics Card | H: 160mm (incl. power connector) |
| Fan Support - Bottom | 2 x 120mm (max 15mm, w/o 3.5" HDD at the bottom) |
| Included CPU Cooling Solution | 2 x 140mm SickleFlow PWM |
| I/O Panel | 1x 3.5mm Headset Jack (Audio + Mic) |
| Drive Bays - 3.5" HDD | 1 (Max. 2) |
| Motherboard Support | Max. size: 170 x 180mm |
| Dimensions (L x W x H) | 361 x 185 x 274mm (excl. Protrusions) |
| Materials - Left Side Panel | Steel x1 |
| Materials - Exterior | Mesh |
| Materials - Exterior | ABS Plastic |
| Included CPU Cooling Solution | Gen 3 Cooler Master Pump / CPU Block |
| Clearances - Graphics Card | W: 75mm (triple slot) |
| Dust Filters | Right |
| Warranty | 10 years (Power Delivery) |
| Size | Mini ITX |
| Dust Filters | Top Panels |
