CUSTOM AIO COOLING
The NCORE 100 Max leverage decades of expertise in thermal solutions and features a custom 120mm AIO Water Cooler supporting the latest Intel and AMD CPUs.
HIGH-END GPU COMPATIBILITY
Includes support for high performance, triple-slot GPUs up to 336mm in length and 140mm in height, with four included 6+2 pin power cables and a vertical mount design.
TAILOR-MADE POWER SOLUTION
Cooler Master's V SFX Gold 850W ATX 3.0 PSU covers all your power needs and comes with custom length cables.
ULTRA-SMALL FOOTPRINT
The NCORE 100 MAX is super compact, with a footprint about the size of a small booklet.
PREMIUM ALUMINUM PANEL

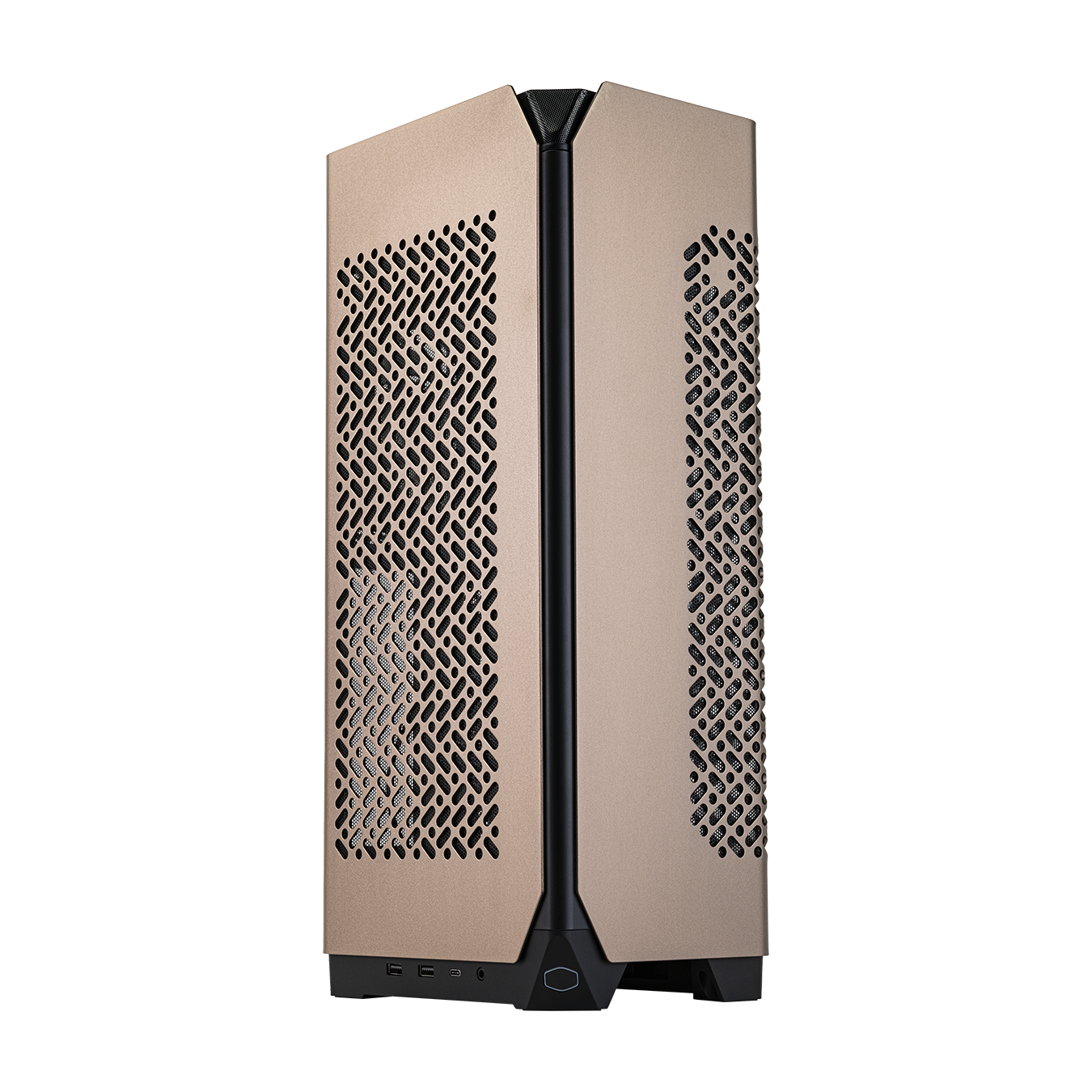

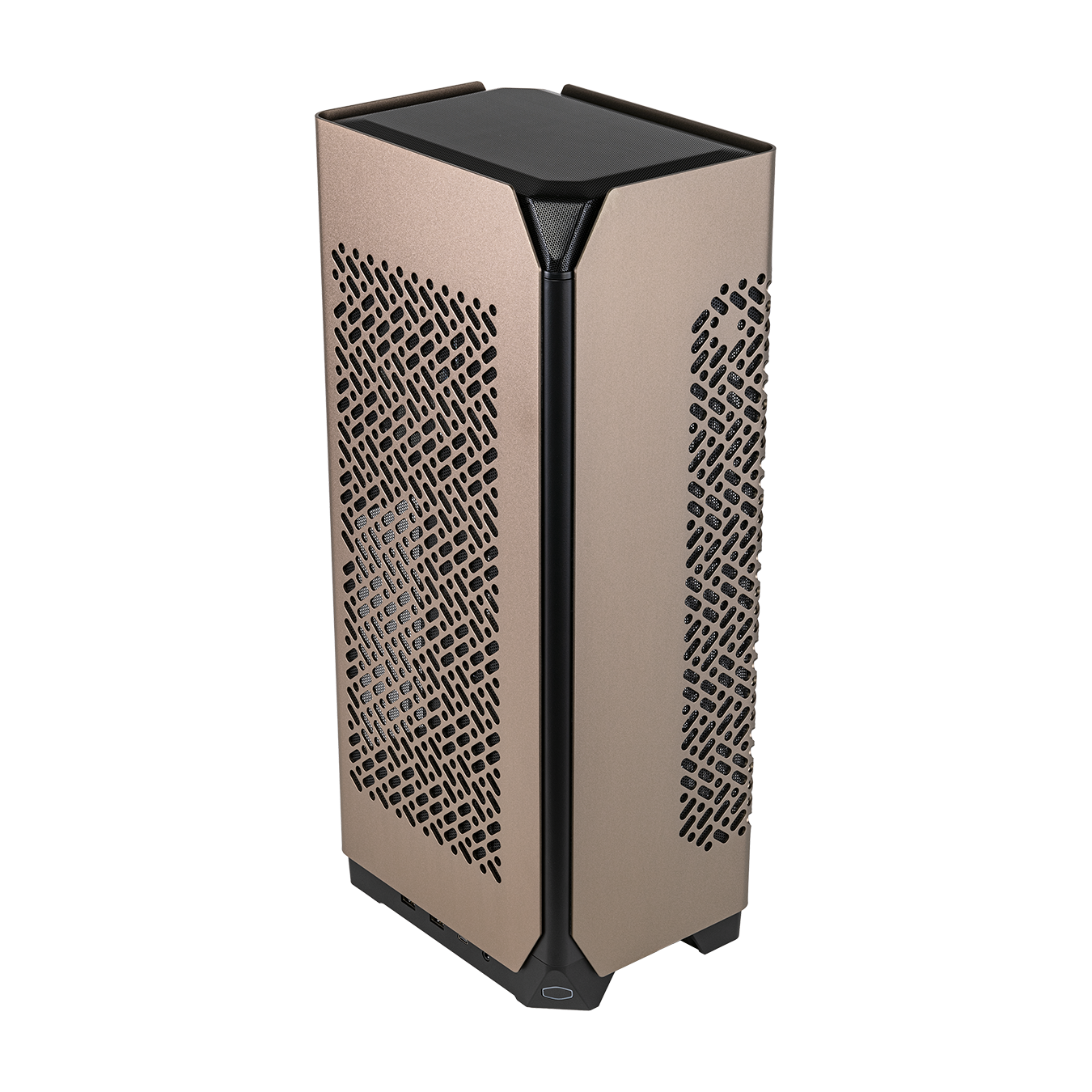

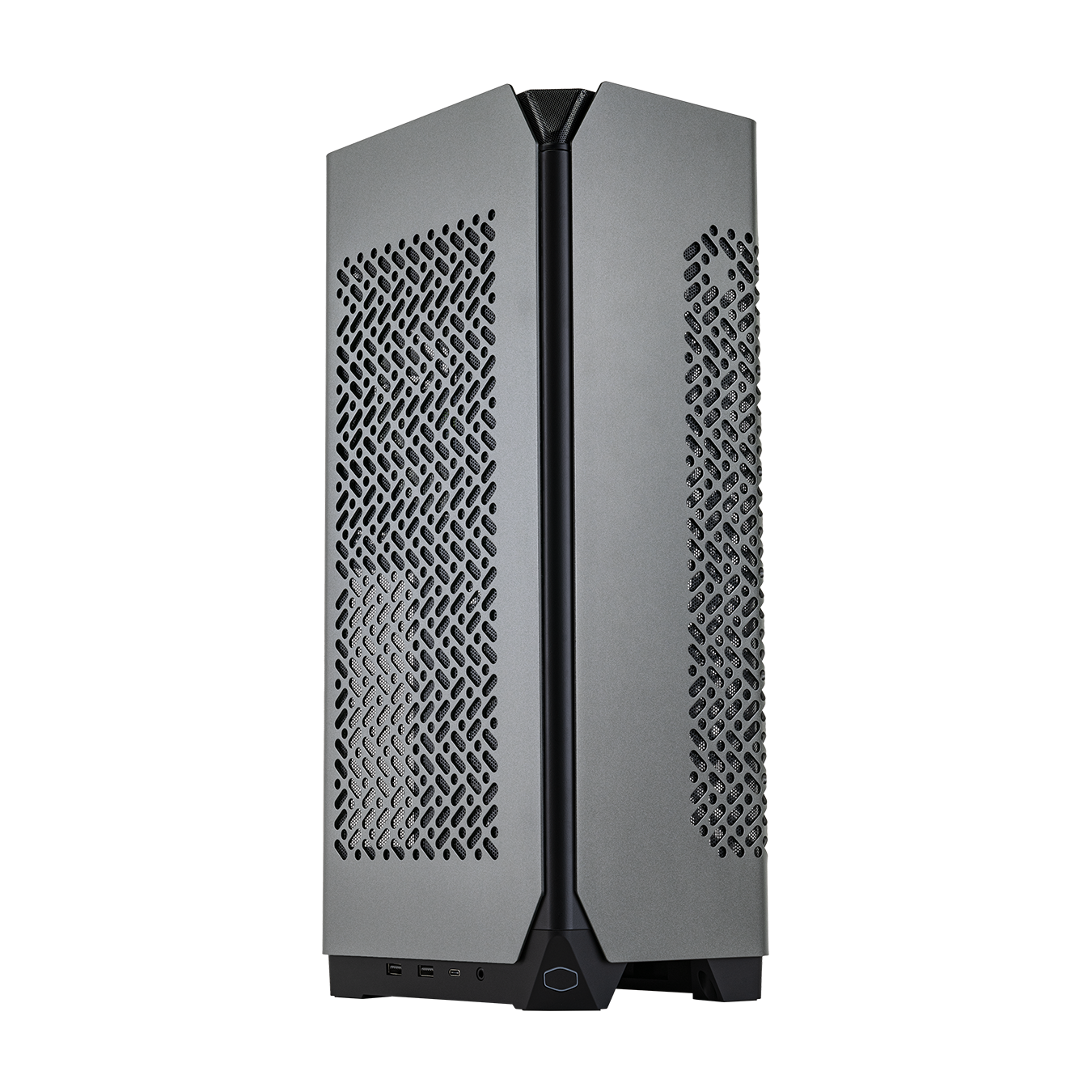

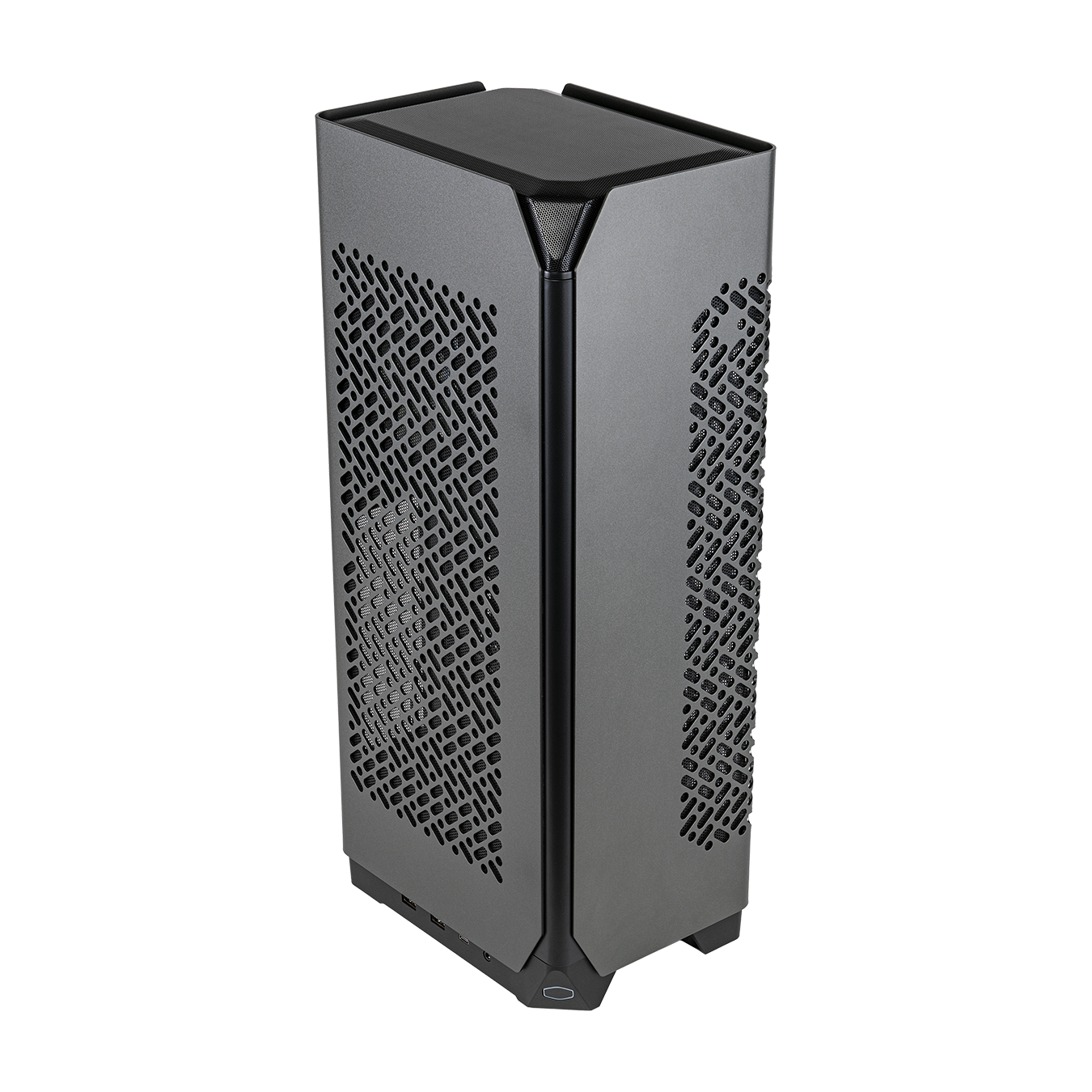

An anodized aluminum shell makes the NCORE 100 MAX stand out as a desktop work of art.
PRE-ROUTED CABLES

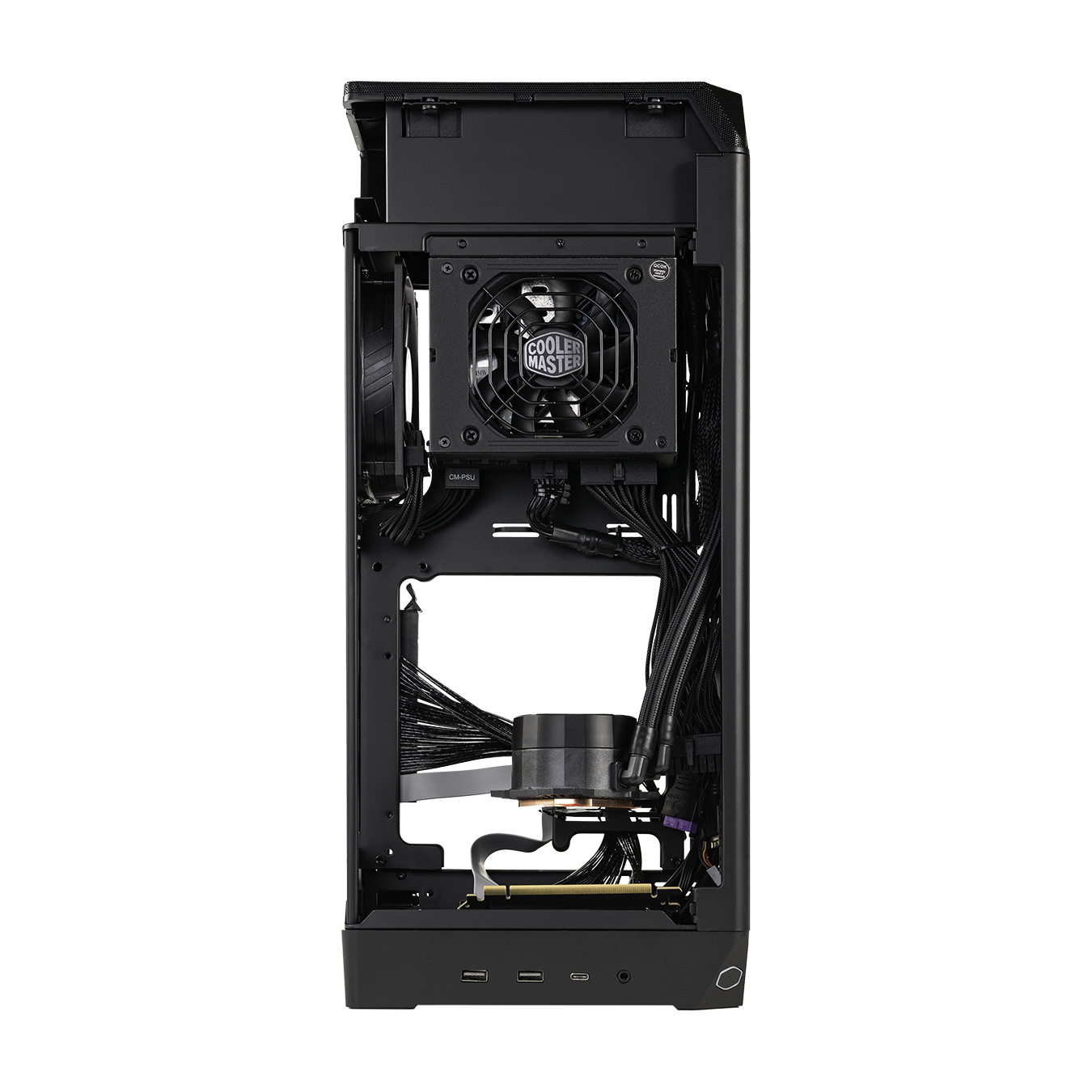

Includes custom length, pre-routed cables which have been placed right where you need them and are ready to be connected to your motherboard and GPU.
AIRFLOW
The NCORE 100 MAX layout has been meticulously
designed to offer the most efficient thermal layout.
This layout pulls in air from the standing sides of
the case, which are its largest surfaces.

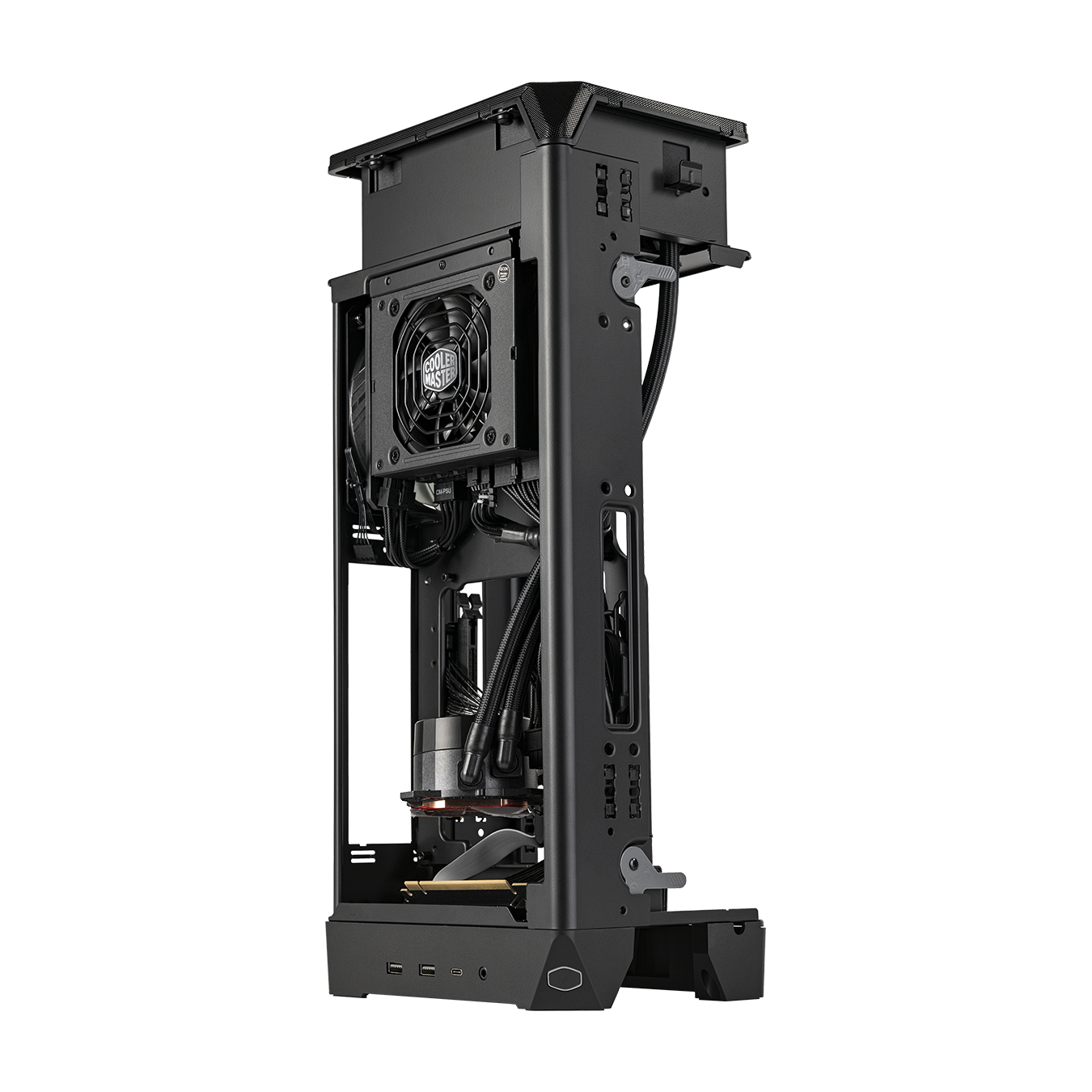

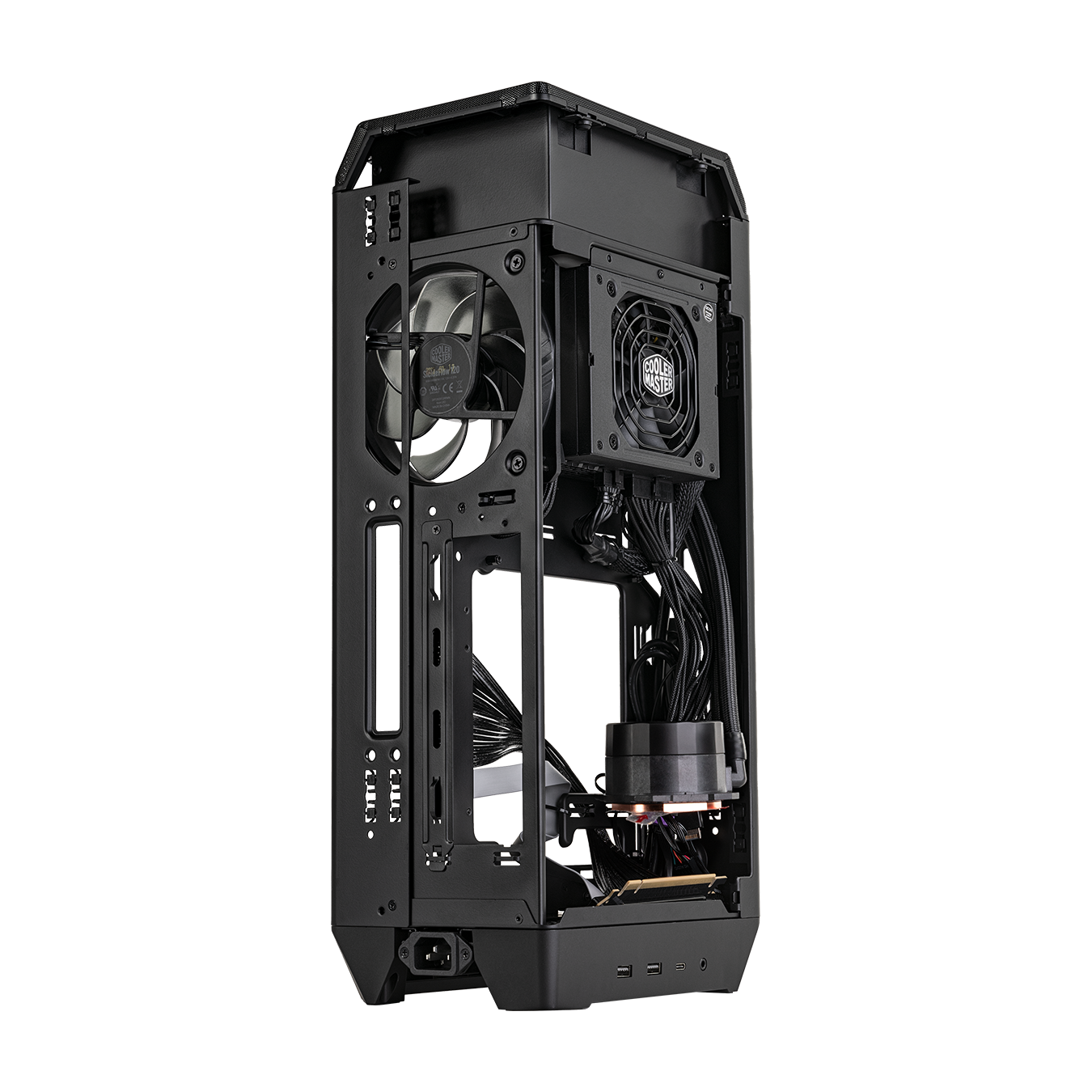

OPEN FRAME DESIGN
Eliminating three surfaces usually included in a standard case to let
you approach installation from numerous angles. Even and cable cover
features tool-less removal, for the utmost in accessibility.
SPECIFICATIONS & DOWNLOADS
| Product Number | NCORE 100 MAX: NR100-MNNN85-SL0, NR100-MNNN85-SL1 |
| Product Number | NCORE 100 MAX Bronze Edition: NR100-ZNNN85-SL0, NR100-ZNNN85-SL1 |
| Exterior Color | NCORE 100 MAX: Dark grey |

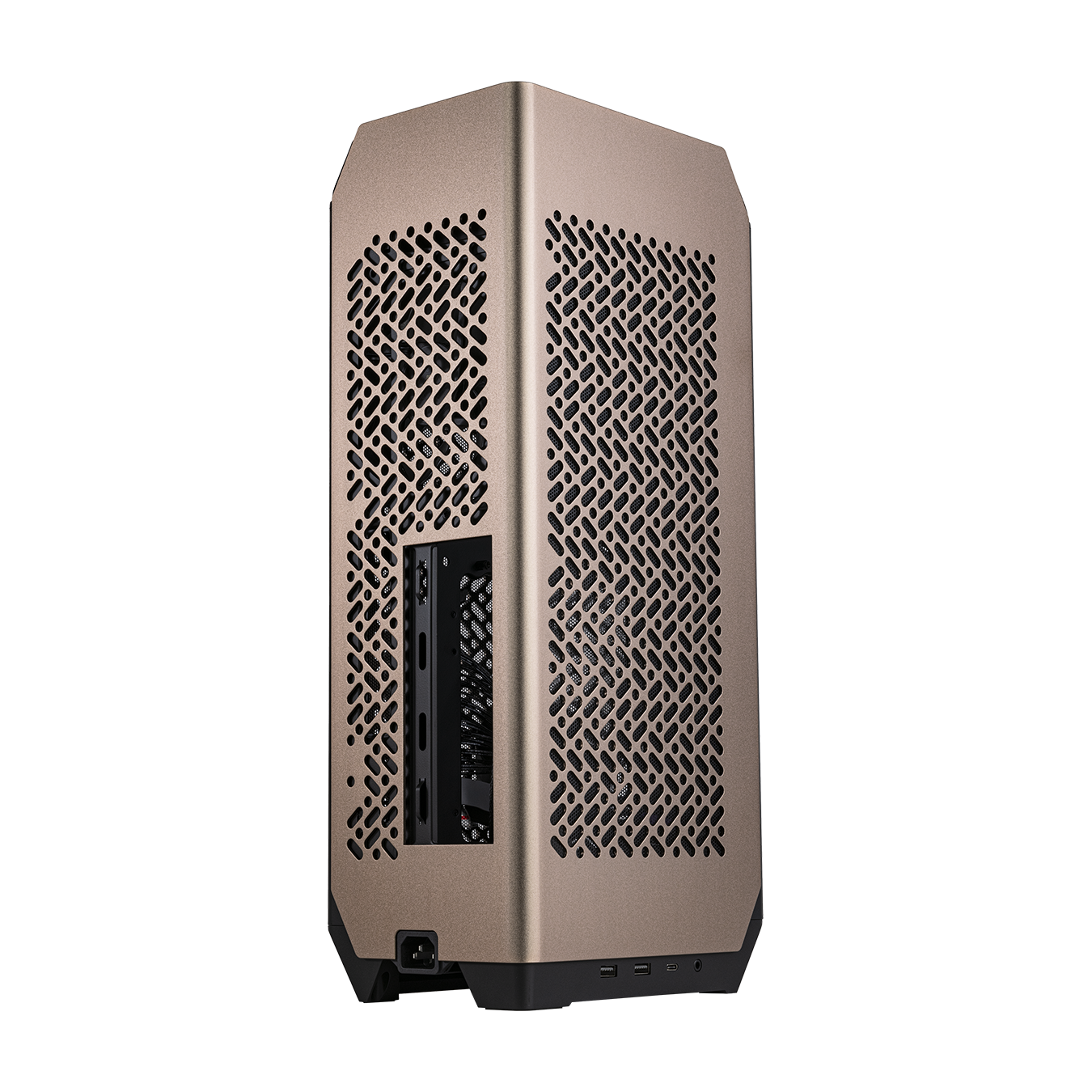

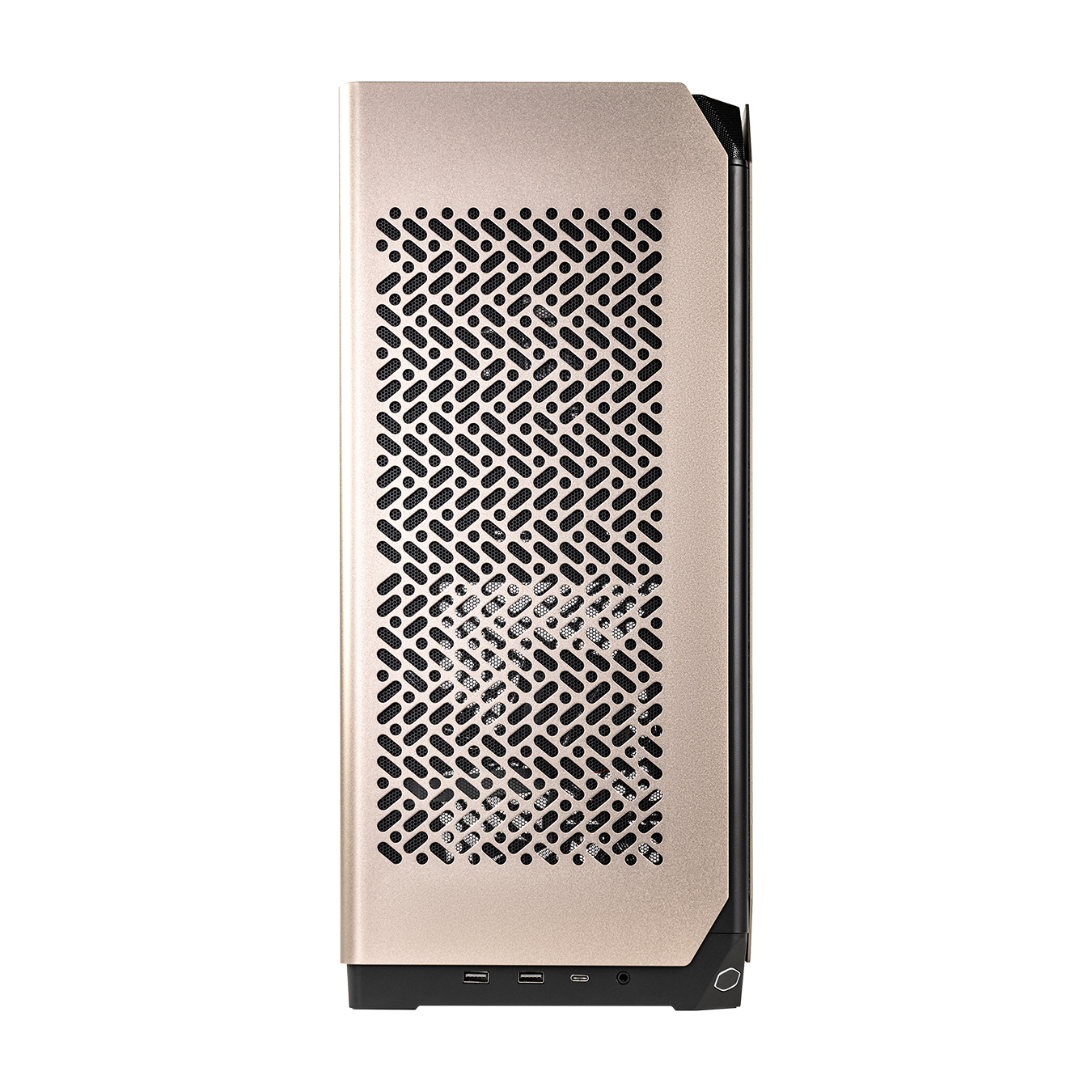

| Exterior Color | NCORE 100 MAX Bronze Edition: Bronze |
| Materials - Exterior | Steel, Plastic, Aluminum |
| Materials - Side Panel | Aluminum |
| Dimensions (L x W x H) | Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions) |

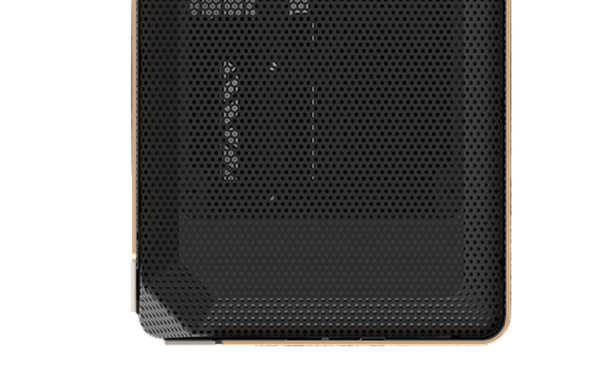

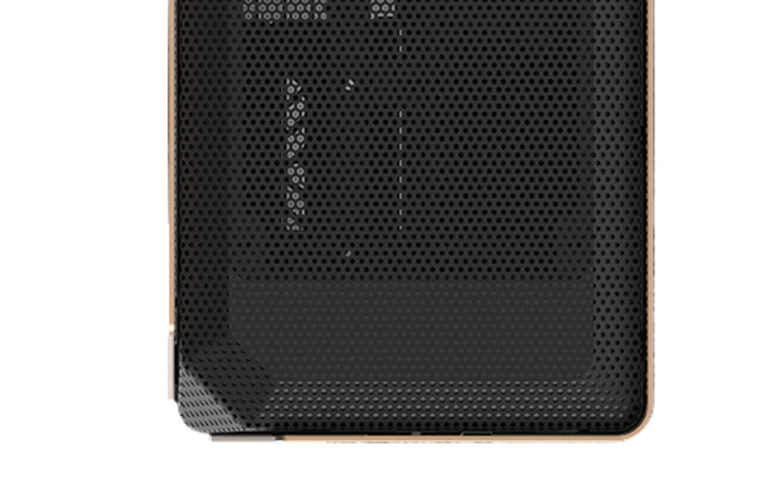

| Dimensions (L x W x H) | Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions) |
| Dimensions (L x W x H) | 155mm x 212mm x 457mm (Excl. Protrusions) |
| Dimensions (L x W x H) | 172mm x 212mm x 457mm (Excl. Protrusions) |
| Volume | 15.80L (Normal mode) |
| Volume | 17.54L (Expansion mode) |
| Motherboard Support | ITX |
| Expansion Slots | 3x PCIe Slot Mounting |
| Drive Bays - 2.5" SSD | 1 |

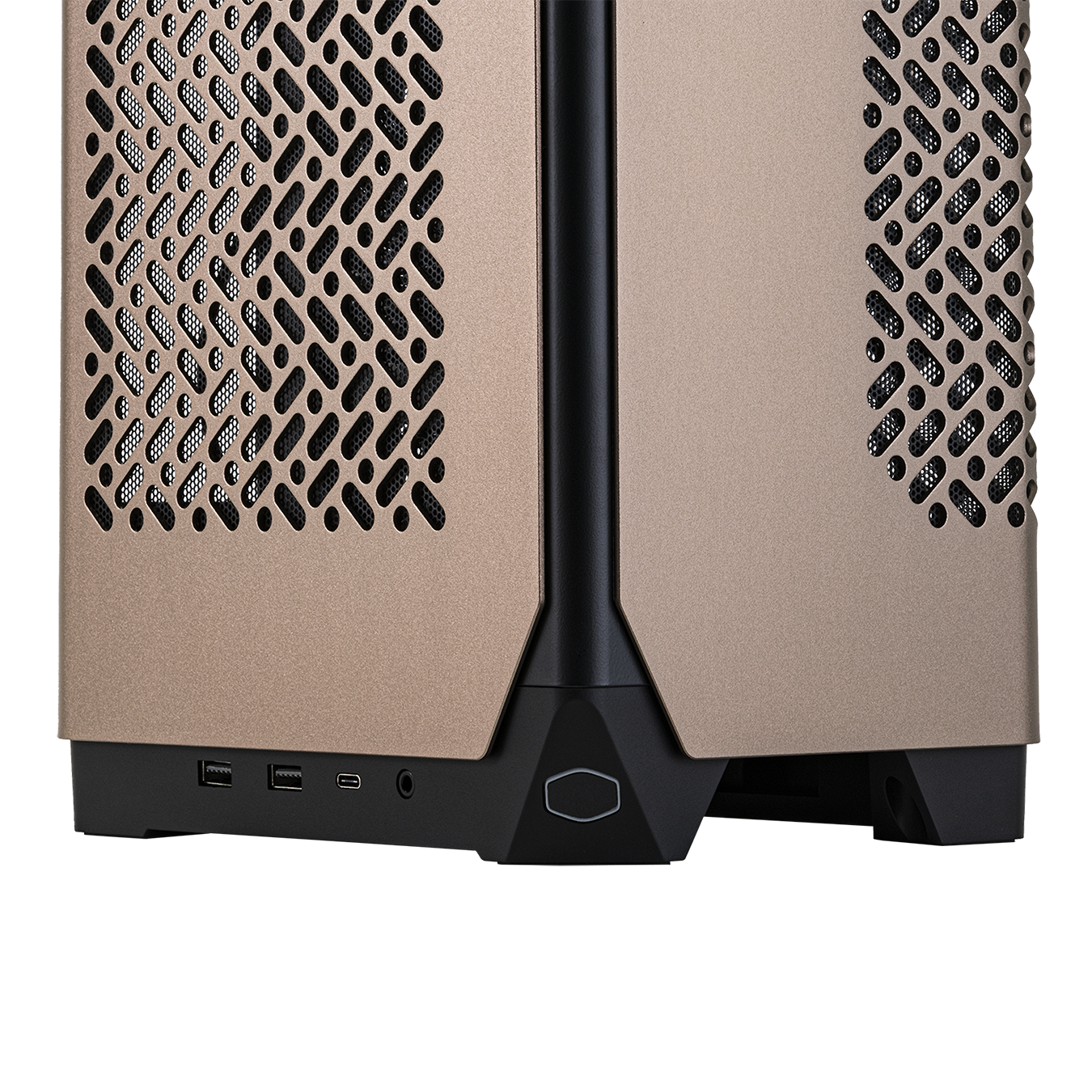

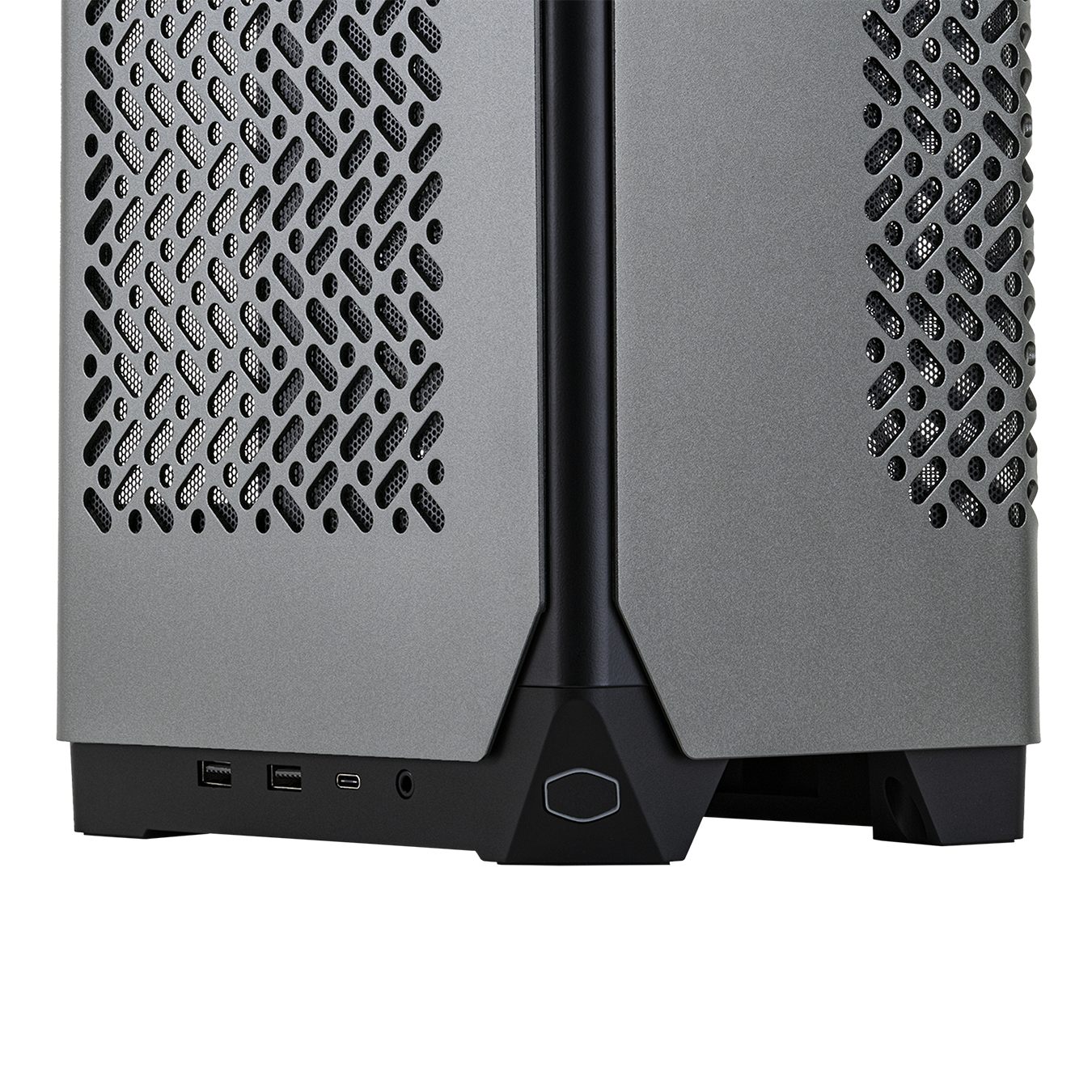

| I/O Panel | 2x USB 3.2 Gen1 Type A |
| I/O Panel | 1x USB 3.2 Gen2 x 2 Type C |
| I/O Panel | 1x Audio Combo (Audio In / Out 3.5mm) |
| Pre-Installed Accessories | 1x 240mm PCIe 4.0 x16 |
| Pre-Installed CPU Cooling Solution | 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM) |
| Pre-installed Power Supply Unit | V SFX Gold 850W ATX 3.0 |
| Pre-installed Fan(s) - Rear | 120mm SickleFlow PWM Fan x1 (Max. 1800RPM) |
| Clearances - CPU Cooler | 48mm |
| Clearances - Power Supply | 100mm |
| Clearances - RAM | 48mm |
| Clearances - Graphics Card | 337mm x 62mm x 180mm (Normal, 3.0 Slot thick) |
| Clearances - Graphics Card | 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick) |
| Clearances - Graphics Card | (Maximum space including GPU power connector) |
| Cable Routing - Behind MB Tray | 11mm |
| Dust Filters | Side panels |
| Power Supply Support | SFX |
| Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
| Size | Mini ITX |
