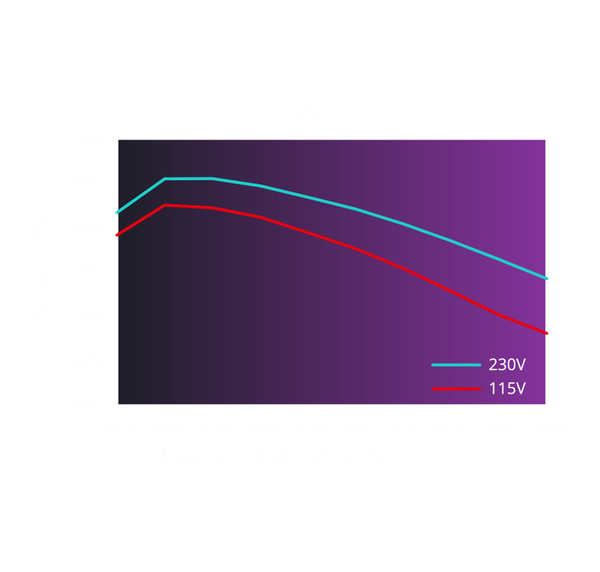

CERTIFIED EFFICIENCY
The GX II Gold is certified to achieve more than 90% efficiency at typical loads.
MWE Gold 750 V3
BUILT TO LAST
MWE Gold 750 V3
Availability:
-
Select Styles for Availability
$89.99
-
$119.99
Description

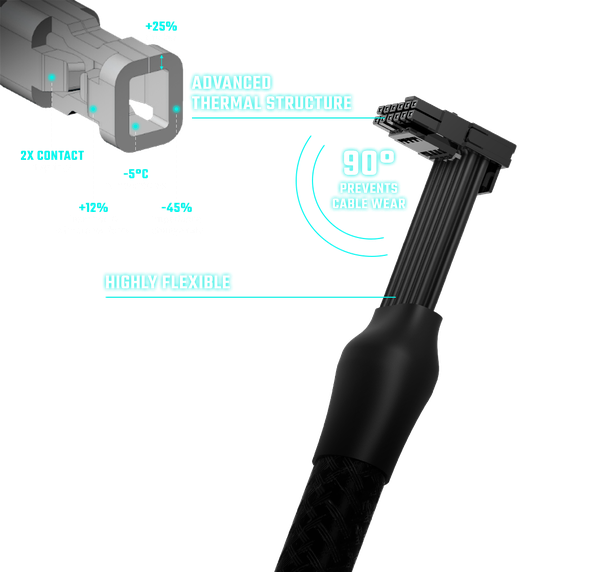

• ATX 3.1 support & a durable 12V-2x6 cable
• 80 Plus Gold certified efficiency
• Silent fan performance with a zero-RPM mode
• Separated thermal technologies
• Fully modular cabling
• 10-year warranty

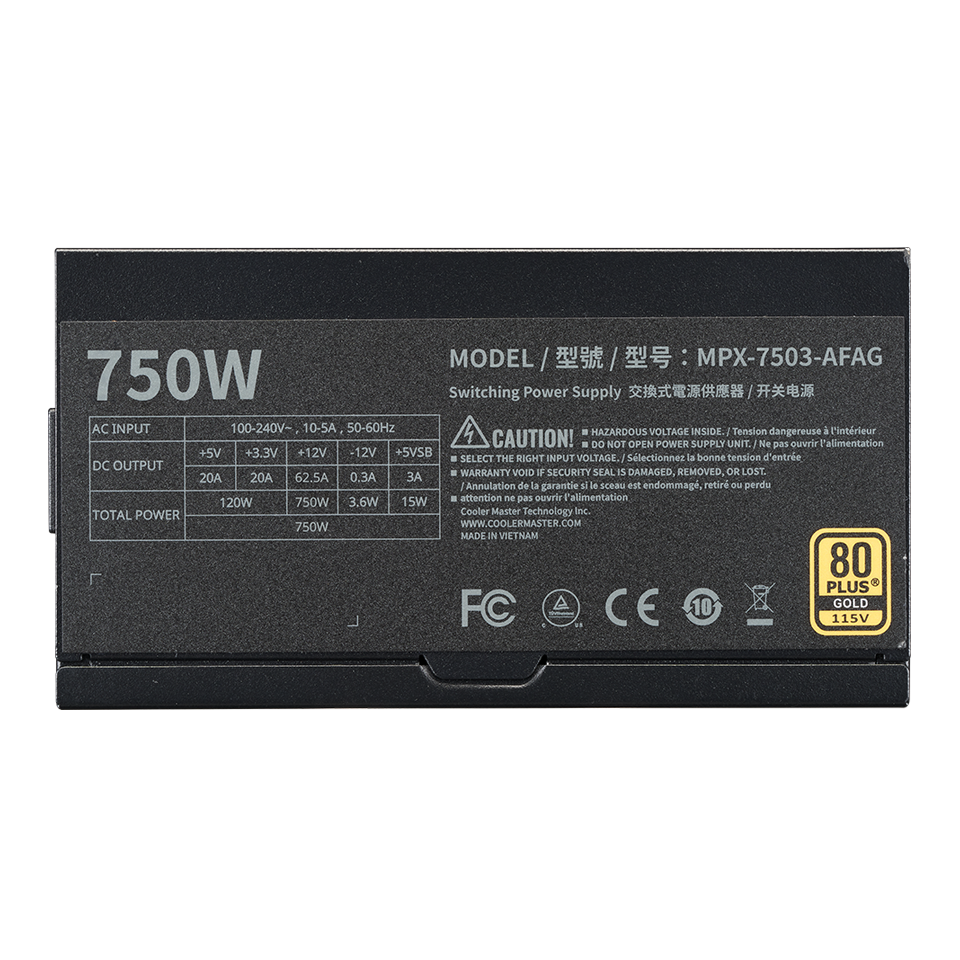

- Model: 750: MPX-7503-AFAG-2***
- ATX Version: ATX 12V Ver. 3.1
- PFC: Active PFC
- Input Voltage: 100-240V
- Input Current: 10-5A
- Input Frequency: 50-60Hz
- Dimensions (L x W x H): 160 x 150 x 86 mm
- Fan Size: 120mm
- Fan Bearing: HDB
- Fan Speed: 2500 RPM
- Efficiency: ≥90% @ Typical Load
- 80 PLUS Rating: 80 PLUS Gold
- ErP 2014 Lot 3: Yes
- Operating Temperature: 0-40°C
- Power Good Signal: 100 - 150 ms
- Hold Up Time: ≥16ms at 80% Load
- MTBF: >100,000 Hours
- Protections: OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- Regulatory: cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

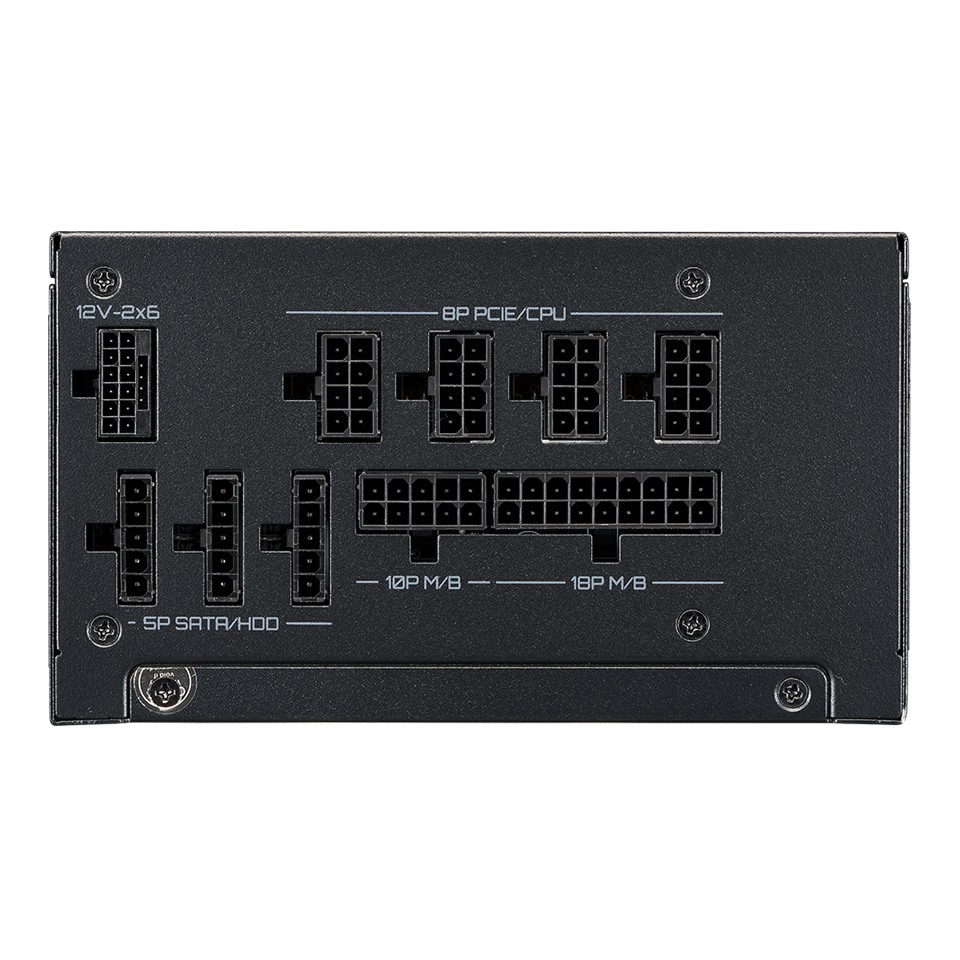

- ATX 24 Pin Connectors: 1
- EPS 4+4 Pin Connectors: 1
- EPS 8 Pin Connector: 1
- SATA Connectors: 6
- Peripheral 4 Pin Connectors: 2
- PCI-e 6+2 Pin Connectors: 4
- 12V-2x6 Connectors: 1
- Series: MWE Gold Series
- Category: Above 750W
- Modular: Fully Modular
- 80 Plus Efficiency: Gold
- Form Factor: ATX
- Watts: 750W
Details

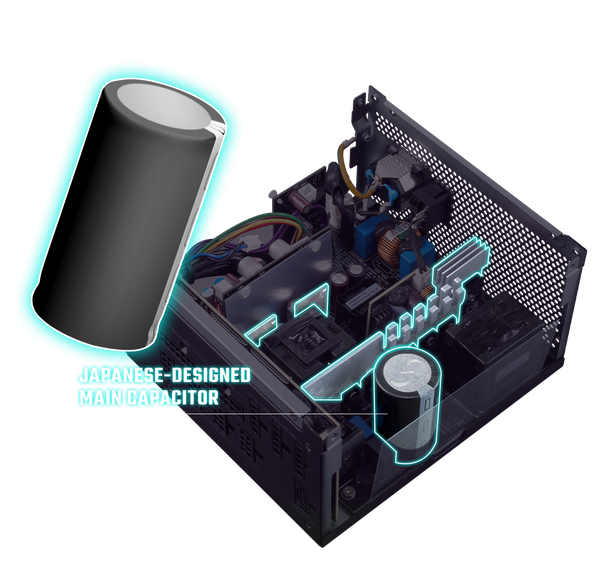

SEPARATED THERMAL TECHNOLOGIES
Separated thermal technologies provide improved thermal performance and a large, high-quality Japanese capacitor features reduced ripple noise and enhanced reliability.
FULLY MODULAR CABLING
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
