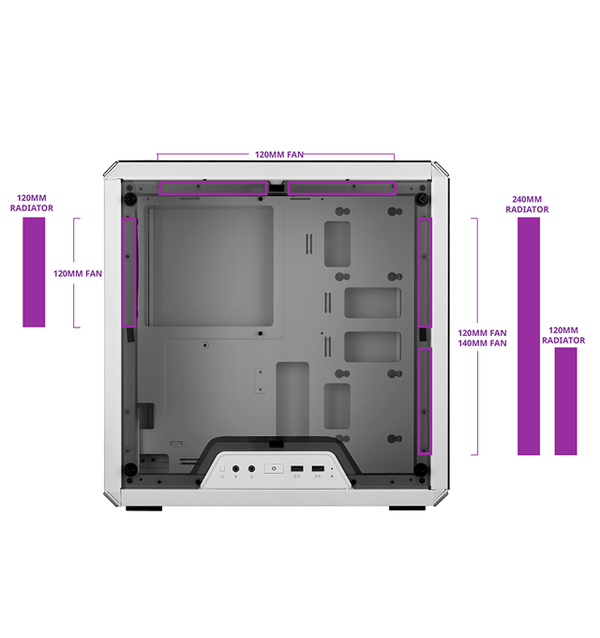

Fan And Radiator Support
The front supports up to two 140mm fans and up to a 240mm radiator.
The rear supports a 120mm fan or radiator and the top two 120mm fans.
All to ensure you don't have to compromise on performance.
MasterBox Q300L White
Description
High Flexibility for System Building
Minimized Dimension with ATX PSU Support

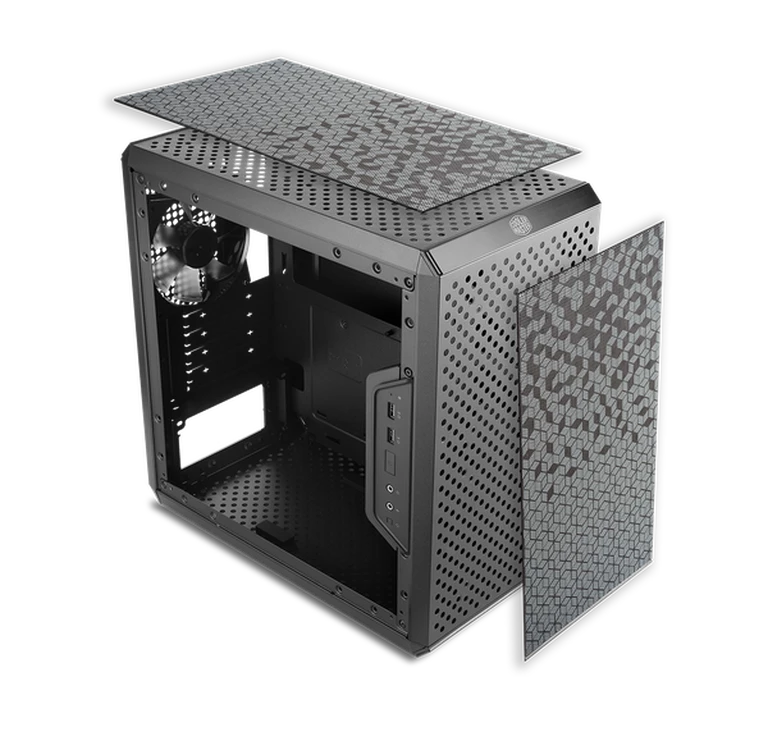

Patterned Dust Filter
Clean Routing Space
Excellent Thermal Performance
Edge-to-Edge Acrylic Transparent Side Panel
Vertical and Horizontal position
- Model Number: MCB-Q300L-WANN-S00
- Color(s): White
- Materials: Steel, Plastic
- Dimensions (L x W x H): 387 x 230 x 381mm
- Motherboard Support: Mini-ITX, Micro-ATX
- Expansion Slots: 4
- 5.25" Drive Bays: 0
- 3.5" Drive Bays: 1
- 2.5" Drive Bays: 2
- I/O Panel - USB Ports: 2x USB 3.0
- I/O Panel - Audio In / Out: 1x Audio Jack
- Pre-installed Fans - Rear: 1x 120mm
- Fan Support - Front: 2x 120/140mm
- Fan Support - Top: 2x 120mm
- Fan Support - Rear: 1x 120mm
- Fan Support - Bottom: 1x 120mm
- Radiator Support - Front: 120 / 240mm
- Radiator Support - Rear: 120mm
- Clearance - CPU Cooler: 159mm
- Clearance - GFX: 360mm
- Clearance - PSU: 160mm
- Cable Routing: 28mm
- Dust Filters: Bottom
- Power Supply Support: Bottom Mount, ATX PS2
- Size: Mini Tower
- Series: MasterBox Series
Details
Multiple Positioning Options
Q300L White Edition
This the white edition of the award-winning MasterBox Q300L, time to get a clean pure-white build!
Modular I/O Panel

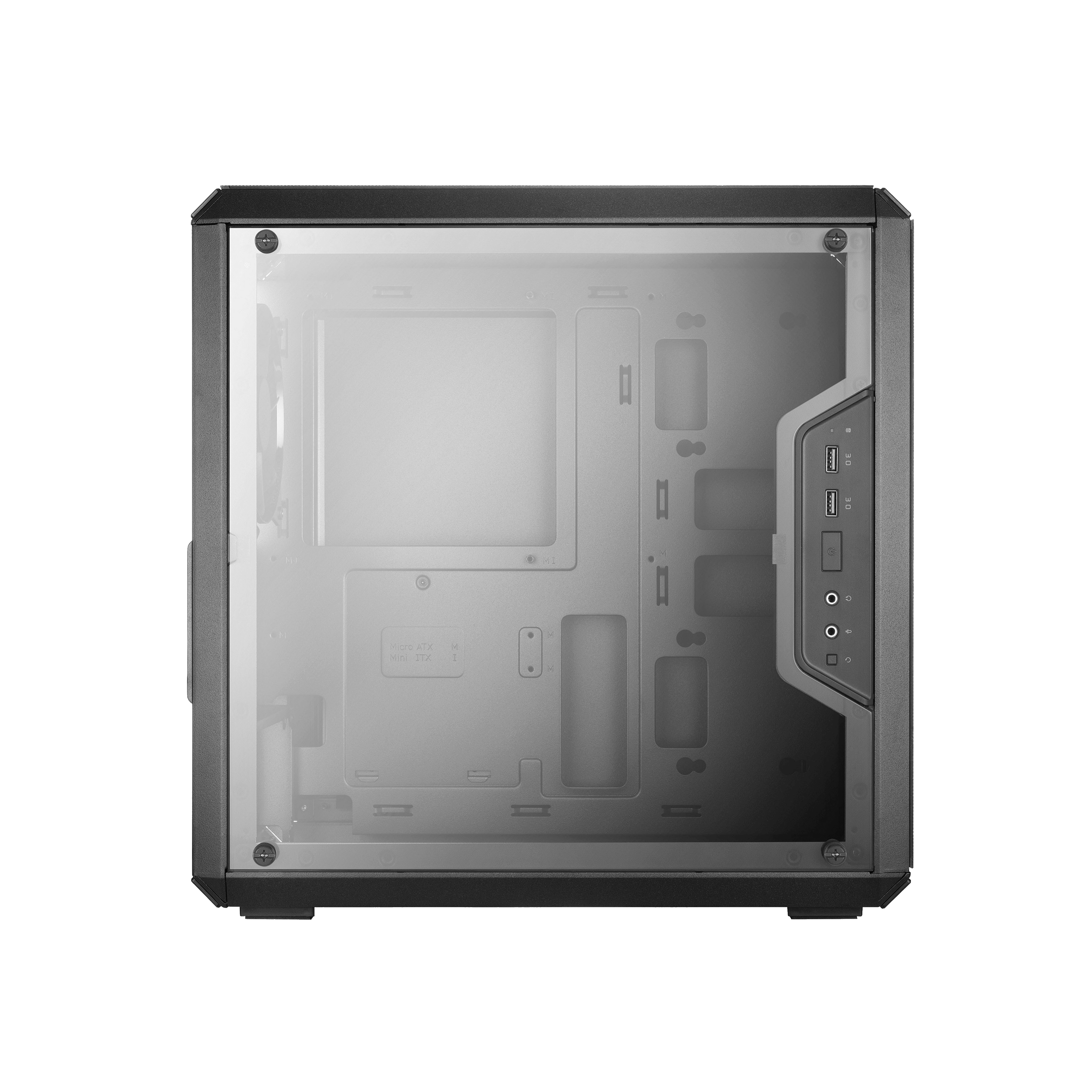

Edge-to-edge Side Panel

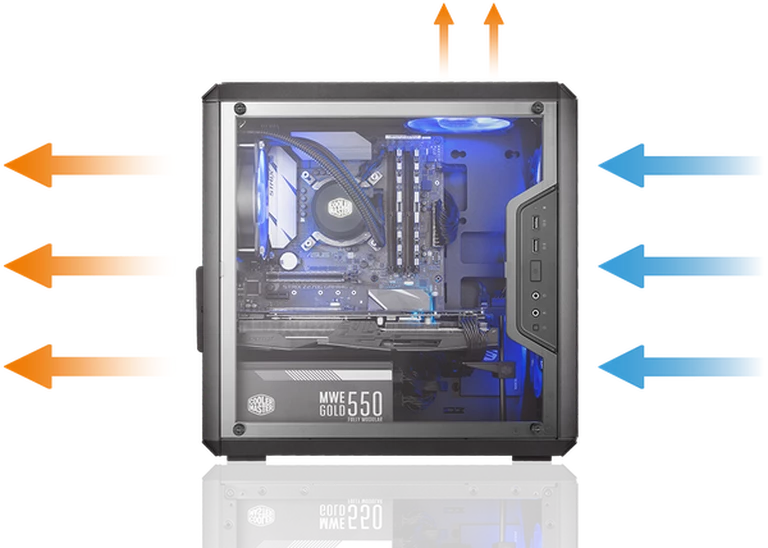

Excellent Thermal Performance

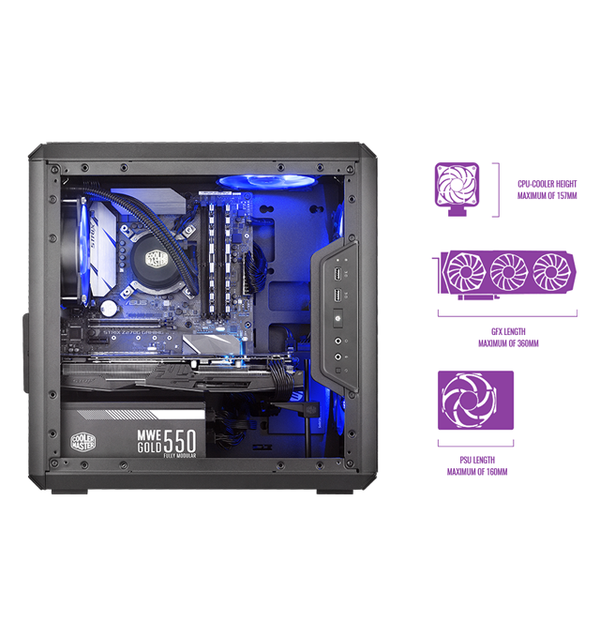

Main Components Clearance
The MasterBox Q300L case supports CPU coolers up to a height of 159mm, graphics cards up to a length of 360mm, and power supplies up to a length of 160mm.
