Cooling System
240-280MM
LIQUID COOLERS
18.25L
ULTRA-SLEEK DESIGN

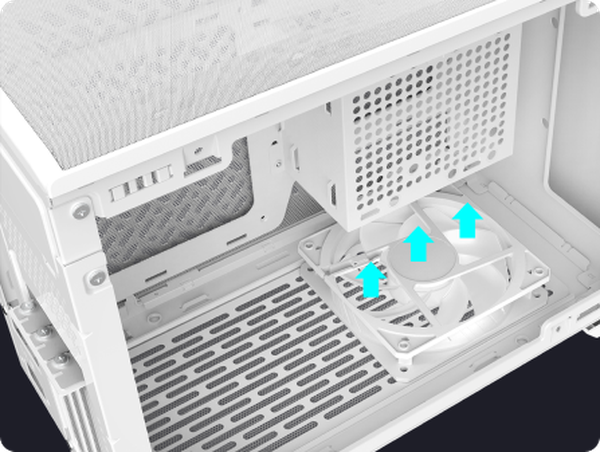

Extra Cool
120MM
BOTTOM FAN

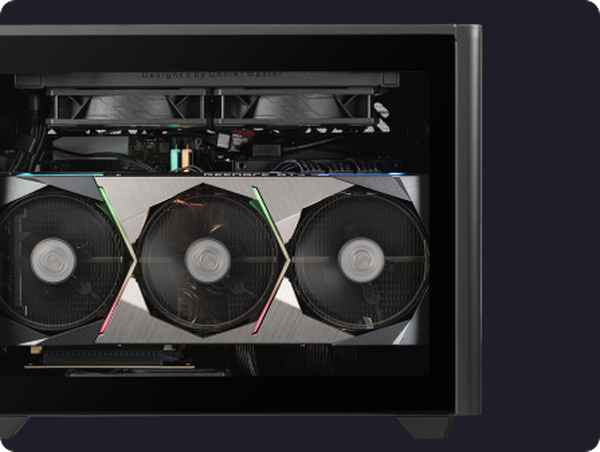

COMPREHENSIVE GPU SUPPORT
Includes vertical mounting options, a custom PCle 4.0 riser cable, and a support bracket for GPUs up to 356mm in length and 160mm in height.
| Model Number | MasterBox NR200P V2: NR200PV2-KCNN-S00, MasterBox NR200P V2 White: NR200PV2-WCNN-S00 |
| Exterior Color | Black, White / Grey |
| Materials - Exterior | SGCC Steel, Mesh, ABS Plastic |
| Materials - Left Side Panel | Tempered Glass x1, Steel x1 |
| Dimensions (L x W x H) | 372 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions) |
| Volume | 18.25L |
| Motherboard Support | Mini-ITX, Max. size: 170 x180mm |
| Expansion Slots | 3 |
| 5.25" Drive Bays | 0 |
| 3.5" Drive Bays | 1 (Max. 2, remove bottom fan) |
| 2.5" / 3.5" Drive Bays (Combo) | 1 |
| 2.5" Drive Bays | 1 (Max. 2) |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen 2x2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) |
| Included Accessories | 1x PCIe 4.0 x16 riser cable, 1x GPU Holder |
| Pre-installed Fans - Top | N/A |
| Pre-installed Fans - Front | N/A |
| Pre-installed Fans - Rear | N/A |
| Pre-installed Fans - Bottom | 1x 120mm 650~1800rpm PWM SickleFlow |
| Fan Support - Top | 2x 120/140mm |
| Fan Support - Side | N/A |
| Fan Support - Rear | N/A |
| Fan Support - Bottom | 2x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom) |
| Radiator Support - Top | 120 / 140 / 240 / 280mm |
| Radiator Support - Side | N/A |
| Radiator Support - Rear | N/A |
| Radiator Support - Bottom | N/A |
| Clearance - CPU Cooler | 67mm |
| Clearance - PSU | 130mm |
| Clearance - GFX | Exceed front bracket: L: 357mm (incl. power connector) , H: 160mm (incl. power connector) , W: 73mm (triple slot); Not exceed front bracket: L: 334mm (incl. power connector) , H: 160mm (incl. power connector) , W: 80mm (triple slot) |
| Dust Filters | Bottom, Left, Right, Top Panels |
| Power Supply Support | SFX, SFX-L |
| Warranty | 2 years |
| Series | MasterBox Series |
| Size | Mini ITX |
