Improved Design

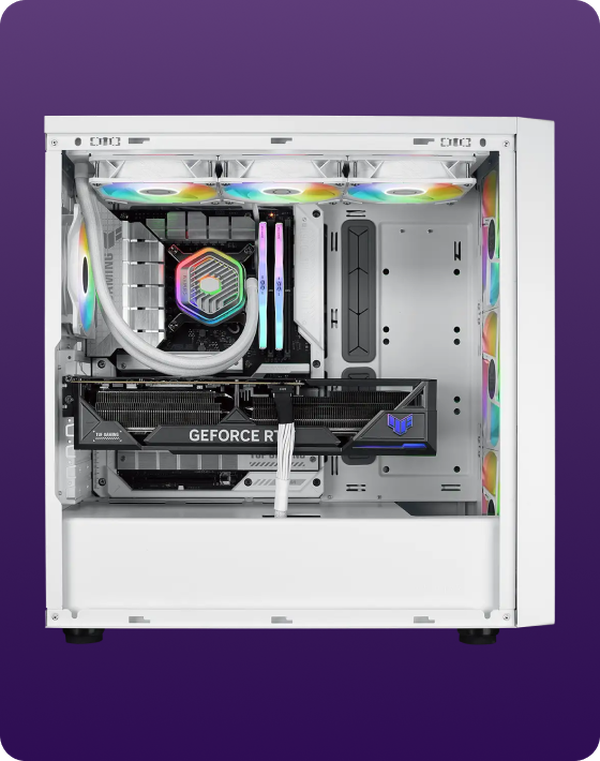

Back-connected motherboard support
Support back-connected motherboard to frees up space in the front of the case and providing improved cable management space up to 33~35mm behind MB tray.
Fans Included

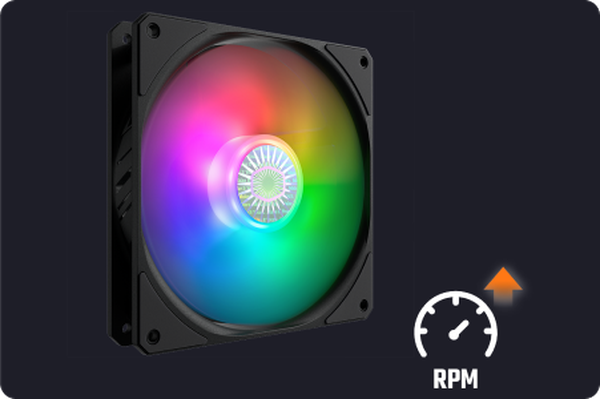

140mm
SICKLEFLOW FANS
Storage
REMOVABLE HDD CAGE
Supports up to 2x3.5" HDD storage and 6× 2.5" SSD, the HDD cage is completely removable for improved access during assembly and system upgrades.
Performance
FINEMESH PERFORMANCE FRONT PANEL
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
Cooling System

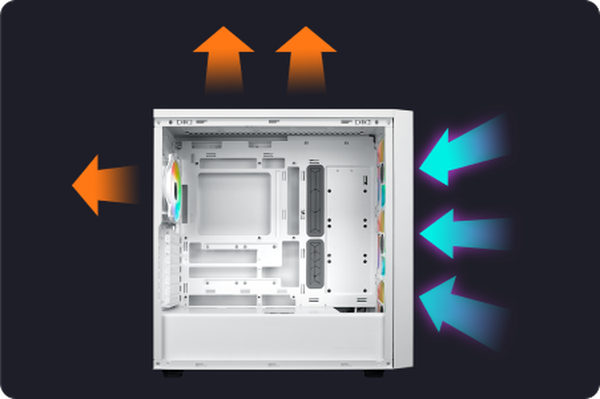

OPTIMIZED AIRFLOW
3x 140mm SickeFlow fans, and a CF120 fan offer exceptional cooling power and eye-catching aesthetics.
Customization

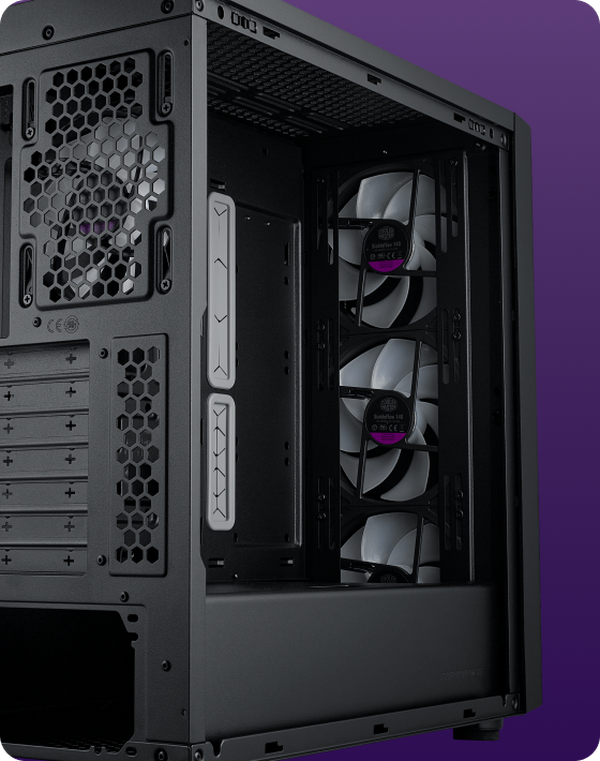

Versatile Cooling Options
Support for up to seven 120mm fans, with 360mm radiator support on the top and 420mm radiator support on the front, ensures that performance is not compromised.
Customization

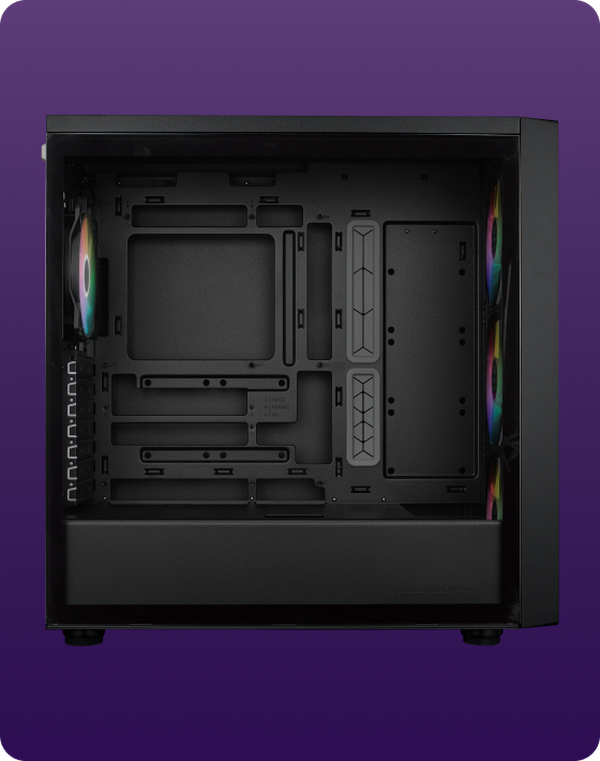

Hardware compatibility
Support for up to a 410mm graphics card, a 170mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
| Model Number | MasterBox 600 Black:MB600-KGNN-S00 MasterBox 600 White:MB600-WGNN-S00 |
| Exterior Color | Black, White |
| Materials - Exterior | Steel, Plastic |
| Materials - Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 474 x 230 x 481mm (Incl. Protrusions), 465 x 230 x 465mm (Excl. Protrusions) |
| Volume | 49.73L |
| Motherboard Support | ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9" / 30.5cmx27.7cm motherboards, may impact cable management) |
| Expansion Slots | 7 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 (Max.6) |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Included Accessories | ARGB Fans Hub |
| Pre-installed Fans - Front | 3x 140mm SickleFlow140 ARGB PWM (650~1800 rpm) |
| Pre-installed Fans - Rear | 1x 120mm CF120 ARGB (650~1200 rpm) |
| Fan Support - Front | 3x 120/140mm |
| Fan Support - Top | 3x 120mm / 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360 / 420mm (Limit: 457*140*27mm) |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 170mm |
| Clearance - PSU | 170mm, 210mm (w/o HDD Cage) |
| Clearance - GFX | 360mm, 410mm (w/o front radiator) |
| Cable Routing - Behind Motherboard Tray | 33-35 mm |
| Dust Filters | Top, Bottom |
| Power Supply Support | ATX |
| Warranty | 2 years |
| Size | Mid Tower |
| Series | MasterBox Series |
| Back Connector Motherboard Support | Yes |
