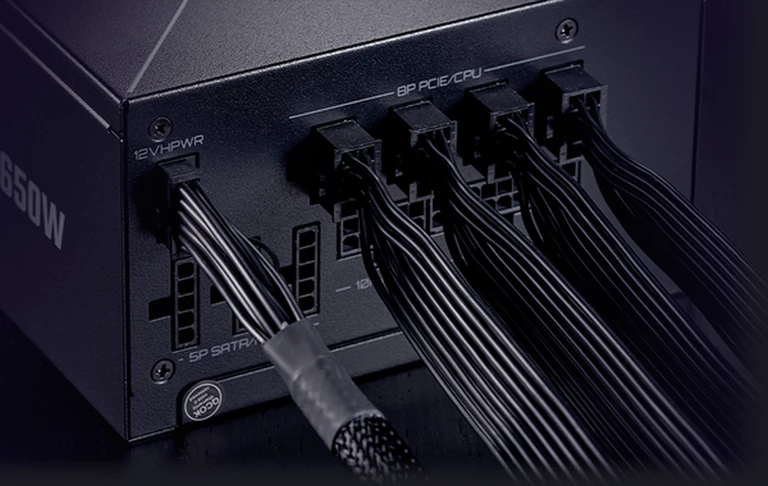

Fully Modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
ATX 3.0 Support & a Durable 90-degree 12VHPWR Cable
Innovative, streamlined Design
The innovative design streamlines the overall aesthetic of the unit and greatly improves airflow.

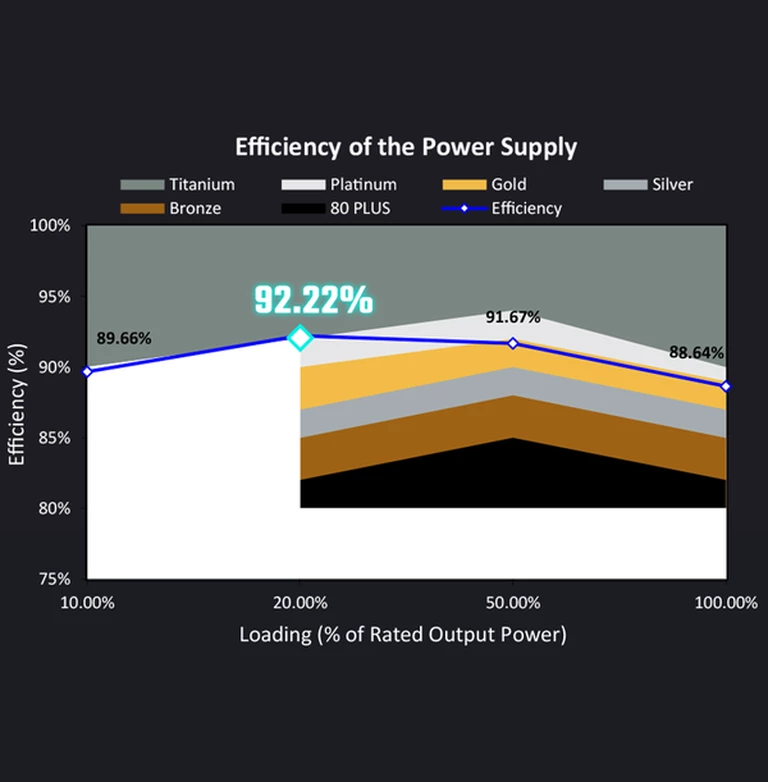

Exceptional Efficiency
This 80 Plus Gold certified unit can achieve Titanium level efficiency at light loads in a 115V test.
| Model | MPX-6503-AFAG |
| ATX Version | ATX 12V Ver. 3.0 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 8-4A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Fan Speed | 2500 RPM |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | >16ms |
| MTBF | >100,000 Hours |
| Protections | OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.) |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 2 |
| 12VHPWR Connector | 1 |
| Series | GX Series |
| 80 Plus Efficiency | Gold |
| Modular | Fully Modular |
| Category | 500 to 750W |
| Form Factor | ATX |
| Watts | 650W |
