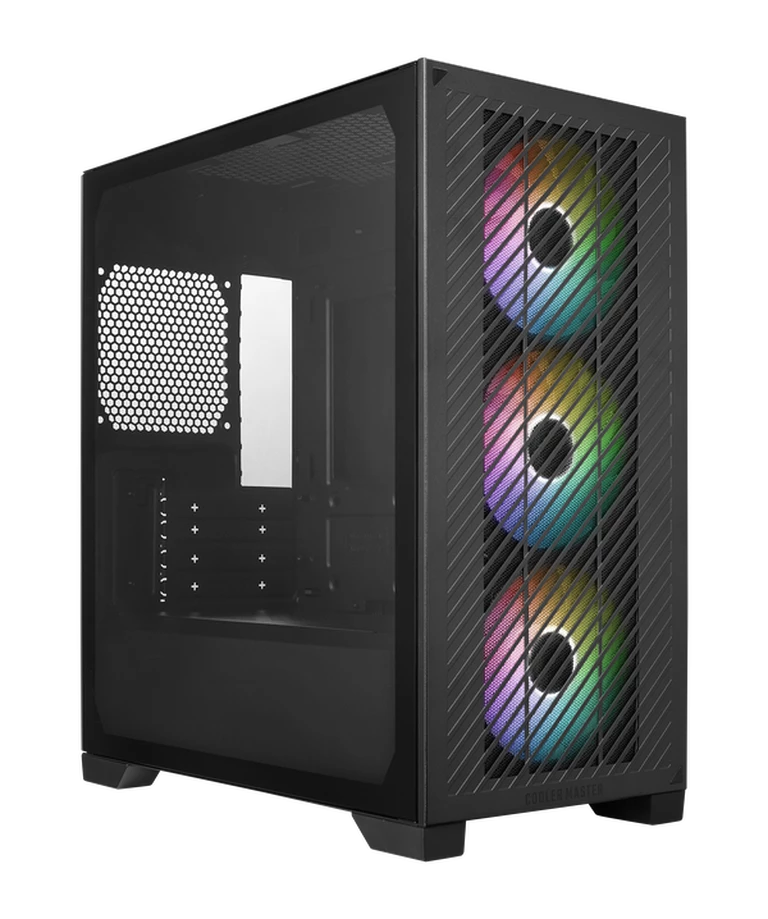

Large Support, Minimized Footprint
Despite its compact size, Elite 301 supports up to 365mm graphics cards, 163.5mm CPU Coolers, providing solid potential for future upgrades.
Tool-less Intake Panel
Constructed with a substantially large, unrestricted intake grill to ensure that the system runs cool and efficiently. The front panel could be easily removed by magnets, making it easier for daily maintenance.
Versatile Cooling Options
Supports up to six fans and 280mm radiator to ensure that performance is not compromised.
Unrestricted Air Flow
Pre-installed with 3x 120mm ARGB fans, providing considerable airflow and adds a layer of style to the system.
Breathable Power Supply Shroud
The PSU cover is ventilated on top of the power supply location, allowing actively cooled units to be installed in multiple orientations, while maintaining support for passively cooled power supplies.
| Model Number | E301-KGNN-S00 |
| Exterior Color | Black |
| Materials | Steel, Plastic, Tempered Glass (Left Side Panel) |
| Dimensions (L x W x H) | 390 x 203.5 x 430mm incl protrusions / 377 x 203.5 x 410mm excl protrusions |
| Motherboard Support | ITX / Micro ATX |
| Expansion Slots | 4 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1 (Max. 2) |

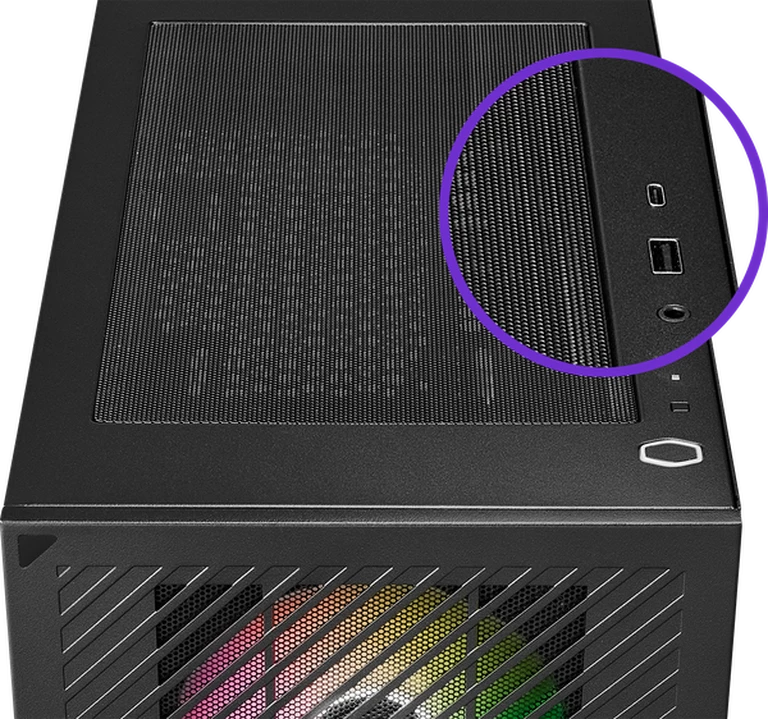

| I/O Panel | 1x USB 3.2 Gen 1 Type-A |
| I/O Panel | 1x USB 3.2 Gen 1 Type-C |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Pre-installed Fans - Front | 3x 120mm CF120 ARGB |
| Fan Support - Front | 3x 120mm |
| Fan Support - Top | 2x 120mm / 2x 140mm |
| Fan Support - Rear | 1 x 120mm |
| Radiator Support - Front | 120 / 240mm |
| Radiator Support - Top | 120 / 140 / 240 / 280mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 163.5mm |
| Clearance - PSU | 160mm |
| Clearance - GFX | 365mm (without front fans & radiator) |
| Cable Routing | 18.5mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX |
| Warranty | 2 years |
| Series | Elite Series |
| Size | Mini Tower |
