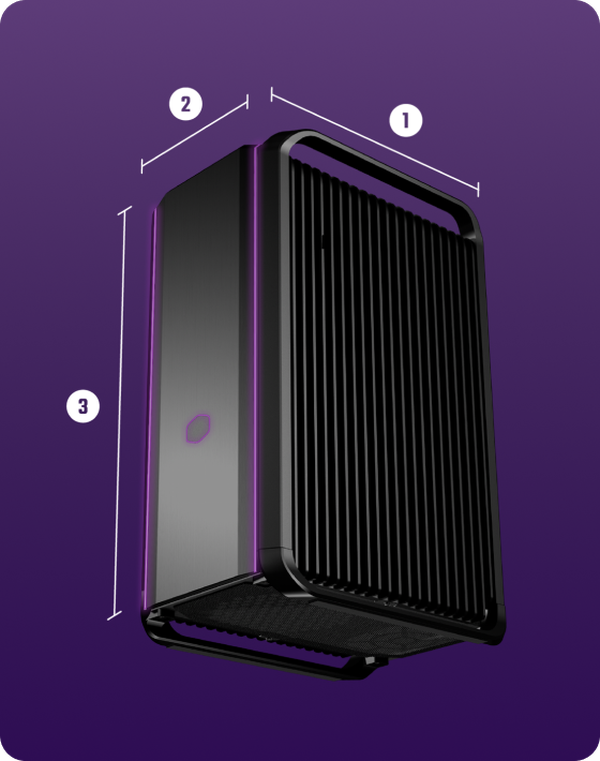

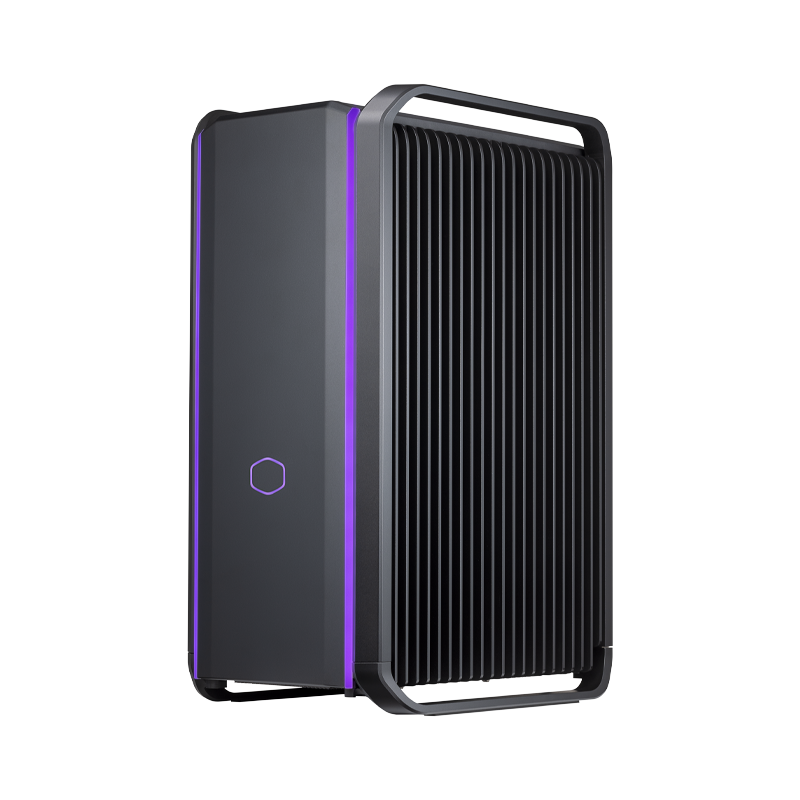

Dimensions, weight & volume
Yes, it is really this compact
1. WIDTH: 149.4 mm (5.9")
2. LENGTH: 266.0 mm (10.5")
3. HEIGHT: 371.6 mm (14.6")
NET WEIGHT: 17.3 KG (38.1 LBS)
VOLUME: 14.77 L (3.2 GAL)
CPU
RYZEN 9 7950X3D

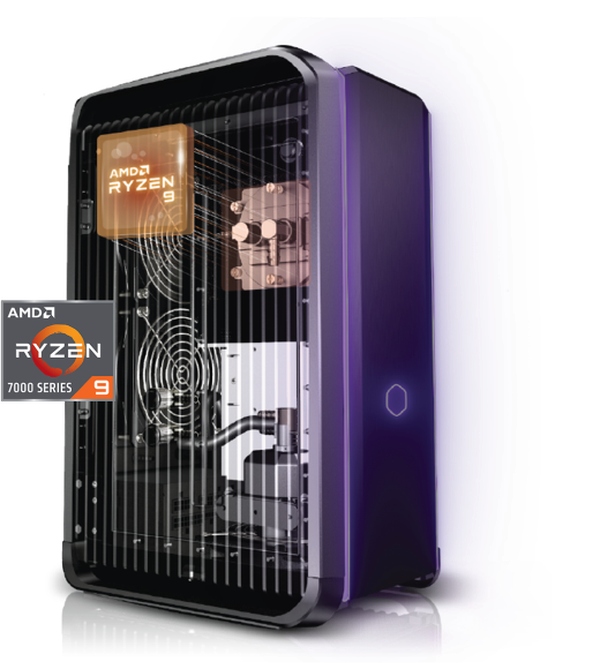

Equipped with AMD Ryzen™ 9 7950X 3D CPU, with 16 cores, 32 threads and up to 5.7GHz clock speed, it is the ideal processor for gamers and creators. The processor is cooled with a water block, so heat is removed by liquid cooling and performance is optimized.

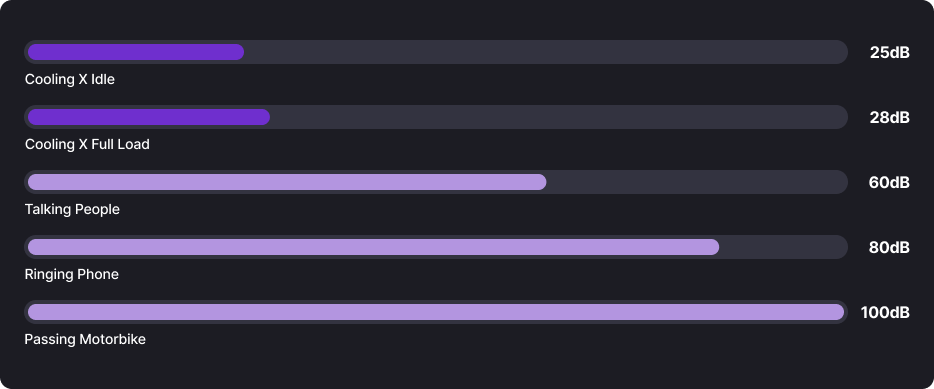

Extremely Quiet
28DB
FULL LOAD

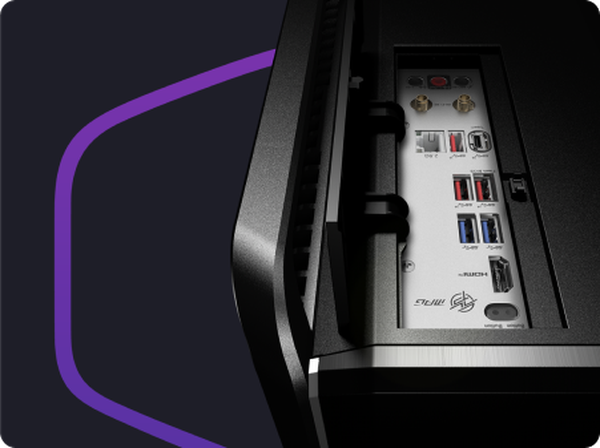

Port & Slots
19
1/0 PORTS

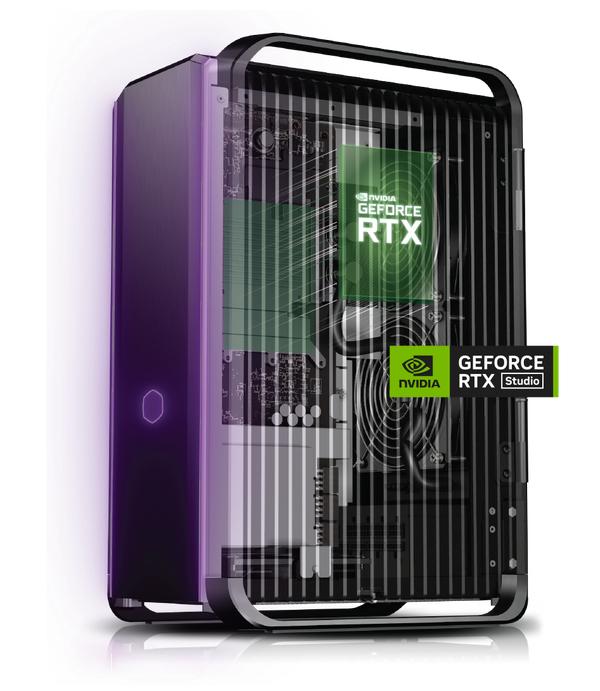

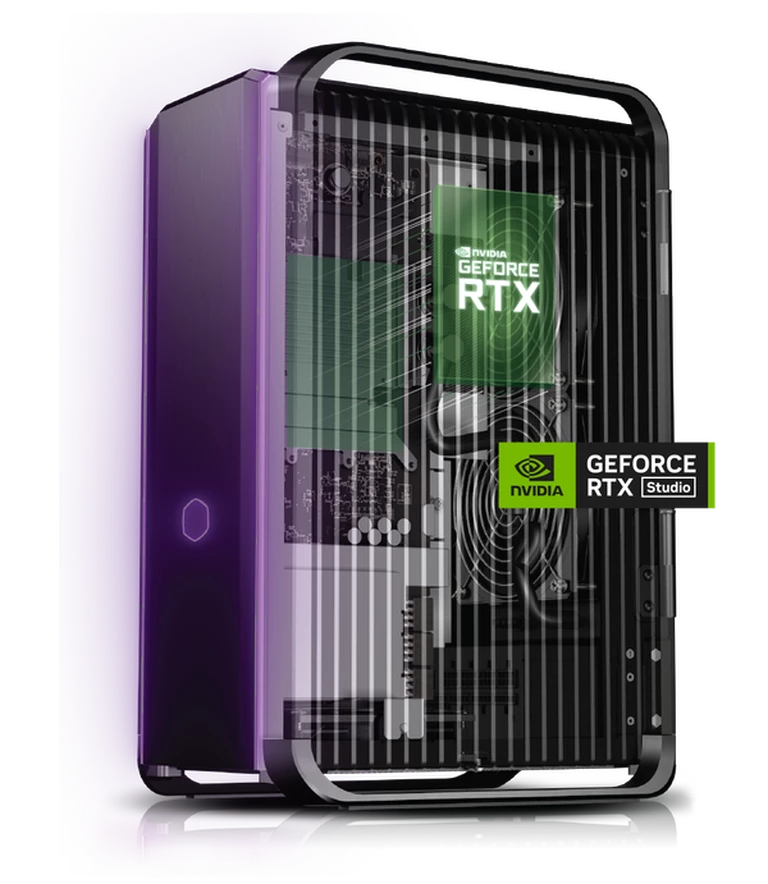

GPU
RTX 4080
Cooling X is equipped with NVIDIA® GeForce™ 4080 graphics card. It's powered by the ultra-efficient NVIDIA Ada Lovelace architecture and 16GB of superfast G6X memory. For increased and stable gaming performance, the GPU is covered by a water block to remove the heat effectively.
| Collection | Cooling X |
| Product Number | ASP-CXA9-N86CN-R1 |

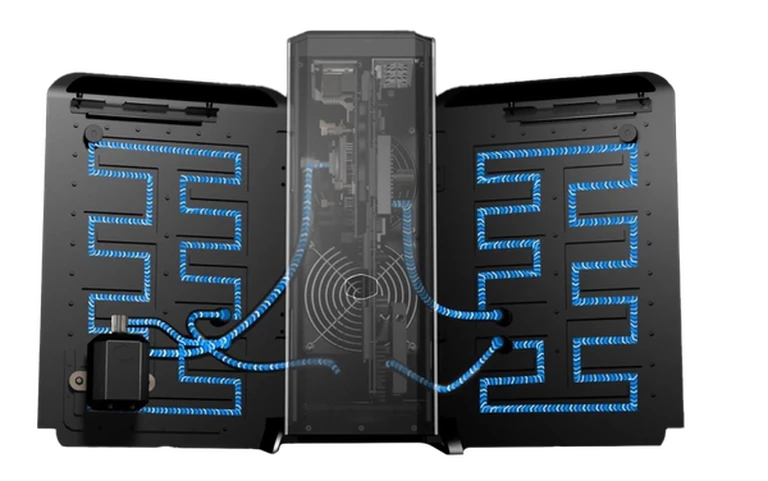

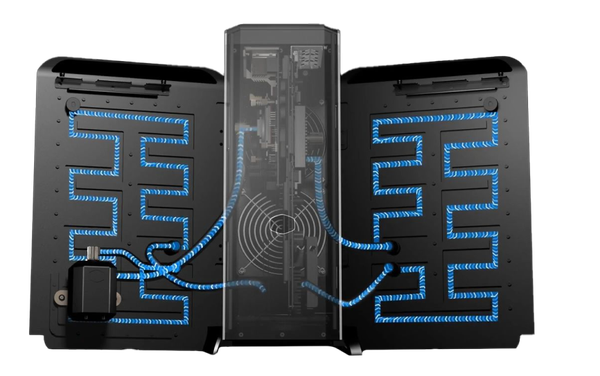

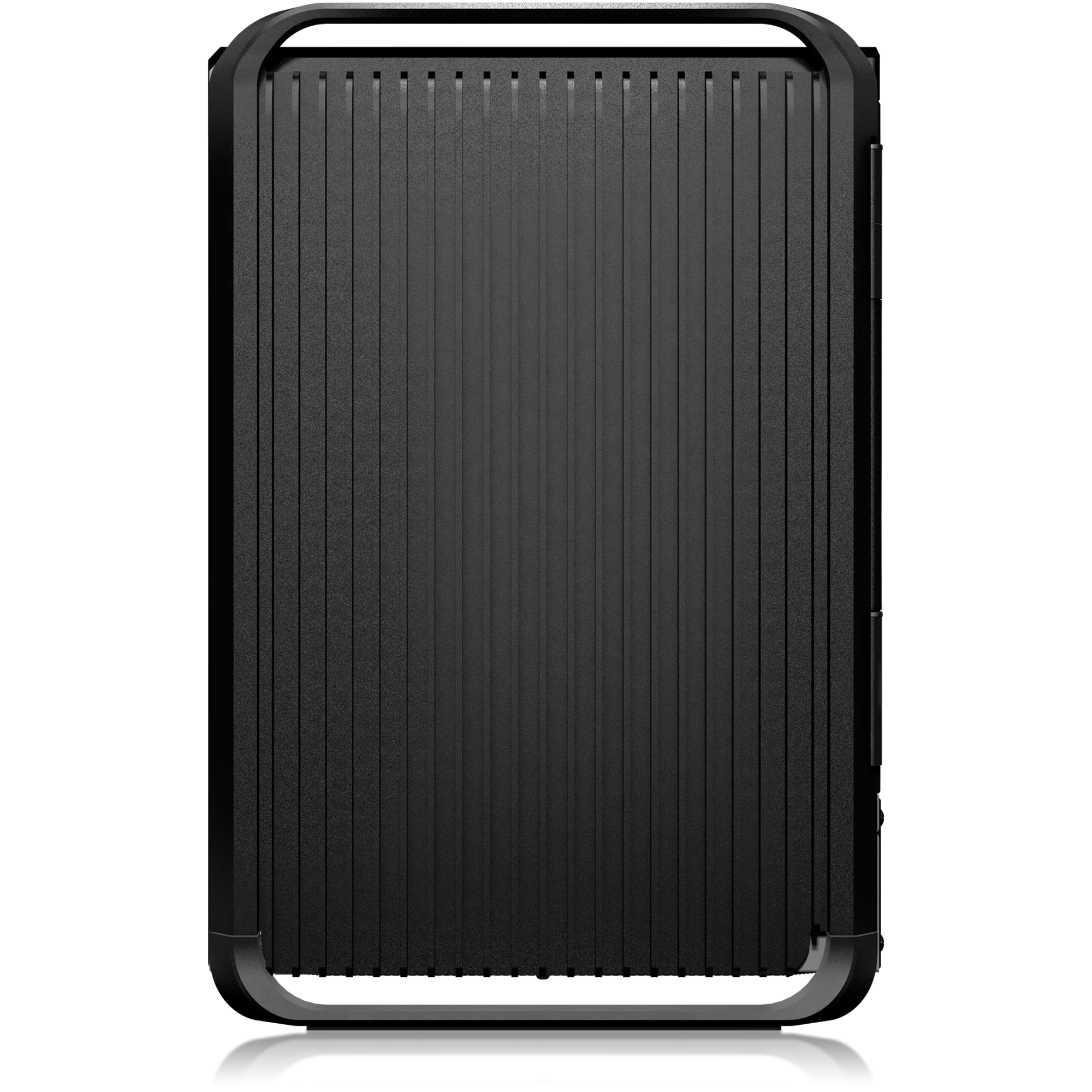

| Cooling | Liquid Cooled CPU and GPU with 240 mm radiator and liquid cooled side panels |
| CPU | Liquid Cooled AMD Ryzen™ 9 7950X 3D |
| Chipsest | AMD B650 |
| GPU | NVIDIA GeForce RTX™ 4080 |
| RAM | 2 x 32GB Dual Channel DDR5-5600 |
| Storage | 2 x 2TB PCIe 4.0 NVMe M2 |
| Ethernet | 2.5Gbps LAN |
| Wireless | AMD Wi-Fi 6E |
| Bluetooth | Version 5.2 |
| Power Supply Unit | Cooler Master V850 SFX Gold |

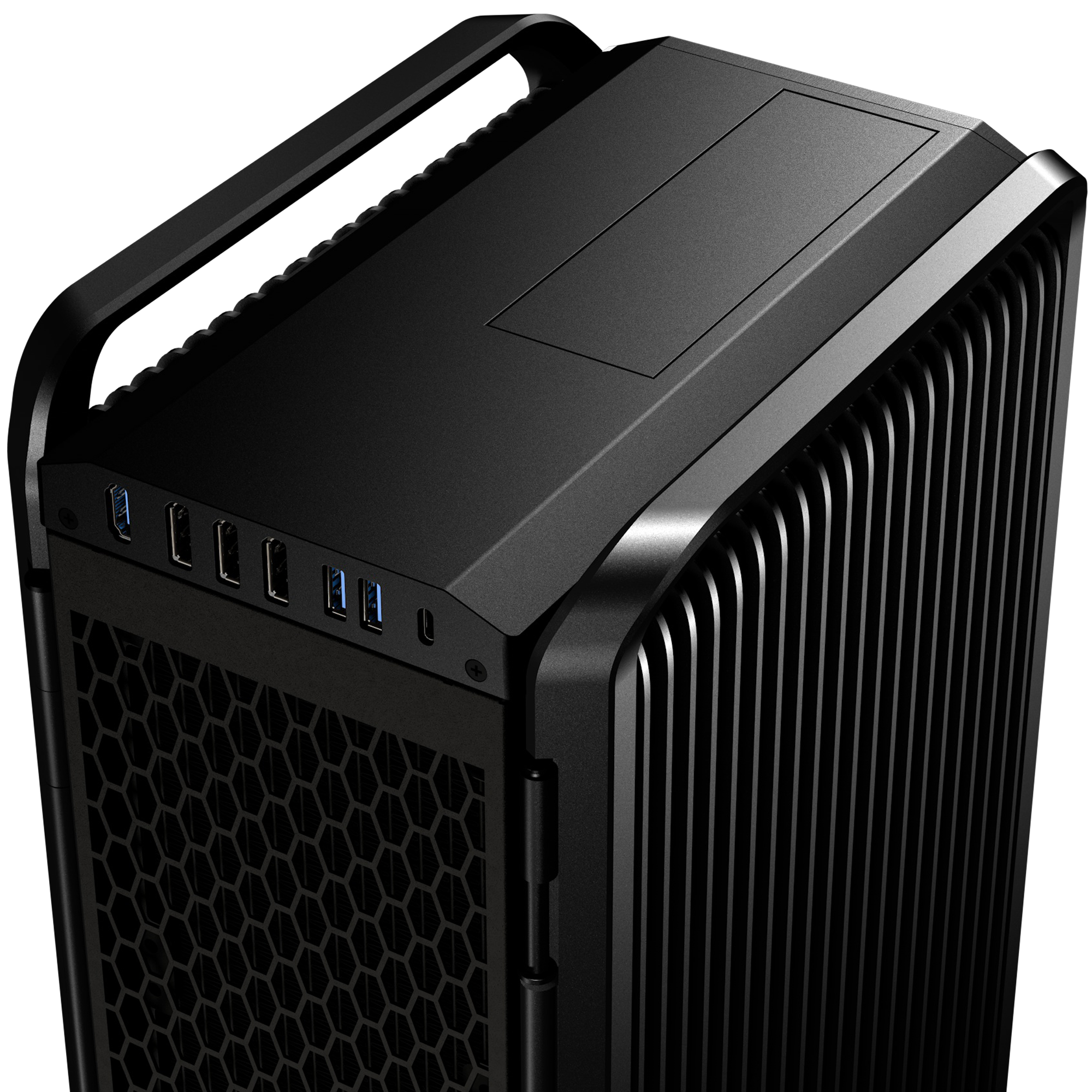

| Top IO Ports | 2 x USB 3.2 Gen 1.5 Gbps (Type-A), 1 x 2.5 Gbps LAN, 1 x 7.1 Channel Audio, 1 x HDMI 2.1a (up to 4K), 3 x USB 3.2 Gen 2 10 Gbps (Type-A), 1 x USB 3.2 Gen 2 x 2 20 Gbps (Type-C) |

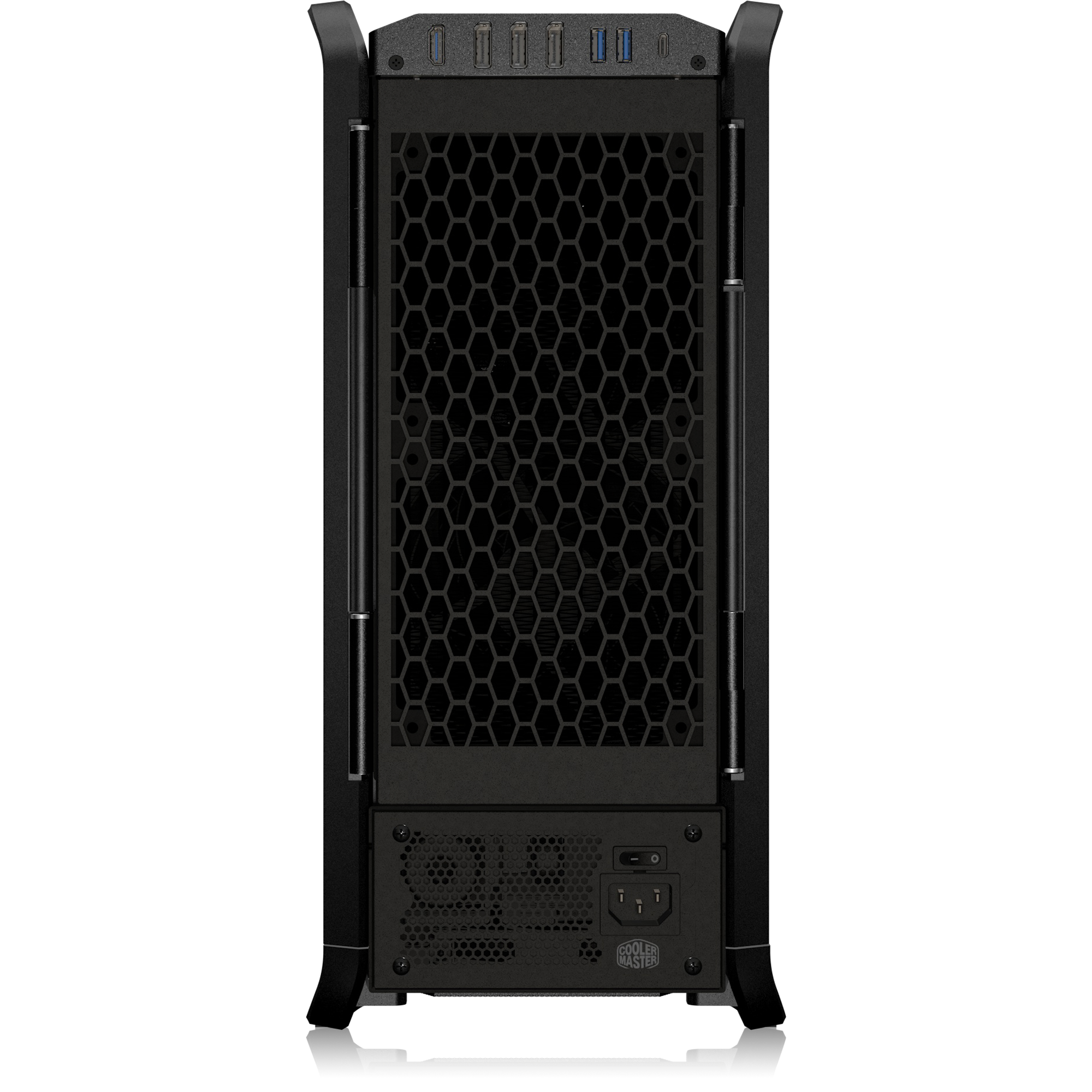

| Rear IO Ports | 3 x DisplayPorts 1.4a (up to 8K), 1 x HDMI 2.1a (up to 4K), 2 x USB 3.2 Type-A, 1 x USB 3.2 Type-C |
| Operating System | Windows 11 Pro |
| Size (L x W x H) | 276.1 x 175 x 379.84 mm (incl. Protrusions), 276.1 x 138.5 x 379.84 mm (excl. Protrusions) |
| Weight | 17.3 kg / 38.1 lbs |
| Volume | 14.77 L / 3.2 gal |
| Warranty | 2 Years |
| Accessories | AC Adapter, Warranty Card, Quick Start Guide |
