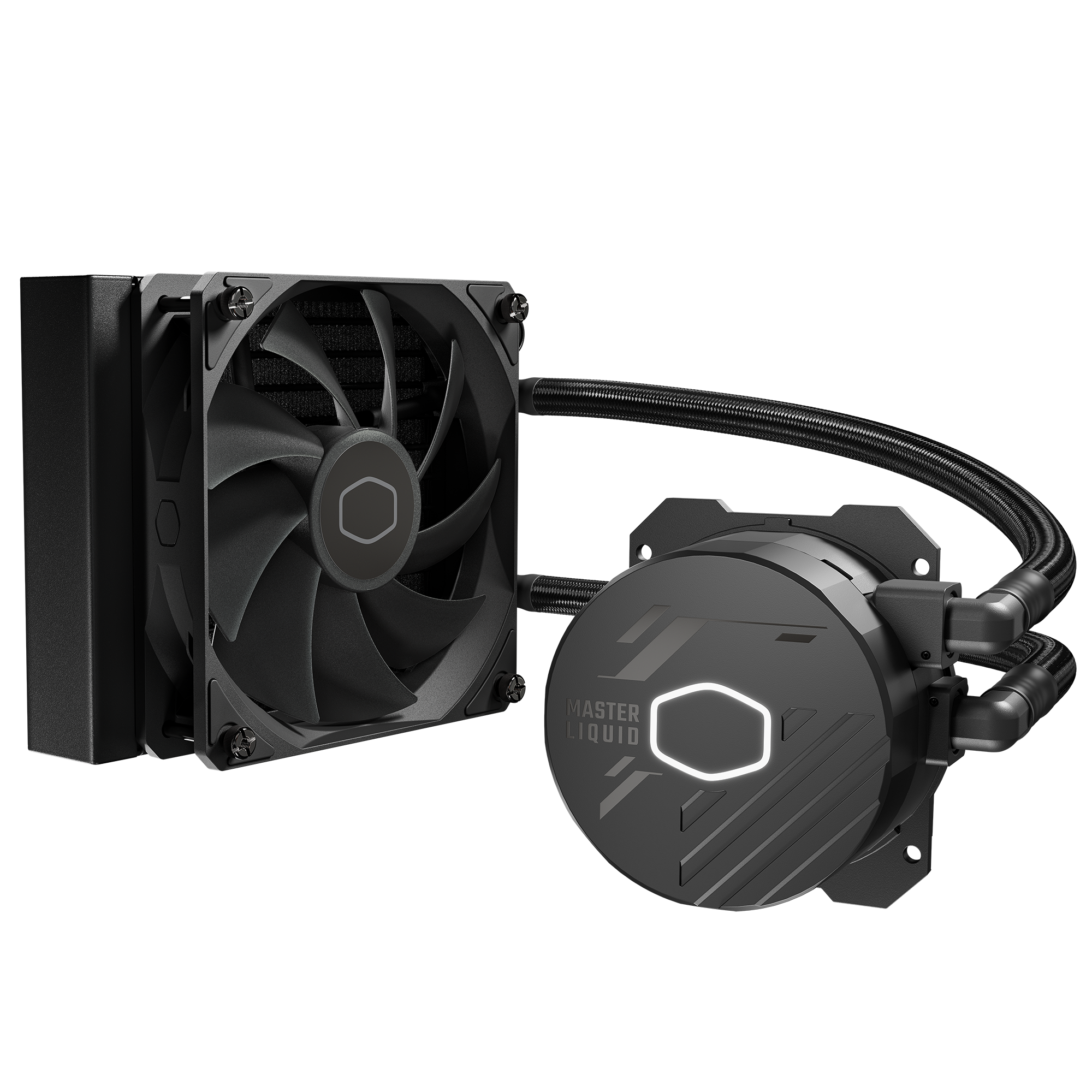

Cooler Master has built upon the classic MasterLiquid L Series to present a redesigned and improved release of the MasterLiquid 120L Core. Featuring new design elements that bring a classic minimalist look to the series, the MasterLiquid 120L Core represents Cooler Master’s ongoing innovative spirit.
Redesigned copper base targets heat spots with precision along with boosted water flow and pressure for enhanced cooling performance.
Expanded radiator fin surface accelerates heat dissipation for superior cooling.
An upgraded 120mm fan delivers optimal radiator performance.
Clean minimalist design brings a refreshed modern facelift to the pump cover.
Includes premium CryoFuze thermal paste for exceptional heat conductivity.
| Product Number | MLW-D12M-A17PK-R1 |
| Exterior Color | Black |
| CPU Socket | Intel® LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket |
| CPU Socket | AMD® AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 socket |
| Radiator Material | Aluminum |
| Radiator Dimensions | 157 x 119.6 x 27.2 mm / 6.2 x 4.7 x 1.1 inch |
| Pump Dimensions | 81 x 76 x 47 mm / 3.2 x 3 x 1.9 inch |
| Pump MTTF | >70,000 Hours |
| Pump Noise Level | 12 dBA (Max) |
| Pump Connector | 3-Pin |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 3.96W |
| Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch |
| Fan Quantity | 1 PC |
| Fan Speed | 650-1750 RPM ± 10% |
| Fan Airflow | 71.93 CFM (Max) |
| Fan Noise Level | 27.2 dBA (Max) |
| Fan Pressure | 1.86 mmH₂O (Max) |
| Fan Bearing Type | Rifle Bearing |
| Fan MTTF | >160,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.26A |
| Fan Safety Current | 0.37A |
| RAM Clearance | N/A |
| Warranty | 3 years |
| Series | MasterLiquid Lite |
| Cooler Type | Liquid Cooler |
| Radiator Size | 120 |
