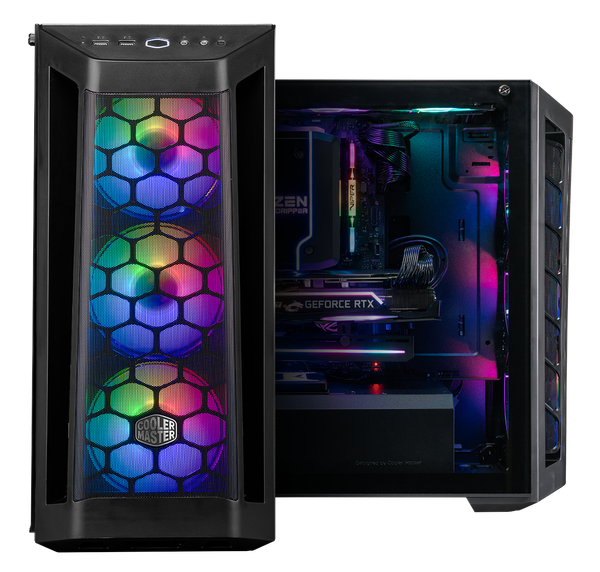

By employing Cooler Master’s Fine Mesh technology, the MasterBox MB511 ARGB demonstrates a prowess for thermal performance and pairs it with premium lighting. Three ARGB fans are included in the box to complement hardware lighting while mesh ventilation on the front and top panel keeps gaming systems cool under pressure.
With airflow potential and aesthetic customization maximized, high-demand gaming rigs can breathe easy in the MasterBox MB511 ARGB.

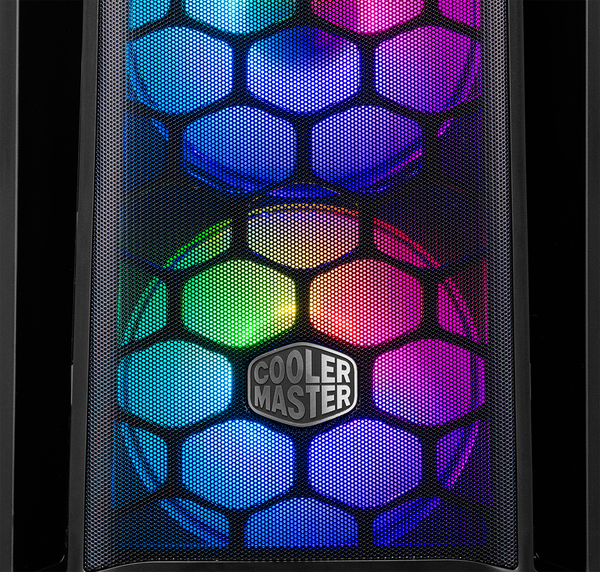

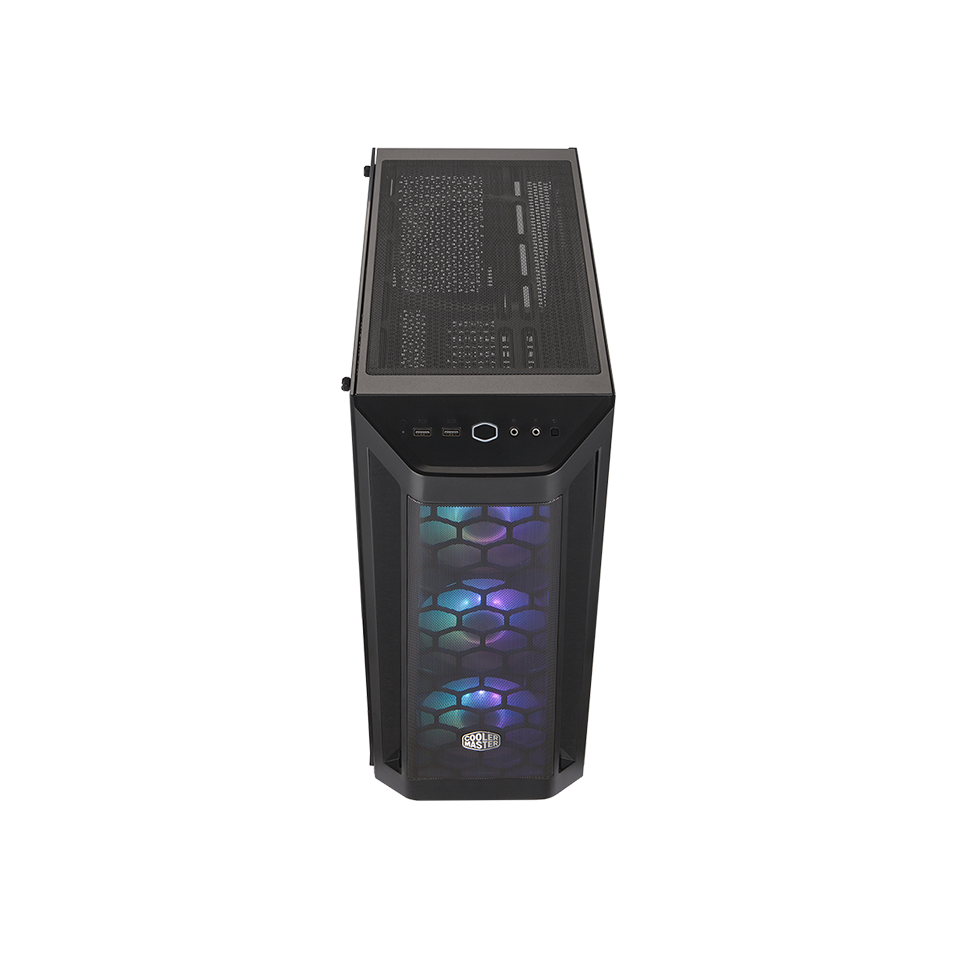

The Fine Mesh design on the front panel is proven, by reviewers and critics alike, to provide considerable airflow while simultaneously filtering out dust. Light also refracts and behaves uniquely to the Fine Mesh, creating a halo effect against the included ARGB fans.

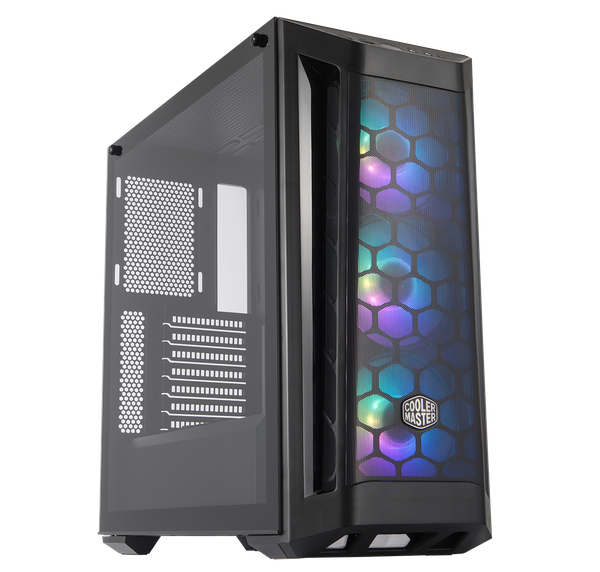

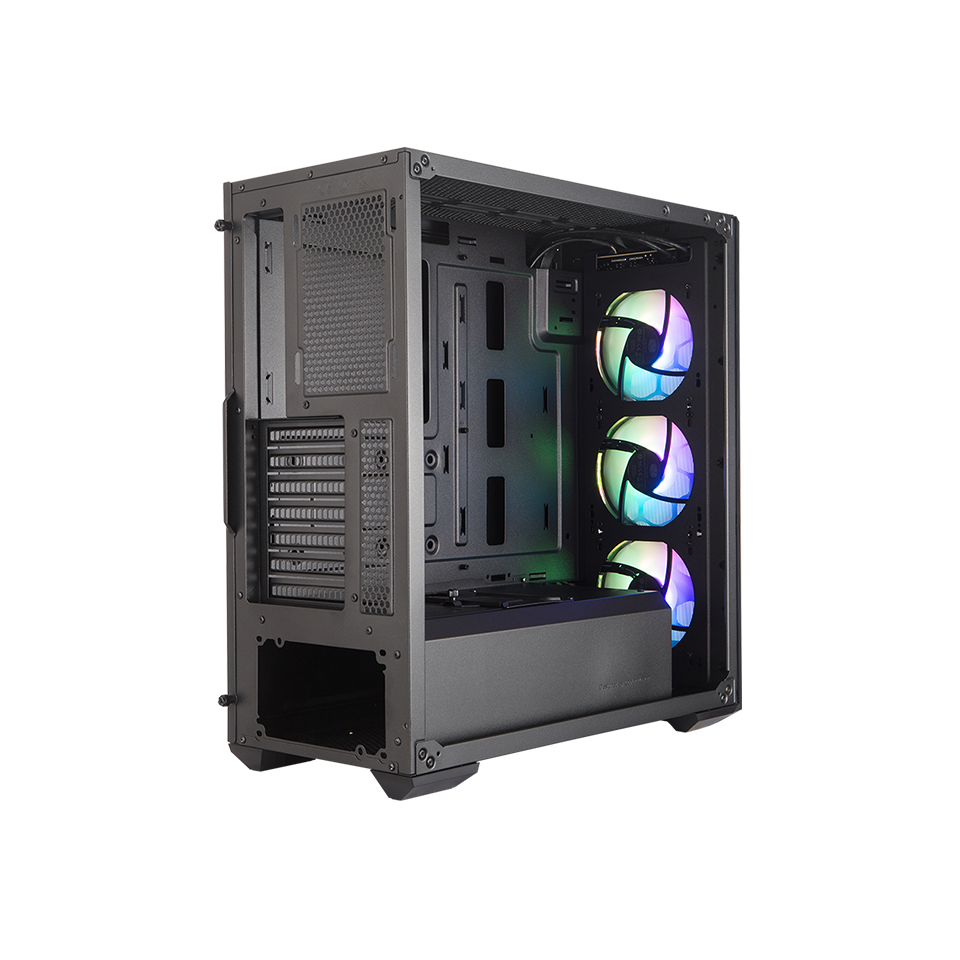

Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

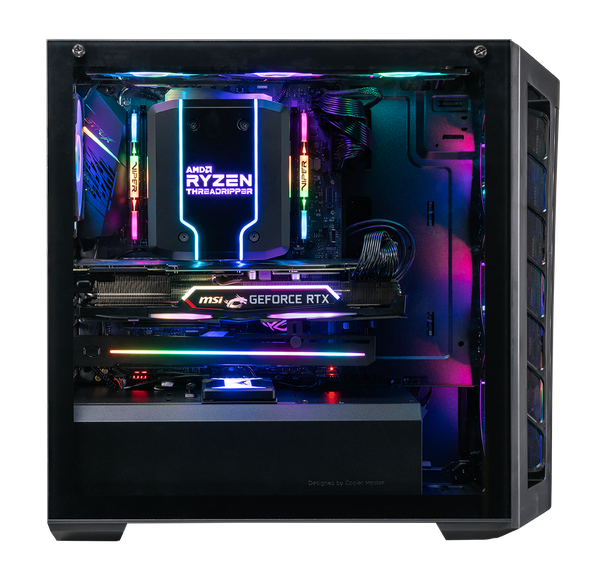

Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

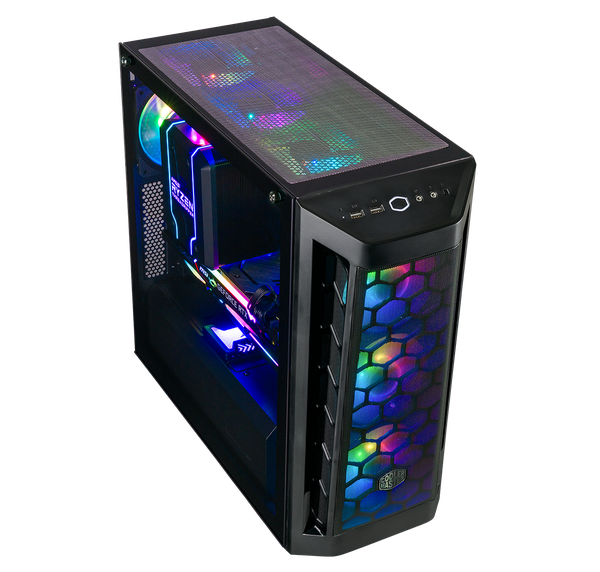

Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.
| Model Number | MCB-B511D-KGNN-RGA |
| Color(s) | Black |
| Materials - Exterior | Steel, Plastic |
| Materials - Left Side Panel | Tempered Glass, Steel |
| Dimensions (L x W x H) | 496 x 217 x 469 mm |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards) |
| Expansion Slots | 7 |
| 5.25" Drive Bays | N/A |
| 2.5" / 3.5" Drive Bays (Combo) | 2 (Max.2) |
| 2.5" Drive Bays | 5 (Max.6) |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 (USB 3.0) |
| I/O Panel - Audio In / Out | 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack |
| I/O Panel - Other | 1x ARGB Controller, 1x ARGB 2-to-3 Splitter |
| Pre-installed Fans - Front | 3x 120mm ARGB Fans |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm / 2x 140mm (140mm can only mount behind the front plate) |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Top | 120 / 240 / 360mm (44mm max motherboard component height) |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360mm (75mm clearance) |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 165mm/6.49" |
| Clearance - PSU | 180mm/7.08" |
| Clearance - GFX | 410mm/16.1" |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| Warranty | 2 years |
| Size | Mid Tower |
| Series | MasterBox Series |
