MasterBox 540
Description
ARGB Ether Front Panel
Standardized ARGB Connector & Controller Included
Removable Top Panel
Rich Connectivity
Screwless & Tool-Free Design TG Side Panel
Versatile Cooling Options
Room For Upgrades
Breathable Power Supply Shroud
- Model Number: MB540-KGNN-S00
- Color(s): Black
- Materials - Exterior: Steel, Mesh, Plastic
- Materials - Left Side Panel: Tempered Glass
- Dimensions (L x W x H): 499.3 x 208.6 x 498mm (incl. Protrusions), 488.3 x 208.6 x 498mm (excl. Protrusions)
- Volume: 51.87L (exlc. Protrusions)
- Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)
- Expansion Slots: 7
- 5.25" Drive Bays: 0
- 2.5" / 3.5" Drive Bays (Combo): 2
- 2.5" Drive Bays: 4
- I/O Panel - USB Ports: 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C
- I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)
- I/O Panel - Other: 1x Reset/ARGB button
- Pre-installed Fans - Top: N/A
- Pre-installed Fans - Front: N/A
- Pre-installed Fans - Rear: 1x 120mm 650~1800RPM SickleFlow PWM ARGB
- Fan Support - Top: 3x 120mm / 2x 140mm
- Fan Support - Front: 3x 120mm / 2x 140mm
- Fan Support - Rear: 1x 120mm
- Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
- Radiator Support - Front: 120 / 140 / 240 / 280 / 360mm
- Radiator Support - Rear: 120mm
- Clearance - CPU Cooler: 165mm/6.49"
- Clearance - PSU: 180mm / 7.08" (295mm / 11.61" with HDD cage removed)
- Clearance - GFX: 410mm/16.1"
- Dust Filters: Front, Top, Bottom
- Power Supply Support: ATX
- Warranty: 2 years
- Size: Mid Tower
- Series: MasterBox Series
Details
Standardized ARGB Connector & Controller Included

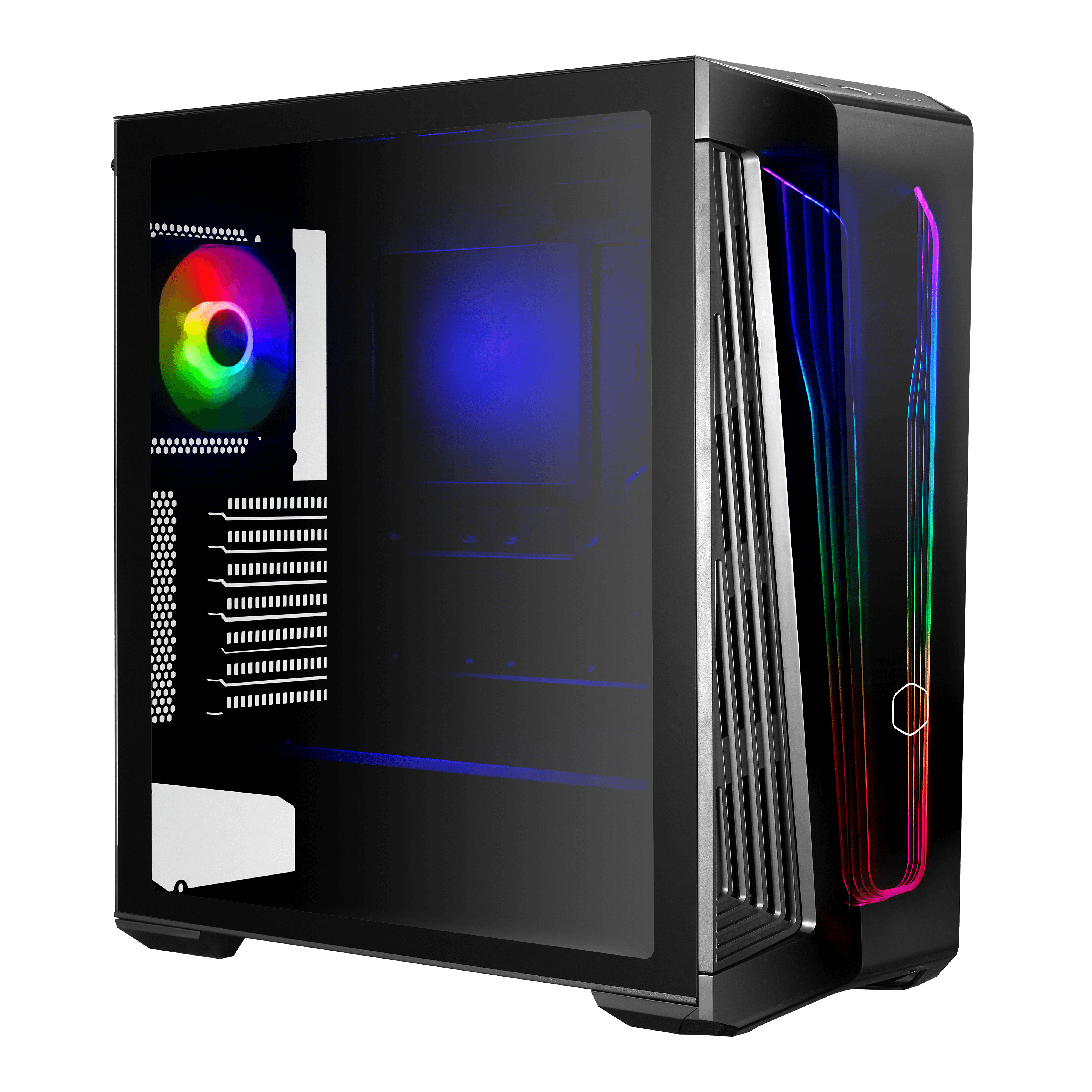

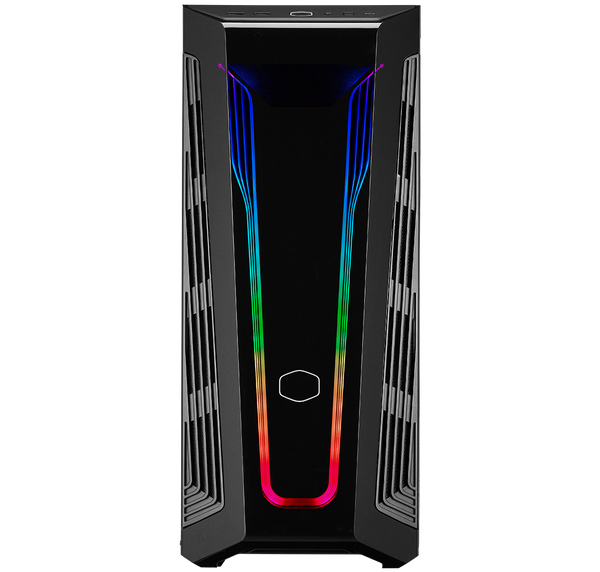

ARGB Ether Front Panel
Inspired by the design of automotive lighting, the front panel houses ARGB lighting strips paired with a front diffuser. This design element is powered by a pogo pin connector and fused to the DarkMirror finish of the façade, delivering a unique twist on conventional illumination.

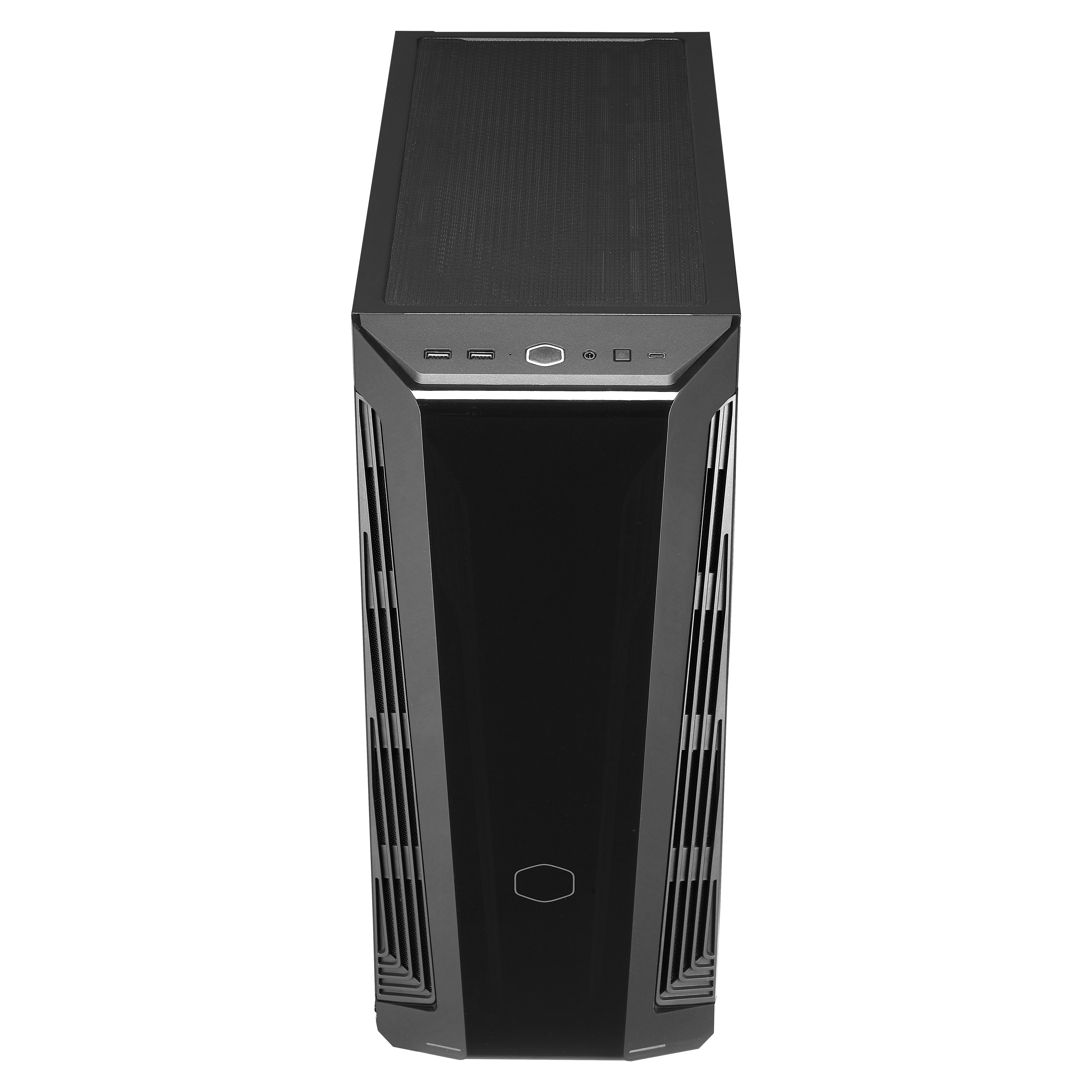

Removable Top Panel
The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
Rich Connectivity

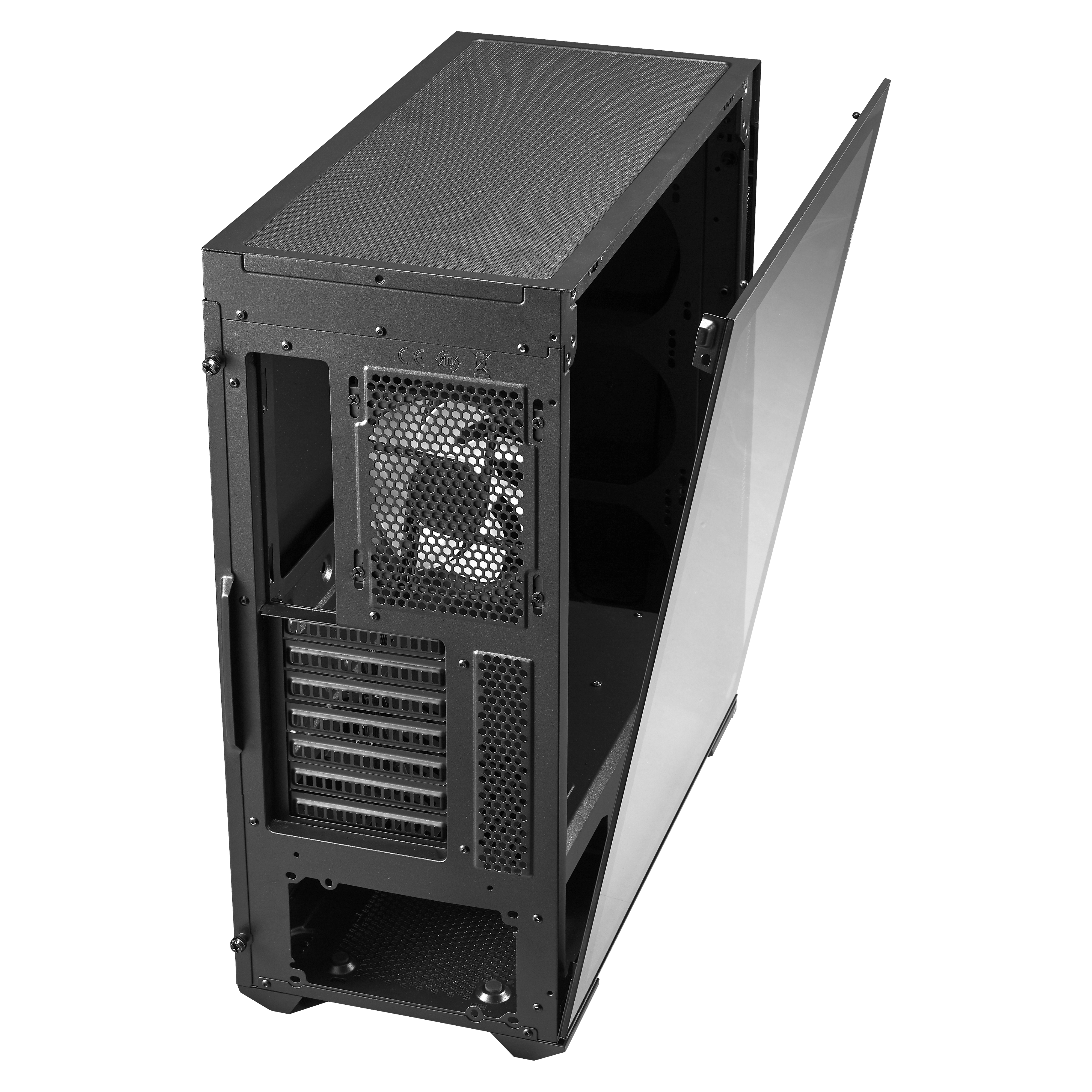

Screwless & Tool-Free Design TG Side Panel

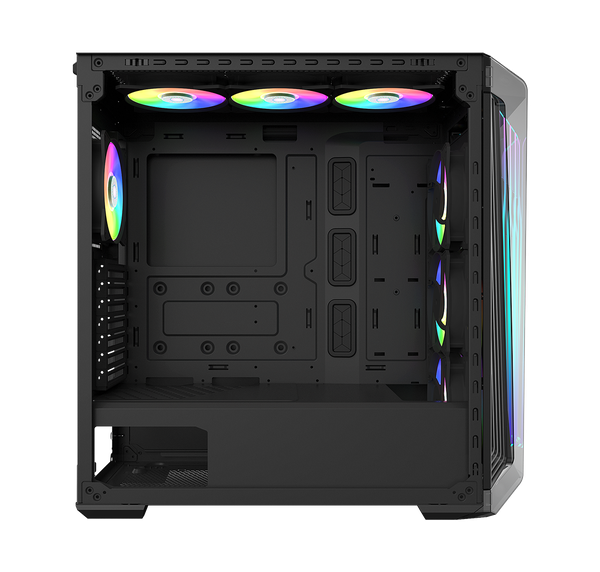

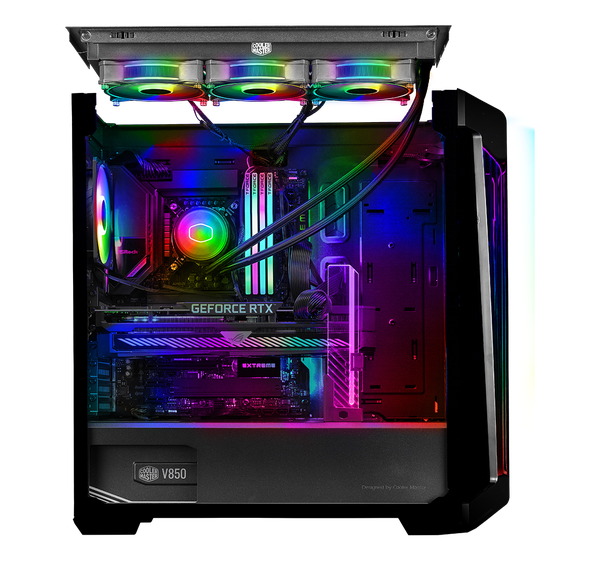

Versatile Cooling Options
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.

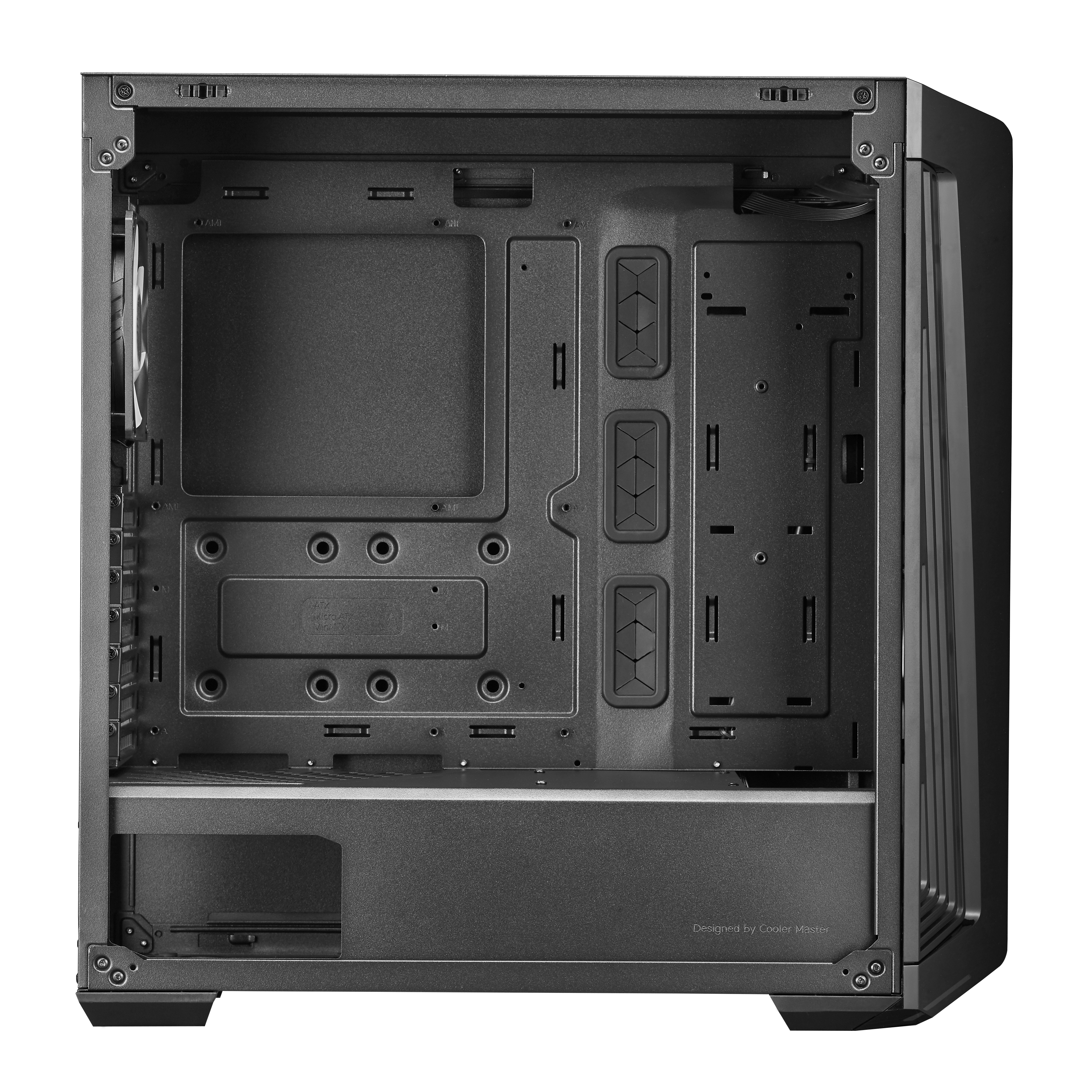

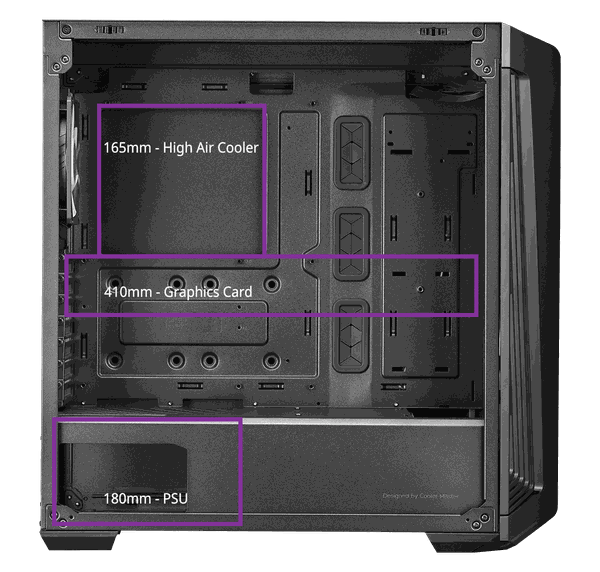

Room For Upgrades
Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game.
