Compatibility

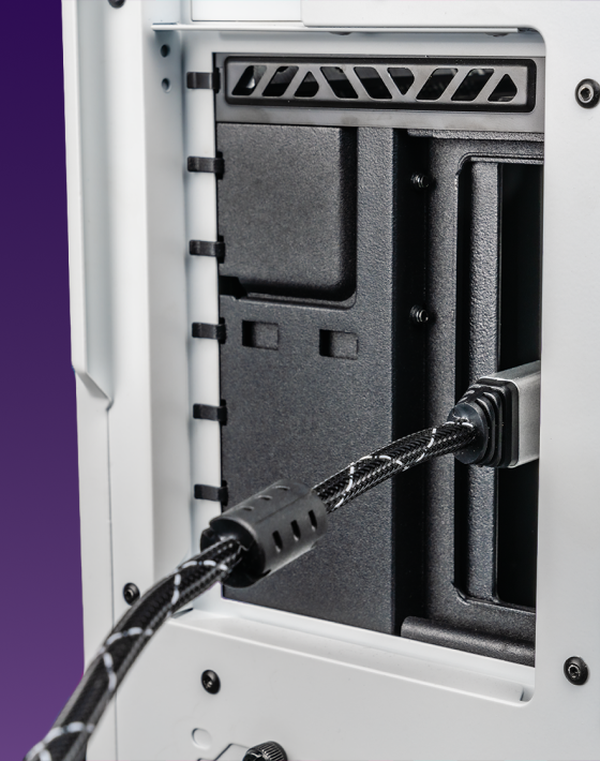

Compatible with all Standard ATX Chassis
The newly revised Vertical Graphics Card Holder Kit fits all standard ATX chassis, now providing even more options for adjusting graphics card position.

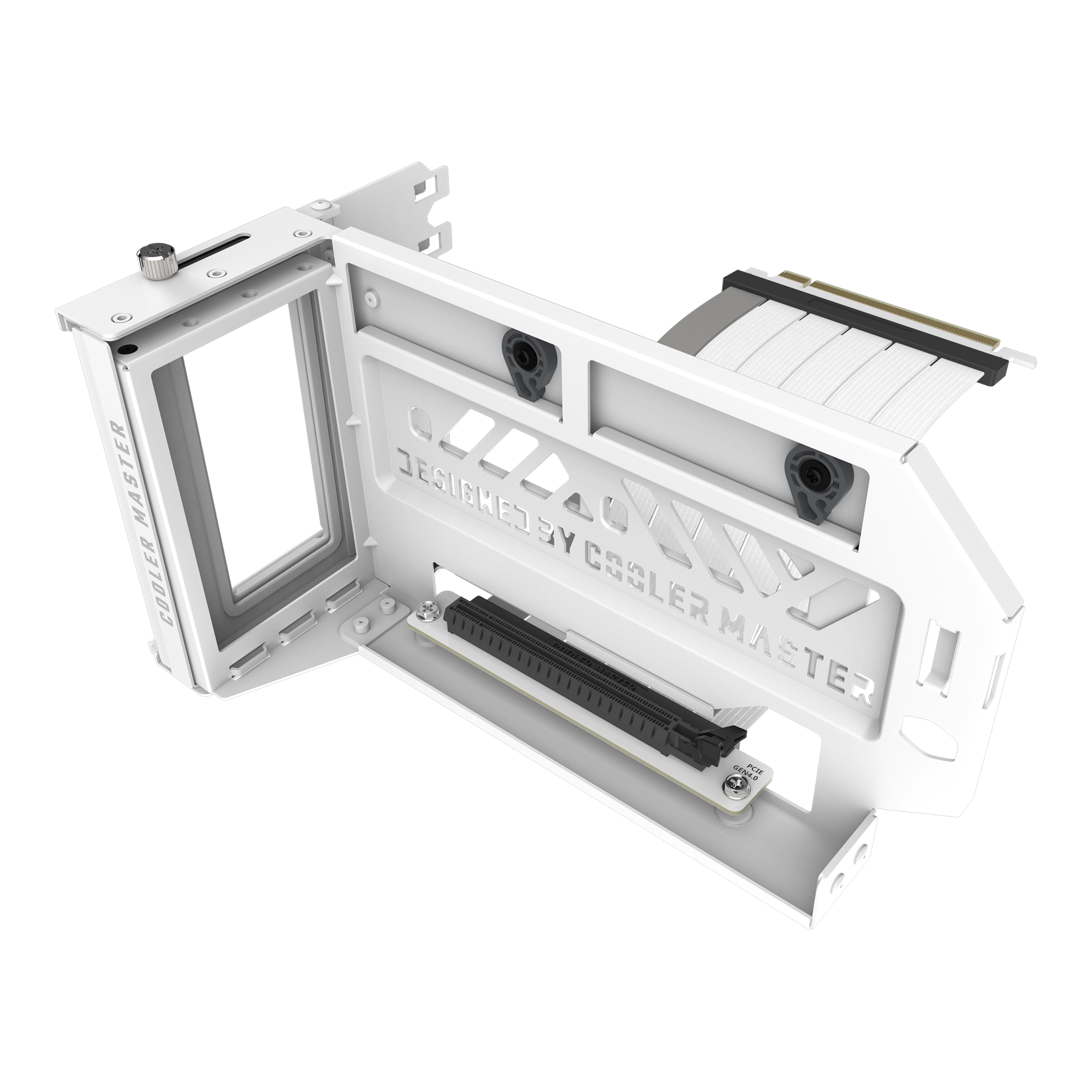

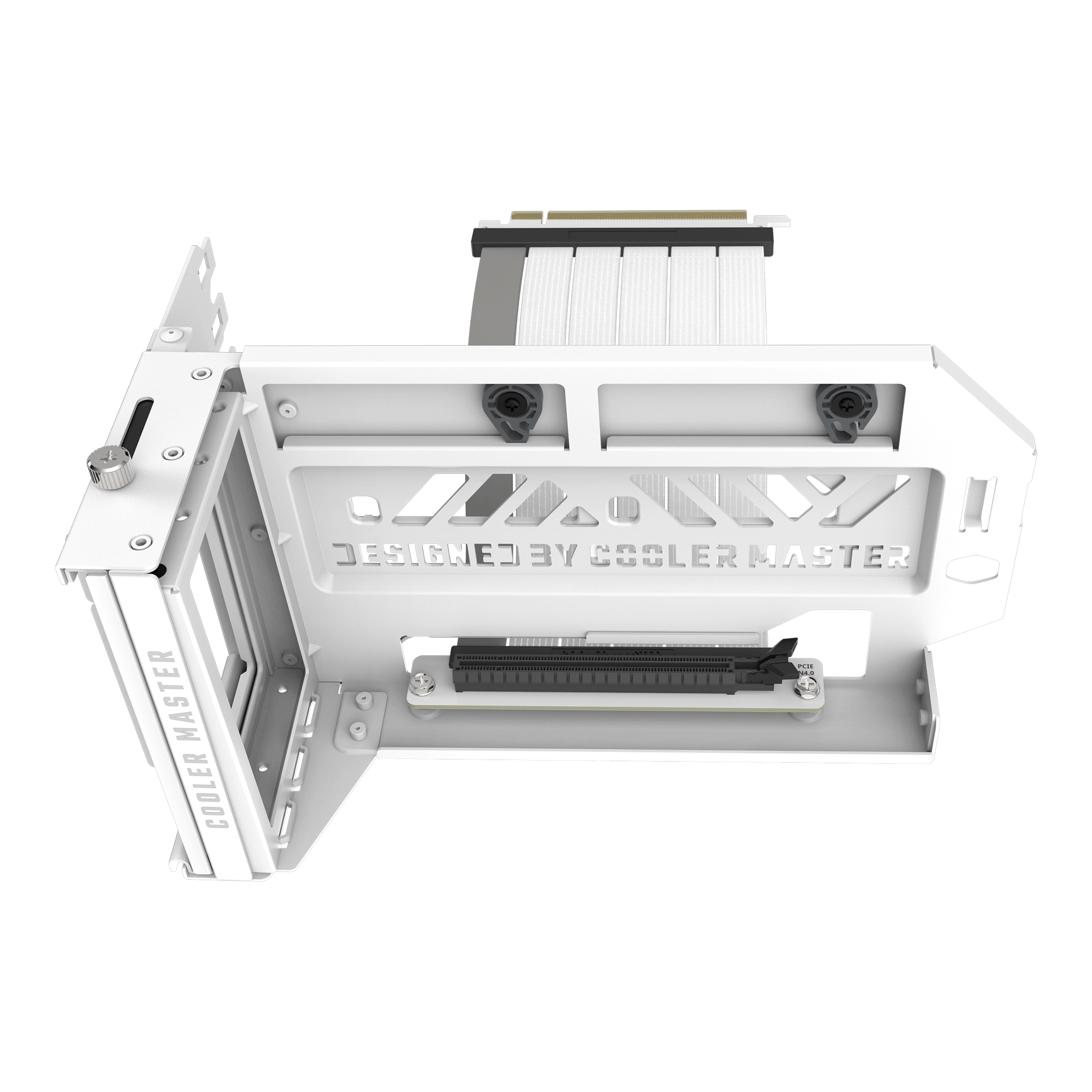

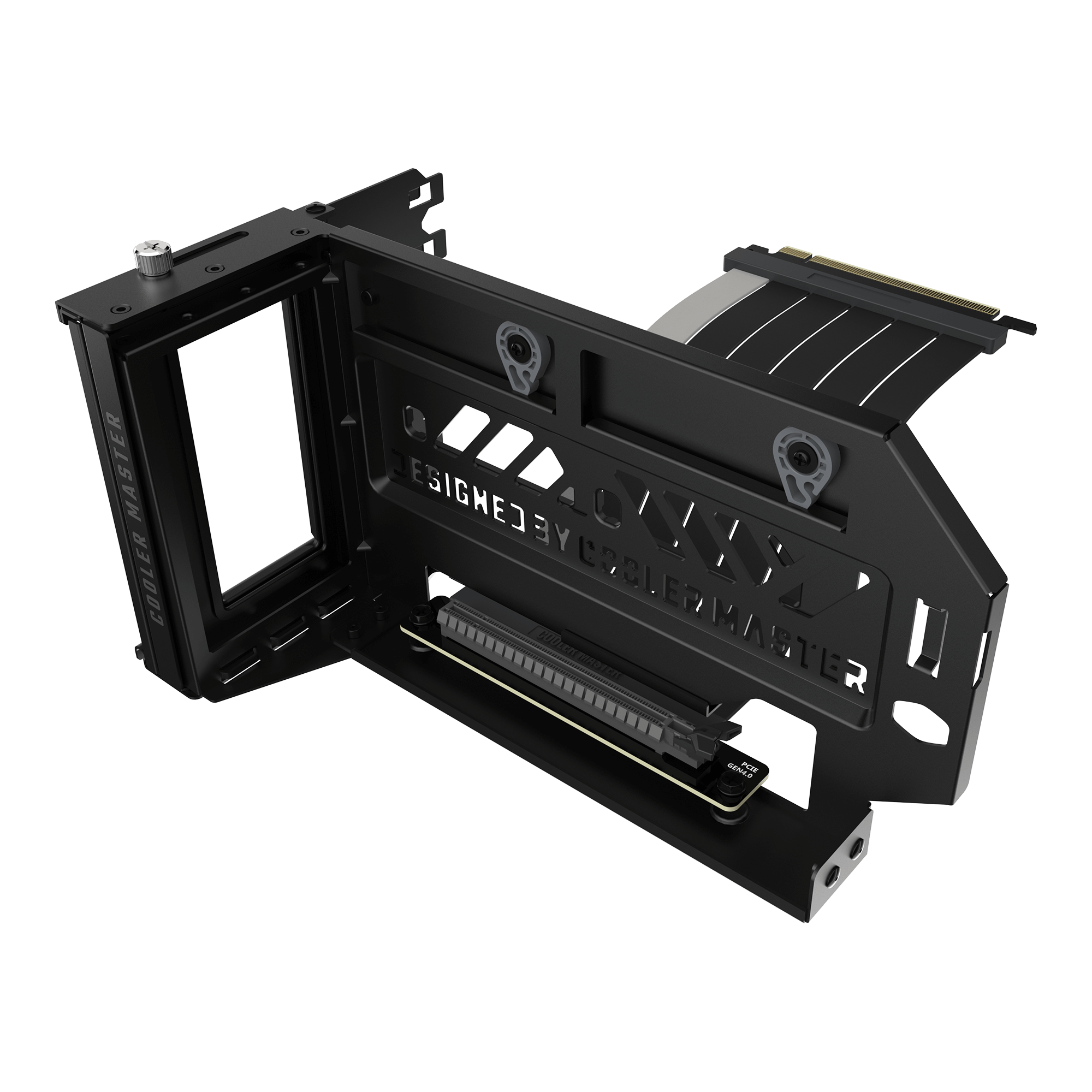

Vertical Graphics Card Holder Kit V3
Vertical Graphics Card Holder Kit V3
Select Color
Availability:
-
Select Styles for Availability
€ 69,99
Description

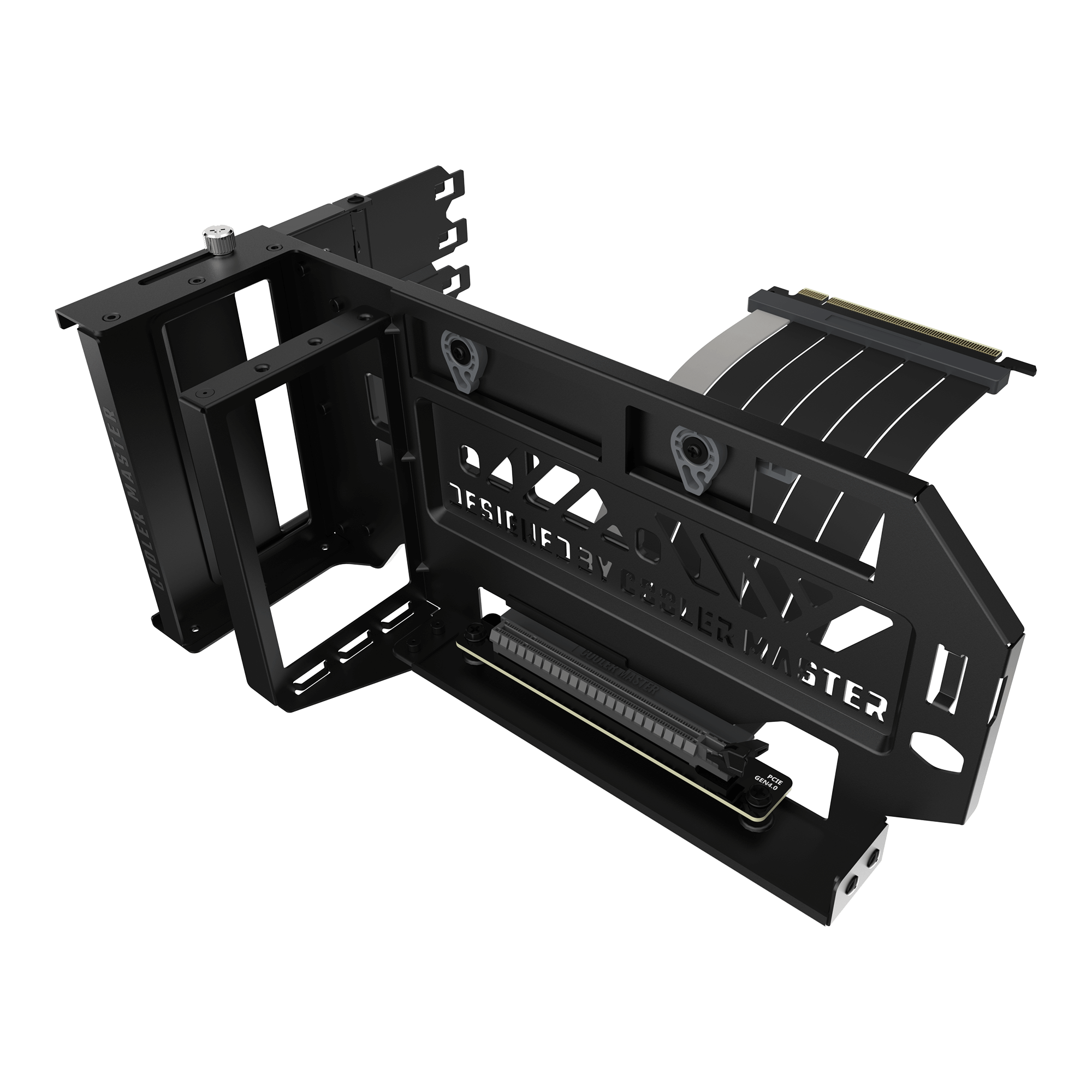

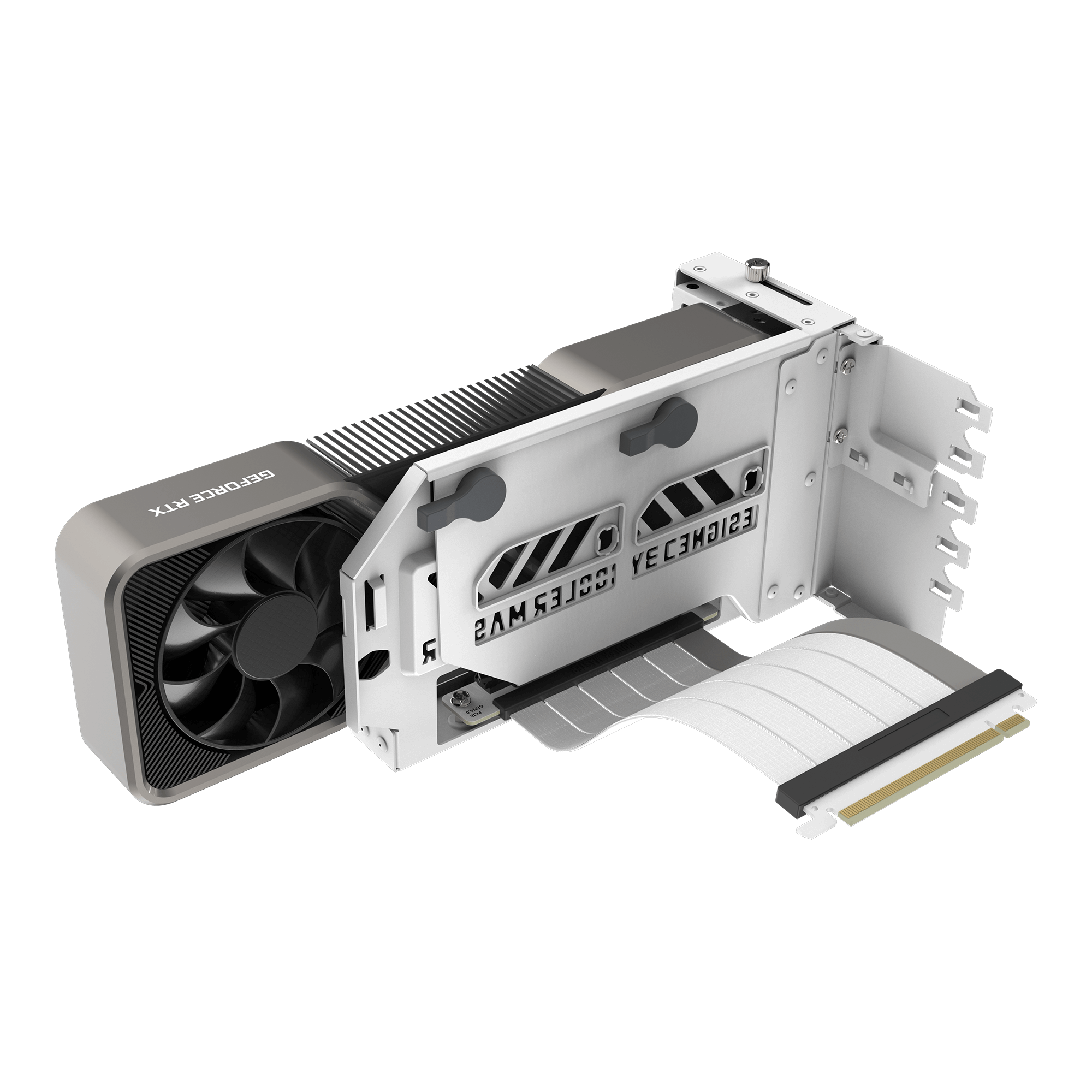

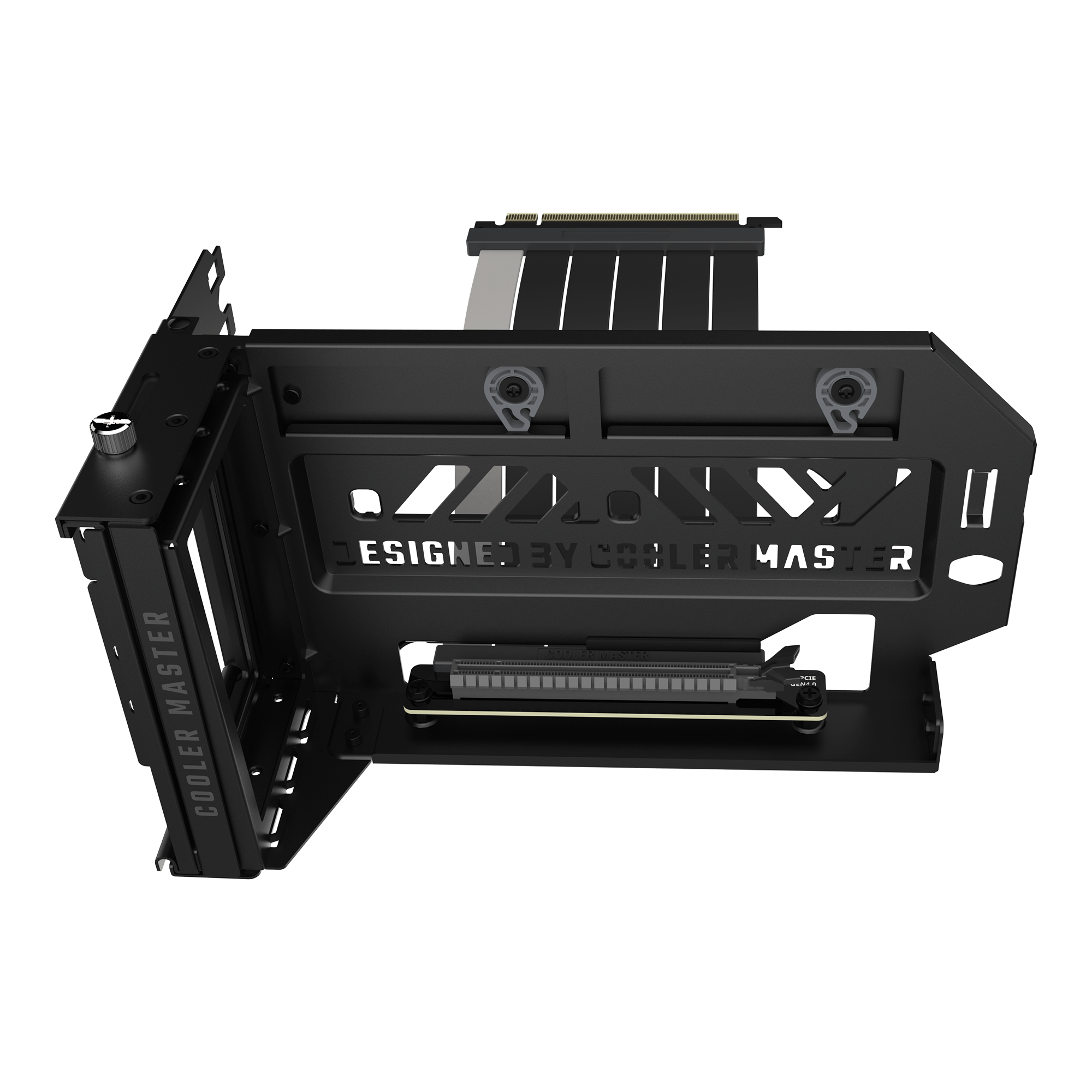

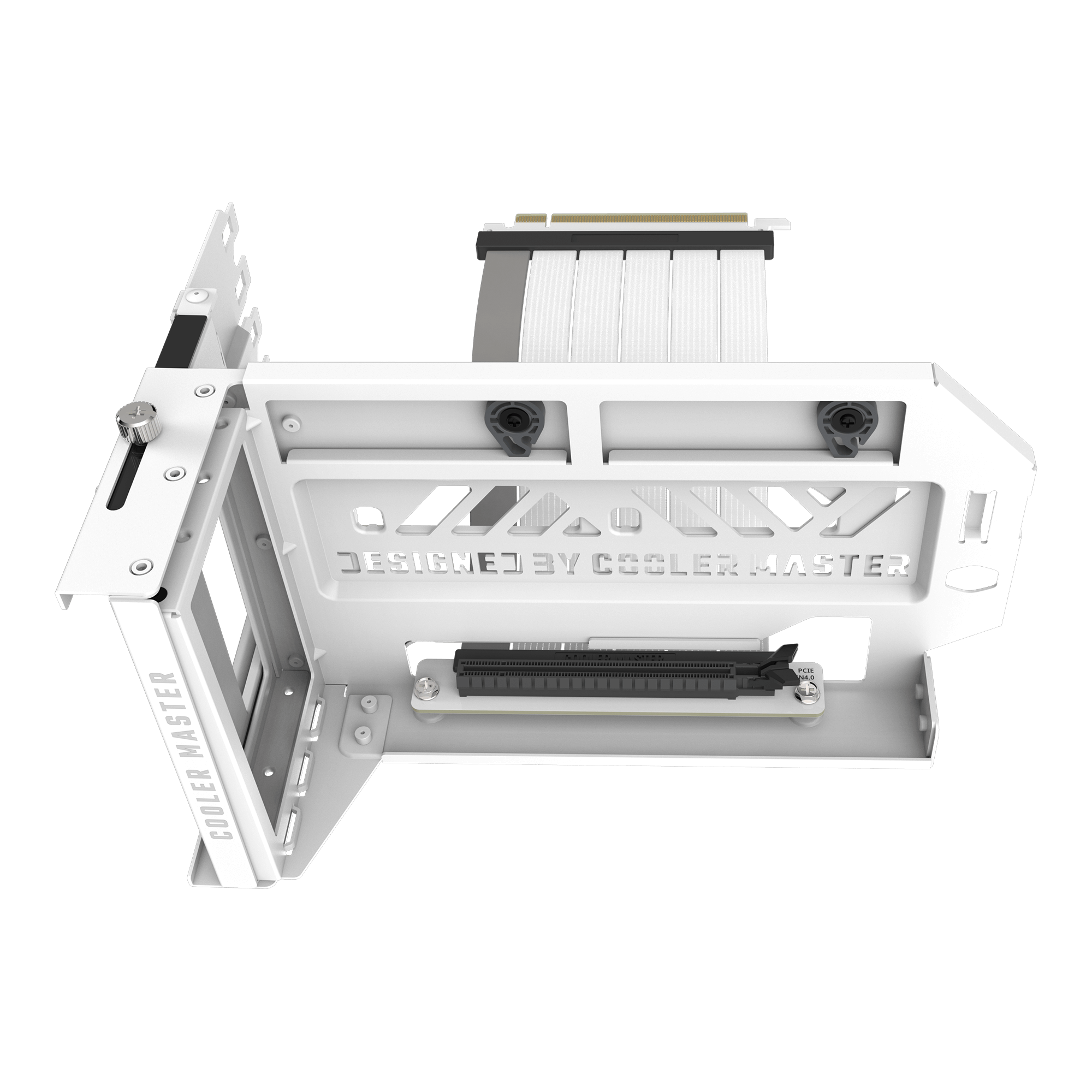

Supporting cases ranging in size from m-ATX to ATX, and featuring a removable adjustable GPU bracket, this remastered design allows unprecedented compatibility with various builds and setups. A PCIe 4.0 riser cable is included to assist the installation process and ensure high efficiency at uncompromised speeds.
- Model Number: Black: MCA-U000R-KFVK03, White: MCA-U000R-WFVK03
- Color(s): Black / Gray, White / Gray
- Dimensions (L x W x H): GFX Holder Kit: 249 x 148.1 x 141.8mm (close size), GFX Holder Kit: 305 x 178.1 x 141.8mm (open size), Riser Cable: 165mm (6.19in)
- Supported Chassis Type: E-ATX, ATX, Micro ATX (may interfere with component installation on the rear panel. Max. CPU cooler height limited to 70mm.)
- Supported Graphics Cards: Any length, up to 3 slots wide
- Riser Cable Model: Riser Cable PCIe 4.0 x16
- Compatibility: PCIe 4.0 and older
- CE Certifications Number: BKC210933AC
- PCB / Wire UL Numbers: E1895721 / E252840
- Component Materials: PCBA, Silver Plated Copper Wire 30 AWG
- Insulation Materials: PE, TPE
- Other Materials: ABS, PP, SGCC Steel, Nickel, Gold, Brass
- Connectors: PCIe x16 Male to PCIe x16 90° Female
- Rated Working Voltage and Current: DC 12V / 5A
- Operating Temperature: -20° to +100° Celsius
- Required PCI slots: Minimum 4 PCI slots required for mounting
- Weight: 0.81 kg
- Warranty: 2 years
- Series: Others
- Masteraccessory: Case Accessory
Details

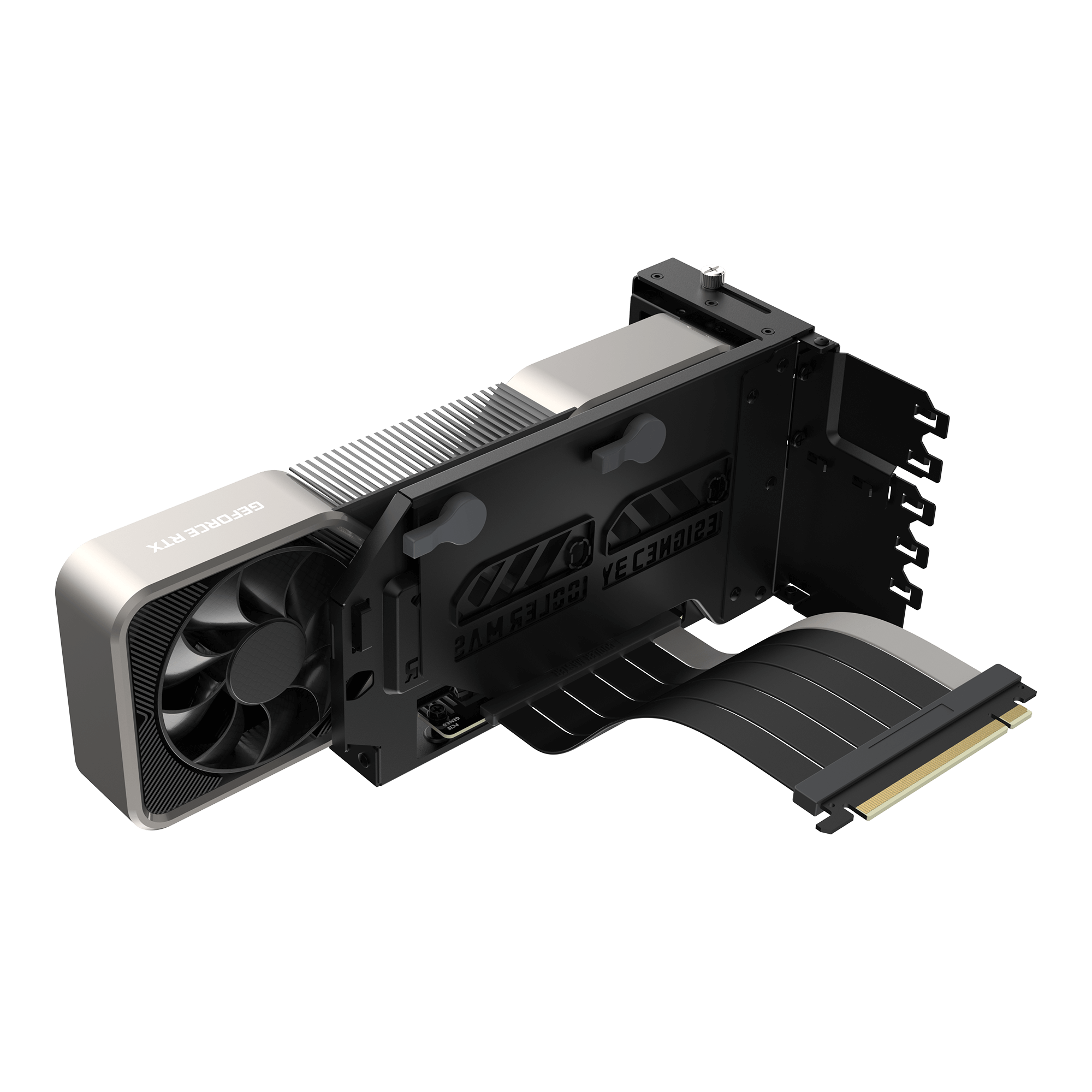

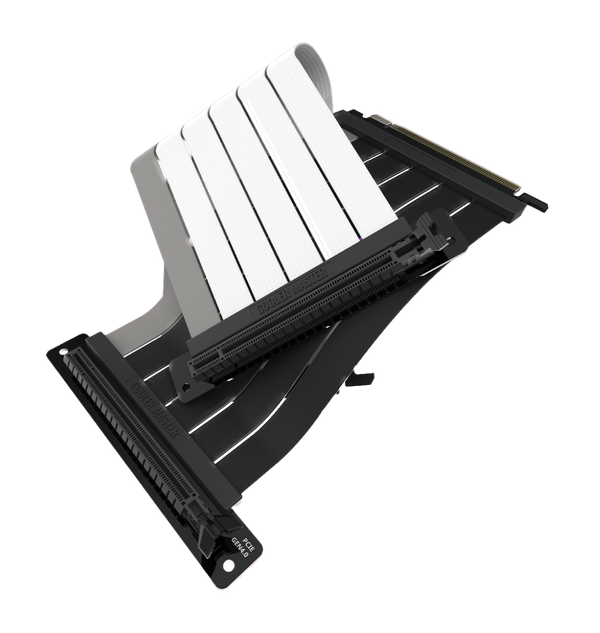

Cooler Master Riser Cable PCIe 4.0 Included
Allows for efficient data transmission and connectivity
between the latest hardware components
Premium Materials
42%
Increased Durability
Compatibility
ATX & m-ATX Compatibility
Designed for both ATX and mATX cases, this accessory is compatible with the latest GPUs available on the market
GPU

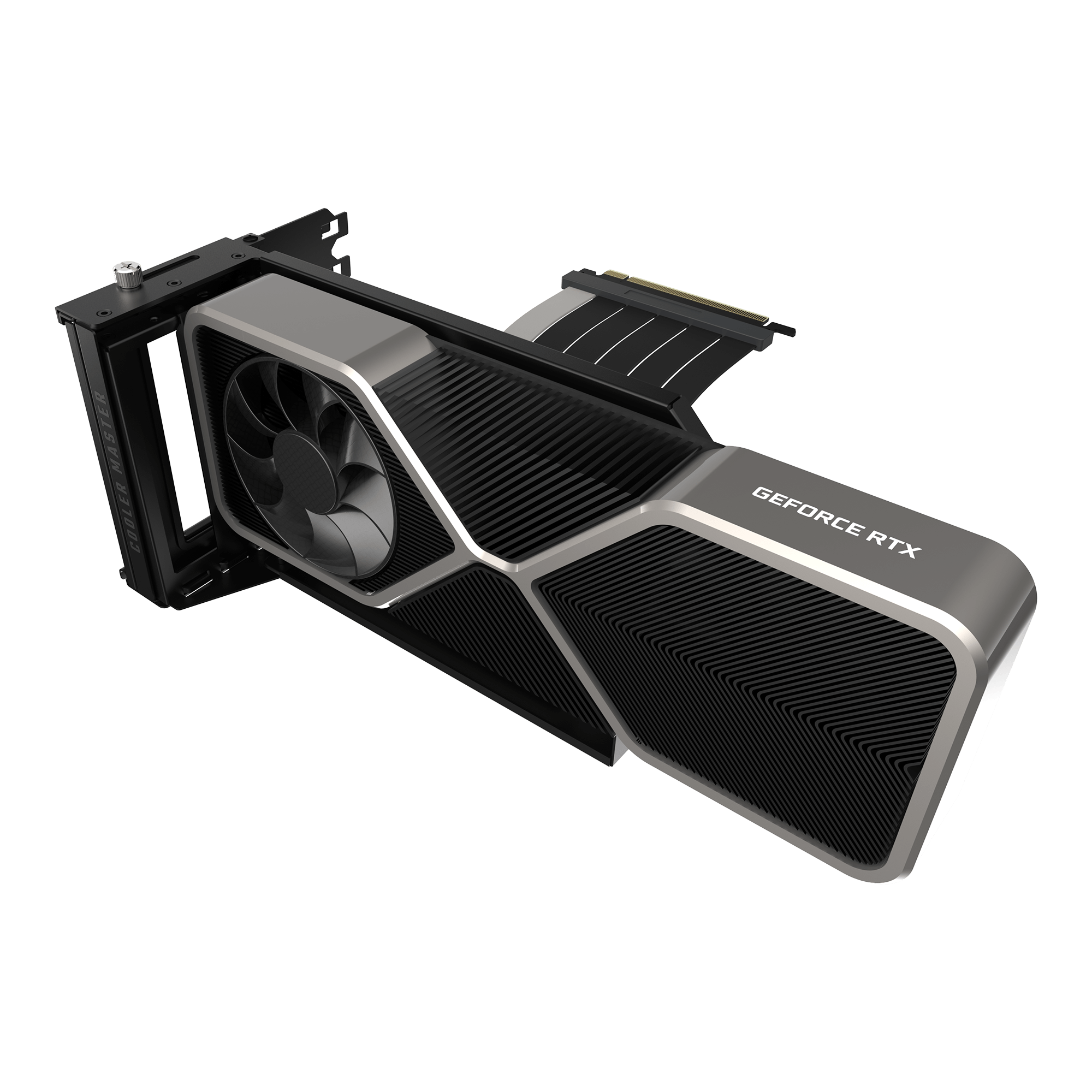

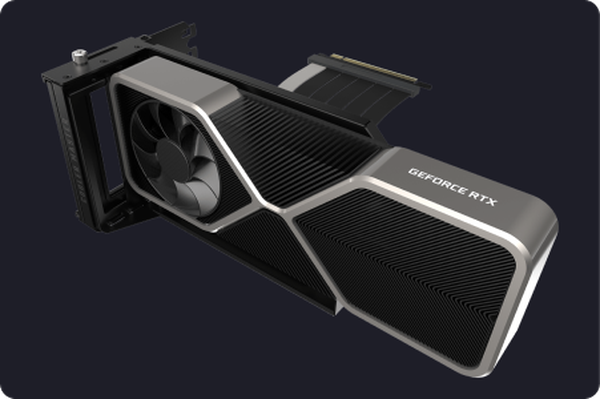

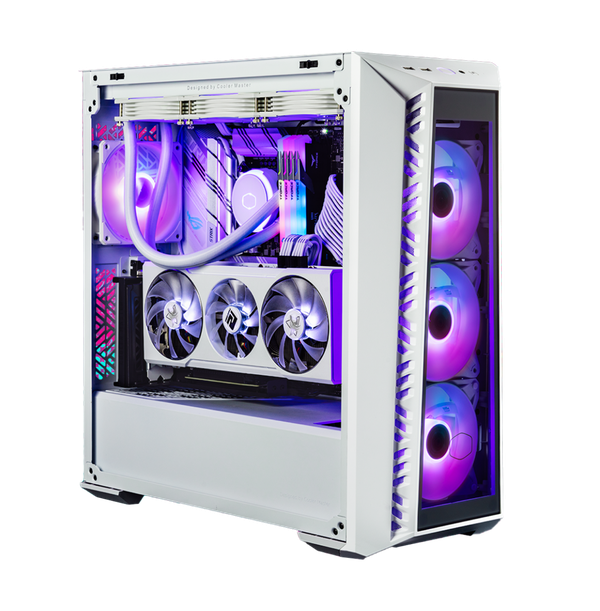

EFFORTLESSLY SHOWCASE YOUR GRAPHICS CARD
Bring the best out of your components by showing off your GPU
Compatibility

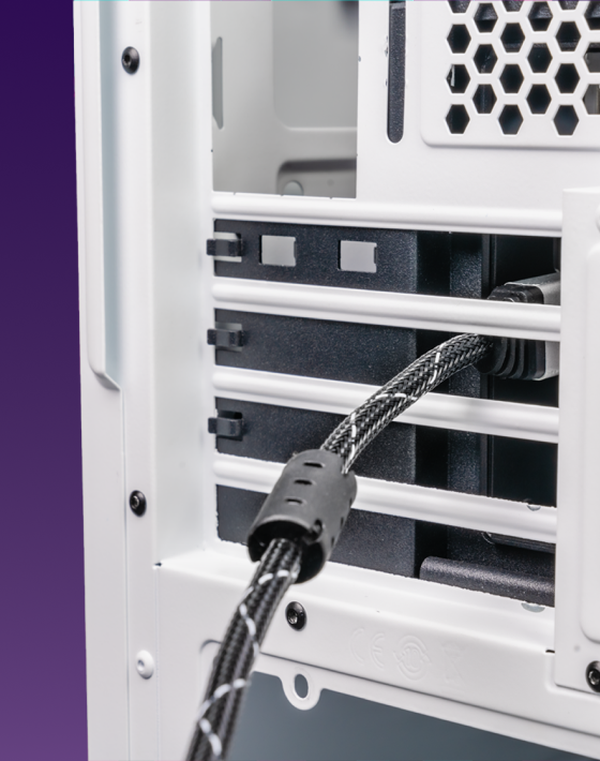

...and all Standard M-ATX Chassis
Compatibility with m-ATX cases is guaranteed thanks to the brand new design that simply requires 4 PCi slots for installation. GPU connection to external monitors is facilitated due to the modular design, now 100% adjustable according to preference and needs.

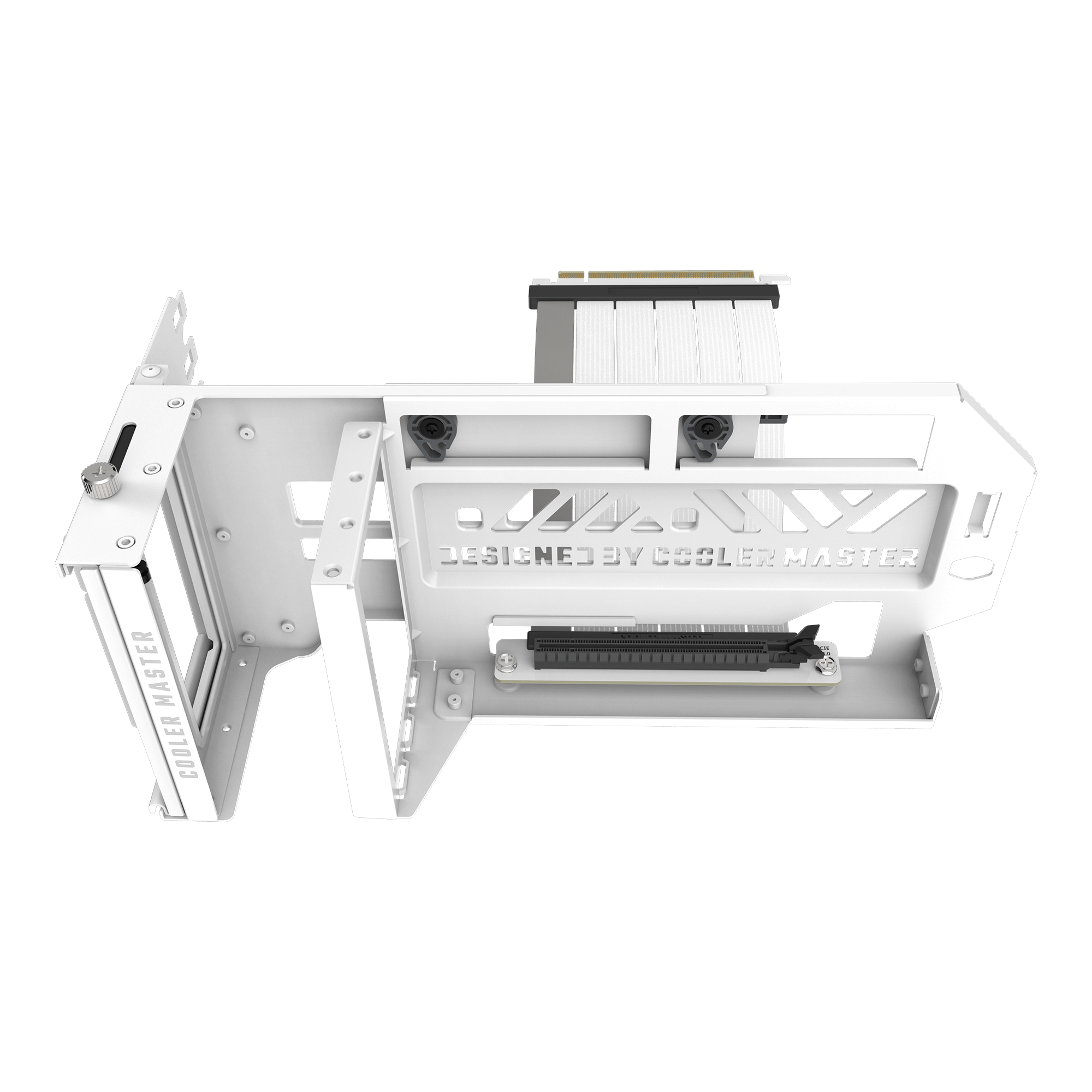

TOOLLESS, INSTANTLY ADJUSTABLE DESIGN
Adjustability
X AXIS
Adjustability
Z AXIS
Natively Compatible with "flow-through" GPU Coolers
The fully ventilated design is specially designed to allow unrestricted airflow for "flow-through" GPU coolers
