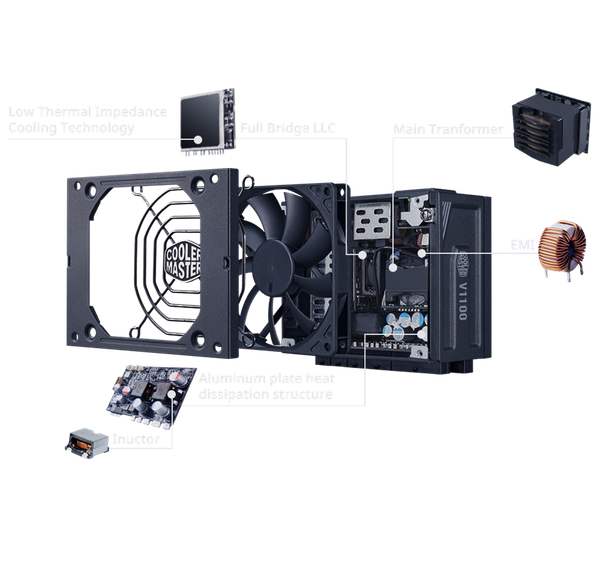

MINI BUT MIGHTY

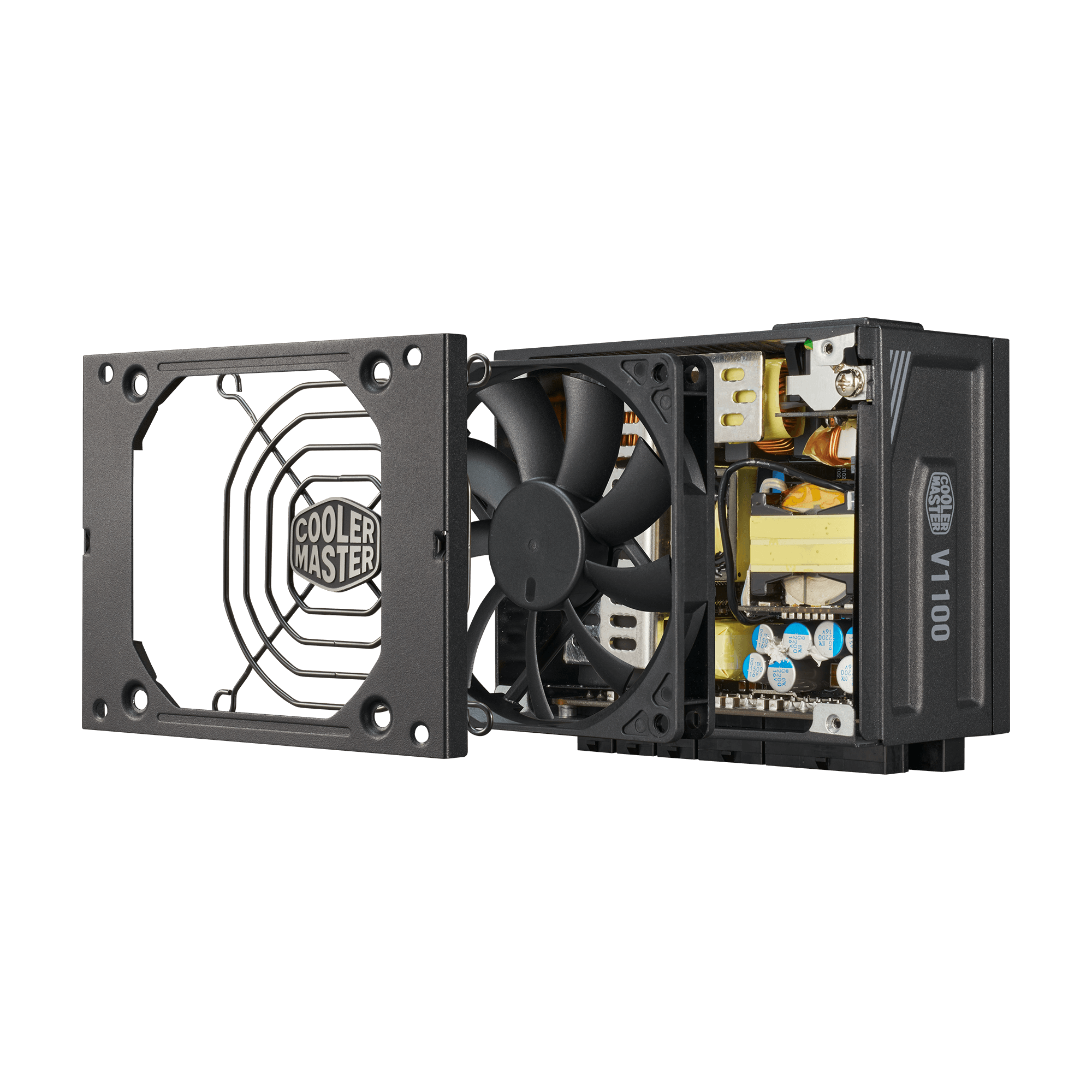

Flat copper wiring on the DC-DC choke, flat transformer piling, an aluminum plate dissipation structure on the full-bridge LLC, and advanced manufacturing processes enhance overall miniaturization.

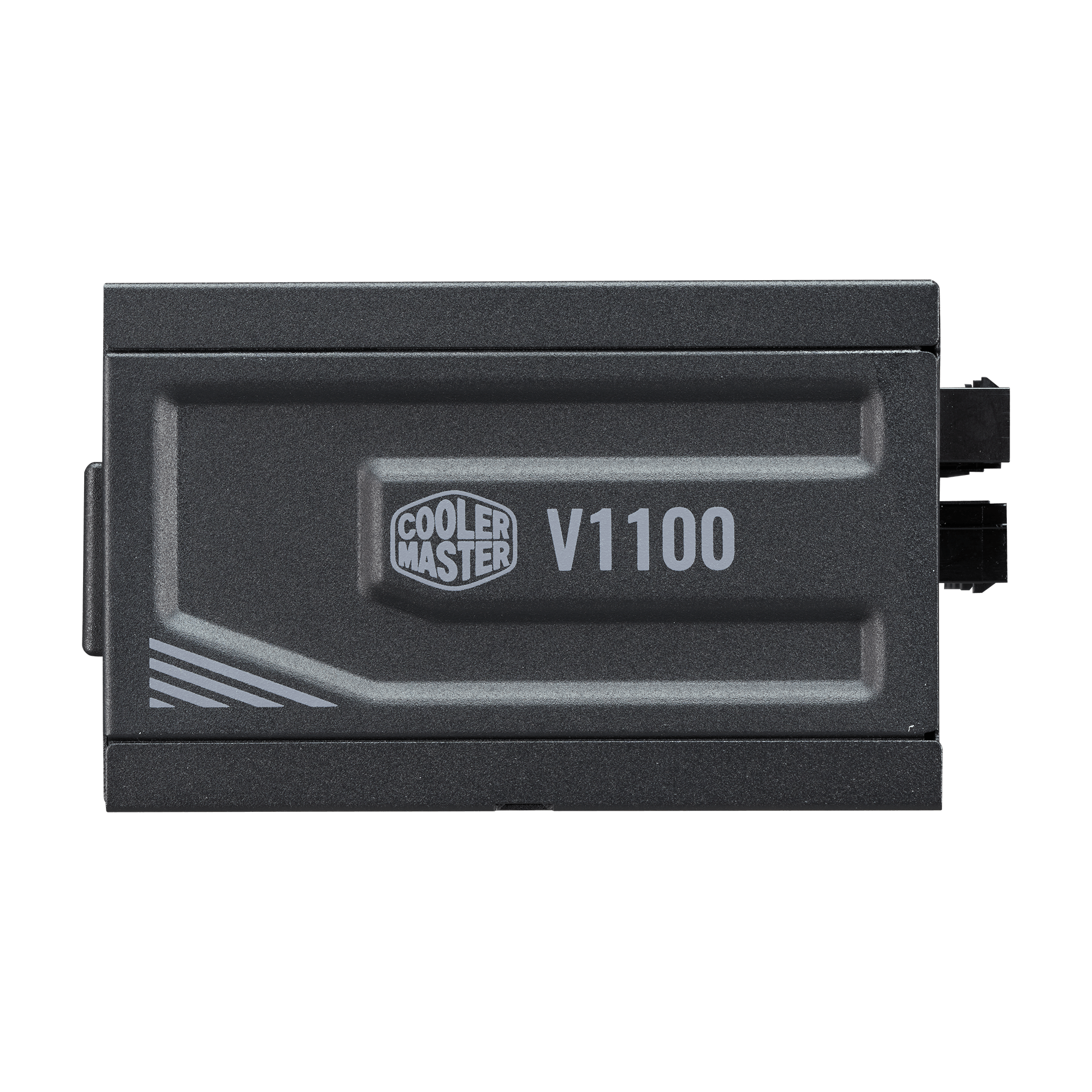

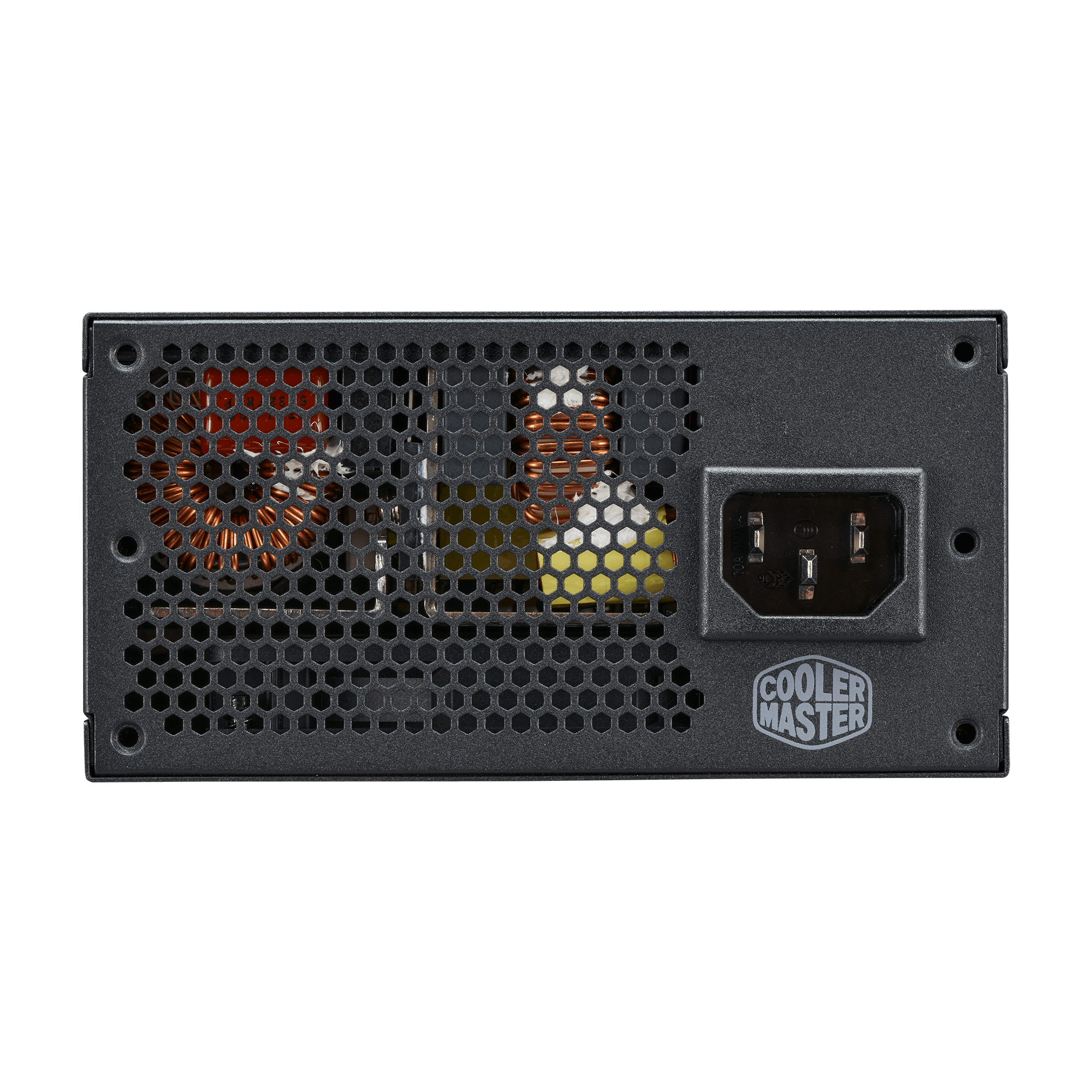

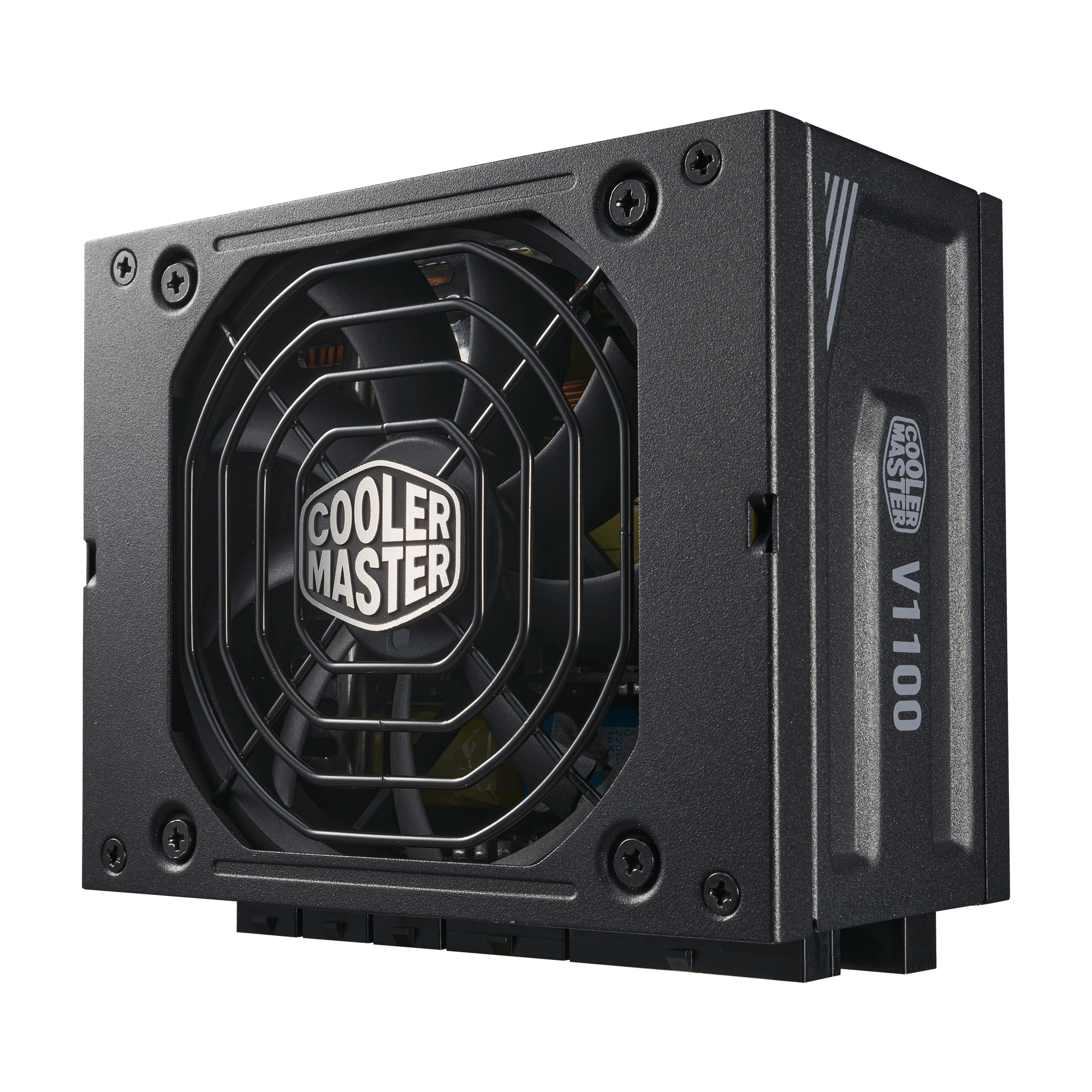

V SFX Platinum 1100
An SFX Revolution
V SFX Platinum 1100
Availability:
-
Select Styles for Availability
€ 379,99
Description
• High power density
• ATX 3.0 support & a 90-degree 12VHPWR cable
• Advanced thermal performance
• 80 Plus Platinum efficiency
• Fully modular cabling
• 10-year warranty

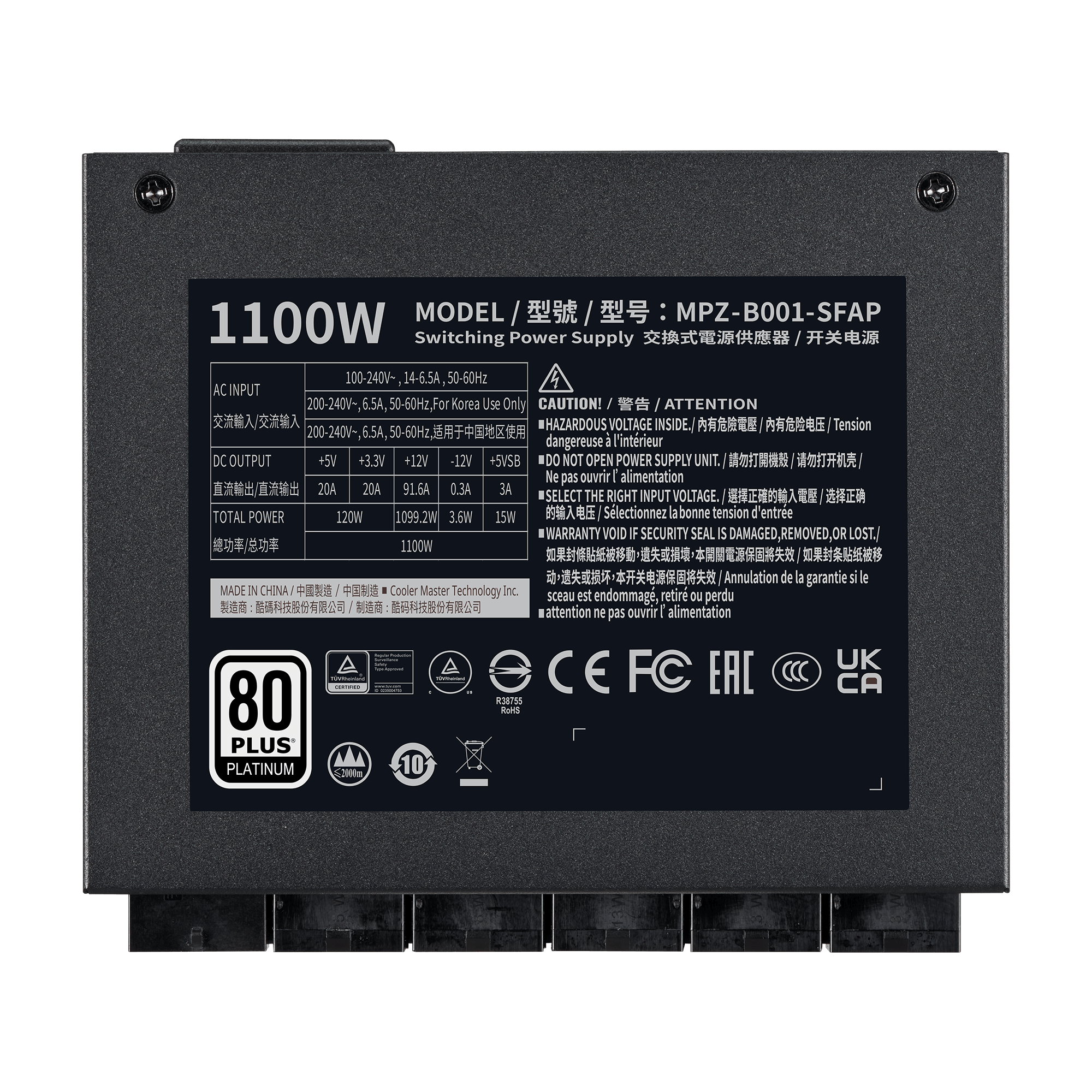

- Model: MPZ-B001-SFAP-B**
- ATX Version: SFX 12V Ver. 3.42
- PFC: Active PFC
- Input Voltage: 100-240V
- Input Current: 14-6.5A
- Input Frequency: 50-60Hz
- Dimensions (L x W x H): 100 x 125 x 63.5 mm
- Fan Size: 92mm
- Fan Bearing: FDB
- Efficiency: ≥ 92% @ Typical Load
- 80 PLUS Rating: 80 PLUS Platinum
- ErP 2014 Lot 3: Yes
- Operating Temperature: 0-50°C
- Power Good Signal: 100 - 150 ms
- Hold Up Time: ≥16ms at 70% Load
- MTBF: >100,000 Hours
- Protections: OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- Regulatory: TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA

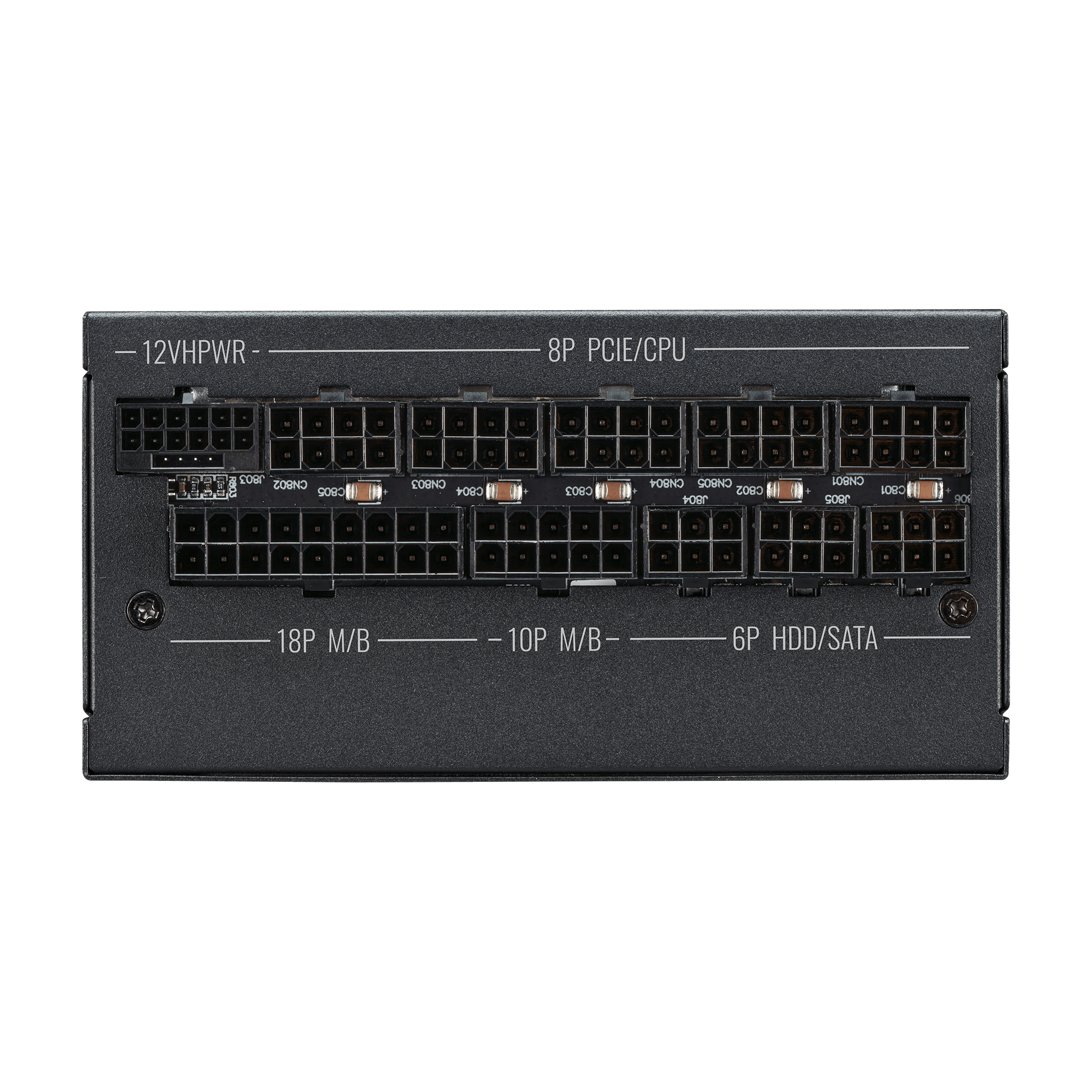

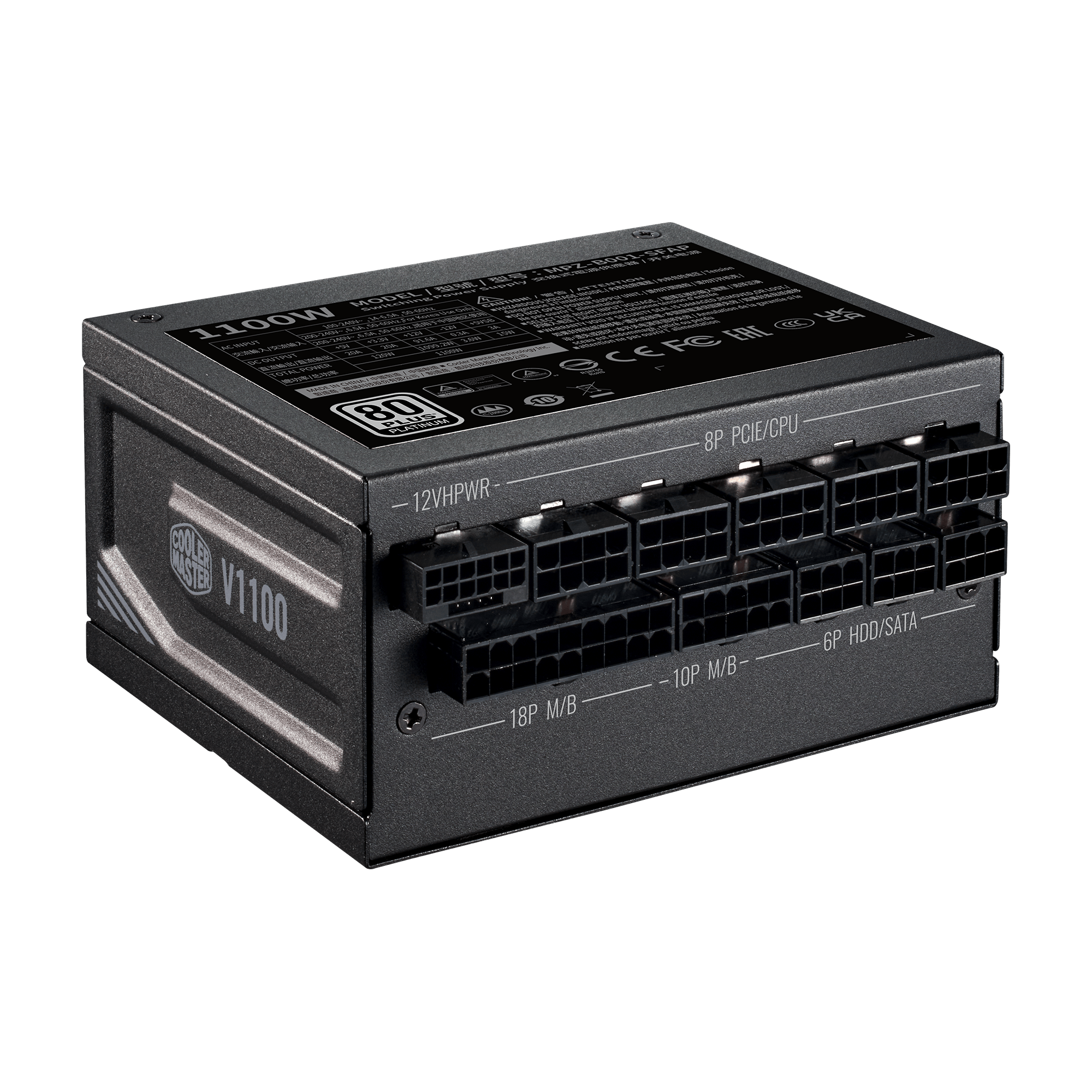

- ATX 24 Pin Connectors: 1
- EPS 4+4 Pin Connectors: 1
- EPS 8 Pin Connector: 1
- SATA Connectors: 8
- Peripheral 4 Pin Connectors: 4
- PCI-e 6+2 Pin Connectors: 3
- 12VHPWR Connector: 1
- 80 Plus Efficiency: Platinum
- Series: V SFX Series
- Modular: Fully Modular
- Category: Above 750W
- Form Factor: SFX
- Watts: 1100W
- ATX Version: ATX 3.0
- Input Voltage Range: Full Range
Details

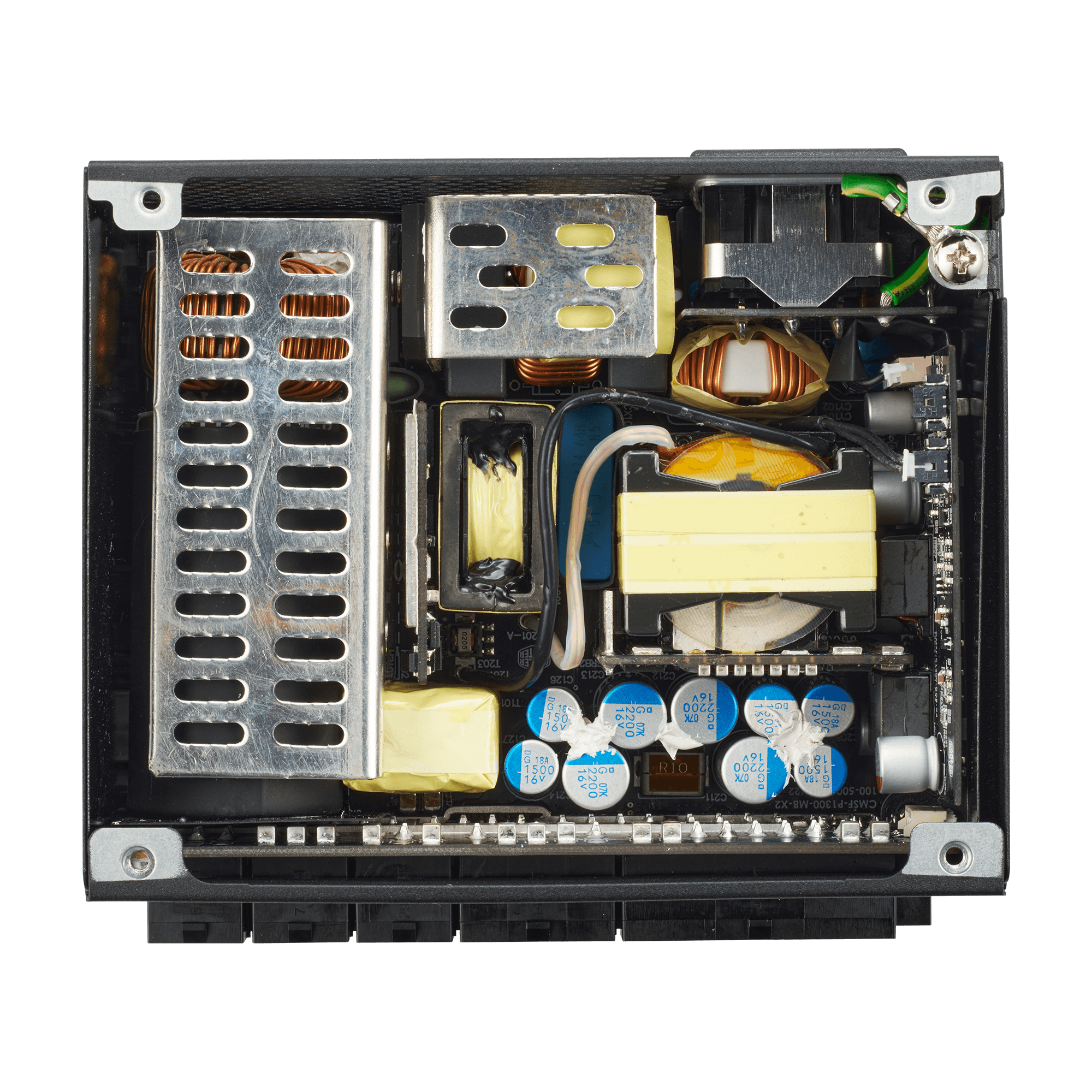

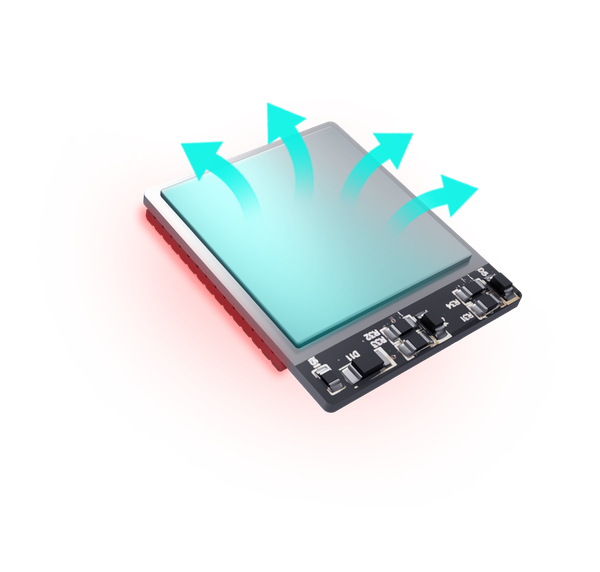

ENHANCED DISSIPATION
The transformer, rectifier, full-bridge LLC, and EMI-inhibiting amorphous metal materials are fully integrated for advanced performance and heat dissipation.
ATX 3.0 support
12VHPWR CABLE

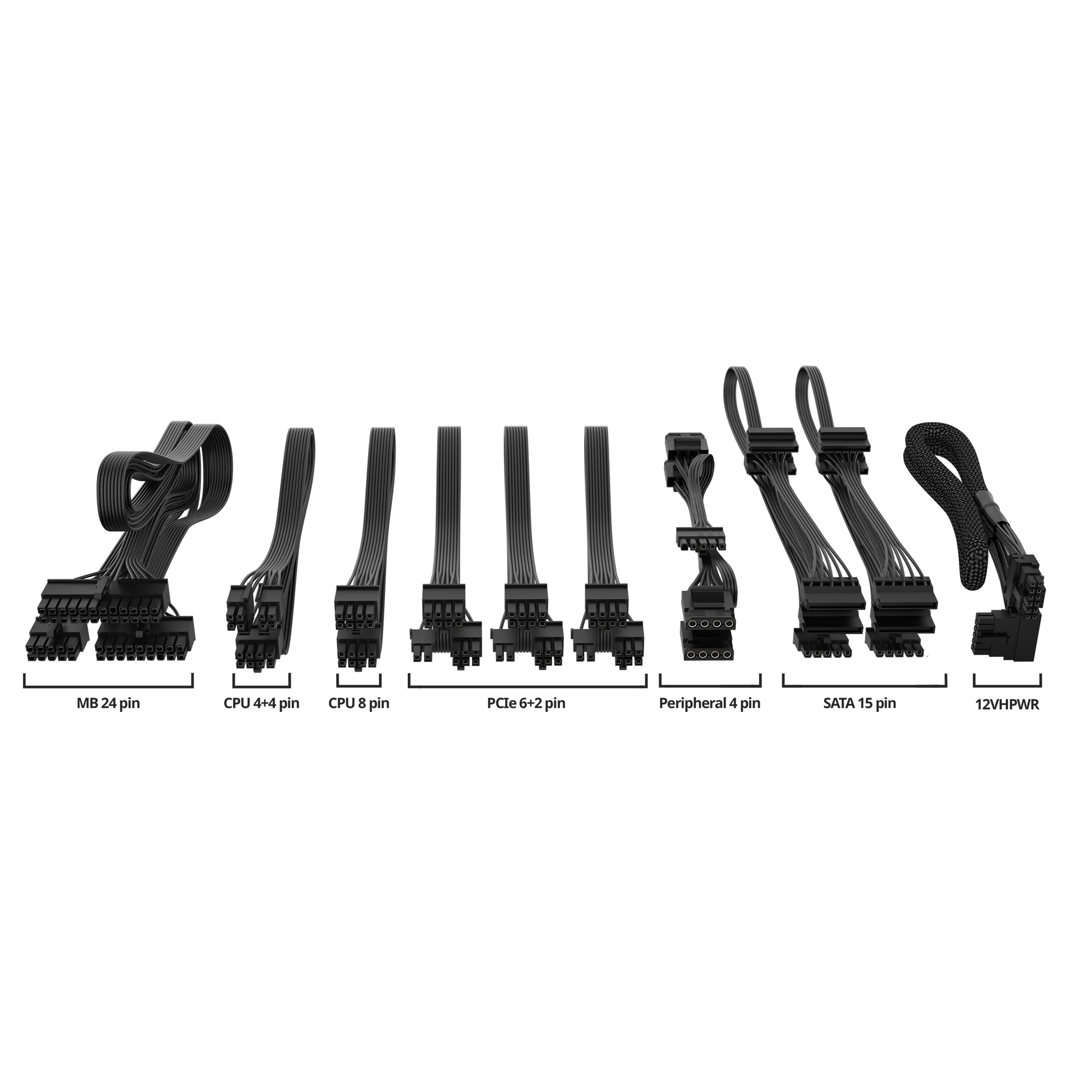

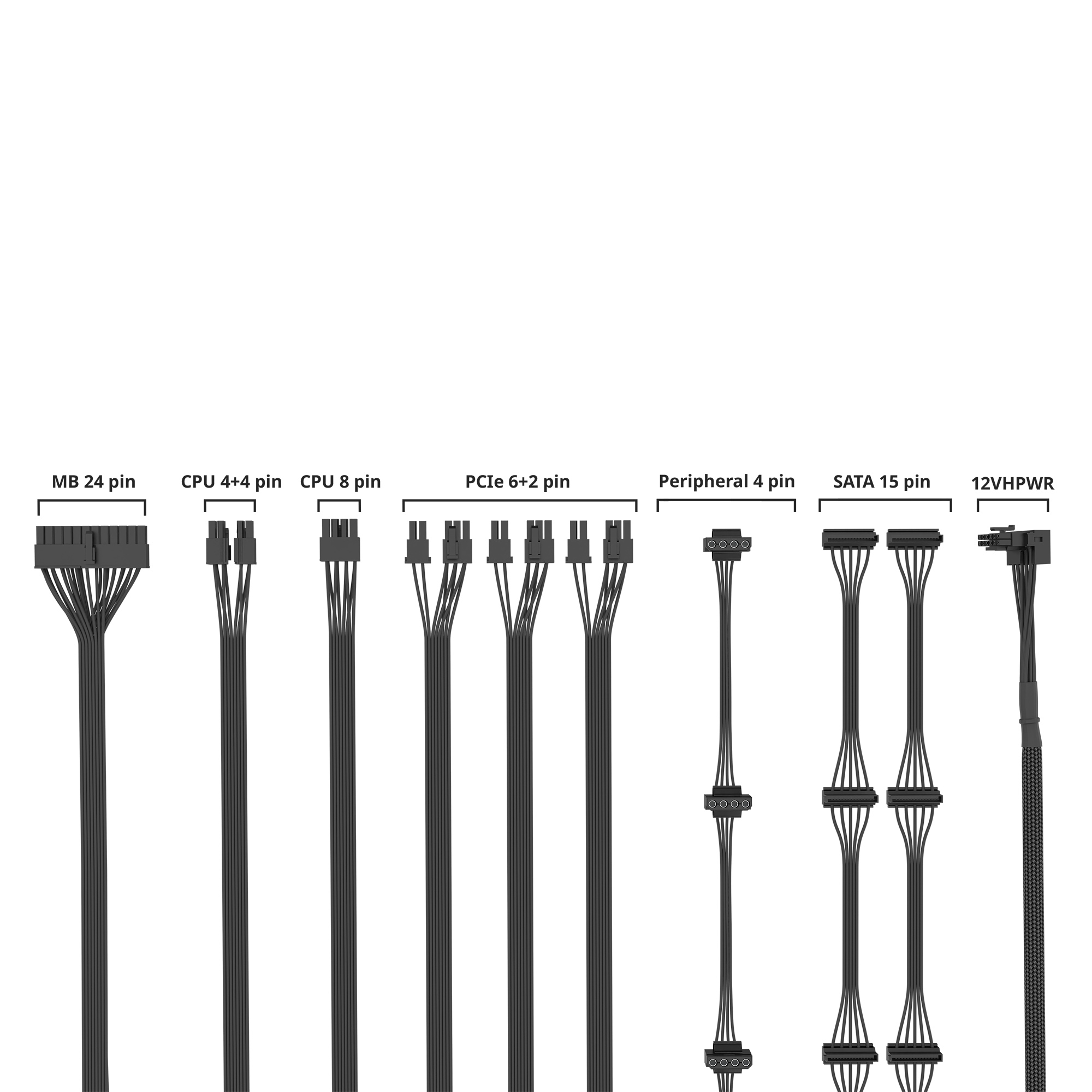

FULLY MODULAR CABLING
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
PSU CALCULATOR
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.
