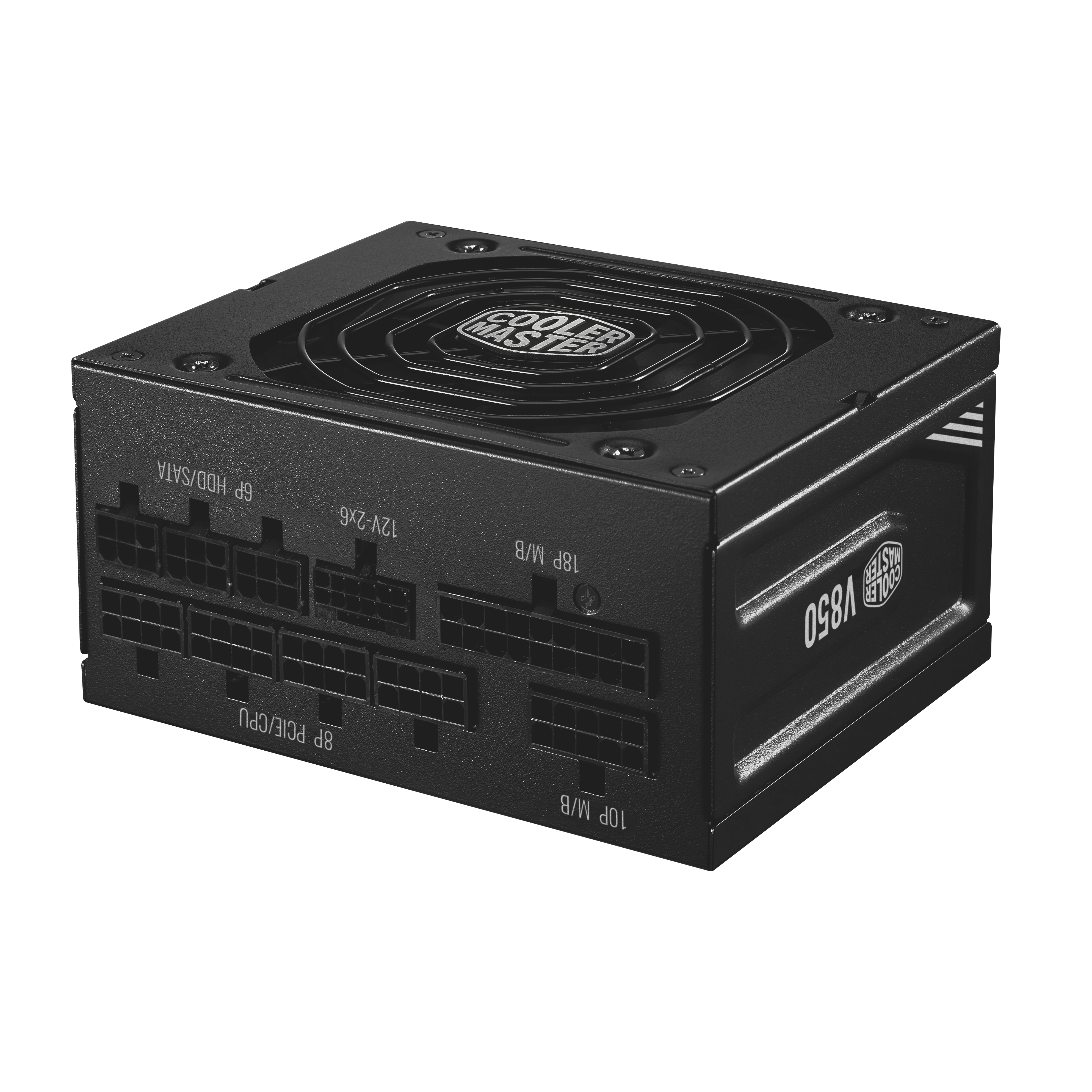

V SFX Gold 850 ATX 3.1
Small But Mighty
V SFX Gold 850 ATX 3.1
-
Select Styles for Availability
Description
• Flexible compatibility
• ATX 3.1 support & a 90-degree 12V-2x6 cable
• 80 PLUS Gold certified
• Fully modular cabling
• 100% Japanese capacitors
• 10-year Warranty
- Model: MPY-8501-SFHAGV-3E**
- ATX Version: ATX 3.1 & SFX 12V Ver. 3.42
- PFC: Active PFC
- Input Voltage: 100-240V
- Input Current: 12-6A
- Input Frequency: 50-60Hz
- Dimensions (L x W x H): 100 x 125 x 63.5 mm
- Fan Size: 92mm
- Fan Bearing: FDB
- Efficiency: 90% @ Typical Load
- 80 PLUS Rating: 80 PLUS Gold
- ErP 2014 Lot 3: Yes
- Operating Temperature: 0-50°C
- Power Good Signal: 100 - 500 ms
- Hold Up Time: 16ms
- MTBF: >100,000 Hours
- Protections: OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- Regulatory: TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
- ATX 24 Pin Connectors: 1
- EPS 4+4 Pin Connectors: 1
- EPS 8 Pin Connector: 1
- SATA Connectors: 8
- Peripheral 4 Pin Connectors: 4
- PCI-e 6+2 Pin Connectors: 4
- 12V-2x6 Connectors: 1
- Series: V SFX Series
- 80 Plus Efficiency: Gold
- Modular: Fully Modular
- Form Factor: SFX
- Watts: 850W
Details
ATX 3.1 support & a durable 90-degree 12V-2x6 cable
Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 connector featuring higher electrical durability, lower temperatures, and improved safety.
80 PLUS Gold certified
The V SFX Gold is certified to achieve more
than 90% efficiency at typical loads.
100% Japanese capacitors
Large, high-quality Japanese capacitors feature improved efficiency
and reduced ripple noise.

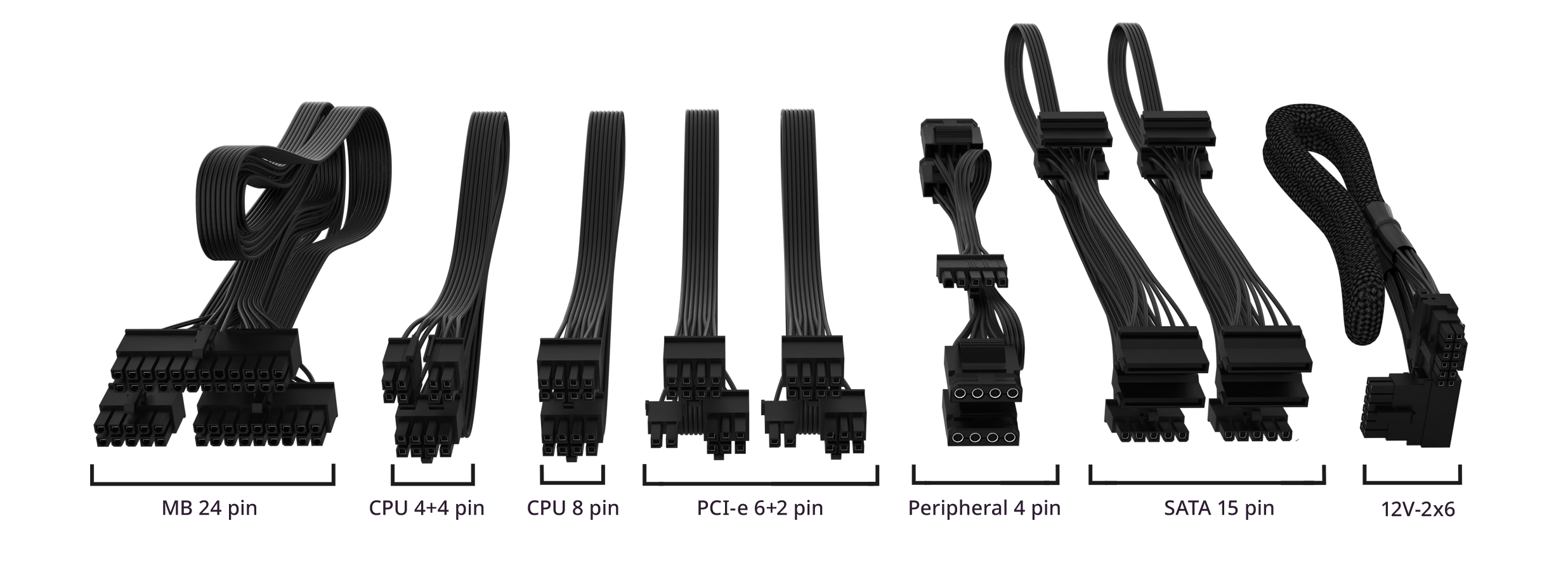

Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
