NR200P MAX

SFF Building Just Got Easier

NR200P MAX

Item No. nr200p-max
4.4 out of 5 Customer Rating
Availability:
  • Select Styles for Availability
€ 299,00

Description

The First of Cooler Master’s MAX Series

Cooler Master’s Expertise at Its Finest

SFF Building Refined

Luxurious Out-of-the-Box Solution

  • Product Number: NR200P-MCNN85-SL0
  • Exterior Color: Black / Grey
  • Materials - Exterior: ABS Plastic
  • Materials - Left Side Panel: Steel x1
  • Dimensions (L x W x H): 361 x 185 x 274mm (excl. Protrusions)
  • Volume: 18.30L
  • Motherboard Support: Max. size: 170 x 180mm

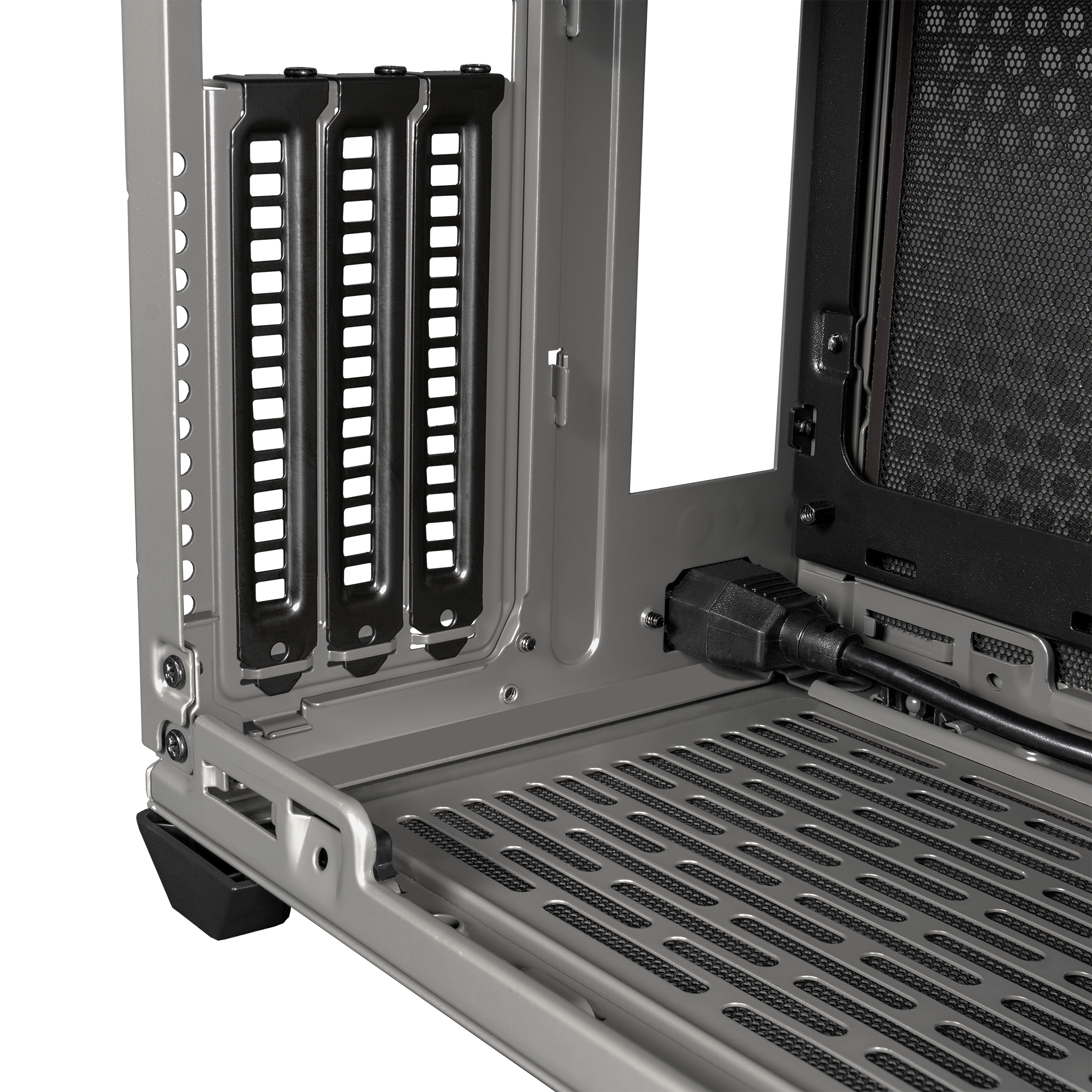

  • Expansion Slots: 3
  • Drive Bays - 5.25" ODD: 0
  • Drive Bays - 3.5" / 2.5" Combo: 1
  • Drive Bays - 2.5" SSD: 2 (Max. 3)
  • I/O Panel: 1x 3.5mm Headset Jack (Audio + Mic)
  • Included Accessories: 1x MasterAccessory Riser Cable PCIe 4.0 x16 - 35mm
  • Included CPU Cooling Solution: Gen 3 Cooler Master Pump / CPU Block
  • Included Power Supply Unit: V850 SFX Gold
  • Fan Support - Top: 2 x 120mm / 2 x 140mm
  • Fan Support - Bottom: 2 x 120mm (max 15mm, w/o 3.5" HDD at the bottom)
  • Radiator Support - Top: 240mm / 280mm
  • Clearances - CPU Cooler: 67mm
  • Clearances - Power Supply: 130mm
  • Clearances - Graphics Card: W: 75mm (triple slot)
  • Dust Filters: Top Panels
  • Power Supply Support: SFX-L
  • Warranty: 10 years (Power Delivery)
  • Drive Bays - 3.5" HDD: 1 (Max. 2)
  • Size: Mini ITX


Details

Customization

STREAMLINE YOUR BUILD EXPERIENCE

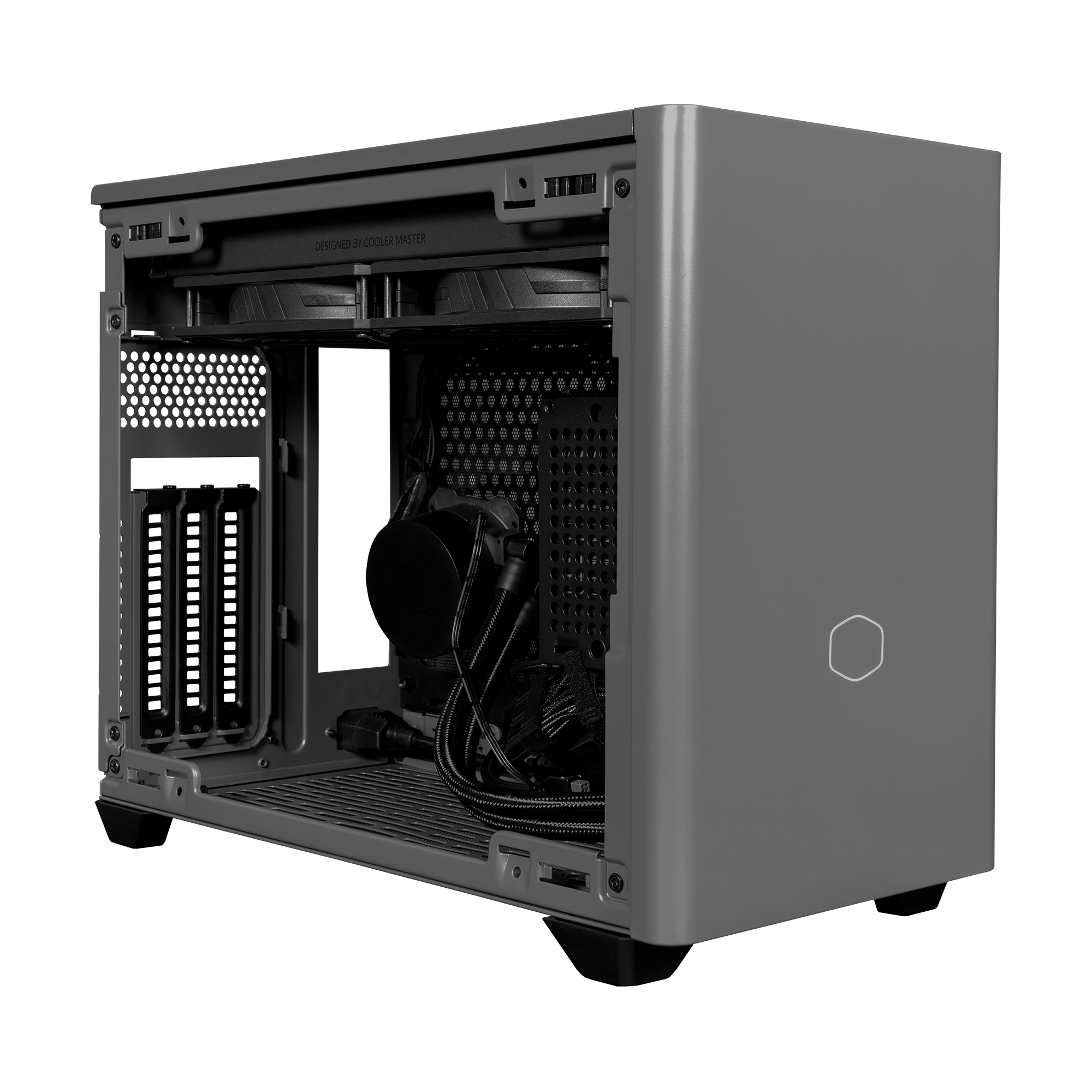

The pre-installed, pre-routed power supply and CPU-cooler

allows for ease of building and optimal cable & tubing management.

Install a motherboard, HDDs and finish off with a GPU:

No hassle, no routing. Stow away excess cables and you’re good to go.

Performance

Designed For High-End ITX Systems

Our Achievements

AWARDS

GPU panel

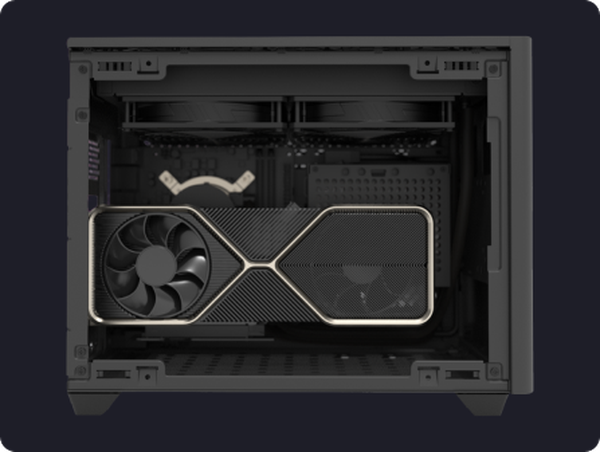

PATENTED QUICK INSTALL GPU PANEL

This exclusive, removable GPU panel design simplifies the process

of mounting large GPUs in SFF chassis, enabling greater hardware

support and hands-free installation.

Motherboard

EASILY ACCESSIBLE M.2 DRIVES

The motherboard tray is designed for unrestricted access to any m.2 drives installed behind the motherboard. The ventilated paneling ensures that m.2 storage drives installed in this location runs cool and reliably.

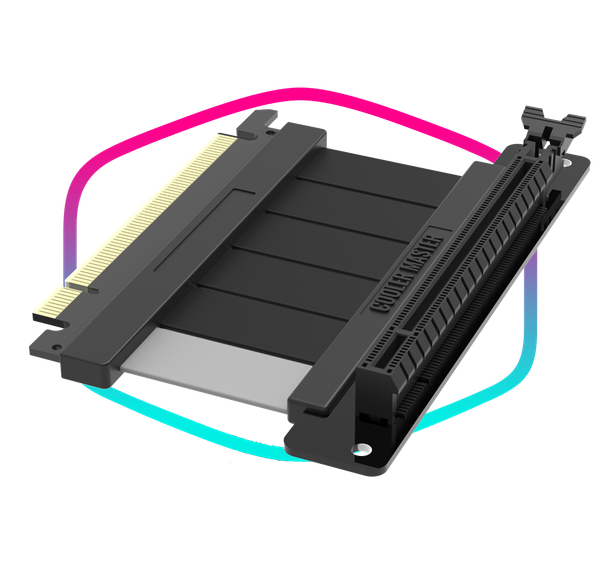

PREMIUM PCIE GEN4 RISER CABLE INCLUDED

NR200P MAX comes equipped with a premium shielded PCIe Gen4 Riser Cable to ensure both maximum compatibility and performance with all graphics cards.

Cooling Efficiency Beyond Compare

NR200P MAX’s built-in 280mm radiator boasts unmatched cooling efficiency owing to a 25% increase in aluminum fin surface area.

Compatible with a wide variety of Intel and AMD sockets (all brackets included), the AIO’s upgraded Gen3 dual-chamber pump is bound to keep any CPU running at optimum performance. Included Sickleflow 140 Non-LED fans utilize a two-tier sealing mechanism to prevent dust accumulation, resulting in longer serviceable life span and silent performance.

PSU Features

Performance Unbounded

The pre-installed, 80 Plus Gold efficiency PSU features 16AWG PCIe full-modular, high efficiency cables tailor-made to allow ease of installation without the hassle of cable management. Tailor-made to a small form factor, this PSU allows clearance for the largest, widest graphics cards while making the most of NR200P MAX’s 18 liter chassis.
