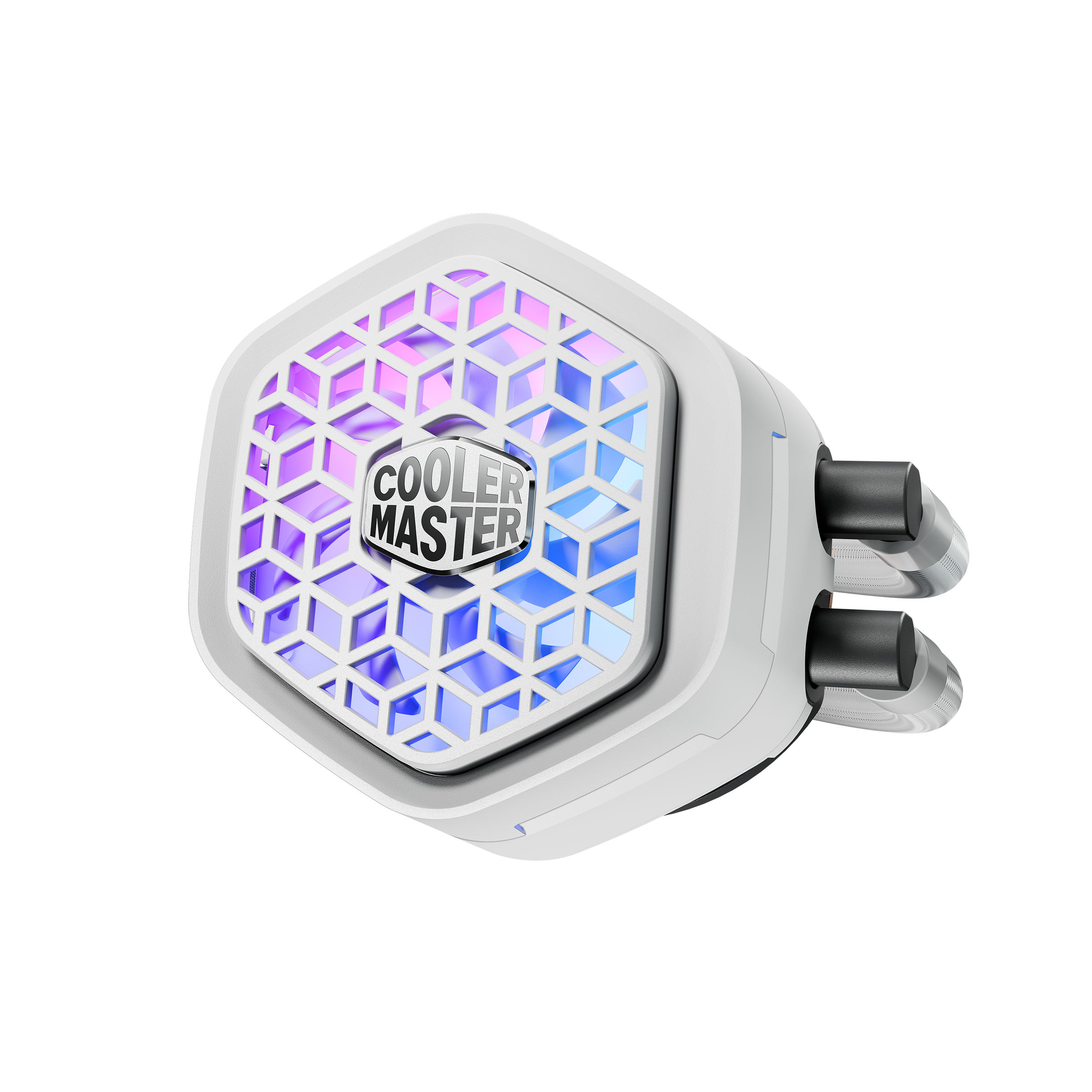

ULTRA-LOW PROFILE PUMP DESIGN
The flat design allows installation in cases of different sizes while maintaining strong performance.
MasterLiquid Atmos II VRM Fan
360 DEGREES OF COOL
MasterLiquid Atmos II VRM Fan
Select Color
Availability:
-
Select Styles for Availability
€ 119,00
-
€ 129,00
Description
⬢ VRM Fan for enhanced cooling experience
⬢ SickleFlow Edge ARGB fans
⬢ Ultra-low profile pump design
⬢ Quick and easy installation
- Product Number: (240 Black) MLX-D24M-A25SZ-V1, (240 White) MLX-D24M-A25SZ-VW, (360 Black) MLX-D36M-A25SZ-V1, (360 White) MLX-D36M-A25SZ-VW (*SKU may vary by region)
- CPU Socket: Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
- CPU Socket: AMD® AM5 / AM4
- Radiator Material: Aluminum
- Radiator Dimensions: (240) - 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch)
- Radiator Dimensions: (360) 394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch)
- Pump Dimensions: 92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
- Pump Profiles: Addressable Gen2 RGB
- Pump Speed: 3400 ± 300 RPM
- Pump MTTF: >210,000 Hours
- Pump Noise Level: 25 dBA (Max)
- Pump Rated Voltage: 12 VDC
- Pump Power Consumption: 3.84 W
- Pump Connector: 3-Pin ARGB + 4-Pin PWM
- Tube Length: (240) 350 mm
- Tube Length: (360) 400 mm
- Fan Dimensions (L x W x H): (240) 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch)
- Fan Dimensions (L x W x H): (360) 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)
- Profile: Addressable Gen 2 RGB
- Fan Quantity: 1 PC
- Fan Speed: 690 ~ 2500 RPM ± 15%
- Fan Airflow: (240) 240.35 m³/h (141.4 CFM)
- Fan Airflow: (360) 322.8 m³/h (190 CFM)
- Fan Air Pressure: 3.61 mmH2O
- Fan MTTF: >160,000 Hours
- Fan Noise Level: (240) 36 dB(A)
- Fan Noise Level: (360) 38.5 dB(A)
- Fan Bearing Type: Loop Dynamic Bearing
- Fan Connector: 7-Pin PWM + ARGB
- Fan Rated Voltage: 12 VDC
- Fan Rated Current: 0.5 A
- Fan Safety Current: 0.8 A
- Fan Power Consumption: 6 W
- Radiator Size: 240
- Radiator Size: 360
- Cooler Type: Liquid Cooler
- Series: MasterLiquid
- VRM Fan Exterior Color: Black / White
- VRM Fan Dimensions: 85 x 78.5 x 25.5 mm (3.4 x 3.1 x 1 inch)
- VRM Fan Wire Length: 1000 mm
- VRM Fan Fan Speed: 450~4000 RPM ±10%
- VRM Fan Fan Airflow: 15.8 m³/h (9.3 CFM)
- VRM Fan Fan Air Pressure: 2.8 mmH₂O
- VRM Fan Fan Noise Level: 36 dB (A)
- VRM Fan Fan MTTF: >50,000 Hours
- VRM Fan Fan Bearing Type: Loop Dynamic Bearing
- VRM Fan Fan Connector: 4-Pin PWM
- VRM Fan Fan Rated Voltage: 12 VDC
- VRM Fan Fan Rated Current: 0.15 A
- VRM Fan Fan Safety Current: 0.25 A
- VRM Fan Power Consumption: 1.8 W
- Warranty: 6 years
Details
LCD
The LCD panel provides a real-time display, and the MasterCTRL software MasterCTRL software supports the creation of GIFs, PNGs, JPGs, scrolling text, and the display of your music or video source.
Screen Size
Resolution
Refresh Rate
Air Pressure
Noise Level
Temperature Drop
Cooling System
DUAL CHAMBER DESIGN
DUAL CHAMBER DESIGN
Patented design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.
DUAL CHAMBER DESIGN
Improved Quality
Fully automated production and assembly of the pump with fully recorded production history.
Tough. Reliable. Built to Endure.
Engineered with PPS and fiberglass, the MasterLiquid Atmos II pump housing delivers industrial-grade strength, exceptional heat resistance, and unmatched durability—designed for builders who demand long-lasting, high-performance cooling. It also passes extreme testing at 70°C for 3,000 hours and 120 °C for 12 hours*, ensuring reliable performance under the harshest conditions. *Tested by Cooler Master Lab using only the liquid cooling module. Results may vary by system and conditions. *Tested by Cooler Master Lab using only the liquid cooling module. Results may vary by system and conditions.
PRE-INSTALLED SICKLEFLOW EDGE ARGB FAN
High RPM fan with low vibration ensure strong cooling with minimal noise, while the dual color options complement different system aesthetics.
QUICK AND EASY INSTALLATION
A quick-mount kit ensures compatibility with mainstream processor sockets and the pre-installed fans simplify setup.
Offset Mounting Brackets for LGA 1851
Due to the varying CPU hotspots across different platforms, there are corresponding mounting bracket solutions tailored for each. We recommend you use the included offset mounting brackets for LGA 1851*, which precisely dissipate 4°C of heat from the center of the CPU.**
*Please check whether your motherboard is compatible with this offset bracket. *Please check whether your motherboard is compatible with this offset bracket.
**Tested by Cooler Master Lab. **Tested by Cooler Master Lab.
