MasterBox NR200P
Big Features, Small Size
MasterBox NR200P
-
Select Styles for Availability
Description
Limited Size, Unlimited Options
Unrestricted Cooling Potential
Triple-slot GPU support and Included Vertical Riser Cable
Easy, Tool-free access
360 Degree Accessibility
Multiple motherboard support options
Out-of-the-box Custom Cooling Support
High quality materials
- Model Number: MasterBox NR200P: MCB-NR200P-KGNN-S00, MasterBox NR200P White: MCB-NR200P-WGNN-S00
- Exterior Color: Black, White / Grey
- Materials - Exterior: SGCC Steel, Mesh, ABS Plastic
- Materials - Left Side Panel: Tempered Glass x1, Steel x1
- Dimensions (L x W x H): 376 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)
- Volume: 18.25L (exlc. Protrusions)
- Motherboard Support: Mini-ITX, Mini-DTX, Max. size: 244 x 226mm

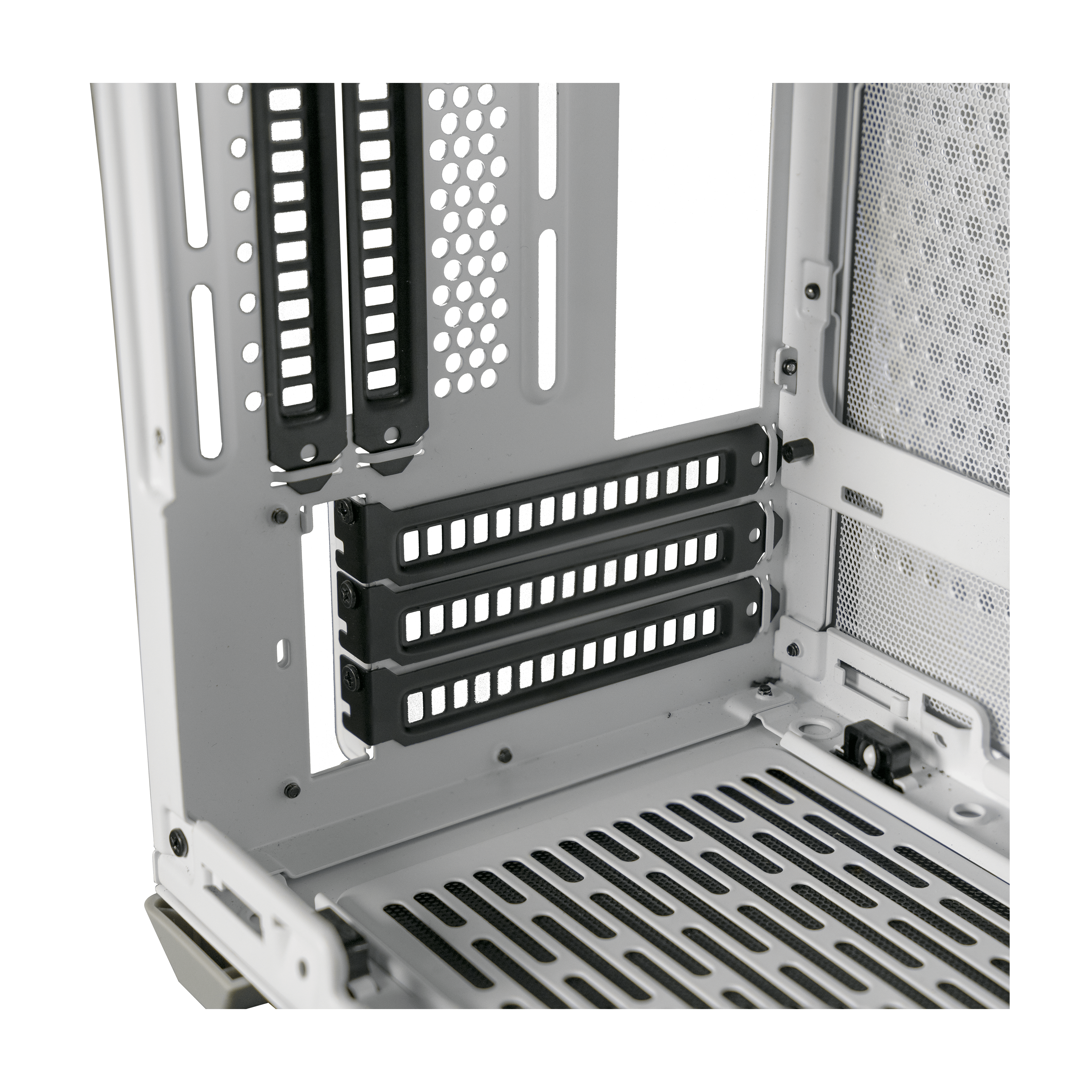

- Expansion Slots: 3
- 5.25" Drive Bays: 0
- 3.5" Drive Bays: 1 (Max. 2)
- 2.5" / 3.5" Drive Bays (Combo): 1
- 2.5" Drive Bays: 2 (Max. 3)

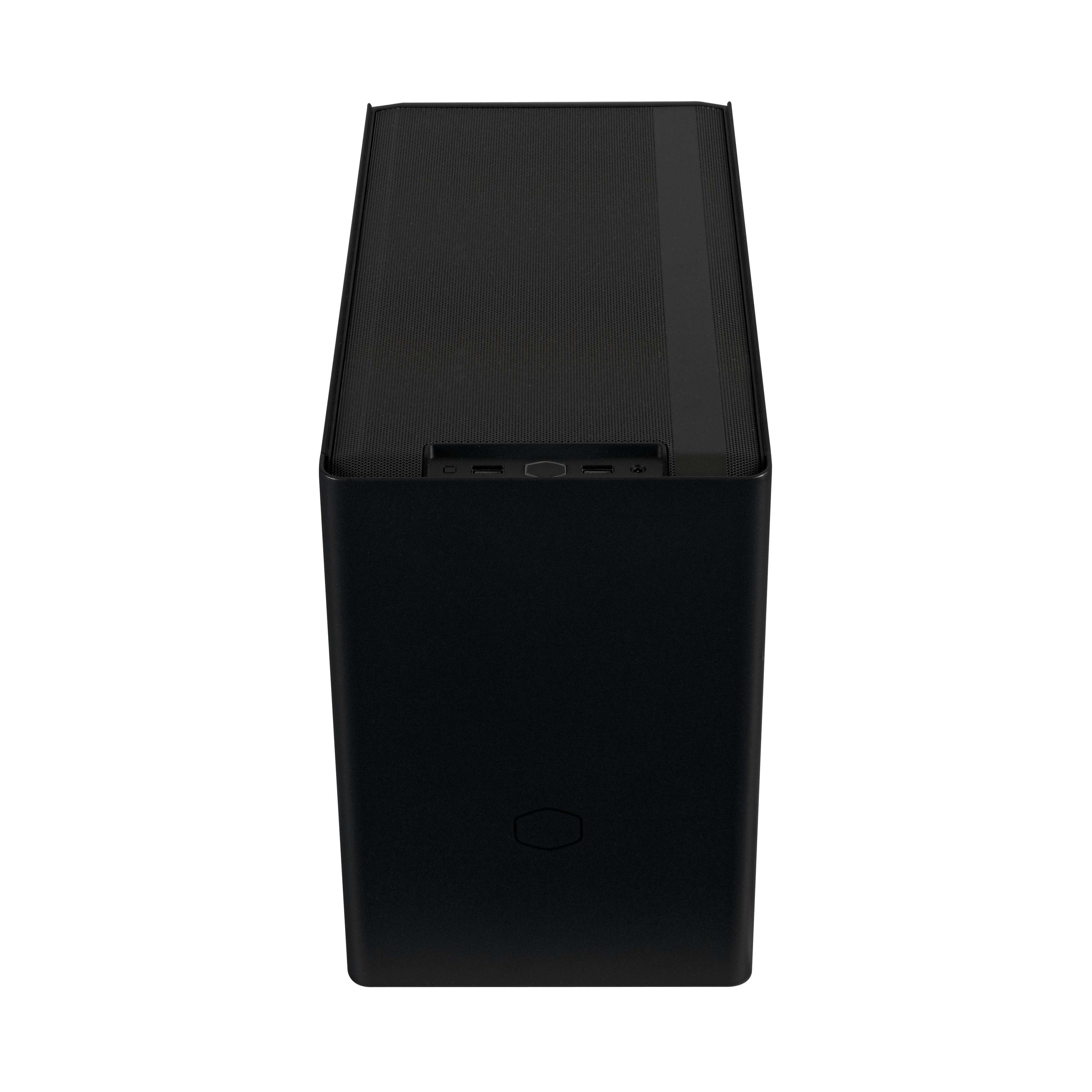

- I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (USB 3.0)
- I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)
- Accessories: 1x PCIe 3.0 x16 riser cable
- Pre-installed Fans - Top: 2x 120mm 650-1800RPM PWM (SickleFlow)
- Pre-installed Fans - Front: N/A
- Pre-installed Fans - Rear: N/A
- Pre-installed Fans - Bottom: N/A
- Fan Support - Top: 2x 120mm
- Fan Support - Side: 2x 120/140mm
- Fan Support - Rear: 1x 92mm
- Fan Support - Bottom: 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
- Radiator Support - Top: N/A
- Radiator Support - Left side: 120 / 140 / 240 / 280mm (not compatible with vertical GPU installation)
- Radiator Support - Rear: 92mm (Not Compatible with Vertical GPU Installation)
- Radiator Support - Bottom: 120/240mm (recommended only for single slot water-cooled GPUs or vertically mounted GPUs)
- Clearance - CPU Cooler: 155mm (vented steel side panel), 153mm (tempered glass side panel), 76mm (GPU in vertical position)
- Clearance - PSU: 130mm
- Clearance - GFX: L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)

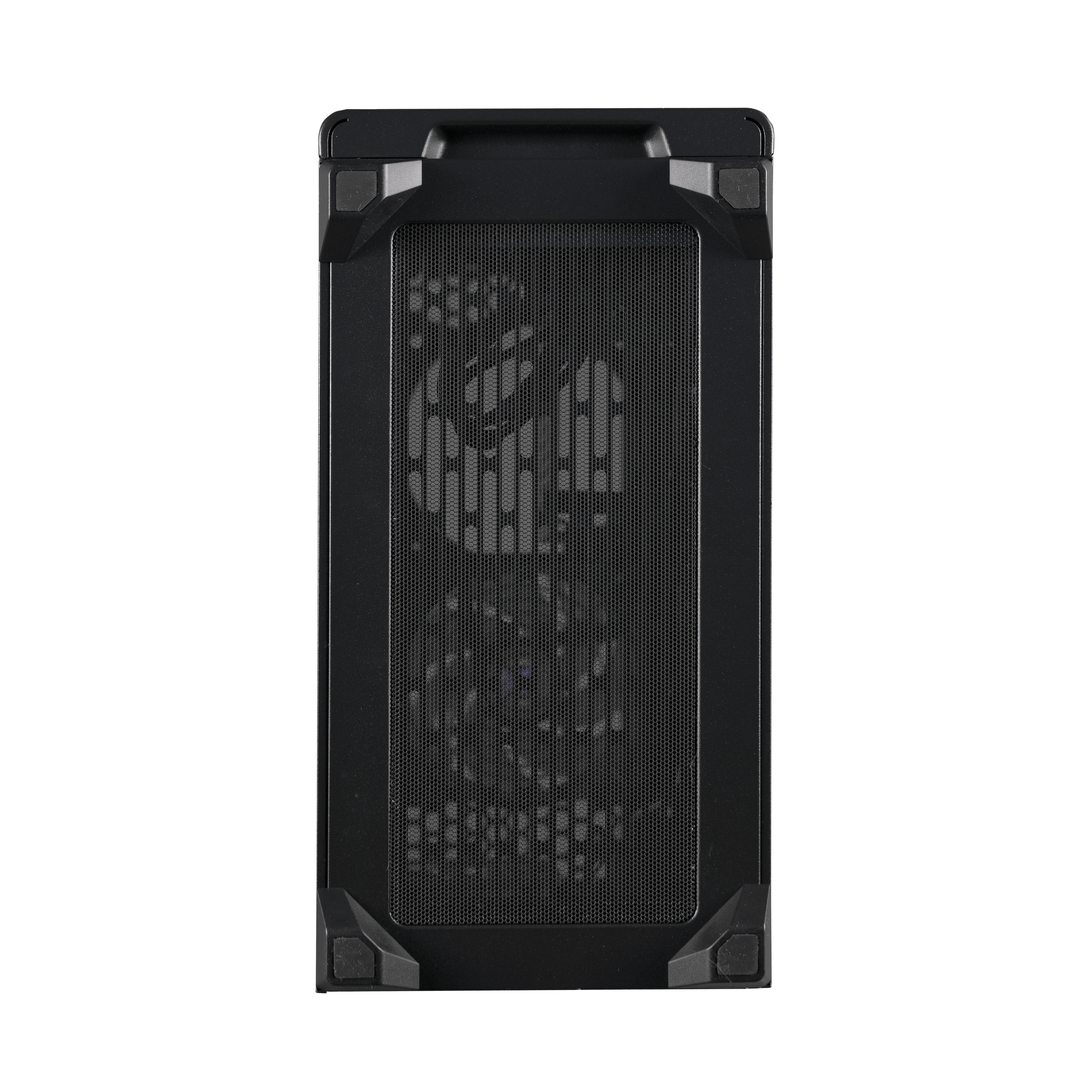

- Dust Filters: Bottom, Left, Right, Top Panels
- Power Supply Support: SFX, SFX-L
- Warranty: 2 years
- Size: Mini ITX
- Series: MasterBox Series
- Note: This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation.
- Note: Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position
Details
LIMITED SIZE, UNLIMITED OPTIONS

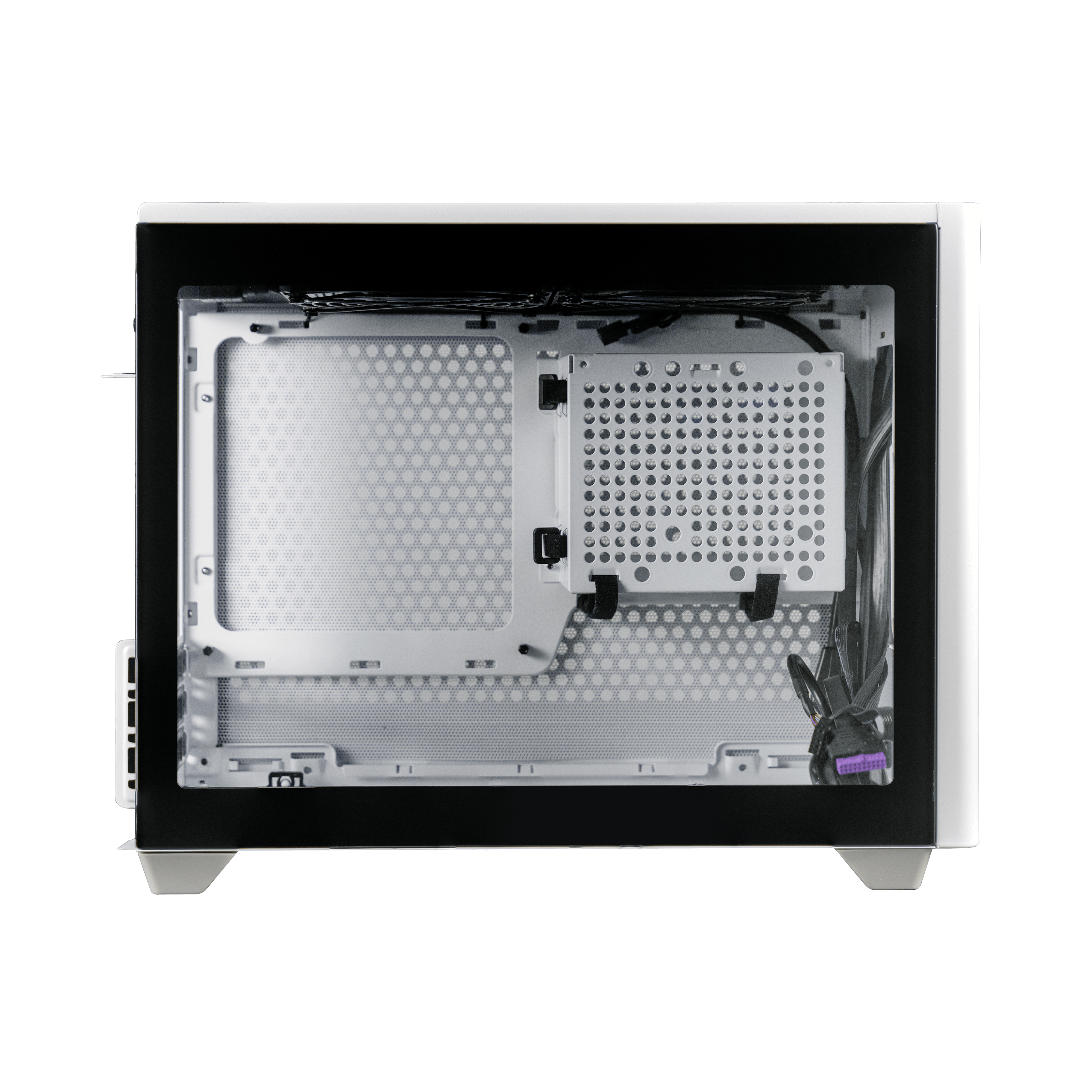

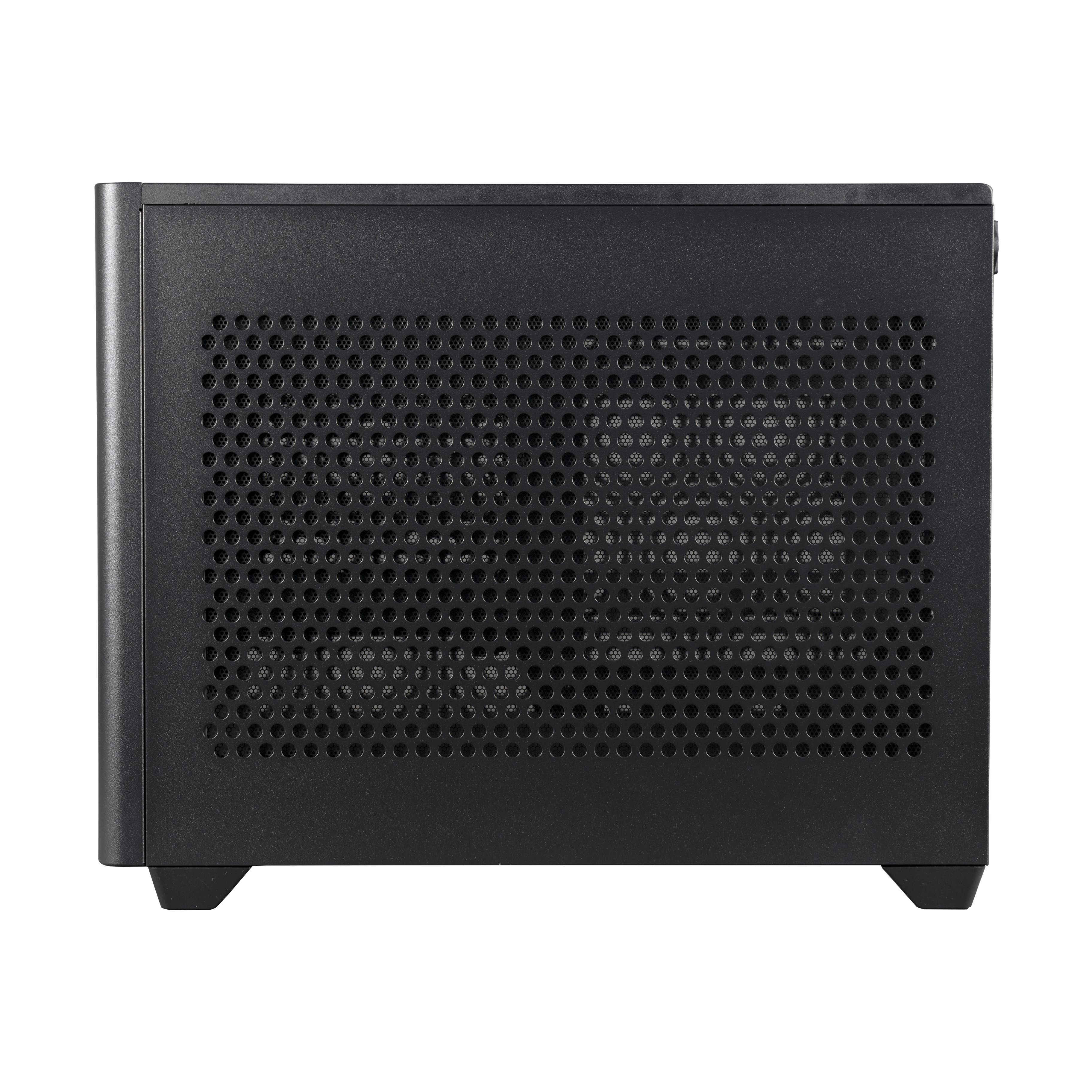

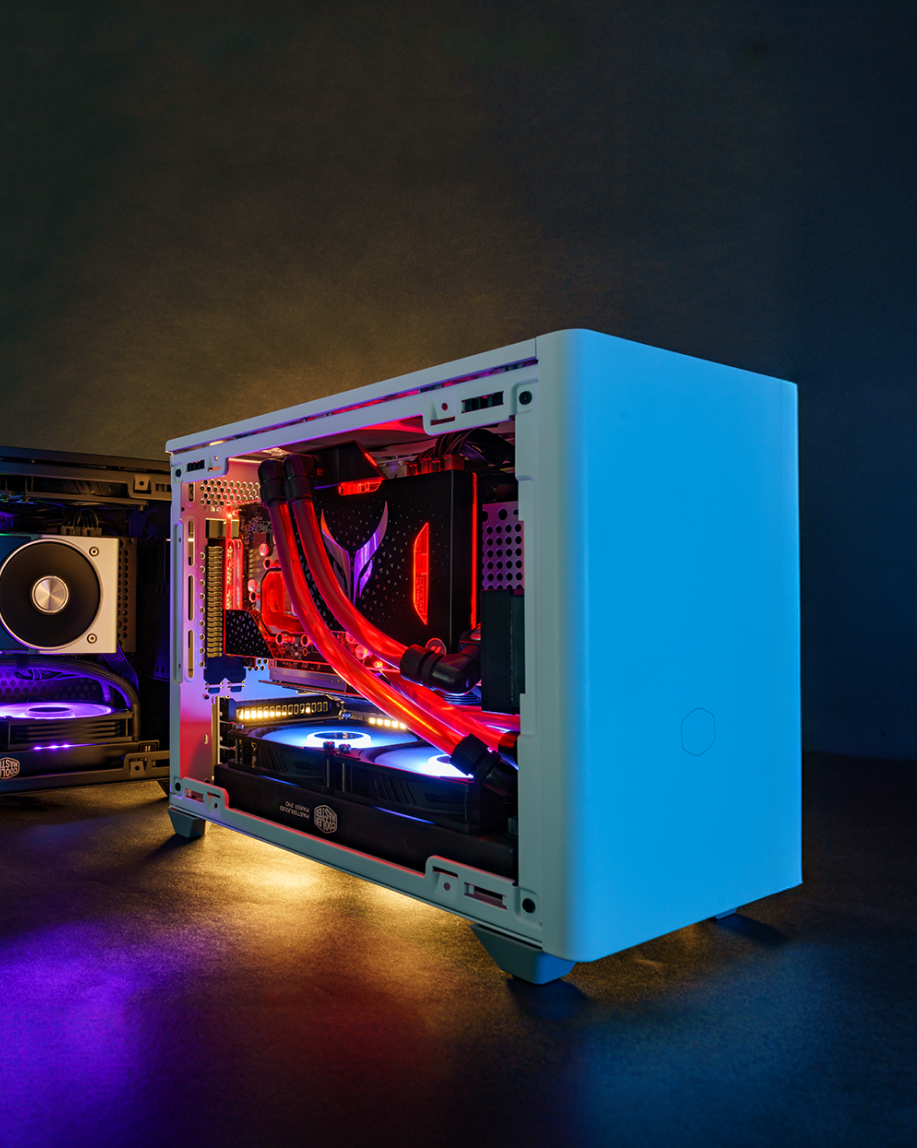

The NR200P includes many features found in larger ATX chassis while retaining a space-efficient form factor. The NR200P comes with the choice of a vented steel side panel for unrestricted airflow, or a crystal-clear tempered glass side panel to reveal the beauty of a computing beast.
A PCI Riser is included for vertical GPU installation to better showcase it against the glass, or to feed it fresh air from the side with the vented panel.
UNRESTRICTED COOLING POTENTIAL
The NR200P can house up to 7 fans in total for every cooling configuration imaginable. Two 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can't be held back.
