MasterBox 520
Reaching New Brights
MasterBox 520
Availability:
-
Select Styles for Availability
Description
MasterBox 520 is the ideal chassis for satisfying the needs of both novice and experienced gamers.

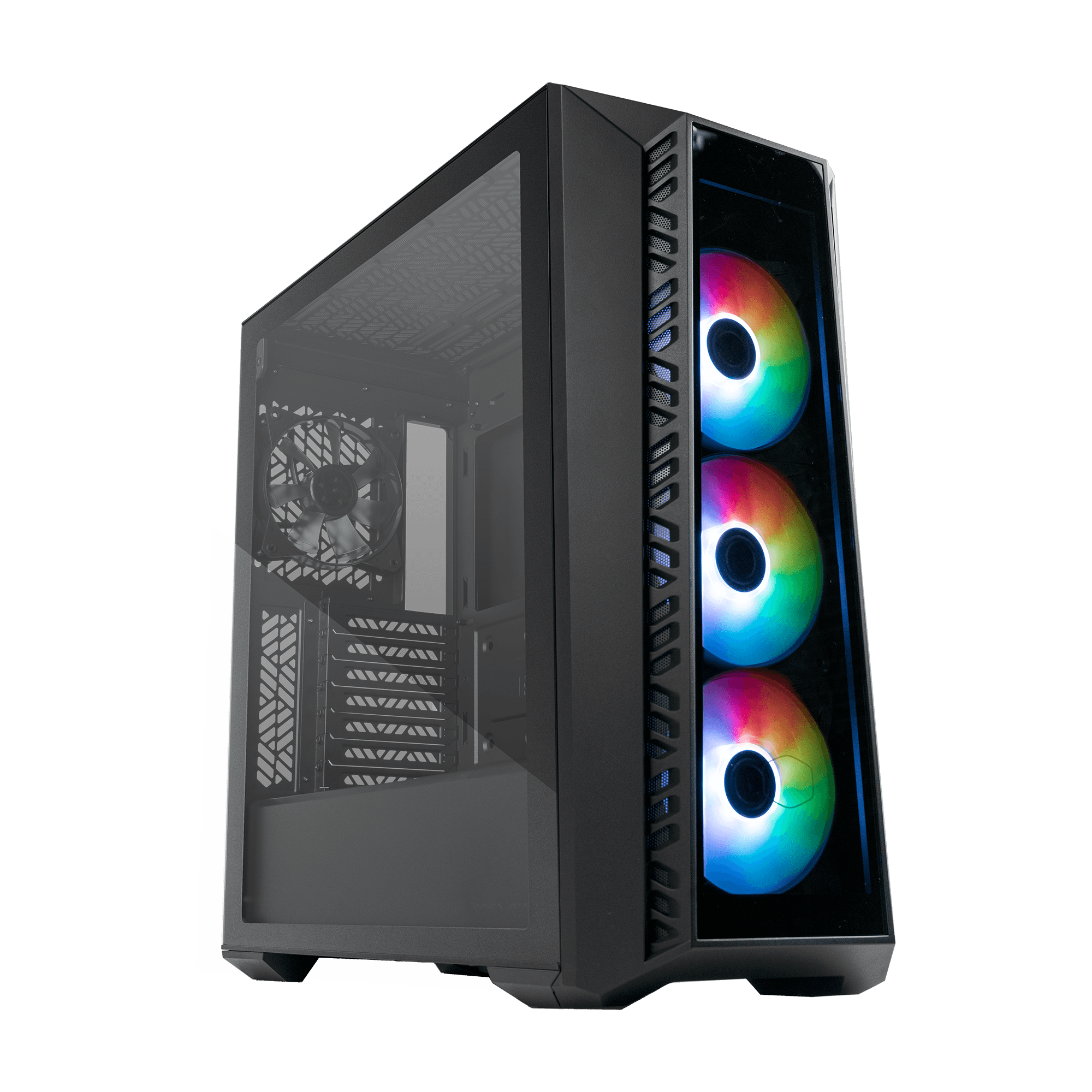

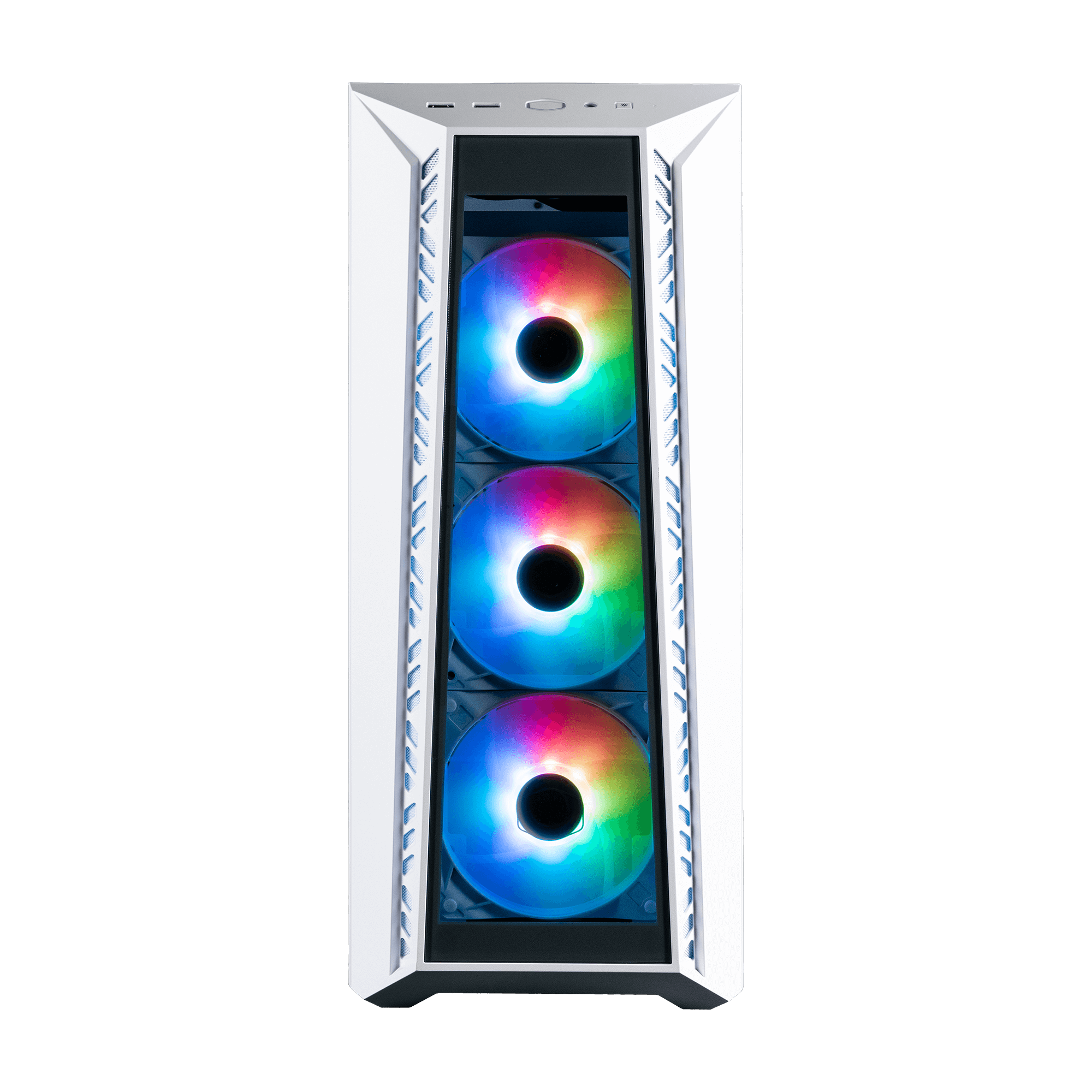

Tempered Glass Front Panel
Three CF120 ARGB Fans Included
ARGB Controller Included

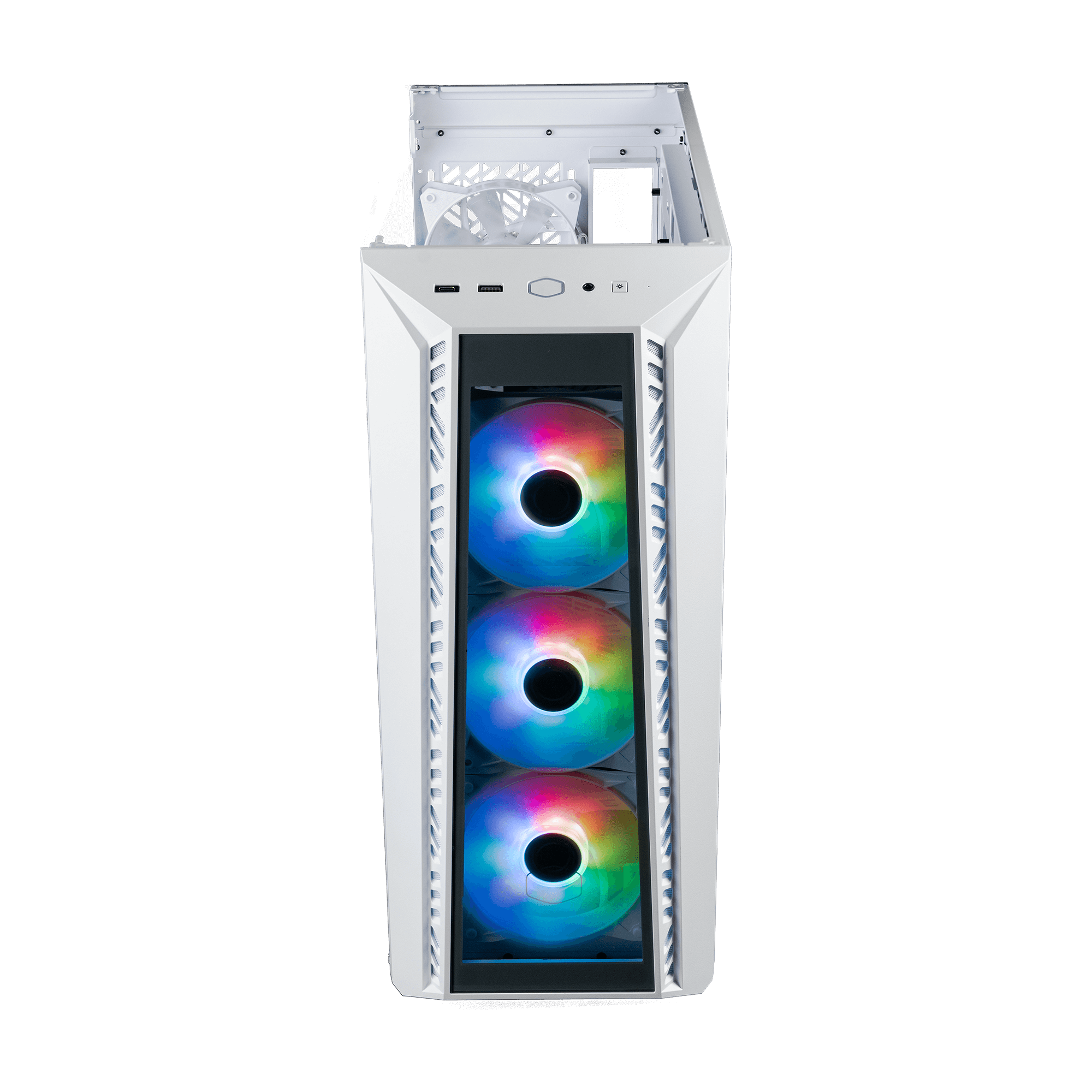

Removable Top Panel
Screwless & Tool-Free TG Side Panel
Removable HDD cage
- Model Number: MasterBox 520: MB520-KGNN-S01, MasterBox 520 White: MB520-WGNN-S01
- Exterior Color: Black, White
- Materials - Exterior: Steel, ABS Plastic, Tempered Glass
- Materials - Left Side Panel: Tempered Glass
- Dimensions (L x W x H): 499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size)
- Motherboard Support: Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)
- Expansion Slots: 7
- 3.5" Drive Bays: 2
- 2.5" Drive Bays: 3
- I/O Panel - USB Ports: 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C
- I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)
- I/O Panel - Other: 1x Reset/ARGB button
- Included Accessories: ARGB Fans Hub
- Pre-installed Fans - Top: N/A
- Pre-installed Fans - Front: 3x CF120 ARGB
- Pre-installed Fans - Rear: 1x MasterFan Lite 120
- Fan Support - Top: 3x 120mm, 2x 140mm
- Fan Support - Front: 3x 120mm, 2x 140mm
- Fan Support - Rear: 1x 120mm
- Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
- Radiator Support - Front: 120 / 140 / 240 / 280 / 360mm
- Radiator Support - Rear: 120mm
- Clearance - CPU Cooler: 165mm
- Clearance - PSU: 200mm (Recommended up to 170mm)
- Clearance - GFX: 410mm
- Dust Filters: Front, Top, Bottom
- Power Supply Support: ATX
- Warranty: 2 years
- Size: Mid Tower
- Series: MasterBox Series
- Back Connector Motherboard Support: No
