Hardware & Connectivity
No Limits

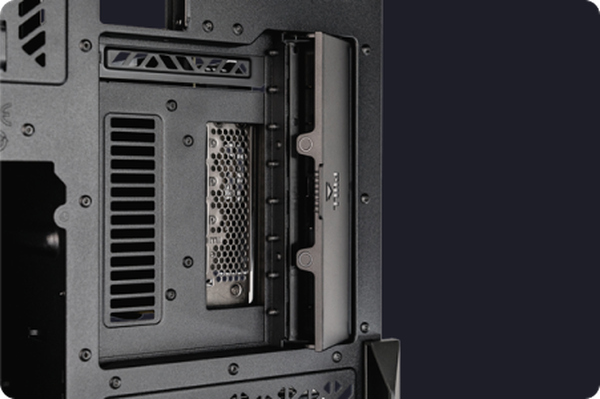

The HAF 700 is capable of housing up to SSI-EEB motherboards (E-ATX), as well as any sized graphics cards in BOTH horizontal and vertical orientations.

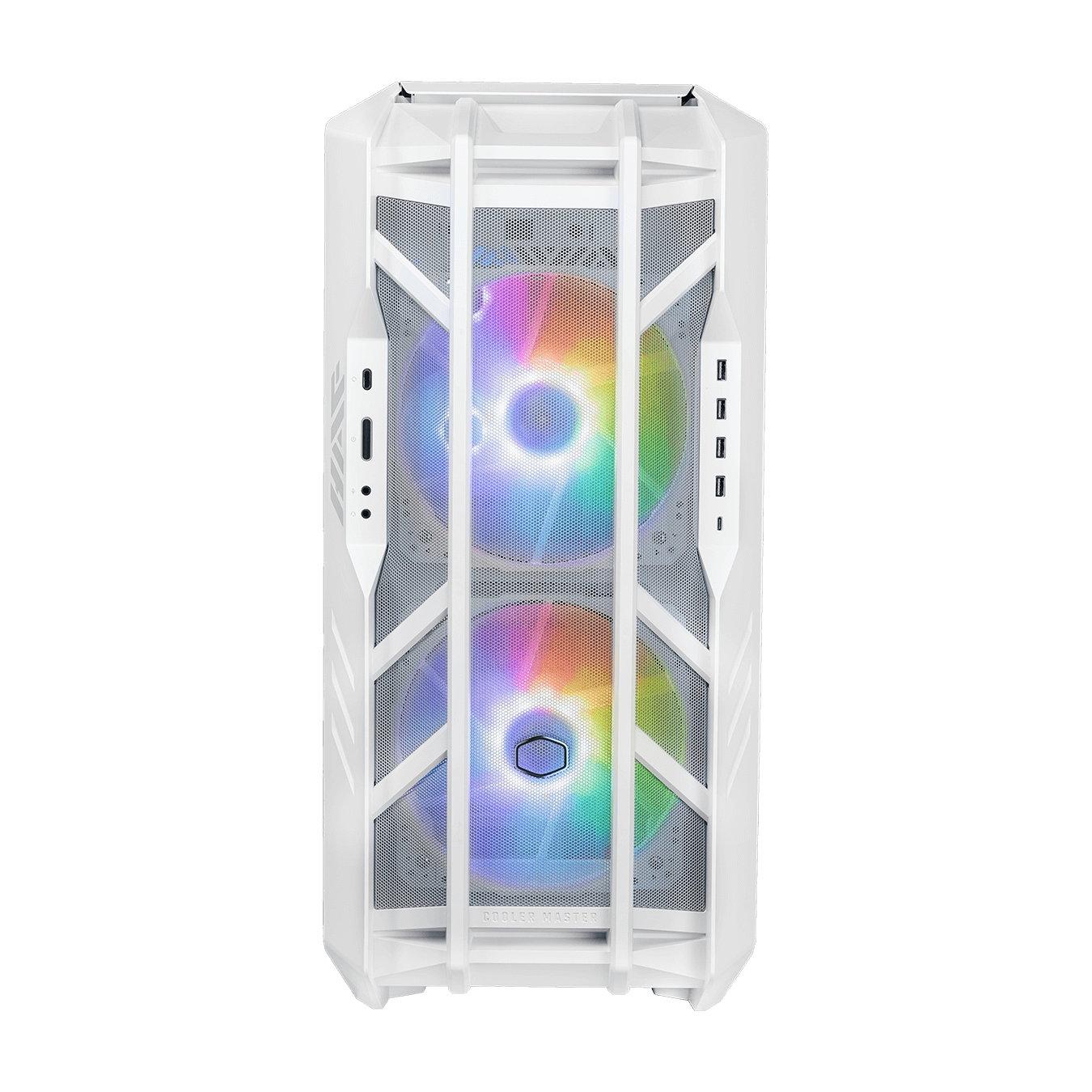

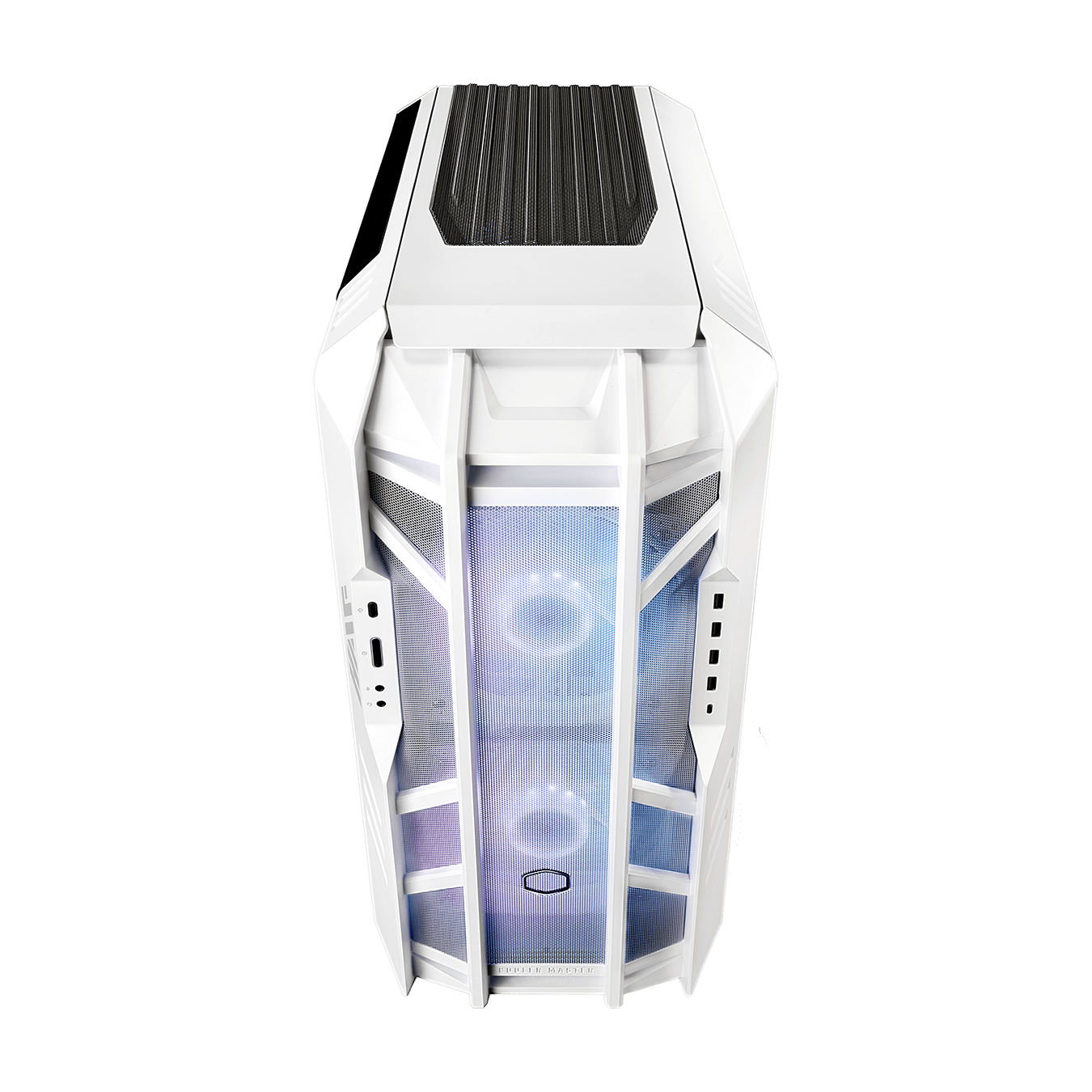

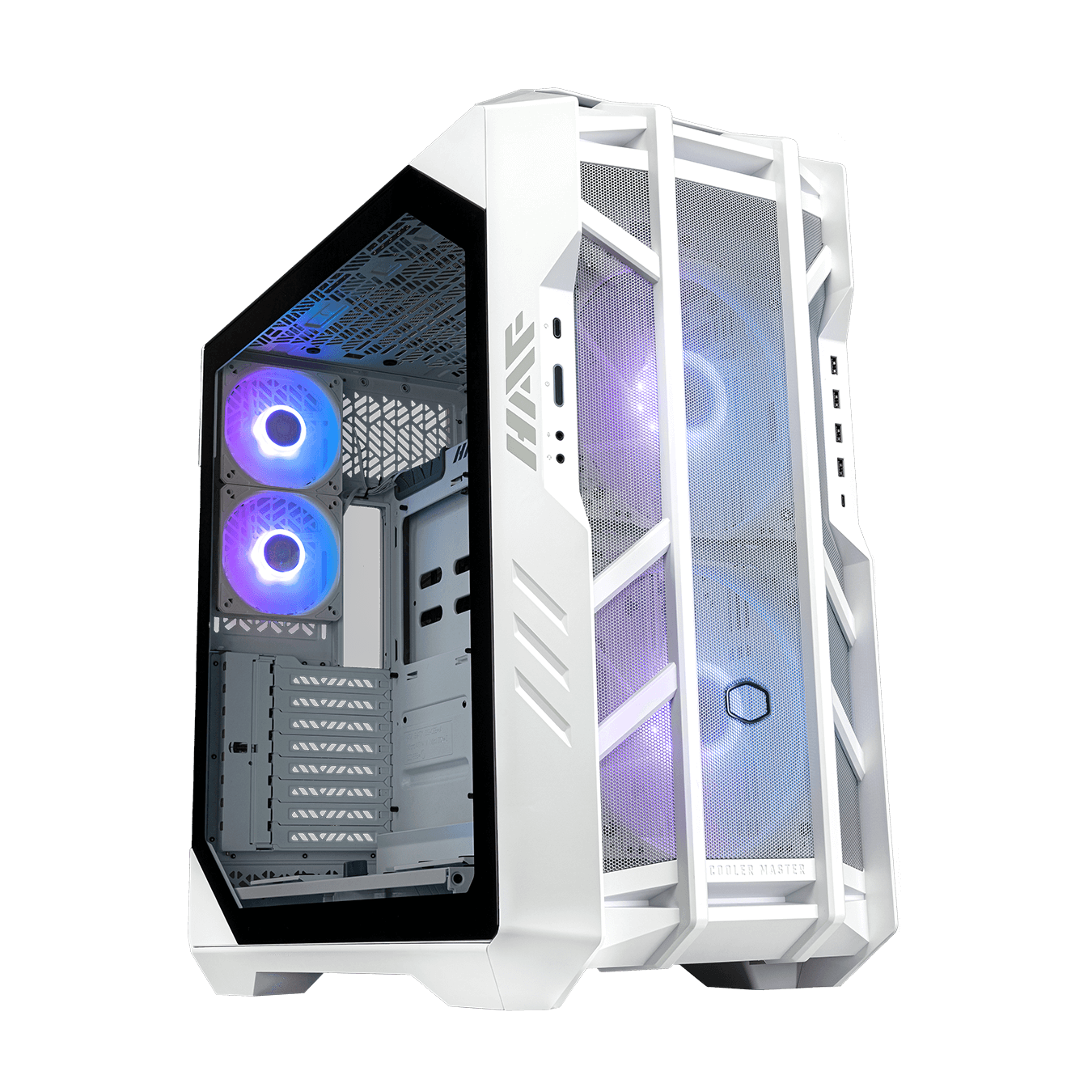

HAF 700
Description
• Unparalleled Hardware & Cooling Capabilities
• Mammoth Water Cooling Support
• Exclusive Tool-Less Technology
• ARGB Gen2 ready with MasterPlus+ integration
- Model Number: HAF 700: H700-IGNN-S00, HAF 700 WHITE: H700-WGNN-S00

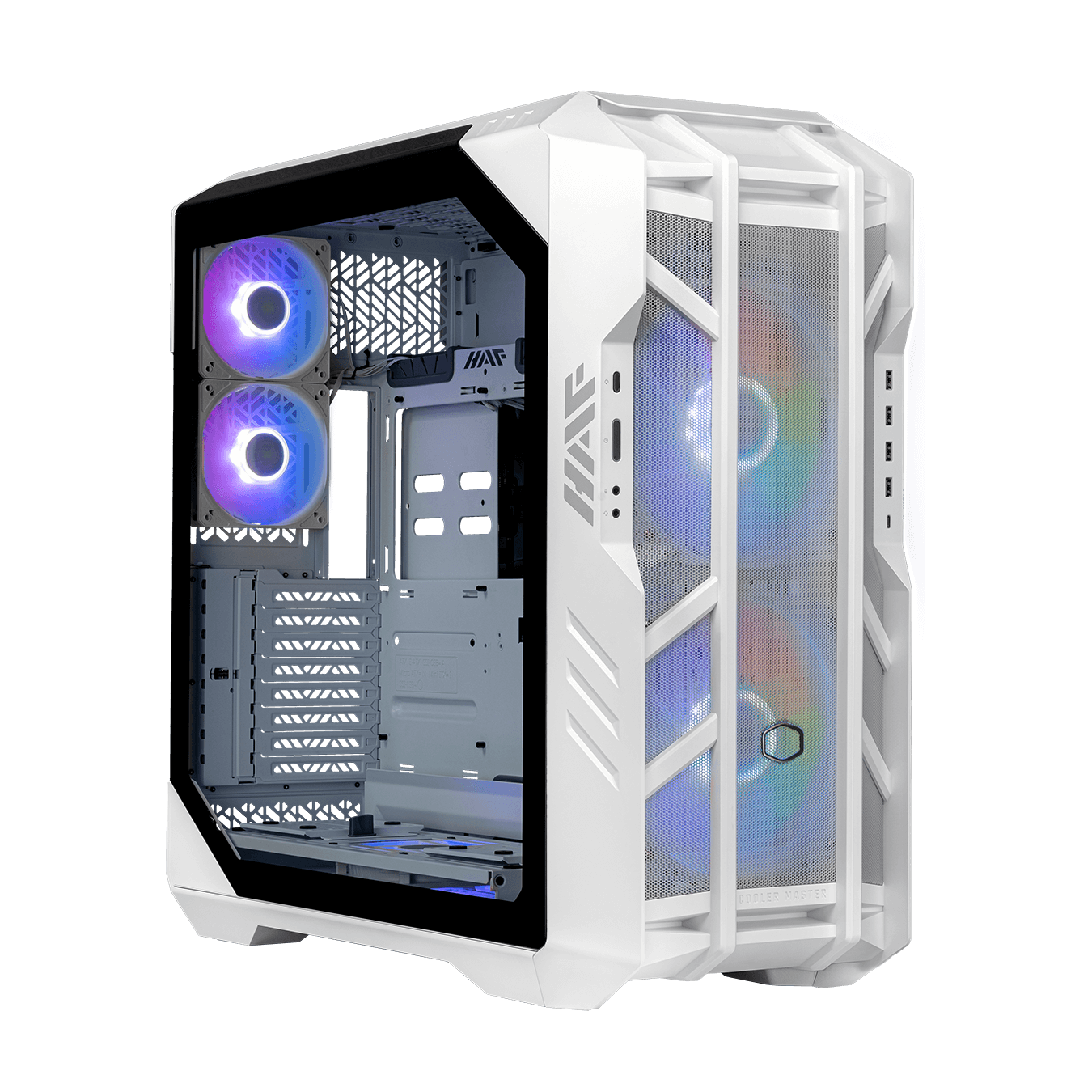

- Exterior Color: Titanium Grey, White
- Materials - Exterior: Steel, Plastic
- Materials - Left Side Panel: Tempered Glass, Steel, Plastic
- Dimensions (L x W x H): 556 x 279 x 540 mm (Body Size)
- Dimensions (L x W x H): 666 x 291 x 626 mm (incl. Protrusions)
- Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB
- Expansion Slots: 8
- 2.5" / 3.5" Drive Bays (Combo): 9 (4*HDD bracket, 5*Screw+Rubber)
- I/O Panel - USB Ports: 1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0)
- I/O Panel - Audio In / Out: 1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack
- Pre-installed Fans - Front: 2x SickleFlow 200 ARGB PWM
- Pre-installed Fans - Rear: 2x SickleFlow 120 ARGB PWM
- Pre-installed Fans - Bottom: 1x SickleFlow 120 ARGB PWM
- Fan Support - Top: 2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket)
- Fan Support - Front: 2x 200mm
- Fan Support - Rear: 2x 120mm
- Fan Support - Bottom: 3x 120/140mm
- Fan Support - Side: 4x 120mm / 3x 140mm

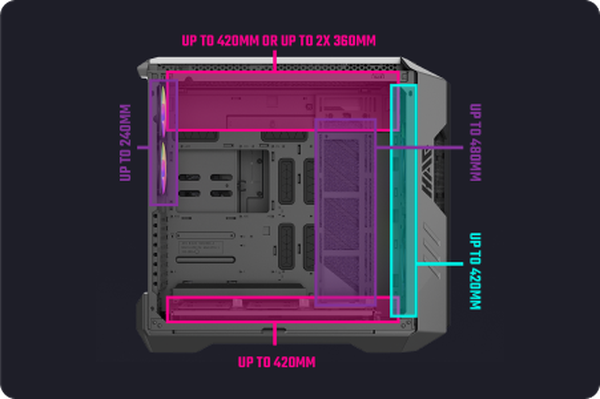

- Radiator Support - Top: Up to 2x 360mm / 1x 420mm
- Radiator Support - Rear: Up to 240mm
- Radiator Support - Bottom: Up to 420/360mm
- Radiator Support - Side: Up to 480/420/360mm
- Clearance - CPU Cooler: 166mm / 6.53"
- Clearance - PSU: 200mm / 7.87"
- Clearance - GFX: 490mm / 19.29"
- Cable Routing - Behind Motherboard Tray: 90-101mm
- Included Accessories: 1x Rotatable Radiator Bracket, 1x LED Controller A1 (ARGB Gen2), 1x ARGB/PWM Hub
- Dust Filters: Bottom, Right Side
- Power Supply Support: Bottom Mount, ATX
- Warranty: 2 years
- Size: Full Tower
- Series: HAF Series
- Note: * For regular 30mm thick radiators, for thicker please reference compatibility sheet.
Details
IN SPIRIT OF COOLER MASTER'S HAF LEGACY
HAF 700 embodies the spirit of HAF's performance oriented design, boasting attention to mechanical detail.
Our Achievements
14 AWARDS
Hardware & Connectivity

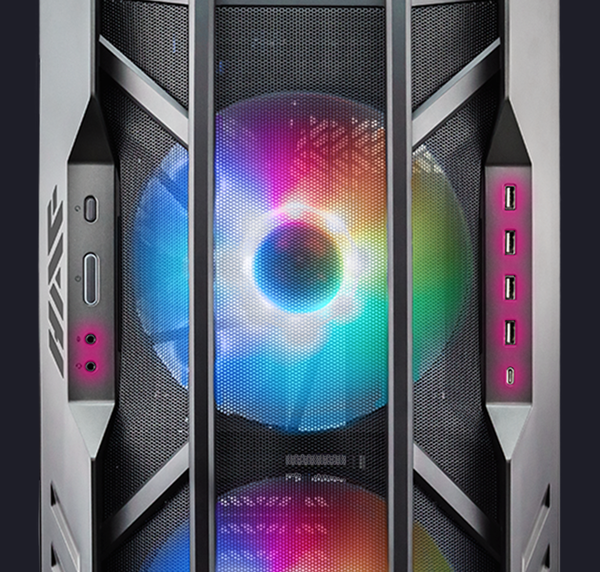

Rich Connectivity
The front I/O is designed to maximize the front connectivity for most high end motherboards, featuring four USB Gen 3.1 Type A ports, a USB Gen 3.2 Type C, a 4 pin audio/mic headset jack as well as a dedicated mic jack.
Custom Cooling
6x
MAMMOTH RADIATOR SUPPORT
Fans

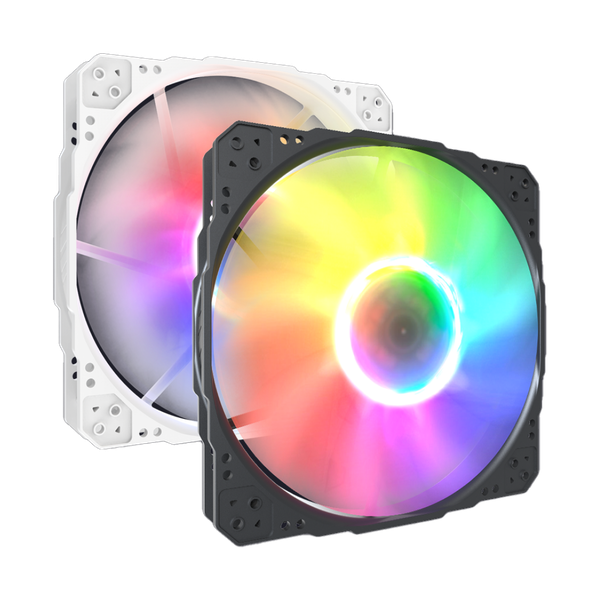

Exclusive SickleFlow fans
HAF 700 comes with dual exclusive 200mm Sickleflow ARGB PWM "Performance Edition" fans tailored to strike a balance between performance potential and noise levels

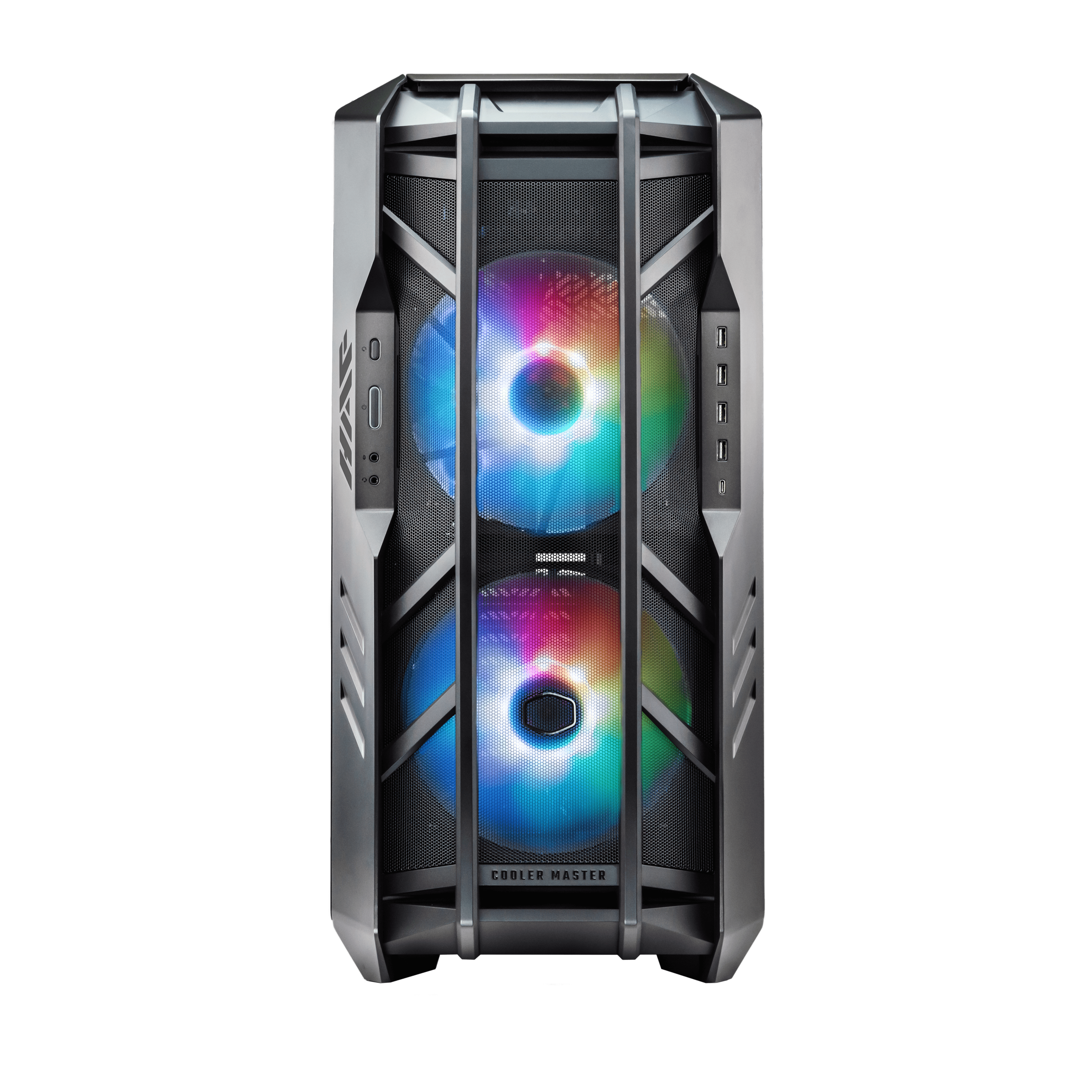

Unrestricted Front Panel Intake
HAF 700 sports a fully meshed front panel, specifically designed to allow for maximum air intake. With the front panel structurally reinforced to prevent resonation caused by fan vibrations, systems can run smoothly at minimal noise levels.

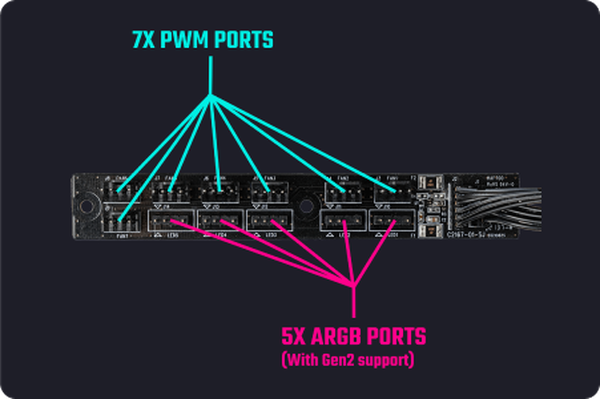

Effortless Management
12x
INTEGRATED HUB
HAF 700 | The Berserker
Installation

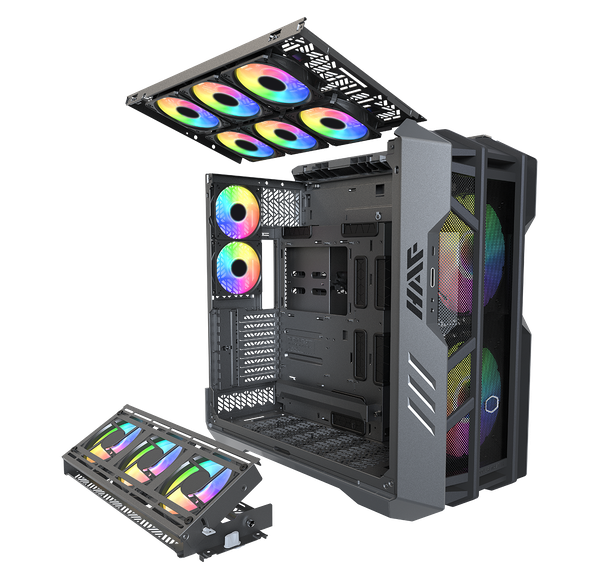

ADVANCED MOUNTING OPTIONS

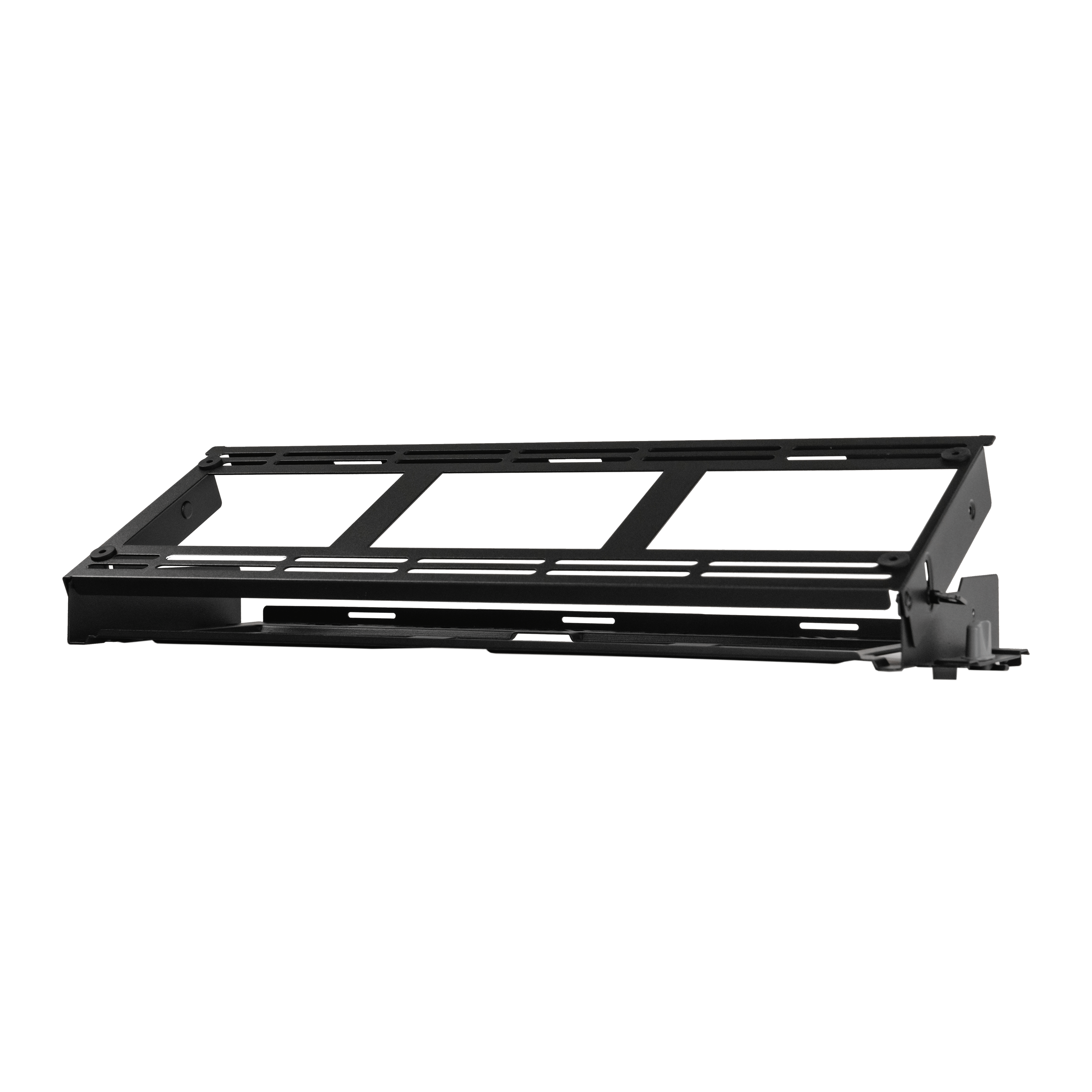

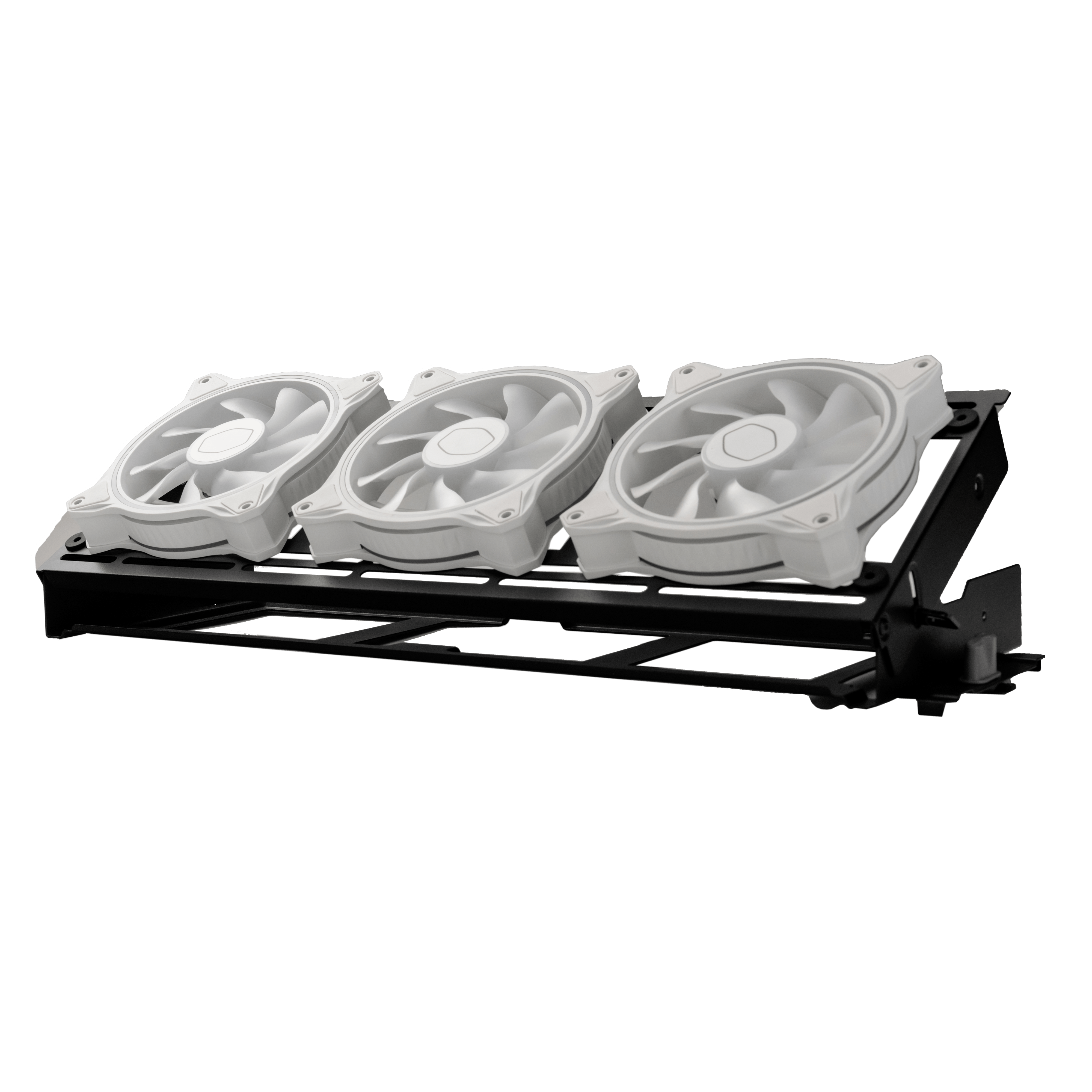

The unique removable top panel design allows you to effortlessly install, reach and maintain cooling components such as fans and radiators even in builds with complex custom cooling systems. This, coupled with the rotatable radiator/fan bracket included out of the box allows for an unparalleled building experience.
Software
MASTERPLUS+ SOFTWARE INTEGRATION
Design

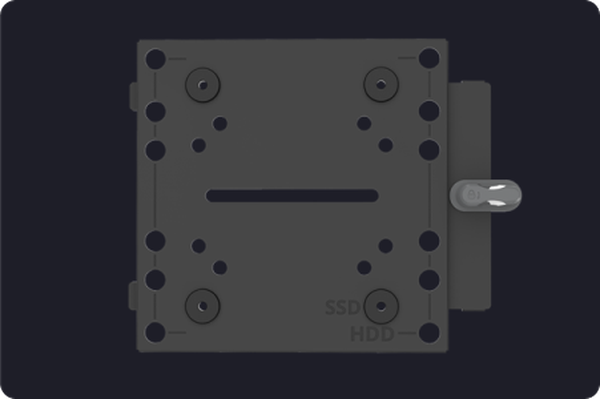

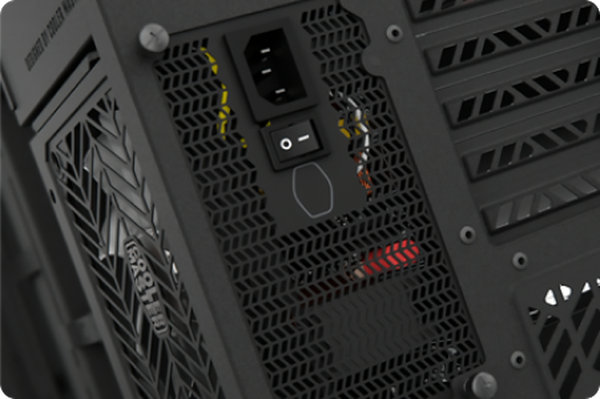

TOOL-LESS INSTALLATION
Design

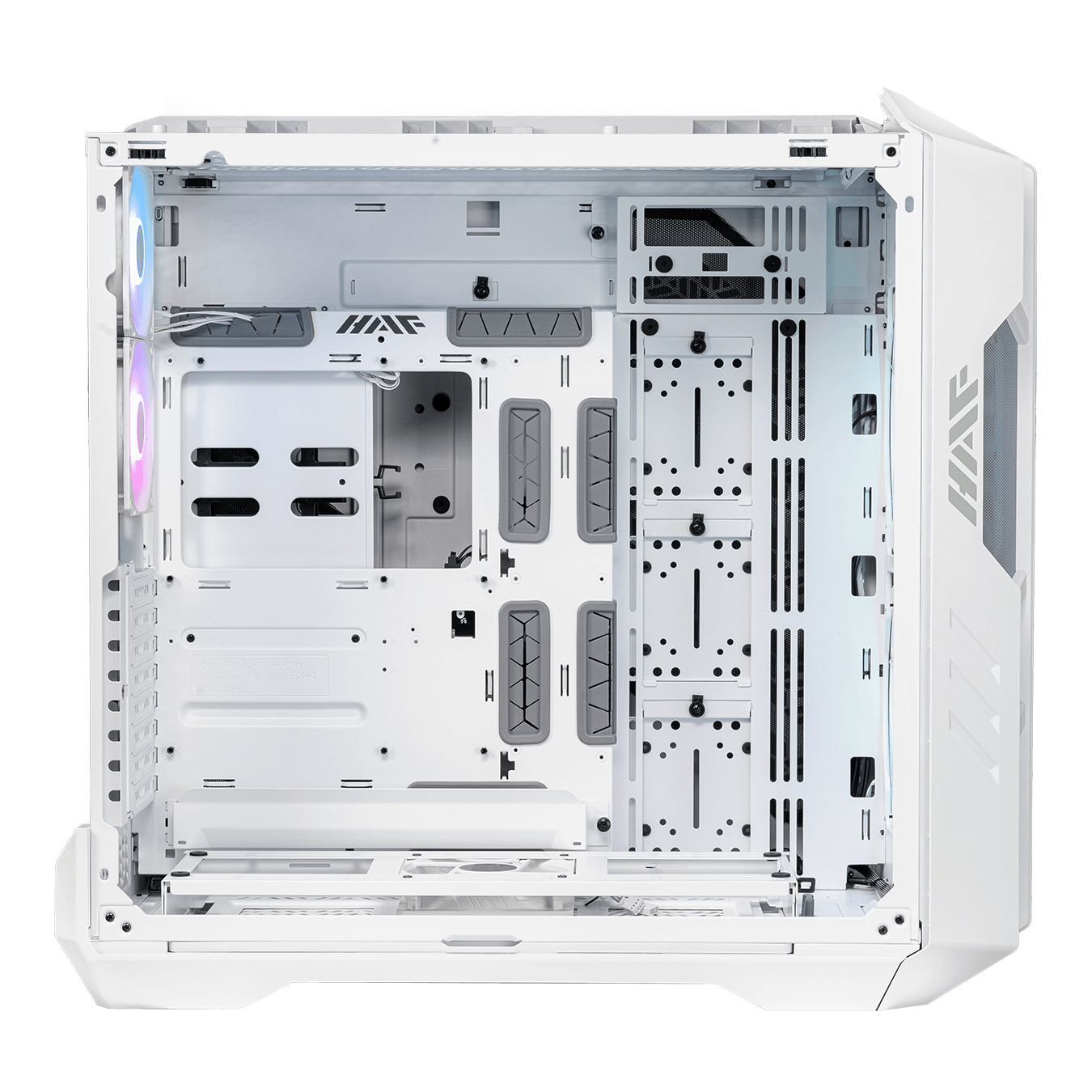

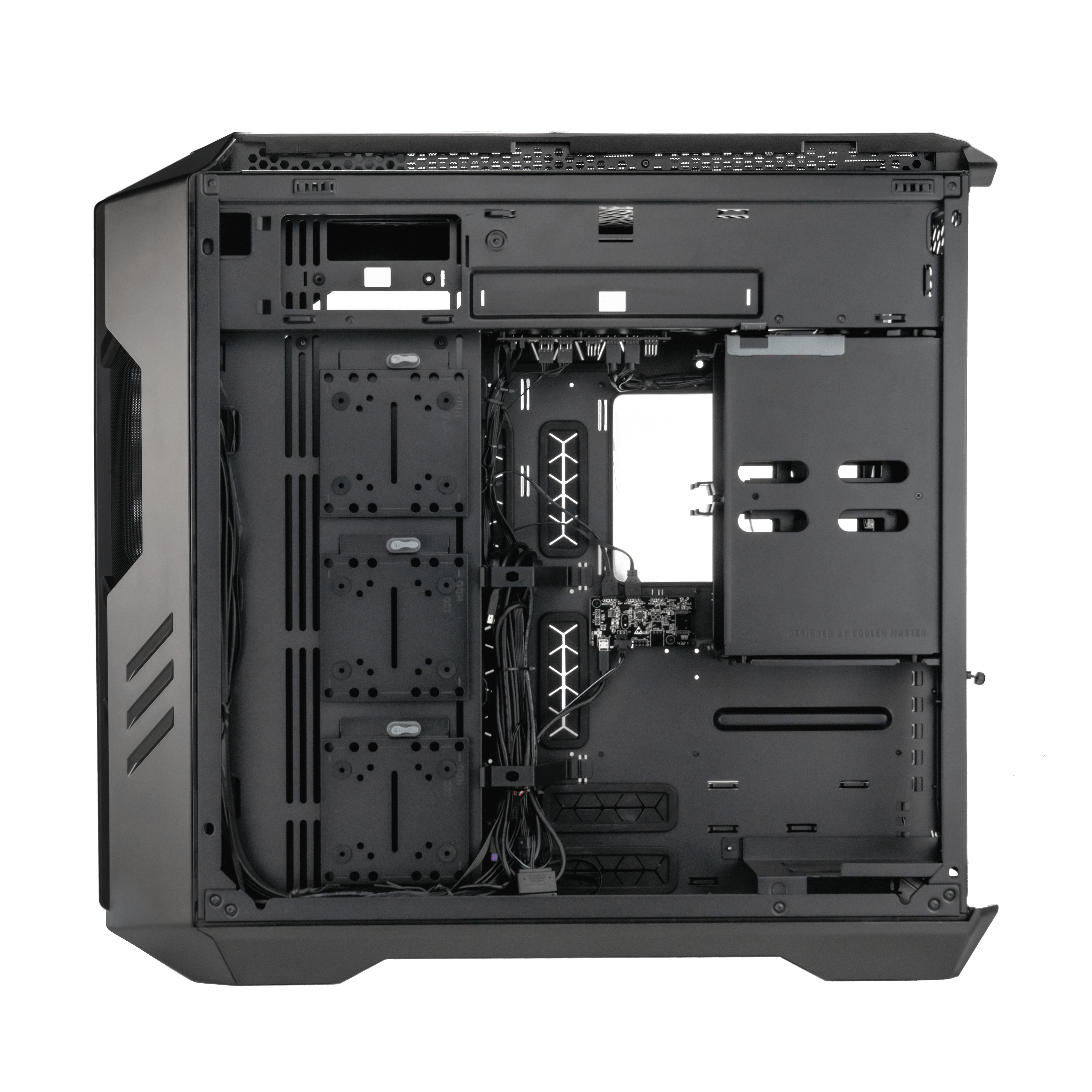

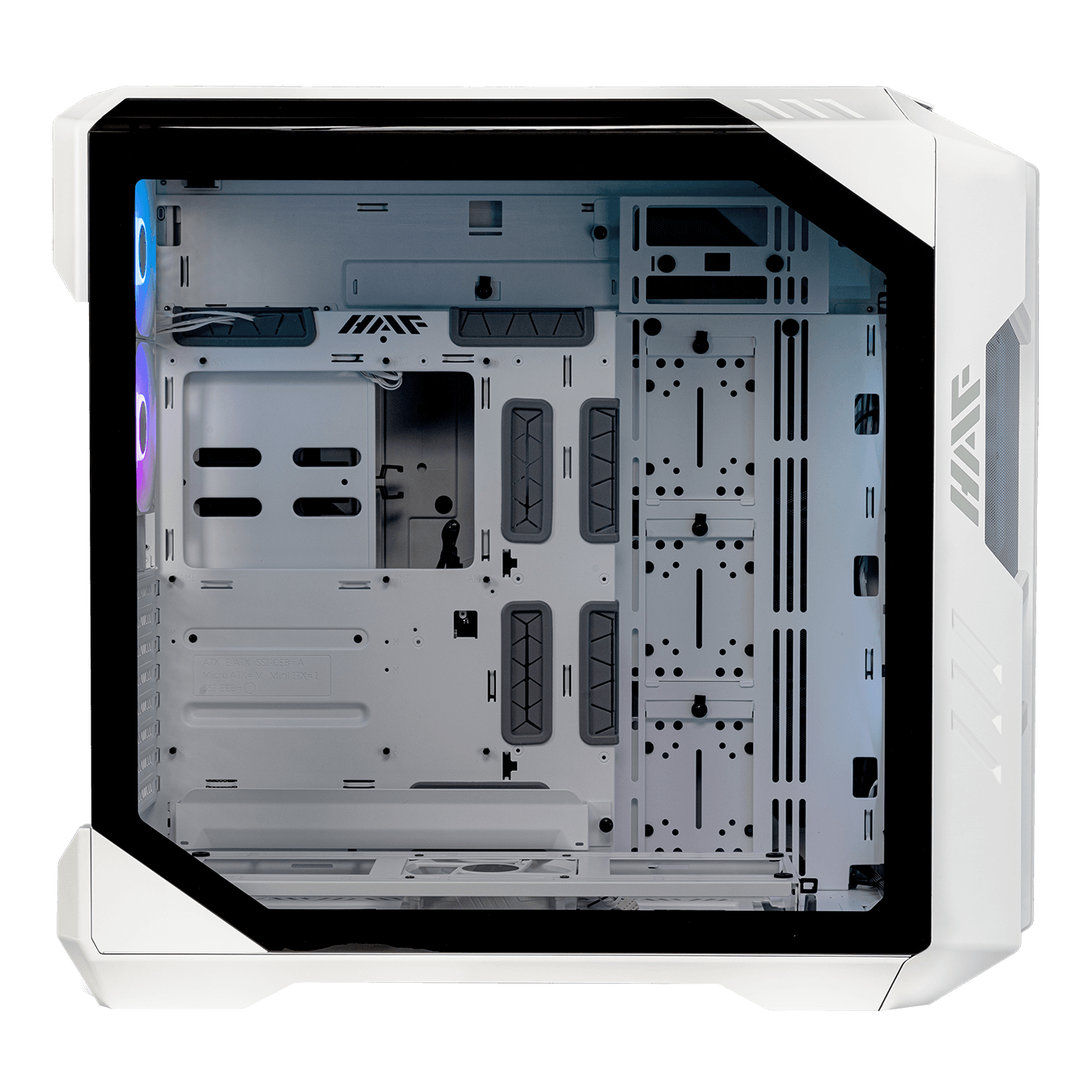

MULTI CHAMBER LAYOUT
HAF 700's structure segregates non heat sensitive components so heat dissipation can be targeted towards heat sensitive components at an overall higher efficiency.
