TD500 MAX

The First ATX 'MAX', Easy Premium Builds

TD500 MAX

Item No. TD500V2-MGNN85-SL0
4.8 out of 5 Customer Rating
Availability:
  • In Stock
Price reduced from € 399,99 to € 299,99
The link to TD500 MAX has been copied

Description

Cooler Master presents the TD500 MAX, the next revolutionary step in our MAX line up.

  • Product Number: TD500V2-MGNN85-SL0 / TD500V2-MGNN85-SL1
  • Exterior Color: Gun metal
  • Materials - Exterior: Steel, Plastic, Tempered Glass
  • Materials - Left Side Panel: Tempered Glass
  • Dimensions (L x W x H): 499 x 210 x 500mm (incl. Protrusions)
  • Dimensions (L x W x H): 482 x 210 x 477mm (excl. Protrusions)
  • Volume: 48L
  • Motherboard Support: Mini-ITX, Micro-ATX, ATX
  • Expansion Slots: 7
  • Drive Bays - 5.25" ODD: 0
  • Drive Bays - 3.5" HDD: 2
  • Drive Bays - 2.5" SSD: 3
  • I/O Panel - USB Ports: 2x USB 3.2 Gen 1 + 1x USB 3.2 Gen 2x2 type C
  • I/O Panel - Audio In / Out: 1x Audio combo
  • Included Accessories: ARGB Hub
  • Pre-installed Radiator: ML360 Atmos MAX ver.
  • Pre-installed Power Supply Unit: GX II Gold 850W ATX3.0 MAX ver. , *1x extra PCI-e 6+2 Pin cable could be requested for free from local Customer Service
  • Pre-installed Fan(s) - Front: 3 x 120mm (AIO Mobius120P ARGB fan)
  • Pre-installed Fan(s) - Top: N/A
  • Pre-installed Fan(s) - Rear: 1 x CF120 ARGB fan
  • Fan Support - Front: 3 x 120mm / 2 x 140mm
  • Fan Support - Top: 3 x 120mm / 2 x 140mm
  • Fan Support - Rear: 1 x 120mm
  • Radiator Support - Front: 360mm / 240mm
  • Radiator Support - Top: 360mm / 240mm
  • Radiator Support - Rear: 120mm
  • Clearances - CPU Cooler: 165mm
  • Clearances - Power Supply: 200mm (Pre-installed PSU Length 160mm)
  • Clearances - Graphics Card: 380mm (with pre-installed AIO on front)
  • Cable Routing - Behind MB Tray: 19mm
  • Dust Filters: Top, Bottom
  • Warranty: 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)
  • Size: ATX

Details

Customization

RECALL USERS' PASSION FOR PC DIY

The TD500 MAX, Cooler Master's first AT case in the MAX series, features a preinstalled customized AlO cooler, GXII Gold 850W ATX 3.0 PSU, patented 2-stage cable connectors, and a screw storage pad. It aims to revive users' passion for PC building while reducing the challenges faced putting together high-end PCs.

Our Achievements

2 AWARDS

Cooling System

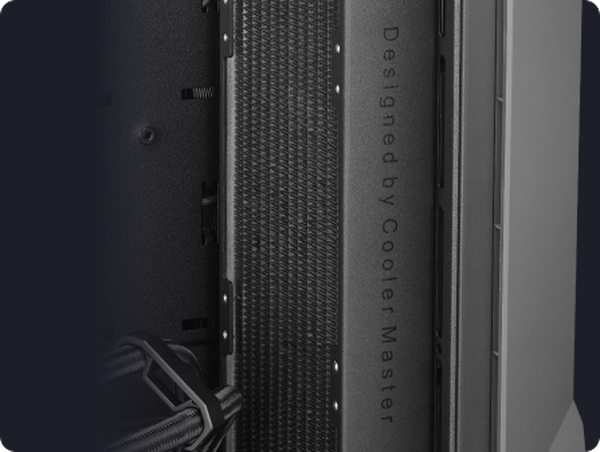

38MM

THICKER RADIATOR

Storage Design

OUR EXCLUSIVE DESIGN IS BEVOND EASY

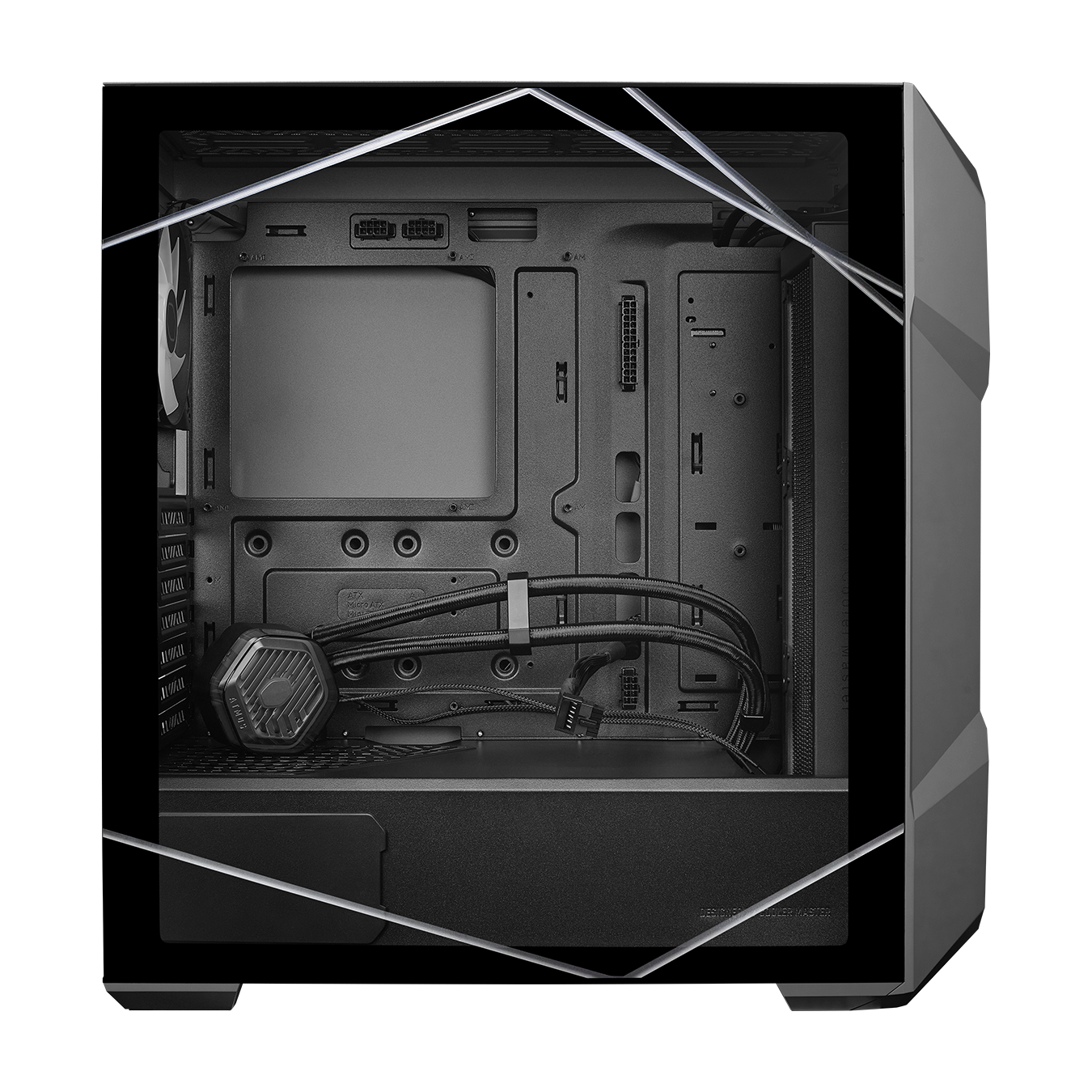

The TD500 MAX streamlines PC building by pre-connecting the GXII

PSU with 2-stage Cable Connectors and providing a screw storage

pad under the PSU Cover. This allows quick and elegant builds, with

the added convenience of replacing the motherboard without opening

the back panel.

TD500Max

Fans

ENDLESS FRESH AIR

Cooler Master integrated flagship Mobius 120P ARGB fans in the

premium 360 Atmos AlO cooler, offering users an even higher-

performance cooling solution

3.6 MMH20

HIGH-AIRFLOW

Fans

75.6FM

HIGH-AIR PRESSURE

Design

A FLEXIBLE DESIGN FOR FUTURE NEEDS

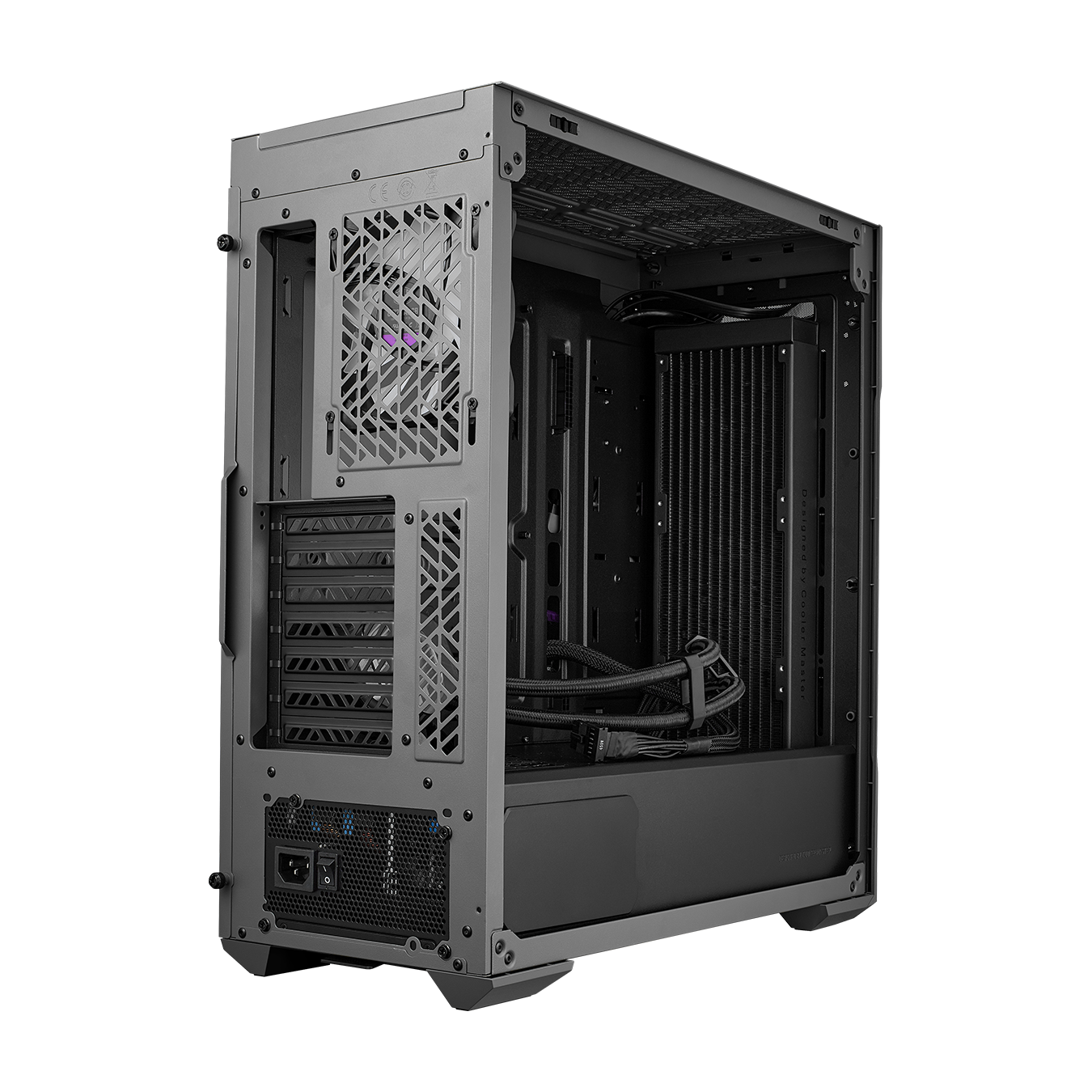

Despite its integrated design, the TD500 MAX is designed for future

upgrades. It supports PSUs up to 200mm when an AlO cooler is front-

installed, accommodates GPUs up to 380mm, and allows for the

addition of three fans on the top if needed.
