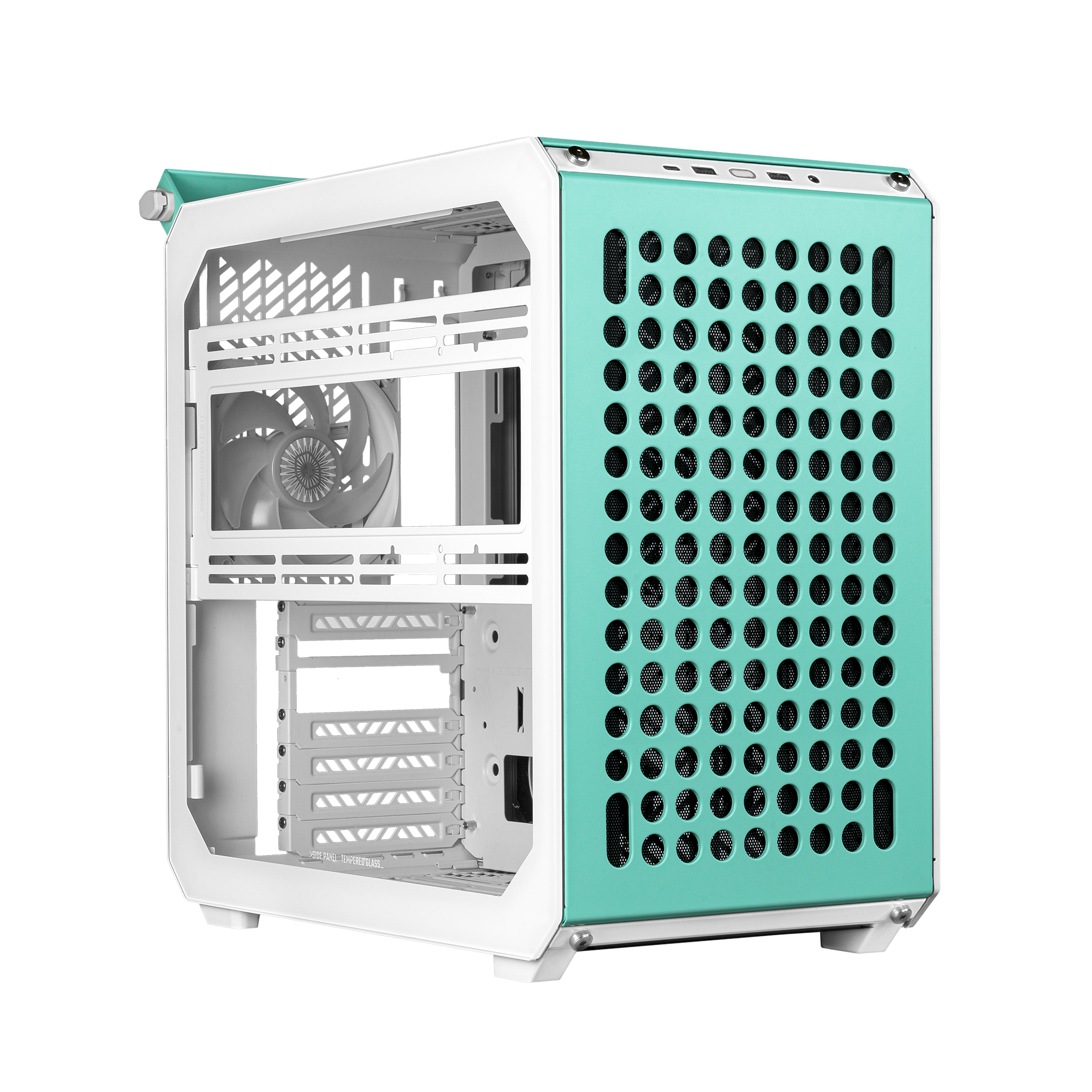

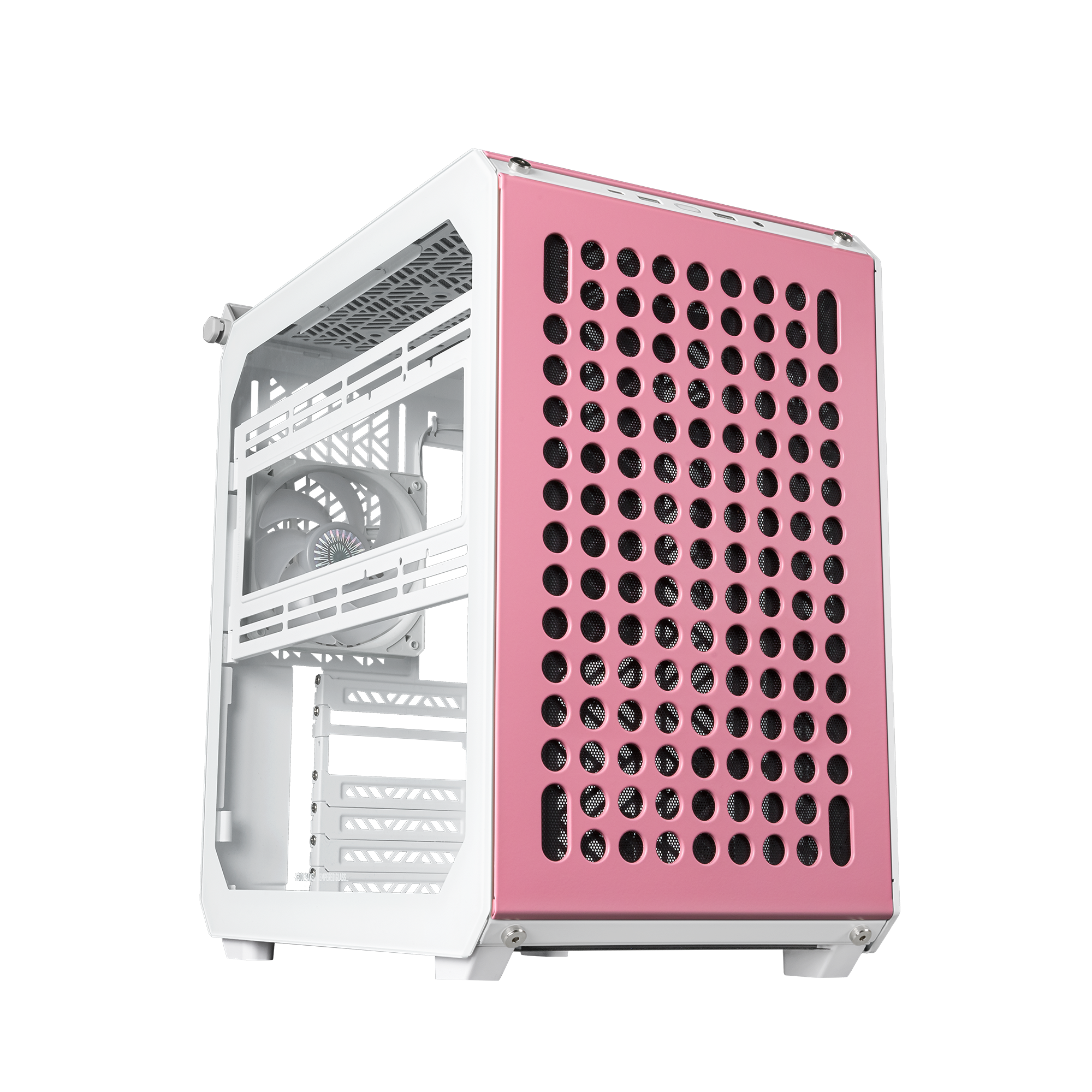

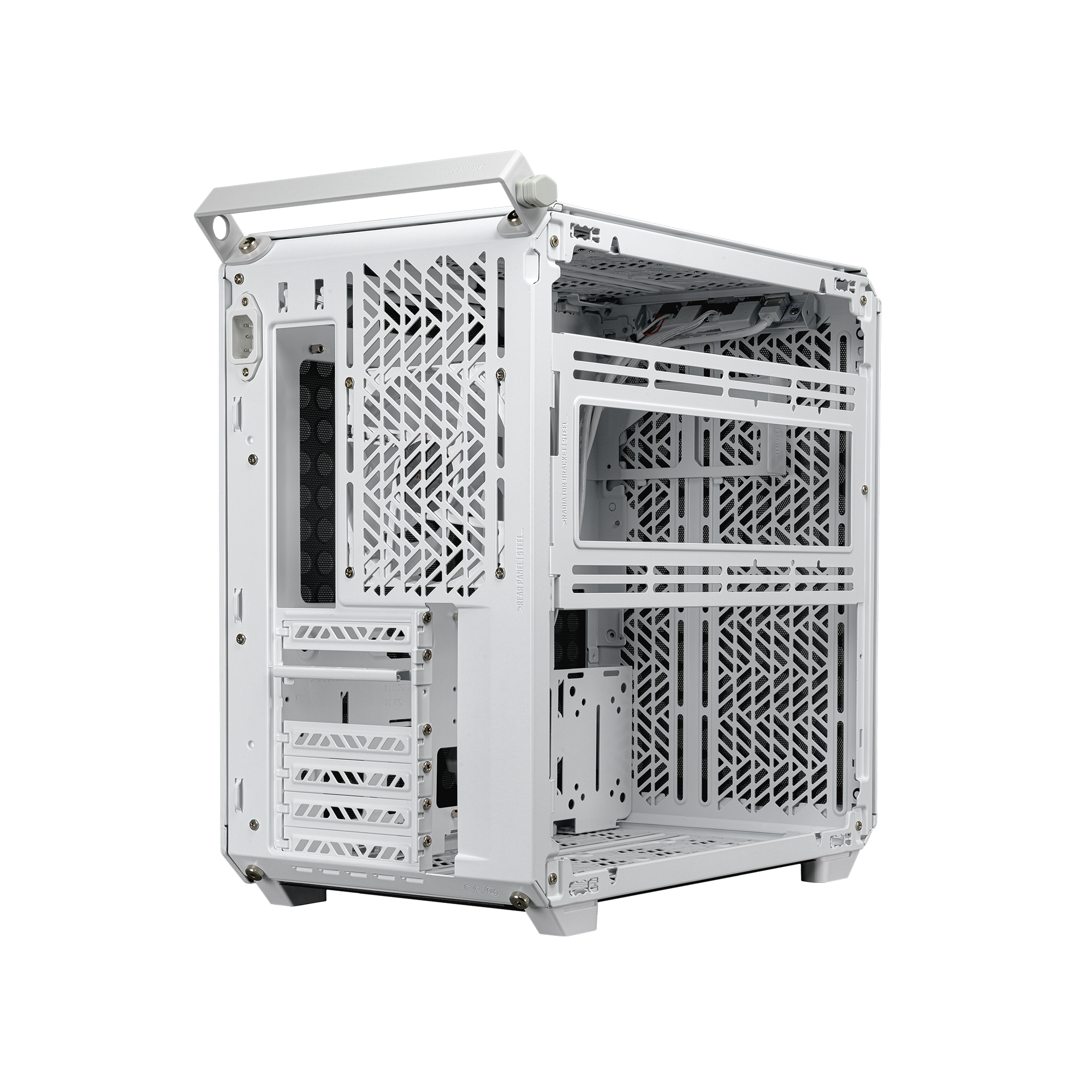

QUBE 500 Flatpack Macaron Edition
Description
Flatpack assembly
Fully modular design
Built-in vertical GPU mount
Full-sized specs, pint-sized body
Highly customizable

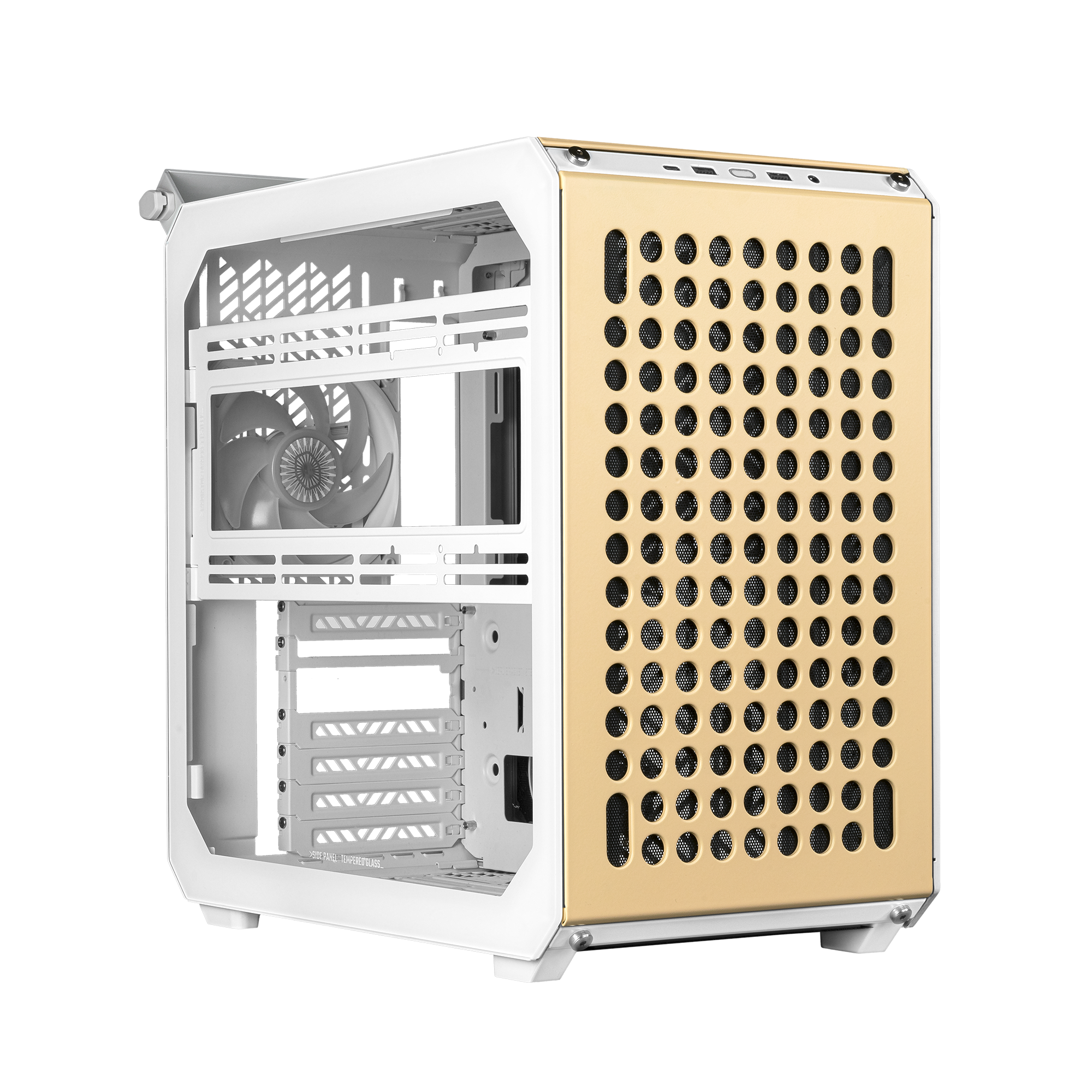

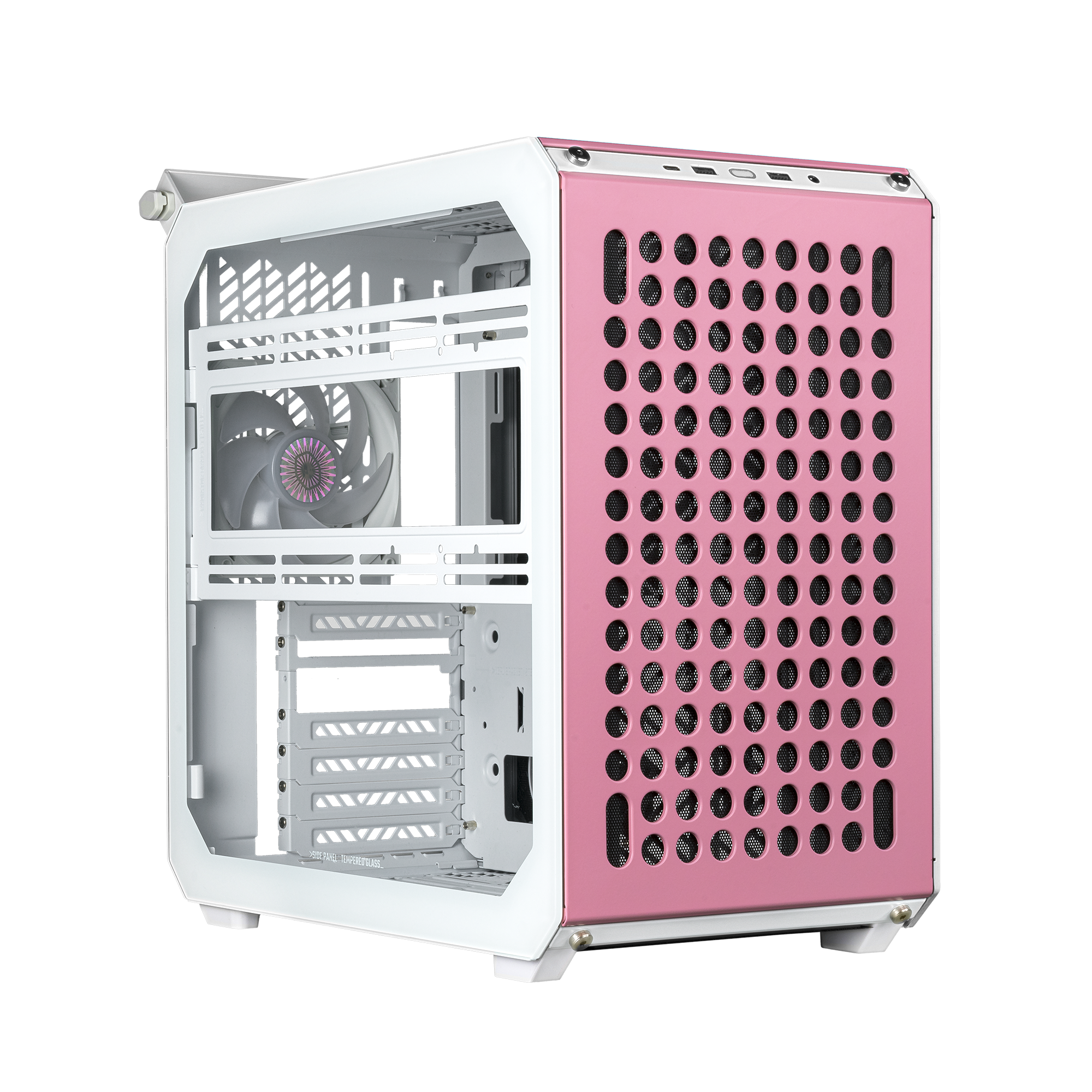

Multiple macaron color panels
Accessory ecosystem
- Model Number: Q500-DGNN-S00
- Exterior Color: 3x set: Mint, Pink, Cream
- Materials - Exterior: Steel, Plastic, TG
- Materials - Left Side Panel: Grey TG + Steel
- Dimensions (L x W x H): 406 x 231 x 415mm (Incl. Protrusions)
- Dimensions (L x W x H): 380 x 231 x 381mm (excl. Protrusions)
- Volume: 33.44L (excl. Protrusions)
- Motherboard Support: ITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU)
- Expansion Slots: 7
- 3.5" Drive Bays: Max. 4x 3.5" HDD
- 2.5" Drive Bays: Max. 3x 2.5" SSD

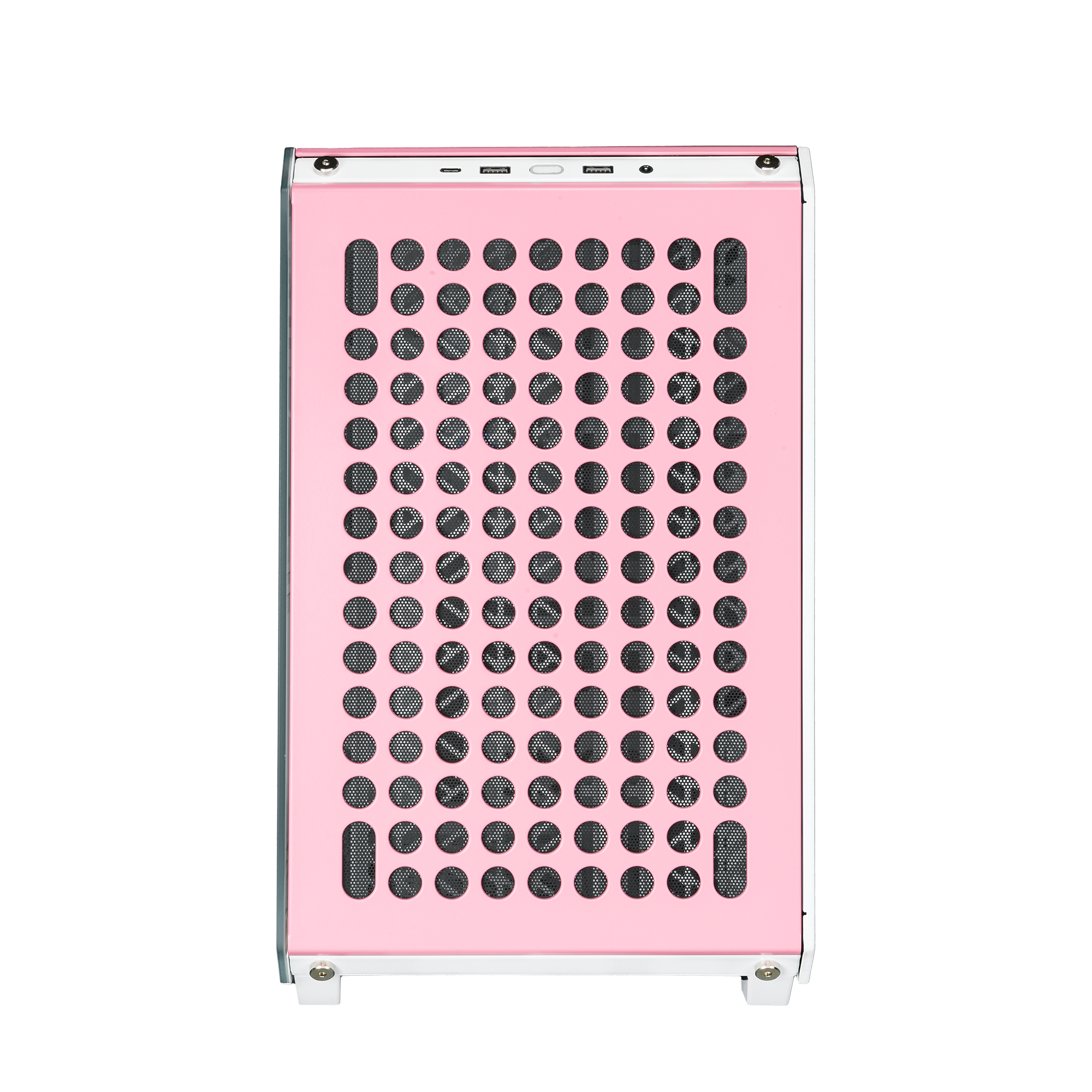

- I/O Panel - USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C
- I/O Panel - Audio In / Out: 1x 3.5mm Combo
- Pre-installed Fans - Rear: 1x 120mm (1800 RPM) SF ARGB White PWM
- Fan Support - Front: 1x 120/140mm (x2 if PSU is mounted in bottom)
- Fan Support - Top: 2x 120/140mm
- Fan Support - Rear: 1x 120mm
- Fan Support - Bottom: 2x 120/140mm
- Fan Support - Left side: 2x 120/140mm
- Radiator Support - Front: 120/140 mm (240/280mm w/ PSU in bottom)
- Radiator Support - Top: 120 / 140 / 240 / 280mm (280mm can be used within 53mm thickness)
- Radiator Support - Rear: 120mm
- Radiator Support - Bottom: 120 / 140 / 240 / 280mm
- Radiator Support - Left side: 120 / 140 / 240 / 280mm
- Clearance - CPU Cooler: 164mm-172mm (Remove the water cooling bracket)
- Clearance - PSU: 173mm to first GPU slot, 216 maximum space (w/o cable management space)
- Clearance - PSU: 332mm space mounted in bottom (w/o cable management space)
- Clearance - GFX: 365mm

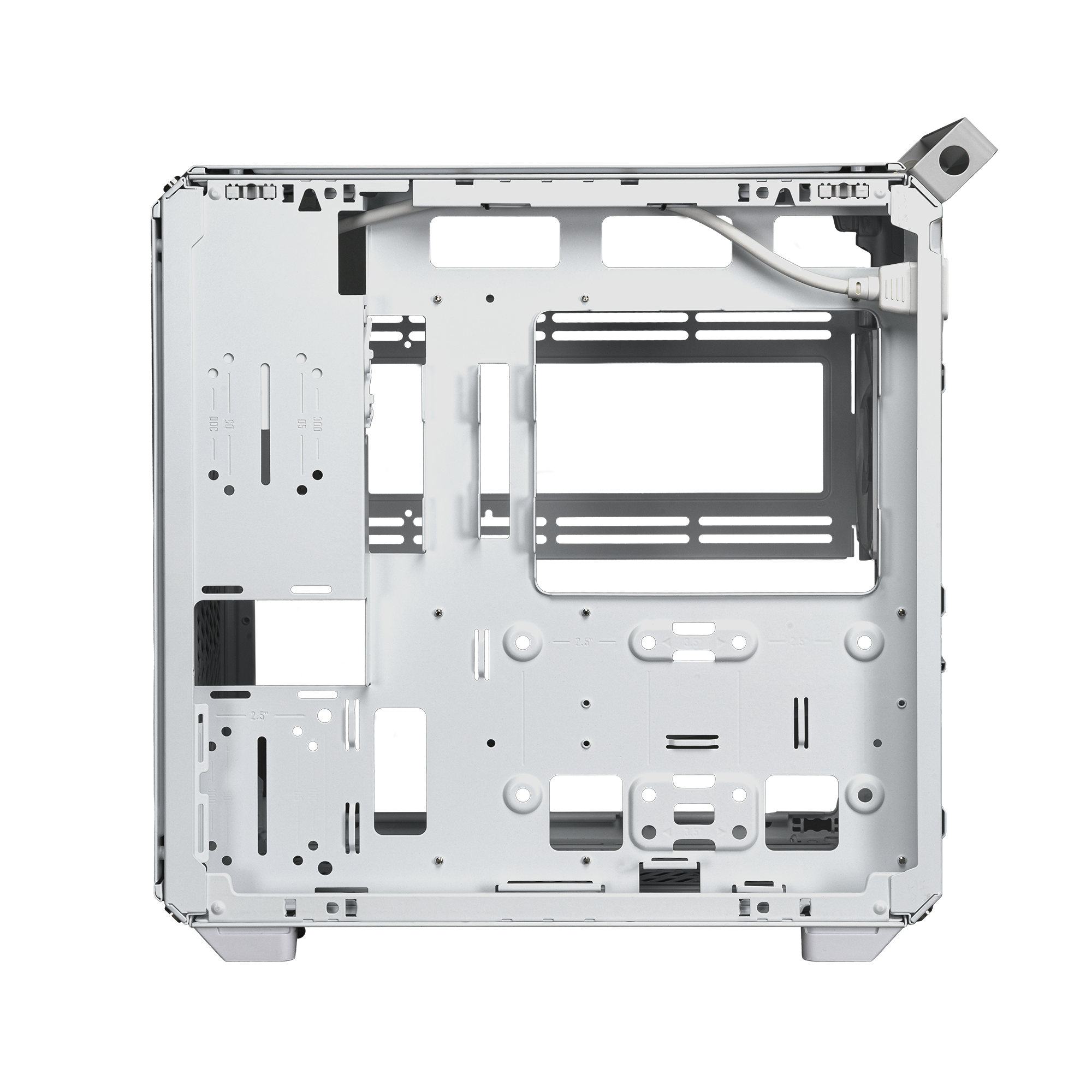

- Cable Routing - Behind Motherboard Tray: 29-32mm
- Handle: Mint x 1, Grey x 1
- Gem Mini: Grey x 1
- Accessory Hook: x 2
- Dust Filters: Front, Top, Bottom, Right side
- Power Supply Support: SFX / SFX-L / ATX
- Warranty: 2 years
- Size: Mid Tower
- Series: QUBE Series
- Back Connector Motherboard Support: No
- Note: -
Details

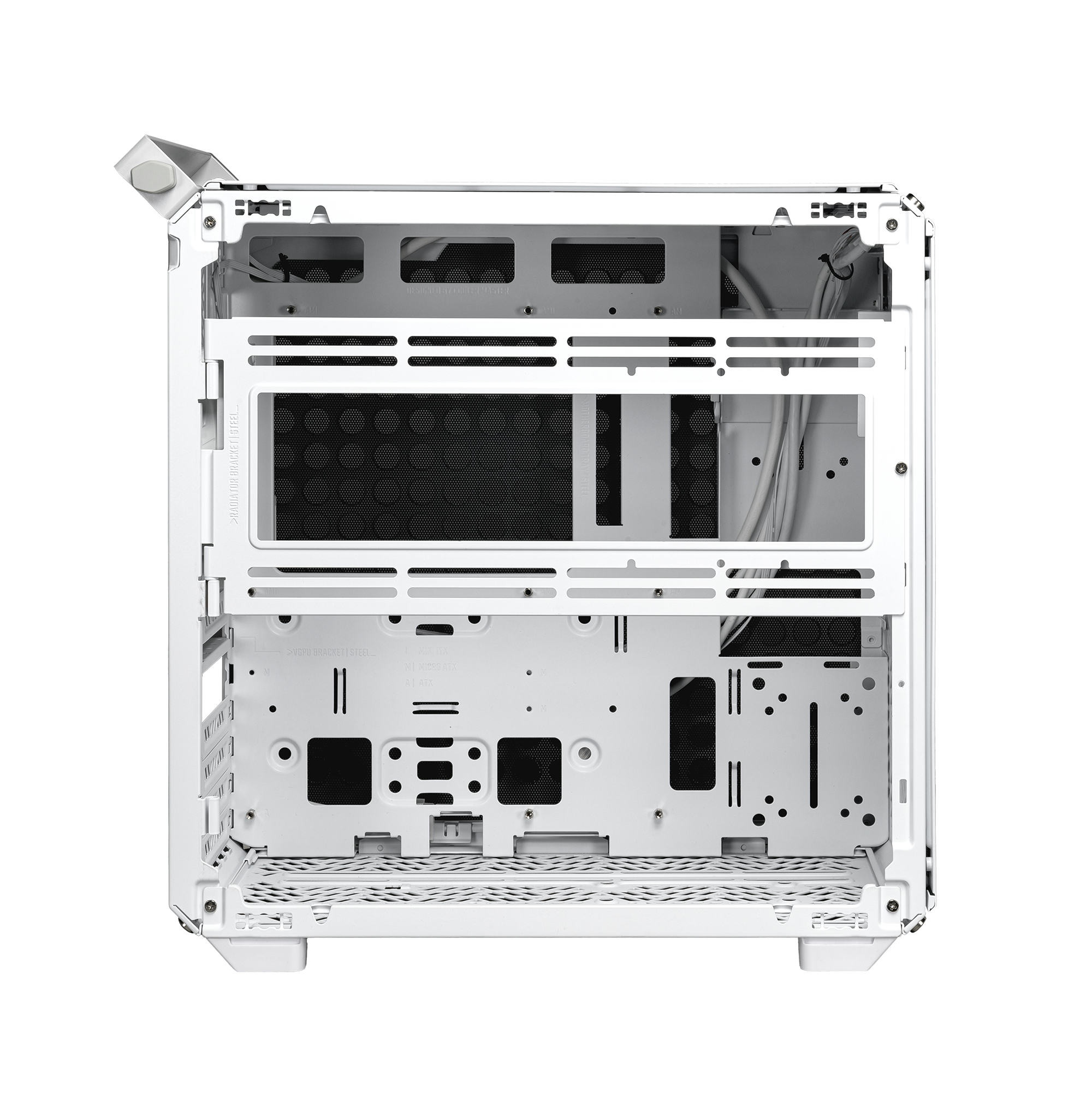

Fully Modular
Features modular panels that simplify and streamline the usual case prep process. Every panel is separately removable for easy maintenance.
Flatpack Assembly
Besides the clear eco-benefits, we believe flat-packing will provide a fun and satisfying build experience. Welcome to the future of PC DIY.
Swappable Side Panels
The symmetric design allows you to switch the steel panel and the glass panel with each other for a non-transparent build.
Highly Customizable
An unprecedented level of customizability allows for full creative expression.

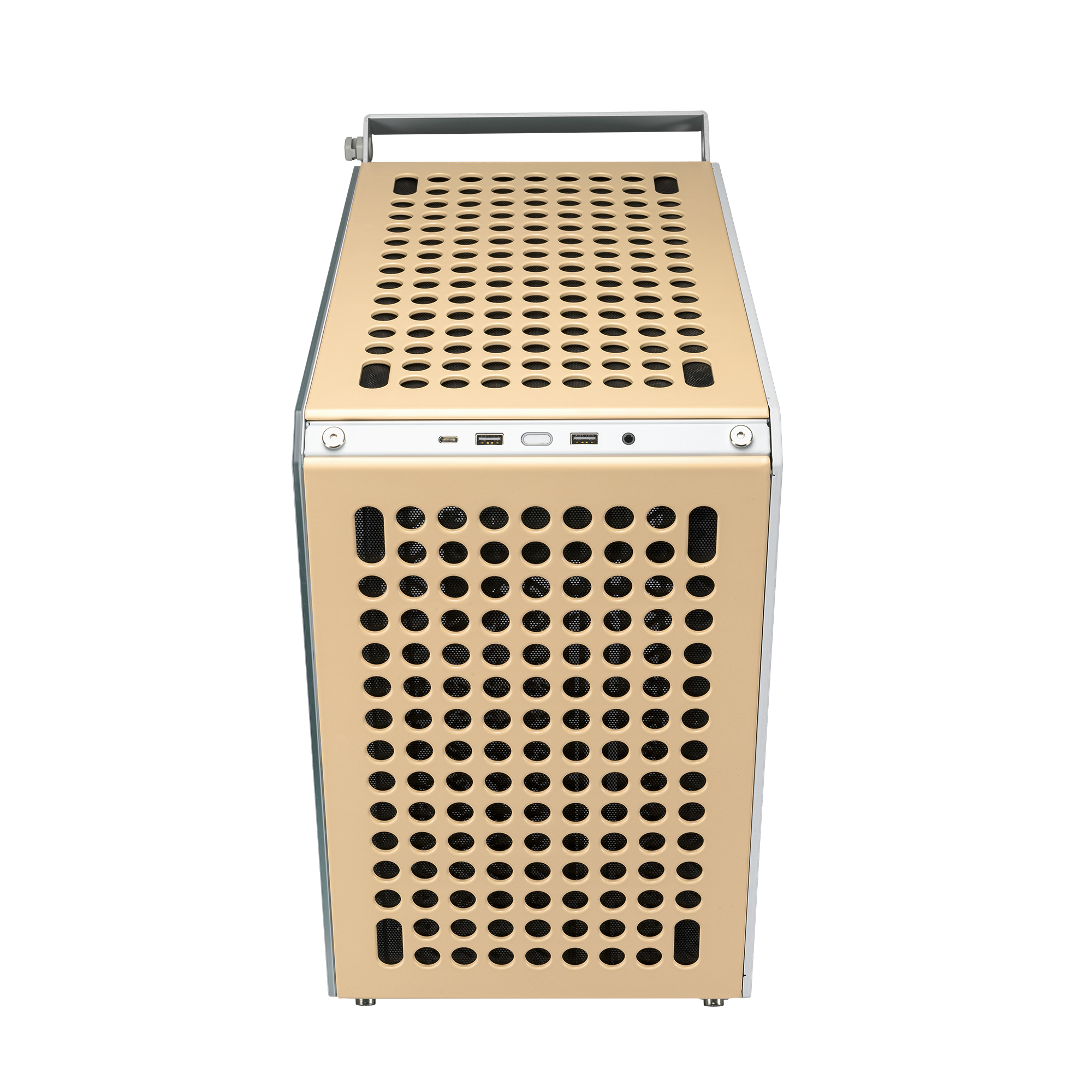

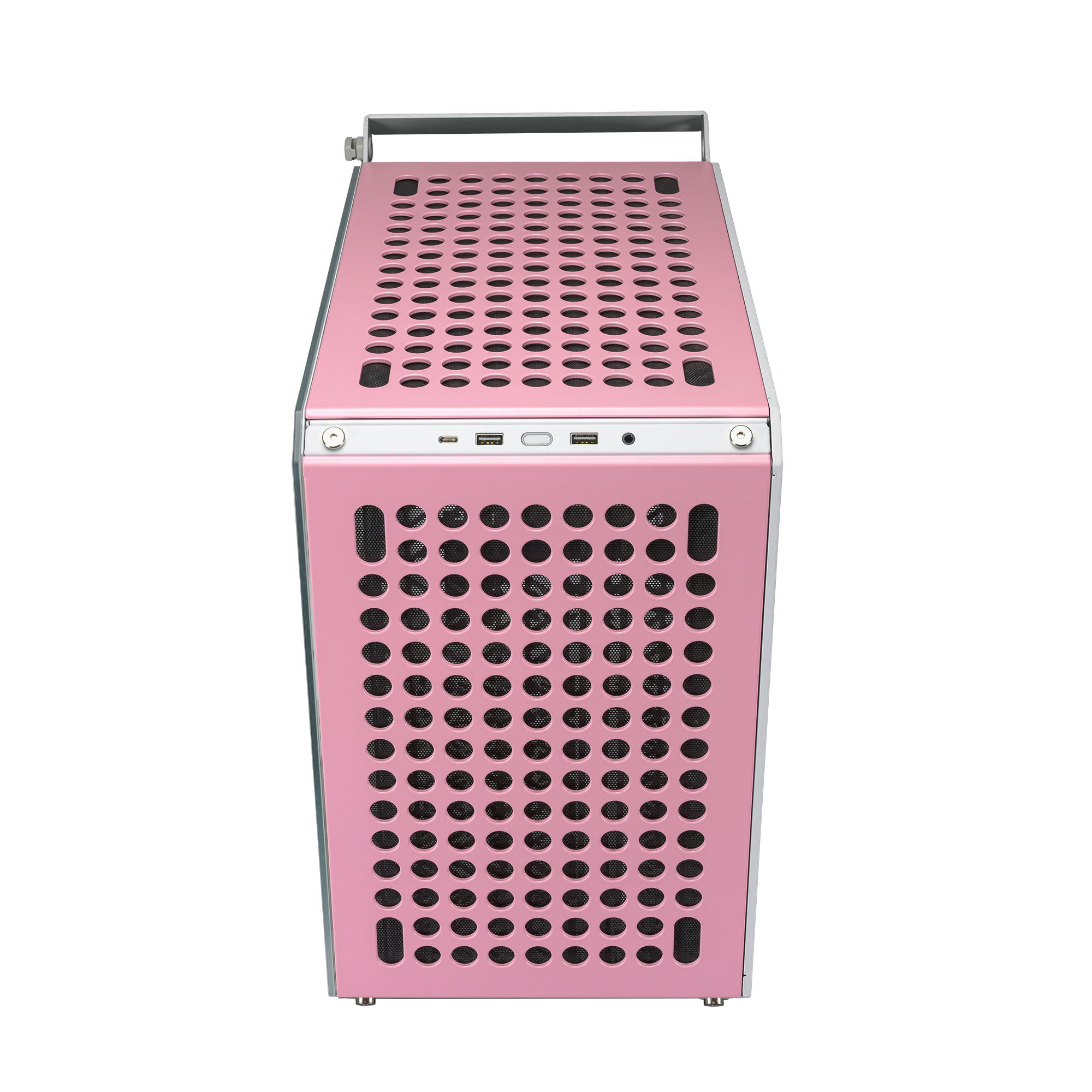

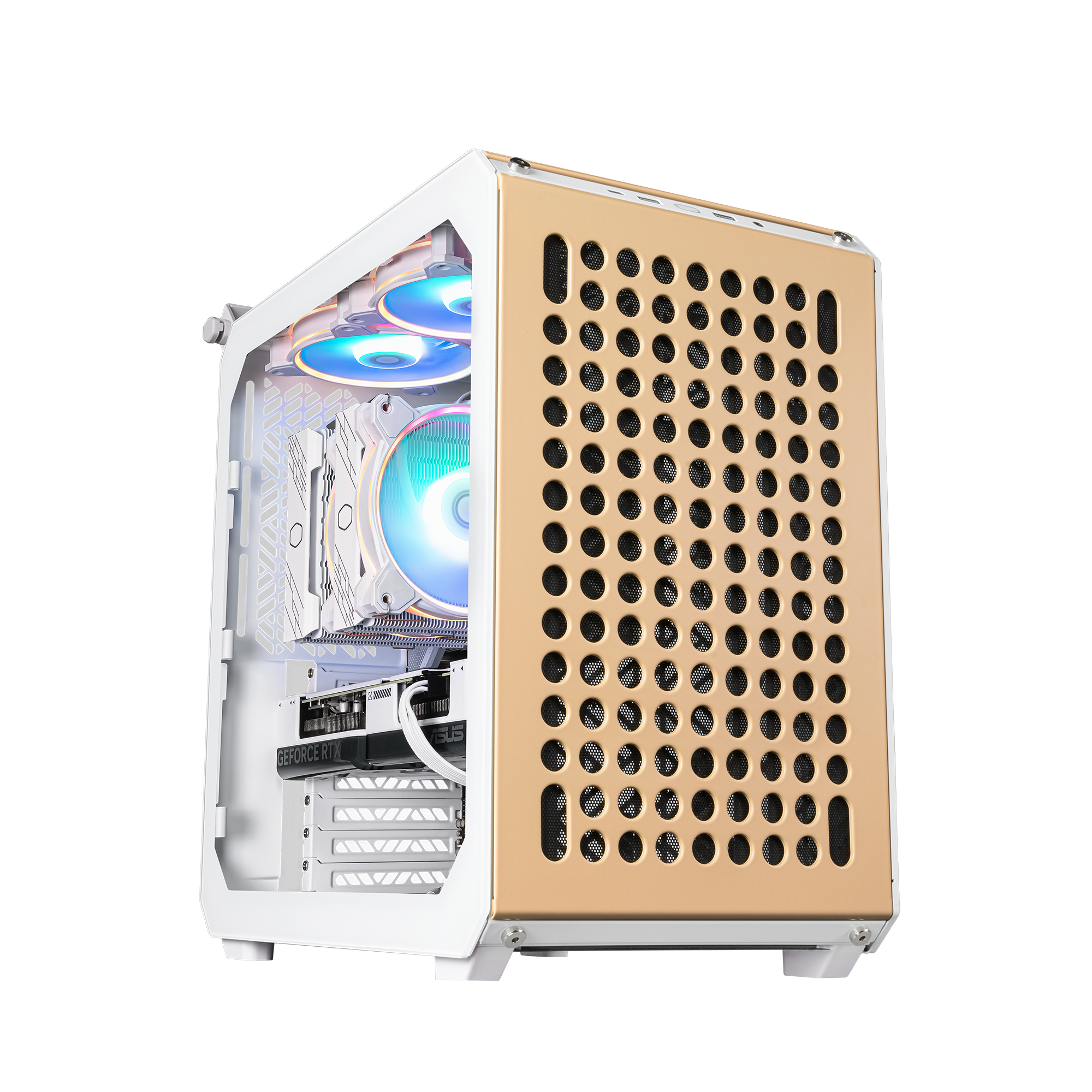

Color your way
Fully express yourself with the multi-color Macaron edition. It includes two sets of extra panels, an extra handlebar, and two accessory hooks. Mix and match the modular panels to create a case that is truly your own.
Extra Airflow
The side radiator mount has two positions, allowing you to install a 280mm radiator or provide your GPU with extra airflow.
Built-in vertical
Vertically mount your GPU with the included bracket. You can even adjust the distance from the side panel to maintain good airflow.
Accessory ecosystem
The Qube 500 comes with a living accessory ecosystem. A Gem mini cable manager and accessory hook are included, and we have prepared some 3D-printable files for you to create your own accessories.
