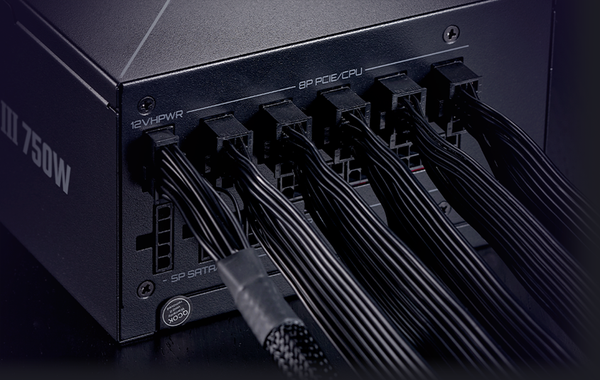

Fully Modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

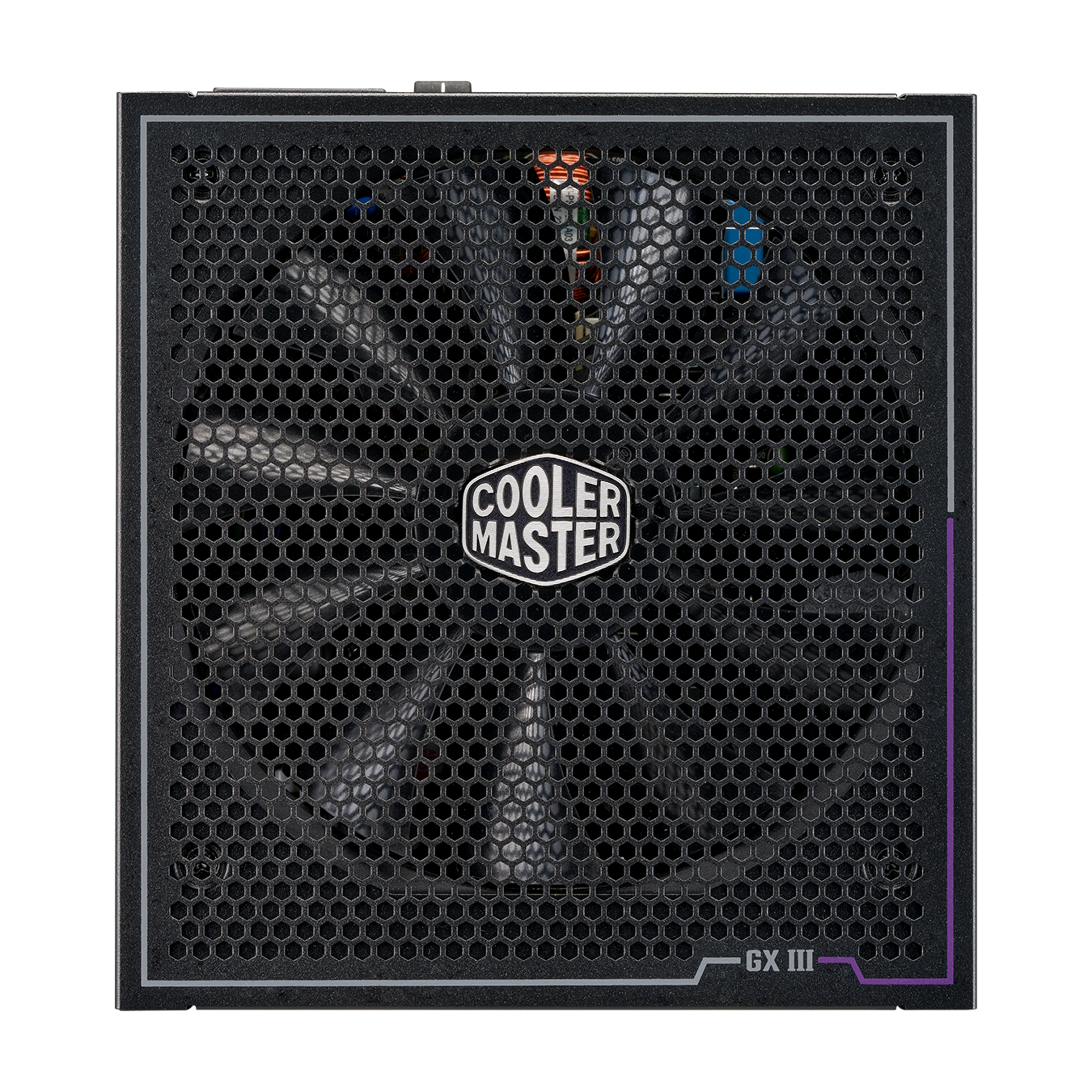

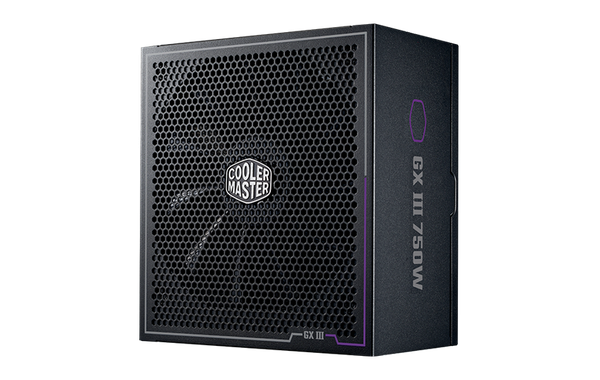

GX III Gold 750
Description
Innovative, streamlined design
ATX 3.0 support & a 90-degree 12VHPWR cable
Optimized and silent thermal performance

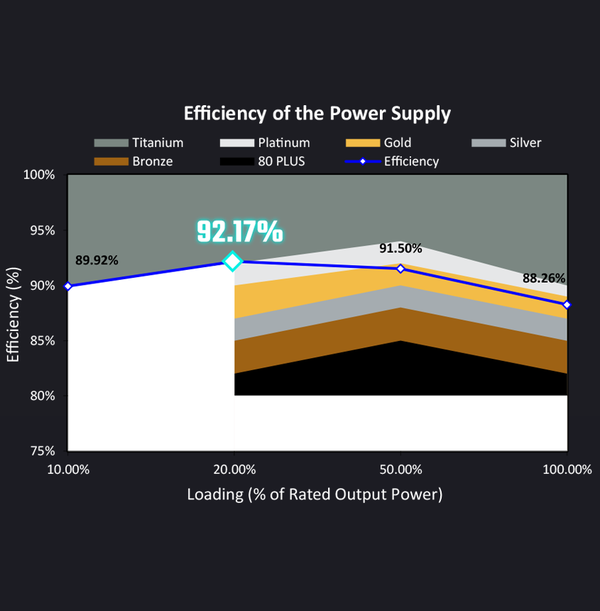

Titanium efficiency at light loads

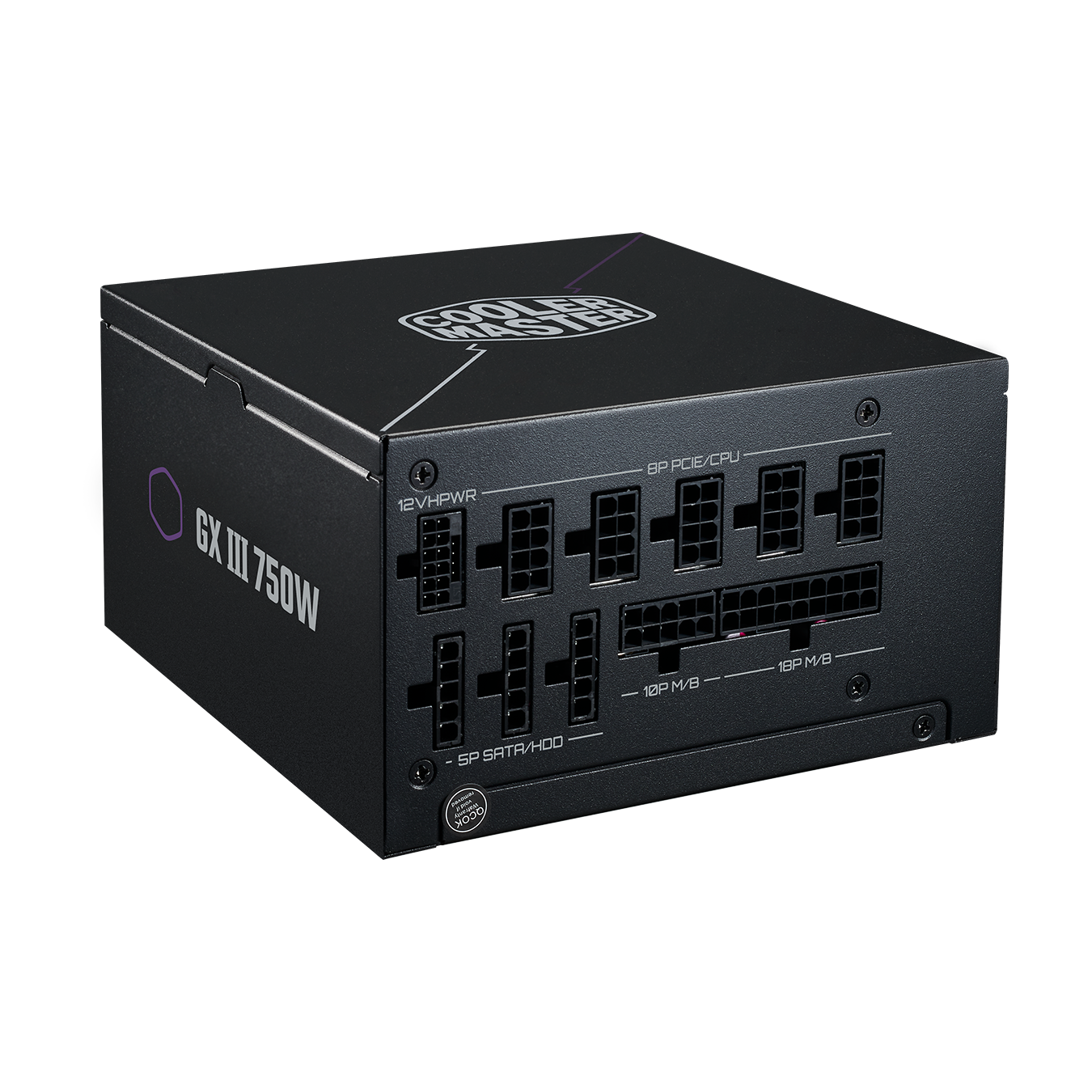

Fully modular cabling
10-year warranty
- Model: MPX-7503-AFAG
- ATX Version: ATX 12V Ver. 3.0
- PFC: Active PFC
- Input Voltage: 100-240V
- Input Current: 10-5A
- Input Frequency: 50-60Hz
- Dimensions (L x W x H): 160 x 150 x 86 mm
- Fan Size: 135mm
- Fan Bearing: HDB
- Fan Speed: 1900 RPM
- Efficiency: ≥90% @ Typical Load
- 80 PLUS Rating: 80 PLUS Gold
- ErP 2014 Lot 3: Yes
- Operating Temperature: 0-50°C
- Power Good Signal: 100 - 150 ms
- Hold Up Time: >16ms
- MTBF: >100,000 Hours
- Protections: OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- Regulatory: cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)
- ATX 24 Pin Connectors: 1
- EPS 4+4 Pin Connectors: 1
- EPS 8 Pin Connector: 1
- SATA Connectors: 8
- Peripheral 4 Pin Connectors: 4
- PCI-e 6+2 Pin Connectors: 3
- 12VHPWR Connector: 1
- Series: GX Series
- 80 Plus Efficiency: Gold
- Modular: Fully Modular
- Category: Above 750W
- Form Factor: ATX
- Watts: 750W
Details
ATX 3.0 Support & a Durable 90-degree 12VHPWR Cable

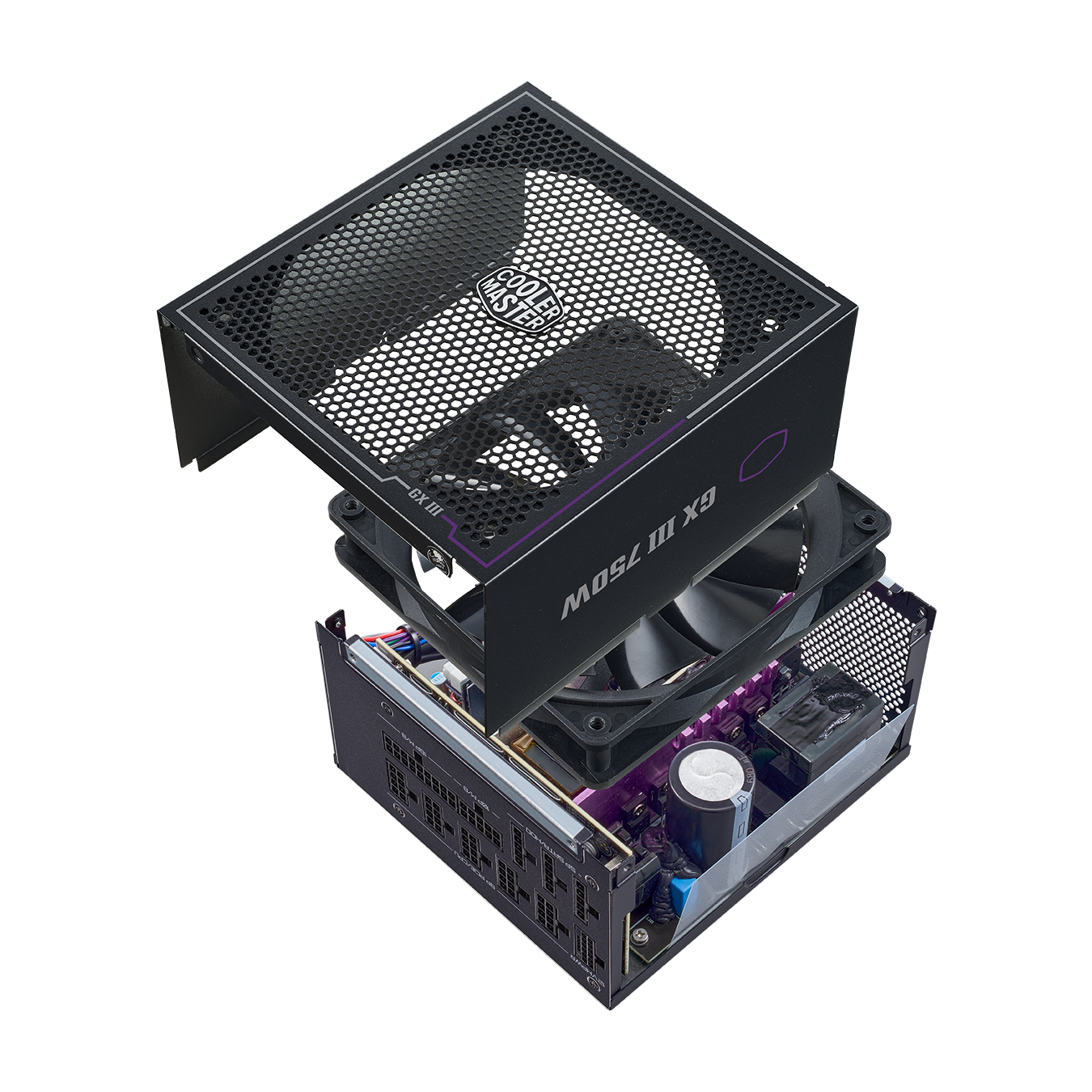

Innovative, streamlined Design
The innovative design streamlines the overall aesthetic of the unit and greatly improves airflow.
