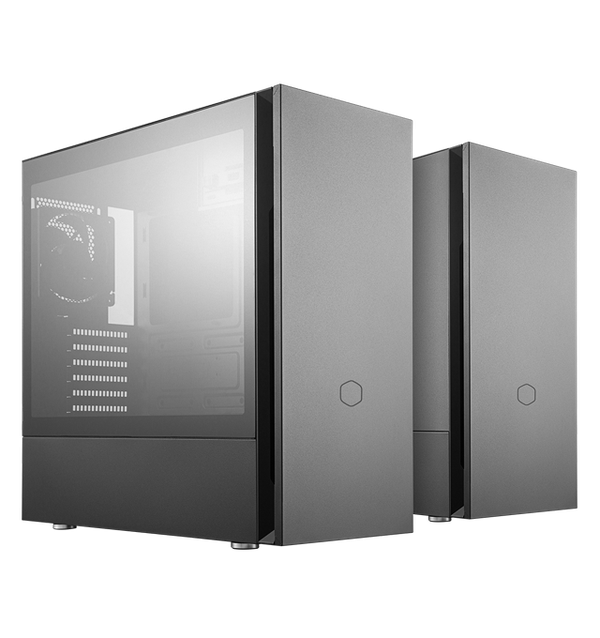

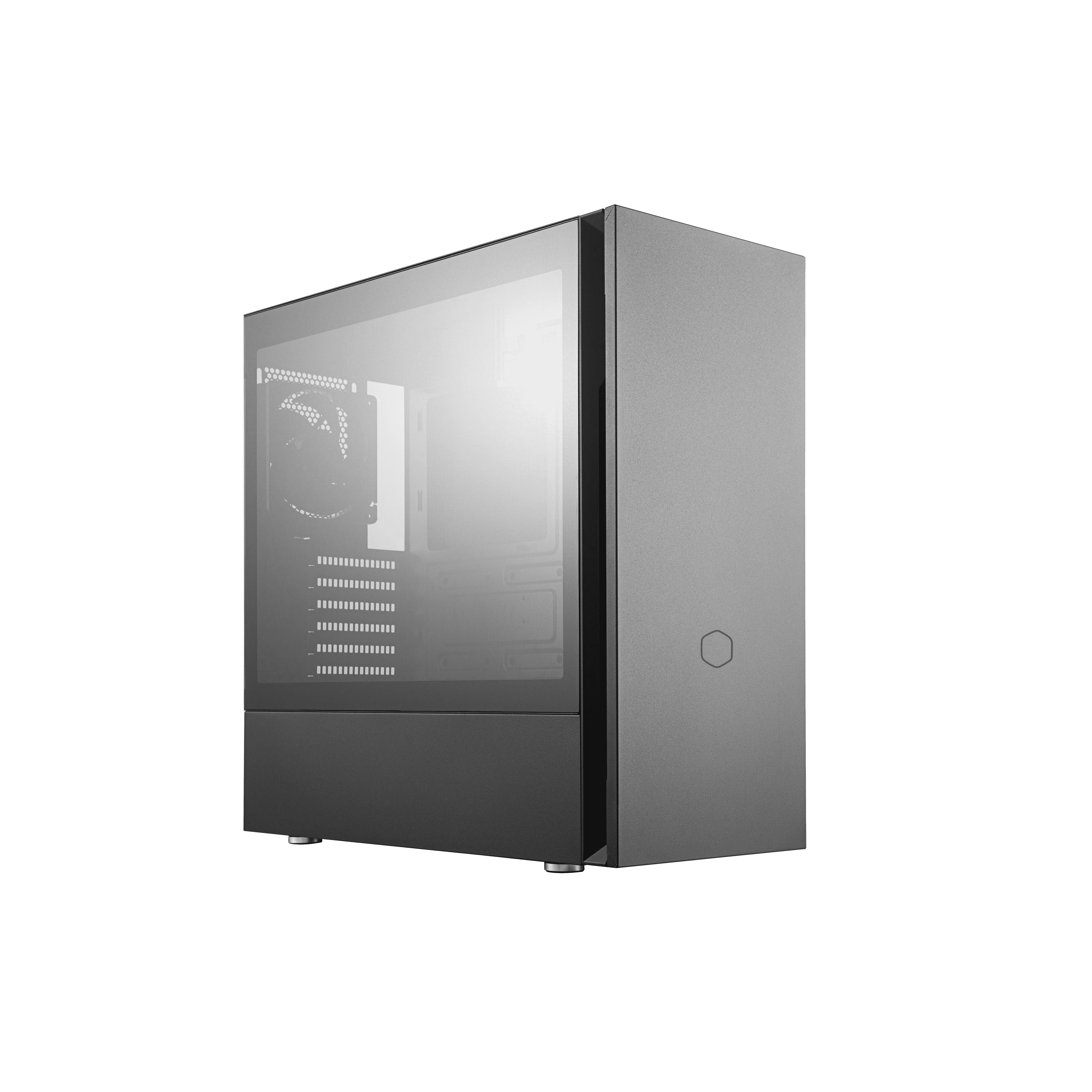

Seamless Tempered Glass or Sound-Dampened Steel
Available with seamless tempered glass or a sound-dampened steel side panel, systems can be built for show or for stealth with the Silencio.

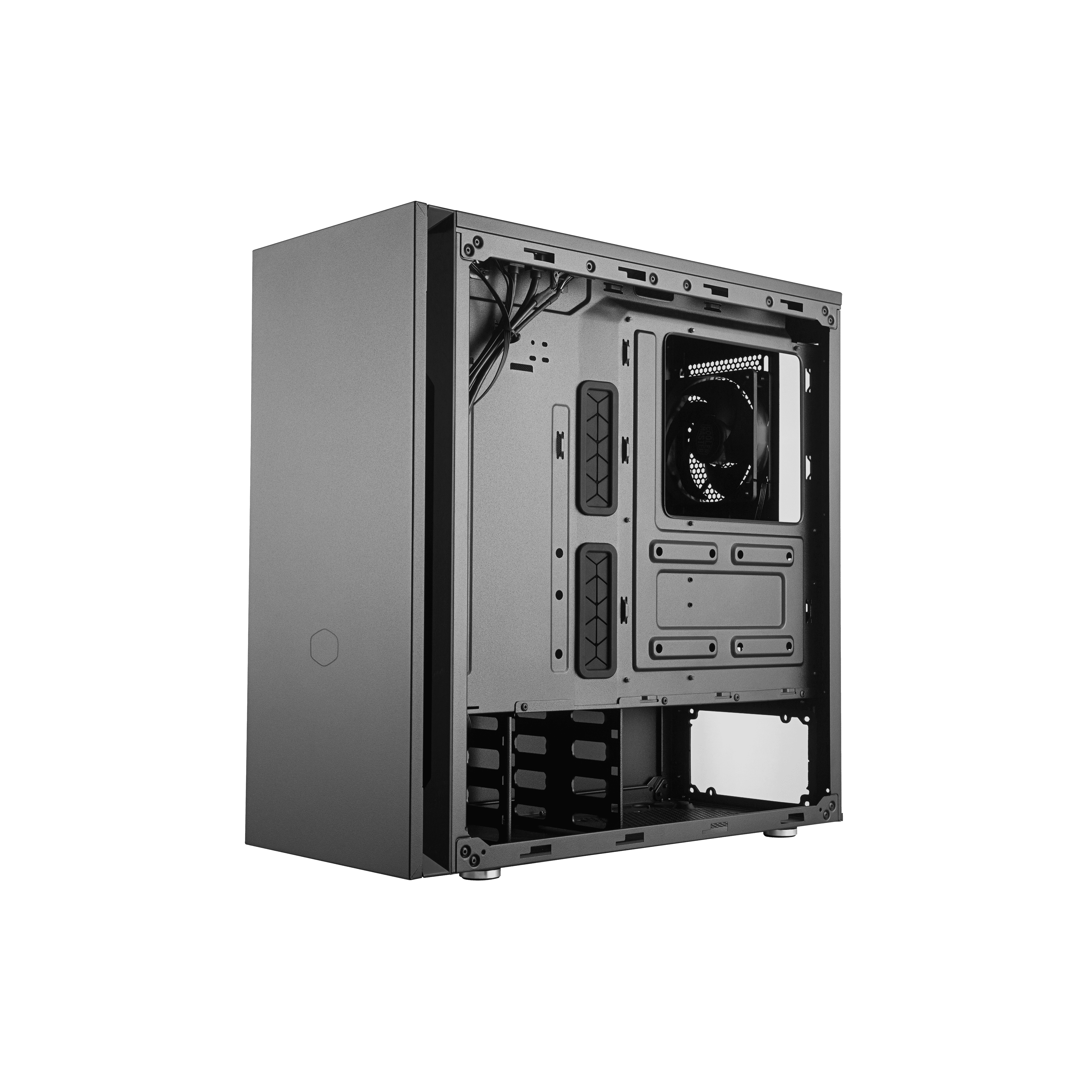

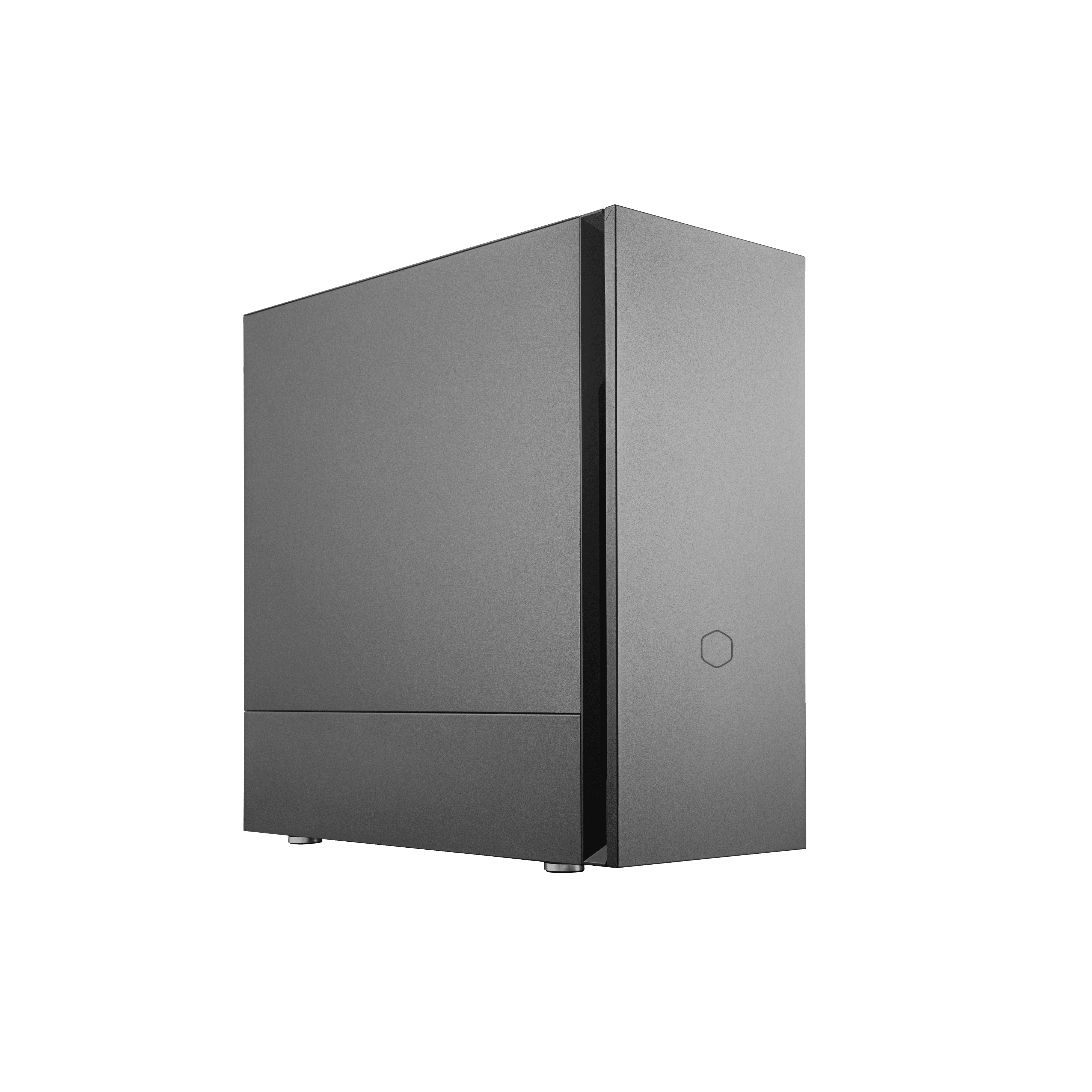

Silencio S600
Description

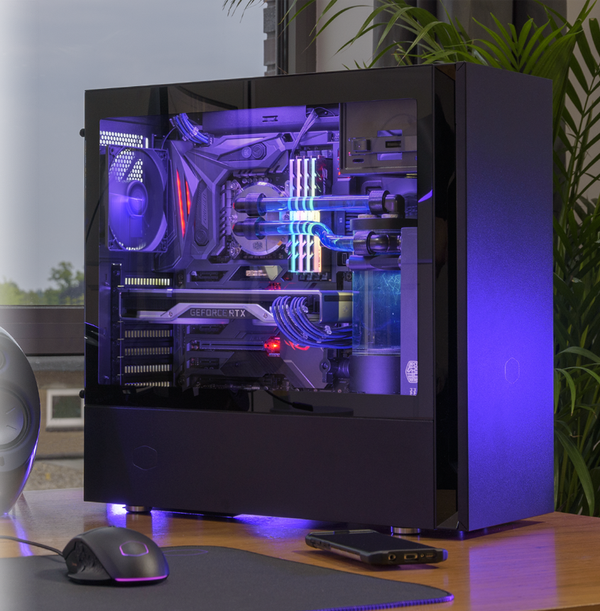

Silencio Design
Silencio Technology

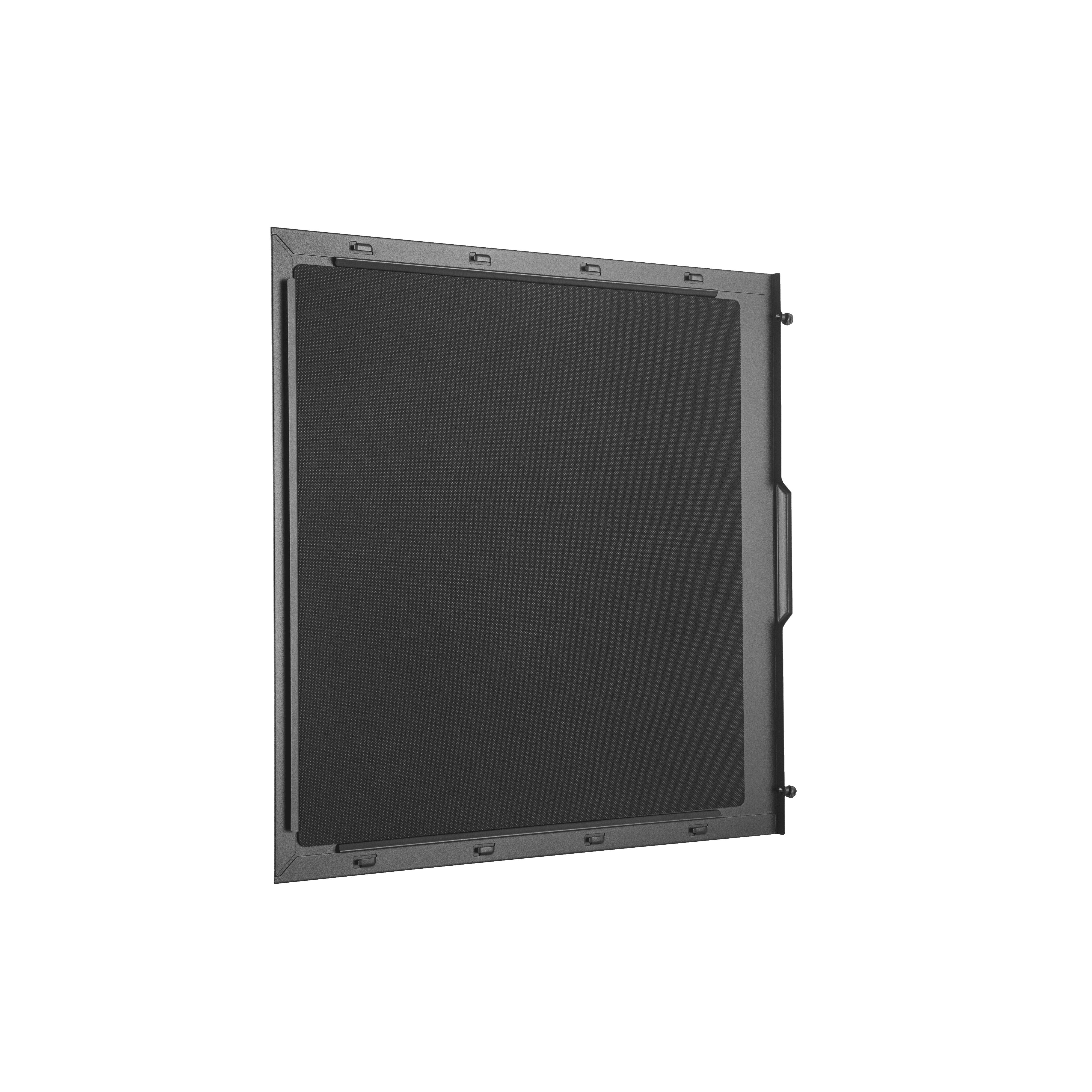

Sound Dampening Material

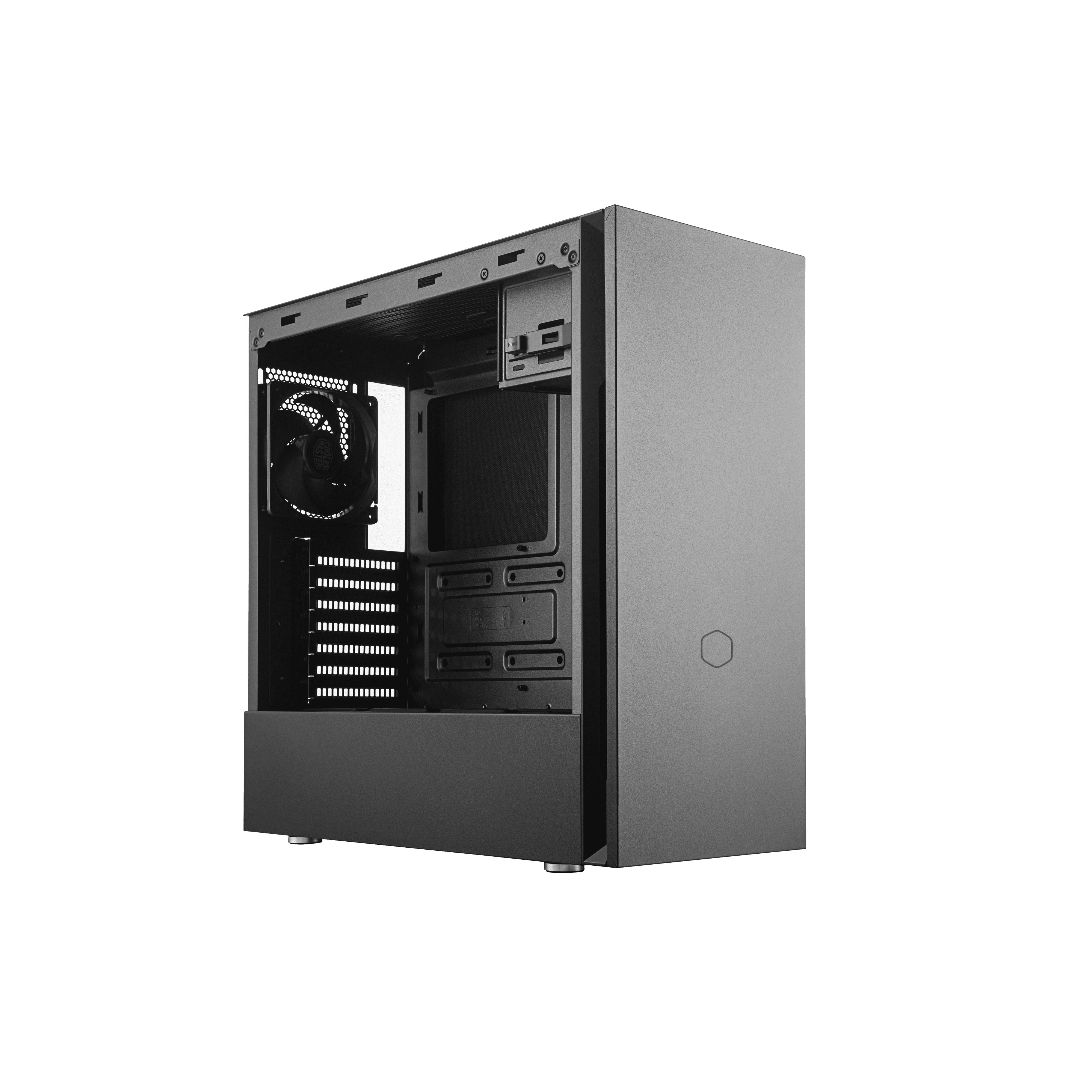

Seamless Tempered Glass or Sound-Dampened Steel
Top & Front Ventilation
Reversible Steel Door
- Model Number: MCS-S600-KN5N-S00 (Steel), MCS-S600-KG5N-S00 (TG)
- Color(s): Black
- Materials - Body: Steel, Plastic, Sound Absorbing Material

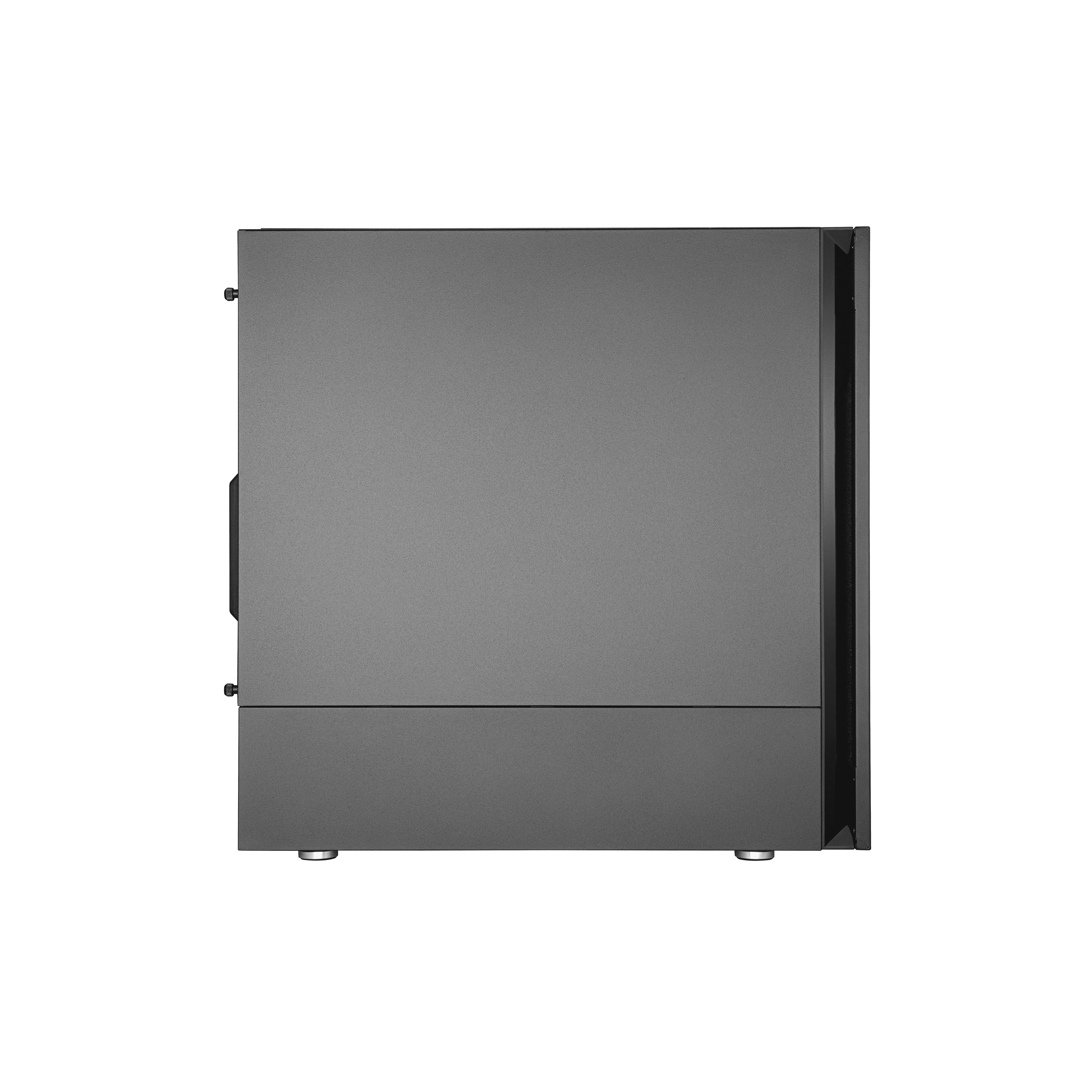

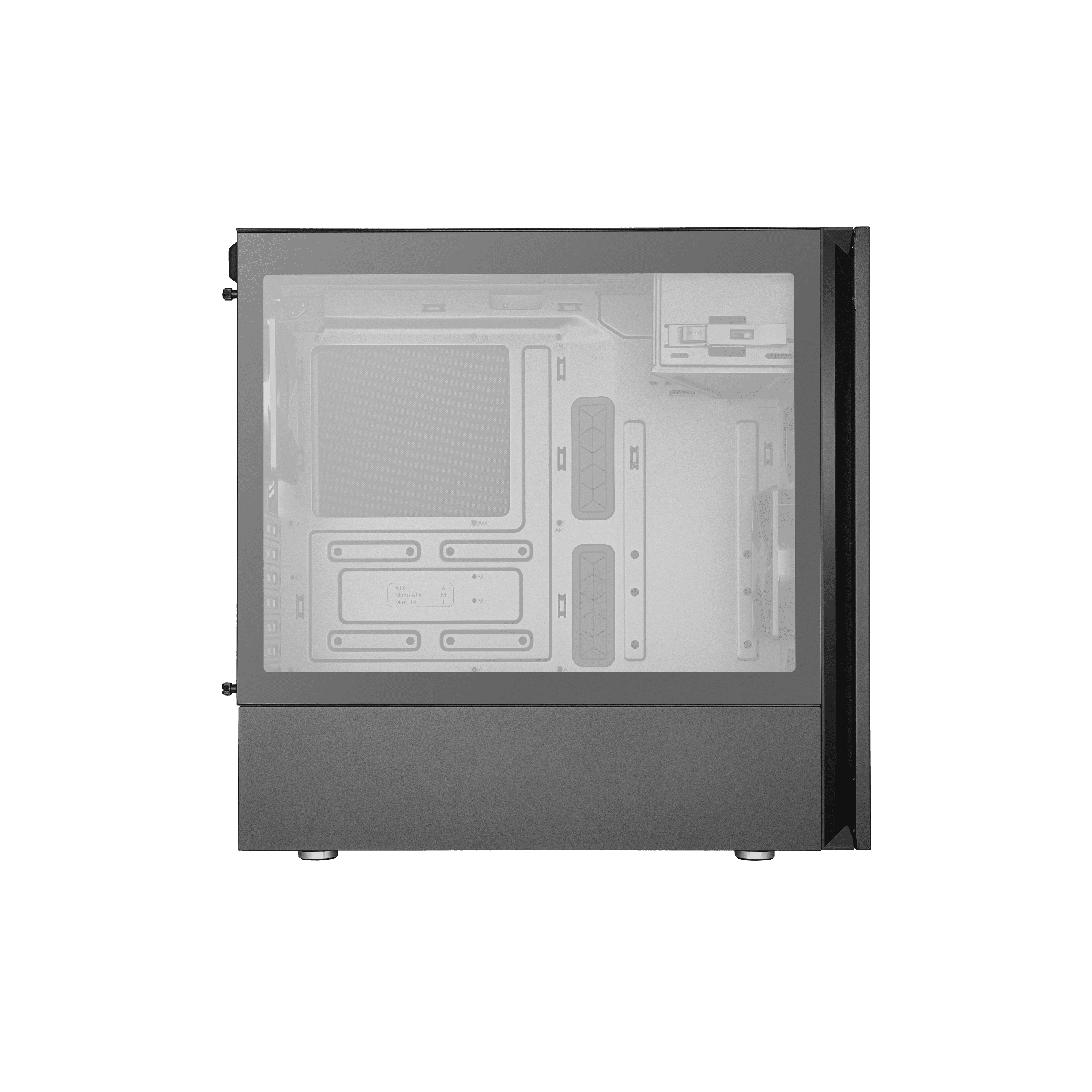

- Materials - Side Panel: Steel: Sound-Dampened Steel, TG: Left: Tempered Glass, Right: Sound-Dampened Steel
- Dimensions (L x W x H): 478 x 209 x 470.5mm (Incl. Protrusions), 466 x 209 x 460.5mm (Excl. Protrusions)
- Volume: 44.8L (Excl. Protrusions)
- Motherboard Support: Mini-ITX, Micro-ATX, ATX

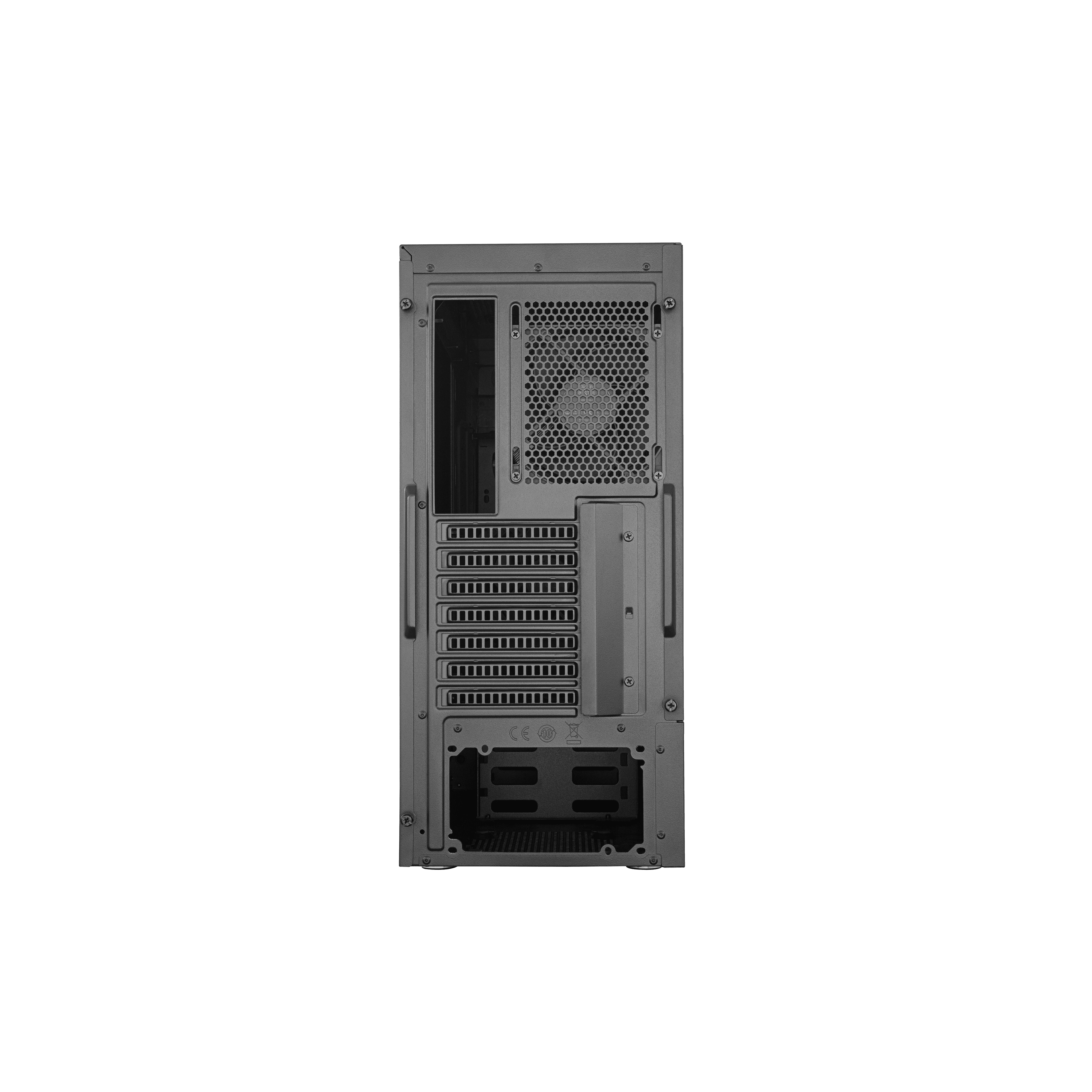

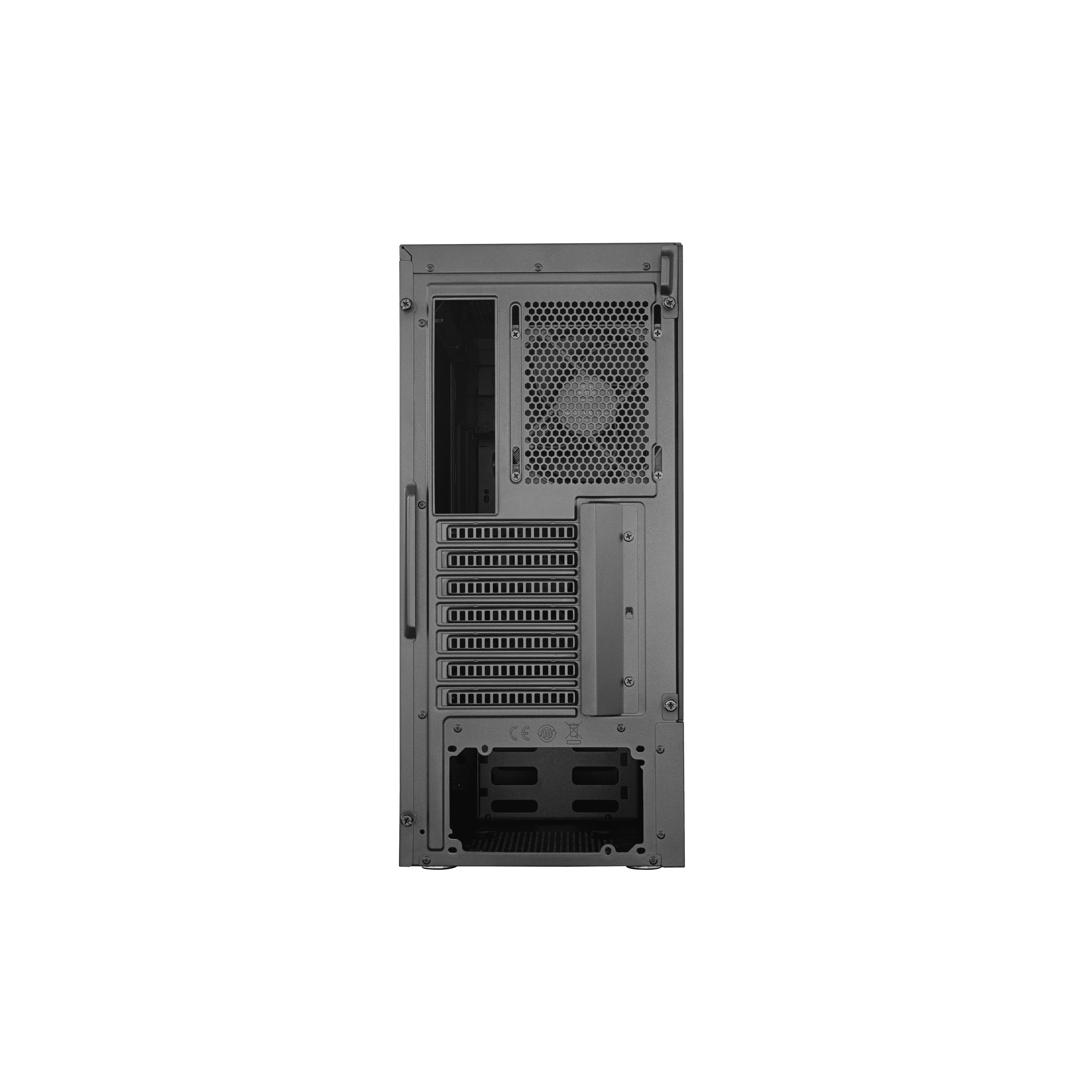

- Expansion Slots: 7
- 5.25" Drive Bays: 1
- 3.5" Drive Bays: 4
- 2.5" Drive Bays: 5
- I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (formerly USB 3.0)
- I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)

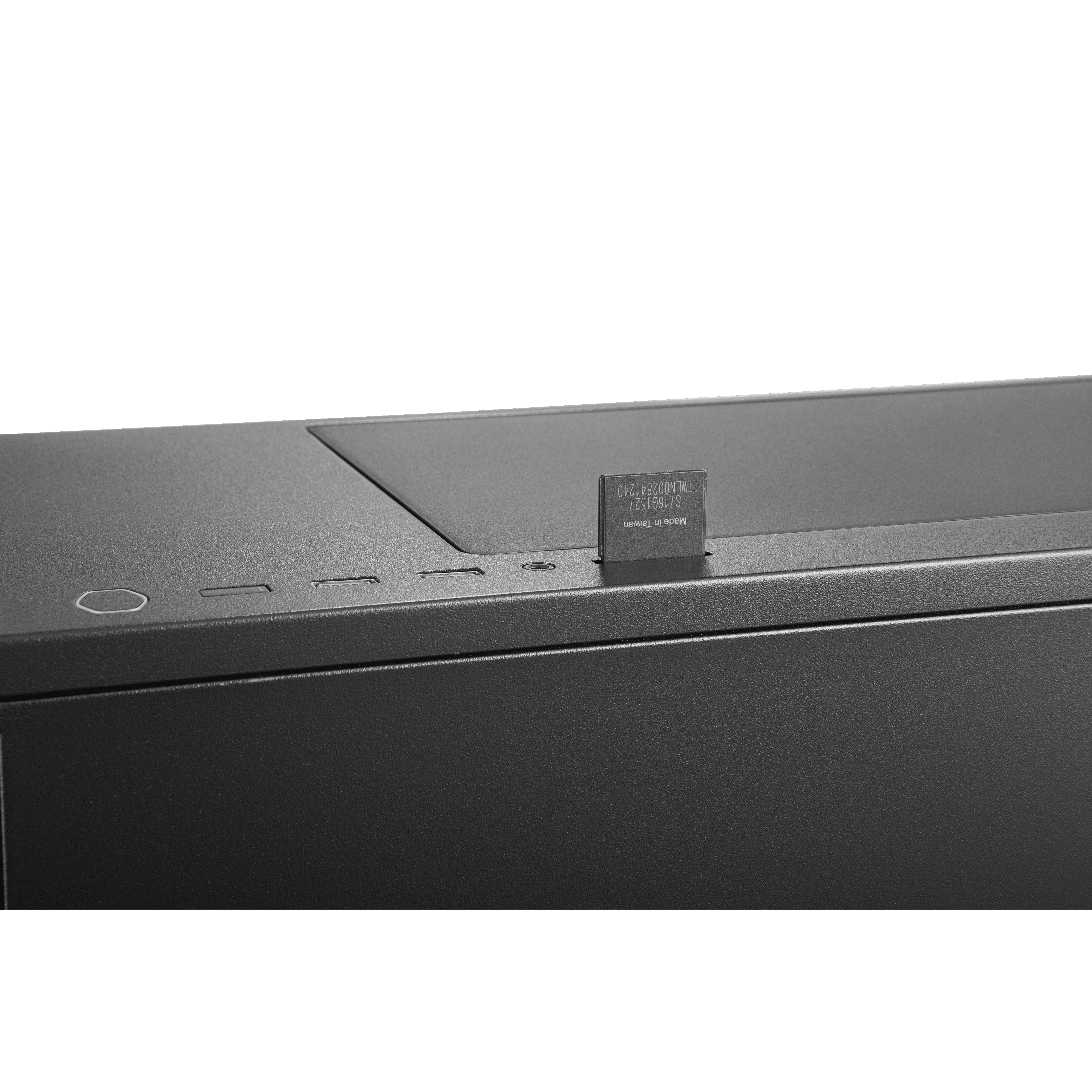

- I/O Panel - SD Card Reader: Supports SD & MMC Cards
- Pre-installed Fans - Front: 1x 120mm (PWM 800-1400 RPM)
- Pre-installed Fans - Rear: 1x 120mm (PWM 800-1400 RPM)
- Fan Support - Front: 2x 120/140mm
- Fan Support - Top: 2x 120/140mm
- Fan Support - Rear: 1x 120mm
- Radiator Support - Front: 120 / 140 / 240 / 280mm
- Radiator Support - Top: 120mm / 240mm (remove ODD) (35mm max motherboard component height)
- Radiator Support - Rear: 120mm
- Clearance - CPU Cooler: Steel: 167mm, TG: 166mm
- Clearance - PSU: 180mm
- Clearance - GFX: 398mm
- Cable Routing: 18-26mm
- Dust Filters: Front, Top, Bottom

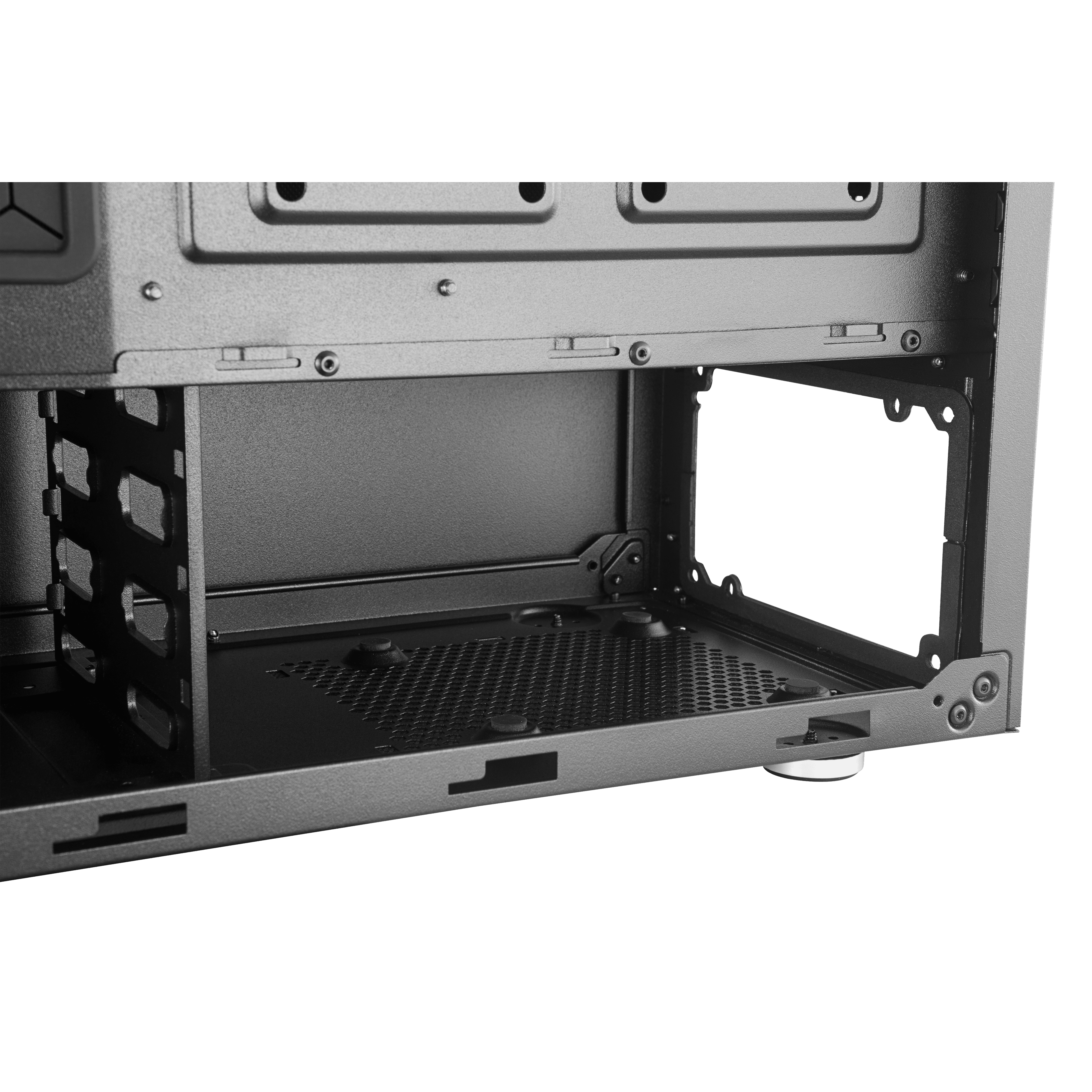

- Power Supply Support: Bottom Mount, ATX PS2
- Size: Mid Tower
- Series: Silencio Series
Details
Silencio Technology
Sound Dampening Material

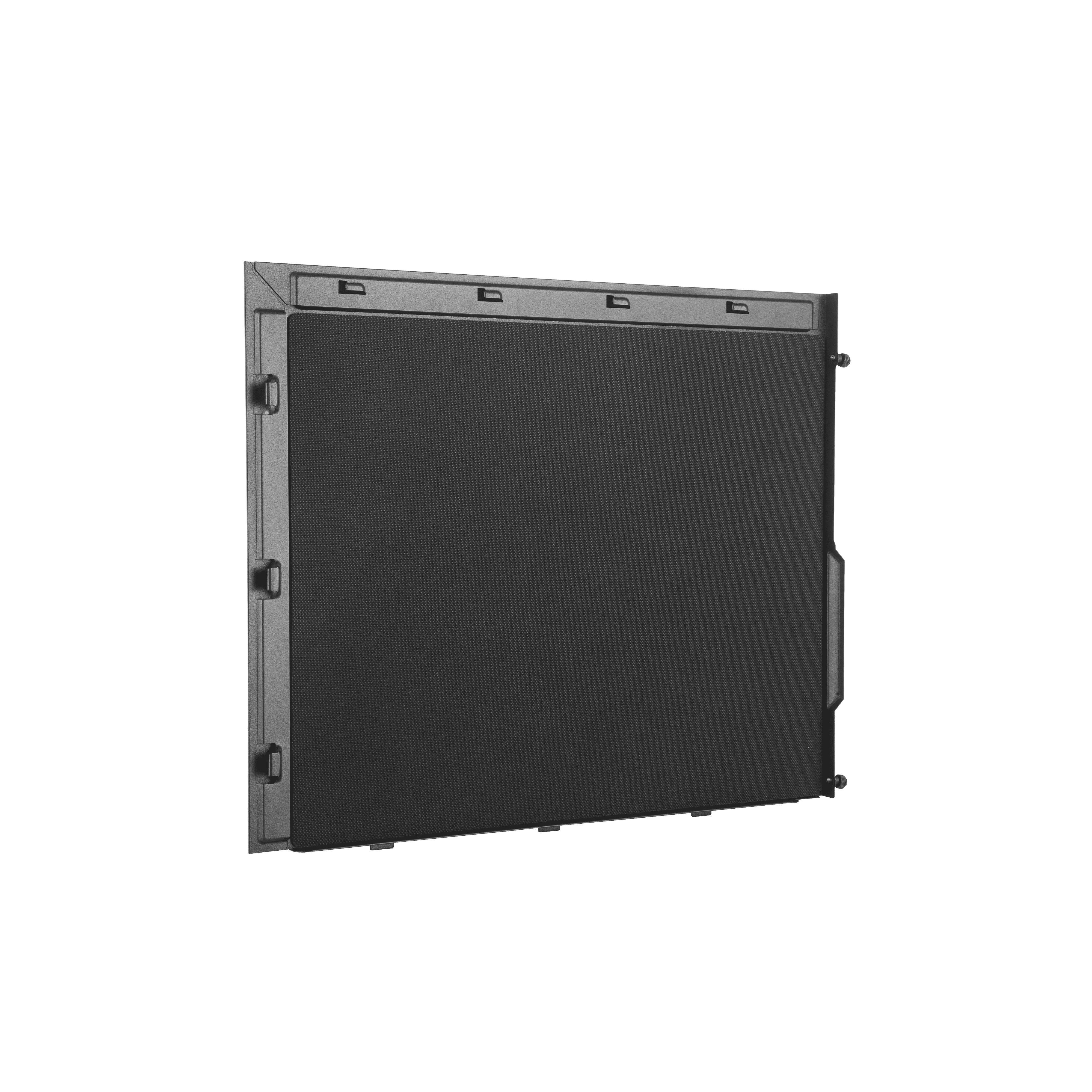

The Silencio utilizes a combination of sound dampening materials, from thick soft foam to heavy mass-loaded vinyl, to precisely counter prominent frequencies.

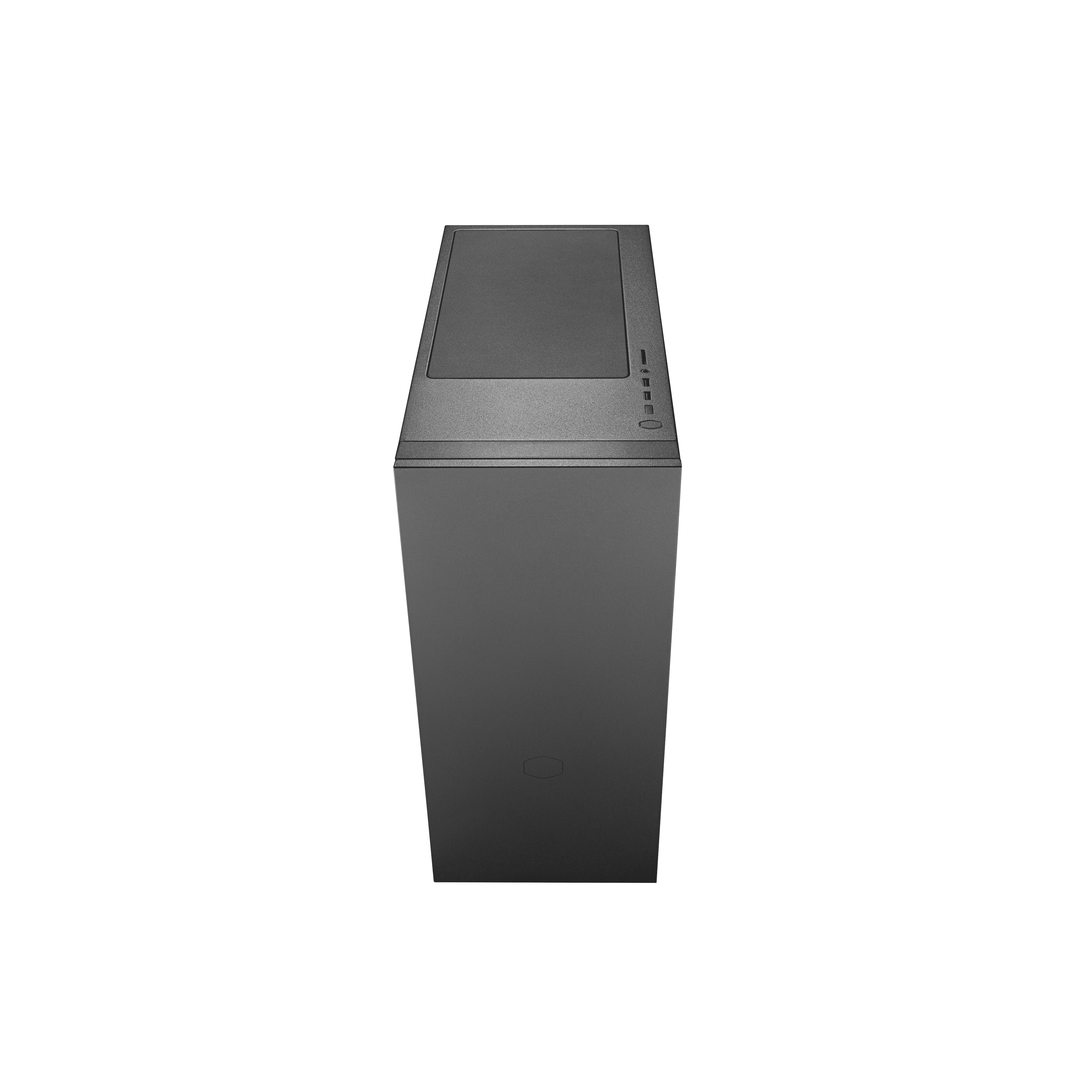

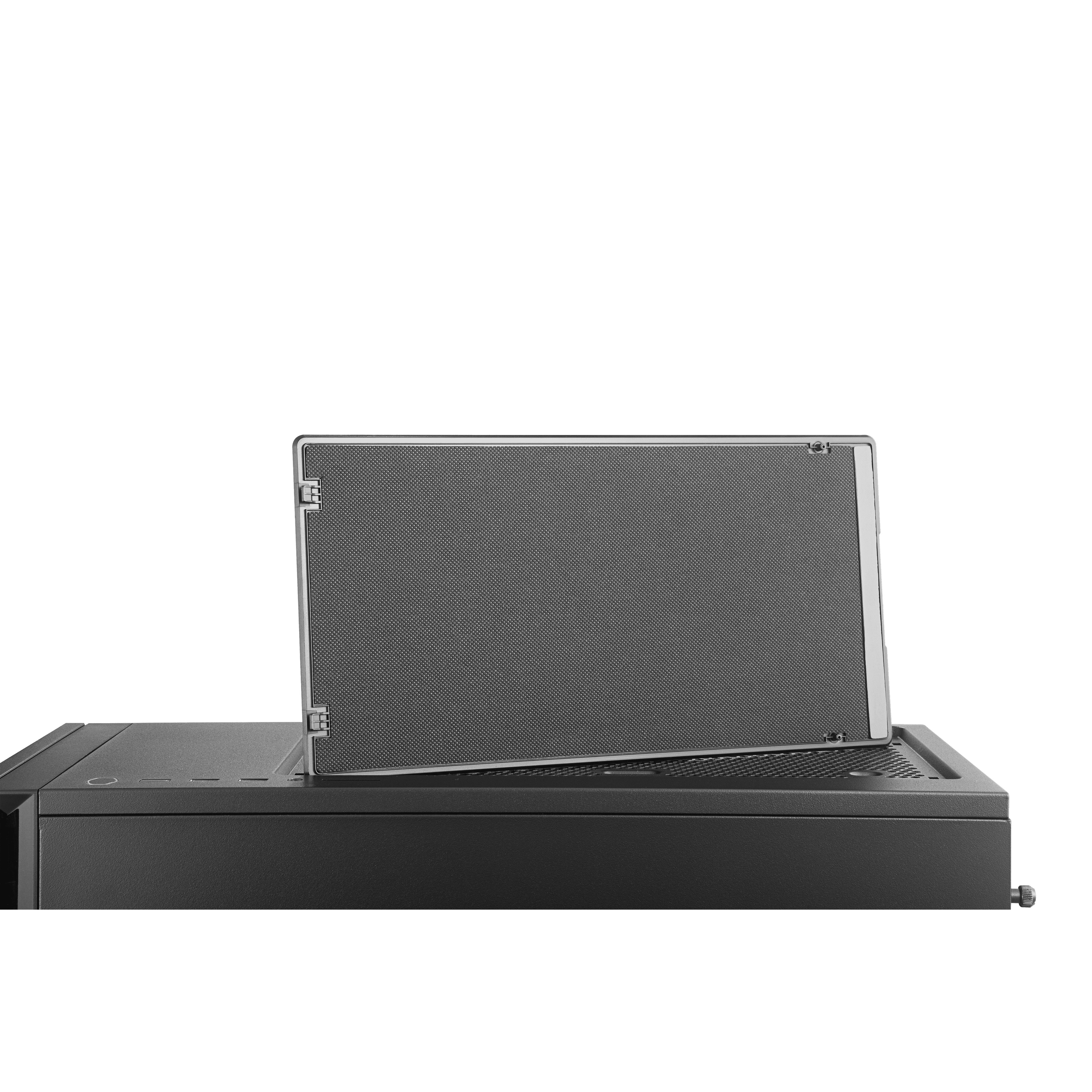

Top
Ventilation

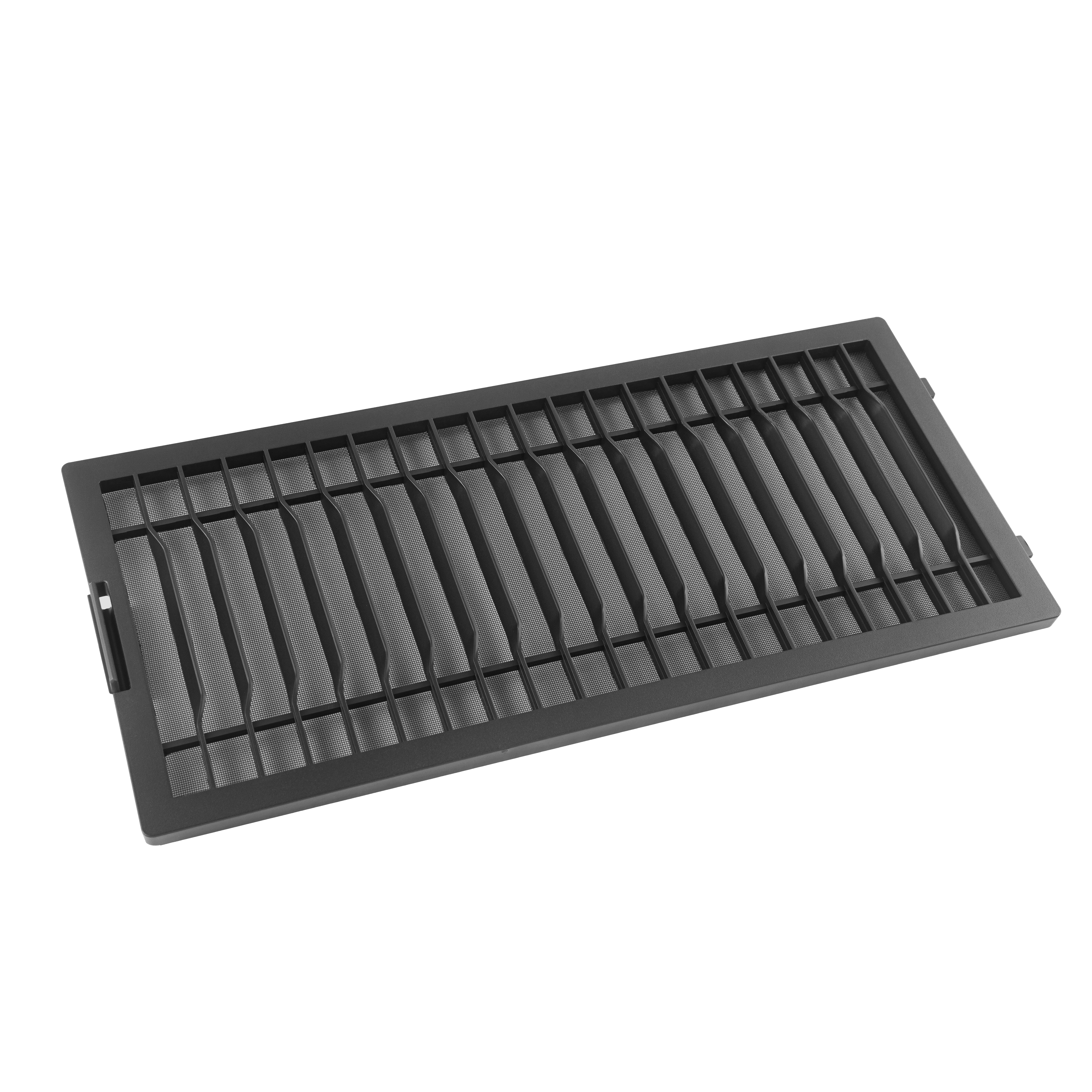

For an even higher demand for ventilation, the top panel’s Sound Dampening Cover can be removed for unrestricted ventilation. An optional dust filter for the top panel ventilation is included, allowing the top panel and front panel to work in conjunction to cool the system.
Ventilation

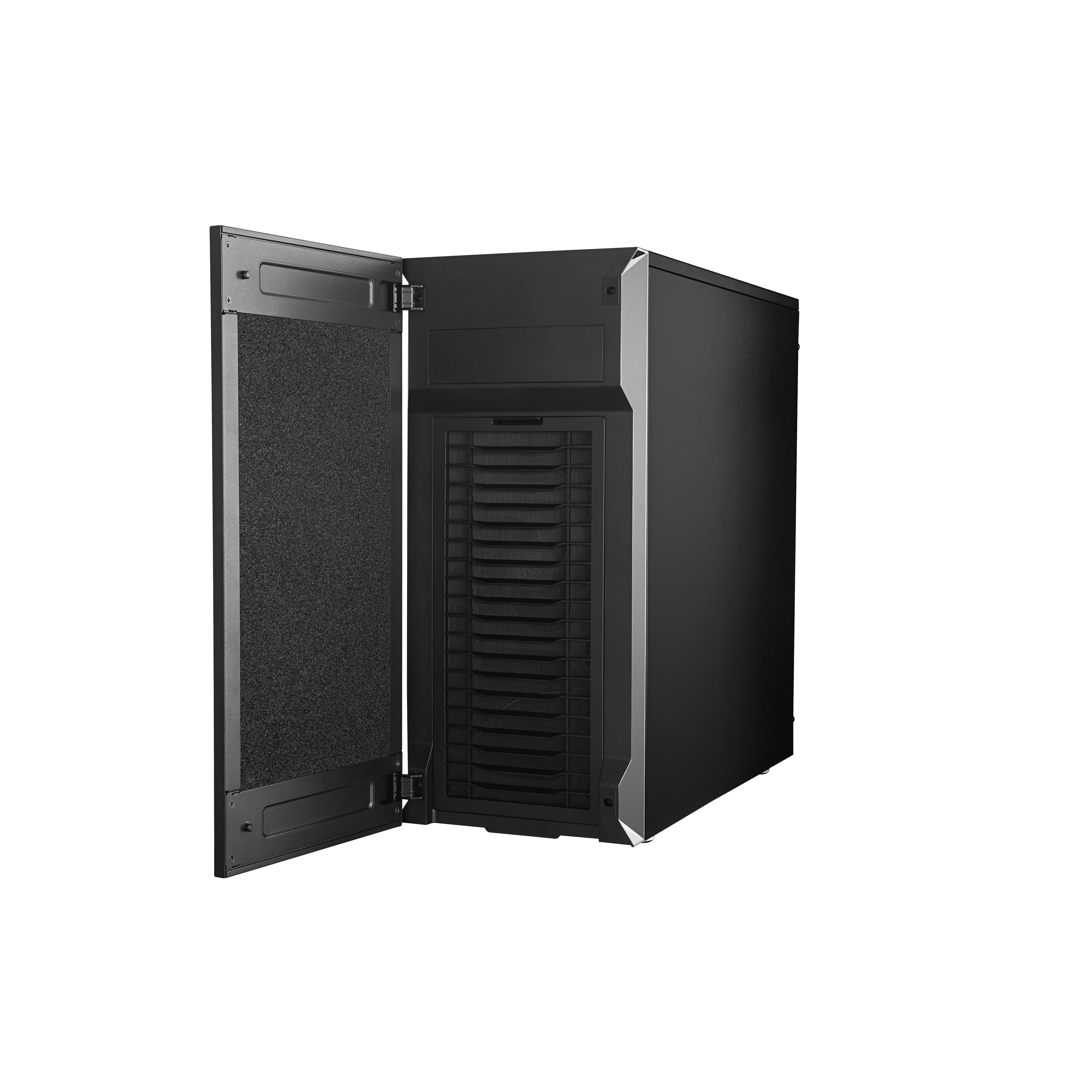

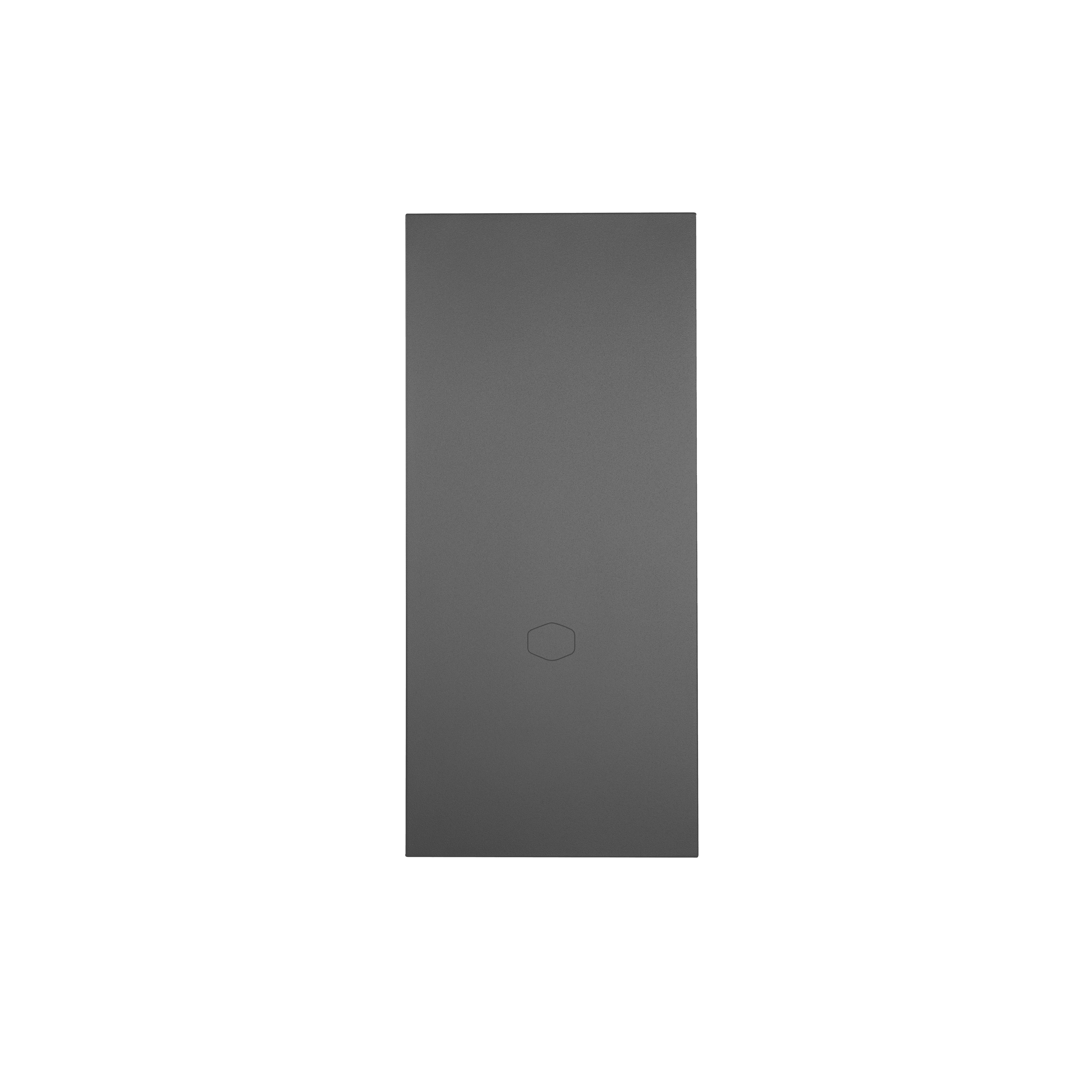

Reversible Steel Door

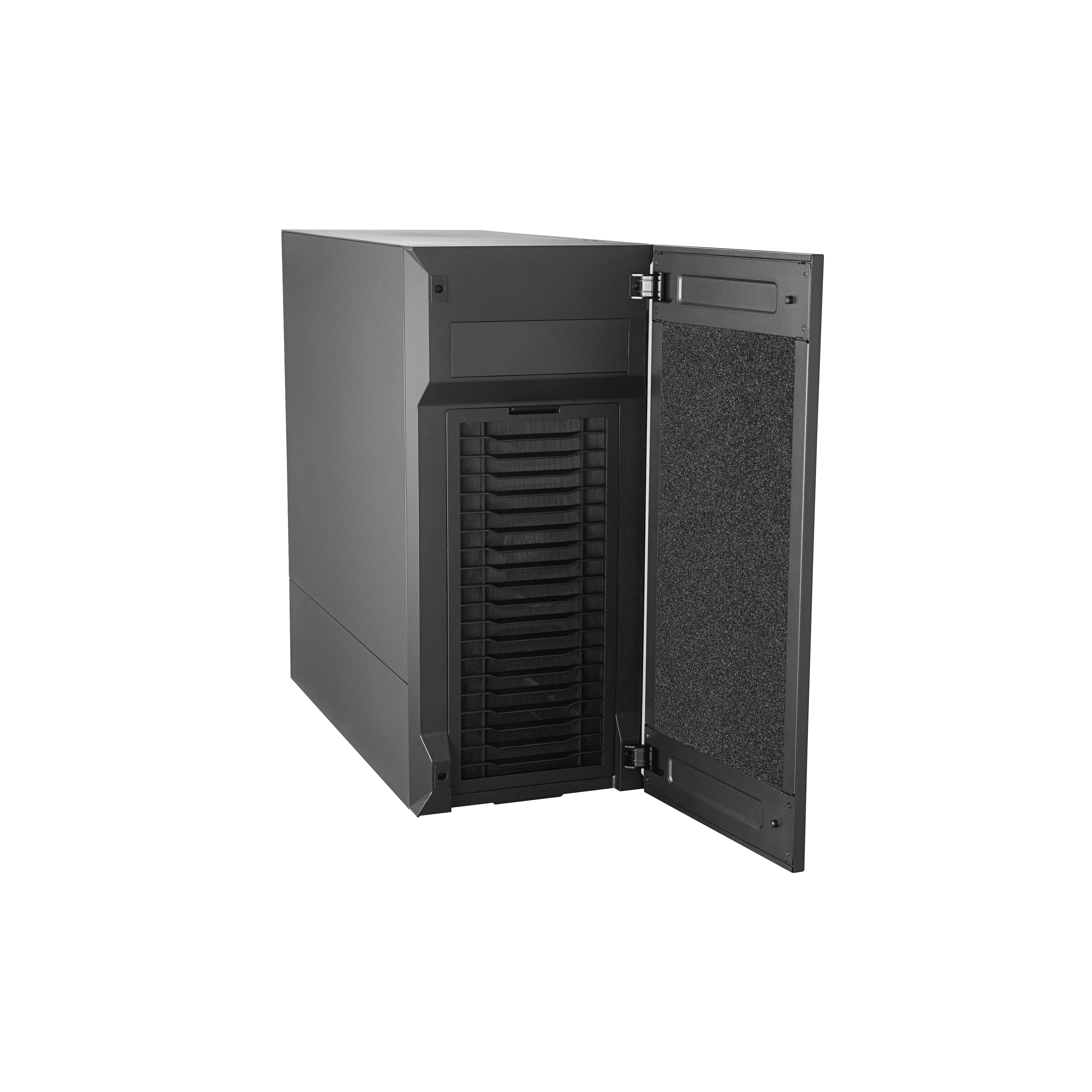

The steel front door features a reversible mounting system, capable of opening in either direction. To prevent vibrations, a softer, thicker material spans the steel structure in conjunction with a hinge system of magnets and rubber stompers.

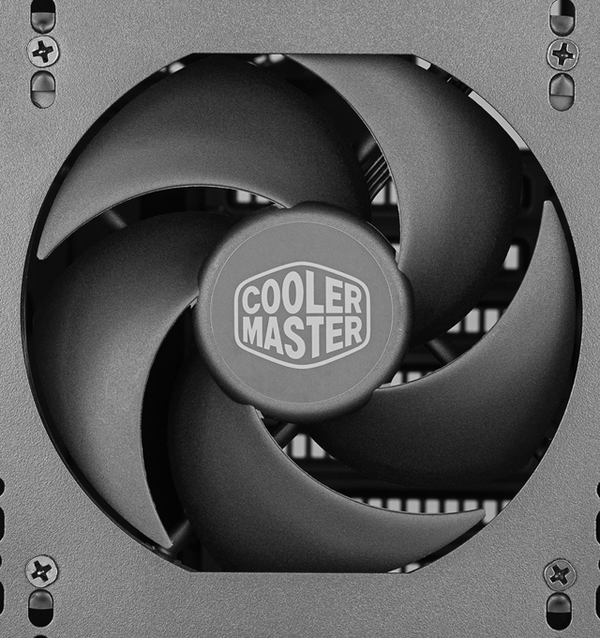

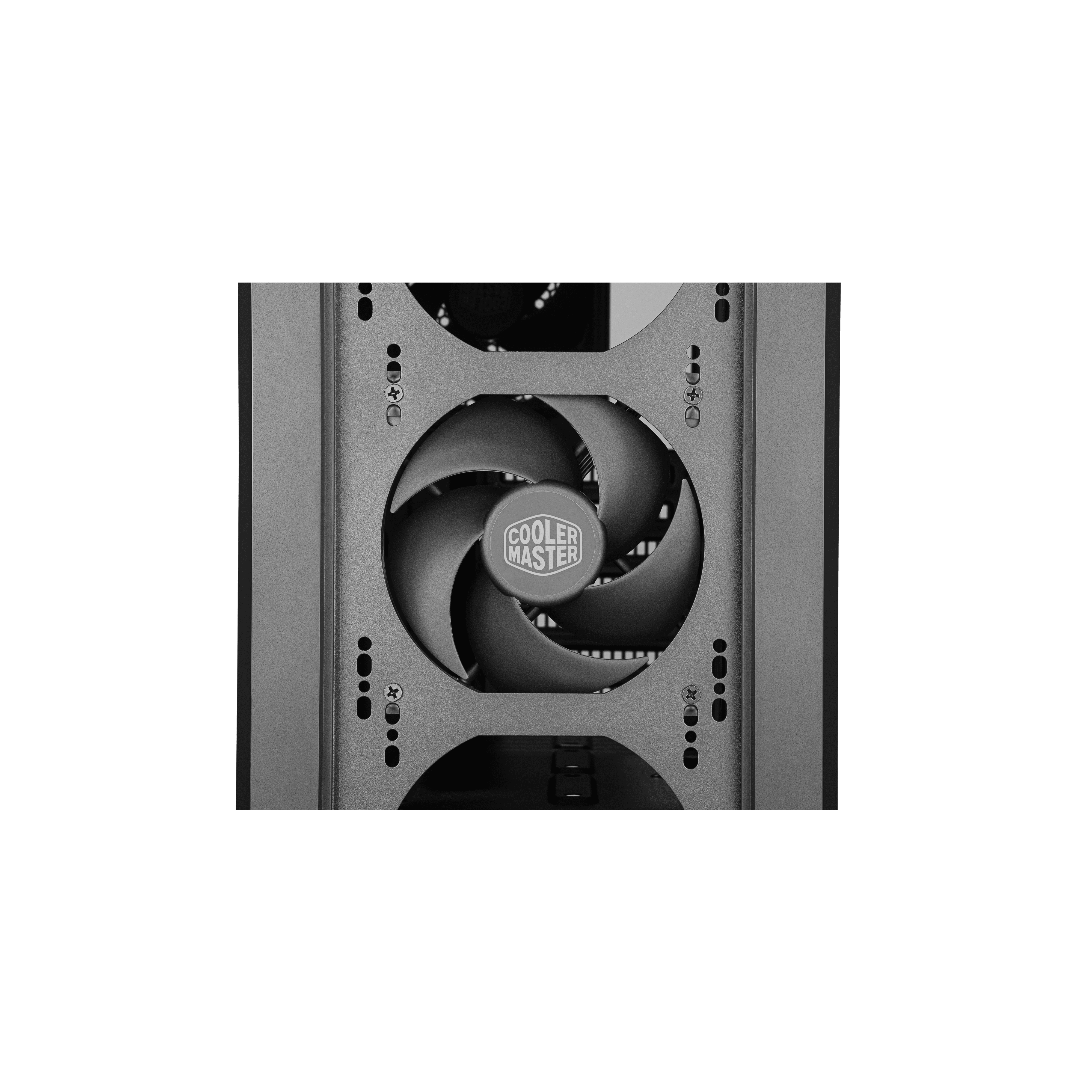

Silencio Fans
Two Silencio FP 120mm PWM fans are pre-installed with rubber padding to reduce noise, featuring specially designed blades that allow both quiet operation and high air pressure.

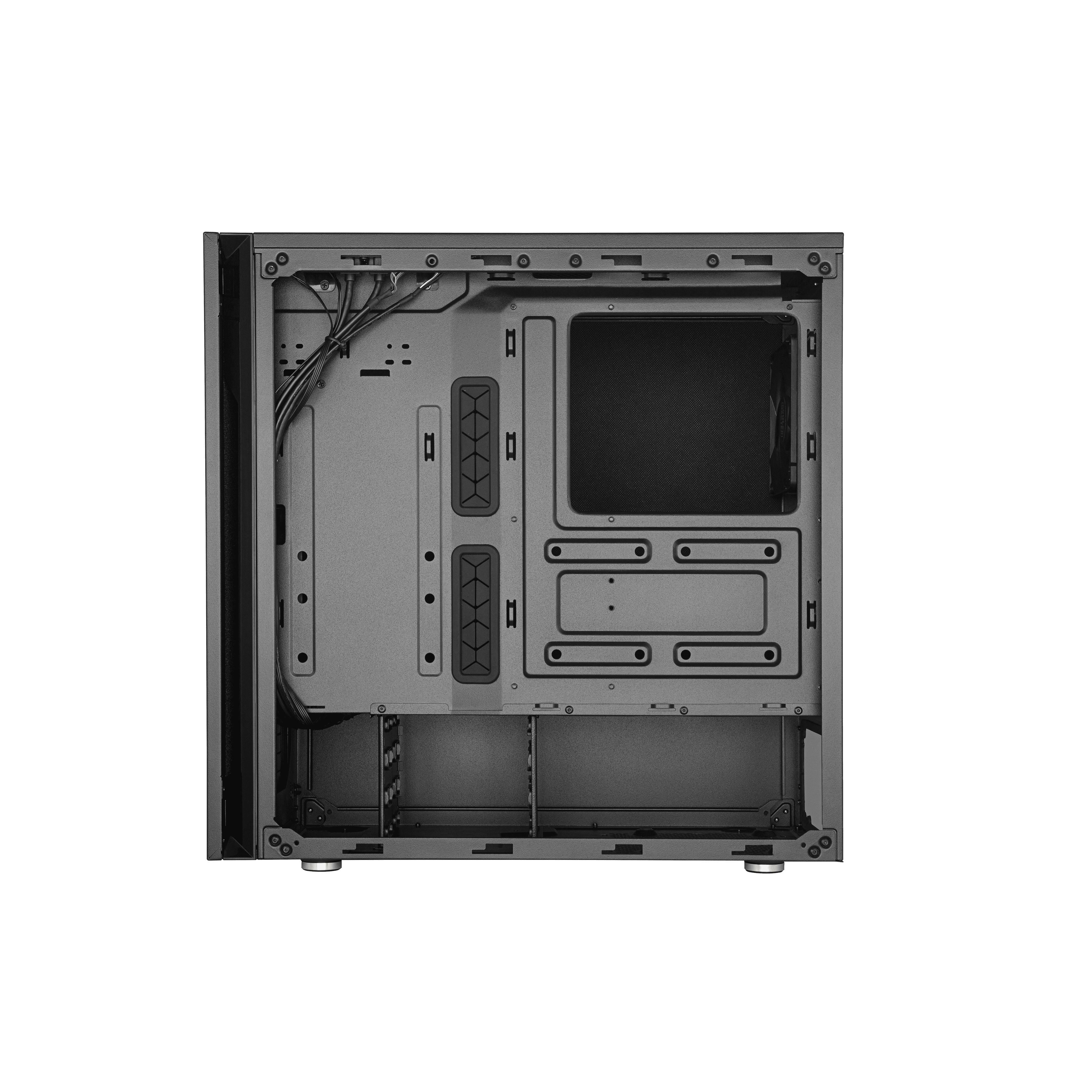

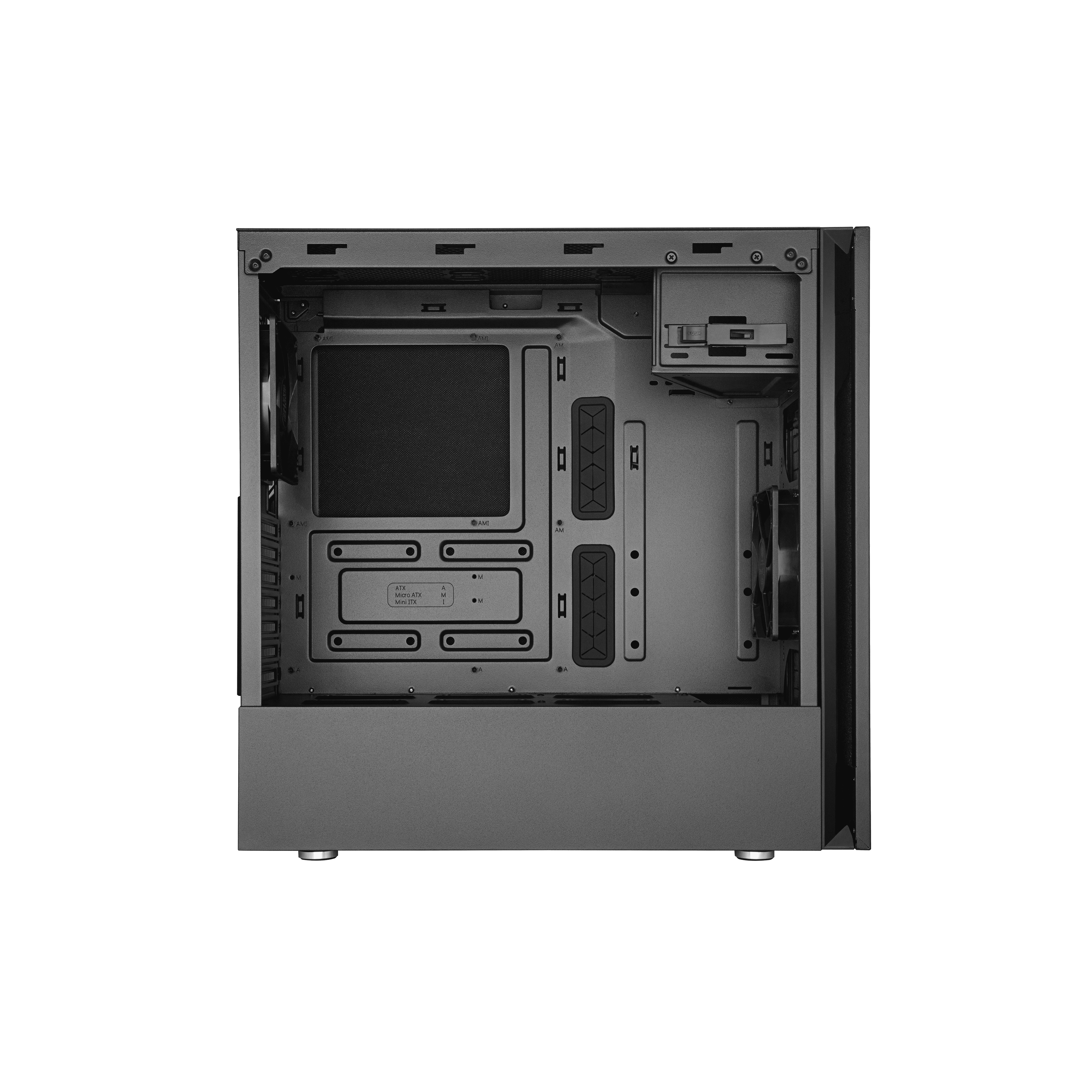

Motherboard Support
Mini-ITX, Micro-ATX, ATX
Cooling Support
Fan Radiators Top: 120 / 140mm x 2 Fans 120 / 240mm* Radiator *remove ODD cage 35mm max motherboard component height Front: 120 / 140mm x 2 Fans 120 / 140 / 240 / 280 Radiator Rear: 120 x 1 Fan 120 x 1 Radiator

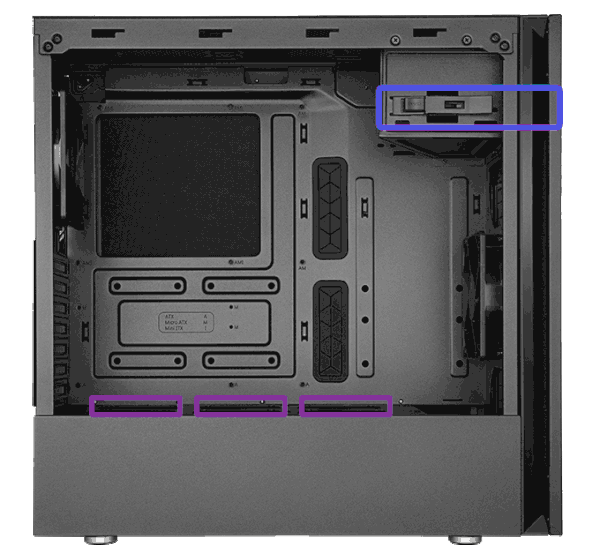

Storage Support
5.25” ODD x 1 (ODD version)
3.5” HDD x 4
2.5” SSD x 5
Clearances
CPU Cooler (Steel): 167mm
CPU Cooler (TG): 166mm
Power Supply: 180mm
Graphics Card: 398mm
