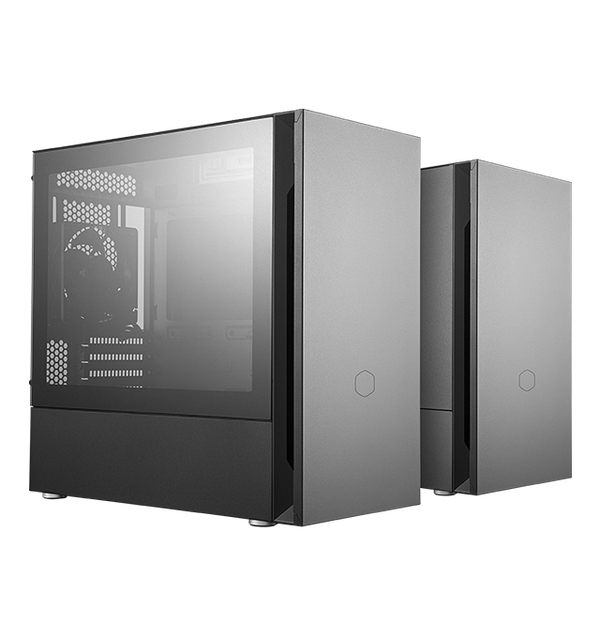

Seamless Tempered Glass or Sound-Dampened Steel
Available with seamless tempered glass or a sound-dampened steel side panel, systems can be built for show or for stealth with the Silencio.

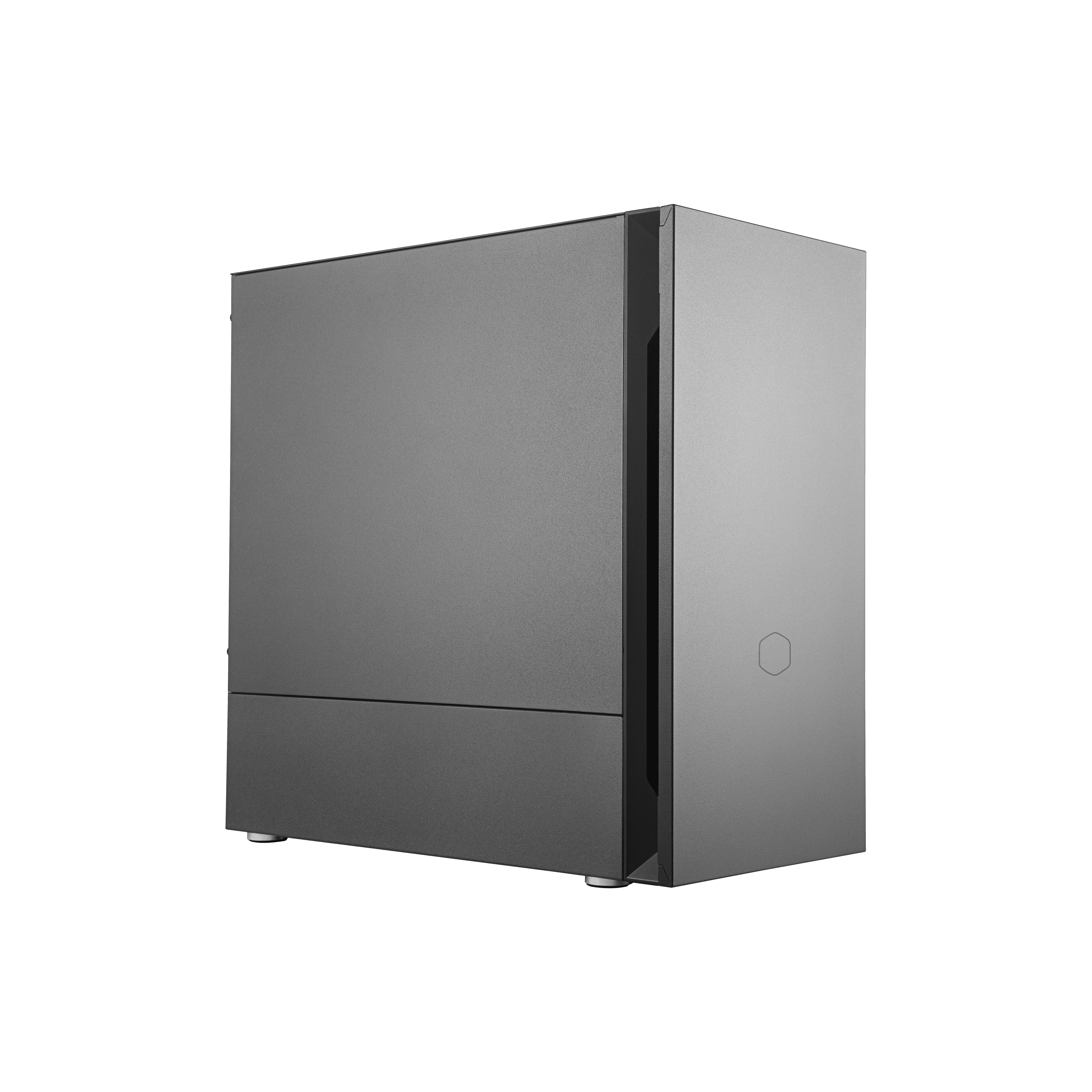

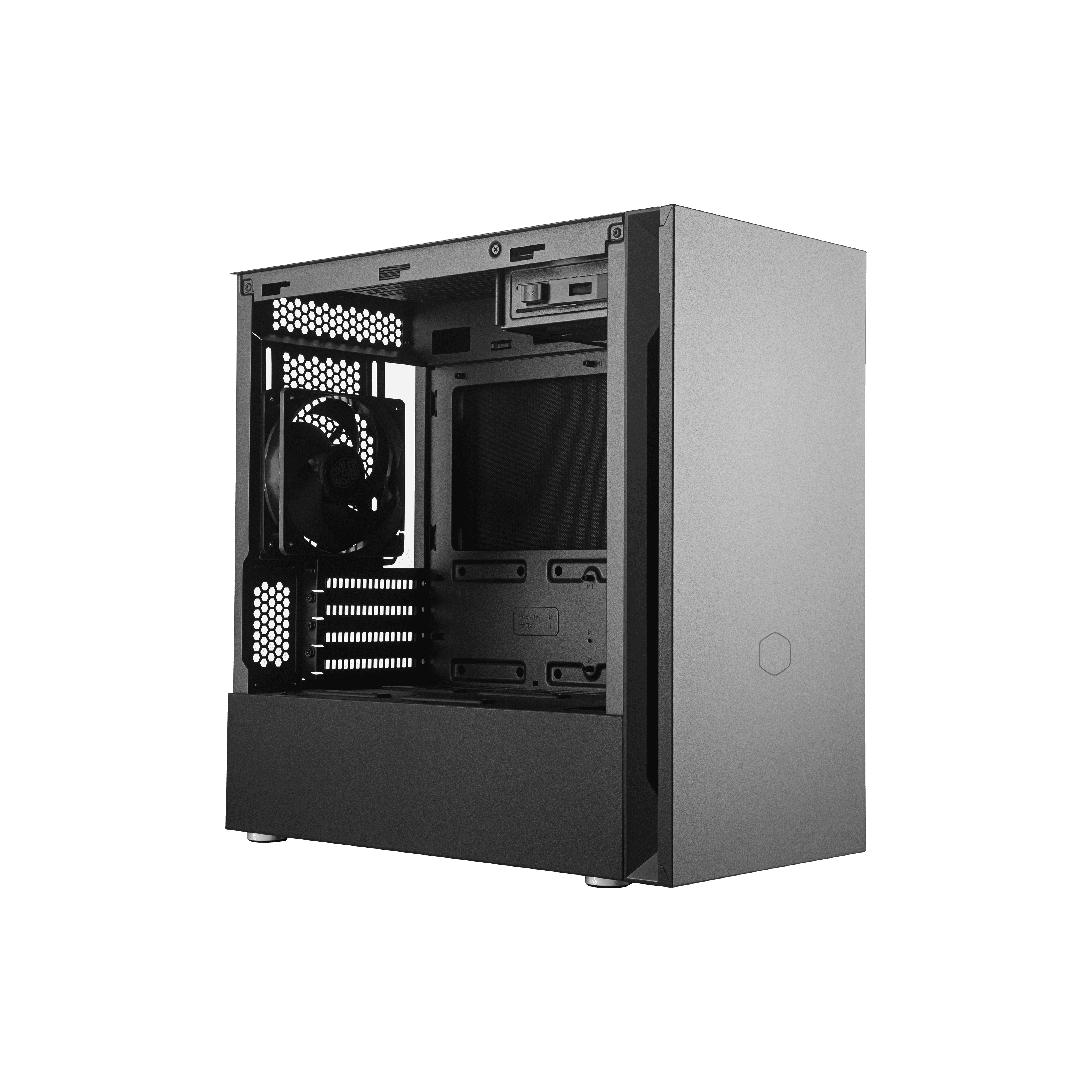

Silencio S400
Description

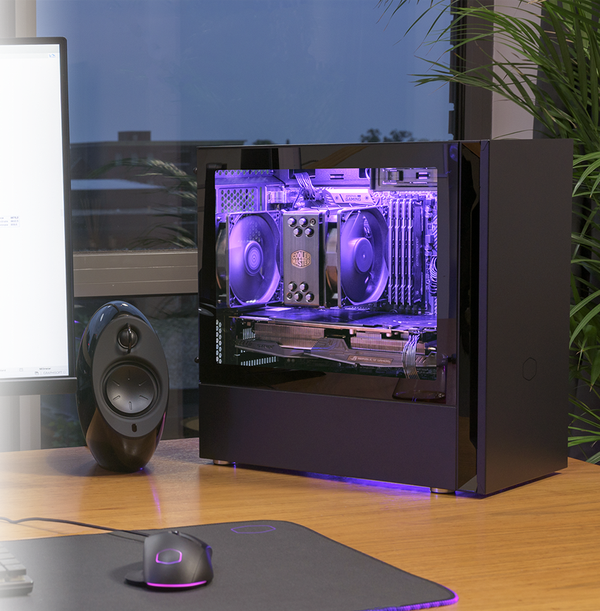

Silencio Design
Silencio Technology
Sound Dampening Material

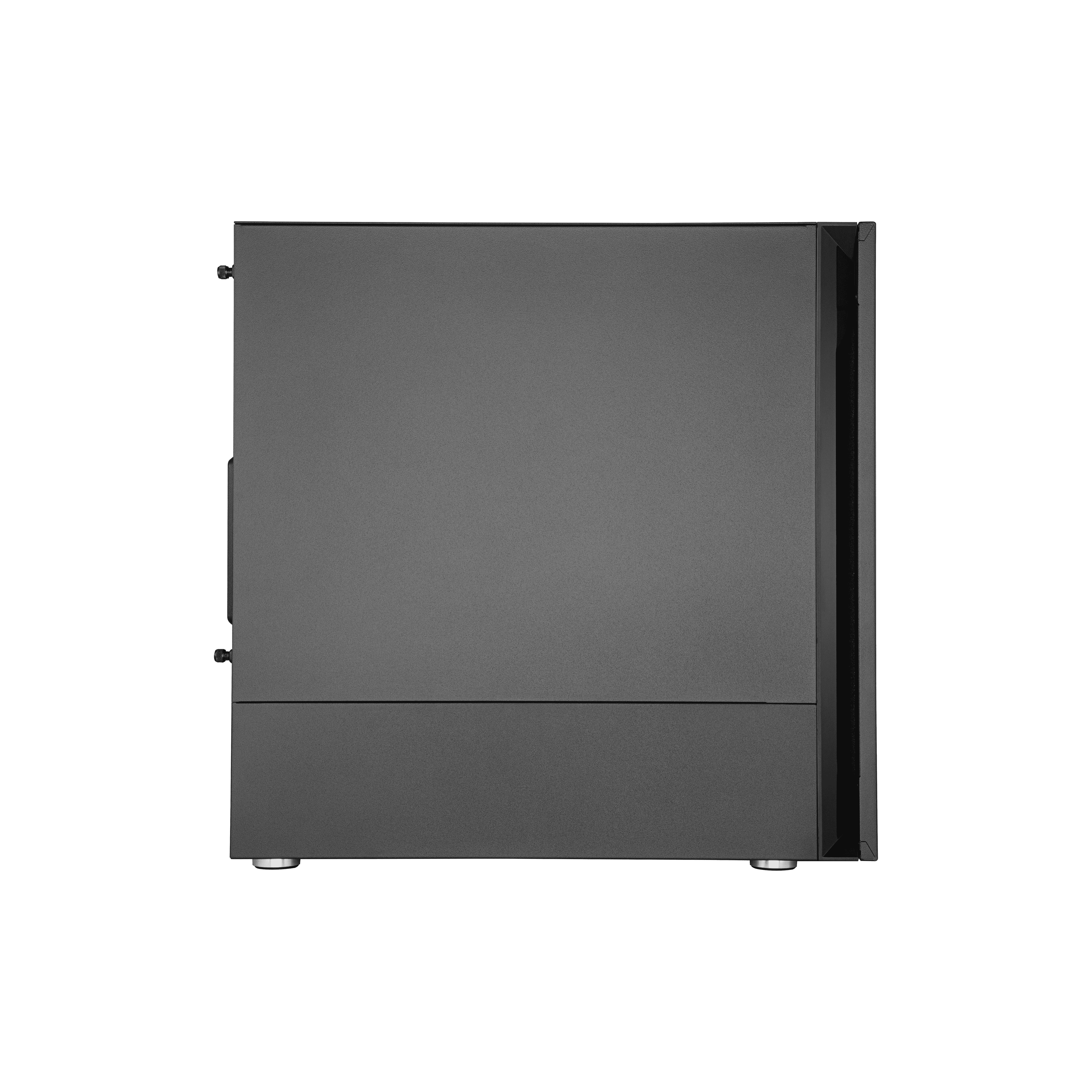

Seamless Tempered Glass or Sound-Dampened Steel

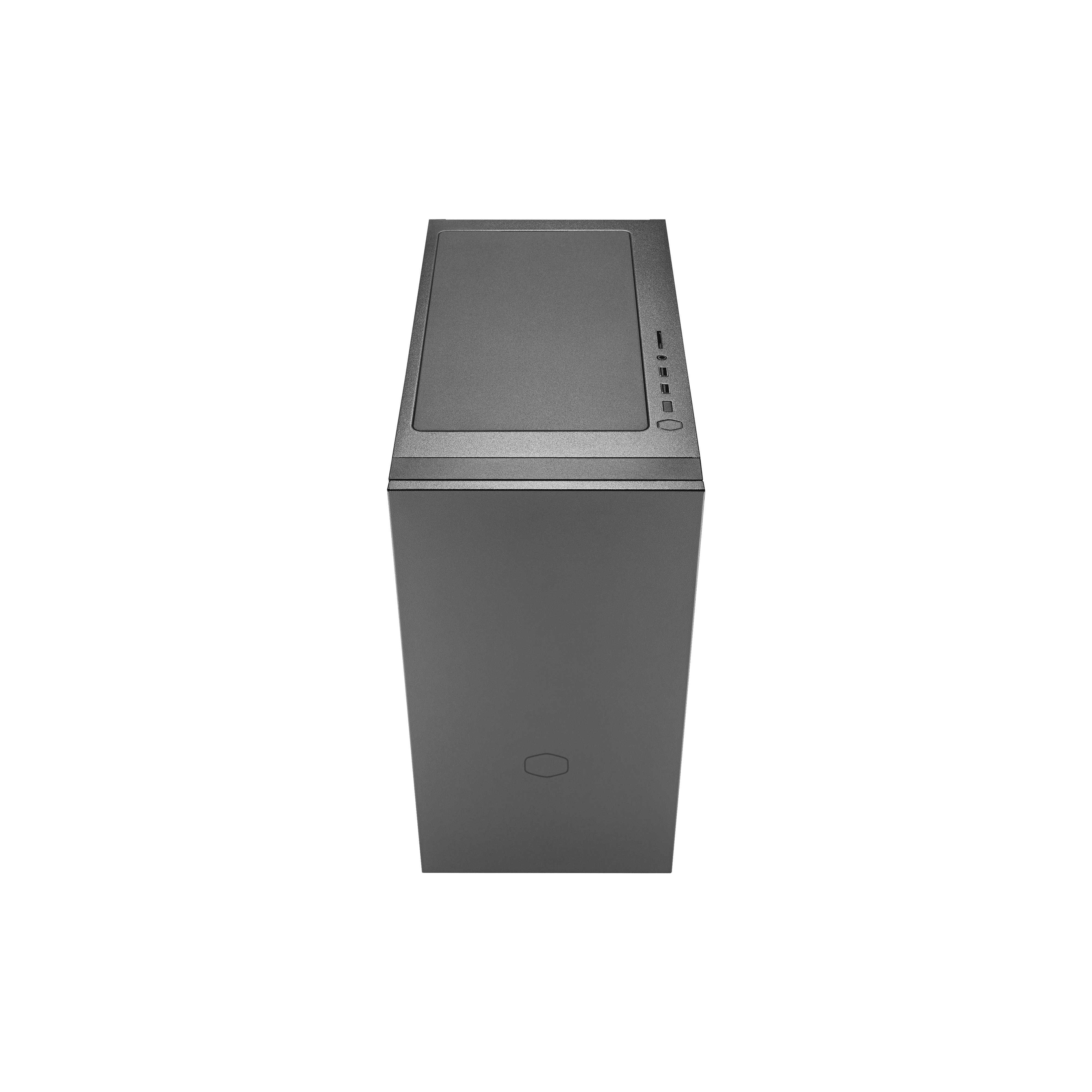

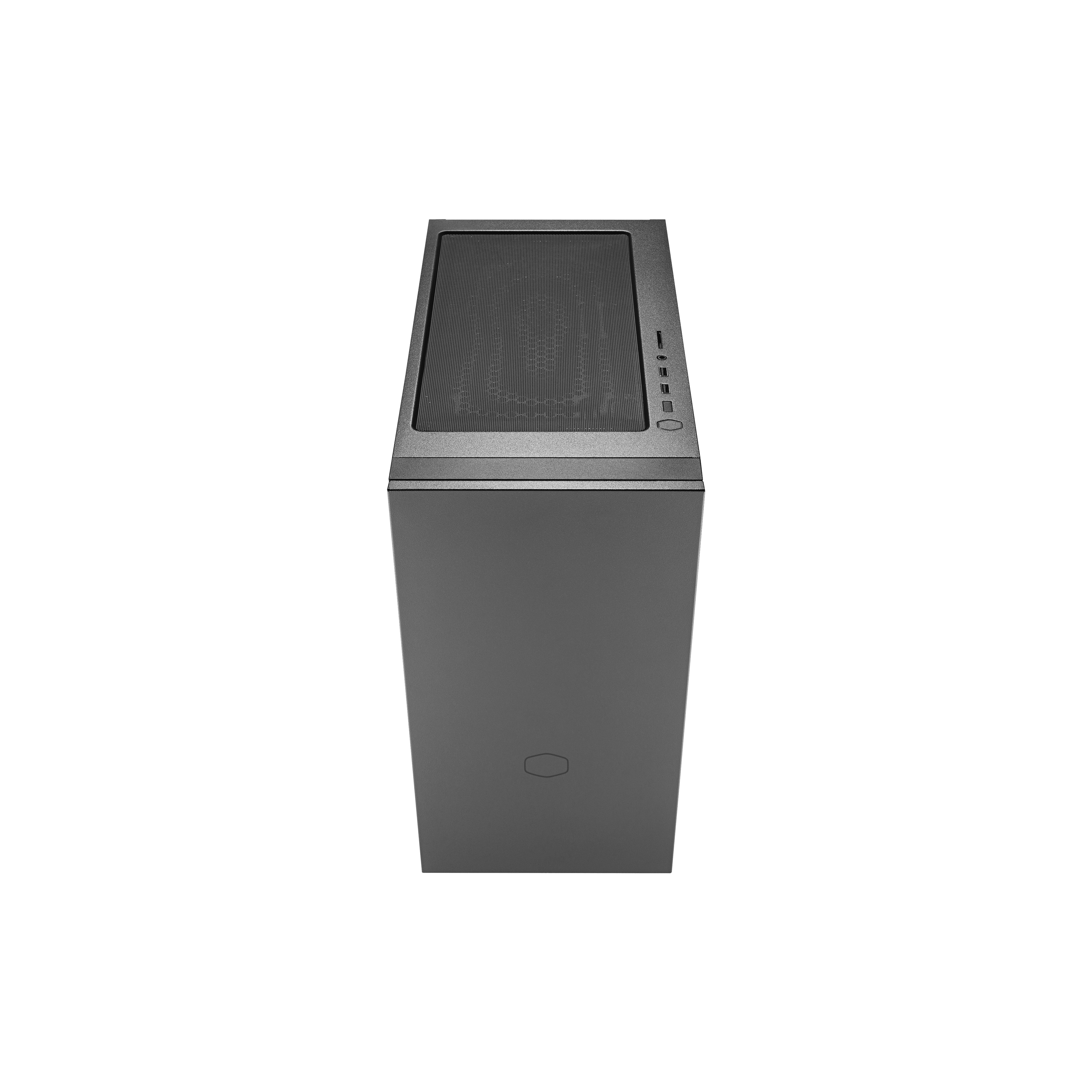

Top & Front Ventilation
Reversible Steel Door
- Model Number: MCS-S400-KN5N-S00 (Steel), MCS-S400-KG5N-S00 (TG)
- Color(s): Black
- Materials - Body: Steel, Plastic, Sound Absorbing Material
- Dimensions (L x W x H): 418 x 210 x 408mm (Incl. Protrusions), 403.5 x 210 x 400mm (Excl. Protrusions)
- Volume: 33.9L (excl. Protrusions)
- Motherboard Support: Mini-ITX, Micro-ATX

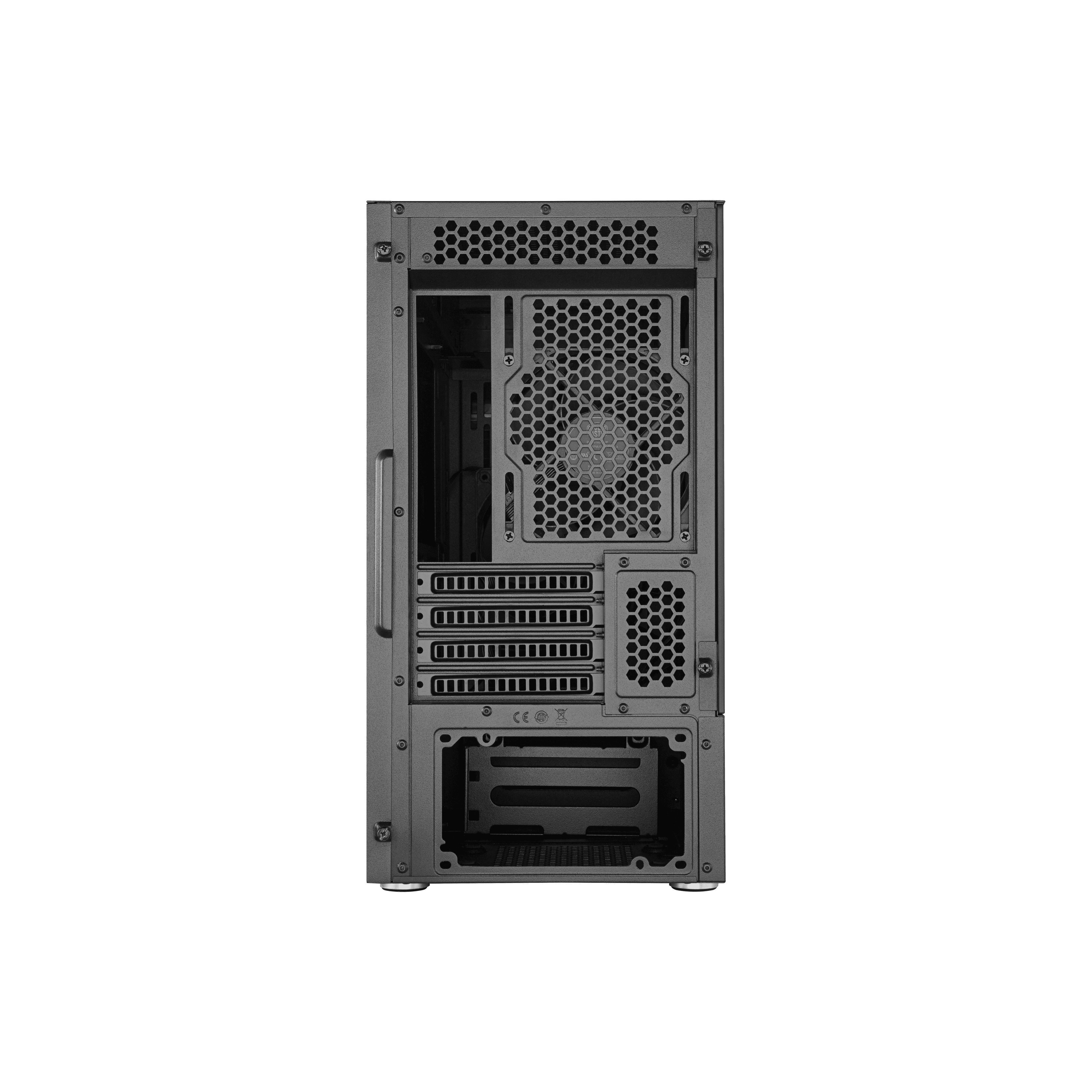

- Expansion Slots: 4
- 5.25" Drive Bays: 1
- 3.5" Drive Bays: 4
- 2.5" Drive Bays: 4
- I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (formerly USB 3.0)
- I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)

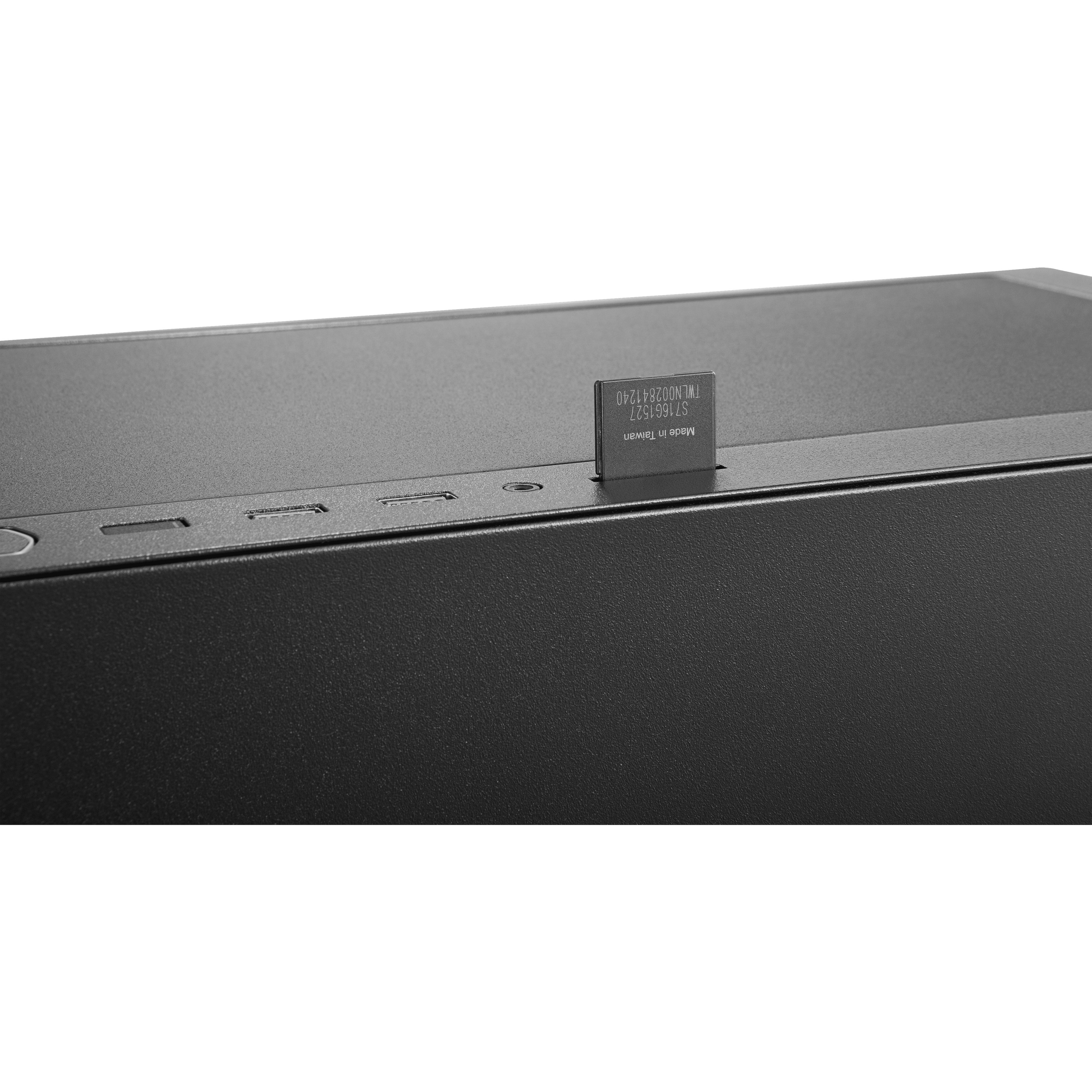

- I/O Panel - SD Card Reader: Supports SD & MMC Cards
- Pre-installed Fans - Front: 1x 120mm (PWM 800-1400 RPM)
- Pre-installed Fans - Rear: 1x 120mm (PWM 800-1400 RPM)
- Fan Support - Front: 2x 120/140mm
- Fan Support - Top: 1x 120mm, 1x 140mm / 2x 120mm, 2x 140mm (remove ODD cage)
- Fan Support - Rear: 1x 120mm
- Radiator Support - Front: 120 / 140 / 240 / 280mm (remove & reinstall ODD bracket to mount 280mm radiator, may interfere with HDD mounted below ODD bracket)
- Radiator Support - Top: 120 / 240mm* (*240mm requires removal of ODD cage)
- Radiator Support - Rear: 120mm
- Clearance - CPU Cooler: Steel: 167mm, TG: 166mm

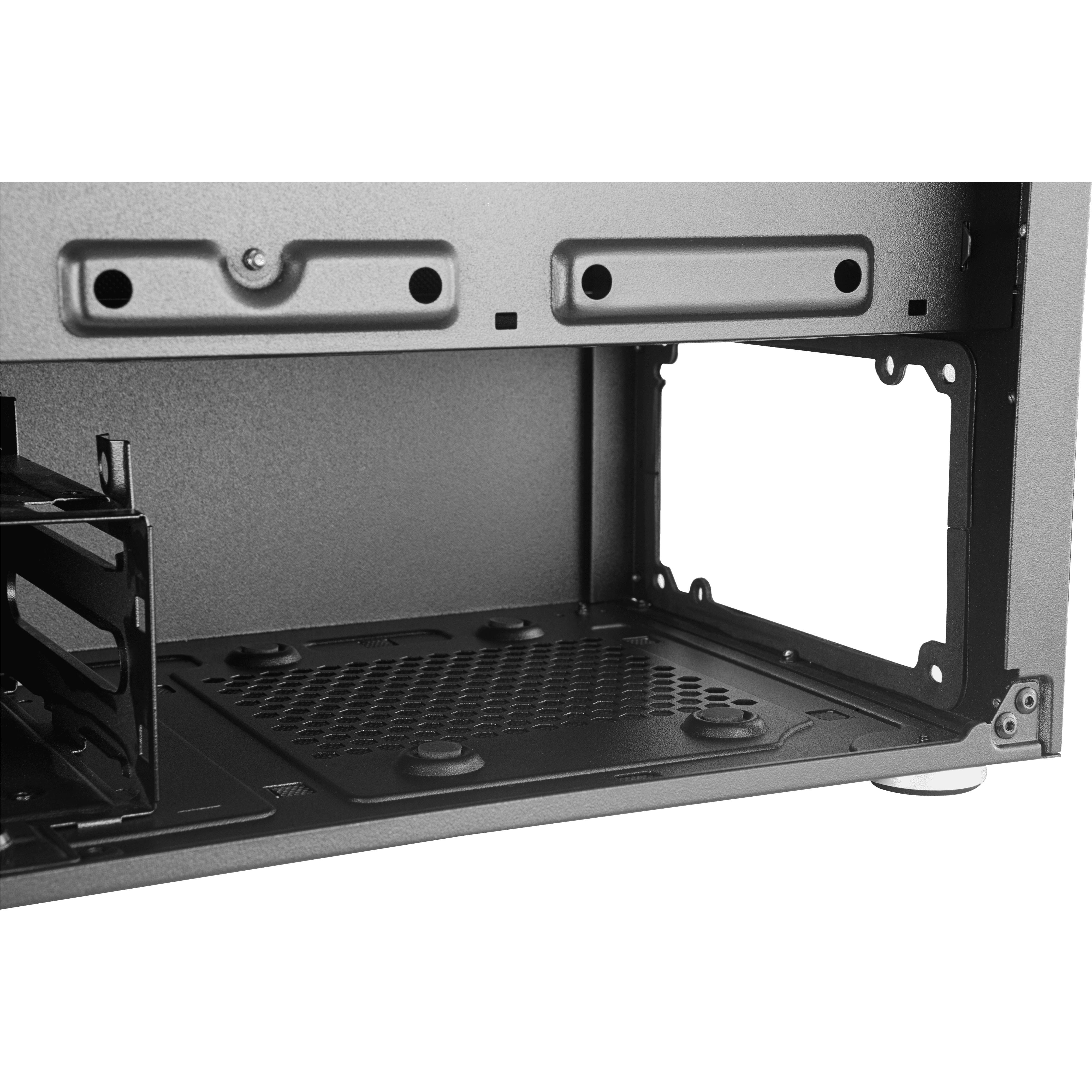

- Clearance - PSU: 325mm (w/o front radiator & drive cage), 140mm (HDD cage in backmost position)
- Clearance - GFX: 319mm

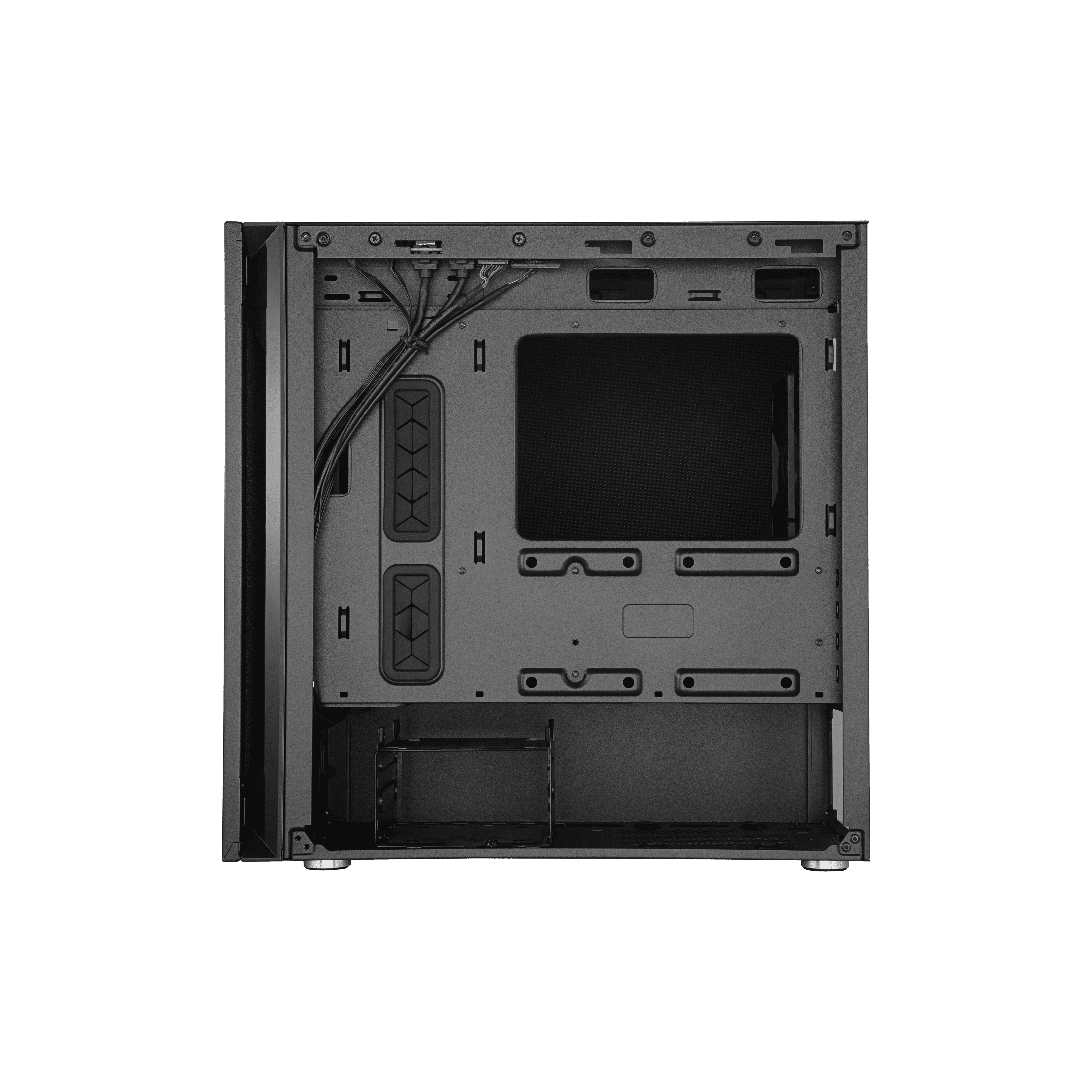

- Cable Routing: 20mm

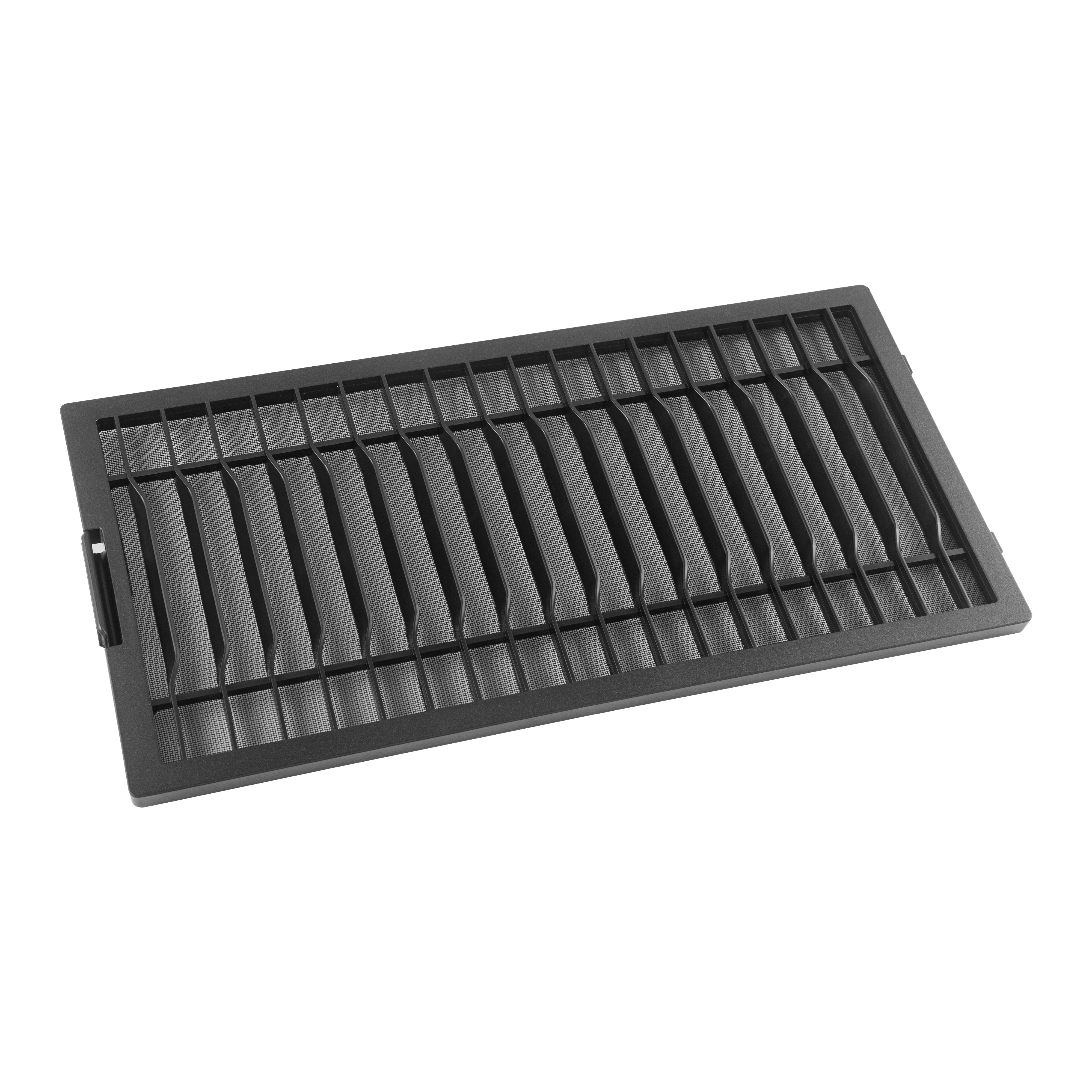

- Dust Filters: Front, Top, Bottom
- Power Supply Support: Bottom Mount, ATX PS2
- Size: Mini Tower
- Series: Silencio Series
Details
Silencio Technology

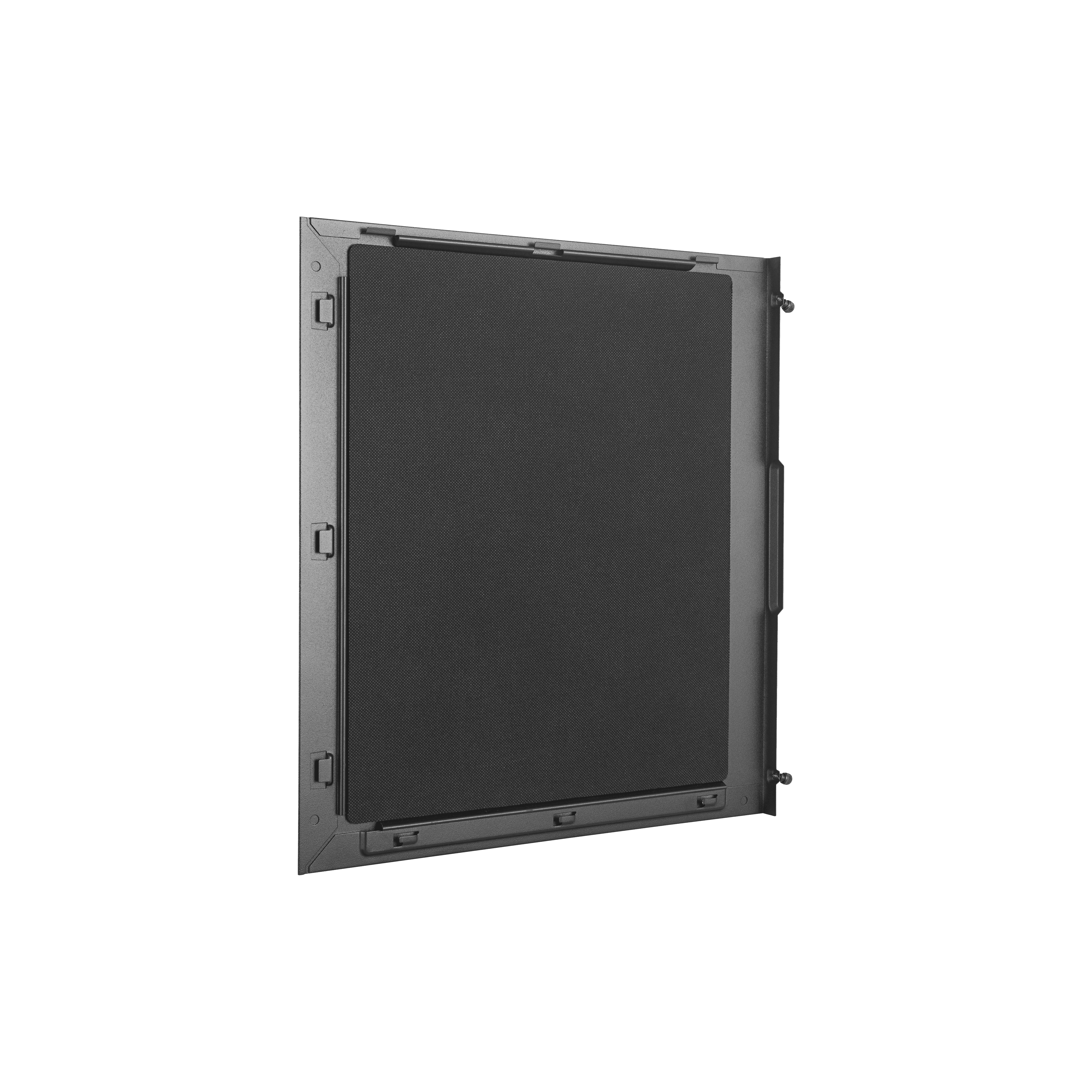

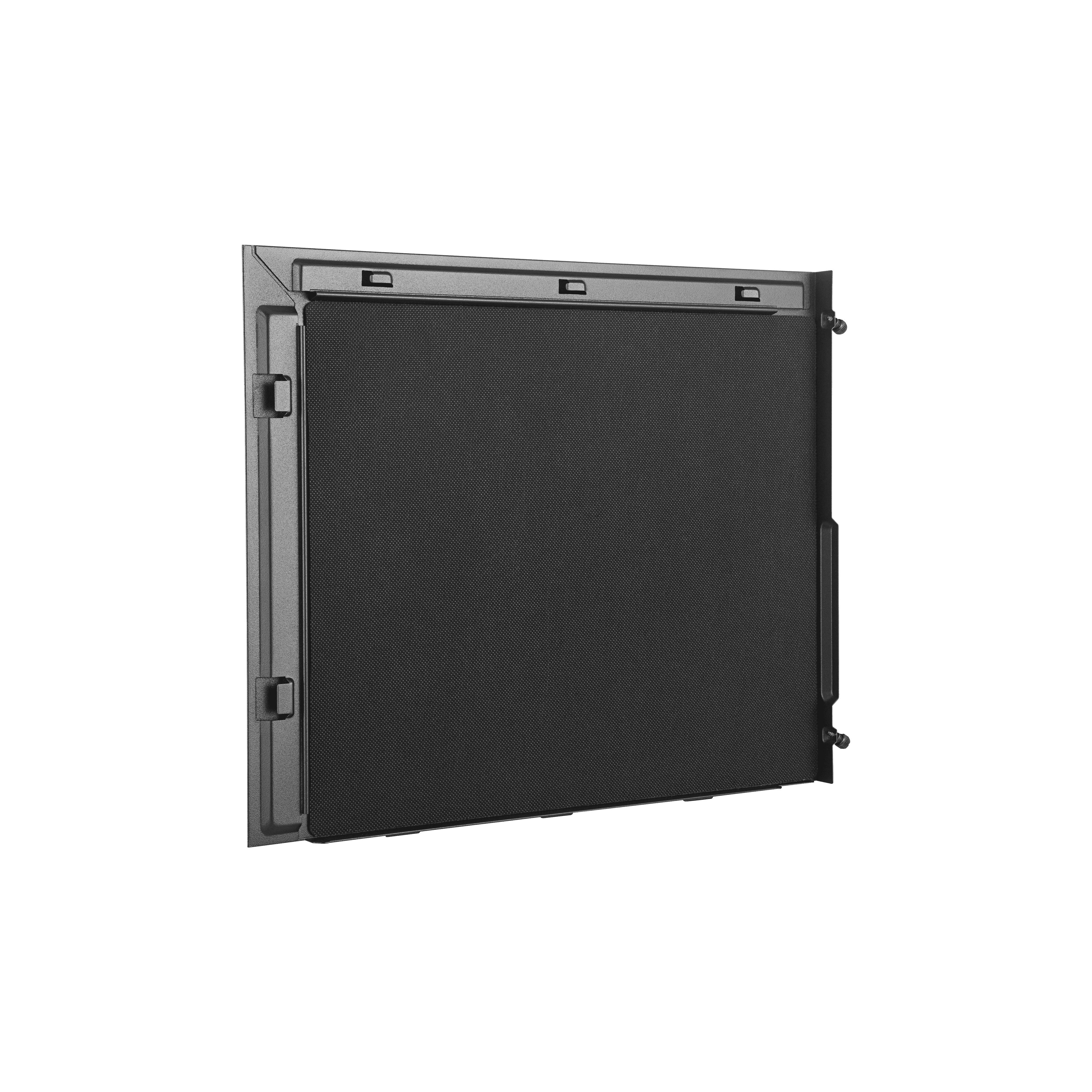

Sound Dampening Material
The Silencio utilizes a combination of sound dampening materials, from thick soft foam to heavy mass-loaded vinyl, to precisely counter prominent frequencies.
Front
Ventilation
The front panel features a recurved vent, directing air in through the front bezel. The curve points downward, taking air in from the bottom, and straightens out to direct air in from either side of the steel front door.
Ventilation

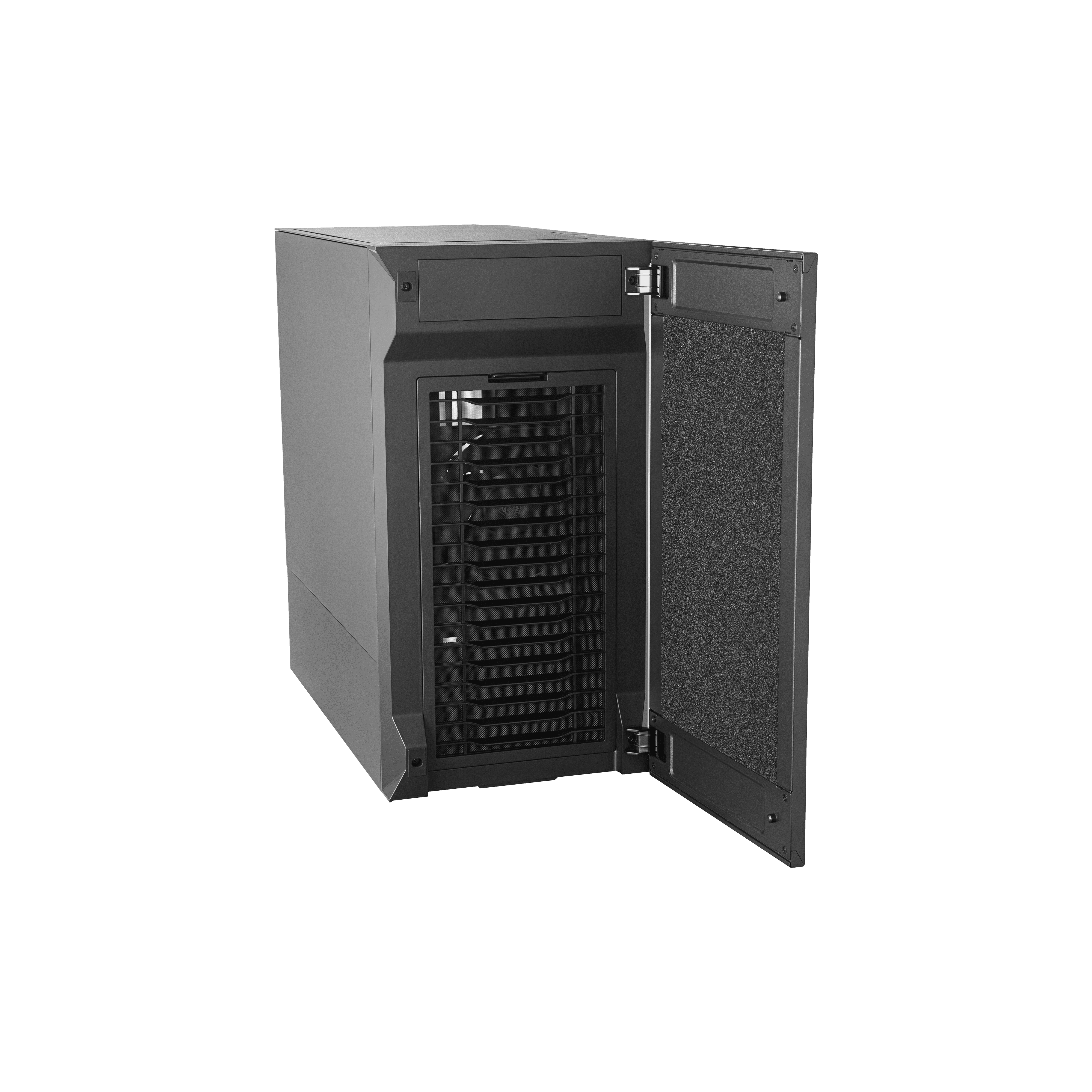

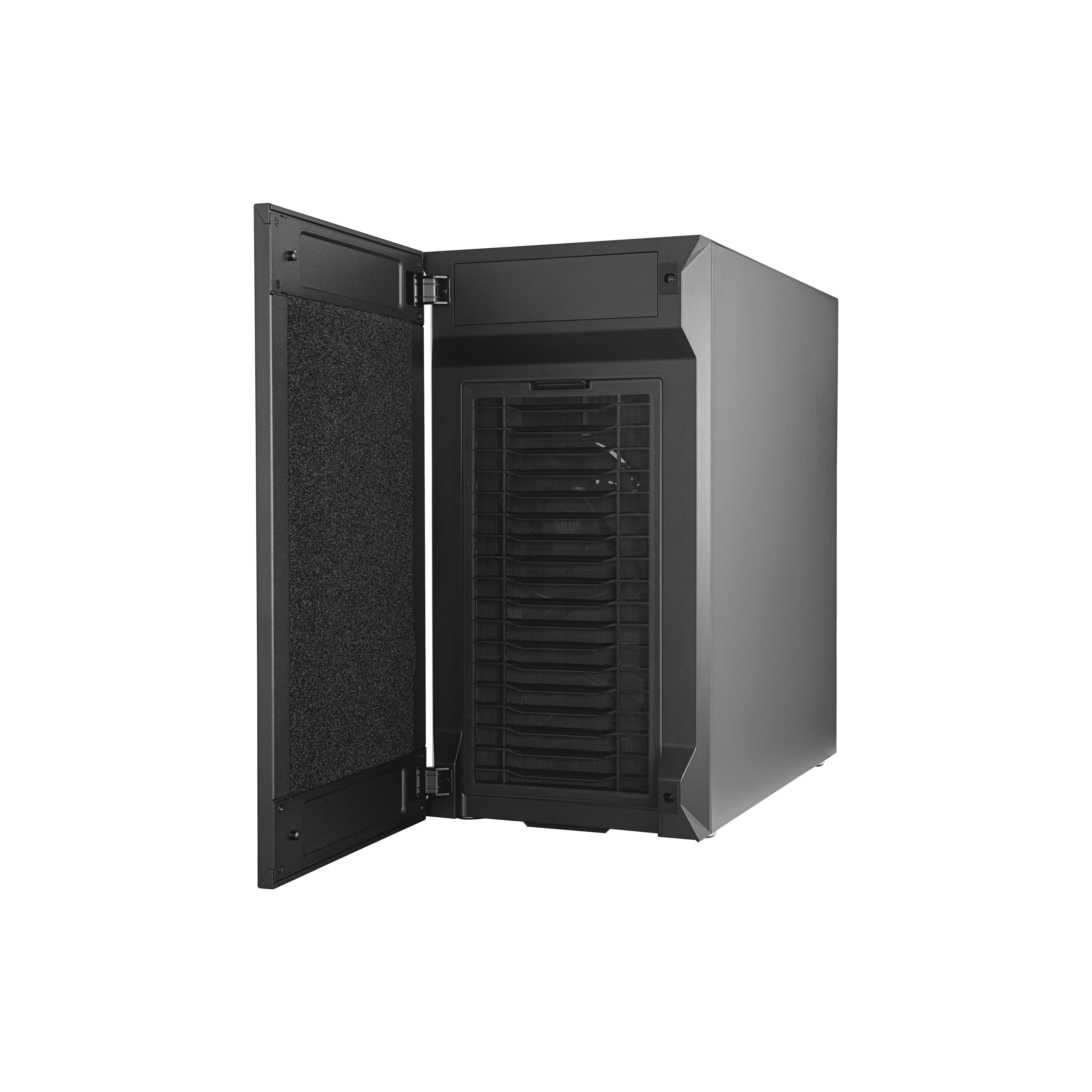

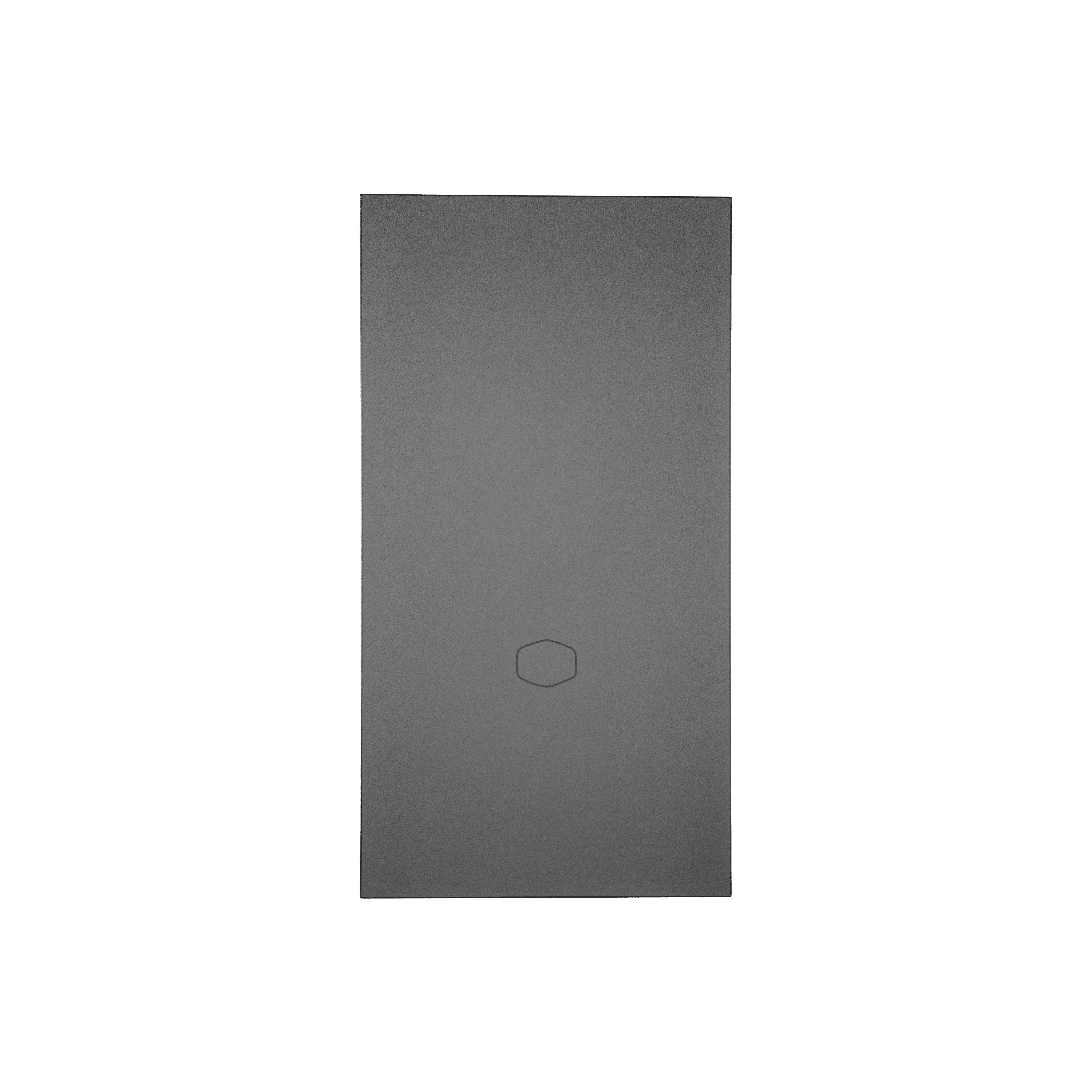

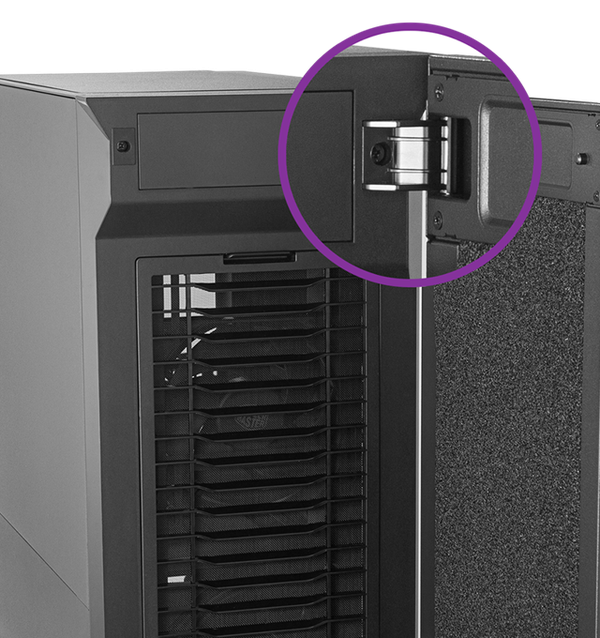

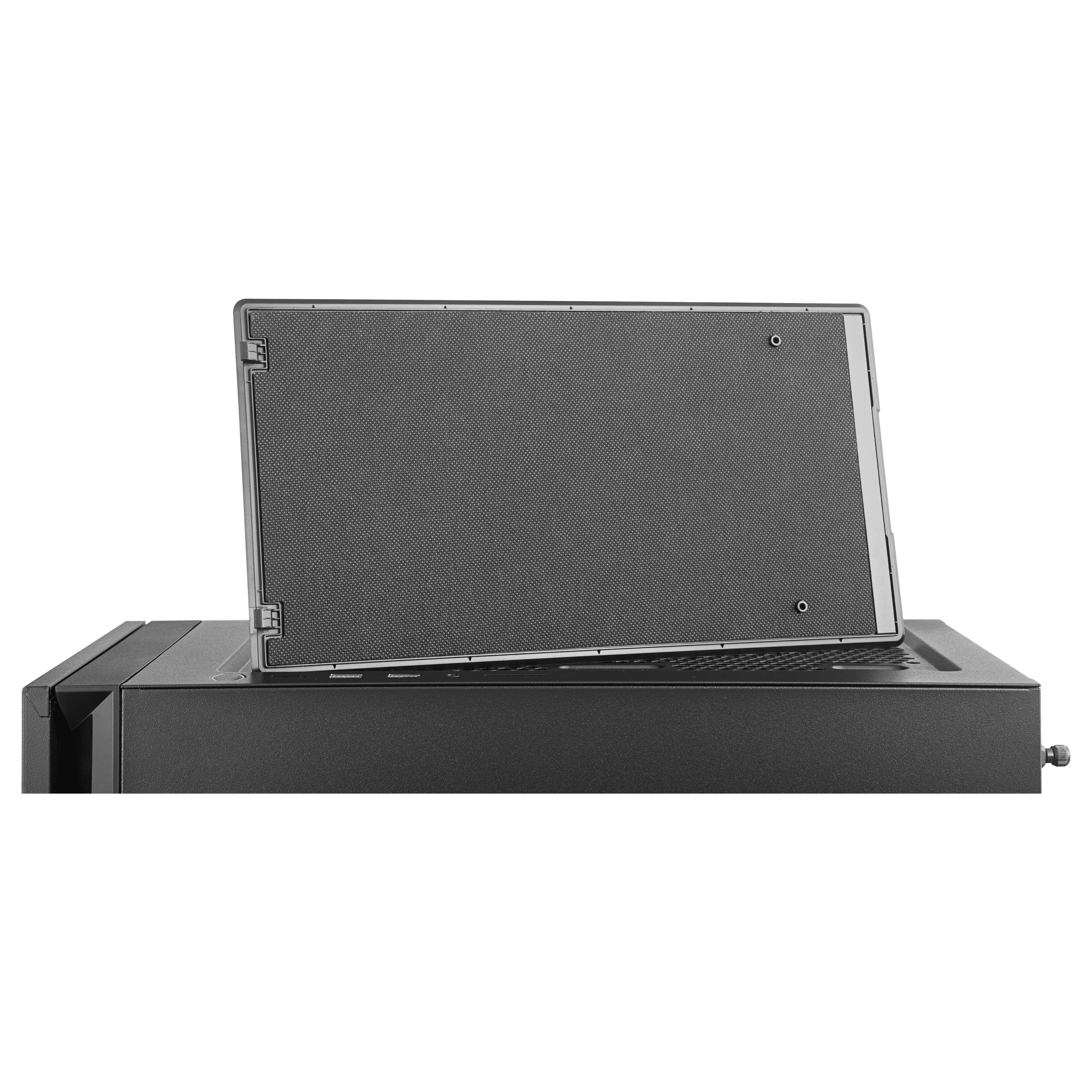

Reversible Steel Door
The steel front door features a reversible mounting system, capable of opening in either direction. To prevent vibrations, a softer, thicker material spans the steel structure in conjunction with a hinge system of magnets and rubber stompers.

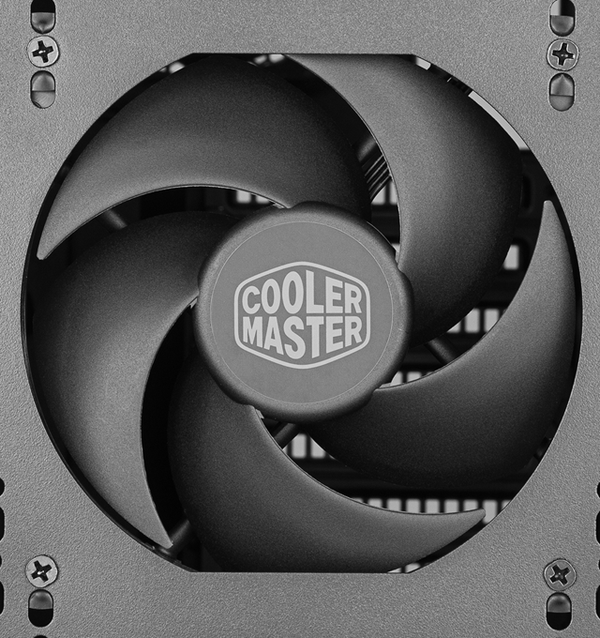

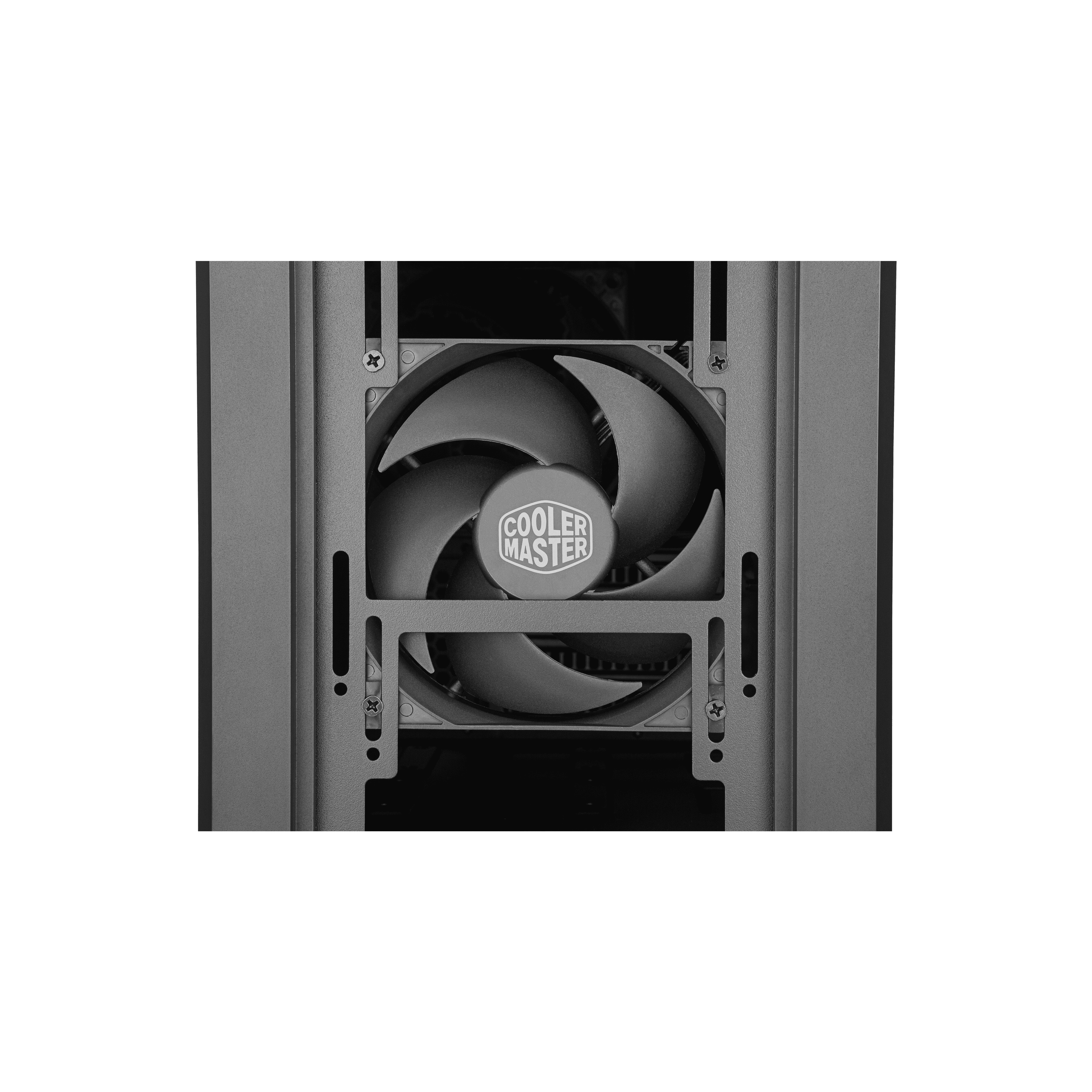

Silencio Fans
Two Silencio FP 120mm PWM fans are pre-installed with rubber padding to reduce noise, featuring specially designed blades that allow both quiet operation and high air pressure.

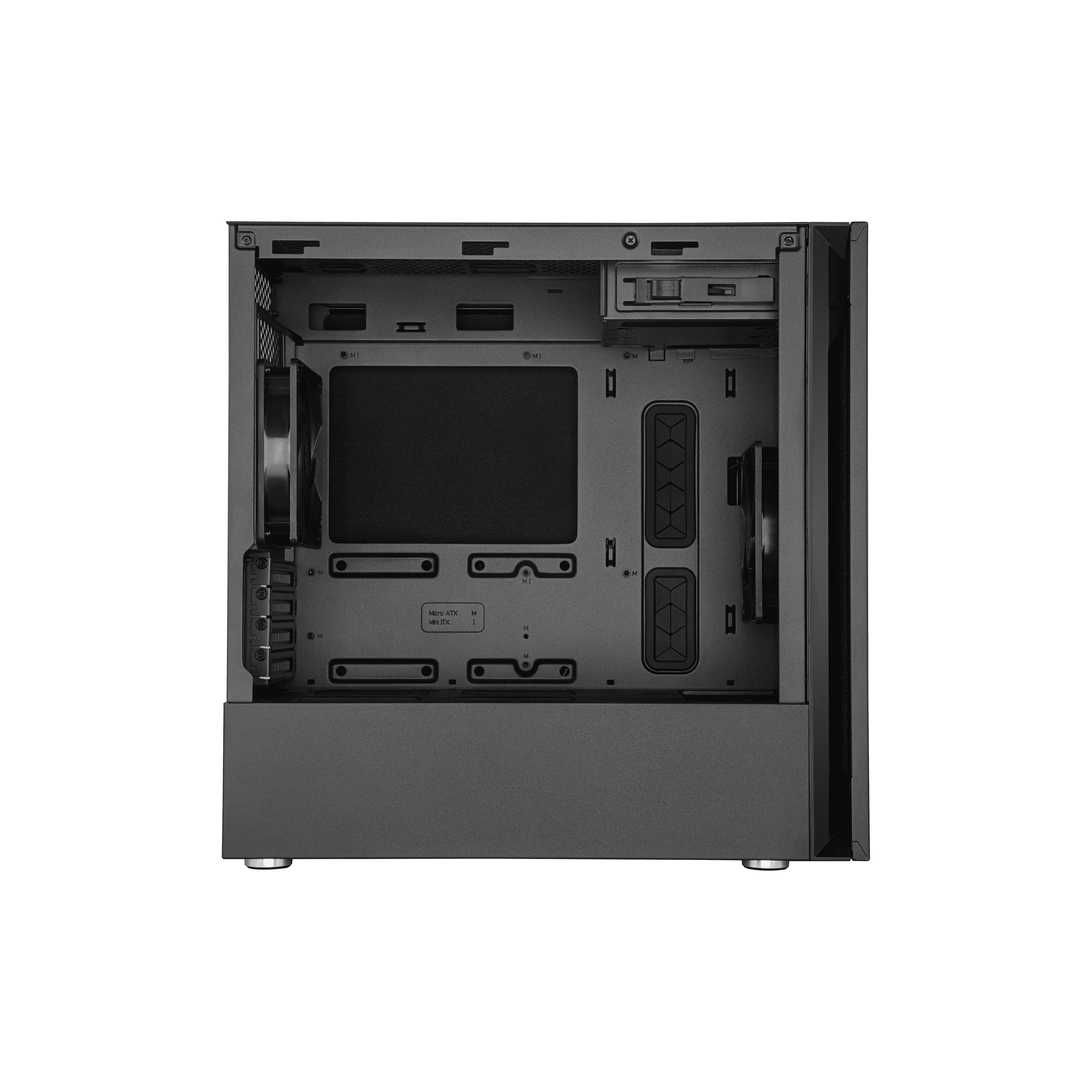

Motherboard Support
Mini-ITX, Micro-ATX
Cooling Support
Fans Radiators Top: 120 / 140mm x 1 Fans 120 / 140mm x 2 Fans (remove ODD cage) 120 / 240* Radiator *remove ODD cage Front: 120 / 140mm x 2 Fans 120 / 140 / 240 / 280* Radiator *may interfere with HDD mounted below ODD bracket Rear: 120 x 1 Fan 120 x 1 Radiator

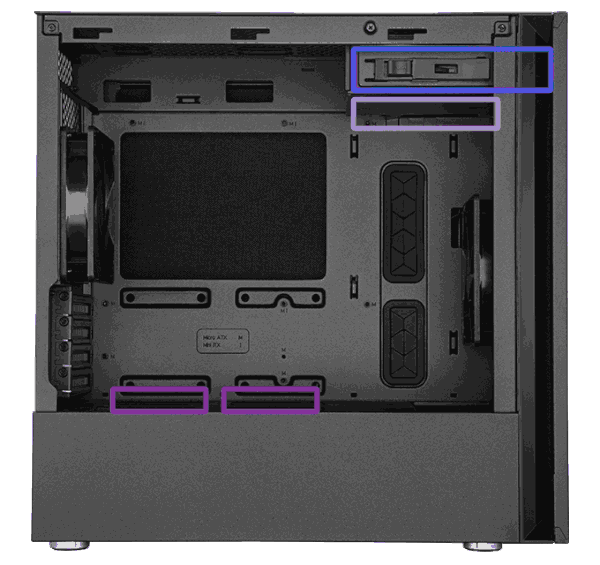

Storage Support
5.25” ODD x 1 (ODD version)
3.5” HDD x 4
2.5” SSD x 4
Clearances
CPU Cooler (Steel): 167mm CPU Cooler (TG): 166mm Power Supply: 325mm (w/o front radiator & HDD cage) 140mm (HDD cage in backmost position) Graphics Card: 319mm
