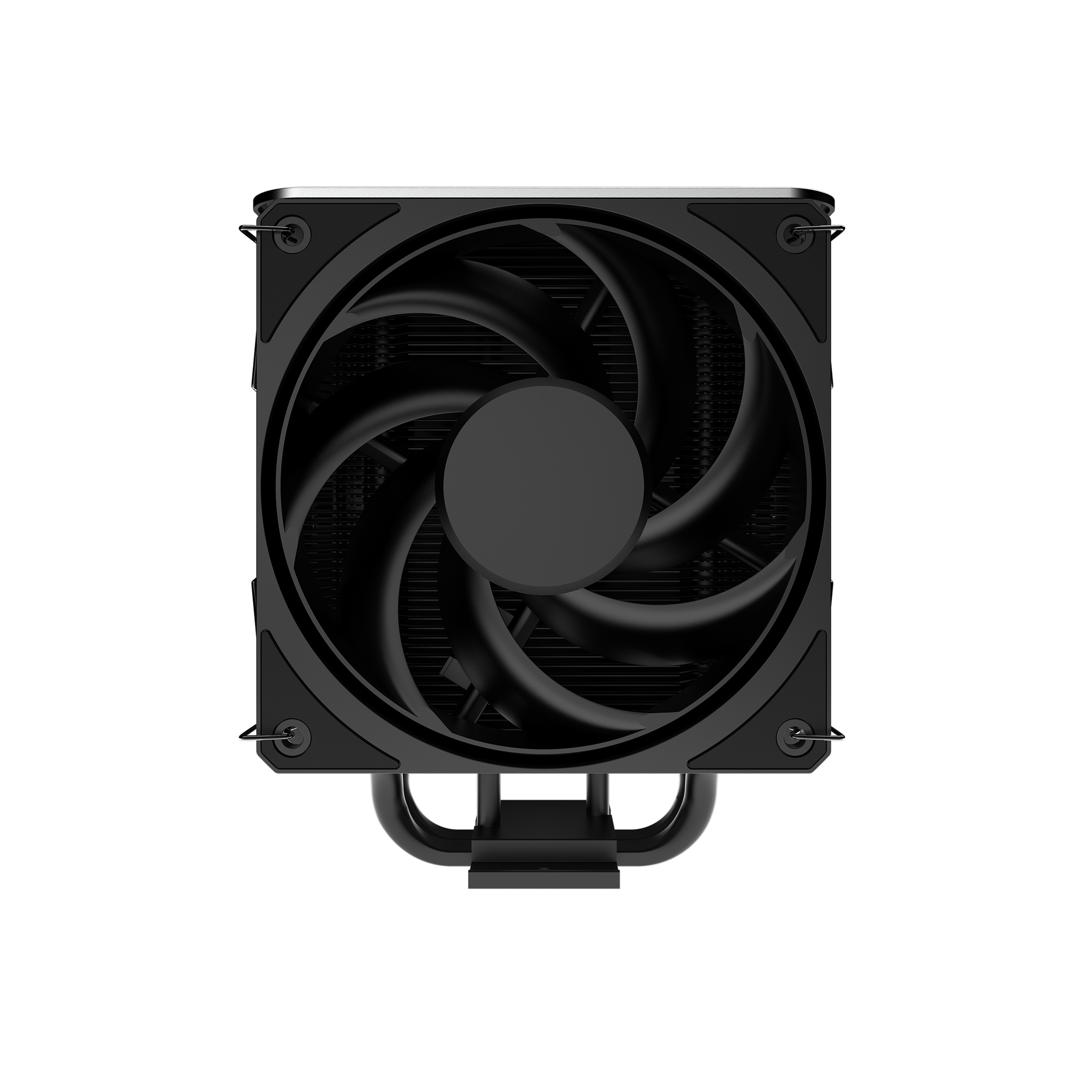

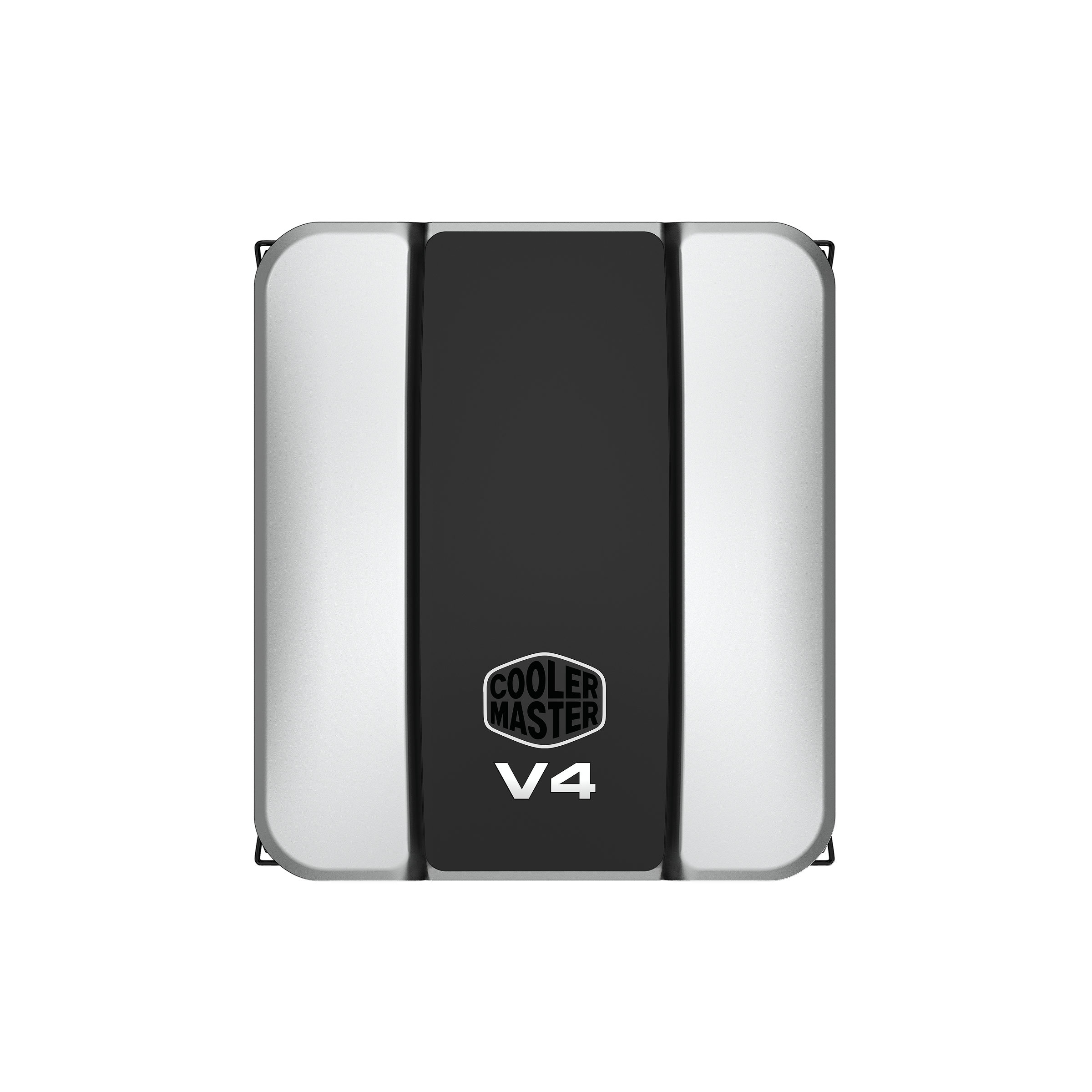

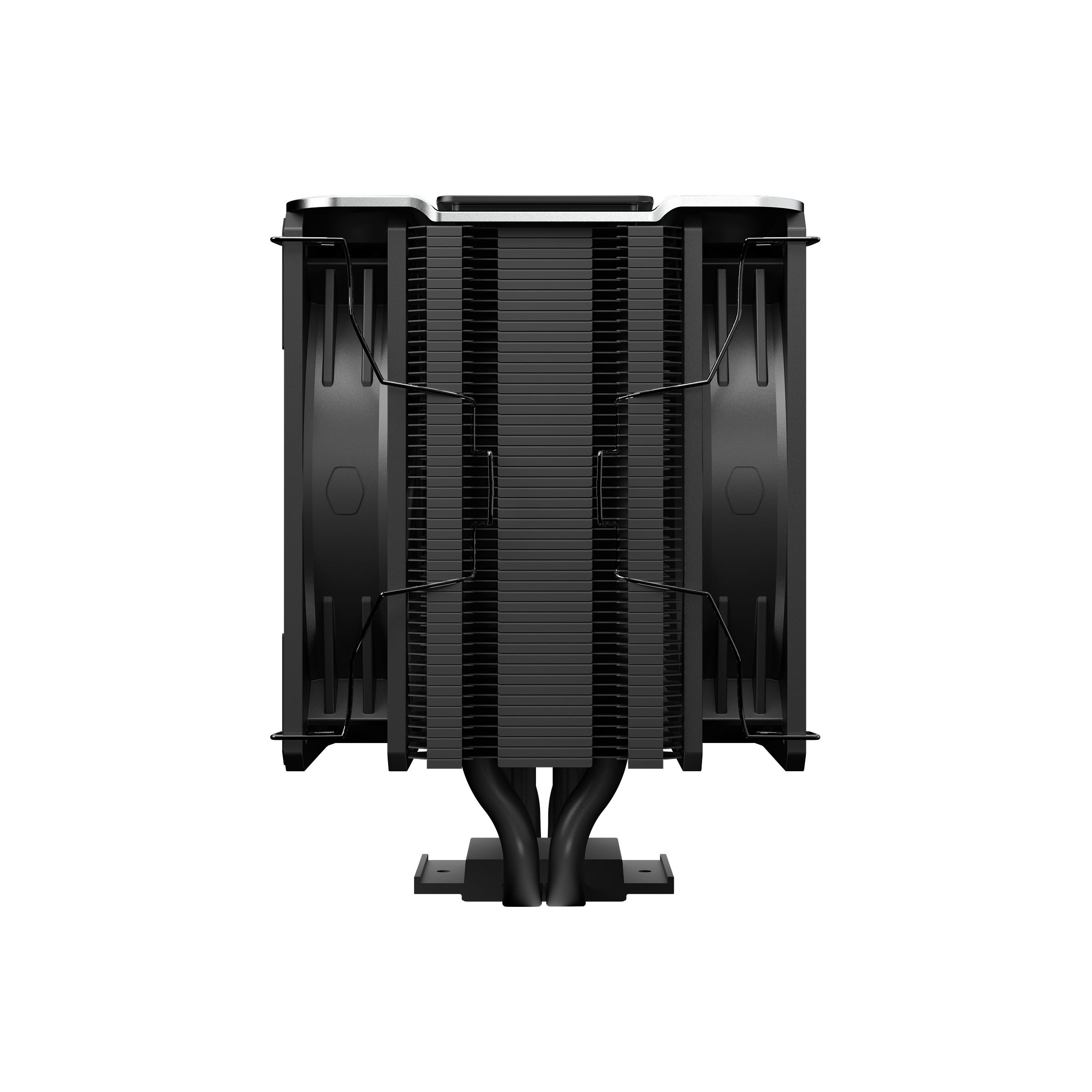

V4 Alpha 3DHP Black
Description
● Cooler Master Proprietary 3DHP technology
● Excellent thermal dissipation
● Pre-installed ring blade fans
● Larger contact surface area
- Product Name: V4 Alpha 3DHP Black
- Product Number: MAZ-T2HP-217PK-R1
- Exterior Color: Black
- CPU Socket: Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
- CPU Socket: AMD® AM5 / AM4 Socket
- Dimension: 133 x 114 x 161 mm | 5.2 x 4.5 x 6.3 inch
- Heat Sink Material: 2 x 3DHP / Aluminum Fins
- Fan Item: Front / Rear
- Fan Dimensions (L x W x H): 120 x 120 x 25mm
- Fan LED Profiles: Non-LED
- Fan Quantity: Front: 1, Rear: 1
- Fan Speed: Front: 0-2050 RPM ± 10%, Rear: 0-1850 RPM ± 10%,
- Fan Airflow: Front: 107.2 m³/h (63.1 CFM), Rear: 85.8 m³/h (50.5 CFM)
- Fan Pressure: Front: 2.69 mmH2O, Rear: 1.77 mmH2O
- Fan MTTF: >200,000 Hours
- Fan Pressure: Front: 22.6 dBA, Rear: 20 dBA
- Fan Bearing Type: Loop Dynamic Bearing
- Fan Power Connector: 4-Pin (PWM)
- Fan Rated Voltage: 12 VDC
- Fan Rated Current: Front: 0.12 A, Rear: 0.08 A
- Fan Safety Current: 0.35A
- Fan Power Consumption: Front: 1.44 W, Rear: 0.96 W
- Warranty: 5 years
- Series: V
- Fan Size: 120
- Heatpipes: 2
- Cooler Type: Air Cooler
Details
Cooler Master Proprietary 3DHP Technology
3DHP technology redefines heat pipe design by adding a third dimension—an extra pipe that fills the dead zone in standard U-shaped layouts. This added connection improves heat transfer in a slimmer, more efficient design.
It delivers the cooling power of a four-pipe solution with a more streamlined layout—giving you lower temps, quieter fans, and more flexibility, whether you’re building for silence or pushing your system to the limit.
Quieter. Stronger. Smarter.
Fewer pipes, better performance. 3DHP’s efficient heat transfer reduces radiator turbulence and lowers fan noise across the system. Whether you’re building for silence or tuning for peak output, 3DHP delivers.
The Advanced 3DHP Internal Structure
3DHP heat pipes use a hybrid internal structure that combines sintered powder and grooved channels in varying textures and sizes. Each section is optimized for a specific phase—evaporation, condensation, or liquid return—resulting in more efficient heat transfer than traditional designs. *Image for reference only; actual internal configuration may vary in the final product design.
Excellent Thermal Dissipation
Keeps temperatures lower under the same CPUworkload, helping maintain system stability andlong-term reliability.
Pre-Installed Ring Blade Fan
The included Mobius 120 fan features a ring blade design that cuts high-frequency noise and keeps operation smooth and quiet—especially when paired with the 3DHP module.
Larger Contact Surface for Maximum Heat Transfer
Unlike most four-pipe coolers with direct contact, our solid copper base covers more surface area. Combined with wider 3DHP heat pipes, it ensures efficient heat transfer from the CPU to the cooling array.
Sleek, Modern Design
Finished in matte black with clean lines and subtle contours, Hyper 212 3DHP Black integrates seamlessly into modern setups.
