Equipped with a heat pipe and an innovative modular thermal structure, our design enhances thermal efficiency, essential for the low-temperature rise of key components and the ultra-quiet fanless operation.

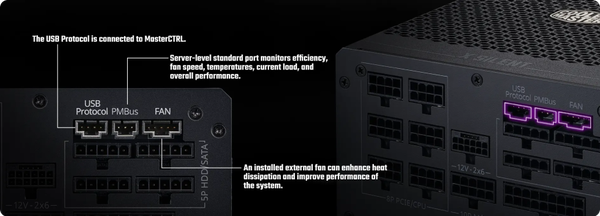

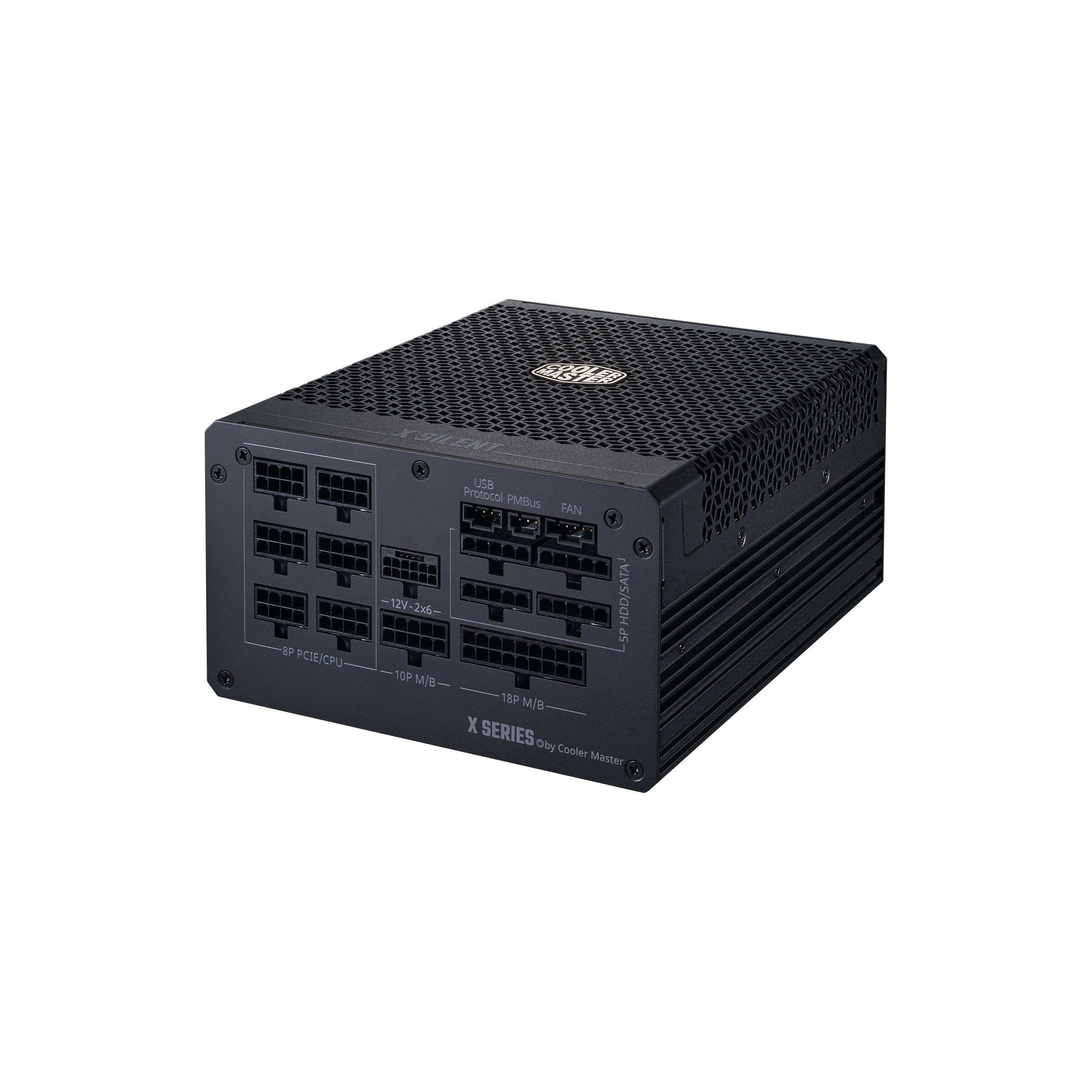

Modular cabling minimizes clutter, while the additional ports provide extra functionality.
Our Private Aluminum Thermal Mold effectively dissipates heat, and the Innovative Heat Pipe Thermal Tech uniformly regulates unit temperature. This ensures superior thermal control, enhancing efficiency and longevity in demanding environments.
In-house designed composite heat pipe technology enables effective passive thermal management.
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.
Includes ATX 3.1 support and a dual-color 12V-2x6 connector (with clear purple markings) help users confirm correct installation, preventing poor contact and power issues for enhanced safety and reliability.
| Model | MPS-B001-AZBP |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 200-240V |
| Input Current | 6.1A (Max.) |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 180 x 150 x 86 mm |
| Efficiency | ≥ 94% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection |
| Regulatory | TUV, CE, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.) |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 12 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| 12V-2x6 Connectors | 1 |
| USB 10P Connector | 1 |
| PMBus 5 Pin Connector | 1 |
| External Fan 4Pin Connectors | 1 |
| Input Voltage Range | 230V |
| ATX Version | ATX 3.1 |
| Series | X Series |
| 80 Plus Efficiency | Platinum |
| Category | Above 750W |
| Form Factor | ATX |
| Watts | 1100W |
