High Power Density
Adopting with the components miniaturization technology by the improvement of materials engineering, manufacturing process and leading thermal technology, the V SFX Platinum has achieved one of the highest power density, 30% more than V SFX Gold 850W power supply, in the small form factor.
Miniaturized But Solid
Crafted with flat copper wire on Choke of DC-DC, flat transformer piling and aluminum plate dissipation structure on full-bridge LLC, it can effectively achieve components miniaturization. Adopting with advanced manufacturing process, it simultaneously keeps miniaturized but solid.
Full & Flexible Compatibility

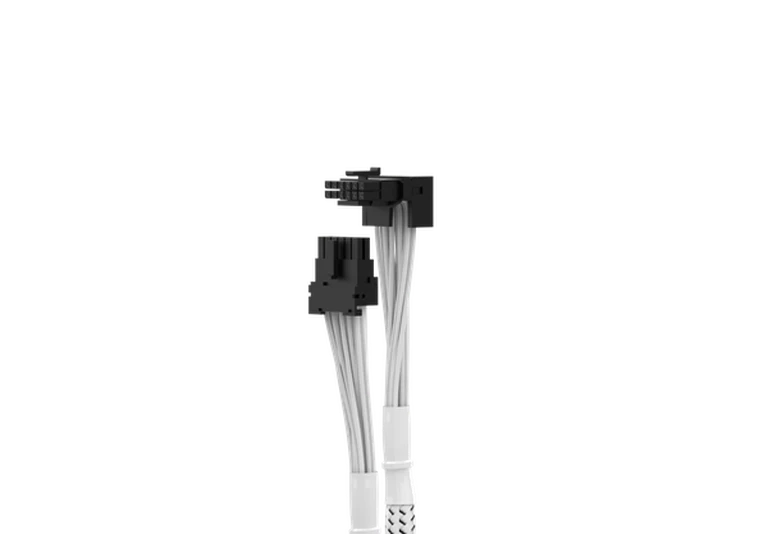

Designed to fully support ATX 3.1 and provide backward compatibility, supporting both RTX 40 and 30 series graphics cards, and alongside with included bracket to support both ITX and ATX cases, the V SFX Platinum offers a PSU with the most complete compatibility.
Enhanced Dissipation
With the integration of transformer and rectifier, full-bridge LLC heat dissipation structure, and the EMI-inhibited amorphous metal materials, the V SFX Platinum provideds advanced performance and heat dissipation.

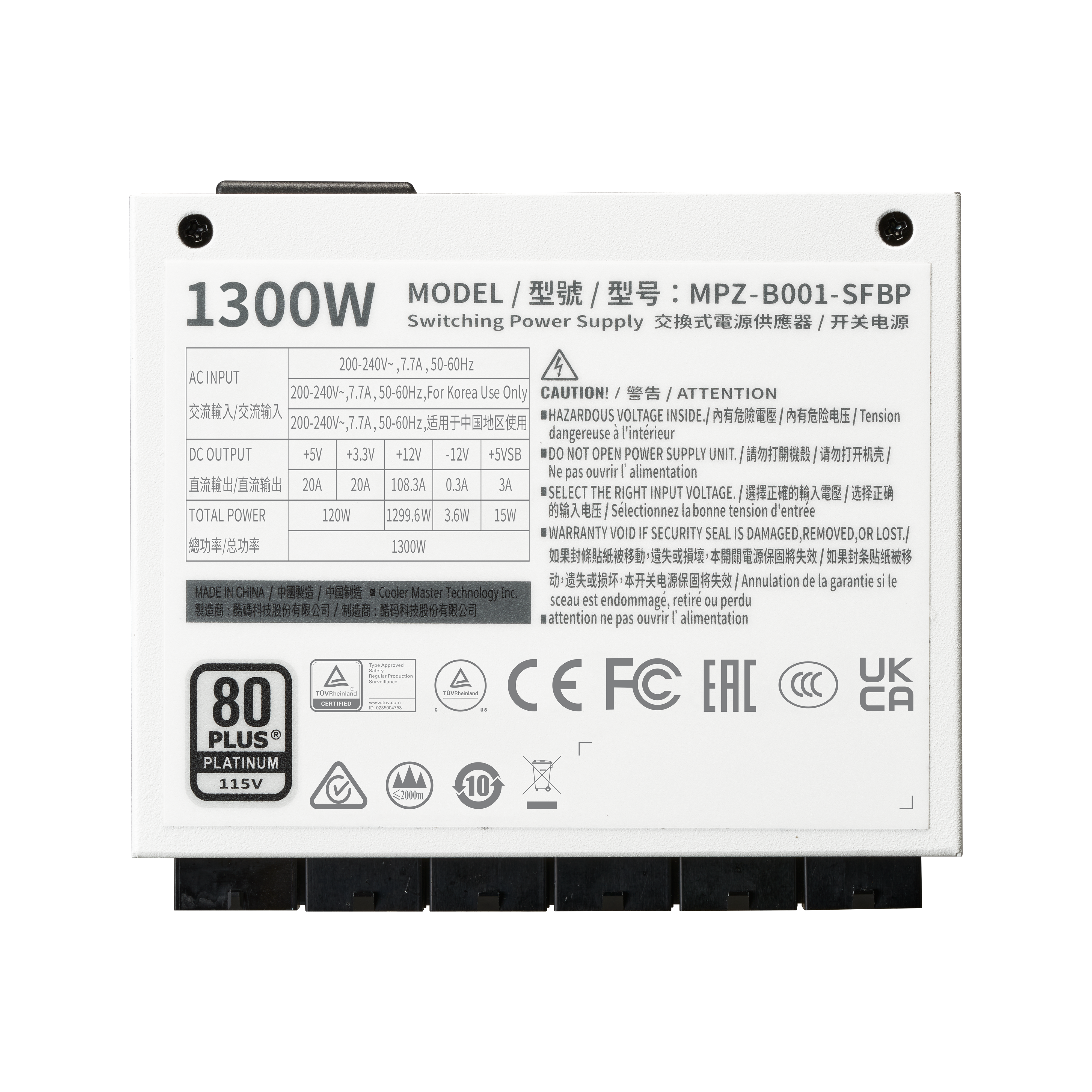

| Model | MPZ-D001-SFBP-EG** |
| ATX Version | ATX 3.1 & SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 200-240V |
| Input Current | 7.7A (Max.) |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
| Fan Size | 92mm |
| Fan Bearing | FDB |
| Fan Speed | 1900 RPM |
| Efficiency | ≥ 94% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum EU 230V |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥16ms at 60% Load |
| MTBF | >100,000 Hours |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection |
| Regulatory | TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA |

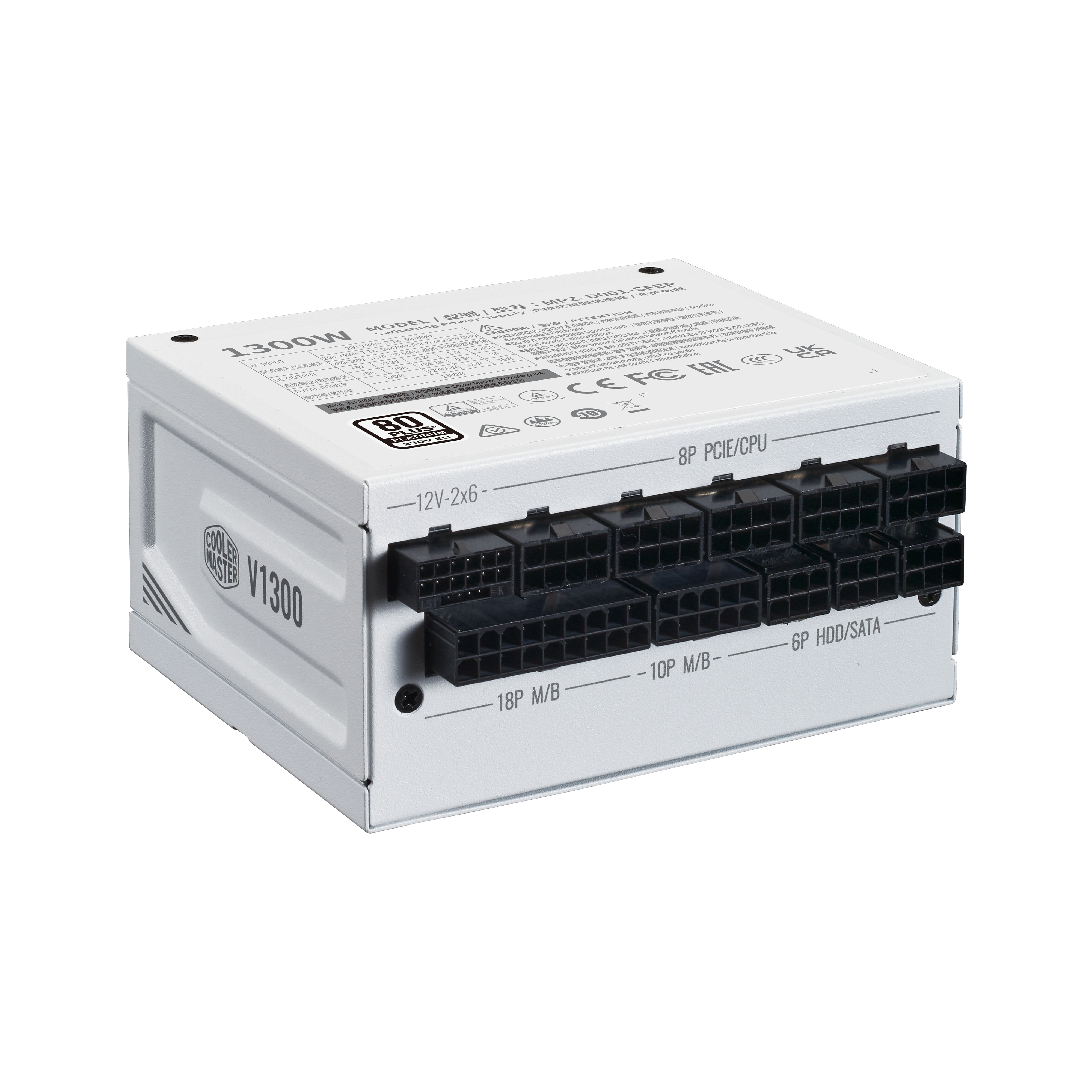

| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 3 |
| 12V-2x6 Connectors | 1 |
| Form Factor | SFX |
| Watts | 1300W |
| Modular | Fully Modular |
| Series | V SFX Series |
| 80 Plus Efficiency | Platinum |
