ATX 3.1 support & a durable 90-degree 12V-2x6 cable
80 PLUS Gold certified
The V SFX Gold is certified to achieve more
than 90% efficiency at typical loads.
100% Japanese capacitors
Large, high-quality Japanese capacitors feature improved efficiency
and reduced ripple noise.

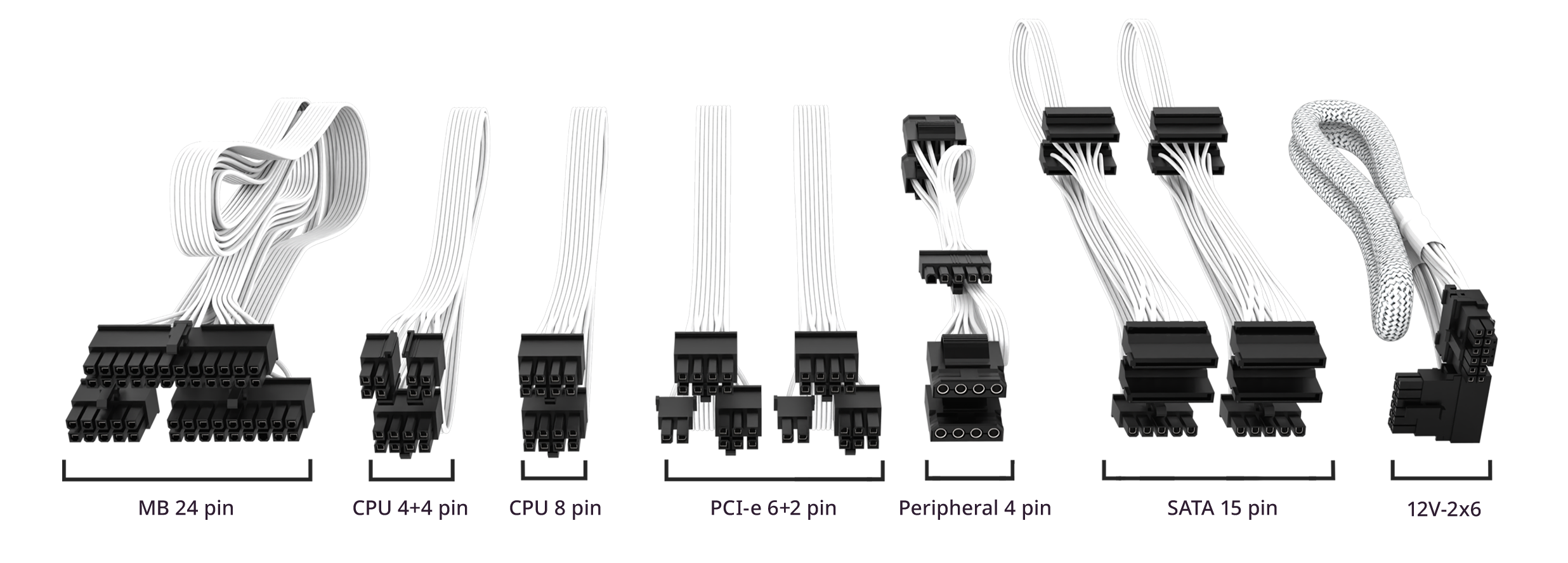

Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
| Model | MPY-7501-SFHAGV-3EW* |
| ATX Version | ATX 3.1 & SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
| Fan Size | 92mm |
| Fan Bearing | FDB |
| Efficiency | 90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 500 ms |
| Hold Up Time | 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| 12V-2x6 Connectors | 1 |
| Series | V SFX Series |
| 80 Plus Efficiency | Gold |
| Modular | Fully Modular |
| Form Factor | SFX |
| Watts | 750W |
