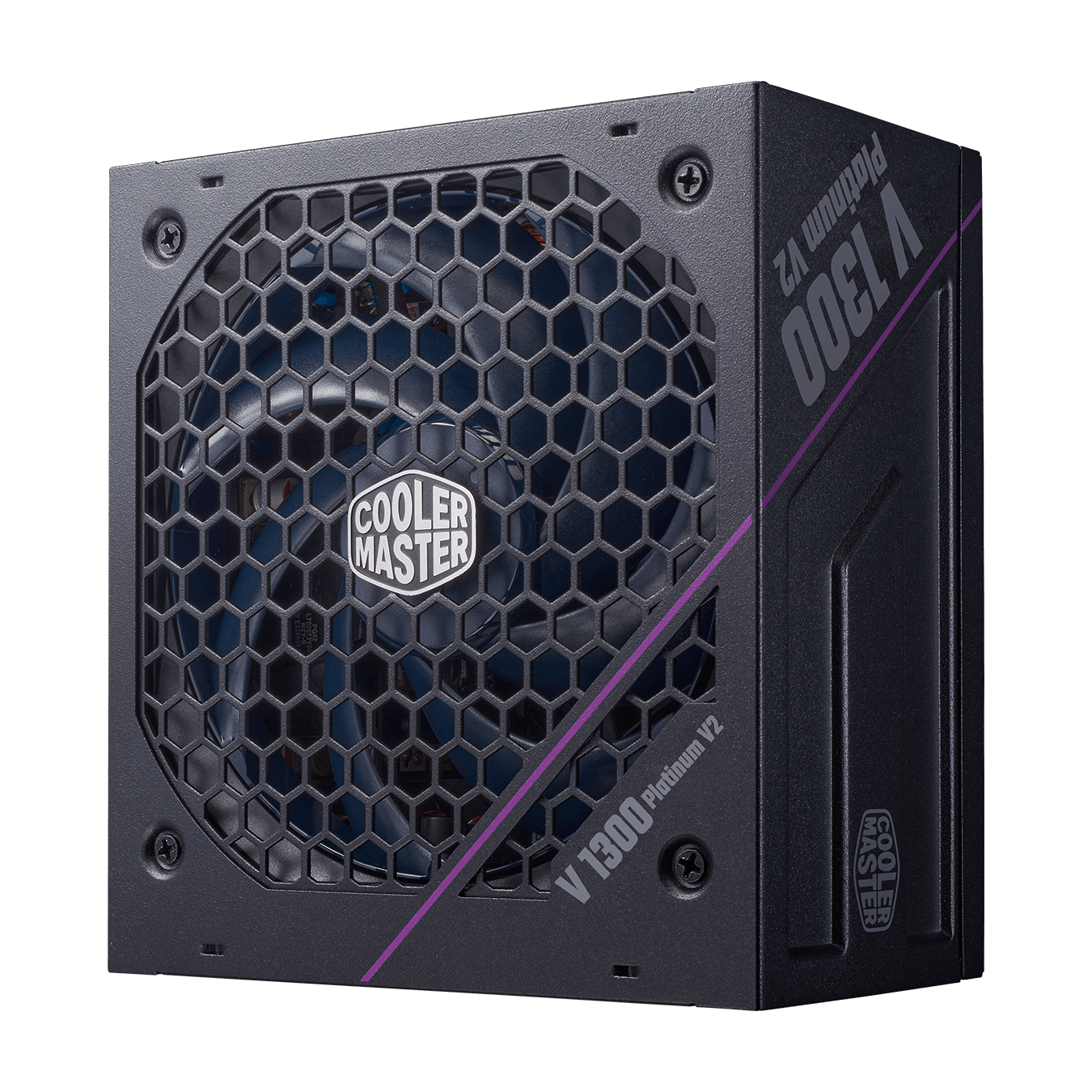

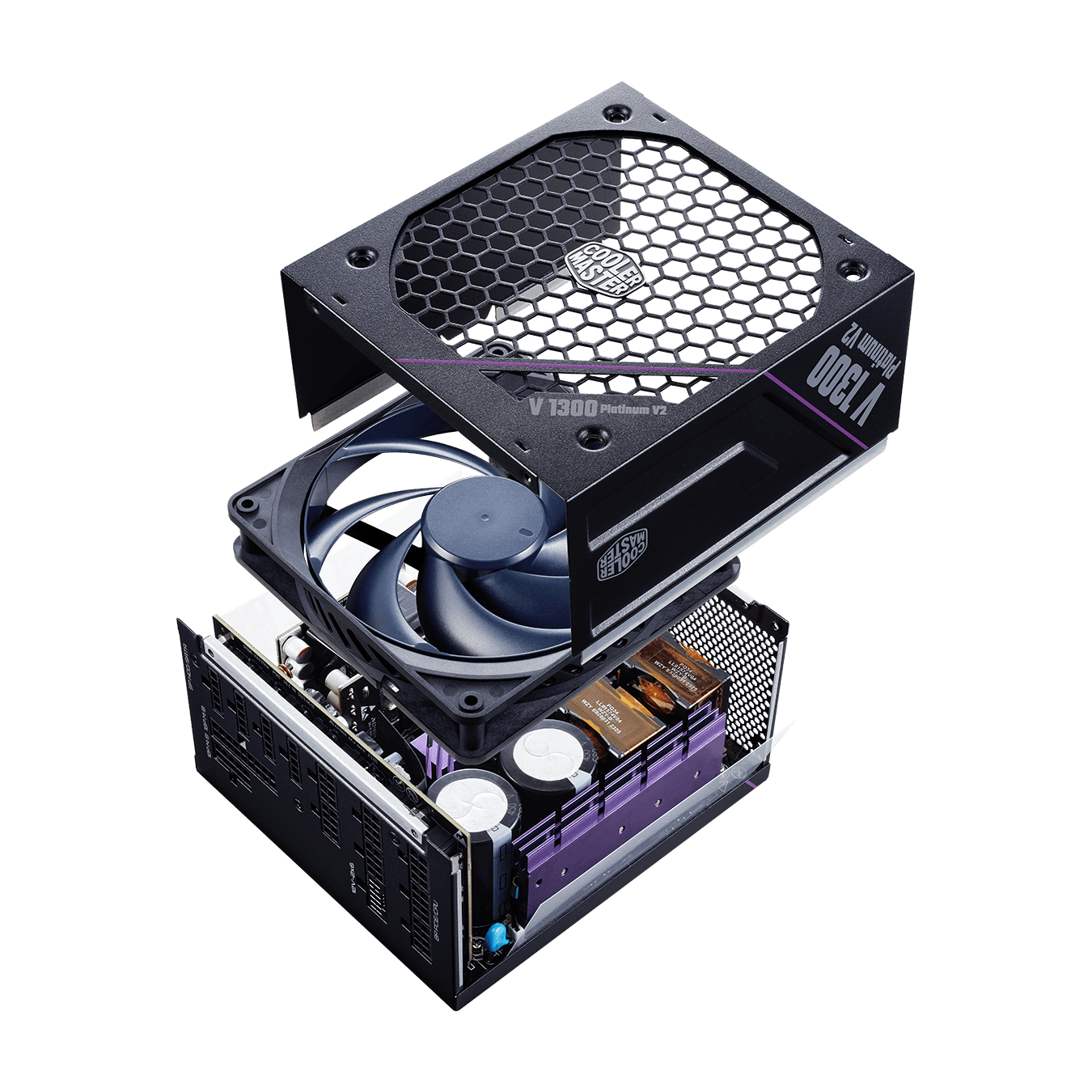

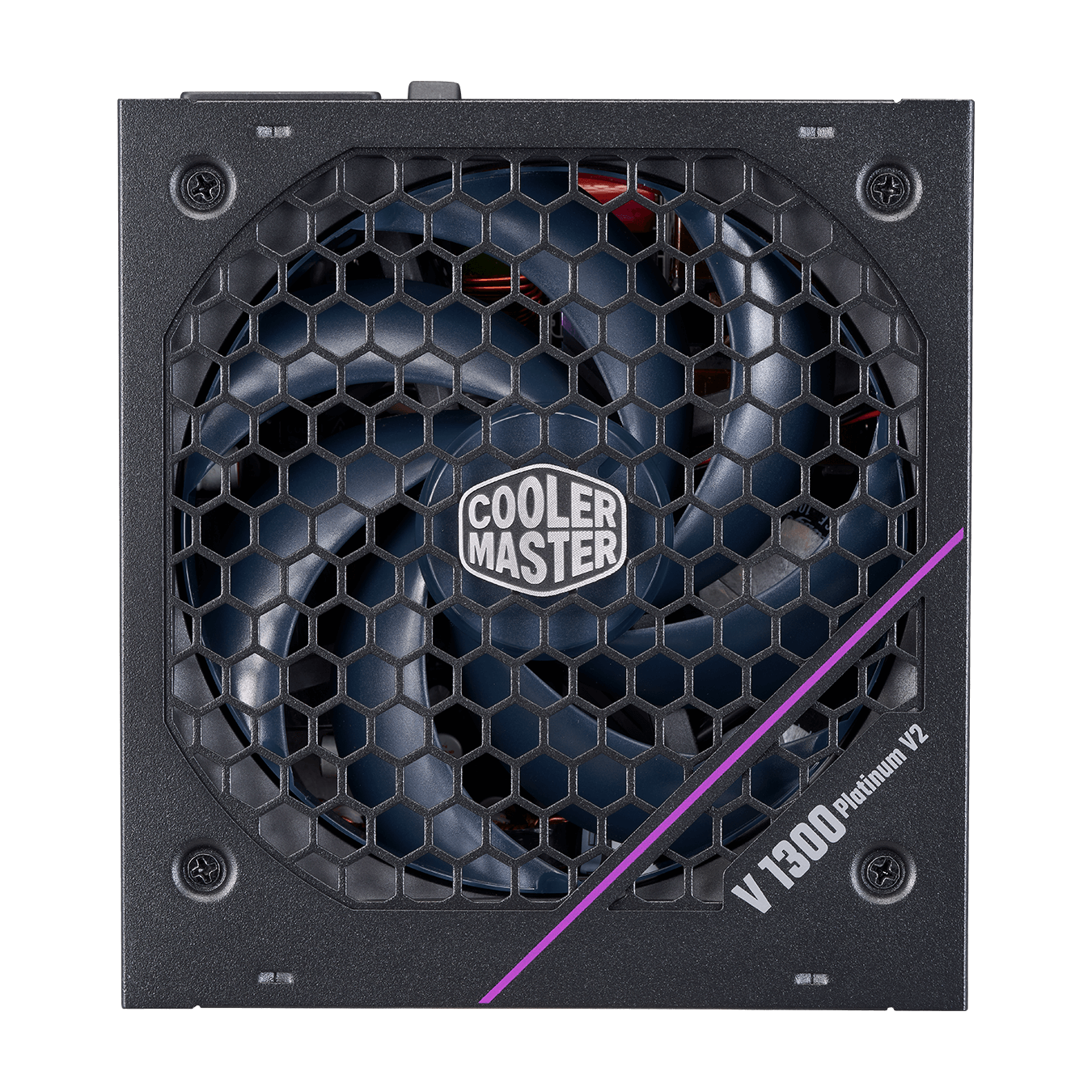

An ultra-quiet Mobius fan featuring high-performance oil reflow, an innovative ring blade design, and accelerated pressure air vents provides improved noise levels and advanced thermal performance.
A loop dynamic bearing with a thick oil coating ensures stable performance, prolongs the fan's lifespan, and effectively reduces noise.
A quieter, speedier fan features lower noise level output and improved airflow thanks to a higher RPM.
*All performance stats confirmed in 25°C ambient temperature testing.
Purple anodic-coated heat sink with bevel cut lowers average temperatures, compared to traditional heat sinks. Bevel cuts bring out the heat source more effectively, and after concentrating the flow field, benefiting the heat dissipation.
An interleaved PFC decreases power loss and improves efficiency by inimizing current, reducing interference, and reducing output capacitor ripple current.

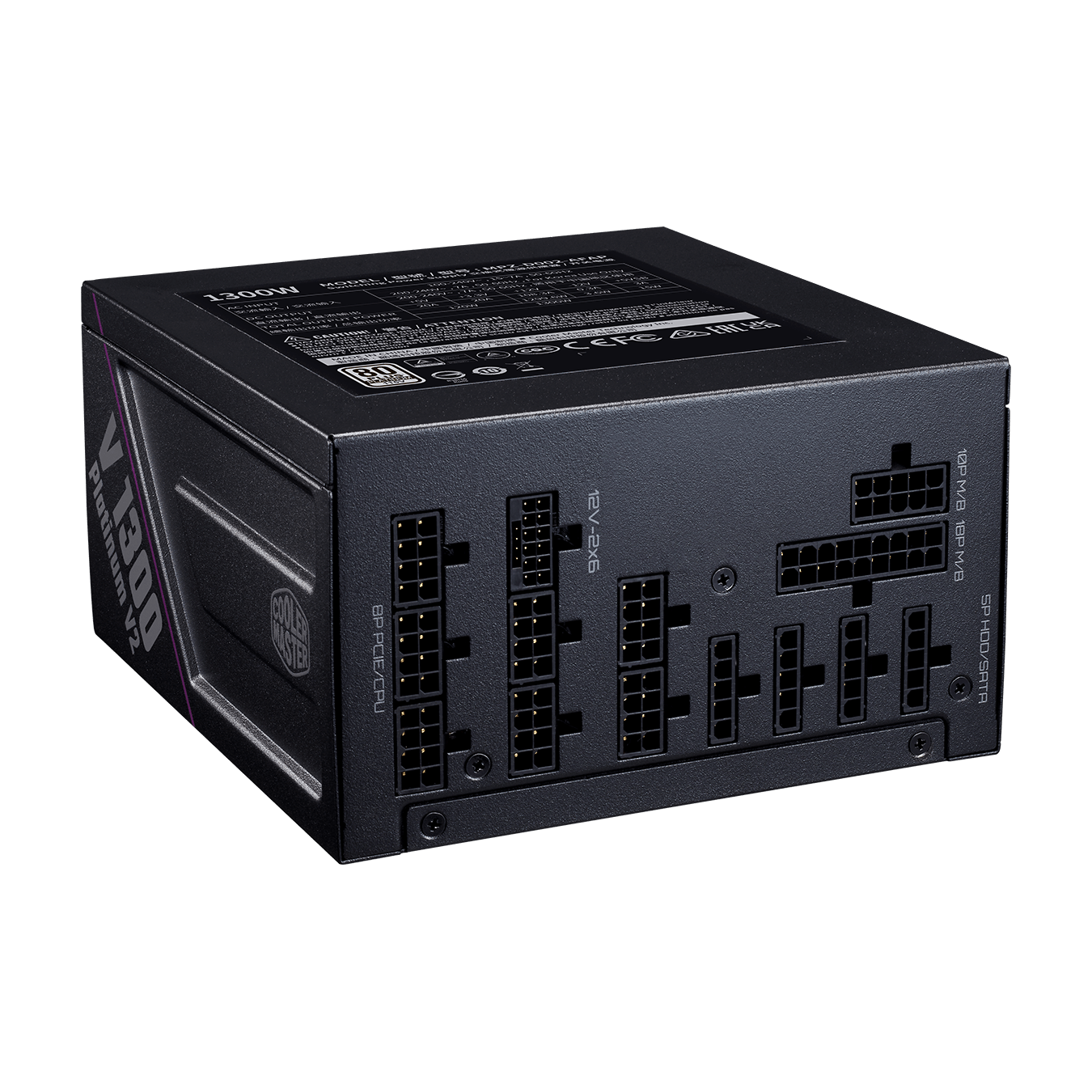

A modular cable management design reduces clutter, increases airflow, and improves overall efficiency as well as thermal performance.
| Model | MPZ-D002-AFAP |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 15-7A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 135mm |
| Fan Bearing | LDB |
| Fan Speed | 2400±10% RPM |
| Efficiency | ≥ 92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.) |

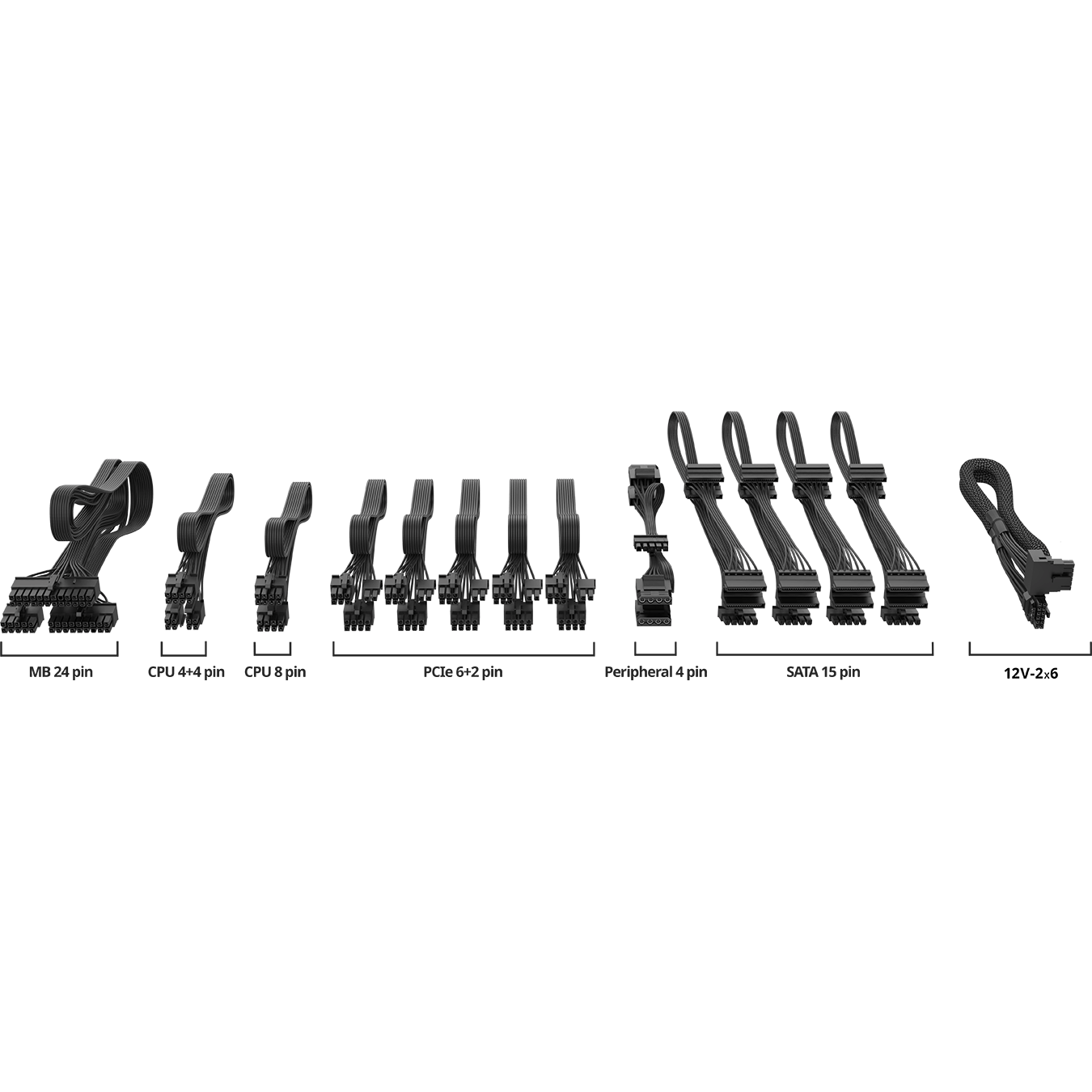

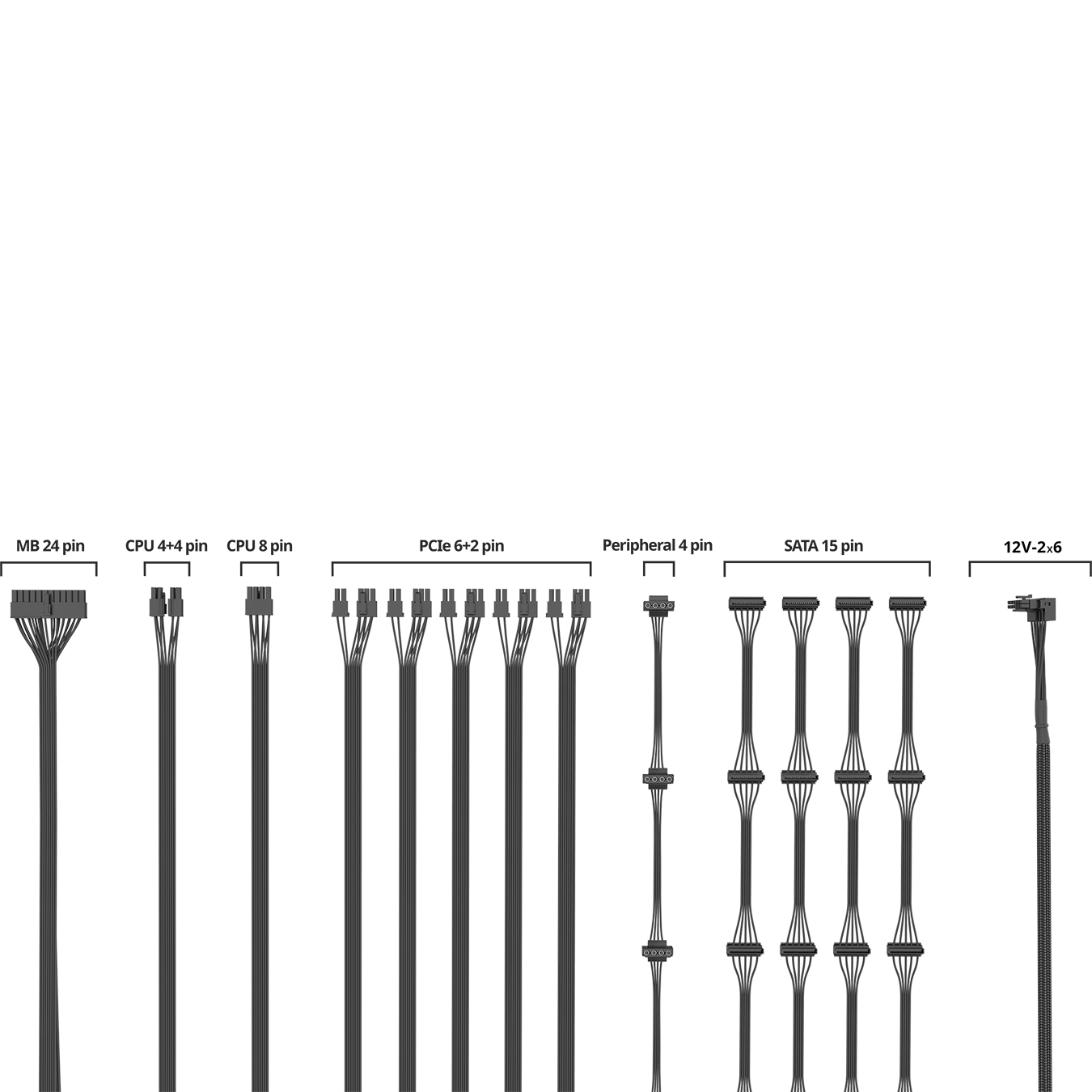

| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 16 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 5 |

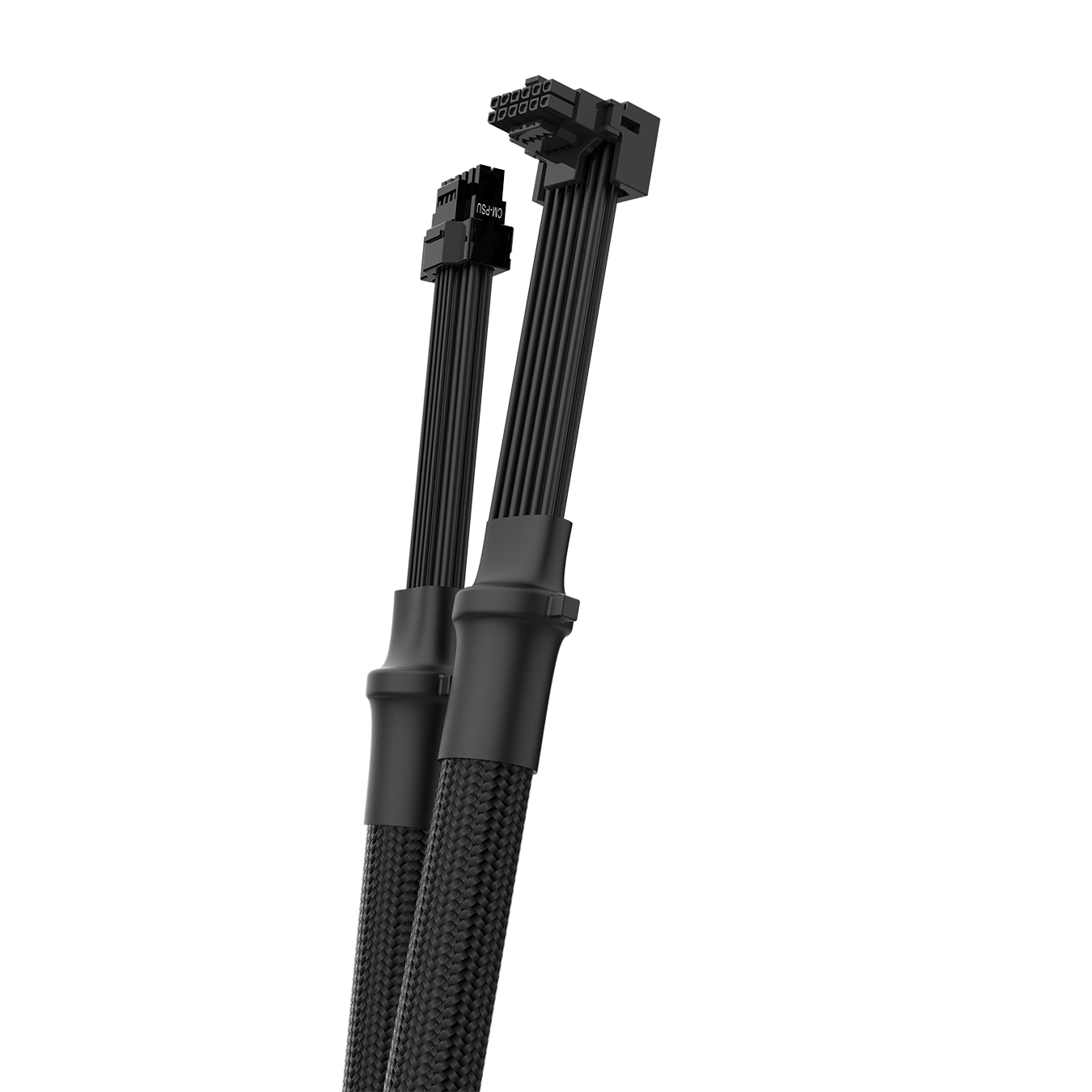

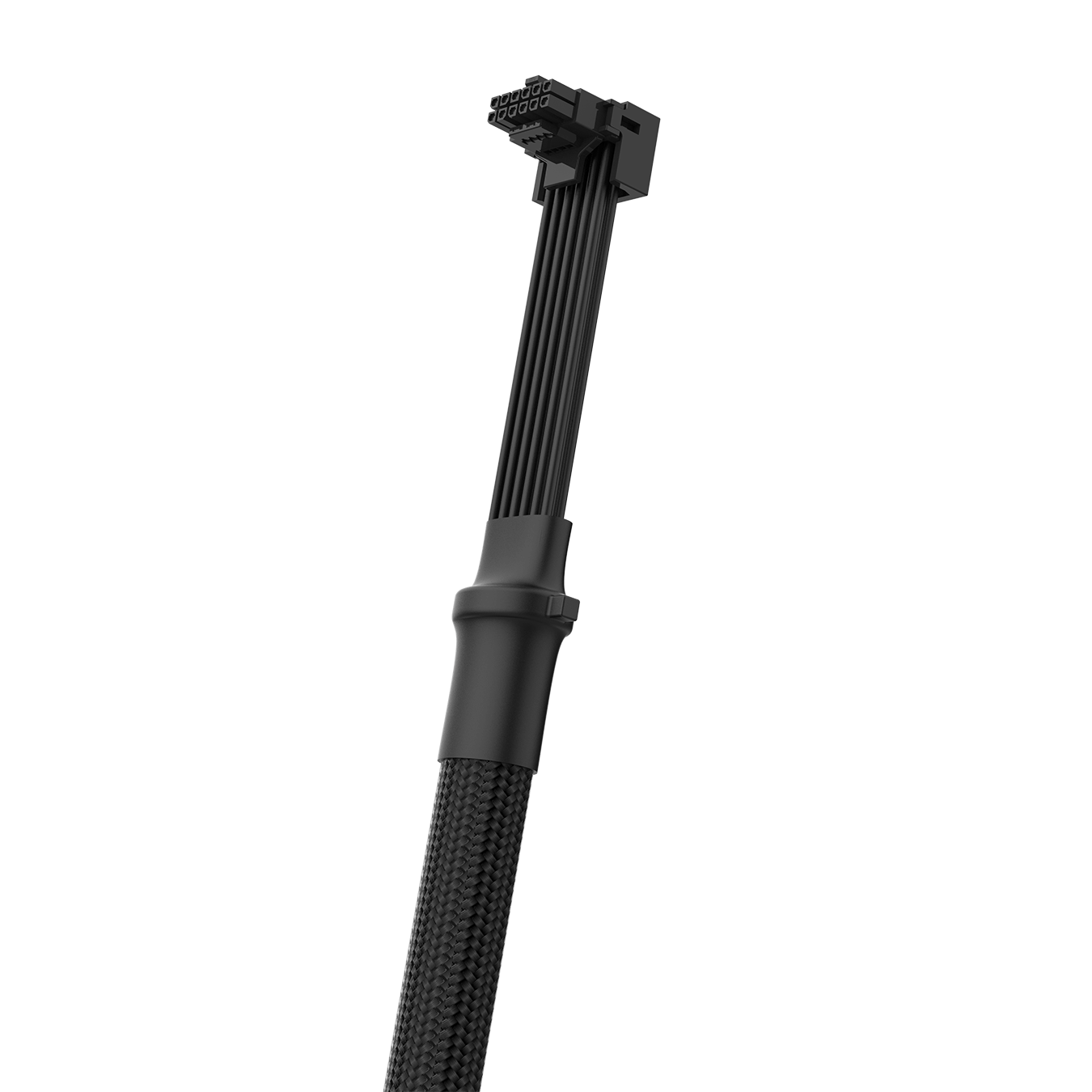

| 12V-2x6 Connectors | 1 |
| Series | V Platinum Series |
| 80 Plus Efficiency | Platinum |
| Modular | Fully Modular |
| Category | Above 750W |
| Form Factor | ATX |
| Watts | 1300W |
