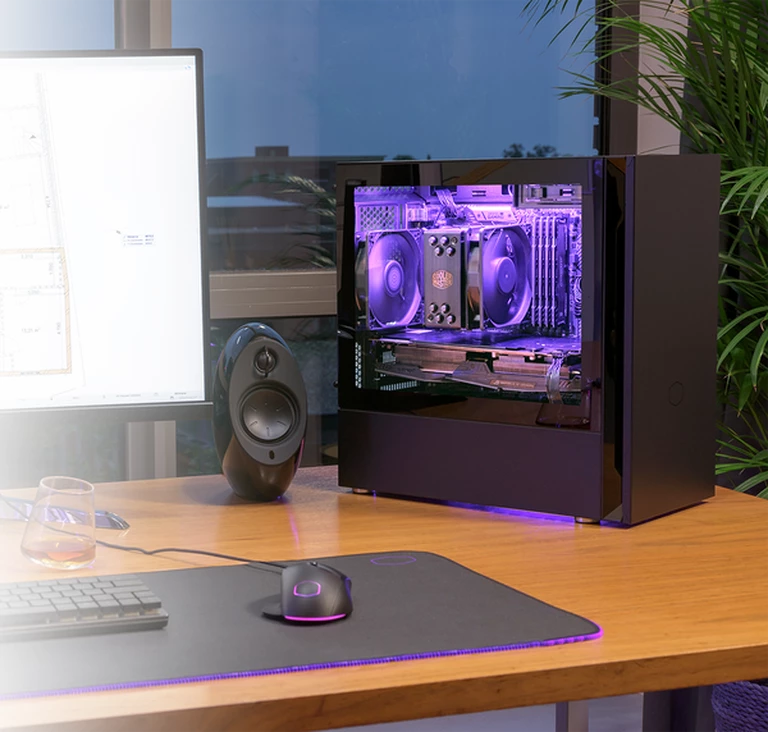

Silencio Design
The Silencio’s minimalistic design cloaks its complexity. Design elements fine-tuned in form and function result in minimized noise and efficiently maintained system temperatures.

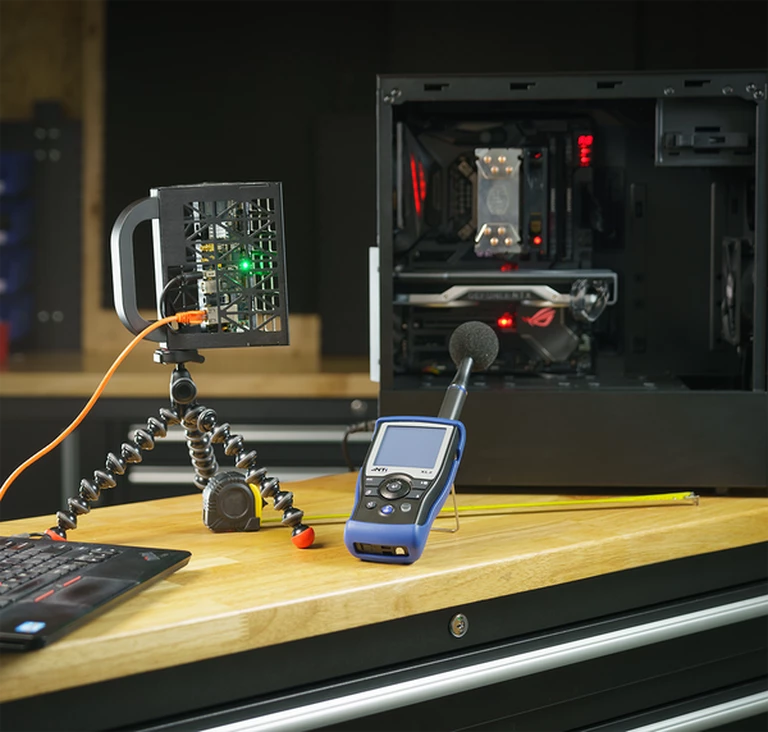

Silencio Technology
Behind the outer panels are pieces of meticulously placed sound dampening material. The development of the Silencio was driven by Sorama’s Cam64—this allowed for the entire sound spectrum to be visually analyzed by source, resonance pattern, and frequency.
With the identification of peaks within certain frequency ranges, fine-tuning the Silencio for the dispersion of resonance was made possible, reducing the prominence of noise generated by system components. Every detail in design optimized the Silencio for thermal efficiency and silence, from the type of material used to its placement.
Sound Dampening Material

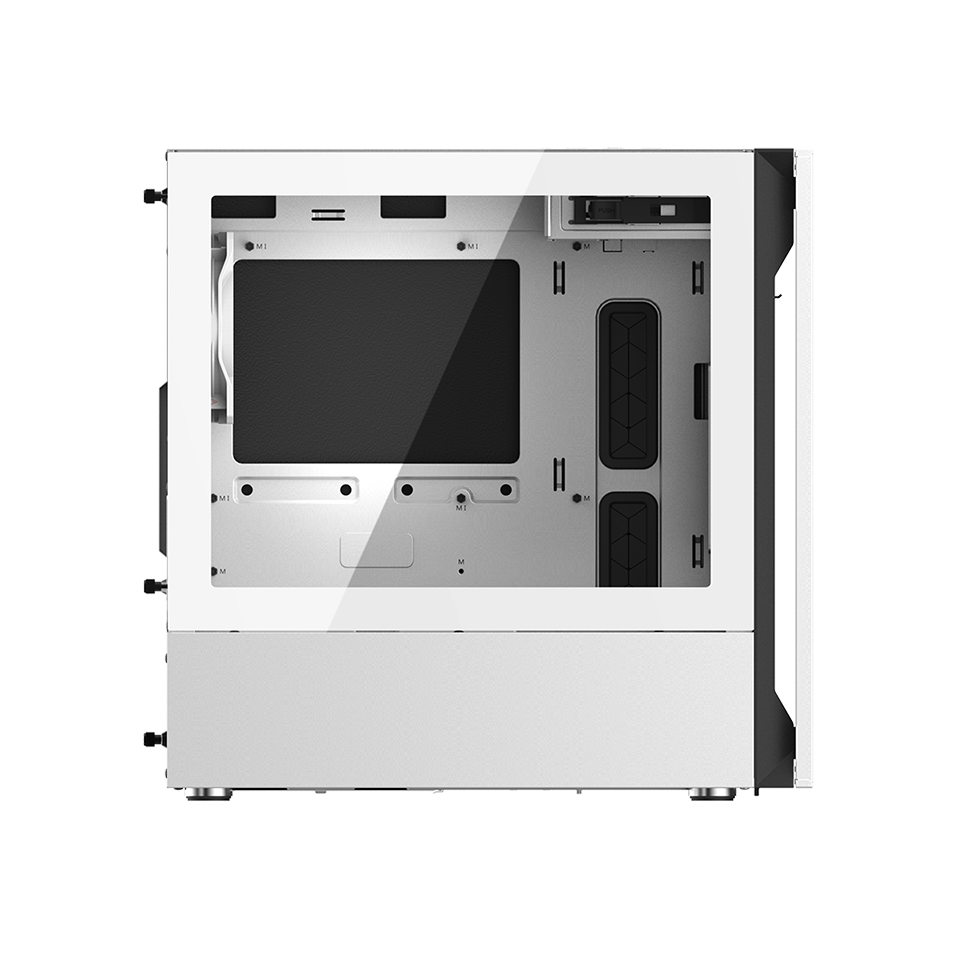

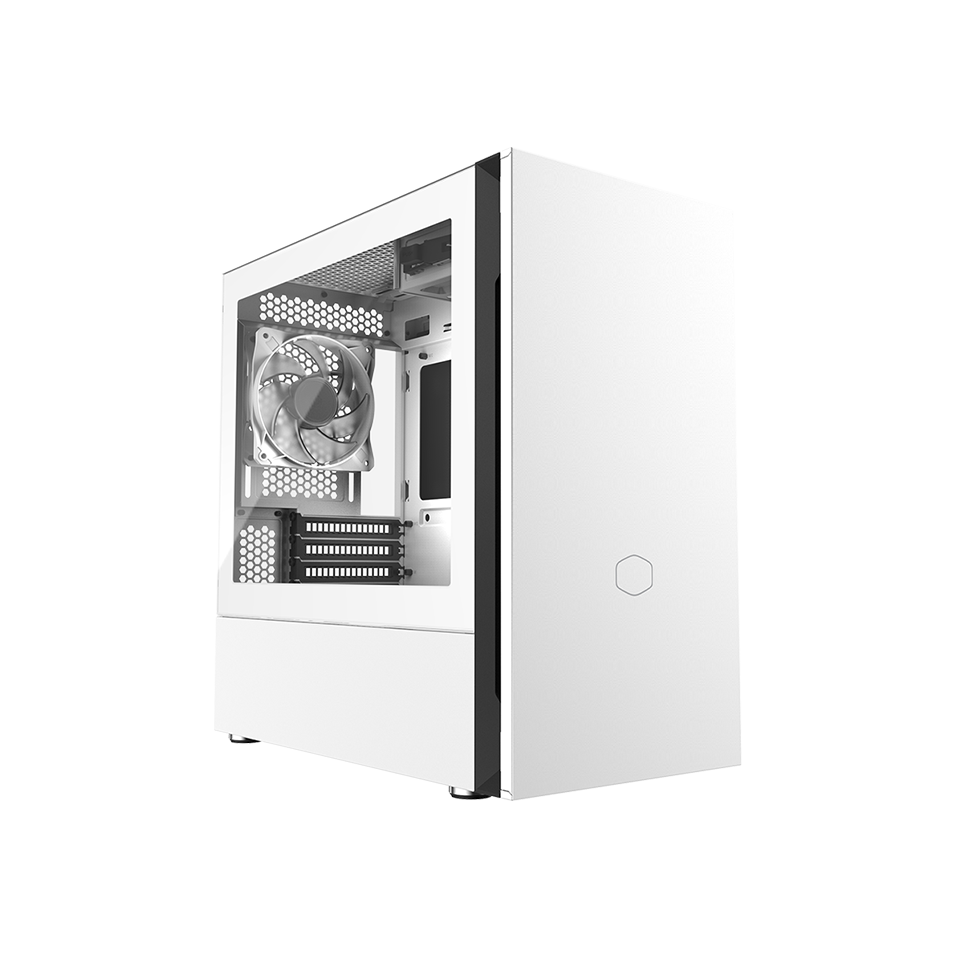

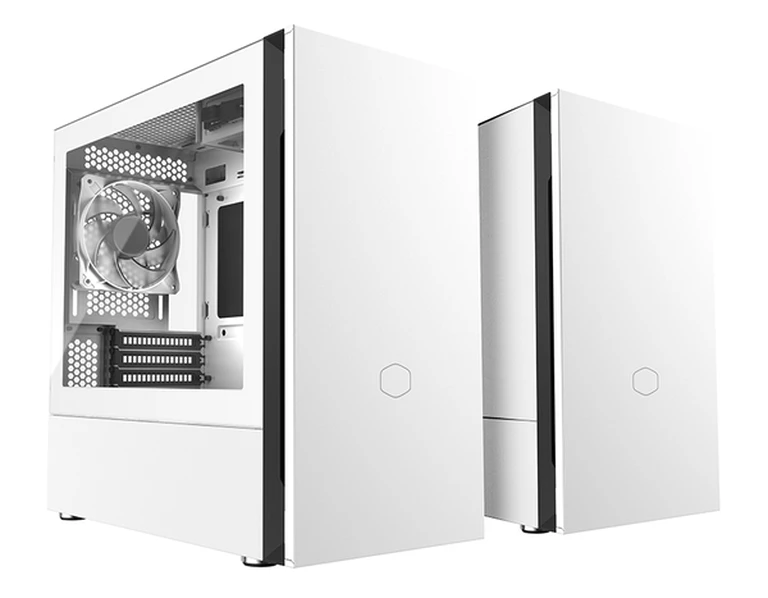

Seamless Tempered Glass or Sound-dampened Steel
Available with seamless tempered glass or a sounddampened steel side panel, systems can be built for show or for stealth with the Silencio.

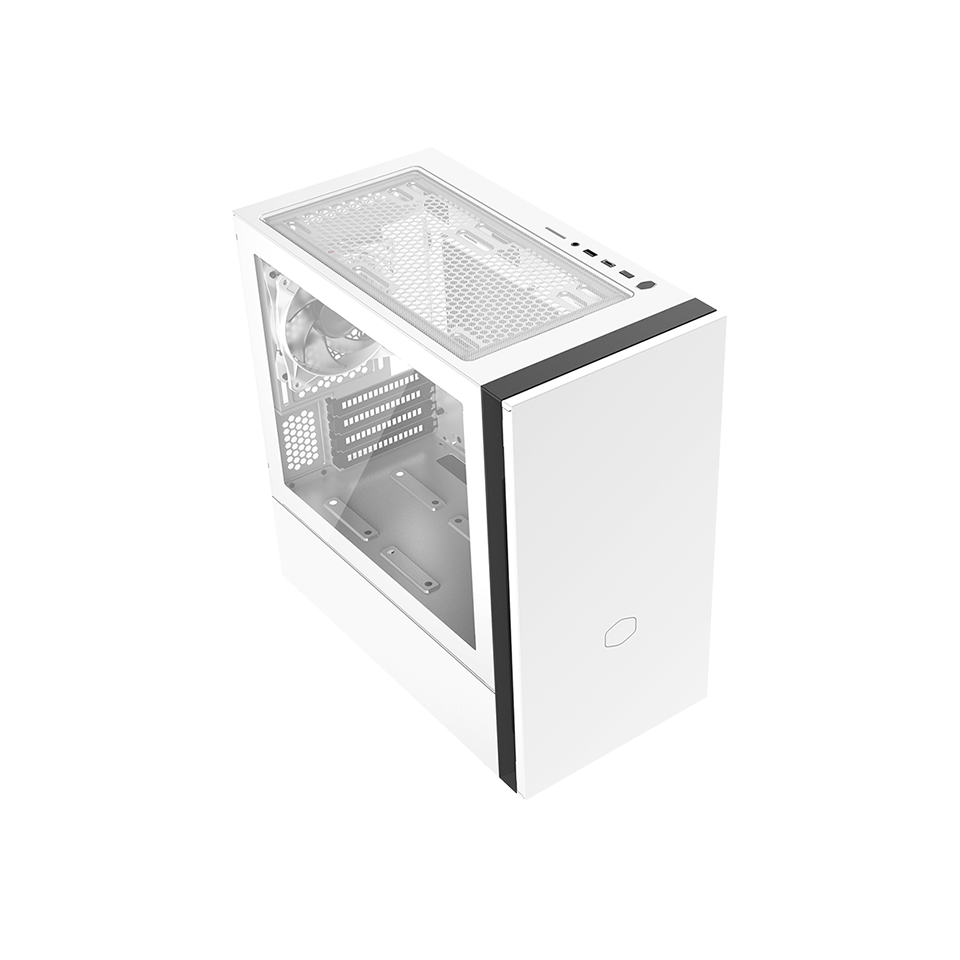

Top Panel Options
Reversible Steel Door & ODD Support
(re)movable Drive Cage

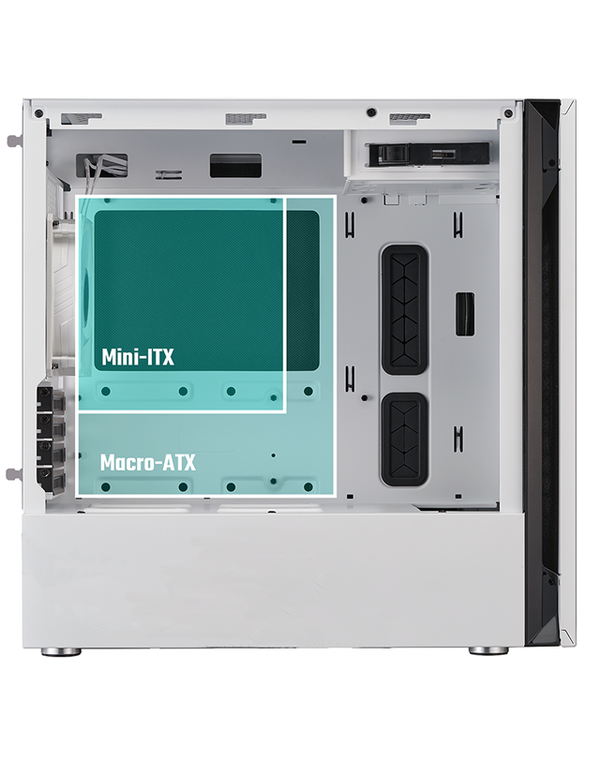

Motherboard Support
Mini-itx, Micro-atx

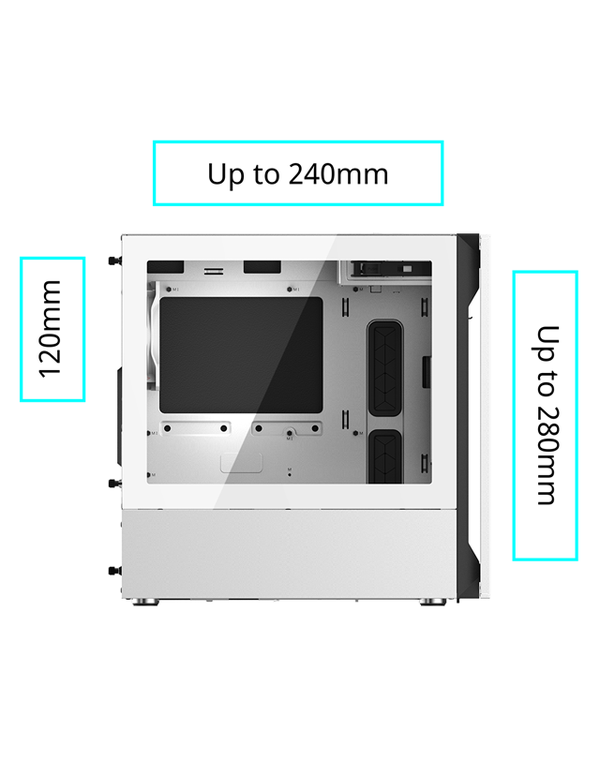

Cooling Support
Top:
120 / 140mm x 1 Fans
120 / 140mm x 2* Fans
120 / 240mm* Radiator
*remove ODD cage
Front:
120 / 140mm x 2 Fans
120 / 140 / 240 / 280mm* Radiator
*may interfere with HDD mounted below ODD bracket
Rear:
120 x 1 Fan
120 x 1 Radiator

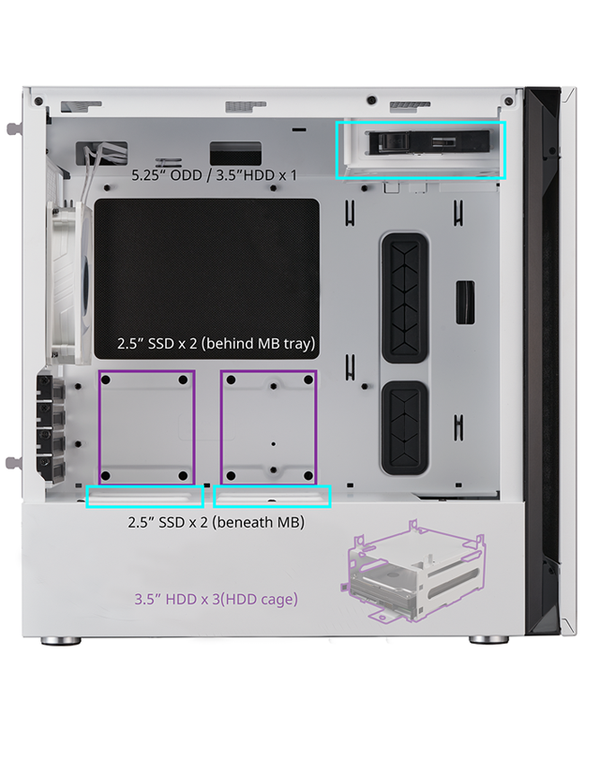

Storage Support
5.25inch ODD x 1
3.5inch HDD x 4
2.5inch SSD x 4
| Model Number | Steel: MCS-S400-WN5N-SJP, TG: MCS-S400-WG5N-SJP |
| Exterior Color | Black |
| Materials - Body | Steel, Plastic, Sound Absorbing Material |
| Materials - Left Side Panel | Sound-Dampened Steel (MCS-S400-WN5N-SJP), Tempered Glass (MCS-S400-WG5N-SJP) |
| Dimensions (L x W x H) | 418 x 210 x 408mm (incl. Protrusions), 403.5 x 210 x 400mm (excl. Protrusions) |
| Volume | 33.9L (excl. Protrusions) |
| Motherboard Support | Mini-ITX, Micro-ATX |
| Expansion Slots | 4 |
| 5.25" Drive Bays | 1 |
| 3.5" Drive Bays | 4 |
| 2.5" Drive Bays | 4 |
| I/O Panel - USB Ports | 1x USB 3.0, 1x USB 3.1 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) |
| I/O Panel - SD Card Reader | Supports SD & MMC Cards |
| Pre-installed Fans - Front | 1x CF120 non-Led (White) |
| Pre-installed Fans - Rear | 1x CF120 non-Led (White) |
| Fan Support - Front | 2x 120/140mm |
| Fan Support - Top | 1x 120mm, 1x 140mm / 2x 120mm, 2x 140mm (remove ODD cage) |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Front | 120 / 140 / 240 / 280mm (remove & reinstall ODD bracket to mount 280mm radiator, may interfere with HDD mounted below ODD bracket) |
| Radiator Support - Top | 120mm, 240mm* (*240mm requires removal of ODD cage) |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | Steel: 167mm, TG: 166mm |
| Clearance - PSU | 325mm (w/o front radiator & drive cage), 140mm (HDD cage in backmost position) |
| Clearance - GFX | 319mm |
| Cable Routing | 20mm |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom Mount, ATX PS2 |
| Size | Mini Tower |
| Series | Silencio Series |
