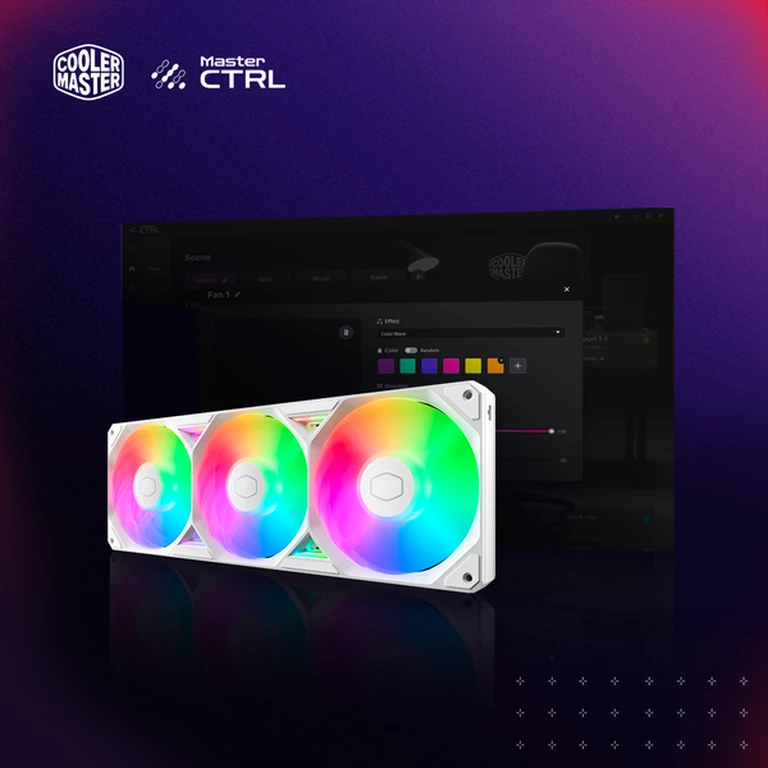

ADDRESSABLE RGB LIGHTING
Experience vibrant and personalized lighting effects with addressable RGB, fully controllable through our in-house MasterCTRL software for seamless customization.
MULTI-FAN CONFIGURATION
A single-frame unit enhances internal airflow, effectively expelling heat and significantly improving cooling efficiency.
QUICK CONNECTION
Uses one modular cable for lighting and power, simplifying management and improving aesthetics.
EASY INSTALLATION
Only 4 screws are needed for a hassle-free installation.
HOLLOW FRAME STRUCTURE
This lightweight yet durable fan module, featuring a hollow design with triangular vents ensures efficient airflow and long-lasting performance without adding bulk to your build.

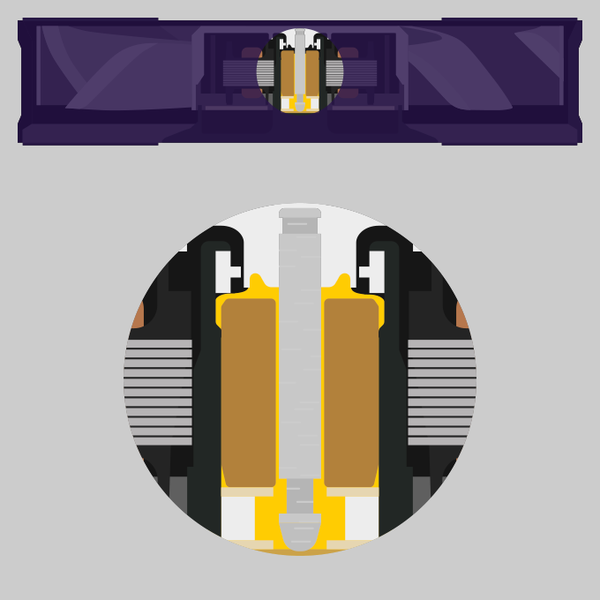

LOOP DYNAMIC BEARING
Features our loop dynamic bearing, our in-house bearings, preventing dust and oil leakage and enhancing operational stability and lifespan.
| Product Number | MFX-B2DW-25TP2-R1 |
| Exterior Color | White |
| Dimensions (L x W x H) | 361 x 122 x 26.5 mm / 14.21 x 4.8 x 1.02 inch |
| Profile | Addressable Gen 2 RGB |
| Fan Speed | 690~2500 ± 10% RPM |
| Fan Airflow | 322.8 m³/h (190 CFM) |
| Fan Pressure | 3.54 mmH₂O (Max) |
| Fan MTTF | >160,000 Hours |
| Fan Noise Level | 38.5 dBA (Max) |
| Bearing | Loop Dynamic Bearing |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.6A |
| Fan Safety Current | 0.8 A |
| Fan Power Consumption | 6 W |
| Warranty | 5 years |
| Cooler Type | Case Fan |
| Series | SickleFlow |
| LED Lighting | ARGB |
| Fan Size | 360 |
