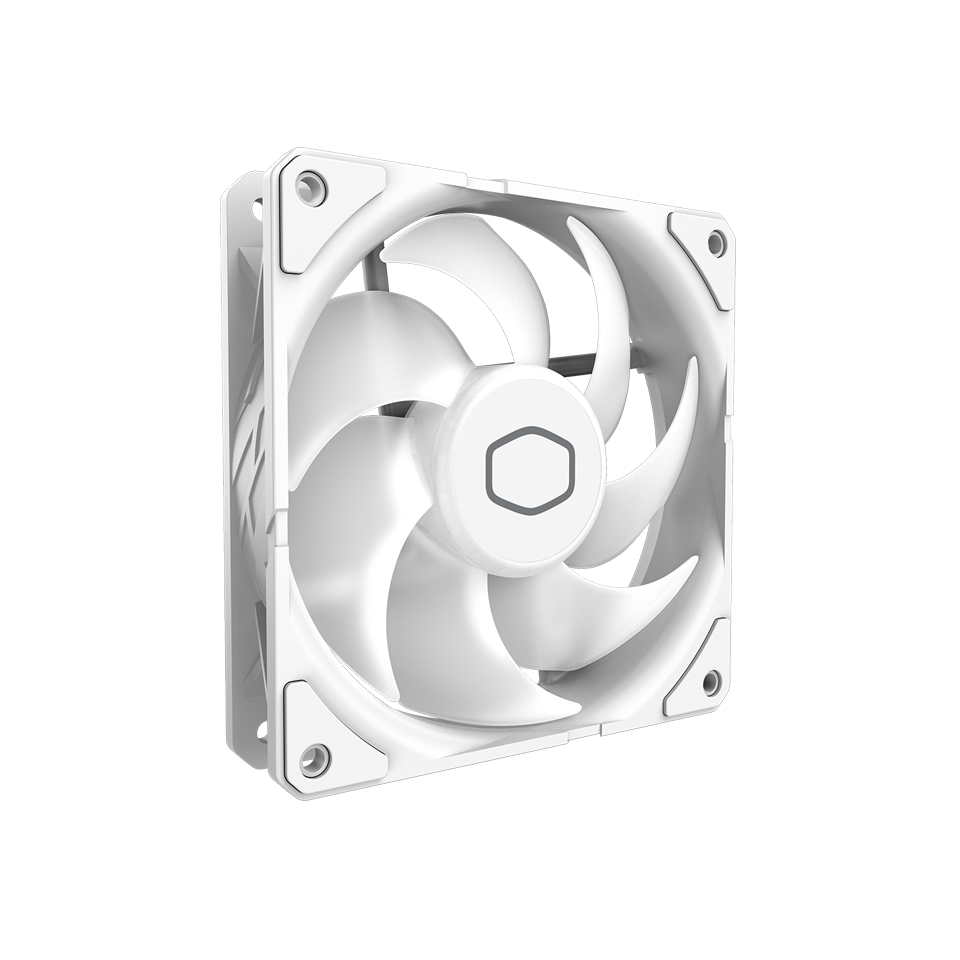

Enhanced Fan Blade
An improved fan blade provides higher fan speed, air pressure, and airflow while sticking to the same low noise level the SickleFlow is known for.

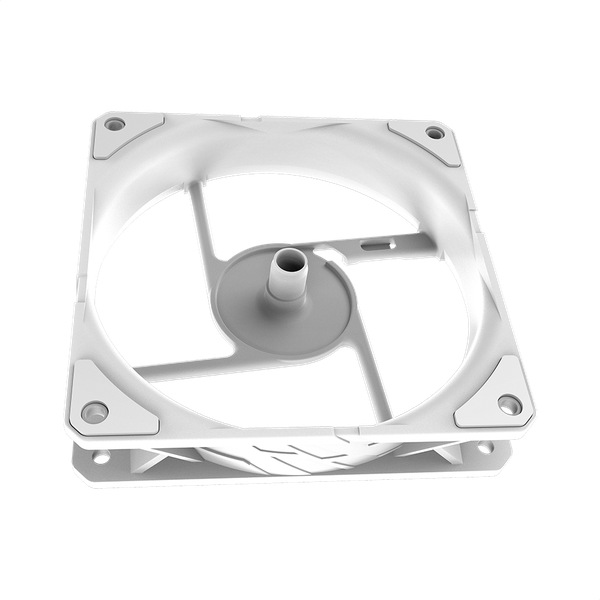

REDESIGNED FAN FRAME
The SickleFlow’s signature lines are now included in the frame design to provide a more cohesive product design.
IMPROVED BEARING SYSTEM
An enhanced loop dynamic bearing system keeps things running silently smooth.
A1 MINI LED CONTROLLER
Control and customize your SickleFlow Edge 120 Fan Kit's lighting with a compact, easy-to-use mini controller.
| Product Number | MFX-B2DW-25NP2-R2 |
| Exterior Color | White |
| Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch |
| Profile | Addressable Gen 2 RGB |
| Fan Speed | 690~2500 ± 10% RPM |
| Fan Airflow | 70.7 CFM |
| Fan Noise Level | 32.8 dBA |
| Fan Bearing Type | Loop Dynamic Bearing |
| Fan Pressure | 3.61 mmH₂O |
| Fan MTTF | >160,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.2A |
| Fan Safety Current | 0.3A |
| Fan Power Consumption | 2.4W |
| RGB Connector | 3-Pin ARGB |
| RGB Rated Voltage | 5 VDC |
| RGB Rated Current | 0.21A |
| Fan Weight | 168g / 0.37 lbs |
| Warranty | 2 years |
