The NR200P MAX V2 enhances GPU support capability up to 356.7mm and includes a GPU holder and a 12VHPWR power cable for the latest GPUs. Combined with tailor-made thermal and power delivery solutions, the NR200P MAX V2 comprehensively satisfies users' demands for a high-end ITX system with a 'ready-to-go' package
The NR200P MAX V2 is equipped with an 'Ncore-patterned' side steel panel. This upgrade assists the system in increasing ventilation, ensuring that power-hungry builds stay cool and run more efficiently. Additionally, the edge-to-edge tempered glass panel provides a premium aesthetic.
Next-gen systems are becoming more and more power-hungry and to power it all, NR200P MAX V2 implements an ATX 3.0 850W Gold-certified PSU with custom-length textured cables specifically designed to cover all performance needs.
A 280mm radiator, two pre-installed SickleFlow PWM 140mm fans and Cooler Master's highly acclaimed 3rd generation pump/CPU block provide reliable cooling for the CPU. AMD sockets up to AM4 and AM5 and Intel sockets up to LGA1700 are fully supported.

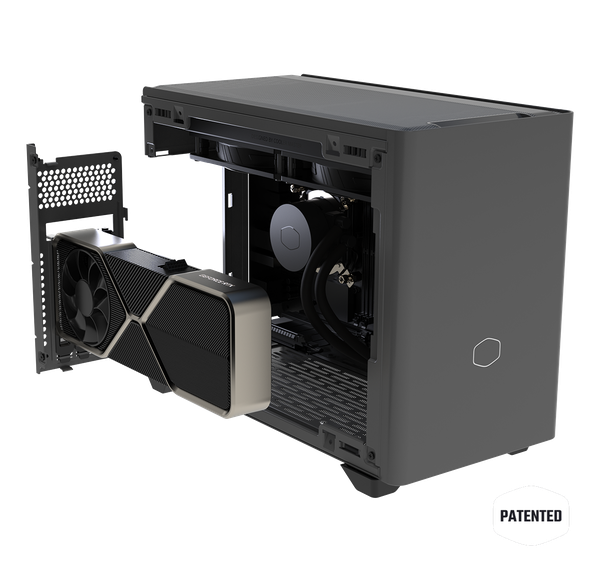

The NR200P MAX V2 supports triple-slot GPUs up to 357.6mm in length and 160mm in height. Additionally, this chassis has been specifically designed for vertically mounted GPUs to ensure powerful performance.
NR200P MAX V2 comes equipped with a premium shielded PCIe Gen4 Riser Cable to ensure both maximum compatibility and performance with all graphics cards.
The pre-installed, 80 Plus ATX 3.0 Gold efficiency PSU features 16AWG PCIe full-modular, high efficiency cables tailor-made to allow ease of installation without the hassle of cable management. Tailor-made to a small form factor, this PSU allows clearance for the largest, widest graphics cards while making the most of NR200P MAX V2’s 18 liter chassis.
NR200P MAX V2’s built-in 280mm radiator boasts unmatched cooling efficiency owing to a 25% increase in aluminum fin surface area.
Compatible with a wide variety of Intel and AMD sockets (all brackets included), the AIO’s upgraded Gen3 dual-chamber pump is bound to keep any CPU running at optimum performance. Included Sickleflow 140 Non-LED fans utilize a two-tier sealing mechanism to prevent dust accumulation, resulting in longer serviceable life span and silent performance.
Cooler Master's V Gold power solutions, renowned for their extraordinary performance delivery and high reliability, have been upgraded to support ATX 3.0. This ensures that the system is capable of satisfying all levels of performance needs.
| Product Number | NR200PV2-MCNN85-SL0, NR200PV2-MCNN85-SL1 |
| Exterior Color | Grey |
| Materials - Exterior | SGCC Steel, Mesh, ABS Plastic |
| Materials - Left Side Panel | Tempered Glass x1, Steel x1 |
| Dimensions (L x W x H) | 377 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions) |
| Volume | 18.25L |
| Motherboard Support | Mini-ITX, Max. size: 170 x 180mm |
| Expansion Slots | 3 |
| Drive Bays - 5.25" ODD | 0 |
| Drive Bays - 3.5" HDD | 1 (Max. 2, remove bottom fan) |
| Drive Bays - 3.5" / 2.5" Combo | 1 |
| Drive Bays - 2.5" SSD | 1 (Max. 2) |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen2x2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Headset Jack (Audio + Mic) |
| Included Accessories | 1x PCIe 4.0 x16 Riser Cable, 1x GPU Holder |
| Included CPU Cooling Solution | 2x 140mm SickleFlow PWM, 280mm Radiator, Gen 3 Cooler Master Pump / CPU Block |
| Included Power Supply Unit | V SFX Gold 850W ATX 3.0 |
| Fan Support - Top | 2 x 120mm / 2 x 140mm |
| Fan Support - Bottom | 2 x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom) |
| Radiator Support - Top | 120 / 140 / 240 / 280mm |
| Clearances - CPU Cooler | 67mm |
| Clearances - Power Supply | 130mm |
| Clearances - Graphics Card | Exceed front bracket: L: 357.6mm (incl. power connector), H: 160mm (incl. power connector), W: 73mm (triple slot) |
| Clearances - Graphics Card | Not exceed front bracket: L: 334mm (incl. power connector), H: 160mm (incl. power connector), W: 80mm (triple slot) |
| Dust Filters | Bottom, Left, Right, Top Panels |
| Power Supply Support | SFX, SFX-L |
| Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
| Size | Mini ITX |
