PSU Calculator
Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.
Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
Premium Braided EPS Connectors
Two 4-pin EPS connectors are included for universal compatibility with current-gen motherboards. The cables feature premium braided sleeving for enhanced durability, flexibility, and a clean, professional look.
DC-to-DC technology
High conversion efficiency and independent voltage regulation for stable power delivery.

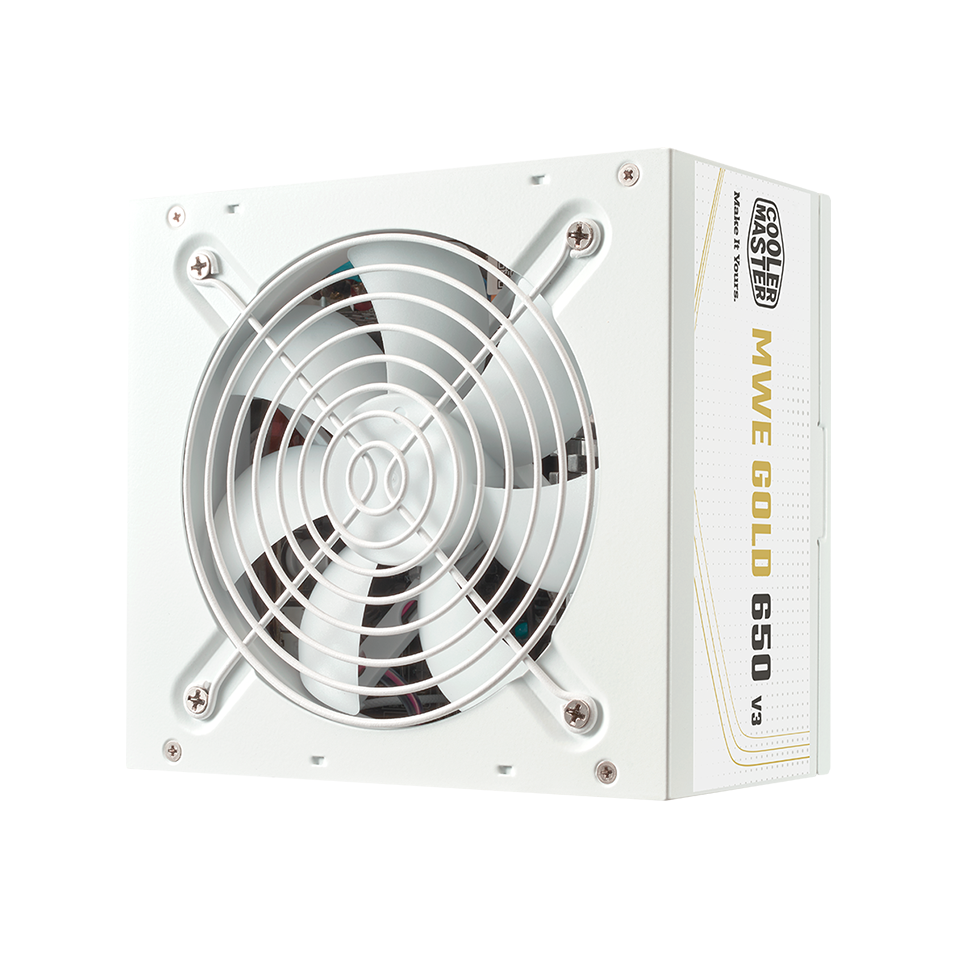

| Model | MPE-8506-ACAG-G**, MPE-7506-ACAG-G**, MPE-6502-ACAAG-3G**, MPE-5502-ACAAG-3G** |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-6A (850/750W), 10-5A (650W), 8-4A (550W) |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Fan Speed | 2400 RPM (850/750/650W), 1800 RPM (550W) |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥16ms at 80% Load |
| MTBF | >100,000 Hours (850/750W), >100,000 Hours @ 25℃ambient (650/550W) |
| Protections | UVP / OVP / OPP / OTP / SCP / OCP |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.) |
| ATX 24 Pin Connectors | 1 |
| EPS 8 Pin / 4+4 Pin Connectors | 2 |
| PCI-e 6+2 Pin Connectors | 4 (850/750/650W), 2 (550W) |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| 12V-2x6 (12+4 Pin) Connectors | 1 (850/750W) |
| Series | MWE Gold Series |
| Modular | Non Modular |
| Form Factor | ATX |
| 80 Plus Efficiency | Gold |
