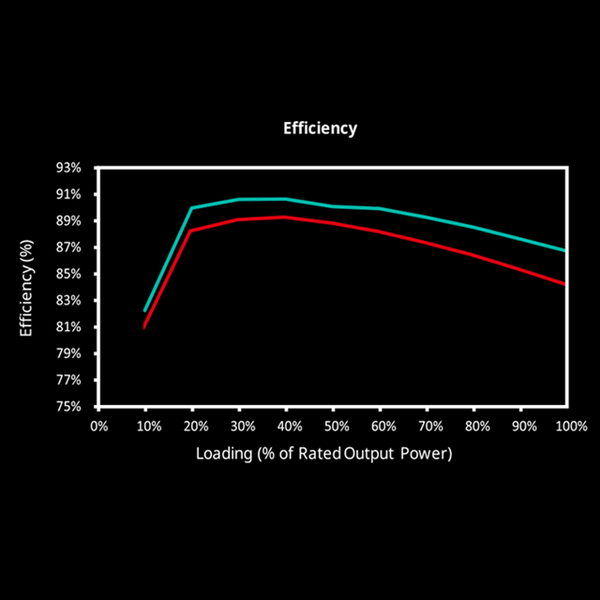

Certified Efficiency
The MWE Bronze V3 is certified to achieve more than 85% efficiency at typical loads.
*All performance stats confirmed in 25°C ambient temperature testing.
ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
*All performance stats confirmed in 25°C ambient temperature testing.

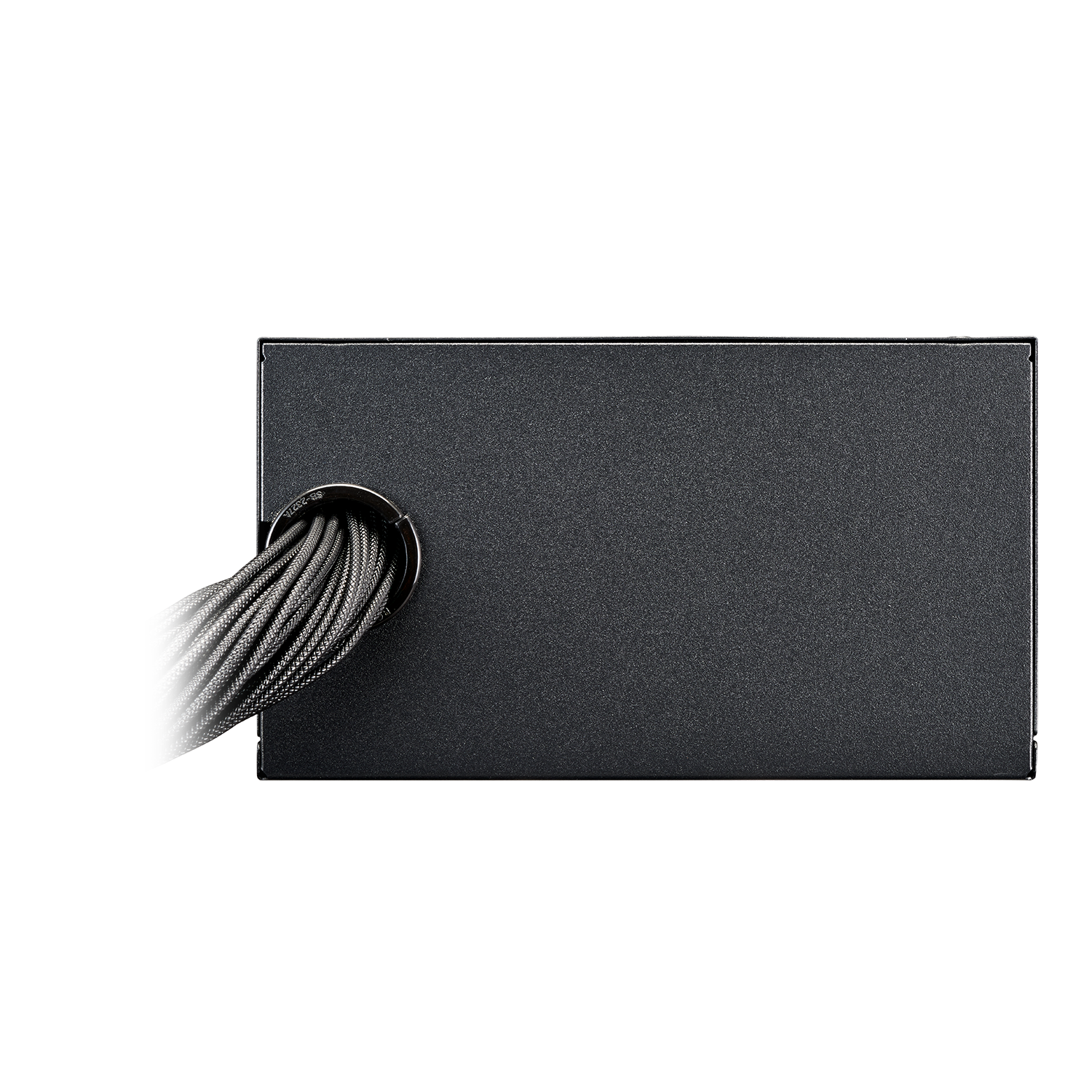

Embossed Cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.

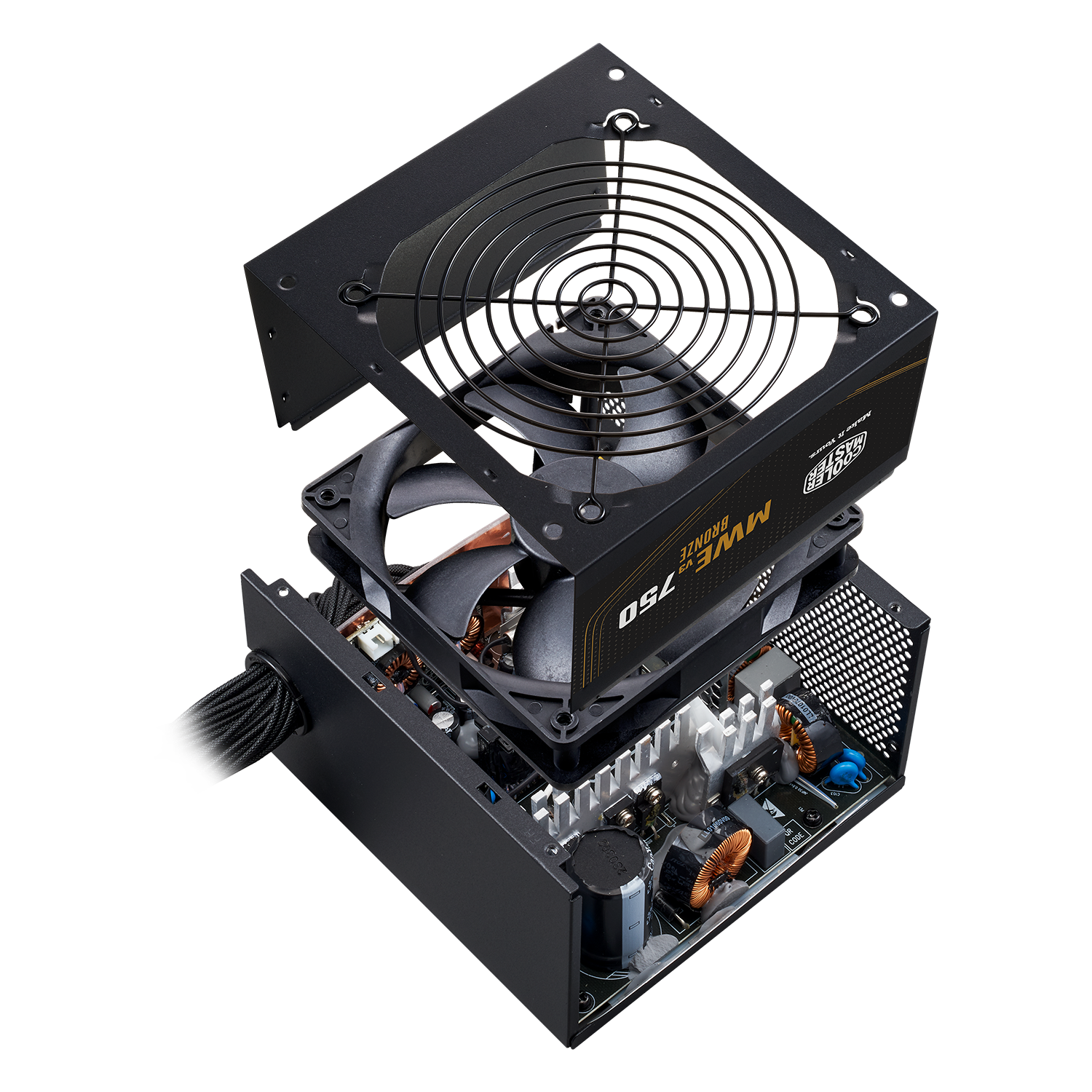

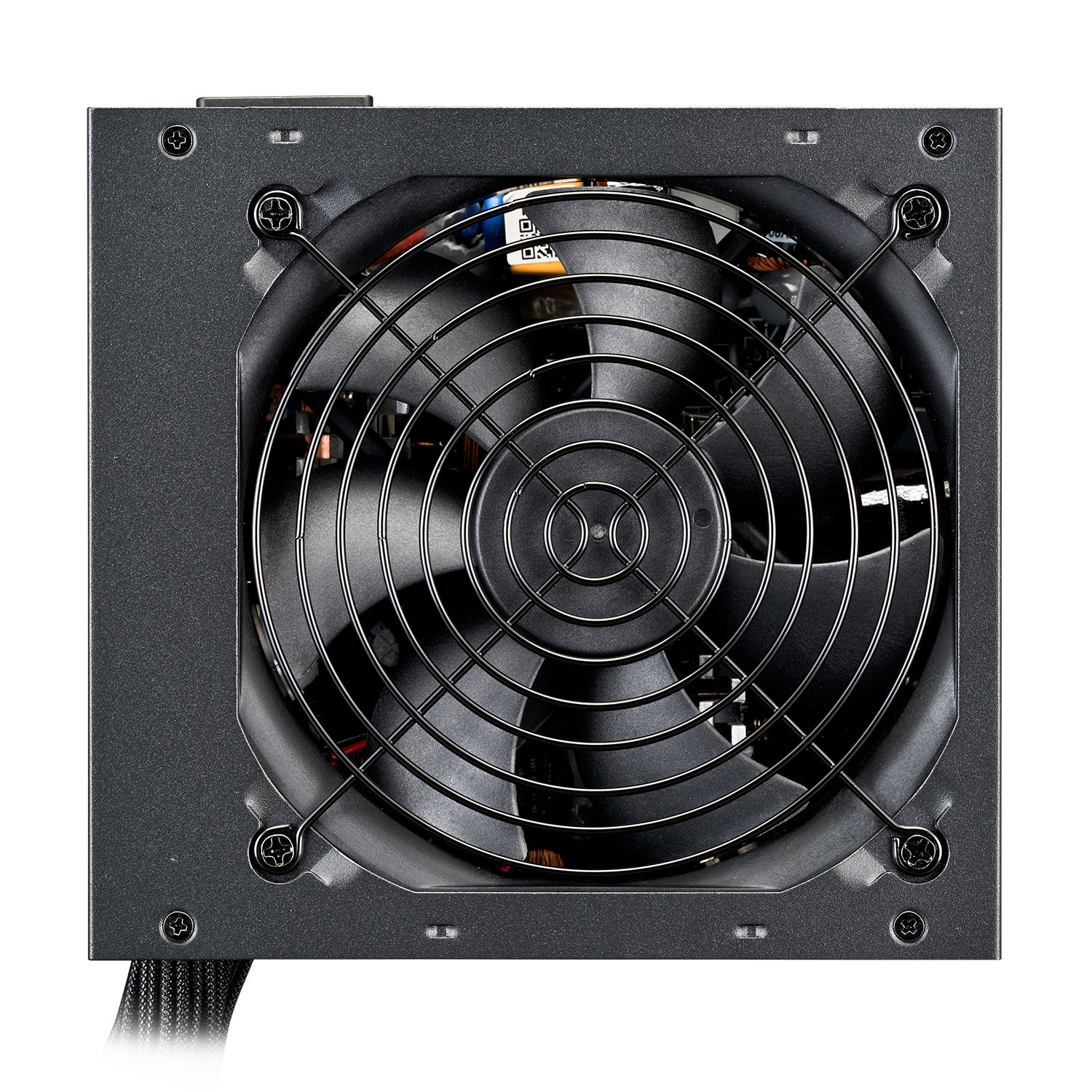

Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
*All performance stats confirmed in 25°C ambient temperature testing.
High Temperature Resilience
A 40°C operating temperature allows for pushing your machine to the limits.
*All performance stats confirmed in 25°C ambient temperature testing.
| Model | MPE-7501-ACAAW-3B |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-6A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Efficiency | >85% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Bronze |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | >16ms |
| MTBF | >100,000 Hours |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.) |
| ATX 24 Pin Connectors | 1 |
| EPS 8 Pin / 4+4 Pin Connectors | 2 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| PCI-e 6+2 Pin Connectors | 4 |
| Warranty | 5 Years |
| Series | MWE Bronze Series |
| Category | 500 to 750W |
| Modular | Non Modular |
| 80 Plus Efficiency | Bronze |
| Form Factor | ATX |
| Watts | 750W |
