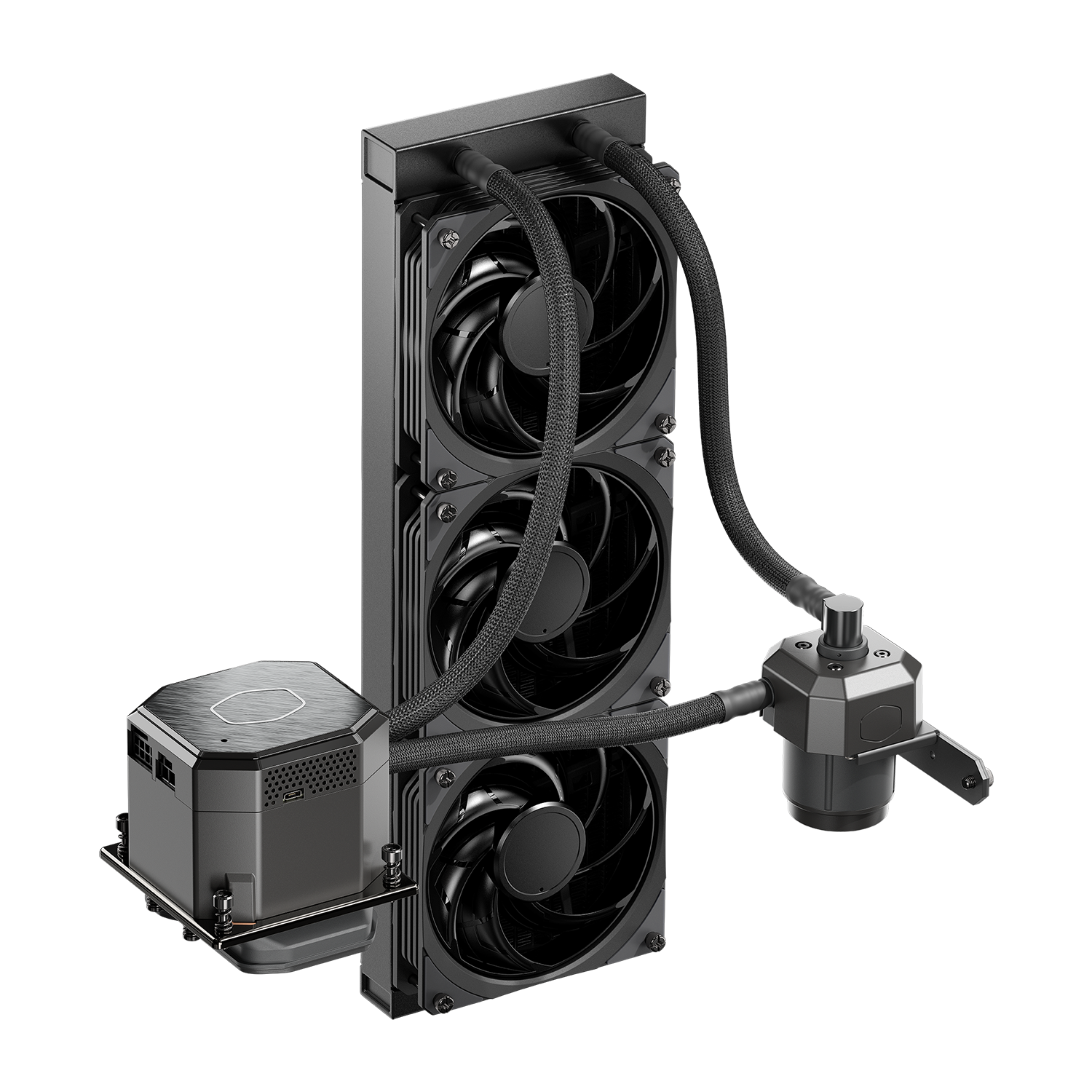

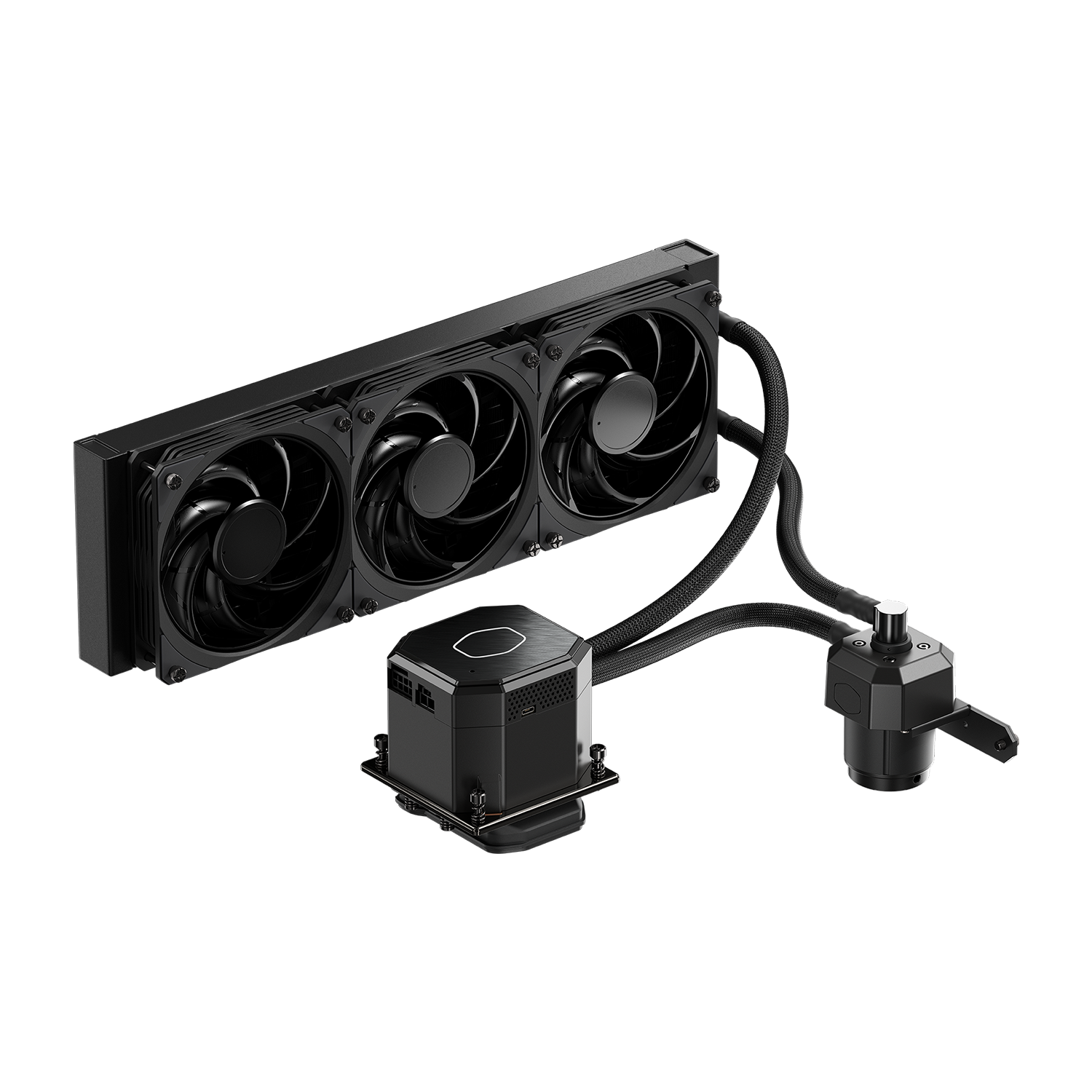

ML360 SUB-ZERO POWERED INTEL® CRYO COOLING TECHNOLOGY
“The MASTERLIQUID ML360 SUB-ZERO cooler is exclusively powered by Intel Cryo Cooling Technology, a unique combination of hardware, software, and firmware designed to help unleash elite performance for gamers, overclockers, and content creators.”
Improved and Enhanced Pump
Newly Designed Pump traditionally used in DIY cooling systems with high performance motor that has an enhanced repeller to dissipated heat from the TEC in a more efficiently.
KEY FEATURES
Sub-Ambient Cooling
Specifically designed using Thermoelectric Unit (TEC) to cool your processor and create the conditions that allow it to achieve low core count over-clocking.
Powered by Intel Cryo Cooling Technology
Designed with a simple user interface making it easy to understand and control the sub-ambient cooling potential.
Cryo-Clocking
Silicon can reach higher frequencies at lower voltages that can only be achieved through sub-ambient cooling. The concept of Cryo-Clocking is to push
2nd Generation Pump
Enhanced pump delivers higher liquid flow for exceptional heat removal.
RECOMMENDED INSTALLATION
A: Top Mounted 360 mm Radiator
B: Front Mounted Pump
To get the best performance for your system for you CPU we recommend a top installation of the 360mm radiator and a front installation of the pump. The fans are pre-installed on the radiator and pump bracket pre-attached (out-of-box).
SETTING UP OVERCLOCKING ON YOUR CPU
Overclocking your CPU doesn’t have to be complicated and can be achieved in 2 basic ways:
Overclocking through BIOS Settings
OR
Using Intel XTU Software
| Product Number | MLZ-D36M-A19PK-12 |
| Exterior Color | Black |
| CPU Socket | LGA1200 |
| Waterblock Dimensions | 89 x 79 x 86.7 mm / 3.5 x 3.1 x 3.4 inch |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.1 inch |
| Pump Dimensions | 57.3 x 57.3 x 92.2 mm / 2.3 x 2.3 x 3.6 inch |
| Pump MTTF | 198,000 Hours |
| Pump Noise Level | < 35 dBA |
| Power Connector | 4-Pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 1.0 A |
| Pump Power Consumption | 13.8W (Max) |
| Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch |
| Fan Quantity | 3 PCS |
| Fan LED Type | Non-LED |
| Fan Speed | 650-1900 RPM ± 10% |
| Fan Airflow | 59 CFM (Max) |
| Fan Noise Level | 8 - 26 dBA |
| Fan Pressure | 2.0 mmH₂O (Max) |
| Fan Life Expectancy | 160,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12 VDC |
| Total Power Consumption | 250 W |
| RAM Clearance | N/A |
| LED Indicator | Red --- Off line, Blue --- On, Green --- Cryo mode, Purple --- Unregulated |
| Warranty | 5 years |
| Cooler Type | Liquid Cooler |
| Series | MasterLiquid Maker |
