Silver
Pre-installed Fans:
• ARGB Version: Front Dual SickleFlow 200 ARGB PWM Fans, Rear 120 ARGB PWM Fans,
• Non-ARGB: Front Dual SickleFlow 200 non-ARGB PWM Fans, Rear 120 non-ARGB PWM Fans,
Dual 360mm Radiator support,
Tempered Glass side,
USB 3.1 Type-C
FreeForm 2.0

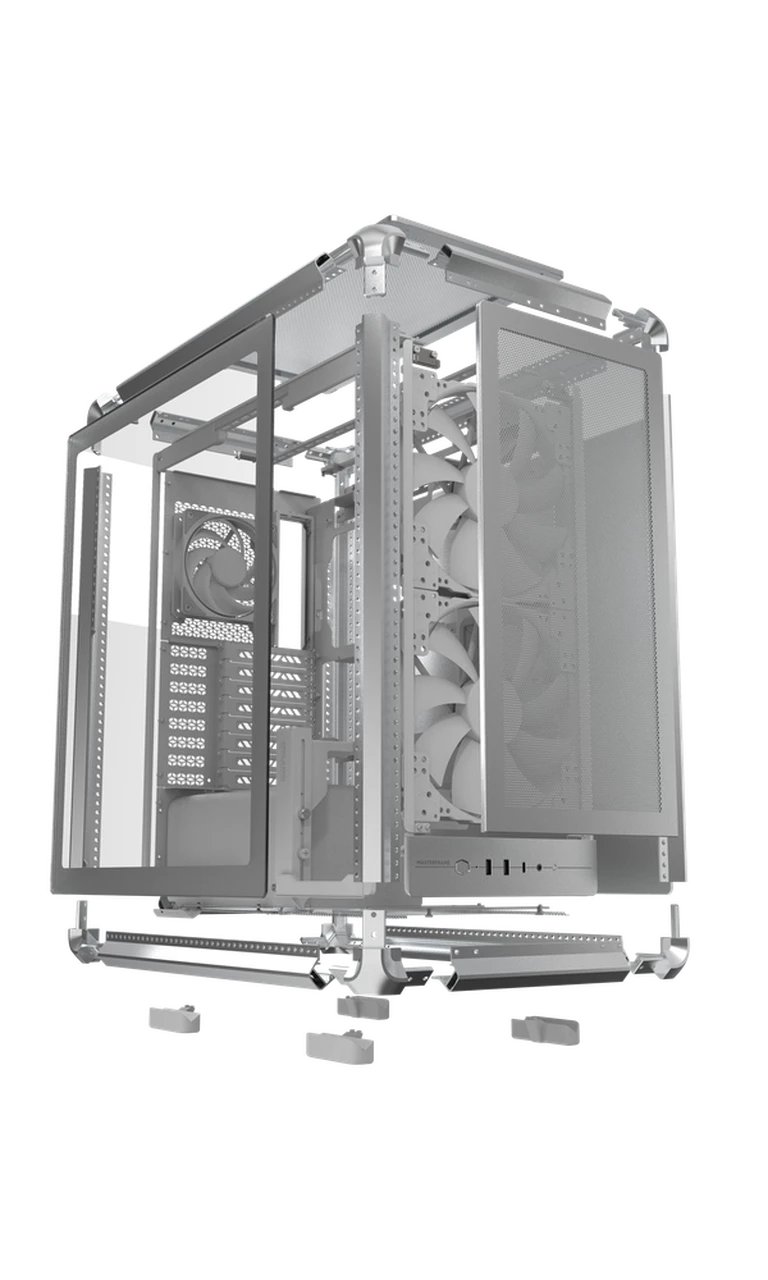

Exo-structure
The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
Versatile & Maker-Driven
Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.

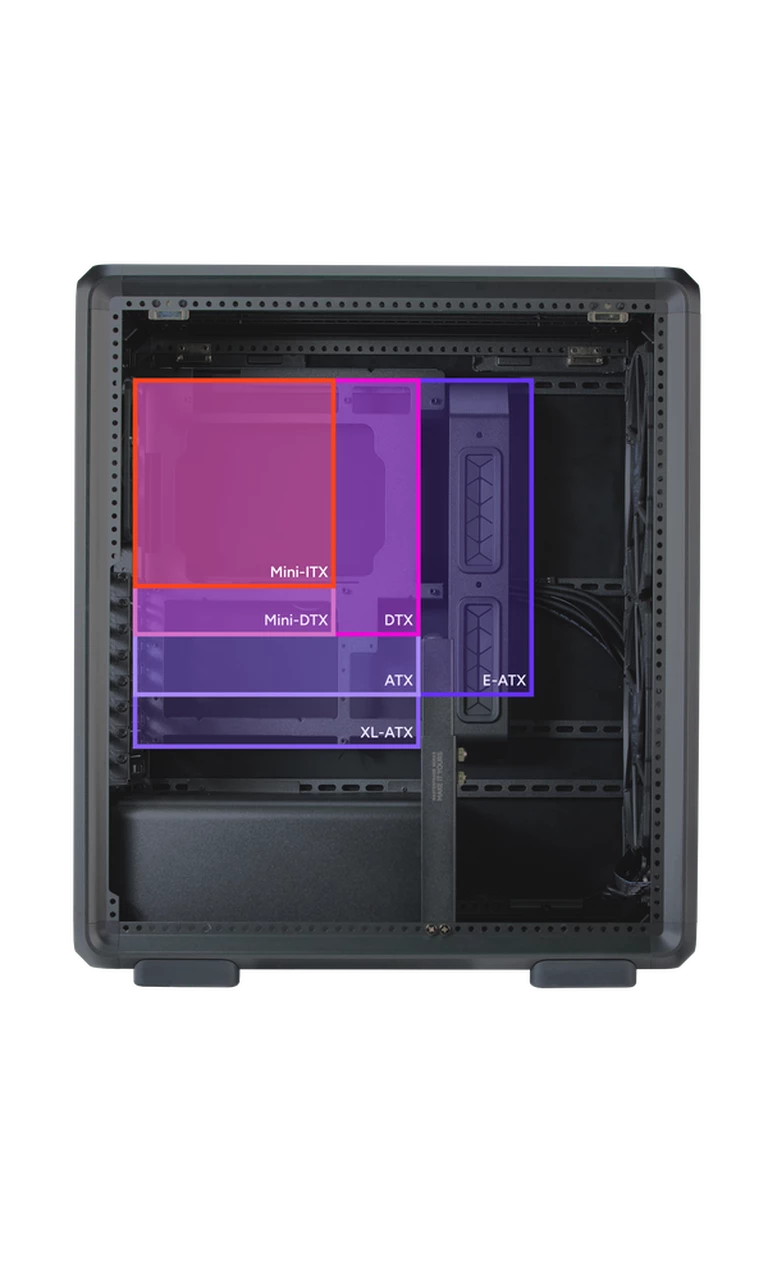

Flexible Motherboard Support
Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.

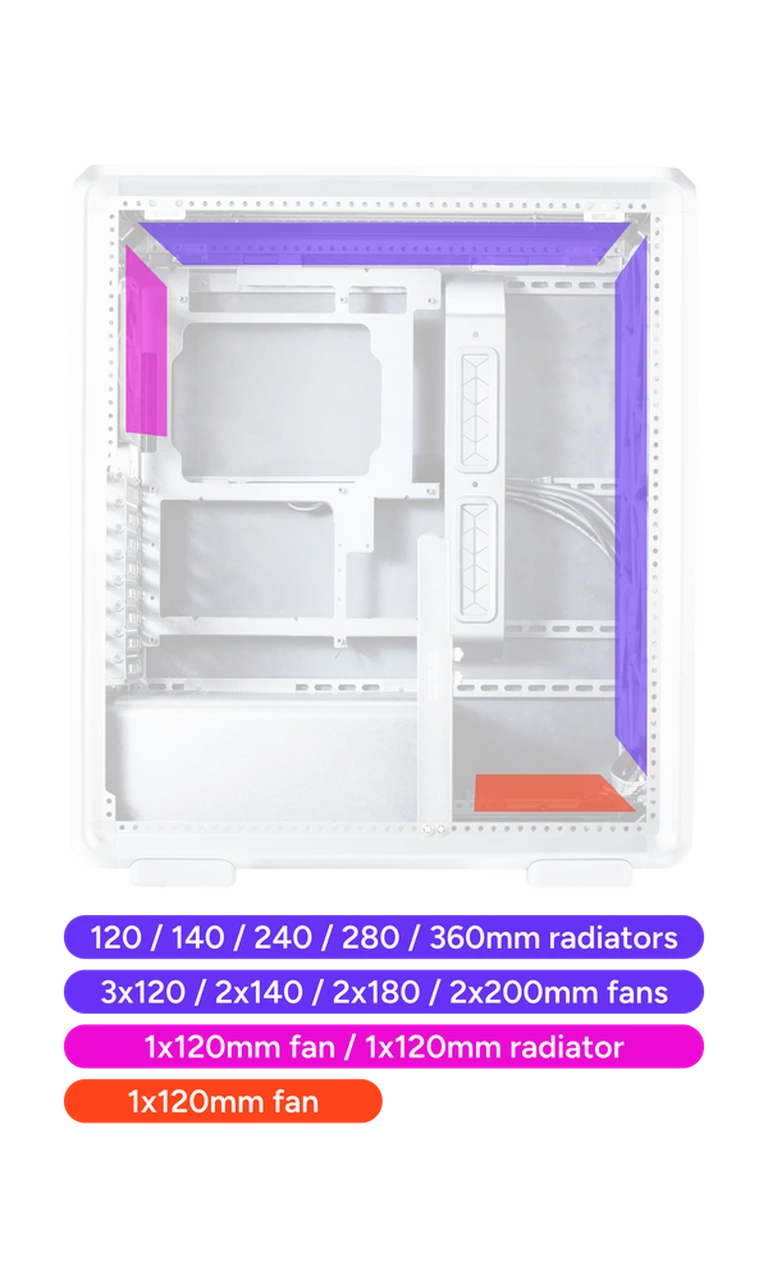

Extensive Cooling Support
Can house up to eight fans and multiple radiator sizes (up to 360mm), ensuring superior thermal performance.
Ample GPU Clearance
Accommodates graphics cards up to 390mm, offering plenty of space for high-end GPUs.
Tool-Free Panel Removal
Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
MasterFrame Series
| Model Number | Black: MF500M-KHNN-S01 (ARGB), MF500M-KHNN-S00 (Non-ARGB), Silver: MF500M-SHNN-S01 (ARGB), MF500M-SHNN-S00 (Non-ARGB) |
| Color(s) | Black / Silver |
| Materials - Exterior | SGCC Steel, Aluminum |
| Materials - Side panel (Right / Left) | Tempered Glass |
| Dimensions (L x W x H) | 471 x 261 x 544 mm (Incl. Protrusions), 471 x 261 x 531 mm (Excl. Protrusions) |
| Volume | 60.9 L (Excl. Protrusions) |
| Motherboard Support | Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support) |
| Power Supply Support | ATX |
| PCI Expansion Slots | 8 |
| 3.5" Drive Bays | 0 |
| 2.5" / 3.5" Drive Bays (or SSD) | 1 (Bottom) |
| Preinstalled Drive Bays - 3.5" / 2.5" Drive Bay (or SSD) | 1x 2.5 or 1x 3.5 |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) |
| Pre-installed Fans - Front | ARGB: 2x SickleFlow 200mm ARGB, Non-ARGB: 2x SickleFlow 200mm |
| Pre-installed Fans - Rear | ARGB: 1x 120mm ARGB, Non-ARGB: 1x 120mm |
| Fan Support - Front | 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm |
| Fan Support - Top | 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Bottom | 1x 120mm |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120 mm |
| Dust Filters | Mesh Only (Removable Filters) |
| Clearance - CPU Cooler | 190 mm |
| Clearance - PSU | 235 mm |
| Clearance - Graphics Card | 390 mm |
| Included Accessories | GPU Support Bracket |
| Cable Routing - Behind Motherboard Tray | 43 mm |
| Warranty | 2 years |
| Size | Mid Tower |
| Series | MasterFrame Series |
