Ports & Slots
USB 3.2 Gen 2 Type C Support
USB 3.2 Gen 2 Type C port built into the I/0 panel allows multi-purpose, streamlined data transmission.
Design

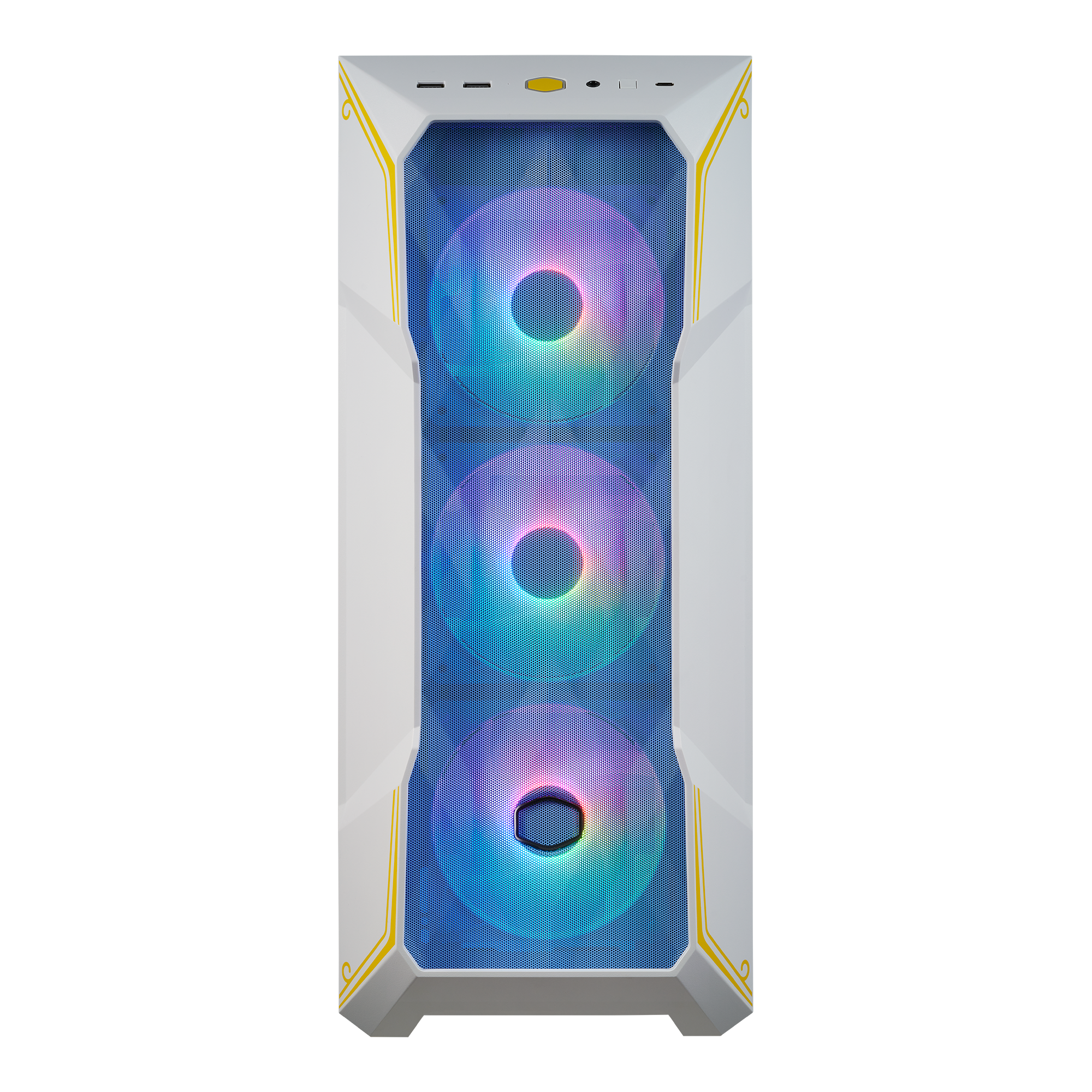

FINEMESH PERFORMANCE FRONT PANEL
Polygonal FineMesh Features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.
Fans
4x CF120 ARGB FANS INCLUDED
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
REMOVABLE TOP PANEL
The top panel is entirely removable for improved access during
assembly and ease of mounting of cooling solutions.
Motherboard
Hardware Compatibility

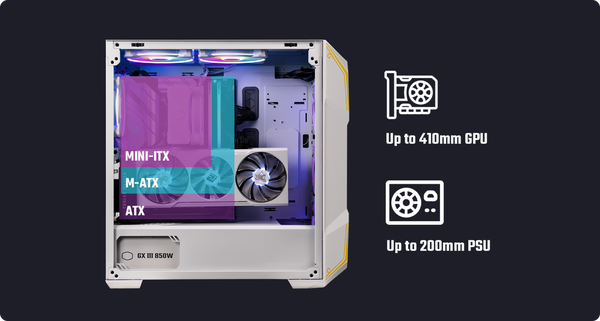

MasterBox TD500 Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".
Customization
Versatile Cooling Support

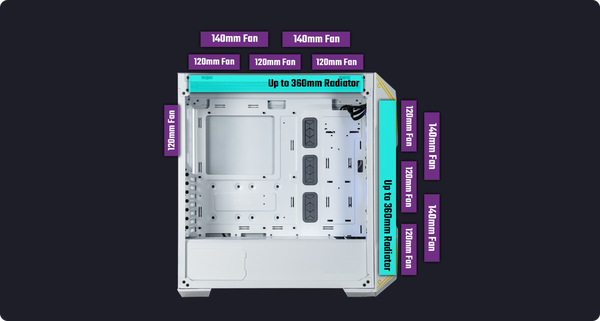

Support for 7x 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
TOOL-FREE TG SIDE PANEL

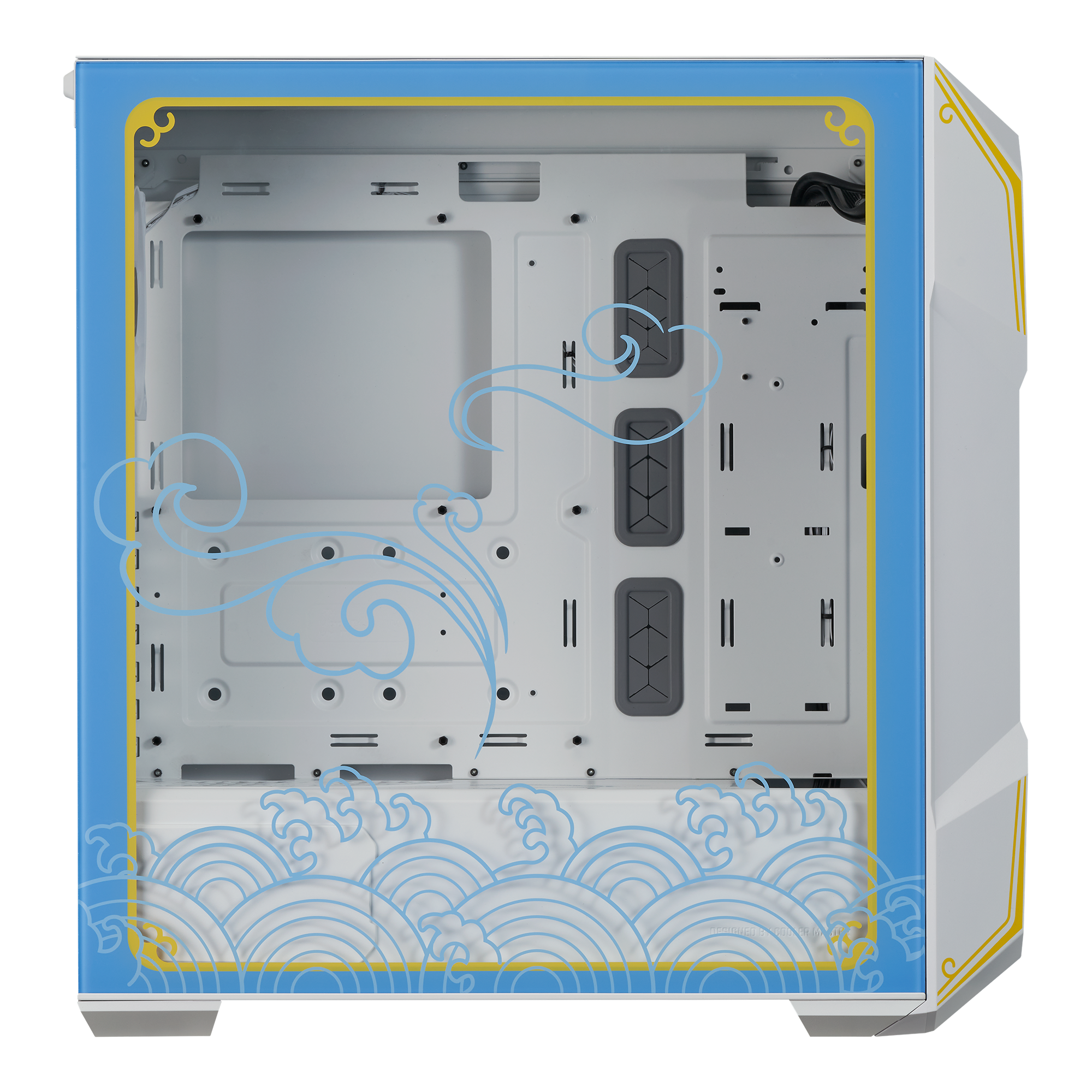

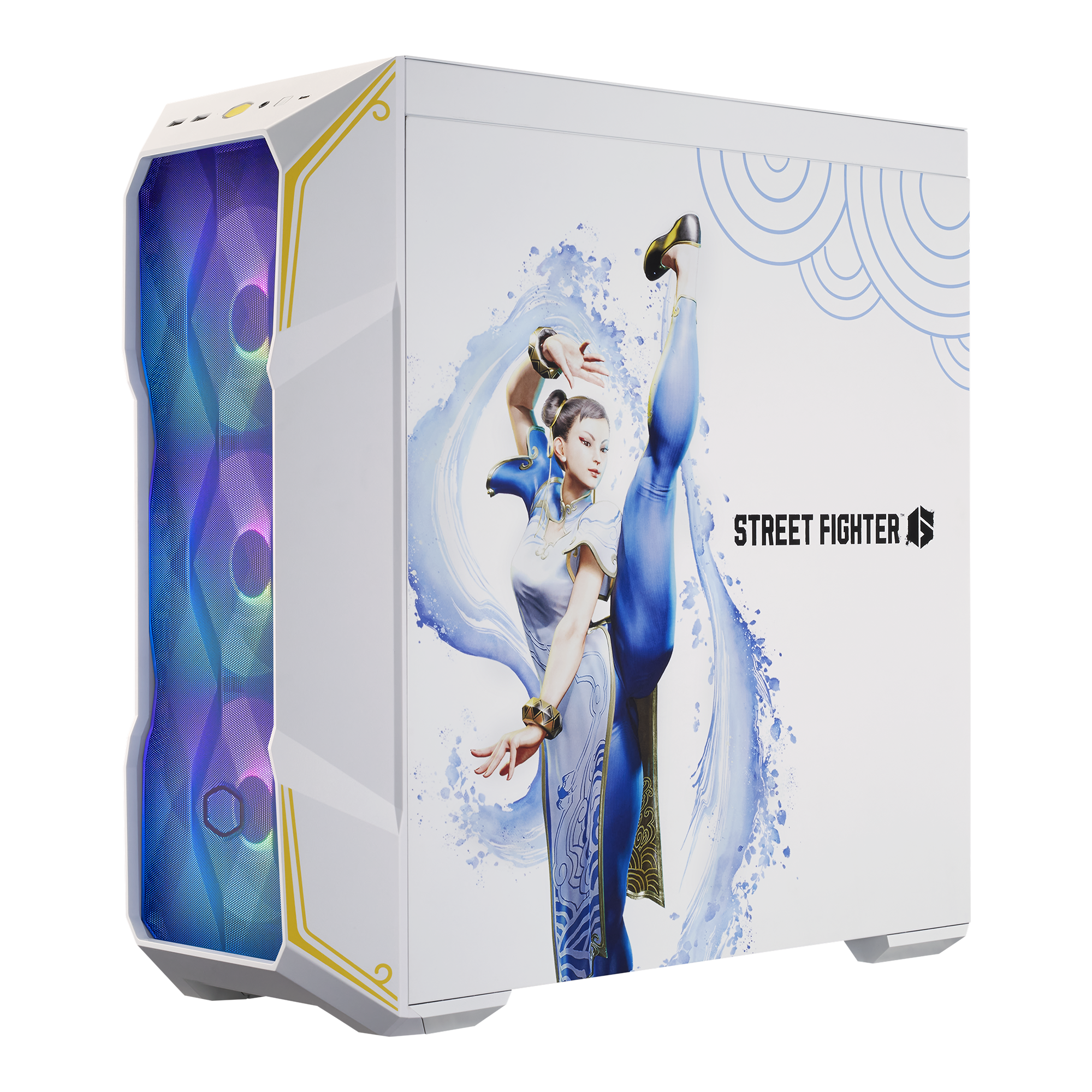

Featuring a tempered glass side panel with Street Fighter character elements, completely toolless for quick access to the internals.
PSU SHROUD WITH REMOVABLE COVER
MasterBox TD500 Mesh V2's removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.
| Model Number | TD500V2-WGNN-SCL |
| Exterior Color | White |
| Materials - Exterior | Steel, Mesh, Plastic |
| Materials - Left Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 499 x 210 x 500mm (Incl. Protrusions), 430 x 210 x 477mm (Excl. Protrusions) |
| Volume | 50L |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature) |
| Expansion Slots | 7 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 3 |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 type C |
| I/O Panel - Audio In / Out | 1x Audio Jack |
| I/O Panel - Other | 1x ARGB Fan Hub |
| Pre-installed Fans - Front | 3x 120mm CF120 ARGB |
| Pre-installed Fans - Rear | 1x 120mm CF120 ARGB |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm) |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120mm |
| Clearances - CPU Cooler | 165mm |
| Clearance - PSU | 200mm (Recommended up to 170mm) |
| Clearance - GFX | 410mm |
| Cable Routing - Behind Motherboard Tray | 19mm / 0.74" |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| Warranty | 2 years |
| Size | Mid Tower |
| Series | MasterBox Series |
| Back Connector Motherboard Support | No |
