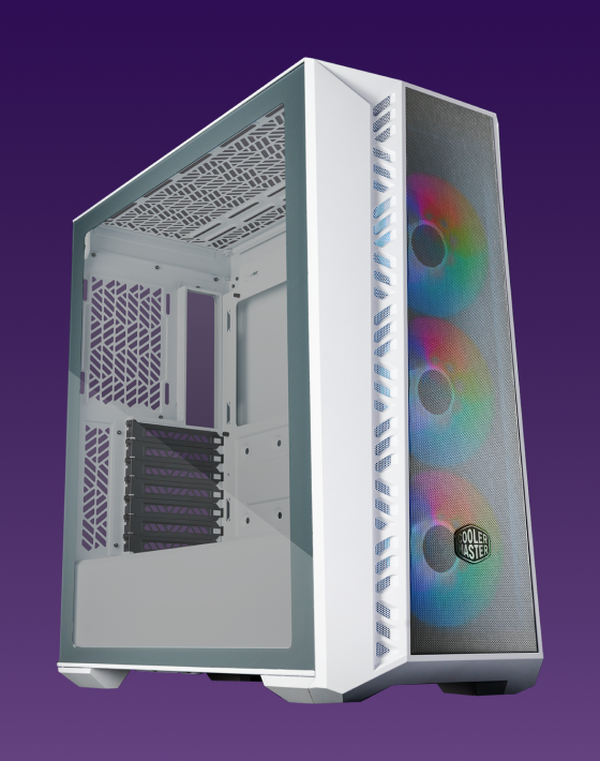

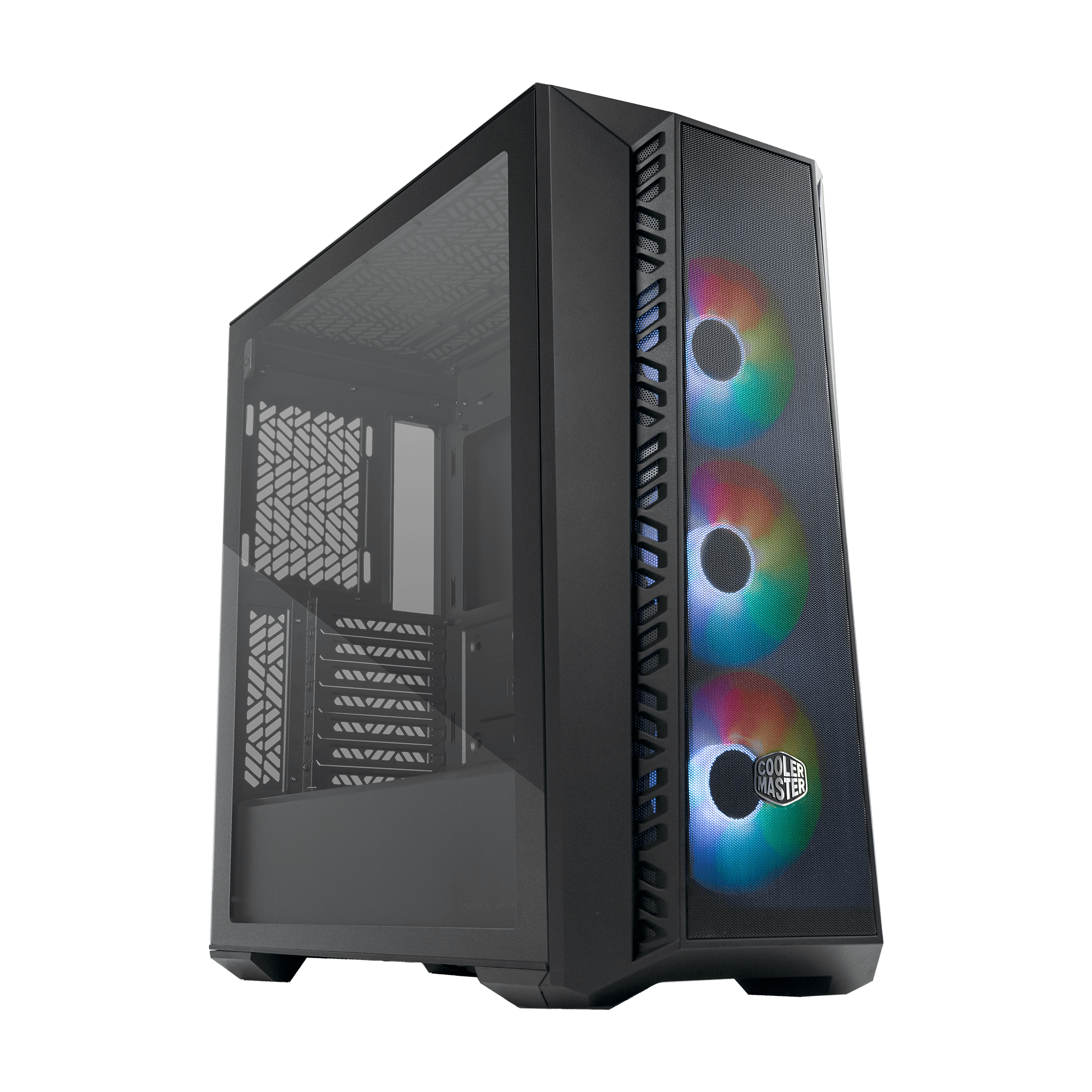

Screwless & Tool-Free TG Side Panel
The tempered glass side panel is secured with pins for easy removal, facilitating quick, easy installation.
Performance

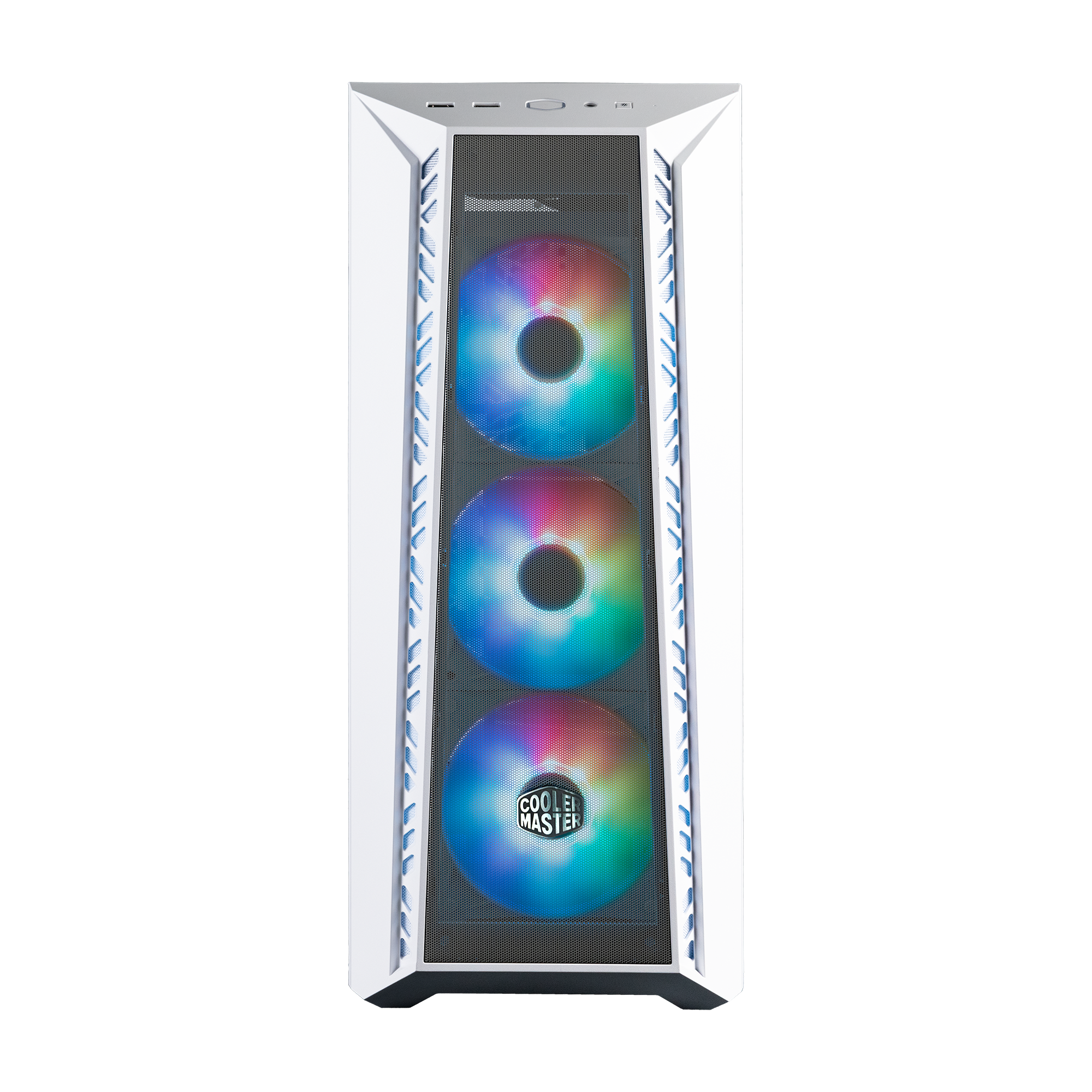

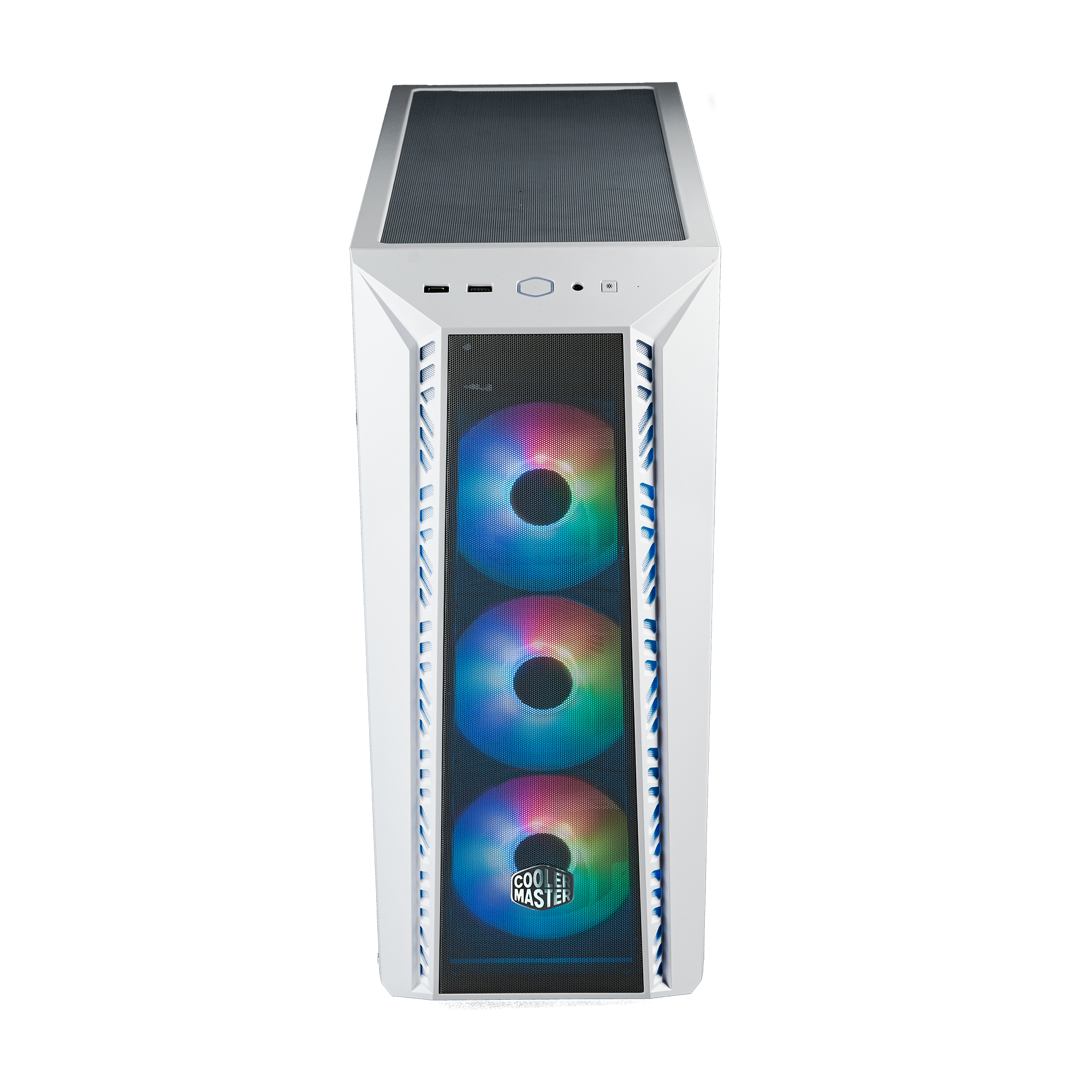

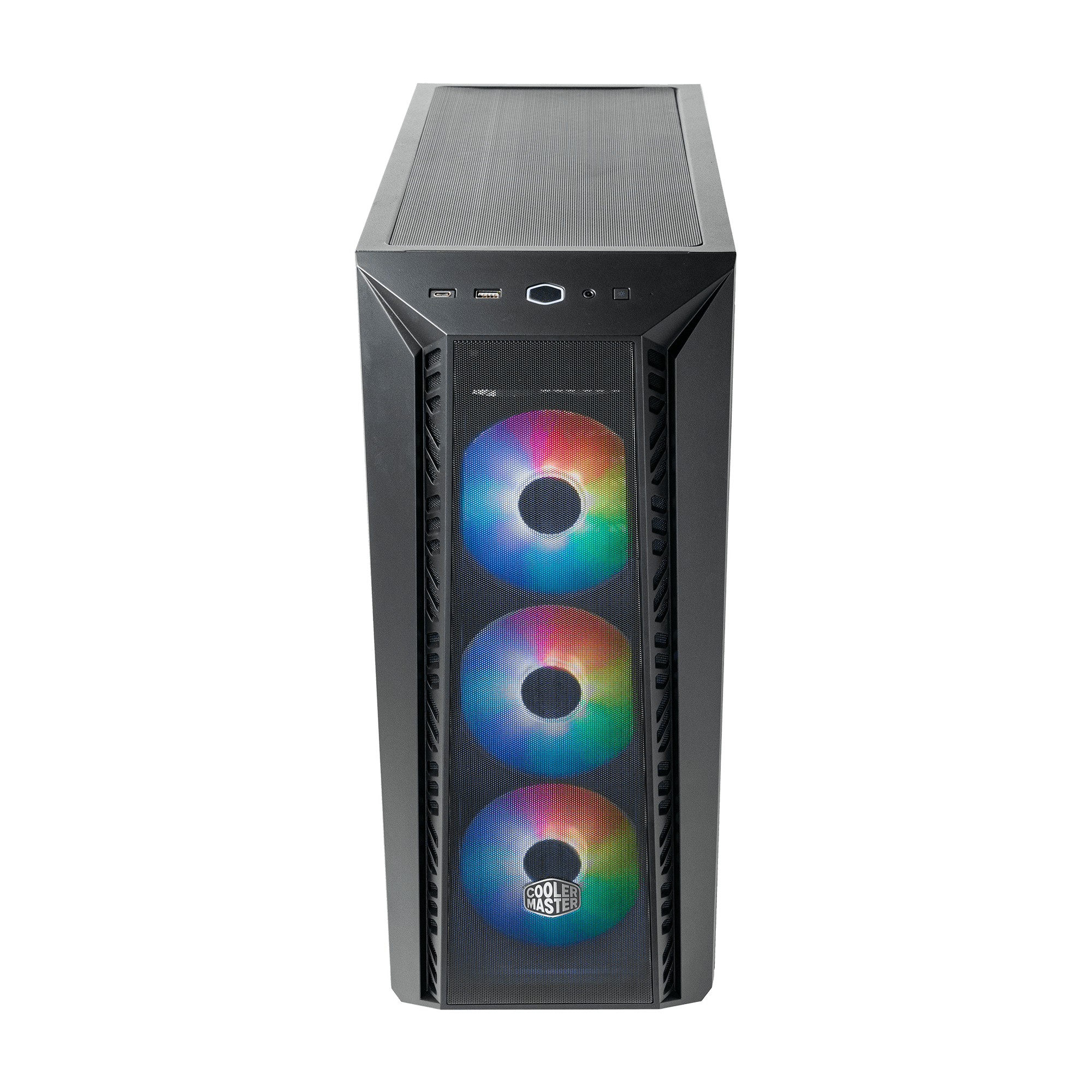

FINEMESH PERFORMANCE FRONT PANEL
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
Colors

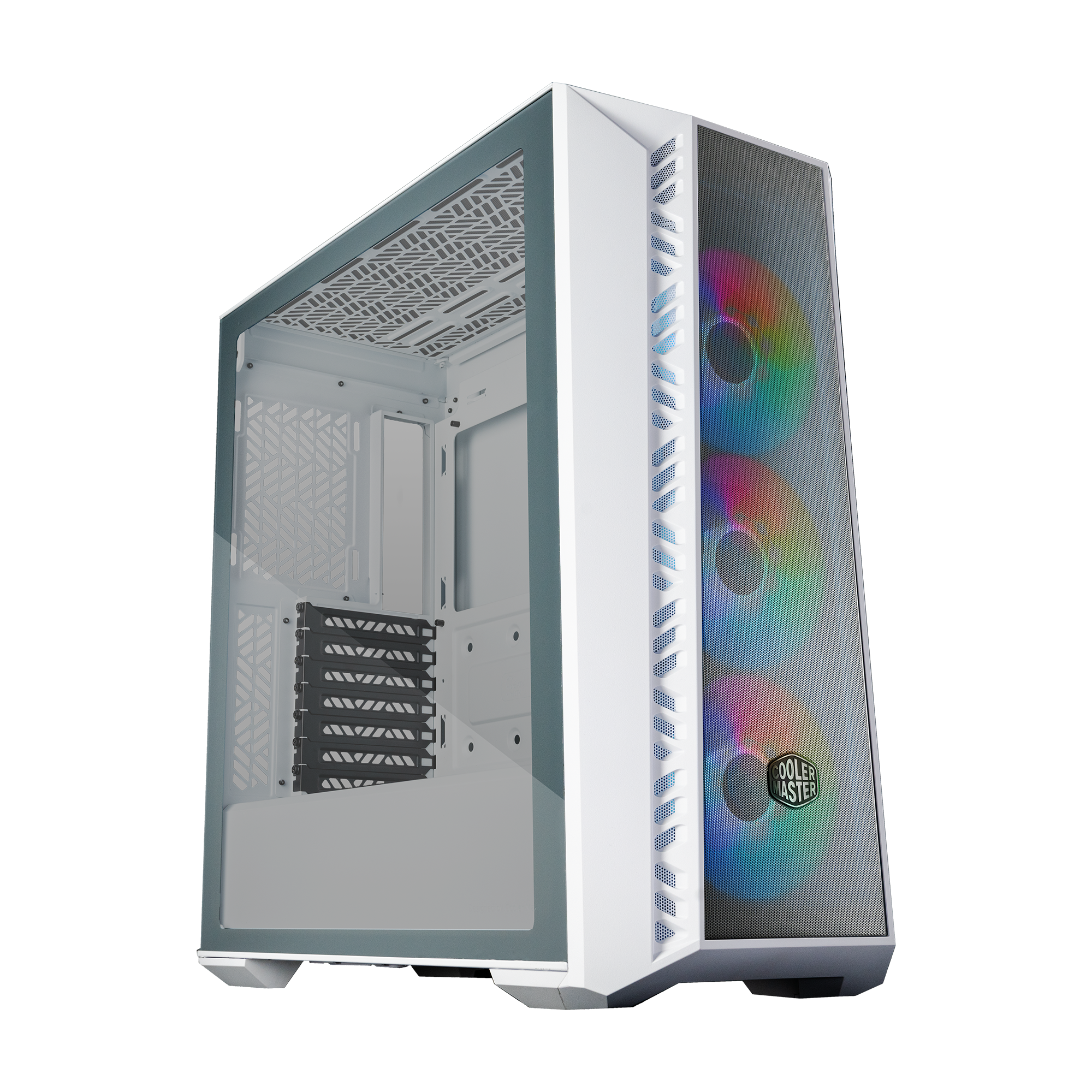

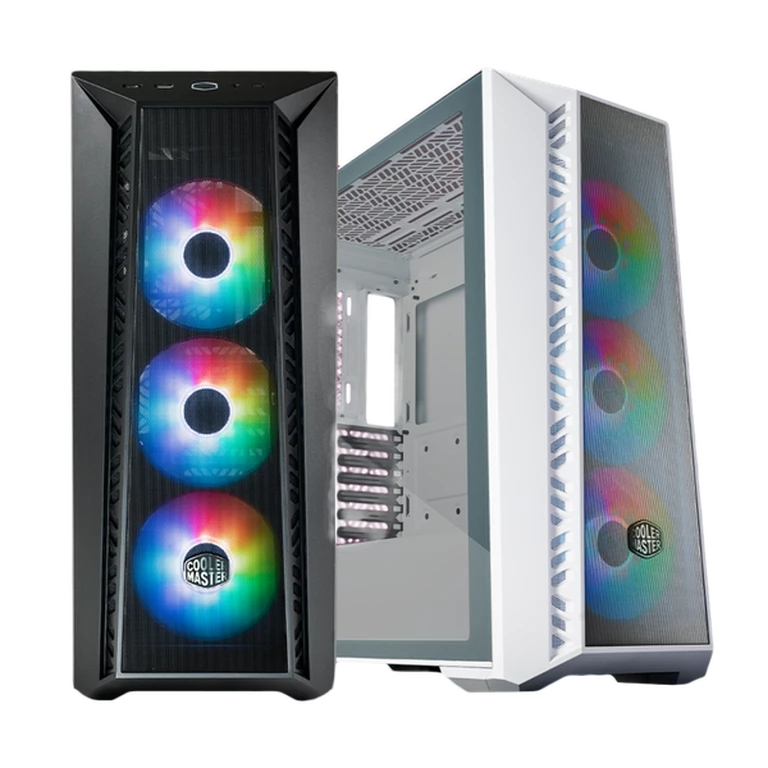

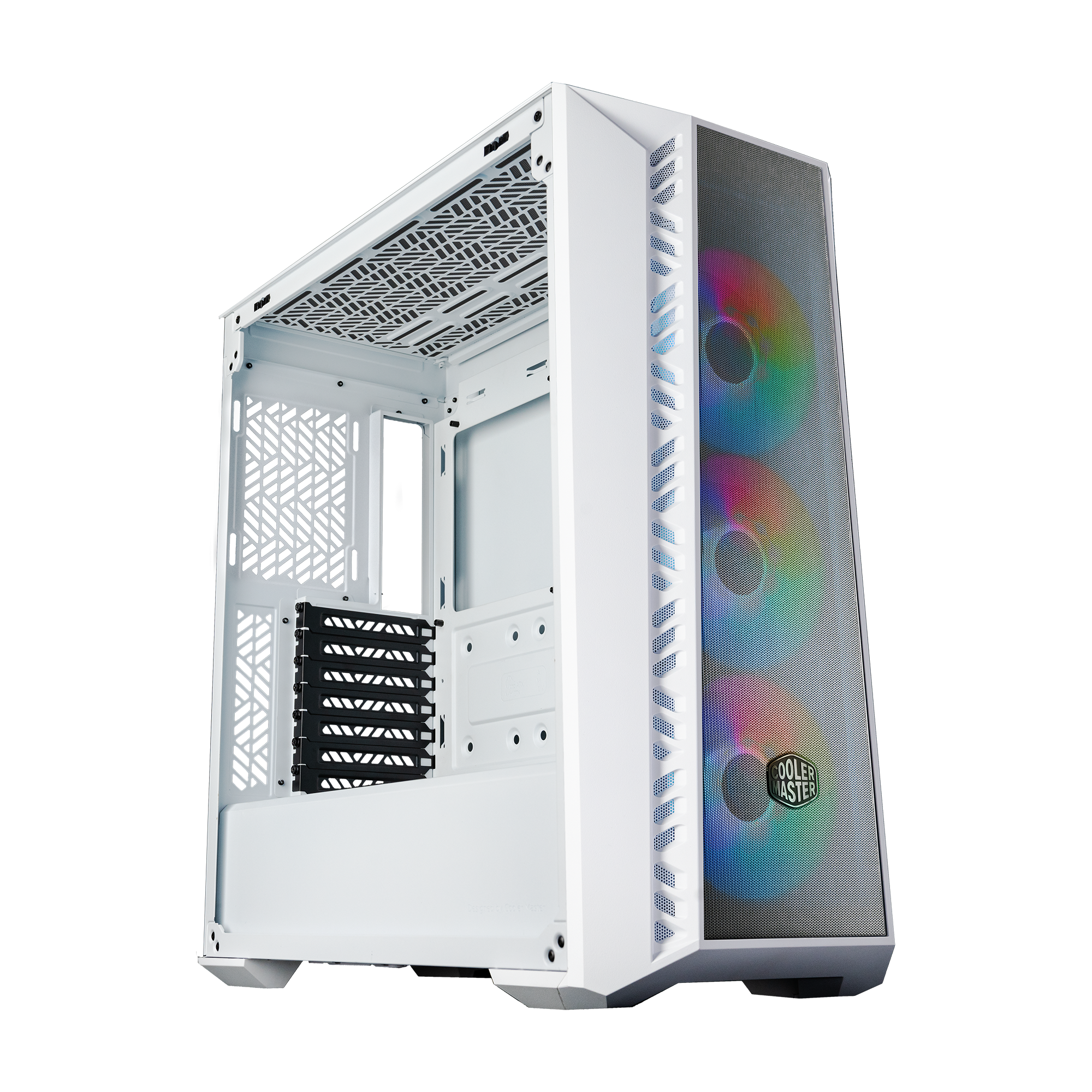

AVAILABLE IN BOTH BLACK & WHITE
Choose the color that best matches your setup!
Design

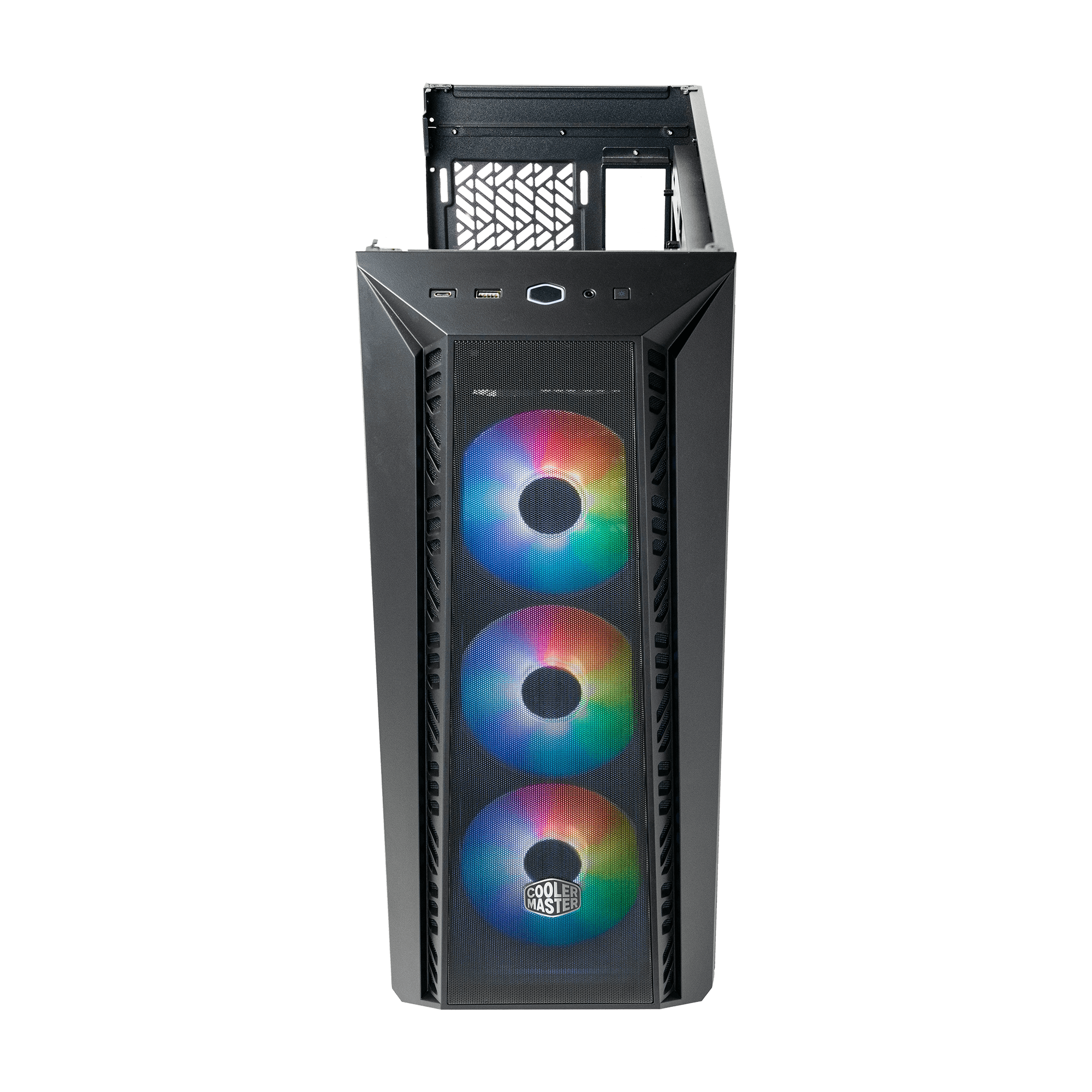

Removable Top Panel
The top panel is entirely removable for improved access and easy installation of cooling solutions such as fans and radiators.
Fans

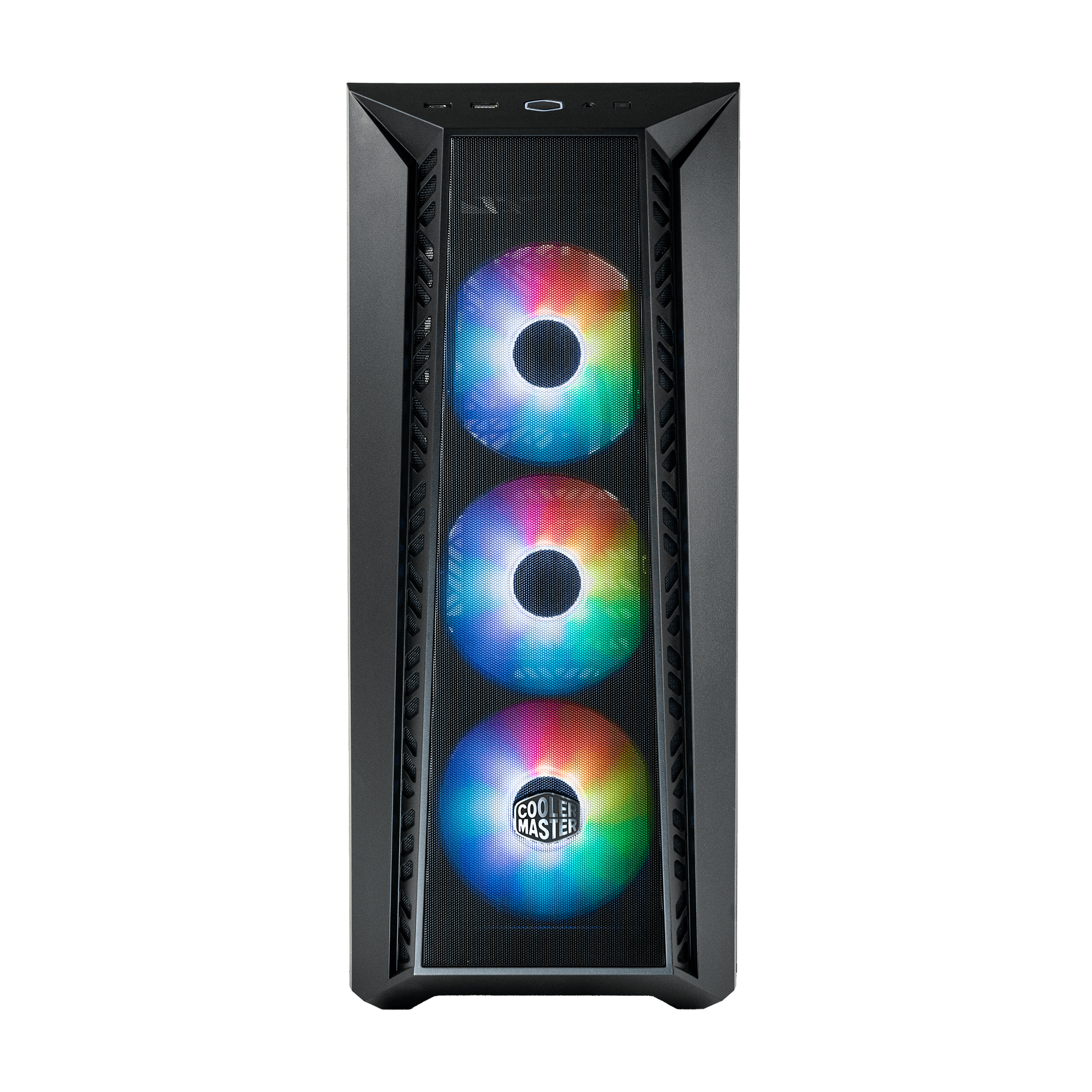

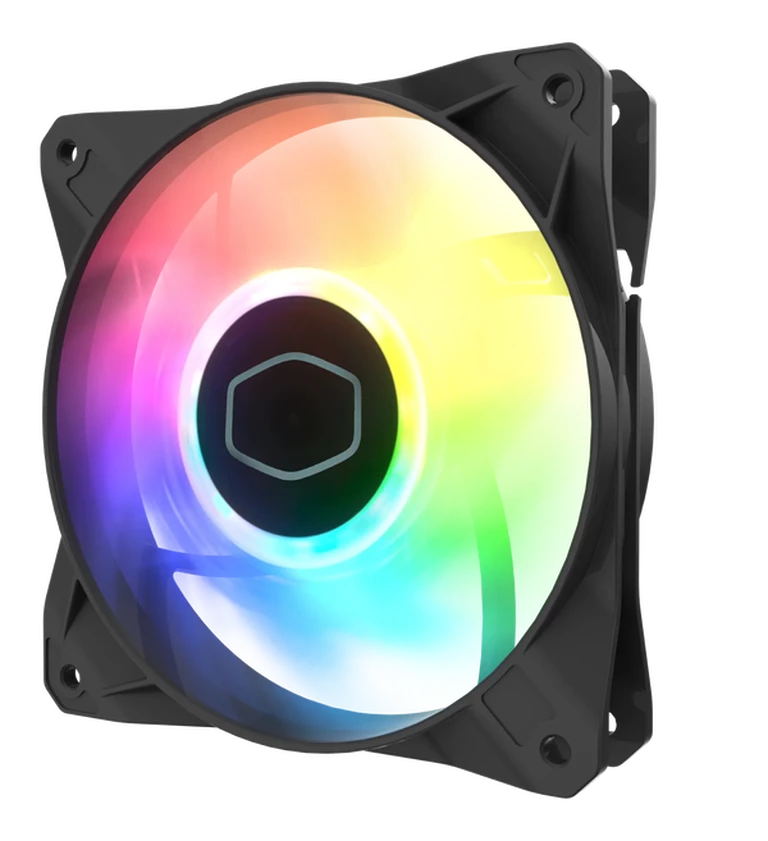

Three CF120 ARGB Fans Included
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
Customization

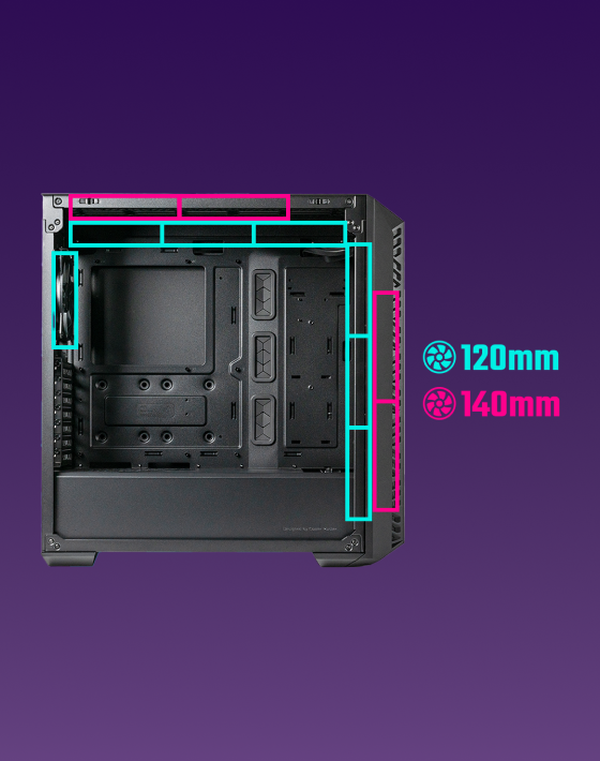

Versatile Cooling Options
Supports up to seven 120mm fans and dual 360mm radiators on the top 140mm and front panel.
| Model Number | MasterBox 520 Mesh: MB520-KGNN-S00, MasterBox 520 Mesh White: MB520-WGNN-S00 |
| Exterior Color | Black, White |
| Materials - Exterior | Mesh, Steel, ABS Plastic, Tempered Glass |
| Materials - Left Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size) |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature) |
| Expansion Slots | 7 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 3 |
| I/O Panel - USB Ports | 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) |
| I/O Panel - Other | 1x Reset/ARGB button |
| Included Accessories | ARGB Fans Hub |
| Pre-installed Fans - Top | N/A |
| Pre-installed Fans - Front | 3x CF120 ARGB |
| Pre-installed Fans - Rear | N/A |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm |

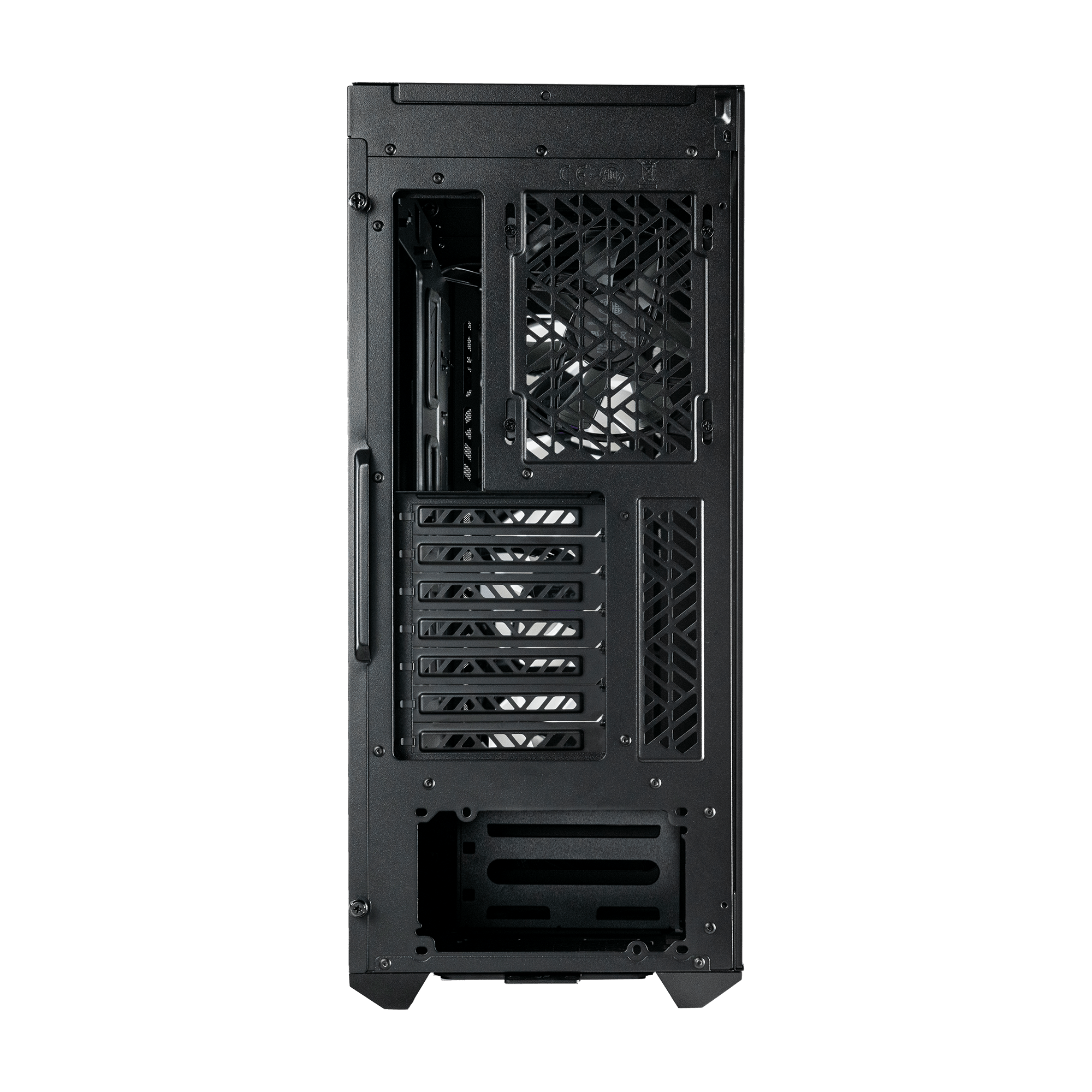

| Fan Support - Rear | 1x 120mm |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm) |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 165mm |
| Clearance - PSU | 200mm (Recommended up to 170mm) |
| Clearance - GFX | 410mm |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | ATX |
| Warranty | 2 years |
| Size | Mid Tower |
| Series | MasterBox Series |
| Back Connector Motherboard Support | No |
