Performance

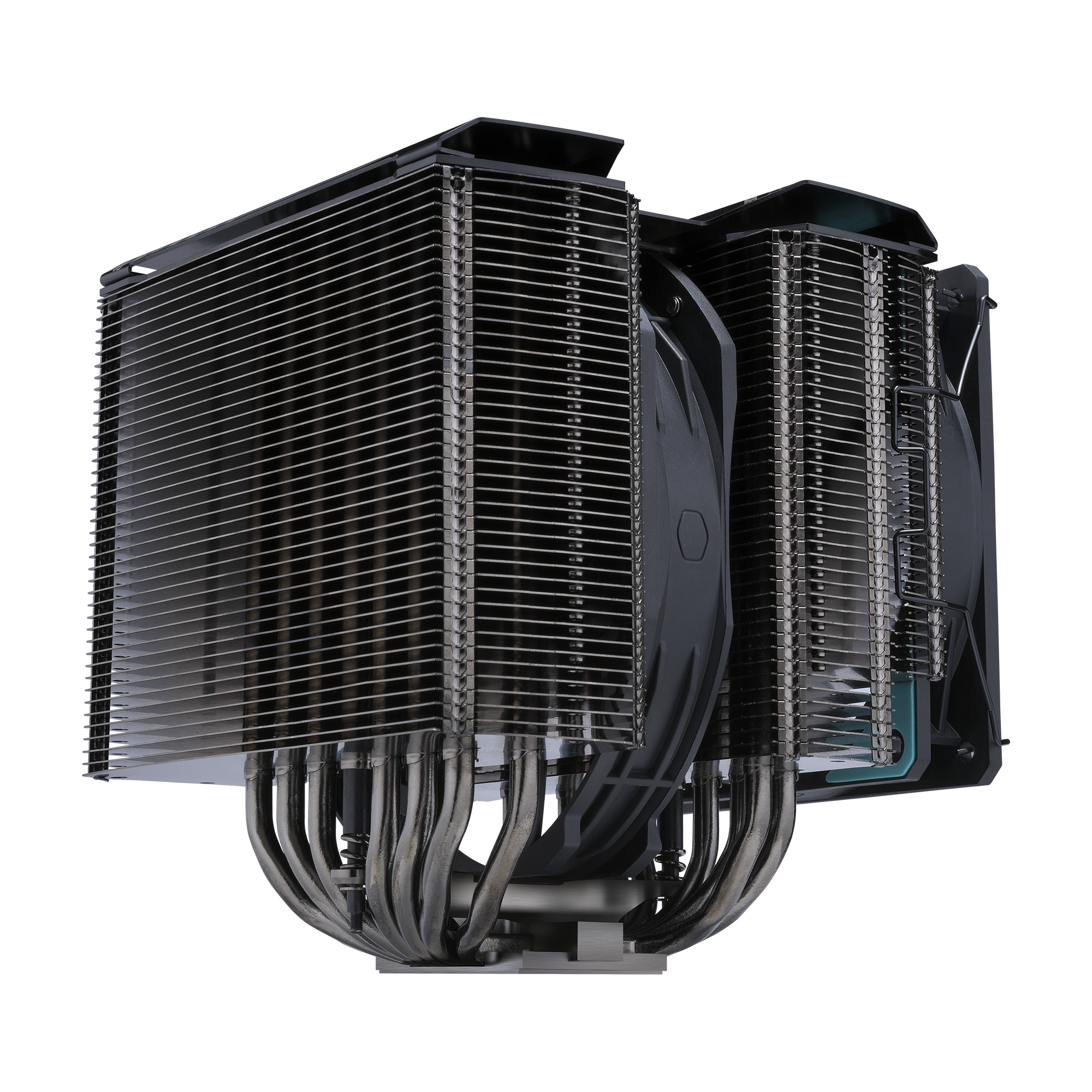

Dual Tower
Redesigned dual tower maximizes performance and surface area with optimized fin density and thickness.
8
HEAT PIPES
Cooling System

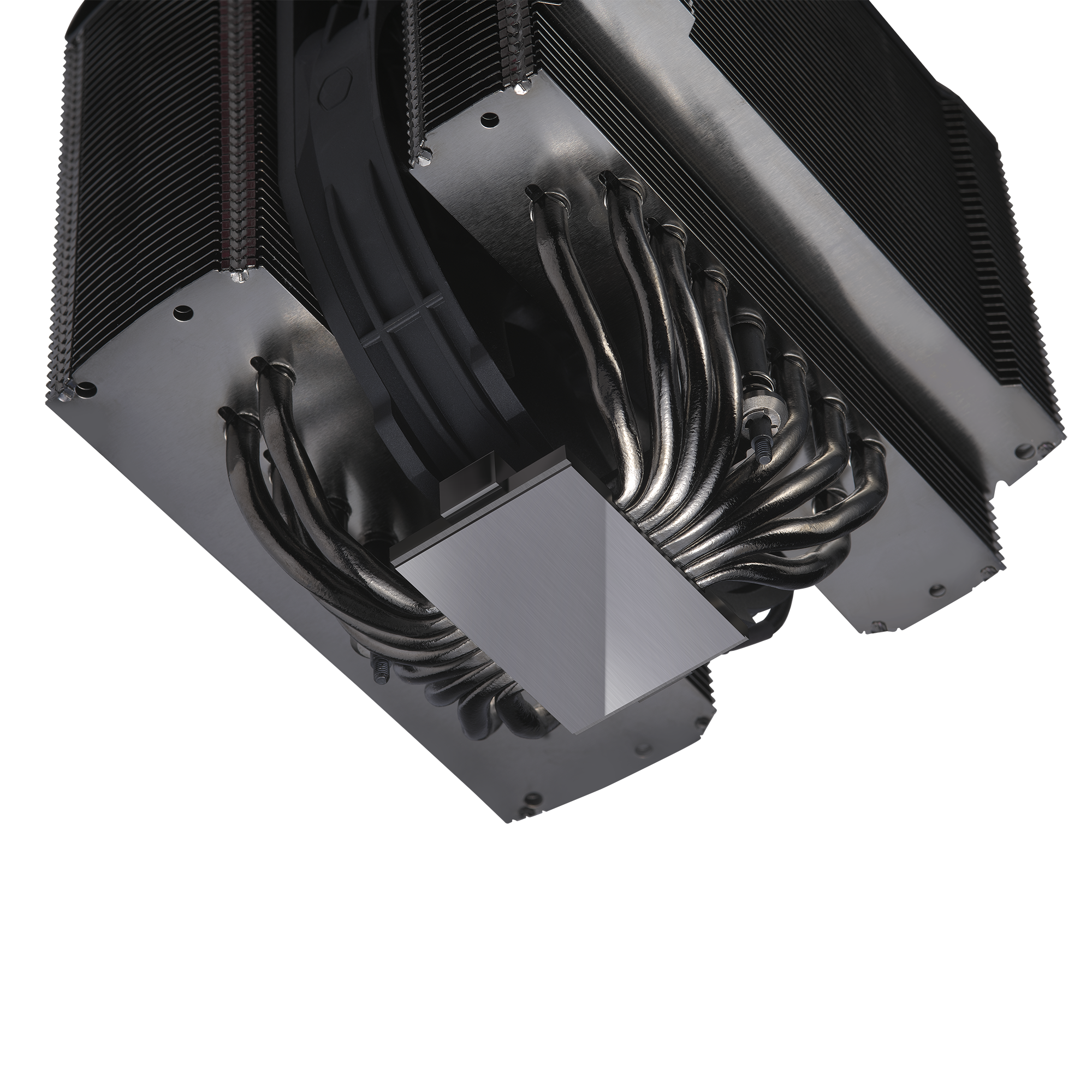

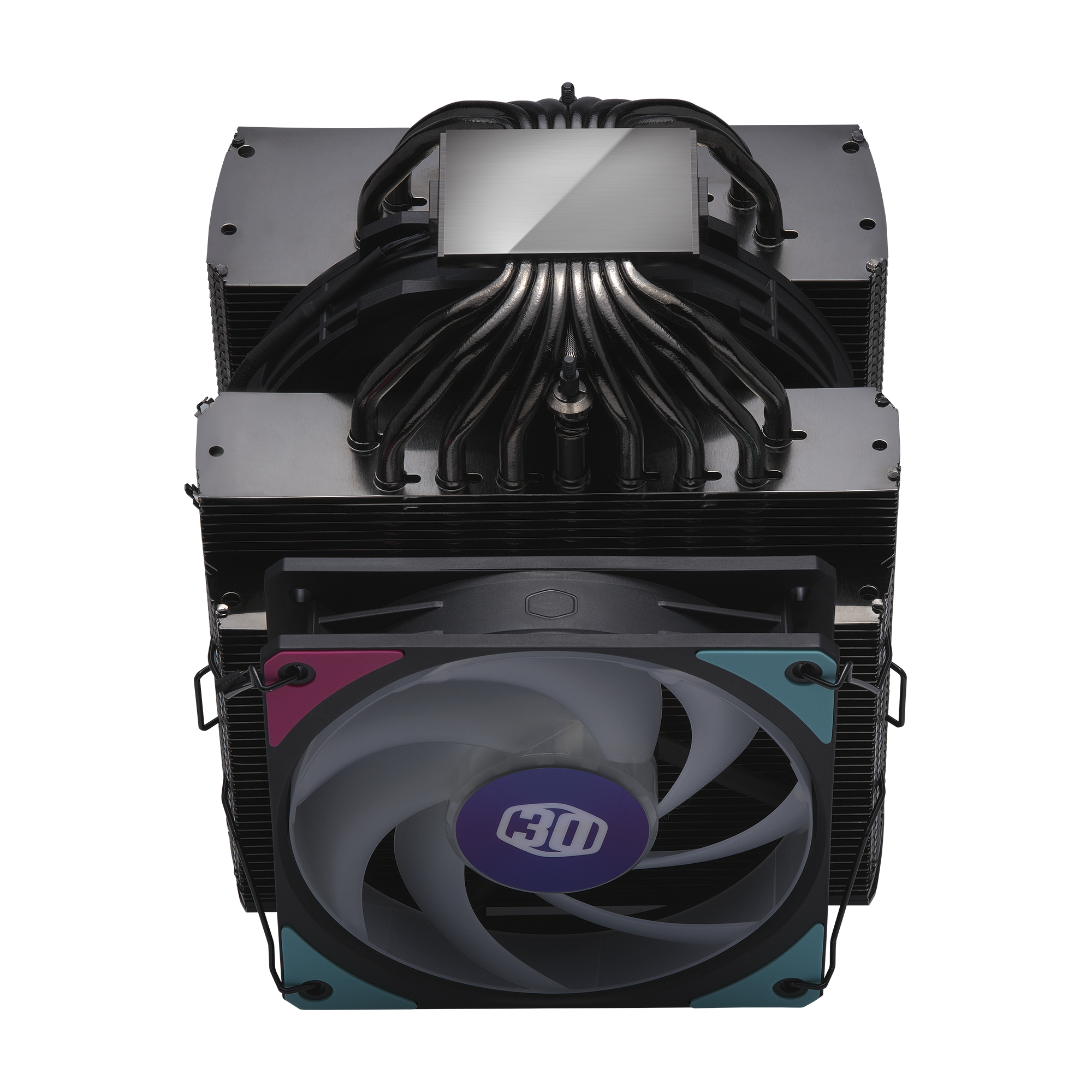

Full
Coverage Base
The full coverage nickel plated copper base provides seamless
contact and complete coverage to minimize heat zones.

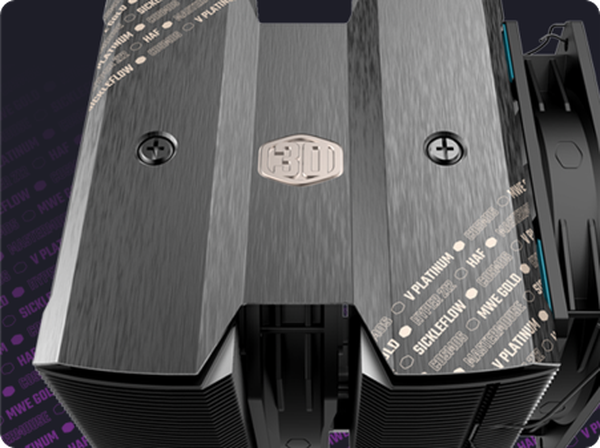

Special Edition
30TH
ANNIVERSARY DESIGN
Tech Specs
Specifications & Downloads
Performance

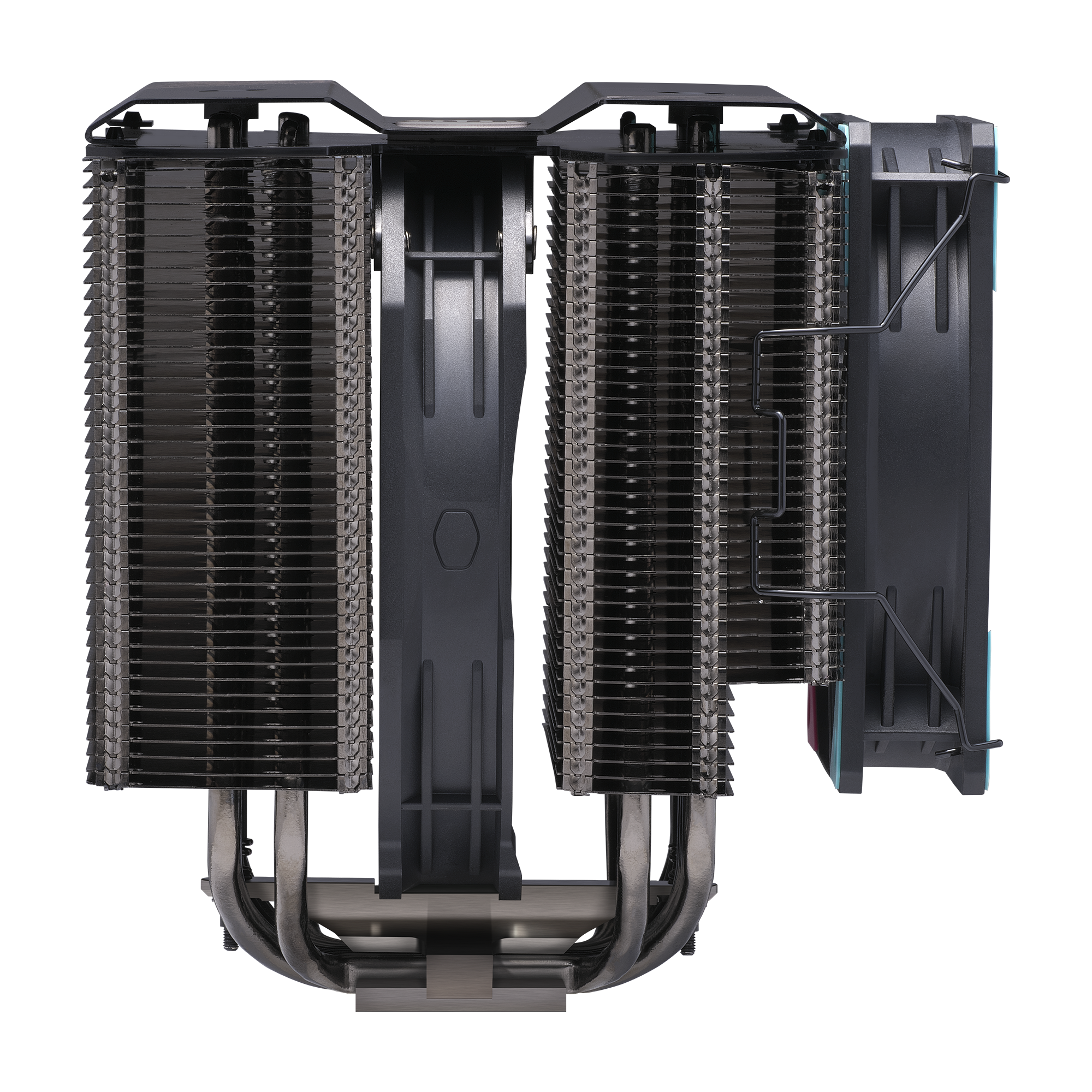

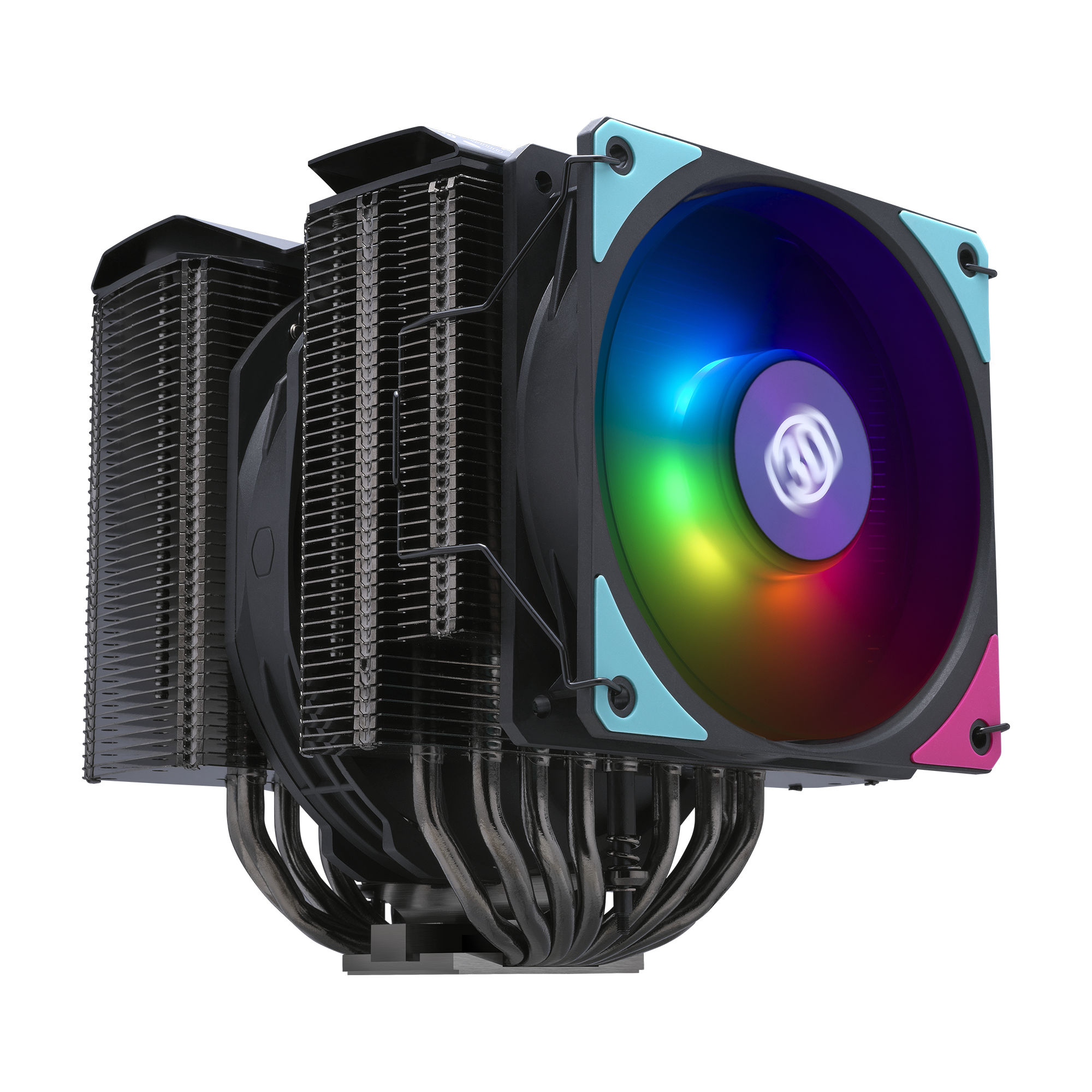

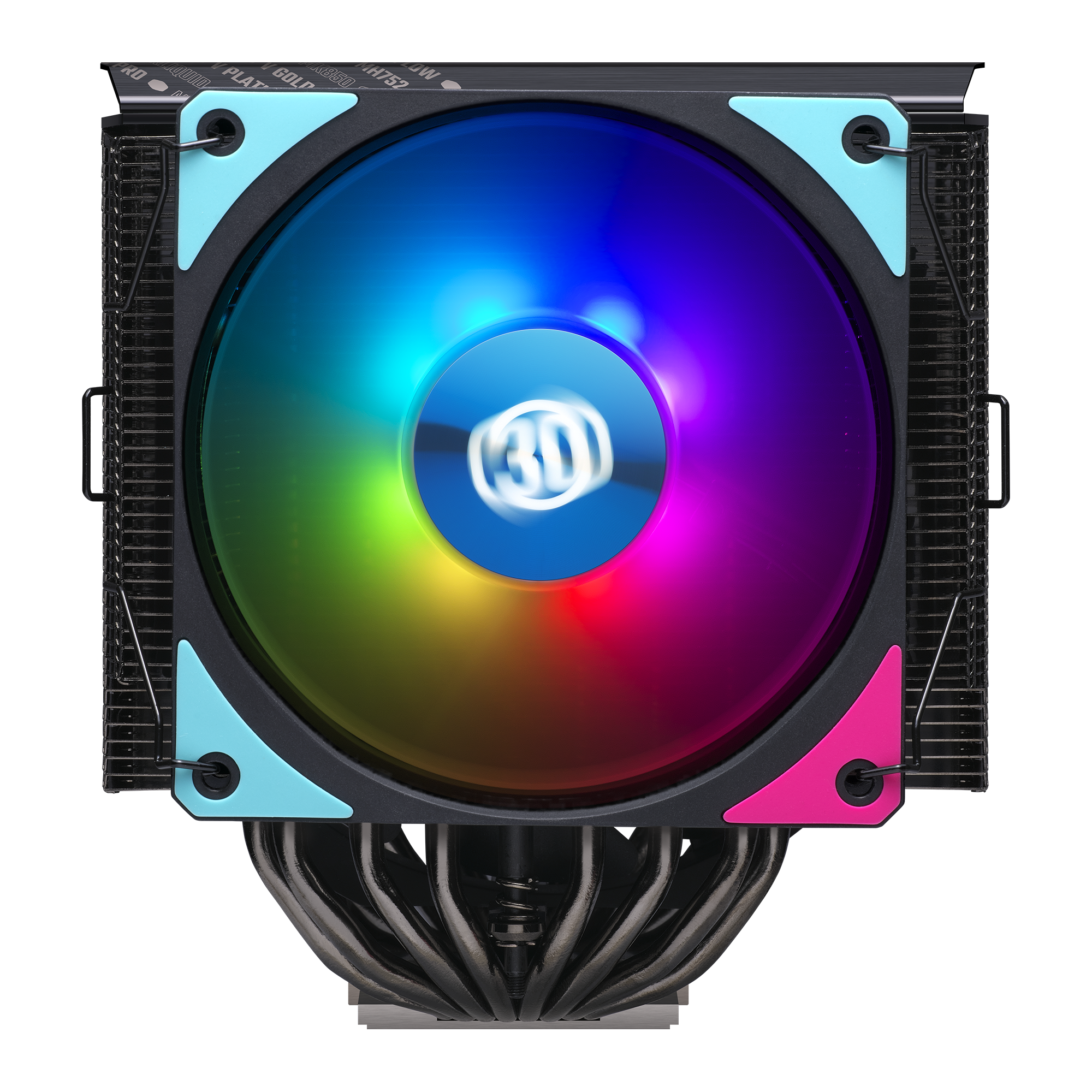

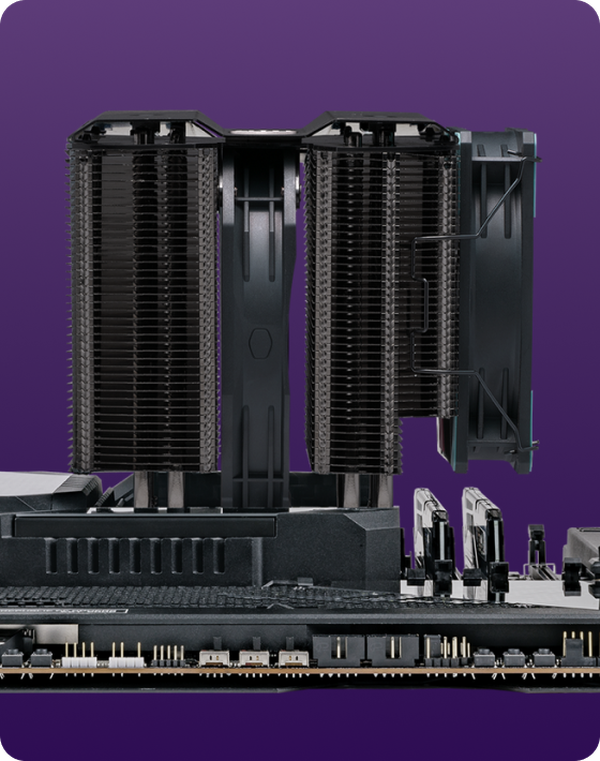

Dual Mobius Fan
Dual Mobius fans with balanced air flow and pressure perfect the push-pull setup for maximum heat dissipation.
| Product Number | MAM-D8PN-318PK-30 |
| Exterior Color | Black |
| CPU Socket | Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket |
| CPU Socket | AMD® AM5 / AM4 Socket |
| Dimensions (L x W x H) | 162.2 x 150.6 x 165.6 mm / 6.4 x 5.9 x 6.5 inch |
| Heat Sink Material | 8 Heat Pipes / Aluminum Fins |
| Fan Dimensions (L x W x H) | 135mm Fan: 135 x 135 x 26 mm, 120mm Fan: 120 x 120 x 25 mm |
| Fan Profiles | 135mm Fan: Non-Led, 120mm Fan: Addressable Gen 2 RGB |
| Fan Quantity | 1 PC |
| Fan Speed | 135mm Fan: 0-1550 RPM ± 15%, 120mm Fan: 0-2400 RPM ± 15% |
| Fan Airflow | 135mm Fan: 63.6 CFM (Max), 120mm Fan: 75.2 CFM (Max) |
| Fan Pressure | 135mm Fan: 1.92 mmH₂O, 120mm Fan: 3.63 mmH₂O |
| Fan MTTF | >200,000 Hours |
| Fan Noise Level | 135mm Fan: 24.6 dBA (Max), 120mm Fan: 30 dBA (Max) |
| Fan Bearing Type | Loop Dynamic Bearing |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 135mm Fan: 0.1 A, 120mm Fan: 0.18 A |
| Fan Safety Current | 135mm Fan: 0.25A, 120mm Fan: 0.35A |
| Fan Power Consumption | 135mm Fan: 1.2-2.4W, 120mm Fan: 2.16W |
| Warranty | 5 years |
| Cooler Type | Air Cooler |
| Series | MasterAir |
| Heatpipes | 8 |
