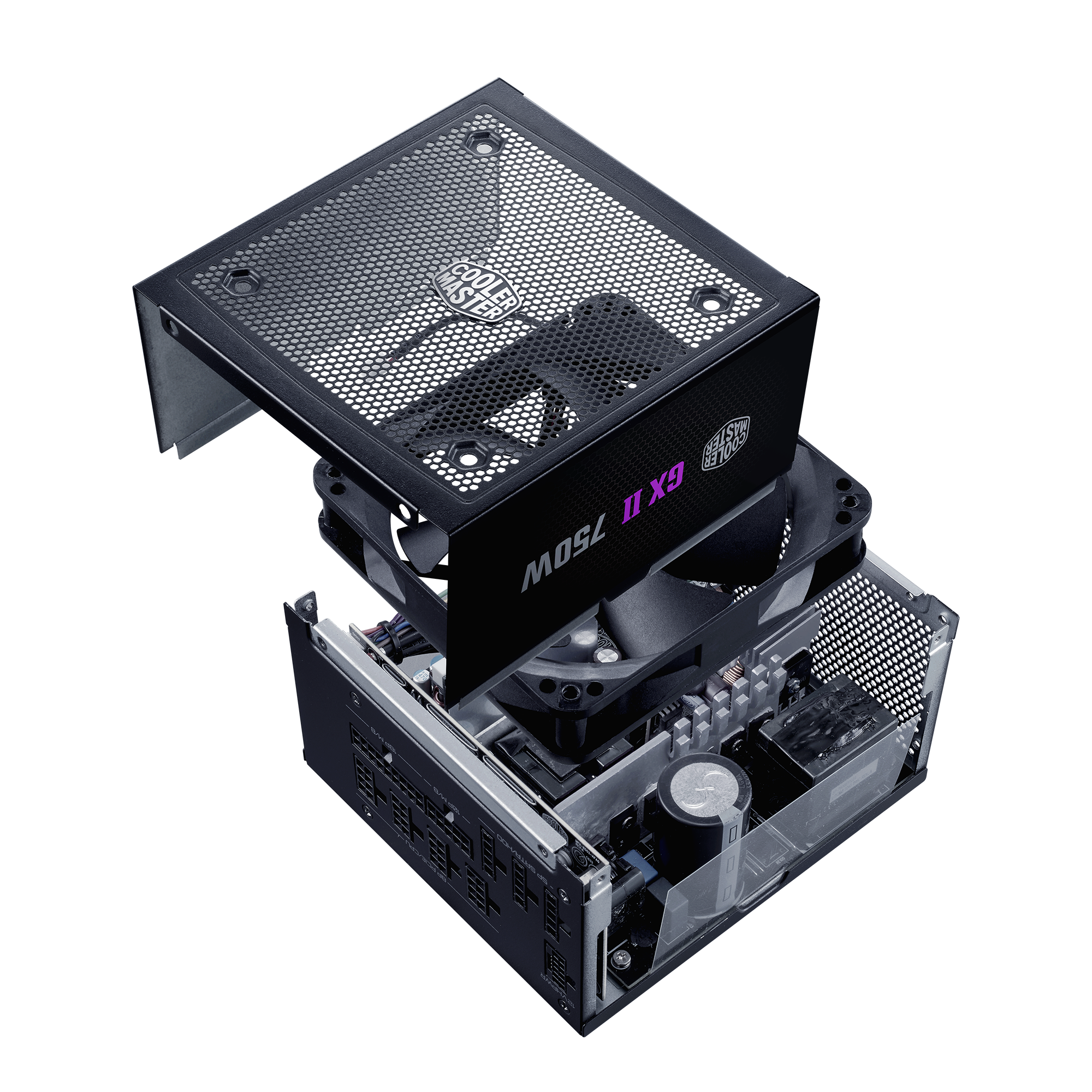

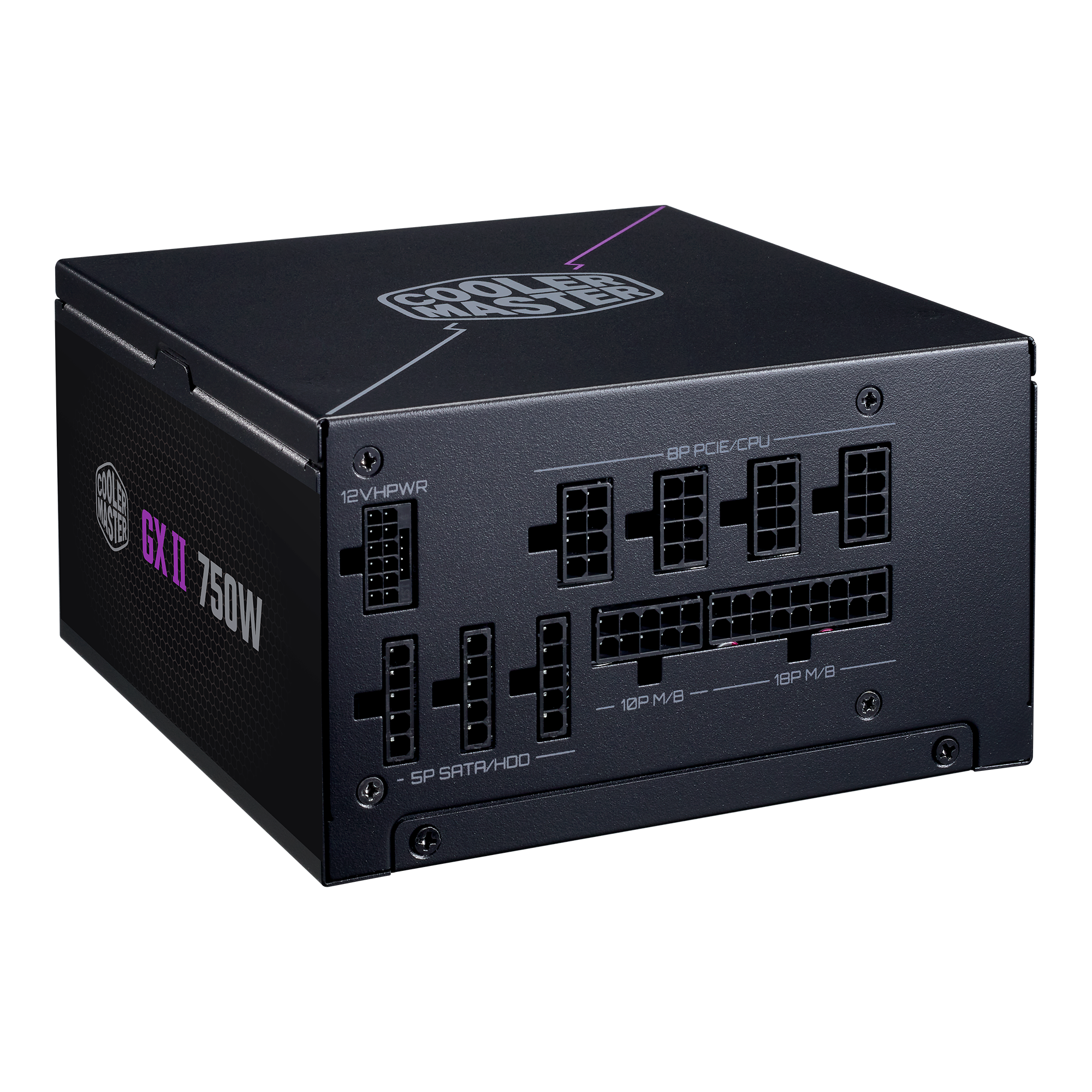

Fully Modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

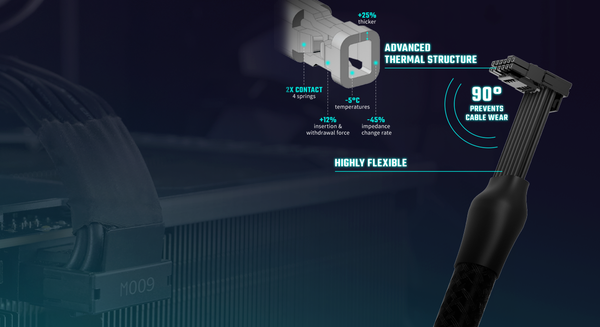

ATX 3.0 Support & a Durable 90-degree 12VHPWR Cable
Certified Efficiency
The GX II Gold is certified to achieve more than 90% efficiency at typical loads.
| Model | 750: MPX-7503-AFAG-2*** |
| ATX Version | ATX 12V Ver. 3.0 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Fan Speed | 2500 RPM |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥16ms at 80% Load |
| MTBF | >100,000 Hours |
| Protections | OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.) |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 2 |
| PCI-e 6+2 Pin Connectors | 4 |
| 12VHPWR Connector | 1 |
| Series | GX Series |
| 80 Plus Efficiency | Gold |
| Modular | Fully Modular |
| Category | Above 750W |
| Form Factor | ATX |
| Watts | 750W |
