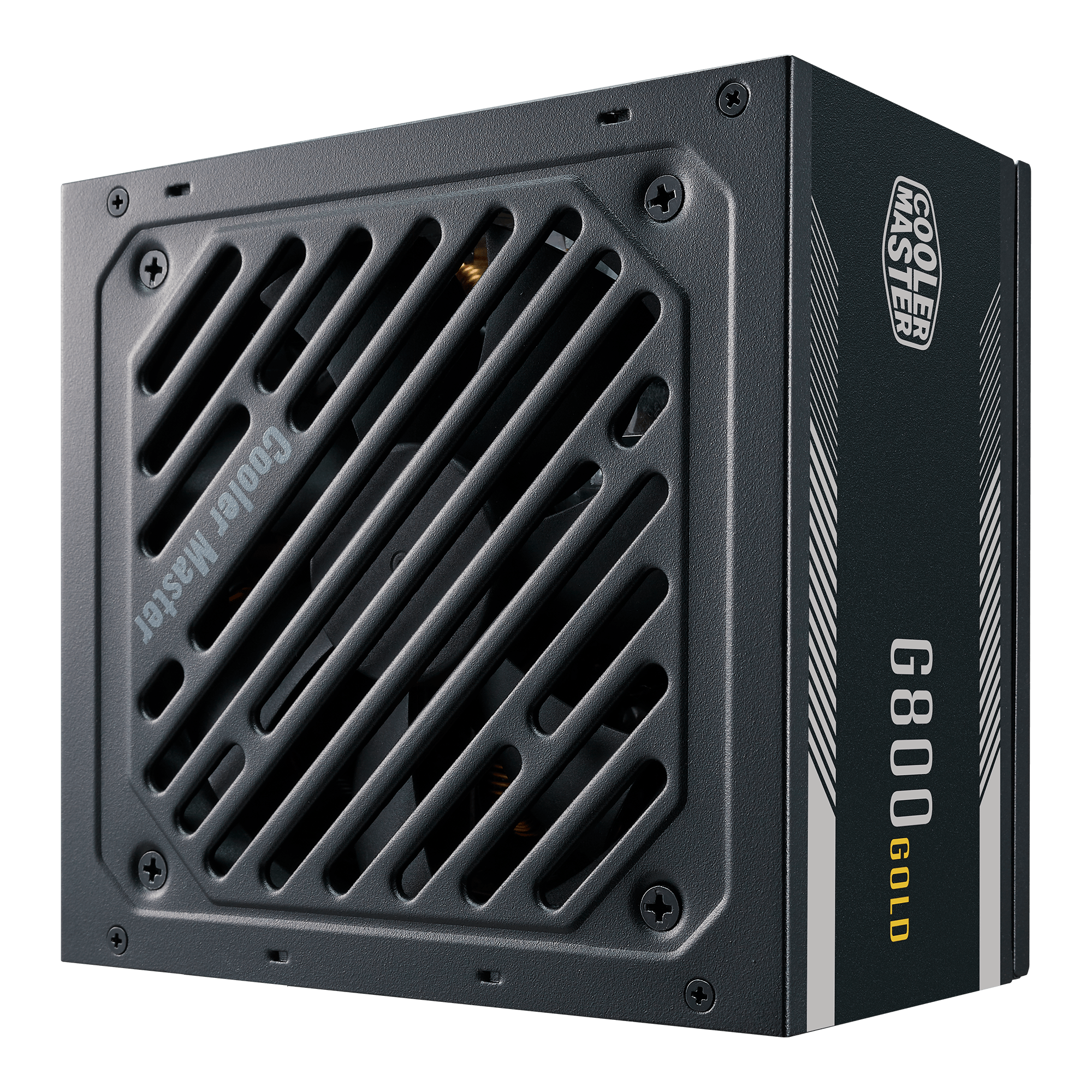

G800 Gold

Entry Level 80 PLUS Gold ATX Power Supply Unit

G800 Gold

Description

The G800 Gold consists of dependable power supply units for entry level users and system integrators.

  • Category: Above 750W
  • PFC: Active PFC
  • ErP 2014 Lot 3: Yes
  • Operating Temperature: 0-40°C
  • ATX 24 Pin Connectors: 1
  • EPS 4+4 Pin Connectors: 1
  • EPS 8 Pin Connector: 1
  • Power Good Signal: 100 - 150 ms
  • Warranty: 5 Years
  • 80 PLUS Rating: 80 PLUS Gold
  • Fan Size: 120mm
  • MTBF: >100,000 Hours
  • Input Frequency: 47-63Hz
  • 80 Plus Efficiency: Gold
  • Modular: Non Modular
  • Fan Bearing: HDB
  • Input Voltage: 100-240V
  • PCI-e 6+2 Pin Connectors: 4
  • SATA Connectors: 6
  • Peripheral 4 Pin Connectors: 3
  • Protections: OVP
  • ATX Version: ATX 12V V2.52
  • Protections: OPP
  • Protections: SCP
  • Dimensions (L x W x H): 140 x 150 x 86 mm
  • Protections: UVP
  • Protections: OTP
  • Protections: OCP
  • Series: G Series
  • Regulatory: CCC
  • Regulatory: CE
  • Input Current: 12-6A
  • Efficiency: ≥90% @ Typical Load
  • Regulatory: EAC
  • Regulatory: cTUVus
  • Regulatory: FCC
  • Hold Up Time: ≥15ms at 100% load
  • Regulatory: BSMI
  • Regulatory: CB
  • Regulatory: TUV
  • Regulatory: RoHS2.0
  • Regulatory: KC+KCC
  • Regulatory: BIS
  • Model: MPW-8001-ACAAG
