80 Plus Standard Certified Efficiency
Maintains an efficiency of 85% at typical loads.
Excellent Temperature Resistance
Capable of comfortably operating at 40°C under full loads, allowing for a longer lifespan even in warmer environments.
Active Power Factor Correction and a Dual Forward Topology Design
Constructed with protective measures normally only found in high-end power supplies that improve overall safety and current stability.
High Peak Power Tolerance
Can reliably push an additional 100W at peak power loads for up to 20 seconds.
Durability, Reliability, and Safety
Will perform consistently in any environment, whether you live at high altitudes or in high humidity.

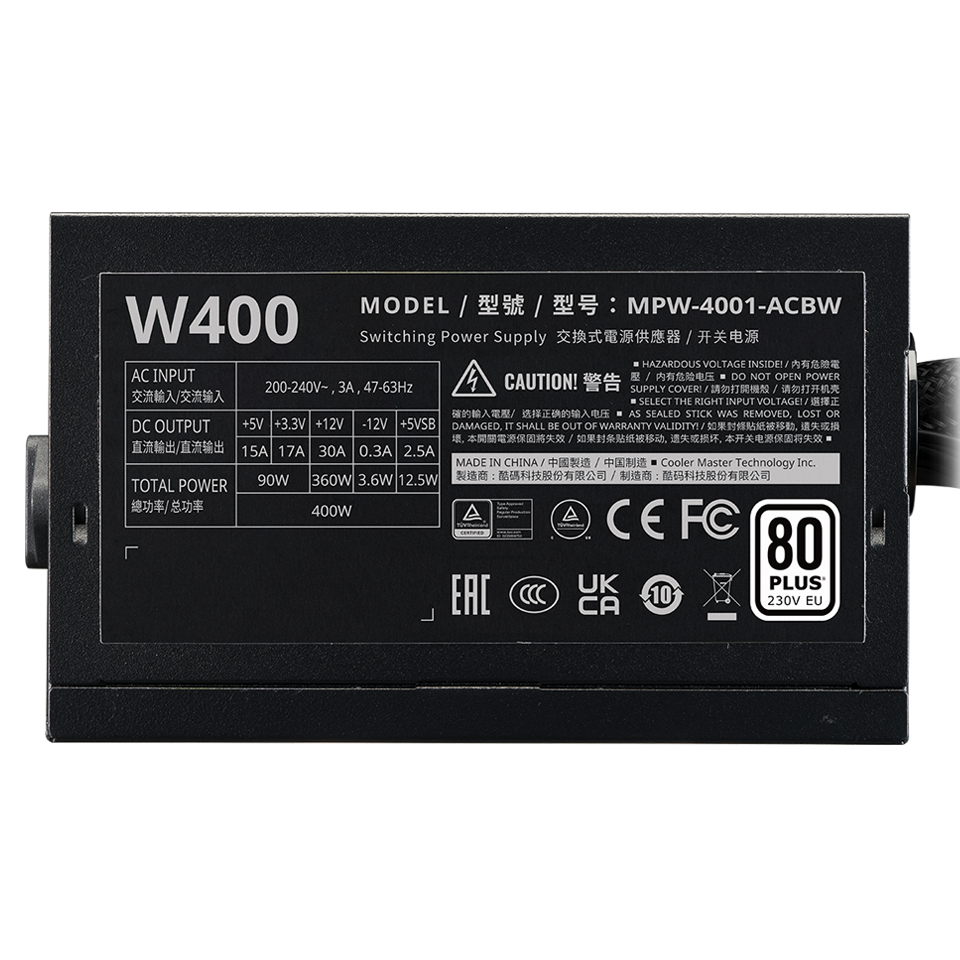

| Model | MPW-4001-ACBW-B |
| ATX Version | ATX 12V Ver. 2.41 |
| PFC | Active PFC |
| Input Voltage | 200-240V |
| Input Current | 3A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | Sleeve Fan |
| Efficiency | ≥ 85% @ Typical Load |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 500 ms |
| Hold Up Time | ≥10ms at 100% load |
| MTBF | >100,000 Hours |
| Protections | OVP / OPP / SCP / UVP / OTP / Inrush Protection |
| Regulatory | TUV, cTUVus, CE, FCC, CCC, EAC, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| SATA & Peripheral 4 Pin Connectors | 6 |
| PCI-e 6+2 Pin Connectors | 1 |
| Series | Elite Series |
| Category | Under 500W |
| Modular | Non Modular |
| 80 Plus Efficiency | White |
| Form Factor | ATX |
| Watts | 400W |
