Elite Liquid Series

Elite Liquid Series

The link to Elite Liquid Series has been copied

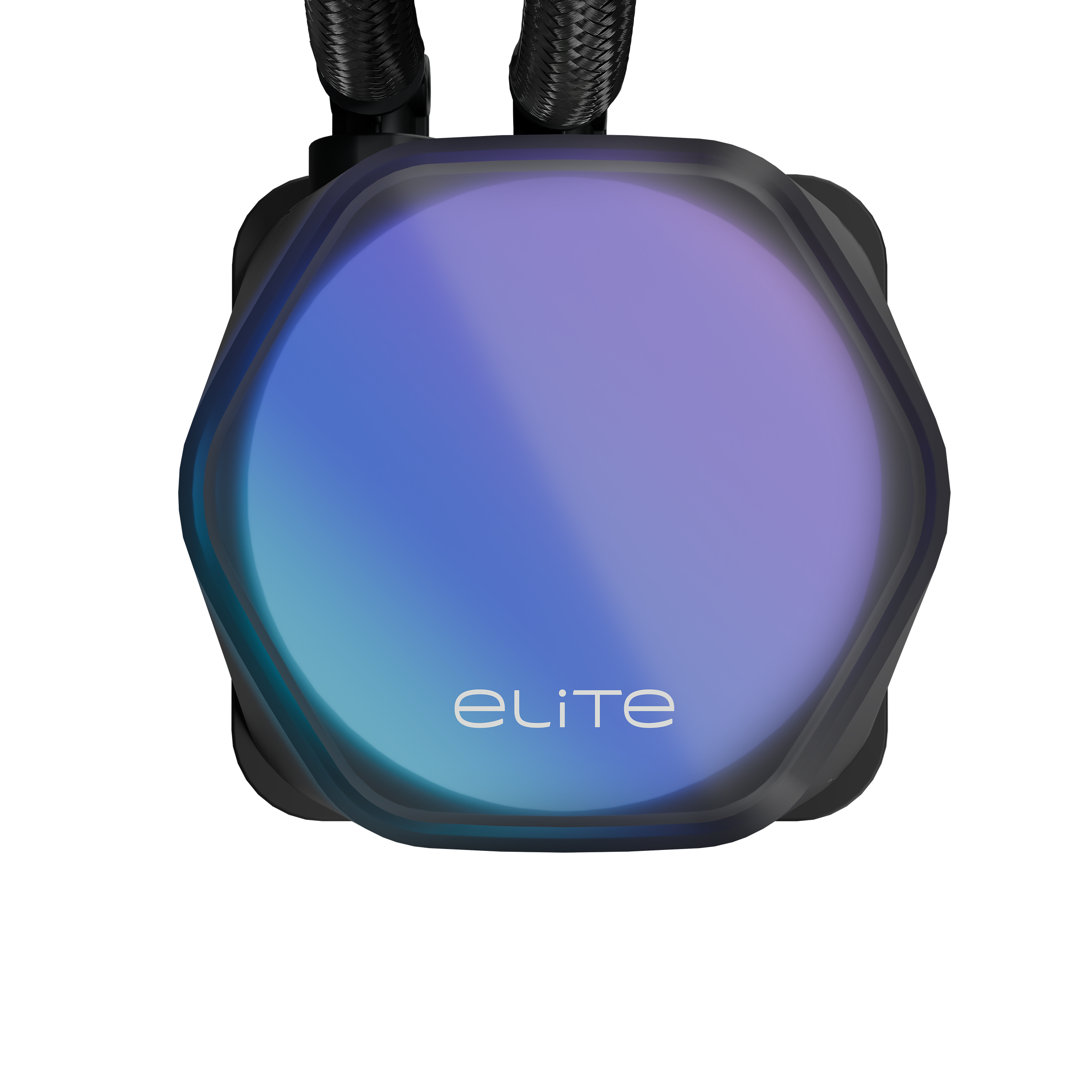

FLEXIBLE, CUSTOMIZABLE PUMP DESIGN​

FLEXIBLE, CUSTOMIZABLE PUMP DESIGN​

The tool-free, removable top cover offers unmatched flexibility, allowing you to adjust the internal logo orientation for personalized branding. With the ability to rotate the inner cap by 90 degrees, you can further tailor the appearance to your preference.

Additionally, the decorative caps provide an extra layer of customization, making it easy to showcase your unique logos and design choices. This versatile pump design ensures that every cooler is as distinctive as your brand.

QUICK AND EASY INSTALLATION​

QUICK AND EASY INSTALLATION​

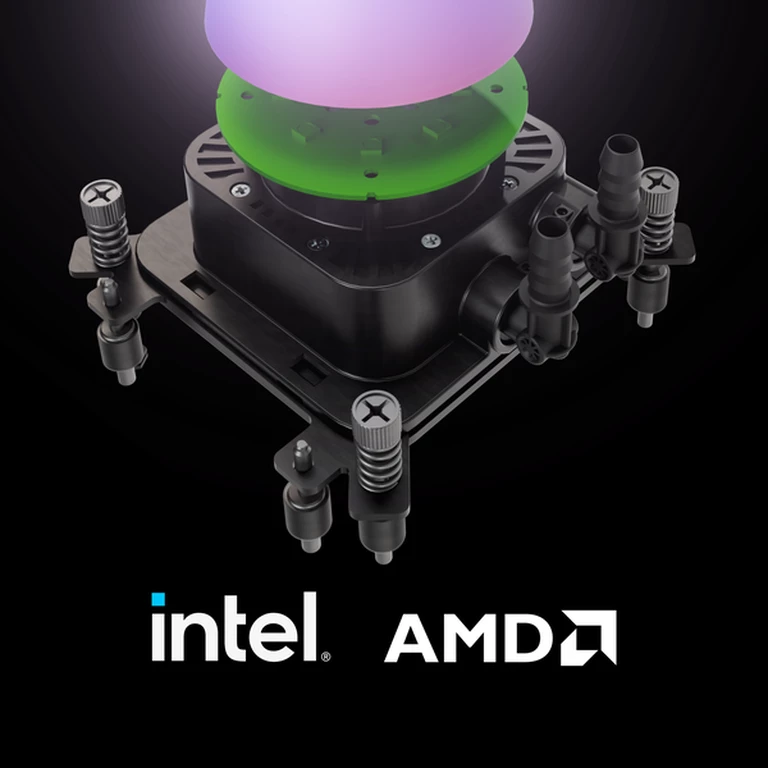

A unified mounting bracket comes pre-installed and supports both Intel and AMD sockets. The included fans further simplify setup, making installation fast and hassle-free.

Dual Chamber Pump​

The upgraded dual-chamber pump design delivers a more compact cooler without compromising on performance, ensuring optimal cooling efficiency.​

Extensive Tubing Length​

The 400 mm tubing length ensures effortless cooler installation in any orientation, offering flexibility and ease during setup.​

Revamped Fans​

The fan blades and revamped aesthetics provide optimized cooling and a fresh look.​

Pre-Applied Cryofuze ​ Thermal Paste​

Pre-applied thermal paste ensures a mess-free application and simplifies installation, making it ideal for those new to PC building by removing the guesswork of applying the correct amount.​

Product Name Elite Liquid
Product Number 360 Black: ELW-D36M-A21DA-R1, 360 White: ELW-D36M-A21DA-RW, 240 Black: ELW-D24M-A21DA-R1, 240 White: ELW-D24M-A21DA-RW
CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
CPU Socket AMD® AM5 / AM4 Socket
Radiator Material Aluminum
Radiator Dimensions 360: 394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)
Radiator Dimensions 240: 277 x 119.6 x 27.2 mm (10.9 x 4.71 x 1.1 inch)
Pump Dimensions 84.9 x 76.2 x 52.3 mm (3.3 x 3 x 2.1 inch)
Pump Profiles Addressable RGB
Pump Speed 3200±10% RPM
Pump MTTF >210,000 Hours
Pump Noise Level 25 dBA (Max)
Pump Rated Voltage 12 VDC
Fan Power Consumption 7.2 W
Pump Connector 3-Pin ARGB + 4-Pin PWM
Tube Length 400 mm
Fan Dimensions (L x W x H) 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
Fan LED Addressable RGB
Fan Quantity 360: 3 PCS
Fan Quantity 240: 2 PCS
Fan Speed 600~2100 RPM ±10%
Fan Airflow 142.8 m³/h(84.2 CFM) (Max)
Fan Air Pressure 2.71 mmH₂O (Max)
Fan MTTF >40,000 Hours
Fan Noise Level 39.5 dBA (Max)
Fan Bearing Type Rifle Bearing
Fan Connector 7-Pin PWM + ARGB
Fan Rated Voltage 12 VDC
Fan Rated Current 0.33 A
Fan Safety Current 0.42A
Fan Power Consumption 3.96 W
Warranty 3 years
Radiator Size 240
Radiator Size 360
Cooler Type Liquid Cooler
Series Elite Liquid
