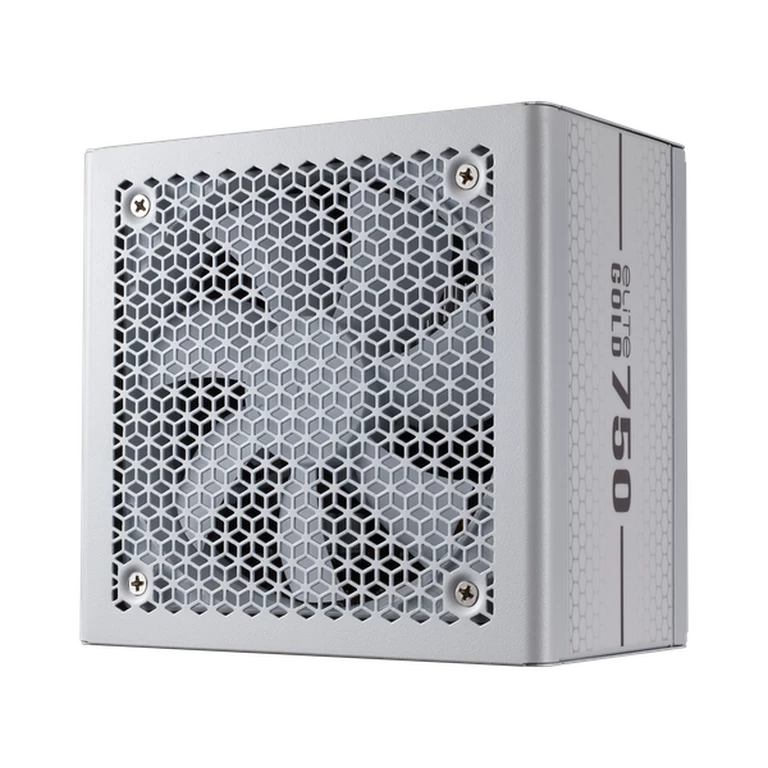

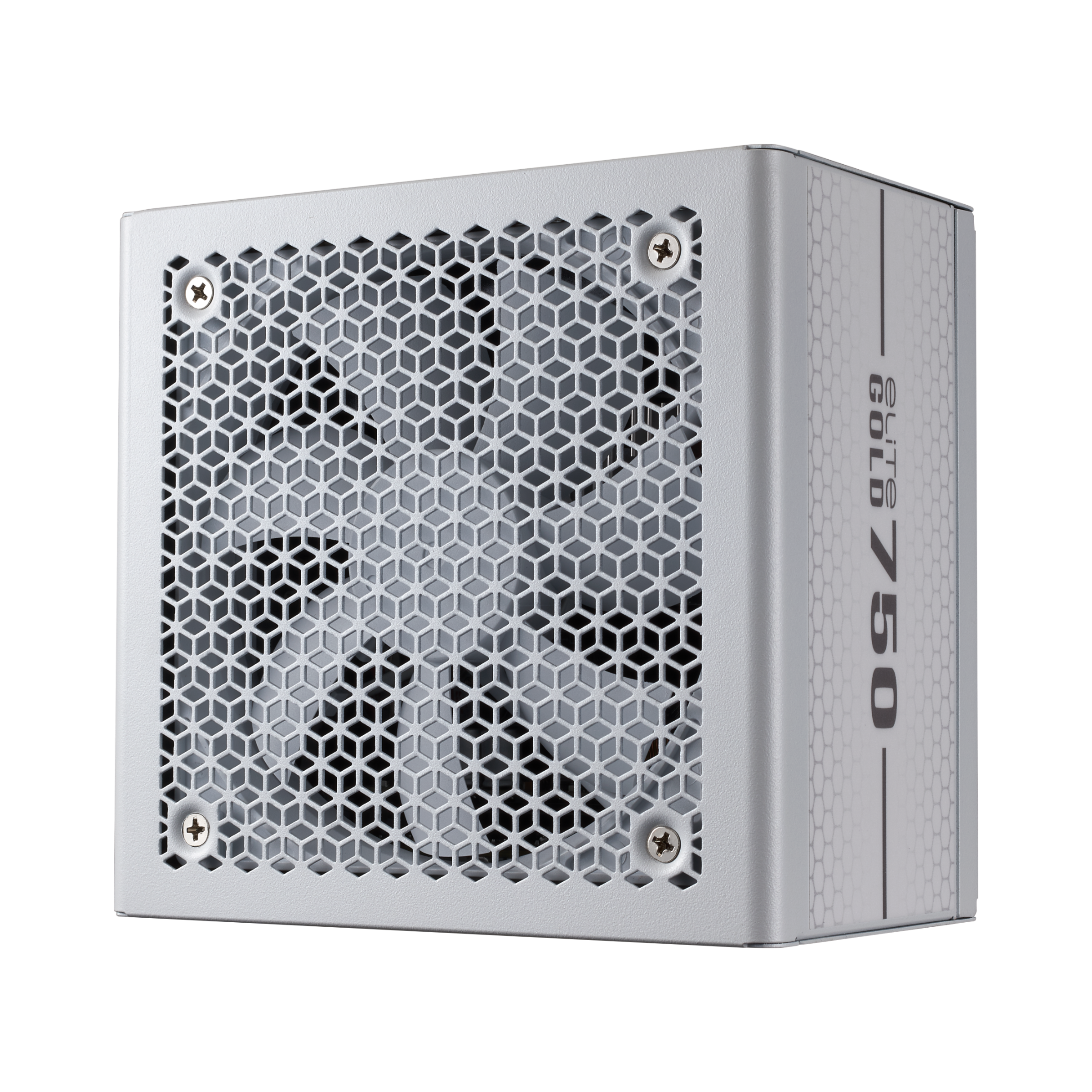

RIFLE BEARING FAN
The rifle bearing fan offers a longer lifespan while providing better noise reduction for consistent, reliable cooling.
*All performance stats confirmed in 25°C ambient temperature testing.
HIGH TEMPERATURE RESILIENCE
Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.
Compatible with ATX 3.1 and PCIe Gen 5.1
ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of its rated output, making the Elite Gold 750 ready for the latest and upcoming mid-range GPUs.
*All performance stats confirmed in 25°C ambient temperature testing.
80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 750 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.
*All performance stats confirmed in 25°C ambient temperature testing.
COMPACT FORM FACTOR
Unlike typical high-wattage PSUs that extend beyond 150mm, the Elite Gold’s compact design at 150mm or less ensures easy installation across a wide range of cases, making it ideal for space-conscious PC builds.

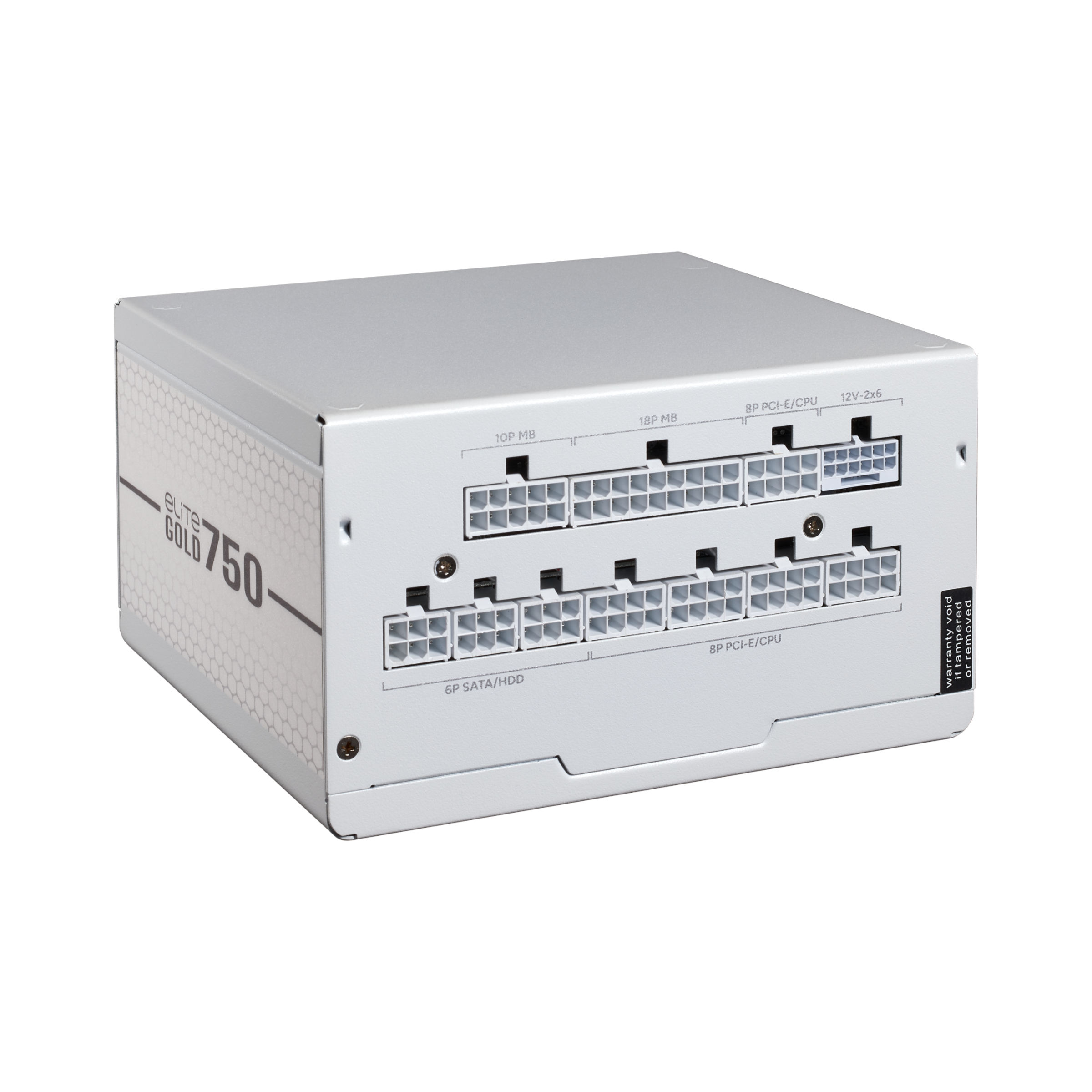

Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.
*All performance stats confirmed in 25°C ambient temperature testing.

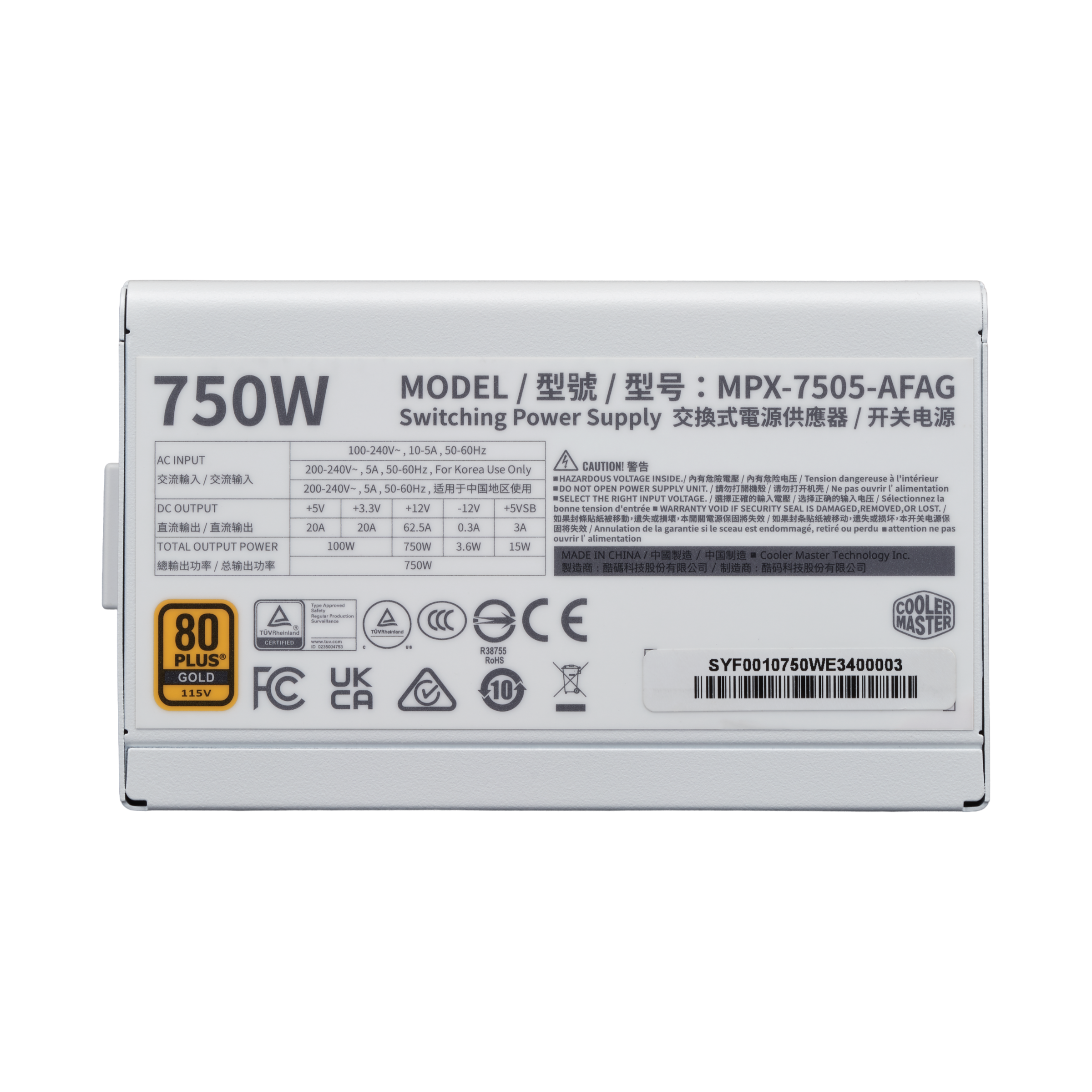

| Product Name | ELITE GOLD 750 WHITE EDITION |
| Model | MPX-7505-AFAG |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 5 ~ 10A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | Rifle bearing |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥ 11ms @ 100% Load |
| MTBF | >100,000 hours @ 25℃ ambient |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0 |
| ATX 24 Pin Connectors | x1 = 1 (550mm) |
| EPS 4+4 Pin / EPS 8 Pin Connectors | x2 = 1 (600+120mm) |
| SATA & Peripheral 4 Pin Connectors | X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm] |
| PCI-e 6+2 Pin Connectors | x2 = 1 (500+120mm) |
| 12+4 Pin Connectors | x1 = 1 (650mm) |
| Series | Elite Series |
| Form Factor | ATX |
| Watts | 750W |
| Modular | Fully Modular |
| 80 Plus Efficiency | Gold |
| Warranty | 10 Years |
