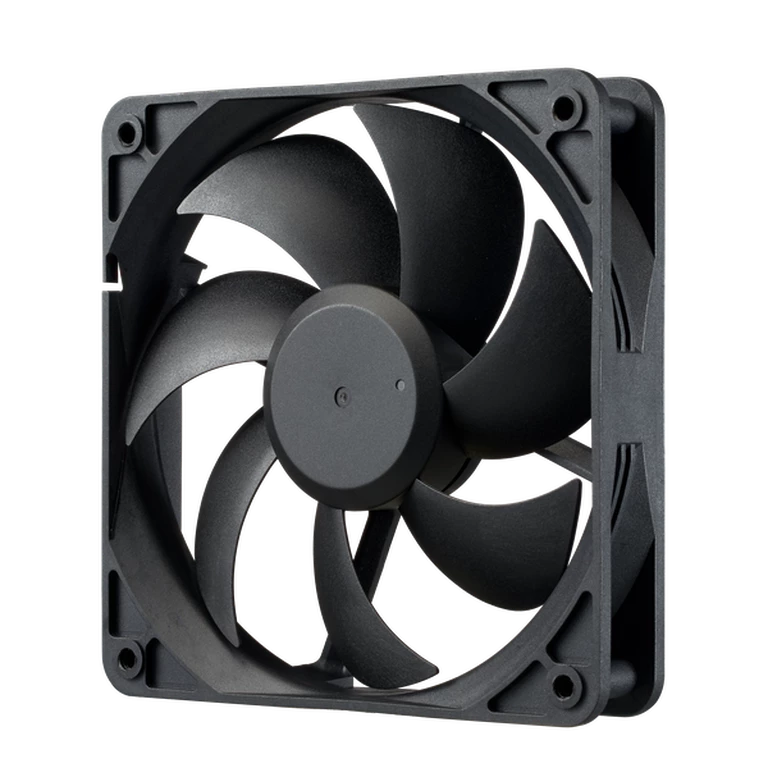

QUIET FDB FAN
The Fluid Dynamic Bearing (FDB) fan delivers stable, long-lasting, and whisper-quiet cooling performance.
*All performance stats confirmed in 25°C ambient temperature testing.
High Temperature Resilience
Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.
COMPATIBLE WITH ATX 3.1 AND PCIE GEN 5.1
ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of rated output. Elite Gold 1000 meets the full spec and supports PCIe Gen 5.1 for stable, next-gen performance with RTX 50 GPUs and future high-power cards.
*All performance stats confirmed in 25°C ambient temperature testing.
80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 1000 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.
*All performance stats confirmed in 25°C ambient temperature testing.

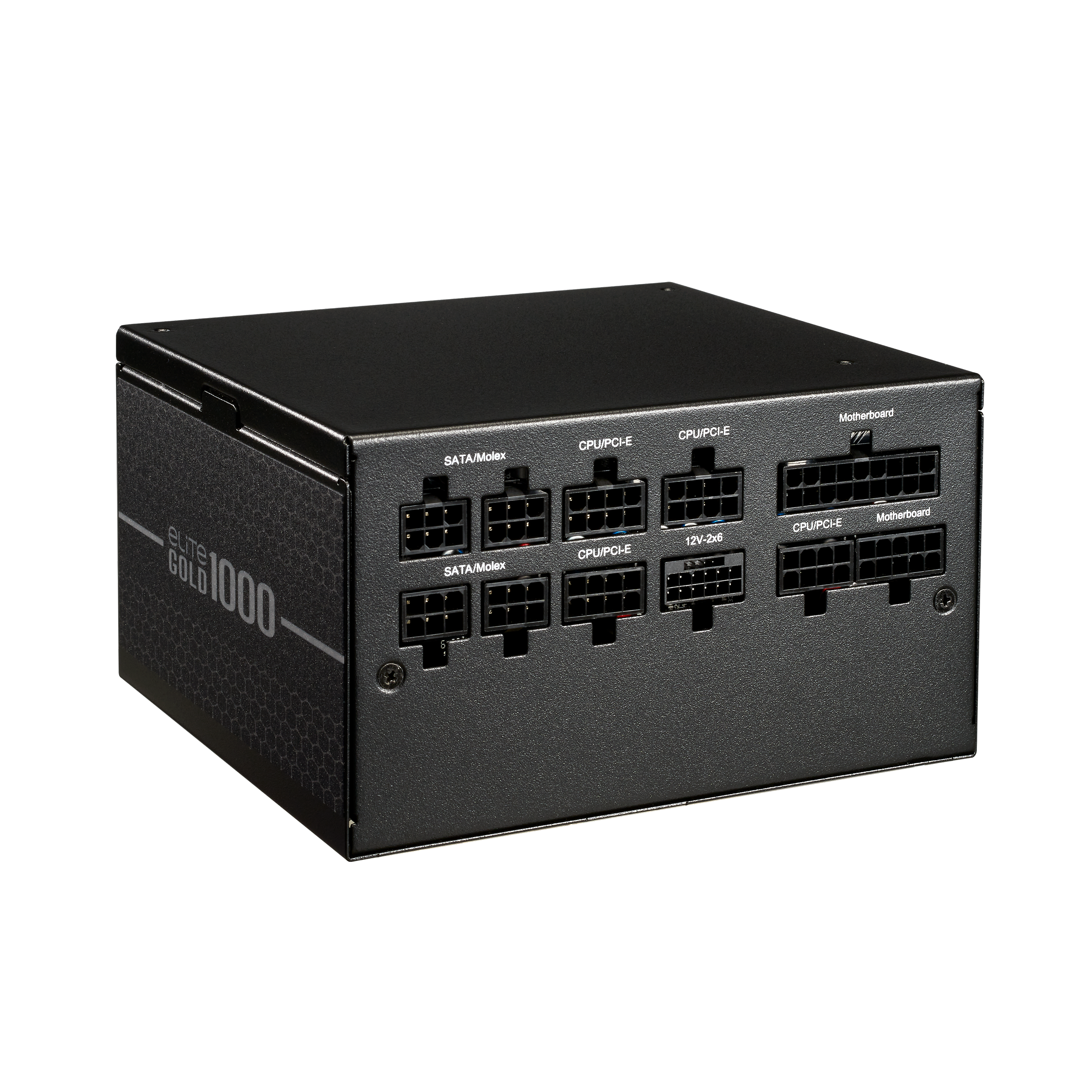

Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.
*All performance stats confirmed in 25°C ambient temperature testing.
| Product Name | ELITE GOLD 1000 |
| Model | MPW-A001-AFAG |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 6 ~ 12A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | FDB |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥16ms at 80% Load |
| MTBF | >100,000 hours @ 25℃ ambient |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH |
| ATX 24 Pin Connectors | x1 = 1 (600mm) |
| EPS 4+4 Pin Connectors | x2 = 2 (700mm) |
| SATA Connectors | x9 = 3 (500+100+100mm) |
| Peripheral 4 Pin Connectors | x3 = 1 (500+100+100mm) |
| PCI-e 6+2 Pin Connectors | x6 = 3 (550+120mm) |
| 12+4 Pin Connectors | x1 = 1 (600mm) |
| Series | Elite Series |
| Form Factor | ATX |
| Watts | 1000W |
| Modular | Fully Modular |
| 80 Plus Efficiency | Gold |
| Warranty | 10 Years |
