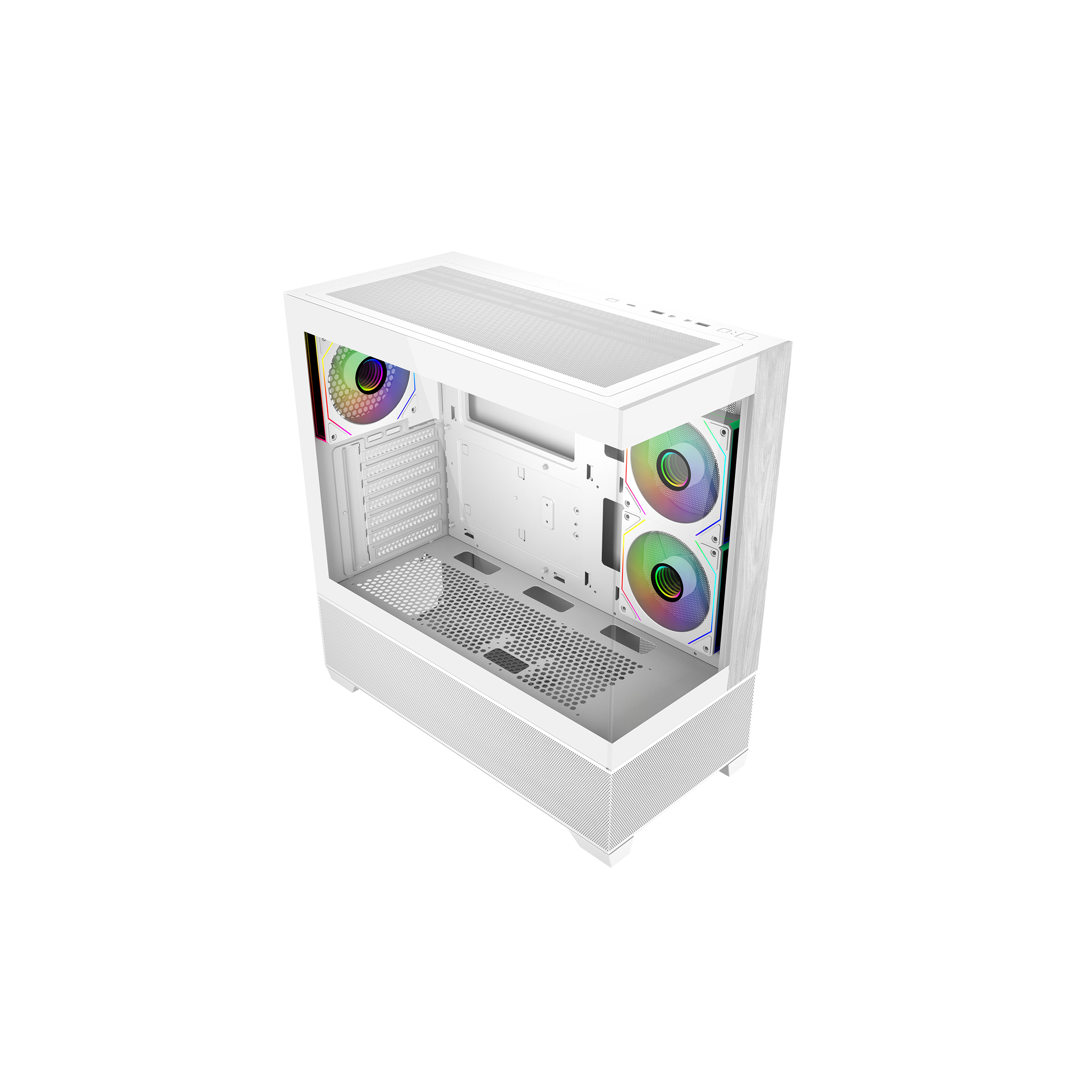

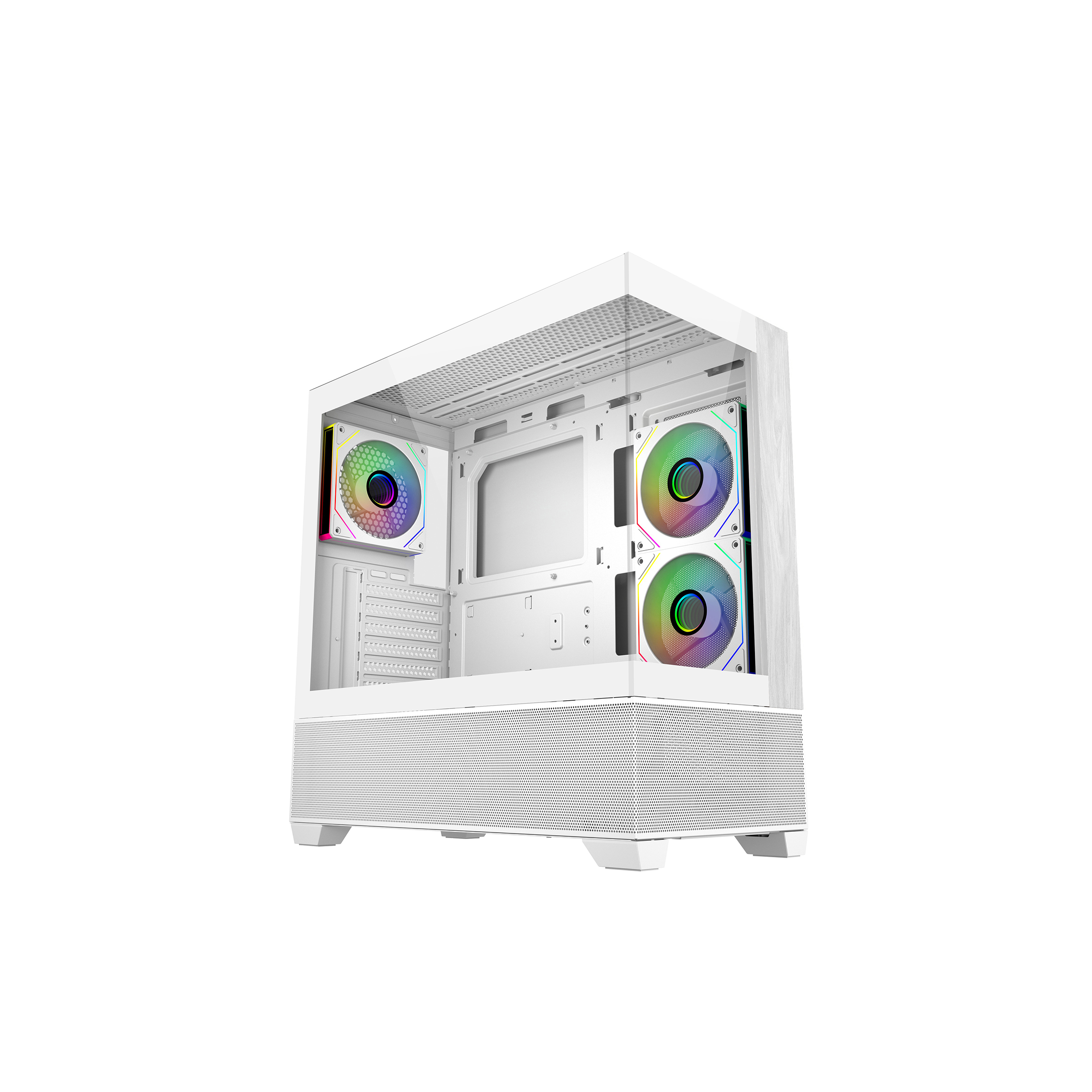

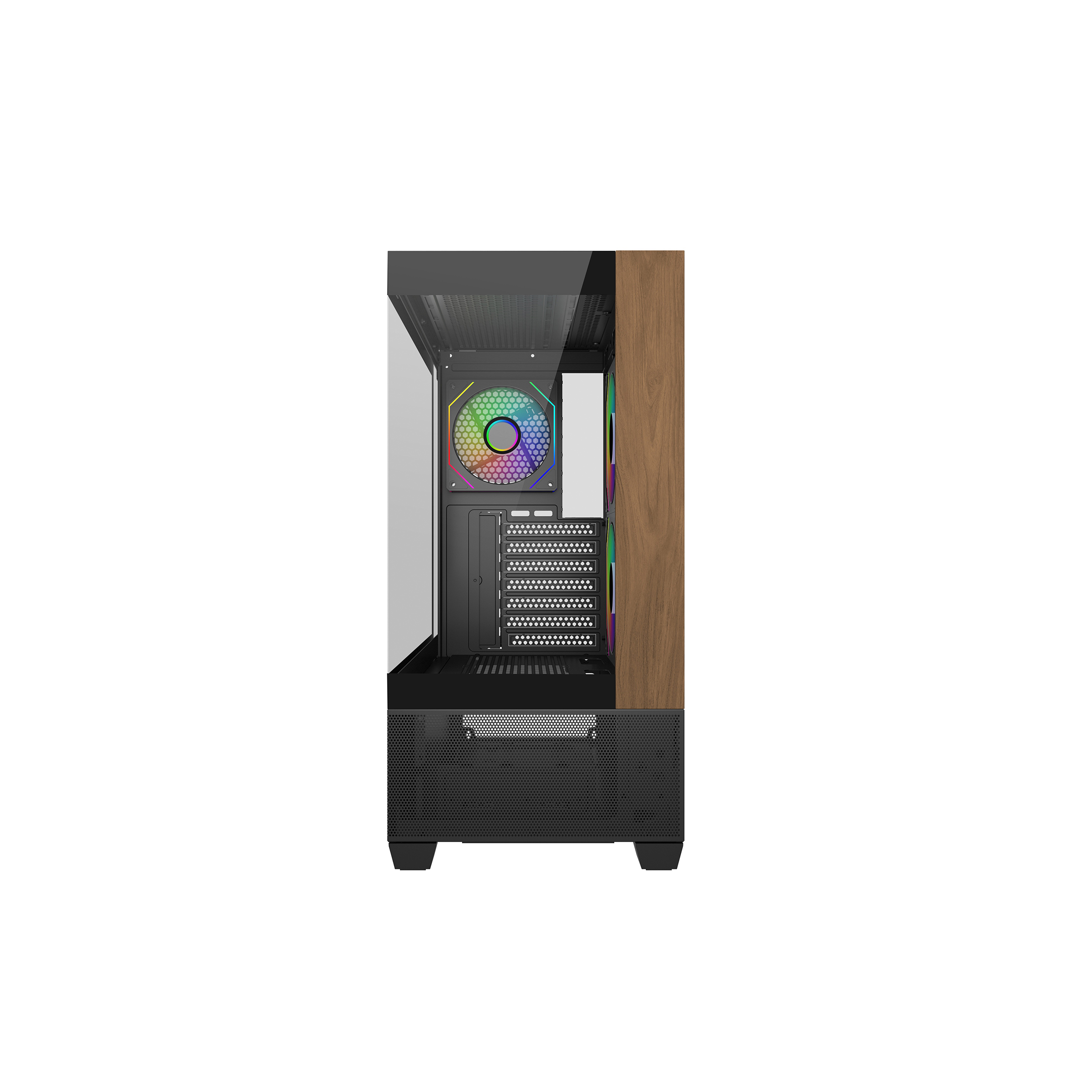

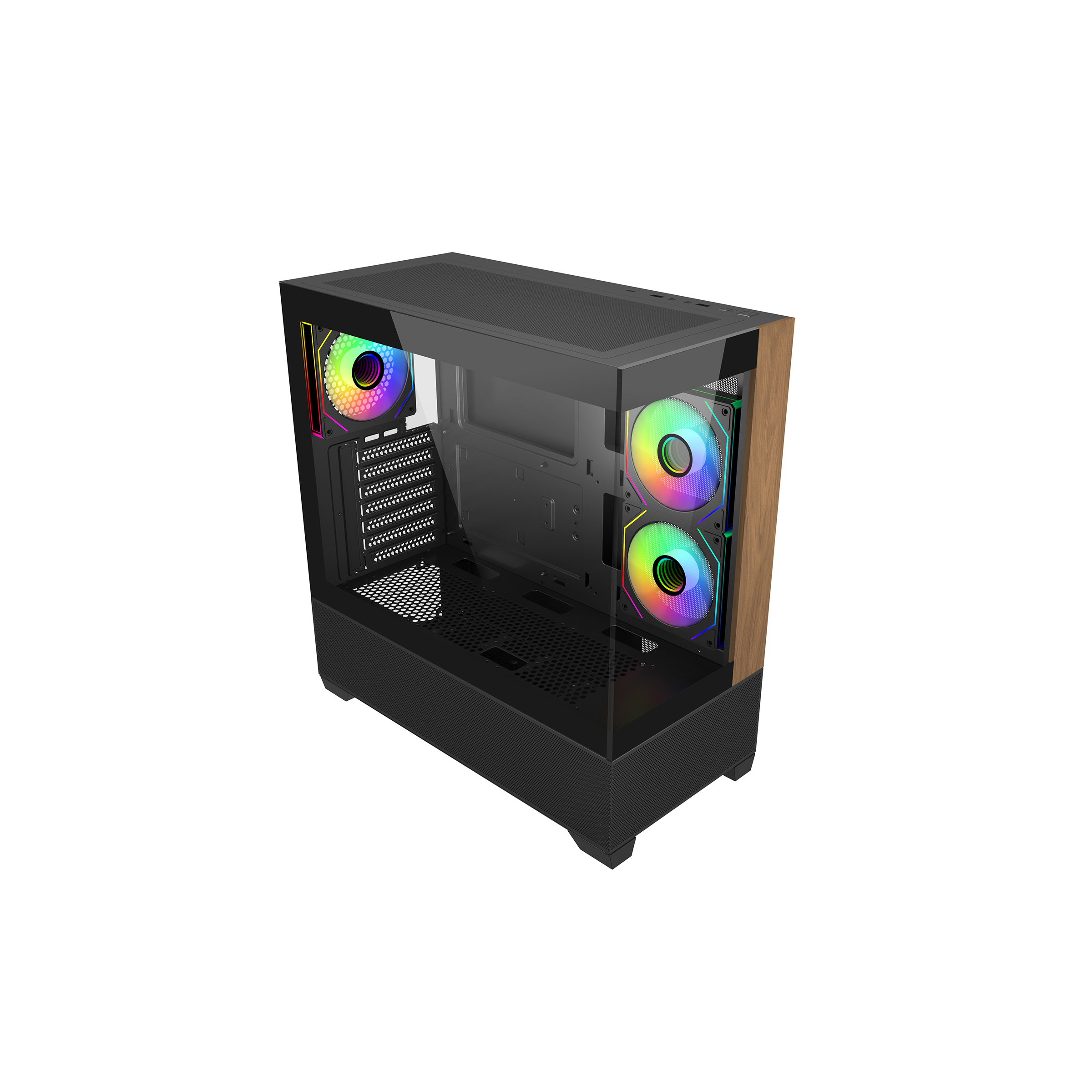

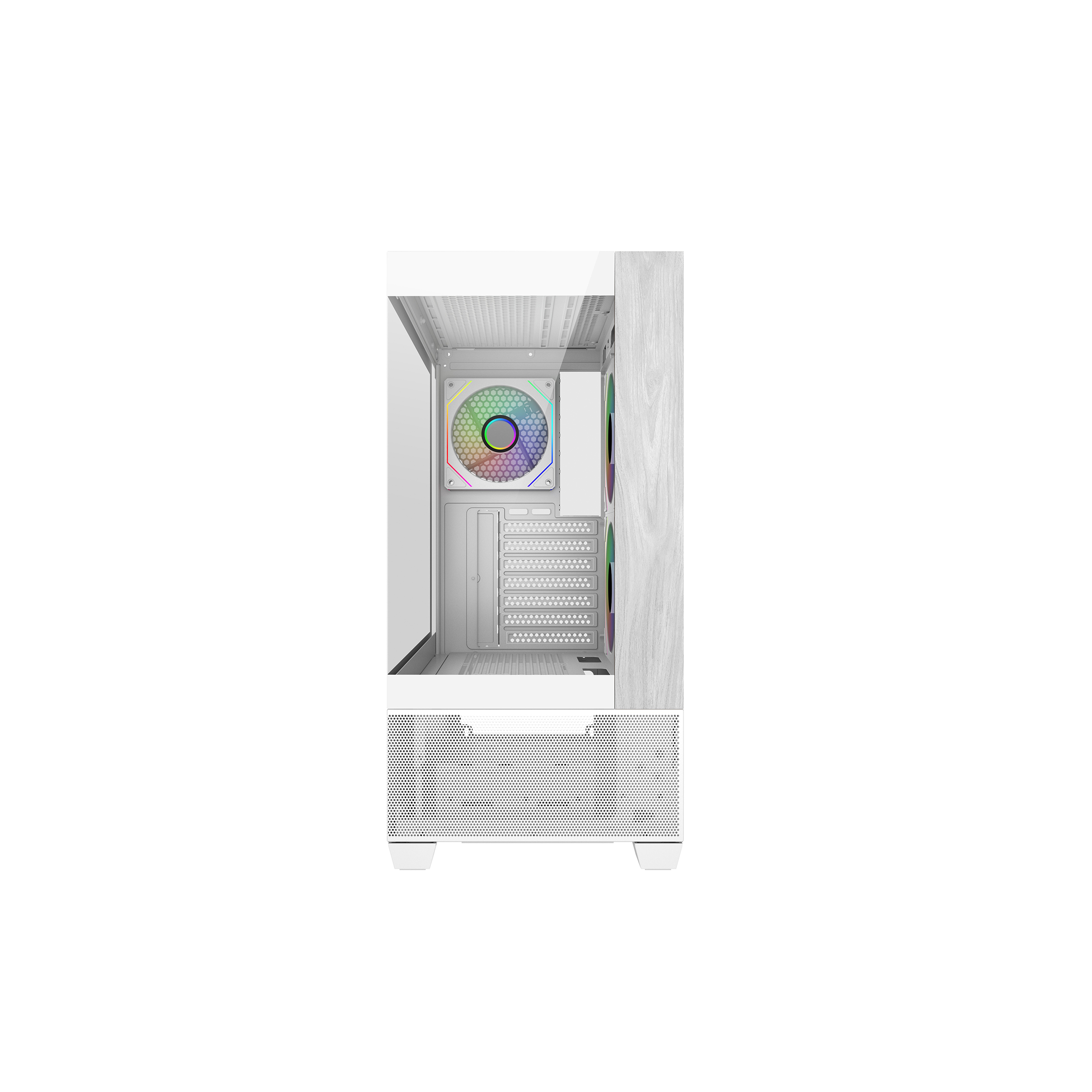

270° Panoramic Tempered Glass
Beveled glass panels create an immersive, seamless showcase of your build.
Optimized Tower with PSU Chamber
Vertical layout separates thermal zones for better airflow and cleaner cable routing.
Vertical Cooling Architecture
Up to 10 fans in a bottom-to-top layout maximize airflow and cooling.
Natural Wood Front Panel
Crafted from real wood, the front panel adds a warm, organic touch to any space.
High-Performance Radiator Support
Top 360mm and side 240mm radiator support for powerful cooling setups.
Pre-installed ARGB Fans with Sync
Includes 3 daisy-chainable ARGB fans with full motherboard lighting sync support.
Top & Bottom Mesh Ventilation
Mesh panels ensure enhanced airflow and system-wide thermal performance.
Next-Gen GPU Ready
Supports up to 425mm GPUs—ready for RTX 50 Series and beyond.
High-Speed I/O Panel
USB 3.2 Gen 2x2 Type-C and dual USB 3.0 ports for blazing-fast connectivity.
| Model Number | Black: E690-KHNN-S00, White: E690-WHNN-S00 |
| Color(s) | Black / White |
| Materials - Front Panel | Tempered Glass + Wood |
| Material - Side Panel (Left) | Tempered Glass |
| Material - Side Panel (Right) | Steel |
| Dimensions (L x W x H) | 434 x 218 x 454 mm (Incl. Protrusions), 430 x 218 x 435 mm (Excl. Protrusions) |
| Volume | 42.93 L (Liters Incl. Protrusions) |
| Motherboard Support | ITX / Micro-ATX / ATX |
| Expansion Slots | 7 |
| 5.25" Drive Bays | 0 |
| 3.5" Drive Bays | 1 (Max. 2) |
| 2.5" Drive Bays | 1 (Max. 2) |
| I/O Panel - USB Ports | 1 x USB Type C 20Gbps, 2 x USB 3.0 |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Pre-installed Fans - Rear | 1x 120mm ARGB PWM |
| Pre-installed Fans - Side Mount | 2x 120mm ARGB PWM reverse fan |
| Fan Support - Top | 2x 140mm / 3x 120mm |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Side Mount | 2x 120mm |
| Fan Support - Bottom | 3x 120mm |
| Radiator Support - Top | 120 / 240 / 360 (Max height 45mm) |
| Radiator Support - Bottom | 120 / 240 / 360mm |
| Radiator Support - Side Mount | 120 / 240mm |
| Clearance - CPU Cooler | 170mm |
| Clearance - PSU | 250mm |
| Clearance - Graphics Card | 425mm |
| Power Supply Support | ATX |
| Warranty | 2 years |
| Size | Mid Tower |
| Series | Elite Series |
