Back-Connected Motherboard Support
Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management.

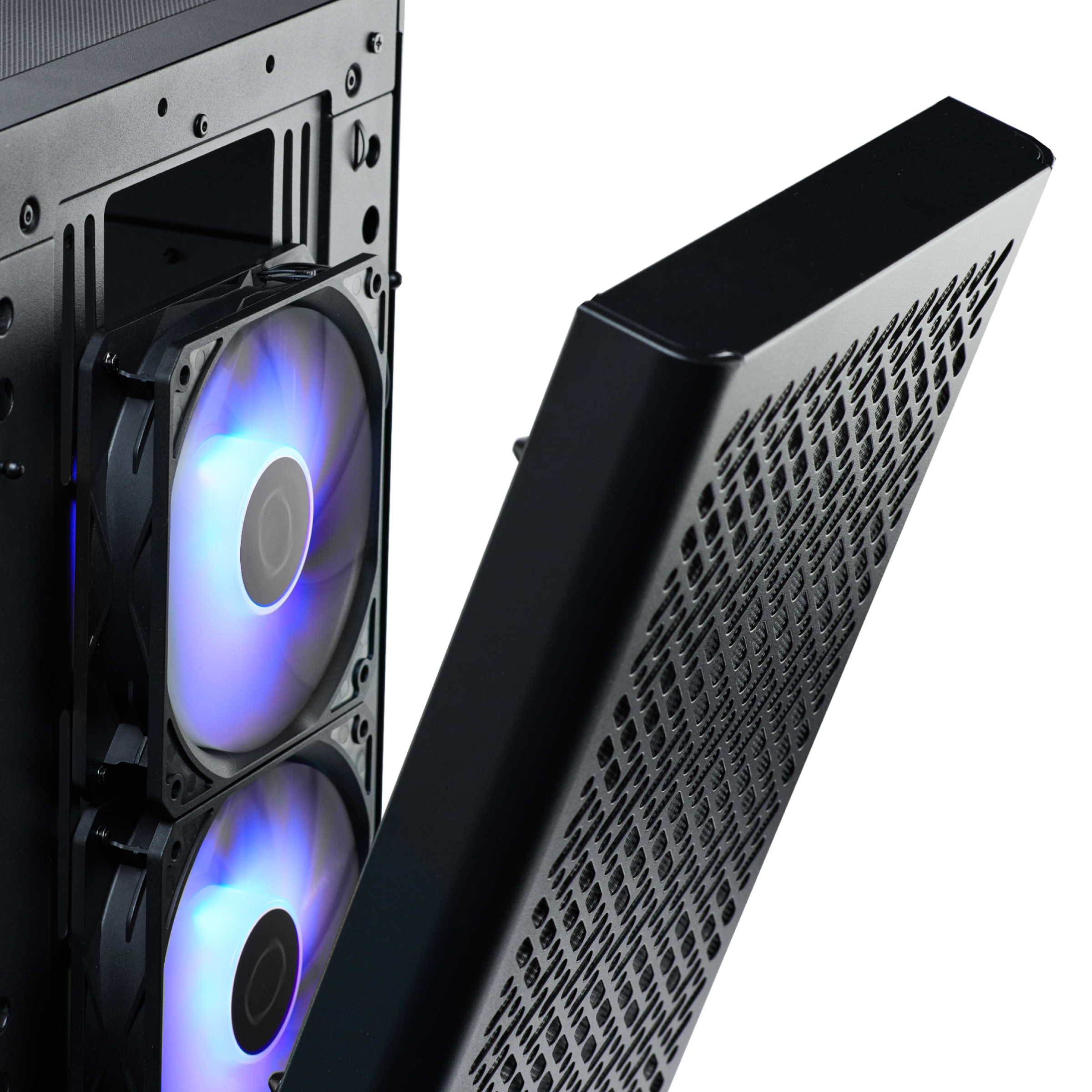

Optimized Airflow
Equipped with three 120mm ARGB fans, it offers stable cooling performance while adding stunning lighting effects to your build.

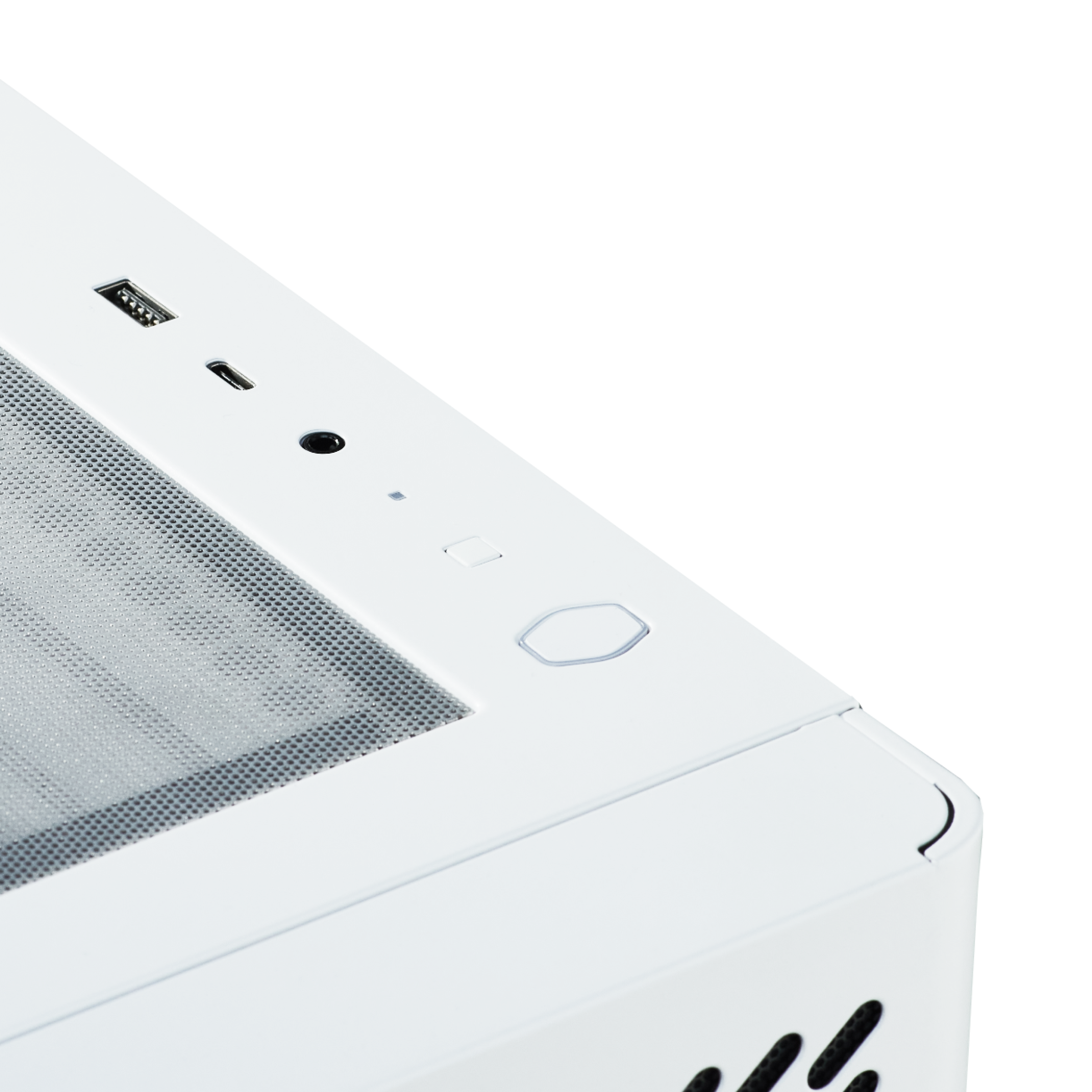

USB Type-C Upgrade
USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
Room For Updates
Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades.
Versatile Thermal Options
Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance.

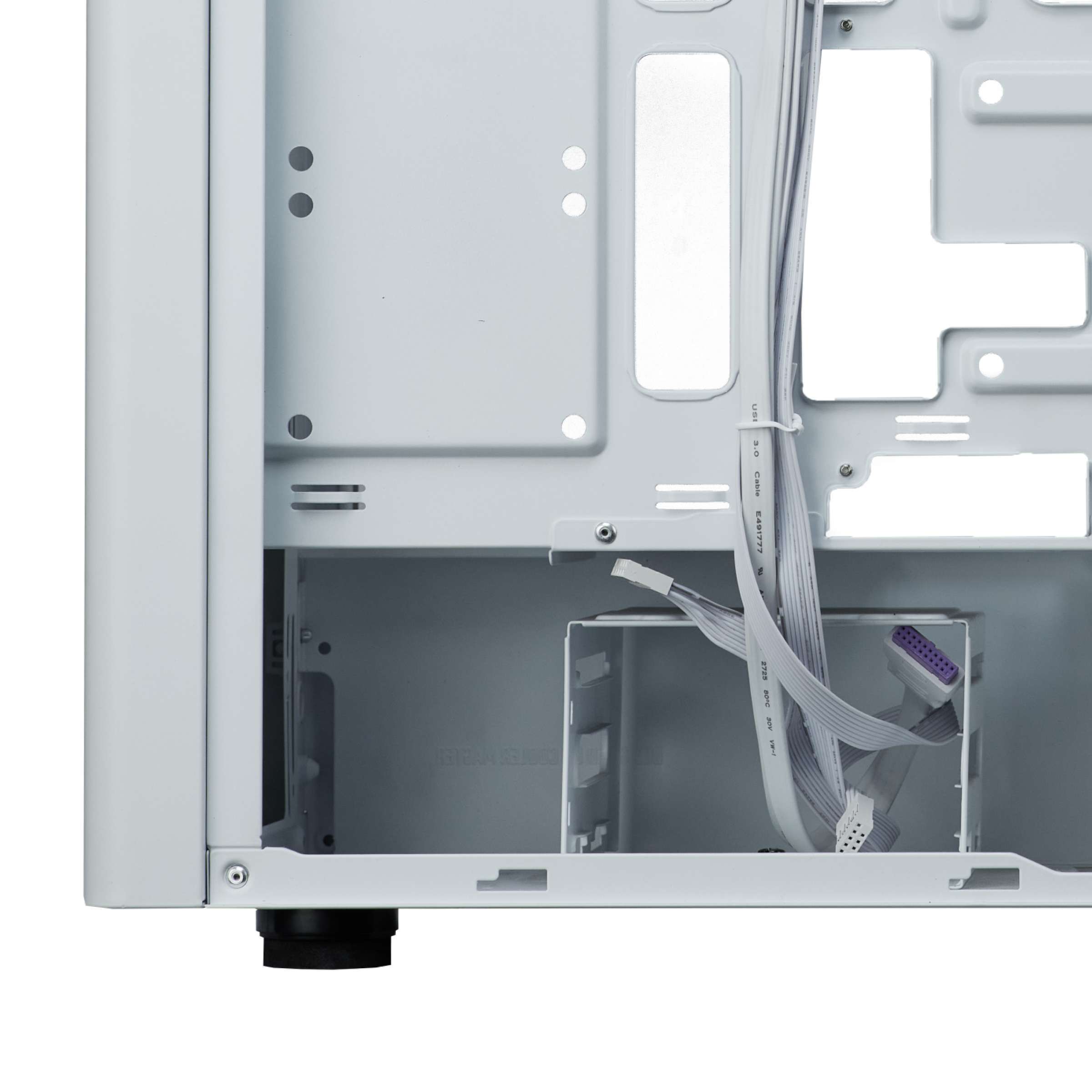

Removable HDD Cage
The HDD cage is completely removable, providing better access during assembly and system upgrades.
| Product Name | ELITE 502 |
| Product Name | ELITE 502 White |
| Model Number | ELITE 502: E502-KGNN-S00 |
| Model Number | ELITE 502 White: E502-WGNN-S00 |
| Color(s) | ELITE 502: Black / ELITE 502 White: White |
| Materials - Exterior | Steel |
| Materials - Right Side Panel | Steel |
| Materials - Left Side Panel | TG |
| Dimensions (L x W x H) | 474 x 230 x 481 mm (Incl. Protrusions), 435 x 230 x 465 mm (Excl. Protrusions) |
| Volume (incl. Protrusions) | 49.73 L |
| Motherboard Support | ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm motherboards, may impact cable management) |
| Expansion Slots | 7 |
| 5.25" Drive Bays | N/A |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 (Max.6) |
| I/O Panel - USB Ports | 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C |
| I/O Panel - Audio In / Out | 3.5 mm Combo x 1 |
| Fan Support - Front | (Filtered) 140 mm x 3 / 120 mm x 3 |
| Fan Support - Top | (Filtered) 140 mm x 2 / 120 mm x 3 |
| Fan Support - Rear | 1x 120mm |
| Pre-installed Fans - Front | 3x 120mm ARGB Fans |
| Pre-installed Fans - Top | N/A |
| Pre-installed Fans - Rear | N/A |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm) |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 170mm |
| Clearance - PSU | 170 / 210mm (w/o HDD Cage) |
| Clearance - Graphics Card (installed 3.5"HDD BRK) | 360 / 410 mm (w/o front radiator) |
| Cable Routing - Behind Motherboard Tray | 33-35 mm |
| Dust Filters | Top, Front, Bottom |
| Power Supply Support | ATX |
| Warranty | 2 years |
| Series | Elite Series |
| Size | Mid Tower |
